The series of flexible solar panels has high conversion efficiency and can be bent to a 30-degree arc without damage. With these two important features, the flexible solar panels can be applied to more irregular surface applications, such as RVs, Boats, Cars, Marines, campers, and Vans. A standard monocrystalline or polycrystalline solar panel is made up of solar cells based on silicon wafers, which are typically up to 200 micrometers thick (slightly thicker than a human hair). In order to make a "flexible" solar panel, those silicon wafers used to fabricate solar cells must be cut into tens of microns in thickness. Solar cells based on these ultra-thin silicon wafers combined with polymer laminate sheets give solar panels many unique properties, including being flexible, durable, portable, and highly efficient.

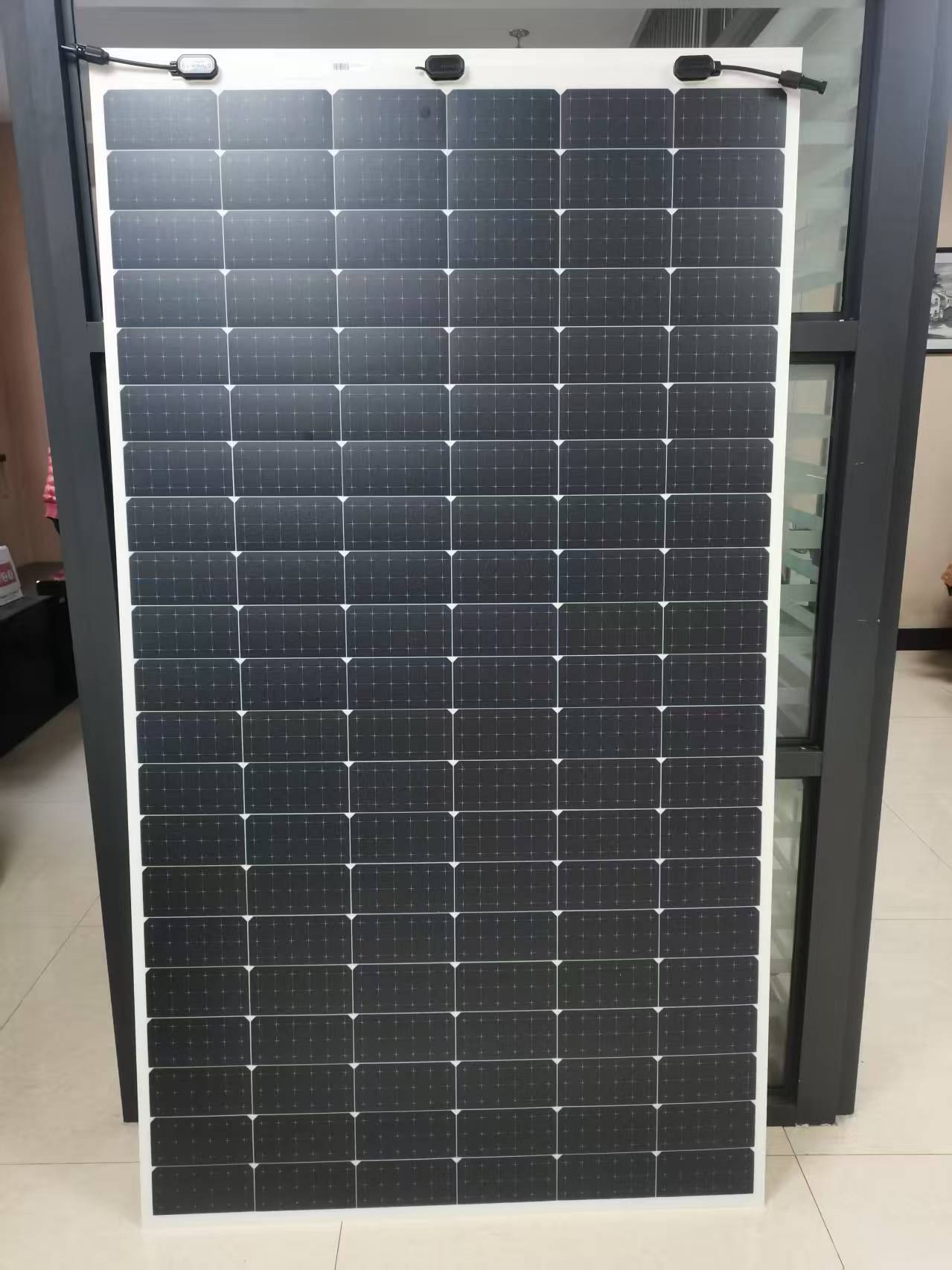

The 520W flexible solar panel is a powerful and versatile "mobile power station" ideal for users seeking mobility, portability, and specialized installation needs. Whether you're an RV traveler, an outdoor enthusiast, or someone who needs emergency backup power for their home, it's an excellent choice.
Mechanical Characteristics

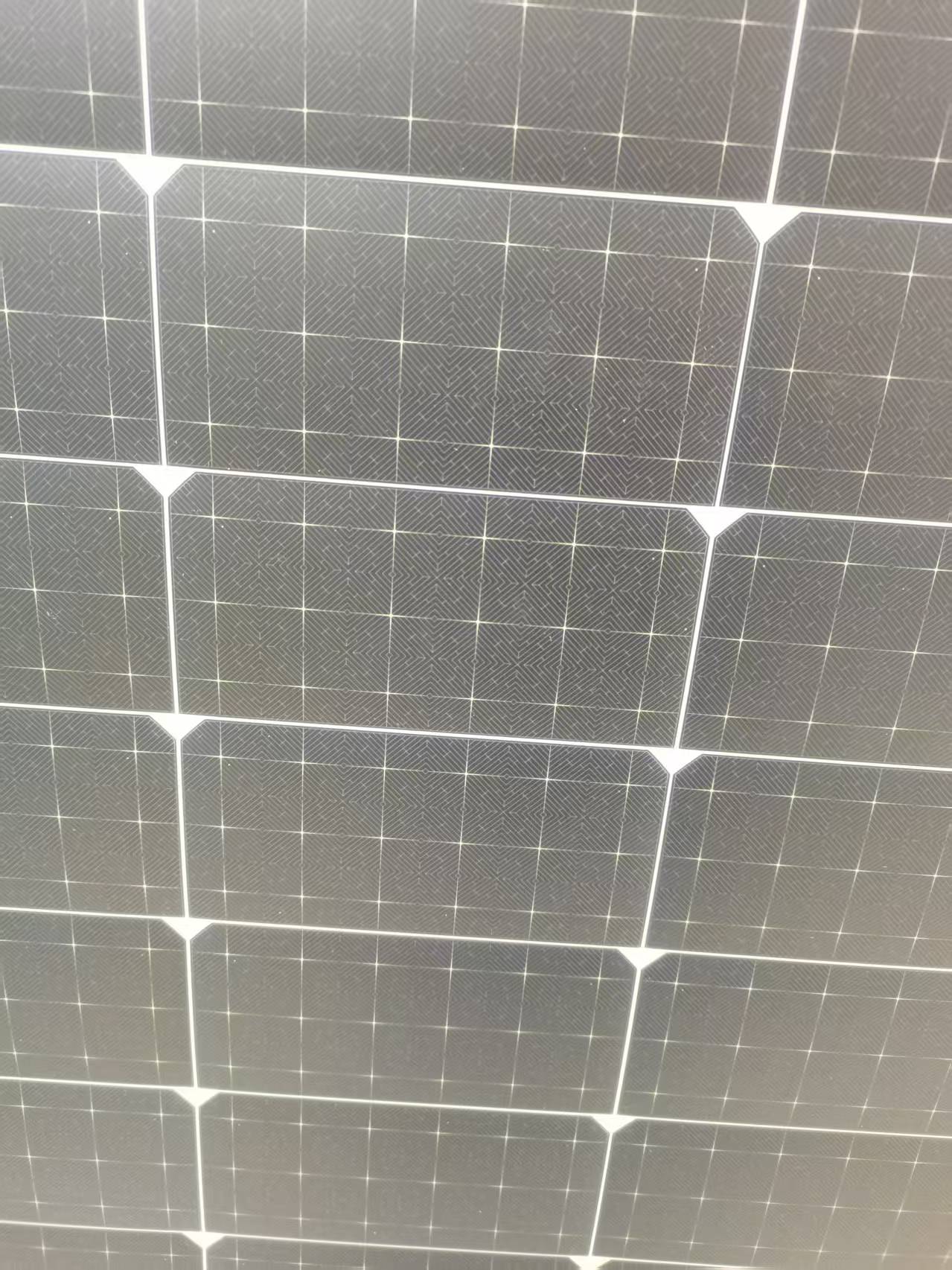

Solar Cell
Monocrystalline silicon (182mm half cell)
No. of Cells
144 (12×12)

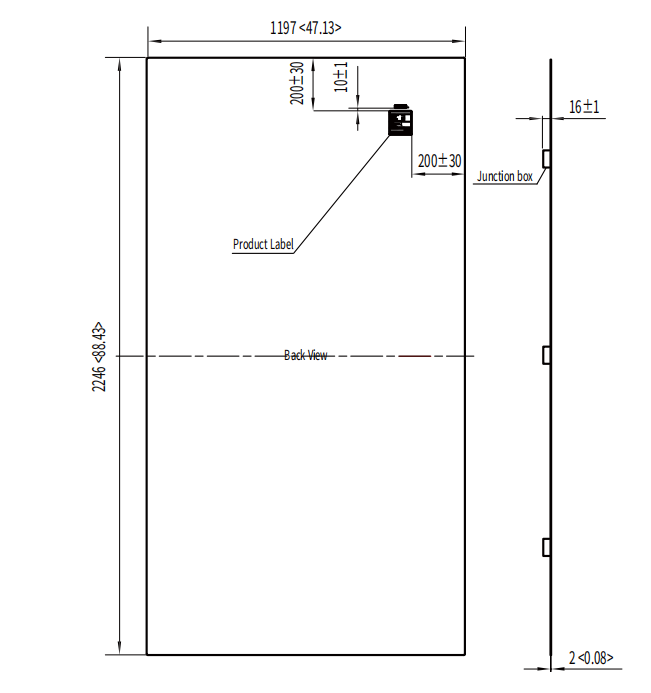

Module Dimensions
2246×1197×2 mm
Weight
7.7kg ±3%
Backsheet
White
Frame
Frameless
J-box
IP 68 rated
Output Cables
Photovoltaic technology cable 4.0 mm², (+)450 / (-)450 mm

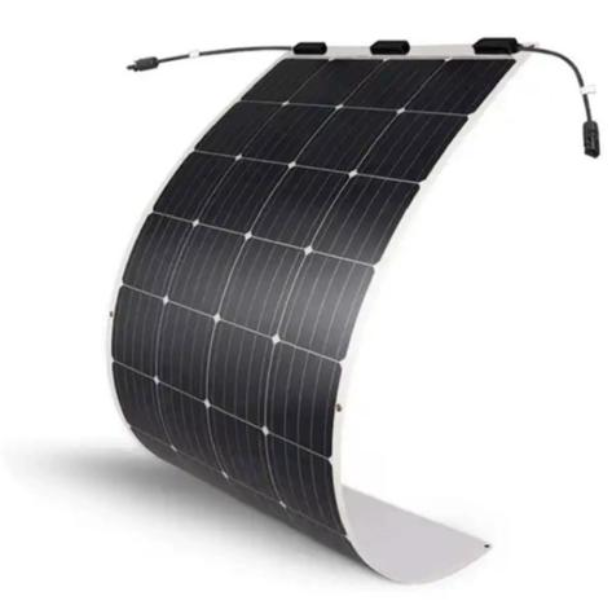

Unlike standard panels, the silicon wafers used in these flexible cells are sliced down to tens of microns in thickness. When combined with a protective polymer laminate sheet, they achieve lightweight durability and can flex up to a 30-degree arc.
Where is the 520W flexible solar panel best applied?
Due to its bendability and slim design, it is ideal for installation on irregular and curved surfaces, such as those found on RVs, boats, cars, campers, vans, and marine vessels.
What are the physical dimensions and weight of the module?
The module has dimensions of 2246×1197×2 mm and a total weight of 7.7kg (±3%), making it lightweight and highly portable for mobile power configurations.
What certifications do these flexible solar panels have?
These panels are certified to international standards including IEC61215, IEC61730, ISO9001 (Quality Management), ISO14001 (Environmental Management), ISO45001 (Occupational Health & Safety), and IEC62941 (PV Modules Quality System).
What warranty is included with this product?
The flexible solar panel comes with a comprehensive 12-Year Product Warranty and a 25-Year Linear Power Warranty, ensuring long-term performance and reliability.
