High Capacity 300kw 500kw 600kw on Grid Solar Power System Panels

1 / 5

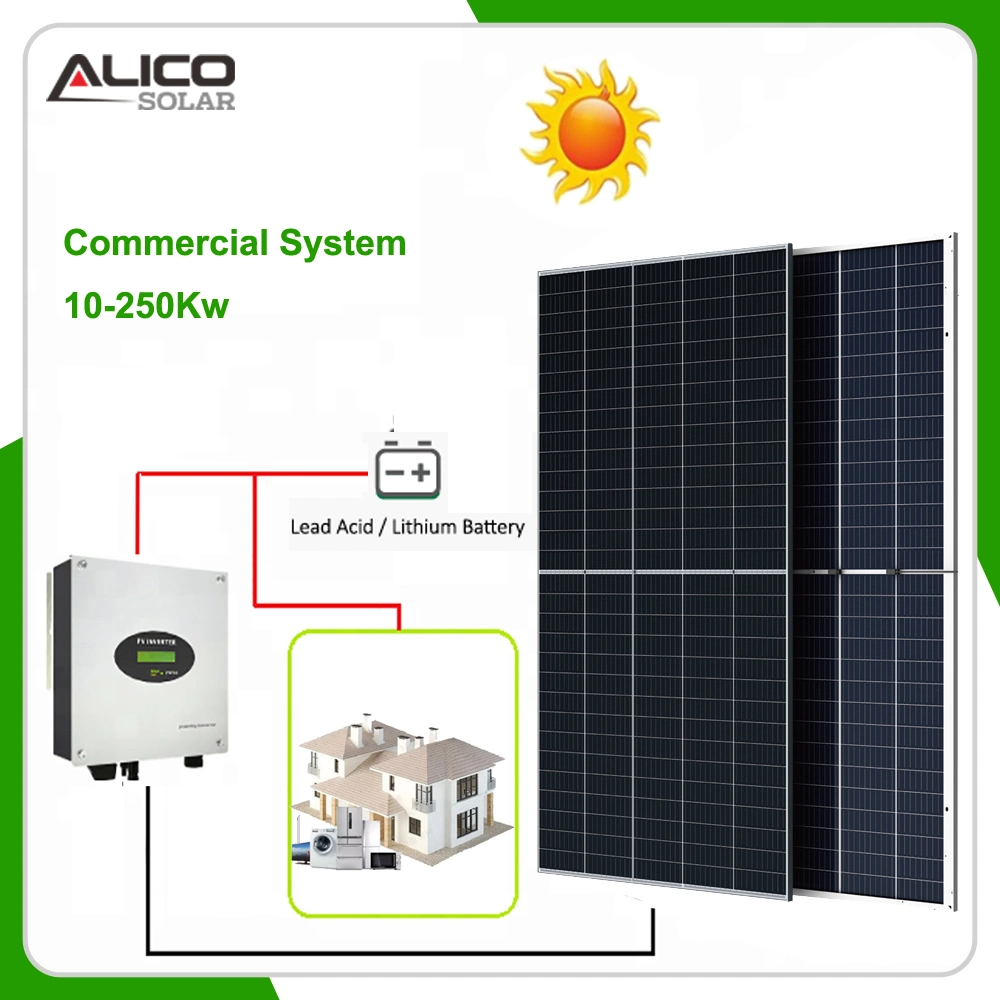

High Capacity 300kw 500kw 600kw on Grid Solar Power System Panels

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview
Product Parameters
Projects Shown

Basic Info.

Model NO.

on grid system

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off-Grid Inverter

System Type

Home Solar Power System

Transport Package

Carton/Wooden Box

HS Code

8501610000

Production Capacity

4500sets Per Month

Product Description

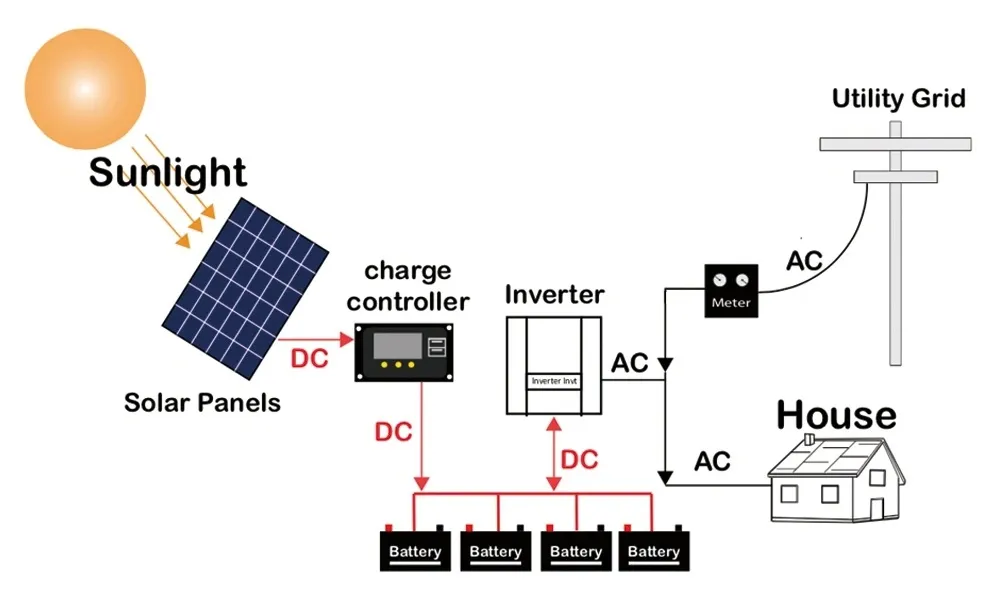

High Capacity on Grid Solar Power System Panels

Product Parameters

1~5KW on grid solar system configurations:

Components	1KW-ON	2KW-ON	3KW-ON	4KW-ON	5KW-ON
410W Solar Panel	3 Piece	5 Piece	8 Piece	10 Piece	14 Piece
DC Isolation Switch	1 Set	1 Set	1 Set	2 Set	2 Set
Grid Tied Inverter	1KW	2KW	3KW	4KW	5KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	100 Meters	100 Meters	100 Meters	200 Meters	200 Meters
MC4 Connector	10 Piece	10 Piece	10 Piece	10 Piece	10 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set	1 Set

6~10KW on grid solar system configurations:

Components	6KW-ON	7KW-ON	8KW-ON	9KW-ON	10KW-ON
280W Solar Panel	22 Piece	28 Piece	32 Piece	36 Piece	40 Piece
DC Isolation Switch	2 Set	3 Set	3 Set	3 Set	3 Set
Grid Tied Inverter	6KW	7KW	8KW	9KW	10KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	200 Meters	300 Meters	300 Meters	300 Meters	300 Meters
MC4 Connector	10 Piece	15 Piece	15 Piece	15 Piece	15 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set	1 Set

12~25KW On grid solar system configurations:

Components	12KW-ON	15KW-ON	SP20KW-ON	25KW-ON
410W Solar Panel	30 Piece	38 Piece	51 Piece	64 Piece
DC Isolation Switch	2 Set	2 Set	3 Set	4 Set
Grid Tied Inverter	12KW	15KW	20KW	25KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	200 Meters	200 Meters	300 Meters	400 Meters
MC4 Connector	20 Piece	20 Piece	20 Piece	20 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set

30~70KW On grid solar system configurations:

Components	30KW-ON	40KW-ON	50KW-ON	60KW-ON	70KW-ON
410W Solar Panel	75 Piece	102 Piece	128 Piece	150 Piece	176 Piece
DC Isolation Switch	5 Set	6 Set	8 Set	10 Set	11 Set
Grid Tied Inverter	30KW	40KW	50KW	60KW	70KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	500 Meters	600 Meters	800 Meters	1000 Meters	1100 Meters
MC4 Connector	40 Piece	50 Piece	60 Piece	70 Piece	80 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set	1 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

80~200KW On grid solar system configurations:

Components	80KW-ON	SP100KW-ON	SP150KW-ON	200KW-ON
410W Solar Panel	204 Piece	256 Piece	384 Piece	512 Piece
DC Isolation Switch	12 Set	16 Set	24 Set	32 Set
Grid Tied Inverter	80KW	50KW*2	50KW*3	50KW*4
AC Isolation Switch	1 Set	2 Set	3 Set	4 Set
DC Cable 4mm2	1200 Meters	1600 Meters	2400 Meters	3200 Meter
MC4 Connector	50 Piece	80 Piece	100 Piece	120 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set

250KW~1MW On grid solar system configurations:

Components	250KW-ON	300KW-ON	400KW-ON	500KW-ON	1MW-ON
410W Solar Panel	640 Piece	800 Piece	1024 Piece	1280 Piece	2560 Piece
DC Isolation Switch	40 Set	50 Set	64 Set	80 Set	160 Set
Grid Tied Inverter	50KW*5	60KW*5	50KW*8	50KW*10	50KW*20
AC Isolation Switch	5 Set	5 Set	8 Set	10 Set	20 Set
DC Cable 4mm2	4000 Meters	5000 Meters	6400 Meters	8000 Meter	16000 Meter
MC4 Connector	400 Piece	500 Piece	600 Piece	800 Piece	1600 Piece
Mounting System	Customized	Customized	Customized	Customized	Customized
PV Tools	1 Set	1 Set	1 Set	1 Set	1 Set

1. Solar Panel	2. Off Grid Inverter	3. Switch Box	4. Power Meter

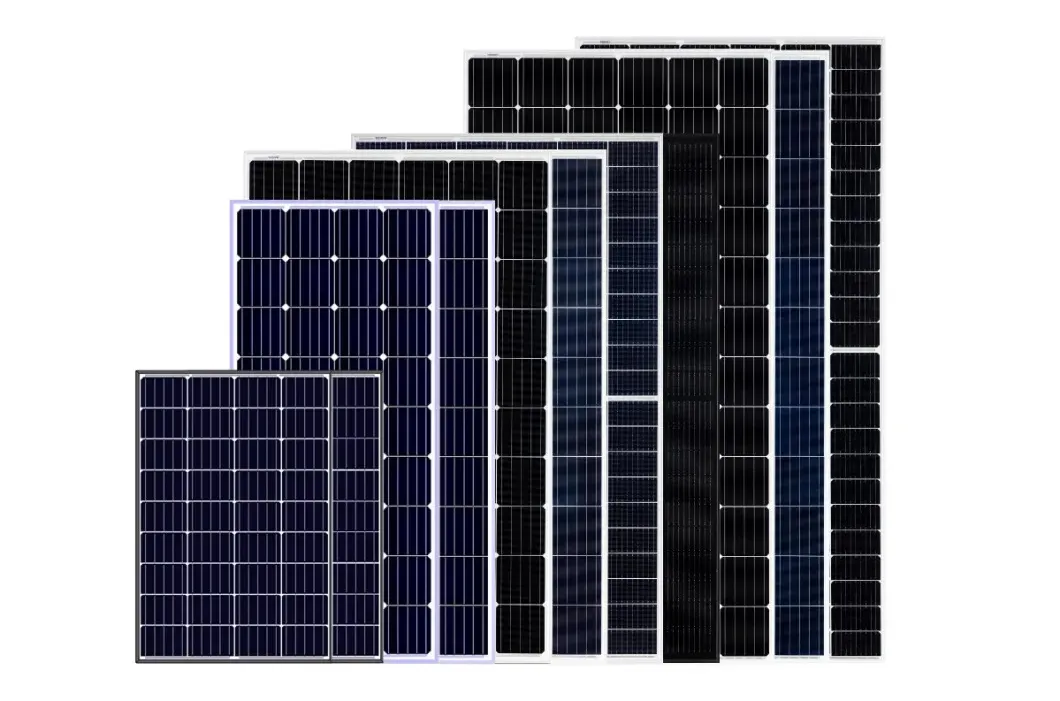

Solar Panel

* High Efficiency PV Module of 17% - 20%
* Anti-Reflective Glass Increase Light Absorption
* Certified Anti Salt-mist, Anti Ammonia Corrosion by TUV
* Smart Module Compatible, Maximum Optimized System Power Output

MPPT Controller & Inverter

* 1KW, 3KW, 5KW Off-grid Inverter
* Output: Single Phase
* 220/230/240V(L/N/PE)

Protection Board

* Circuit Breaker for PV Input
* Circuit Breaker for Battery
* Circuit Breaker for AC Input
* Circuit Breaker for AC Output

PV Mounting System

* Residential Roof(Pitched Roof)
* Commercial Roof(Flat roof & workshop roof)
* Ground Solar Mounting system
* Vertical wall solar mounting system
* All aluminum structure solar mounting system
* Car parking solar mounting system

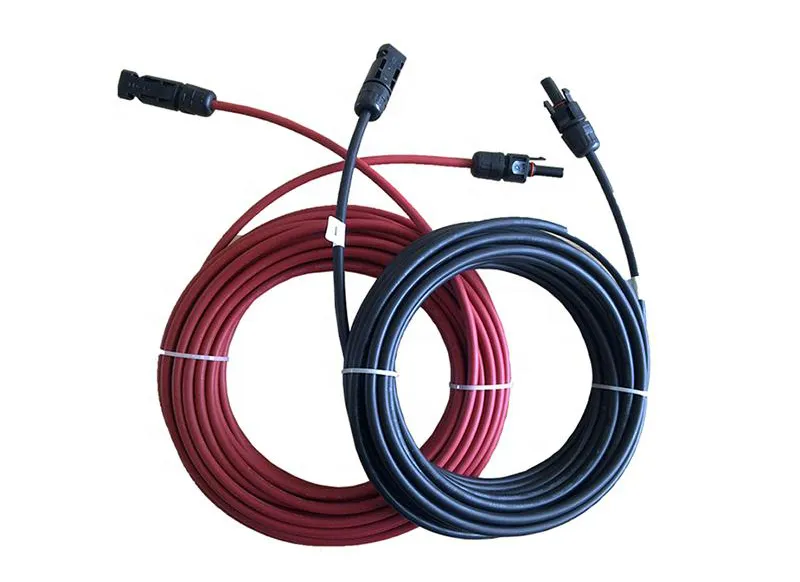

Accessories

Cables:
* Grid to circuit breaker 5m
* Ground wire 20m
* Battery to circuit breaker 6m
* Circuit breaker to inverter 0.3m
* Load output to circuit breaker 0.3m
* Circuit breaker to inverter 0.3m MC4 Connector

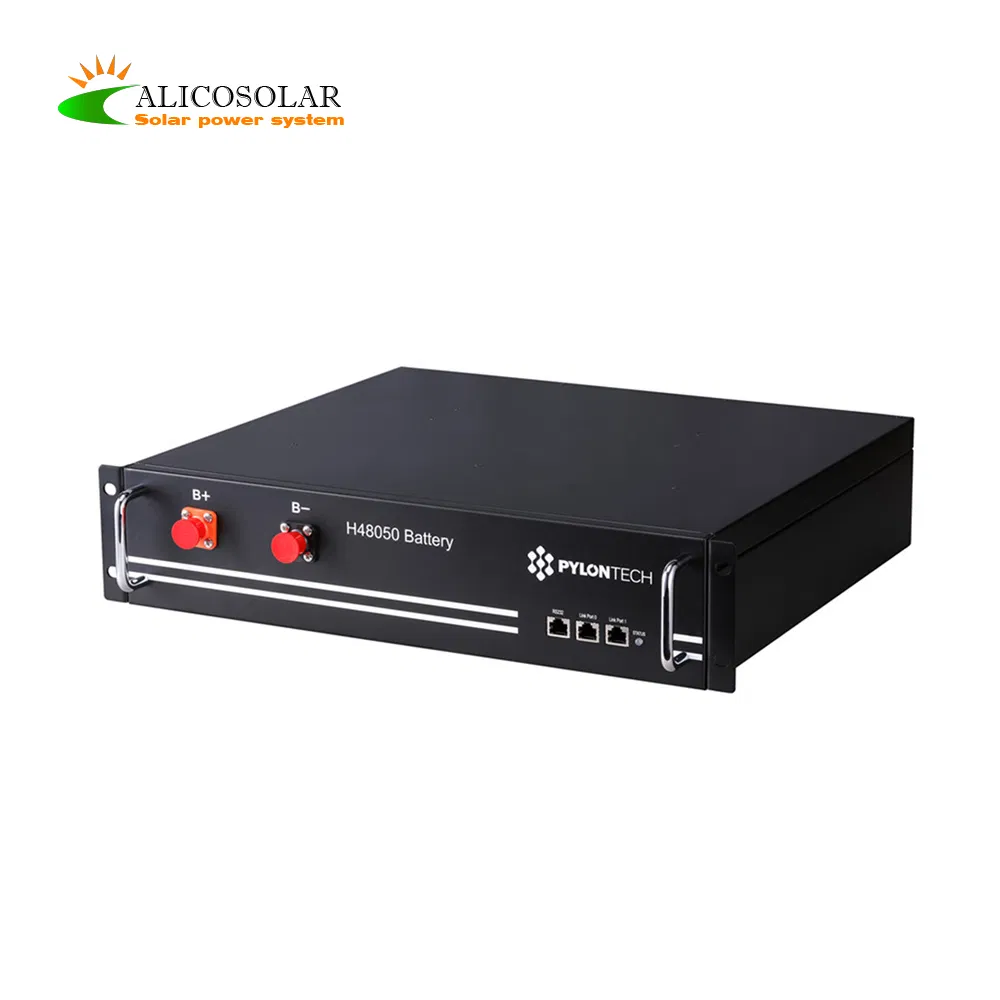

Solar Battery

* Lead-acid batteries
* Lithium battery
* 2V, 12V, 48V

Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together.

Projects Shown

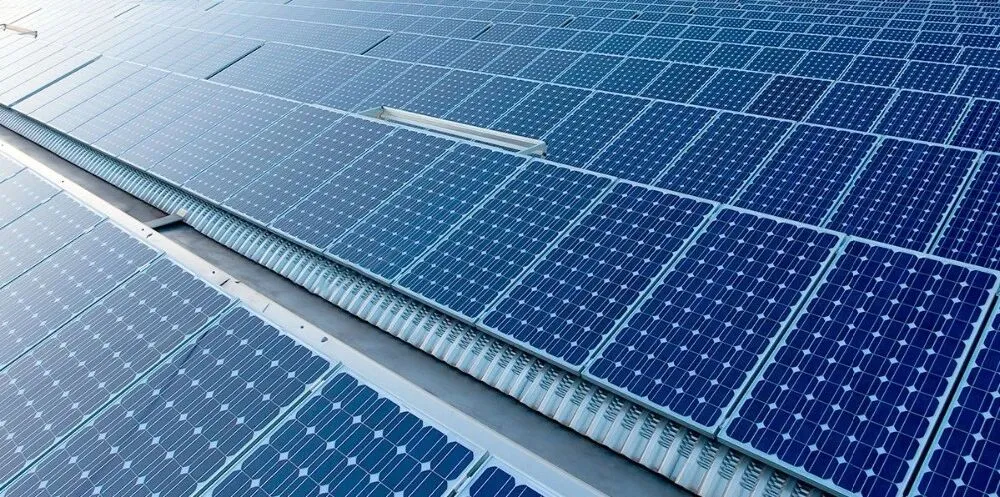

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015

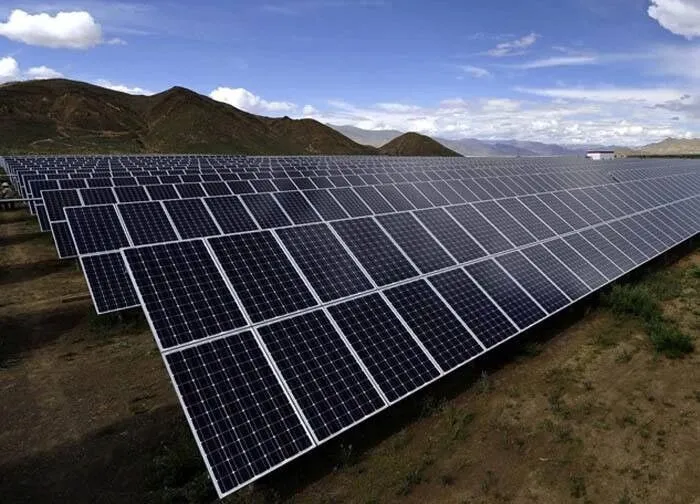

20MW Ground Solar Plant in USA

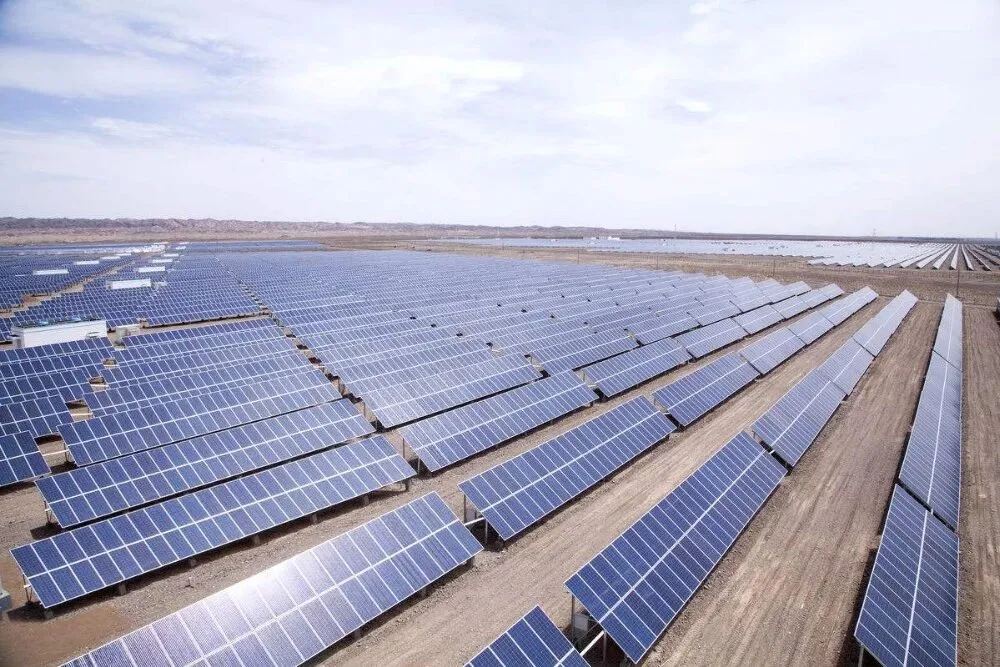

50MW Solar Plant in Brazil

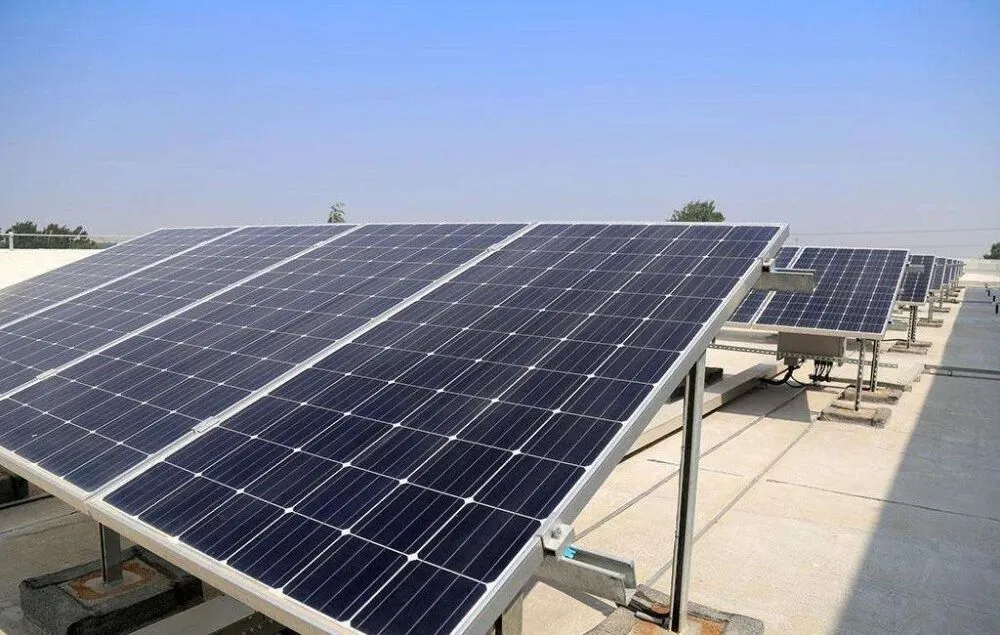

20KW Solar Plant in Mexico

Frequently Asked Questions

What is the difference between on-grid and off-grid solar systems?

An on-grid solar system is connected directly to the local utility grid, allowing you to feed excess power back to the grid. Off-grid systems operate independently of the grid and rely on battery storage banks to provide electricity when the sun is not shining.

What type of mounting bracket options are supported?

The configurations support multiple structures including residential pitched roofs, commercial flat or workshop roofs, ground solar mounting structures, vertical walls, car parking systems, and all-aluminum structures.

Are the solar panels durable enough for extreme weather?

Yes, our solar modules feature high efficiency (17% - 20%) with anti-reflective glass that enhances light absorption. They are certified anti-salt-mist and anti-ammonia corrosion by TUV, making them suitable for harsh conditions.

Do I need a battery bank for an on-grid system?

For standard on-grid systems, a battery bank is not strictly required since you can pull power from the utility grid at night. However, if you want backup power during a grid outage, a battery bank (Lead-acid or Lithium) can be integrated.

What range of capacity configurations do you offer?

We support a wide array of standardized configurations ranging from small residential systems (1KW to 10KW) to medium commercial applications (12KW to 70KW), and large commercial or industrial scales from 80KW up to 1MW.

What certifications do these systems hold?

All basic system structures and panels are manufactured under strict quality controls and hold widely recognized certifications including ISO and CE standards.
