We are a professional manufacturing factory specializing in custom complete power distribution equipment. We do more than just assemble; we provide one-stop electrical solutions from technical drawing review to finished product commissioning. We have long-term in-depth cooperation with world-leading brands such as Schneider, ABB, Siemens, Omron, and CHINT, ensuring that every delivered cabinet boasts "international-level" core quality.
Product Introduction

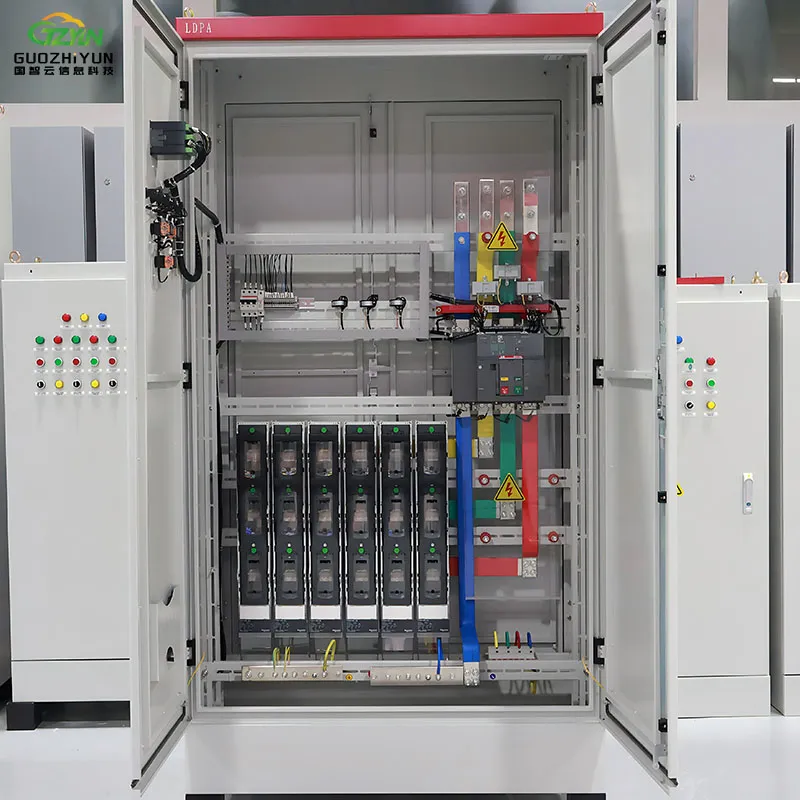

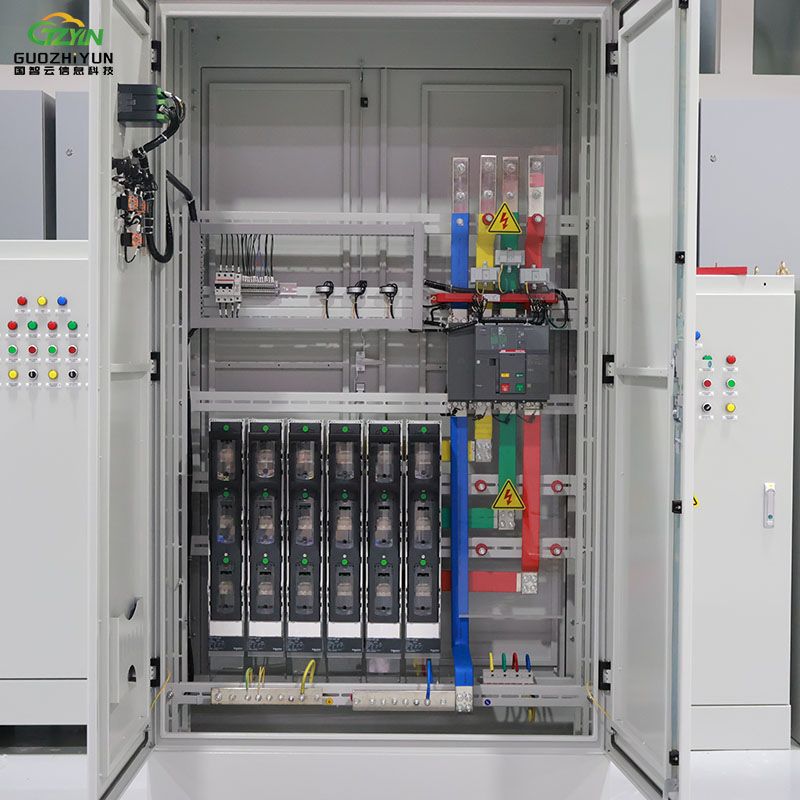

This is the LDPA series PV-specific low-voltage grid-connected distribution cabinet, an industrial-grade complete power distribution equipment designed for AC-side power collection, grid connection and safety control in solar power plants. It adopts original brand components such as ABB and Schneider, with pre-assembly, wiring and debugging completed in the factory. It can be directly connected to inverters, the power grid and loads on-site, serving as the core main control equipment on the AC side of solar power plants.

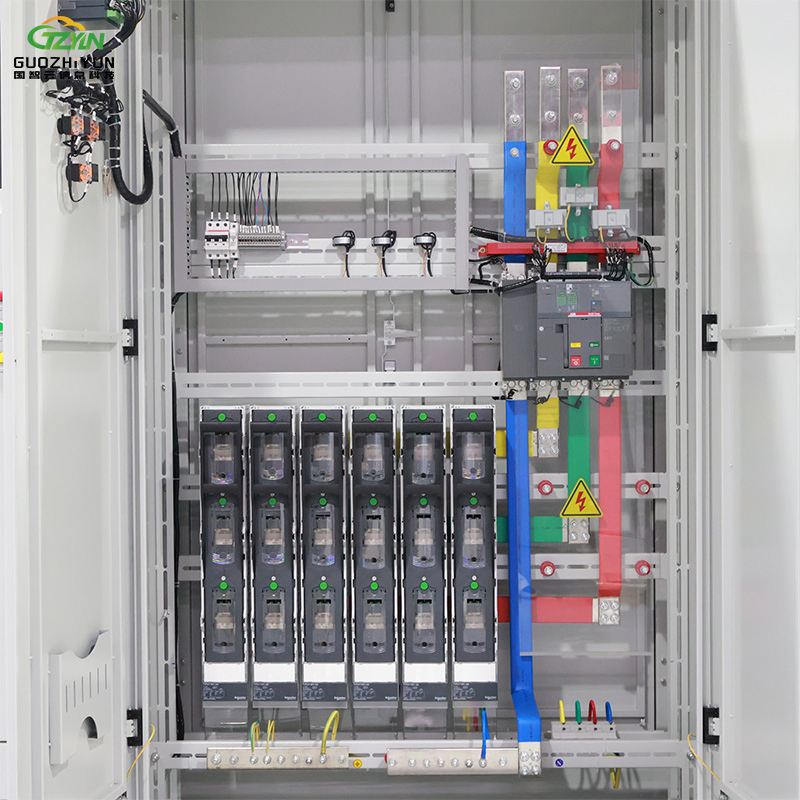

Core Structure

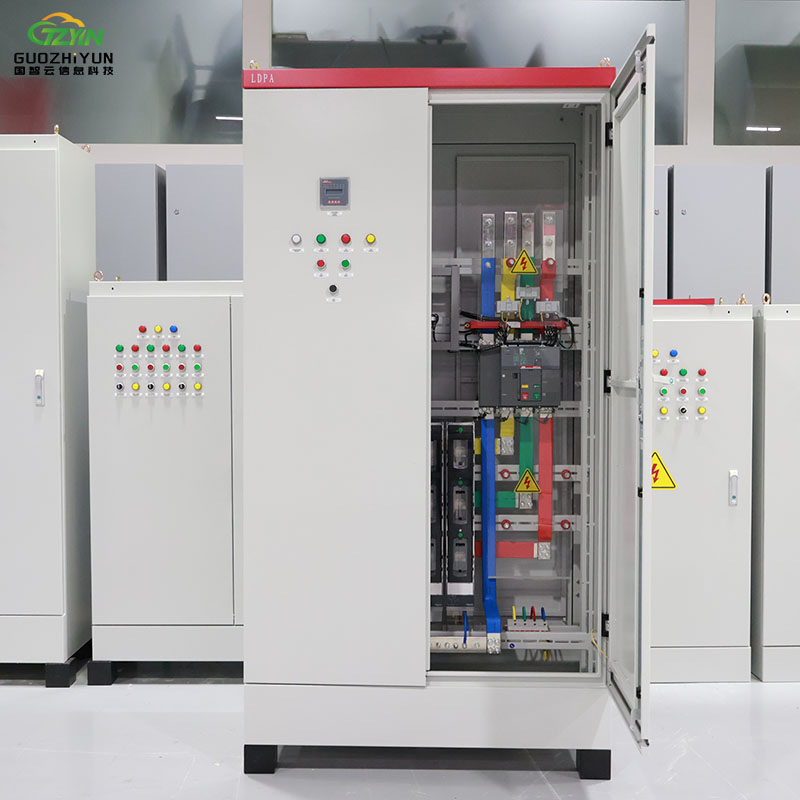

Cabinet: Double-door thickened cold-rolled steel plate, dustproof and sealed, with a neat layout, suitable for long-term indoor and outdoor operation.

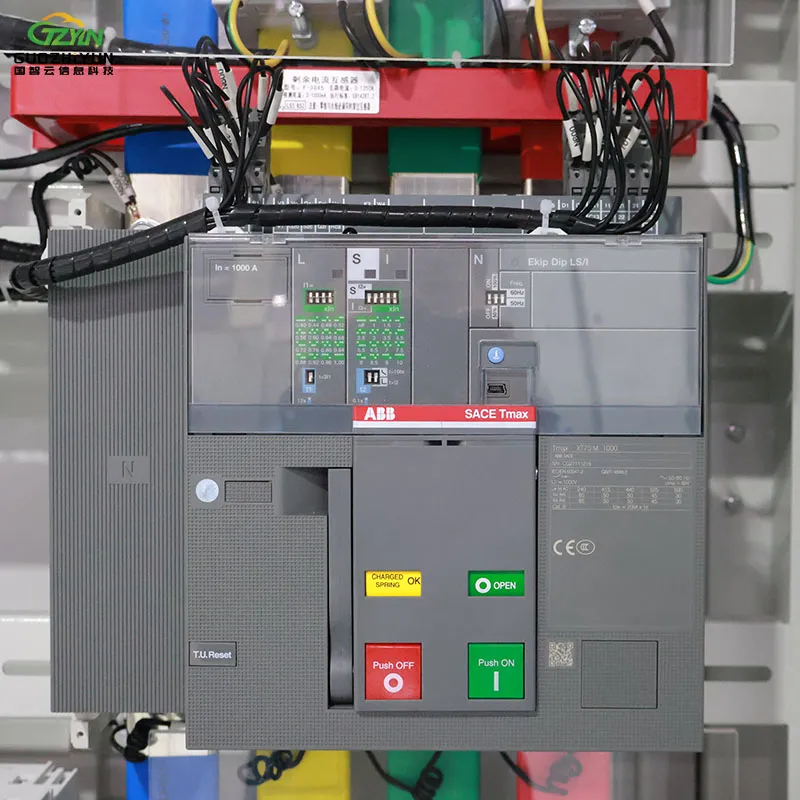

Main Switch: ABB 1000A intelligent molded case circuit breaker with three-stage protection, remote control and leakage monitoring.

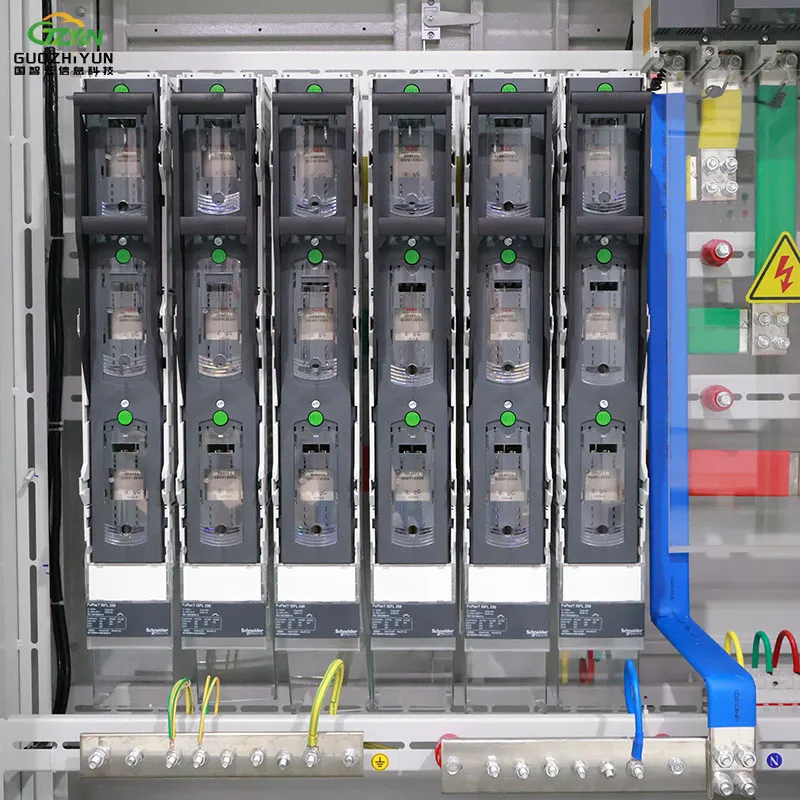

Branch Circuits: Multiple Schneider fuse disconnectors support independent collection and fault isolation of multiple inverters.
Lightning Protection Module: ABB Class 1 4P surge protector efficiently discharges lightning and grid-connected surges.

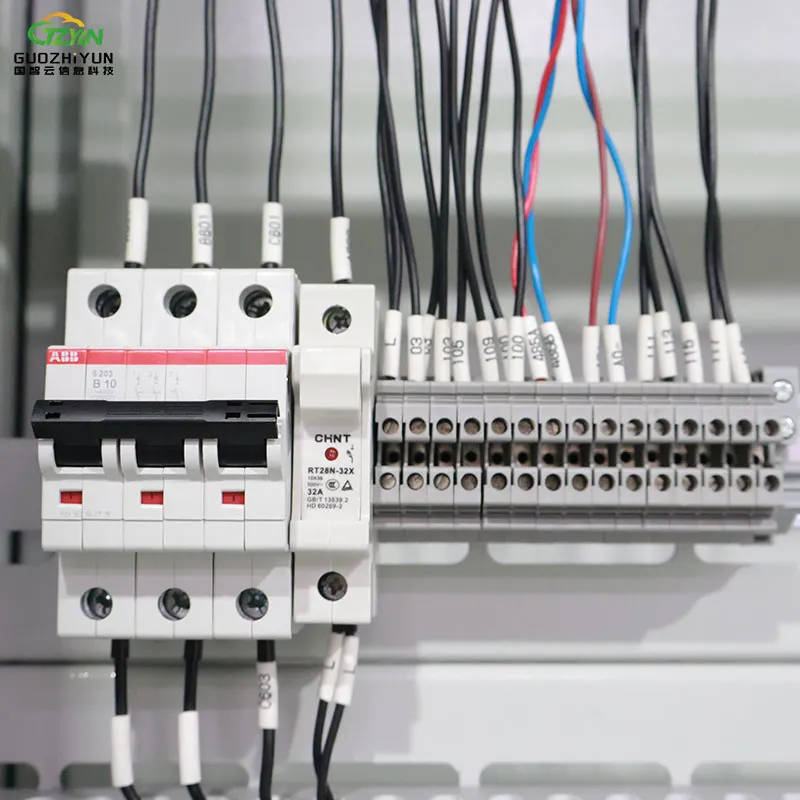

Secondary System: Includes measurement and control instruments, status indicators, standardized wiring and complete earthing for easy monitoring and maintenance.
Working Principle
AC power output from inverters → collected at branch circuits → controlled and protected by the main switch → filtered by lightning protection → connected to the grid. It can be linked with downstream low-voltage distribution boxes to form a complete closed loop of "PV power generation → grid-connected collection → end power distribution".
Key Selling Points
Applications
Suitable for industrial and commercial rooftop/distributed solar power plants, centralized collection and grid connection of multiple inverters, and solar-storage integrated projects. It can support factory loads to realize self-consumption of solar power and grid feed-in of surplus electricity.
| Name | Distribution cabinet |
| Product type | Power distribution |
| Box/cabinet size | Customizable |
| Box/cabinet thickness | 0.8/1.2/1.5mm |
| Instal type | wall mounting/console mode |
| Component brand | Schneider, ABB, Omron, DELIXI, Eaton, Siemens |
| Shell material | Carbon steel, stainless steel, explosion-proof |
| Major component | Shell, circuit breaker, power input interface, distribution unit, protective device, and auxiliary equipment |
| Protection level | IP40, IP44, IP54, IP65 |
| Type of AC power supply | Single phase and three-phase |
