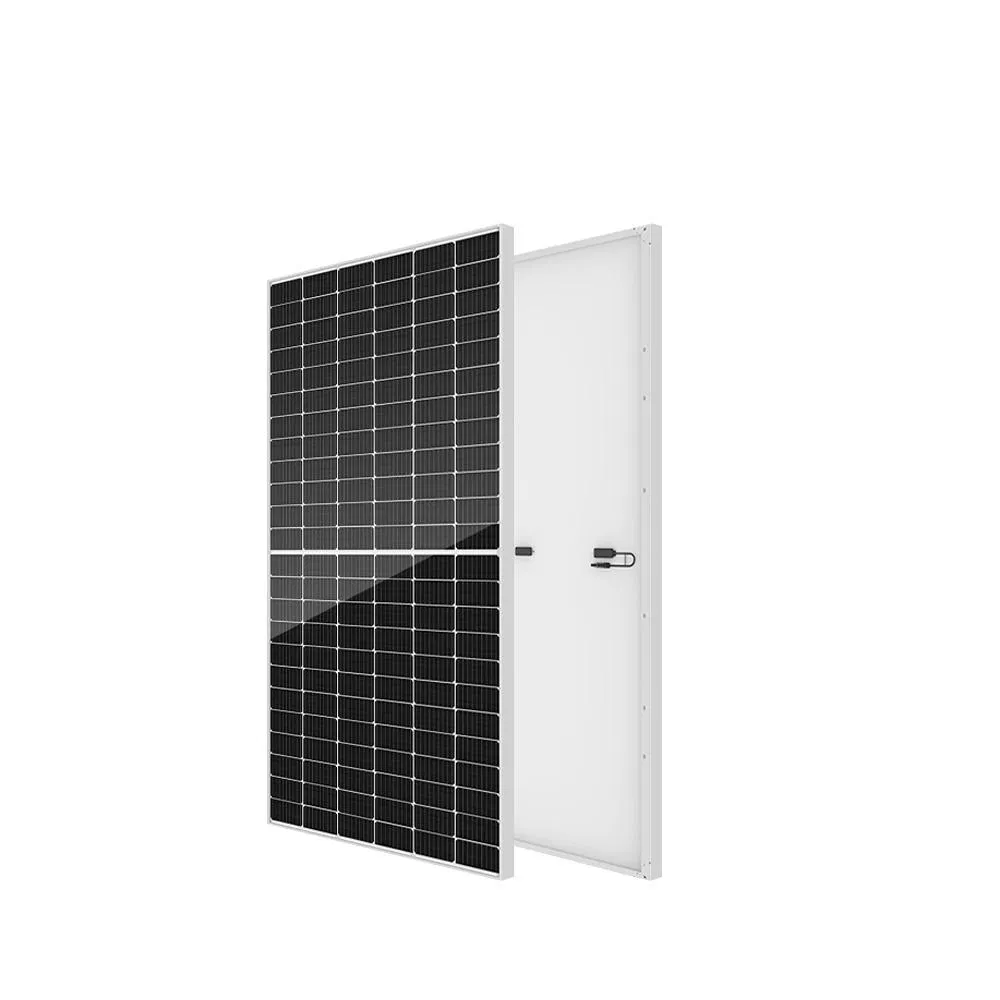

| Module Type | HLM545M10-72HPH | HLM550M10-72HPH | HLM555M10-72HPH | HLM560M10-72HPH | HLM565M10-72HPH |
|---|---|---|---|---|---|
| Conditions | STC / NMOT | STC / NMOT | STC / NMOT | STC / NMOT | STC / NMOT |
| Maximum Power (Pmax/W) | 545 / 406 | 550 / 410 | 555 / 413 | 560 / 416 | 565 / 419 |
| Operating Voltage (Vmp/V) | 42.06 / 38.35 | 42.16 / 38.43 | 42.24 / 38.52 | 42.33 / 38.59 | 42.42 / 38.66 |
| Operating Current (Imp/A) | 12.96 / 10.58 | 13.05 / 10.66 | 13.14 / 10.73 | 13.23 / 10.80 | 13.32 / 10.88 |
| Open-Circuit Voltage (Voc/V) | 49.70 / 46.21 | 49.80 / 46.31 | 49.90 / 46.40 | 50.00 / 46.49 | 50.10 / 46.58 |
| Short-Circuit Current (Isc/A) | 13.84 / 11.18 | 13.94 / 11.27 | 14.04 / 11.34 | 14.14 / 11.42 | 14.24 / 11.50 |
| Module Efficiency ηm(%) | 21.10% | 21.30% | 21.49% | 21.68% | 21.87% |
* STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 | NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s
| Mechanical Specification | |
| Cell Type | Monocrystalline |
| Cell Dimensions | 182*91mm |
| Cell Arrangement | 144 (6*24) |
| Weight | 28.6kg |
| Module Dimensions | 2278*1134*35mm |
| Cable Length | Portrait 300mm / Landscape 1200mm / Customized |
| Cable Cross Section Size | TUV: 4mm² (0.006inches²) / UL: 12AWG |
| Front Glass | 3.2mm (0.13inches) AR Coating Tempered Glass |
| No. of Bypass Diodes | 3 |
| Packing Configuration | 31pcs/carton, 620pcs/40hq |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| Operating Conditions | |
| Maximum System Voltage | 1000/1500V/DC(IEC) |
| Operating Temperature | -40°C ~ +85°C |
| Maximum Series Fuse | 25A |
| Static Loading | Snow Loading: 5400Pa / Wind Loading: 2400Pa |
| Conductivity at Ground | ≤0.1Ω |
| Safety Class | II |
| Resistance | ≥100MΩ |
| Connector | T01 / LJQ-3-CSY / MC4 / MC4-EVO2 |
| Temperature Coefficient | |
| Temperature Coefficient Pmax | -0.36%/°C |
| Temperature Coefficient Voc | -0.29%/°C |
| Temperature Coefficient Isc | +0.048%/°C |
| NMOT | 45±2°C |

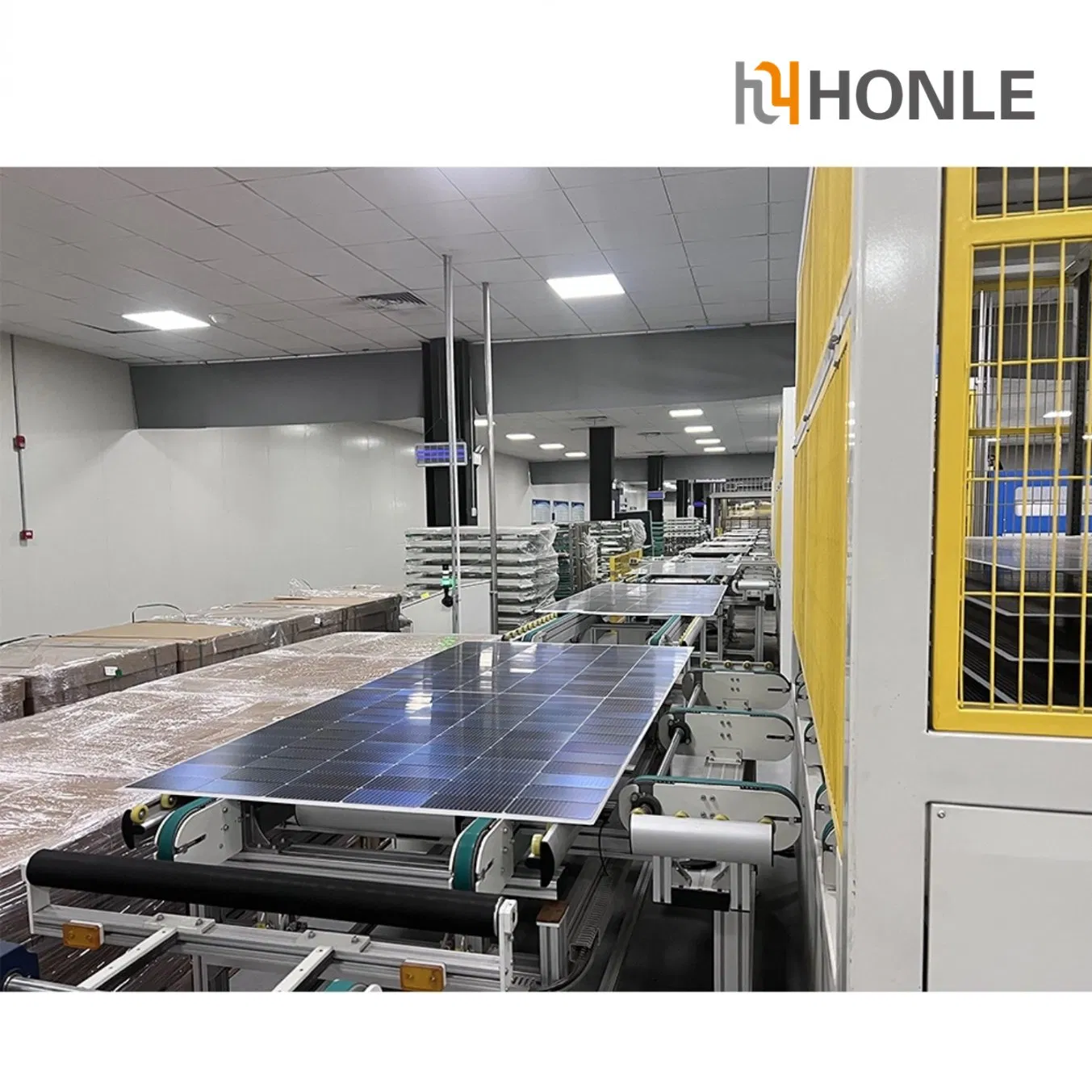

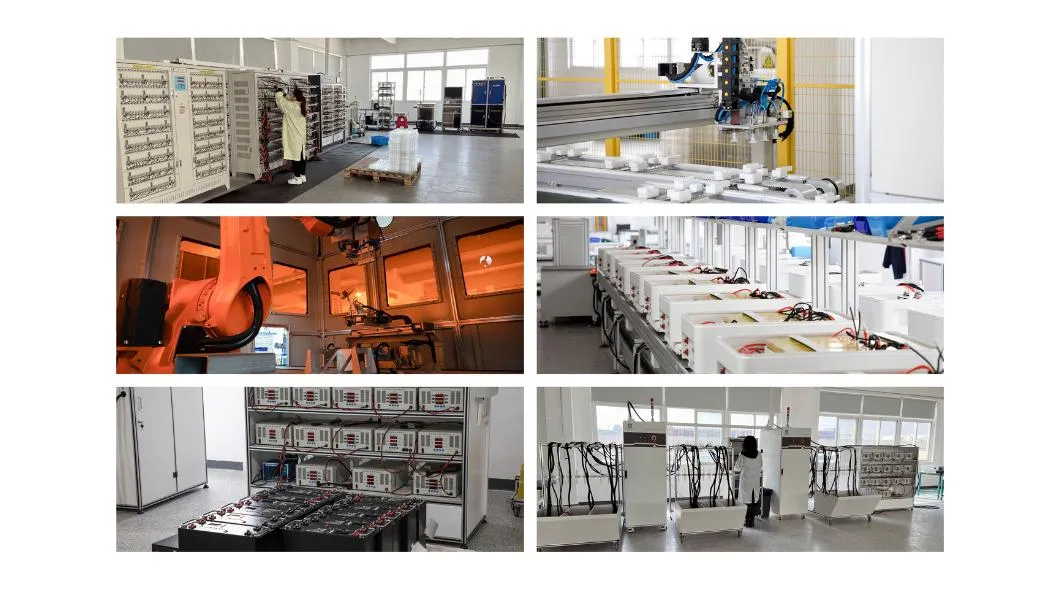

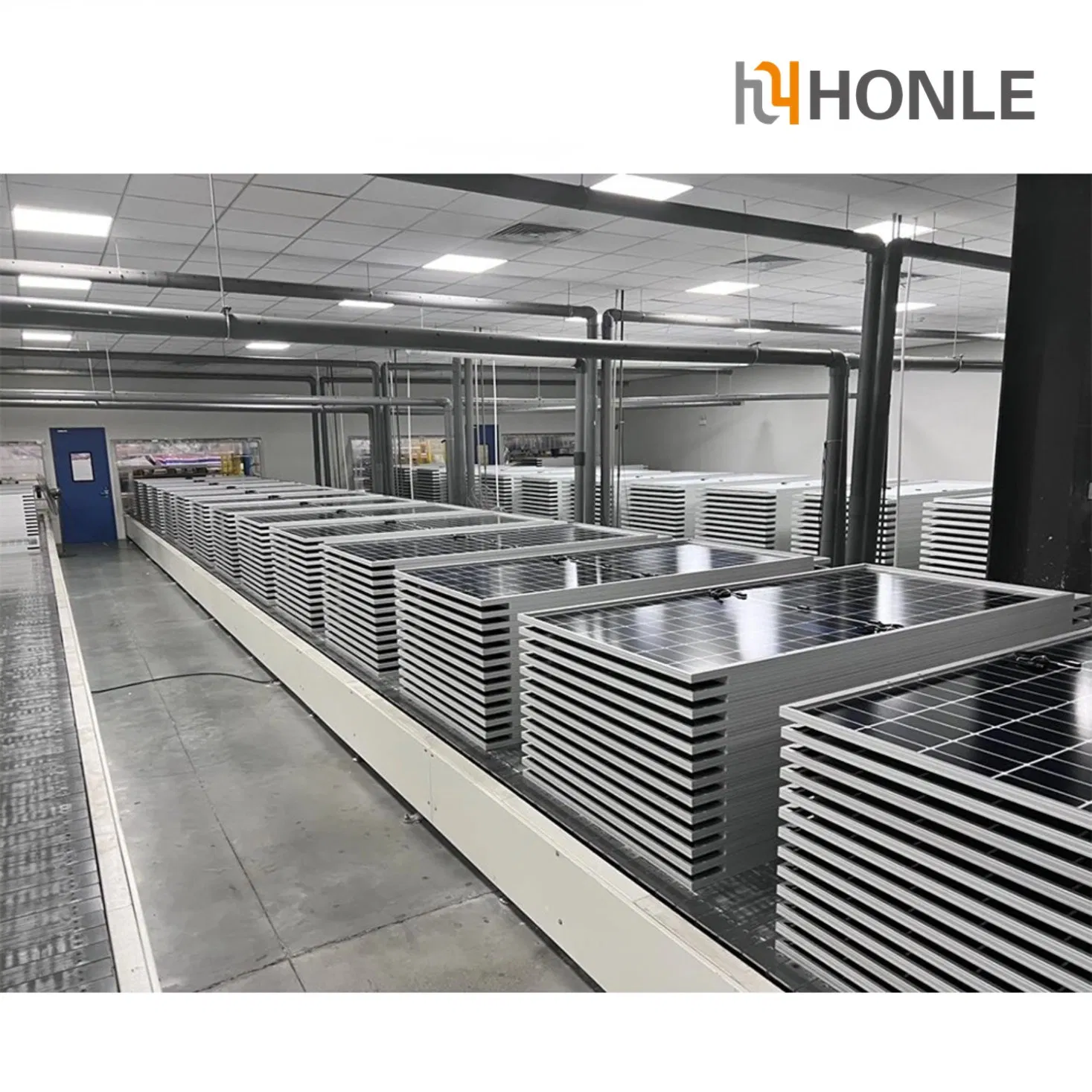

As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high level testing machine and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets the strict quality standards.
