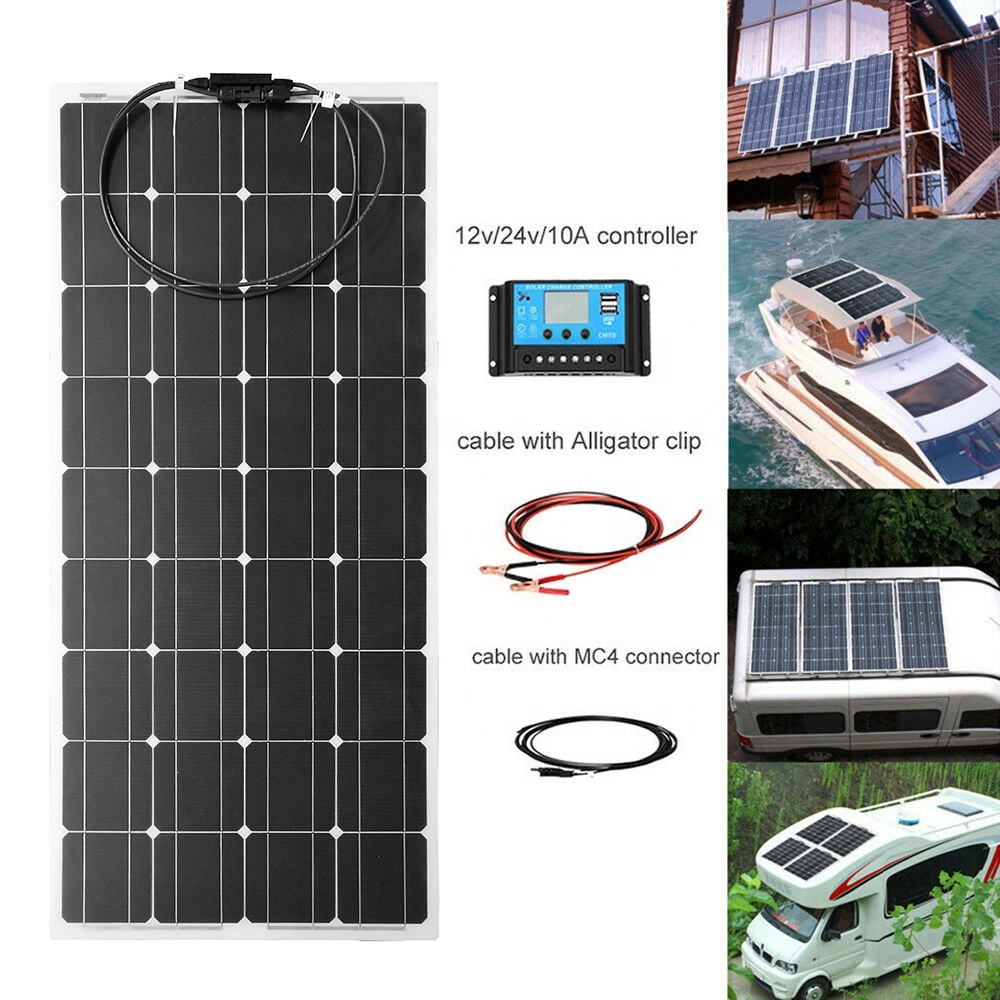

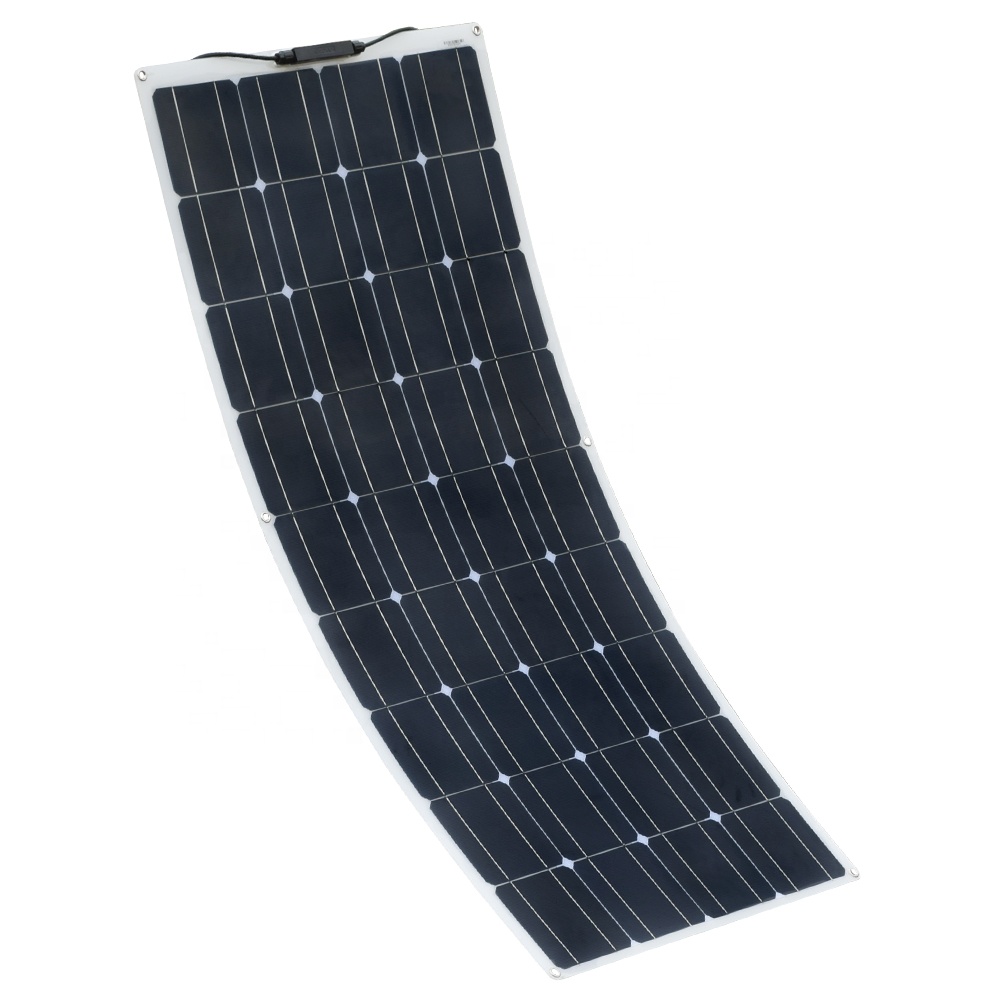

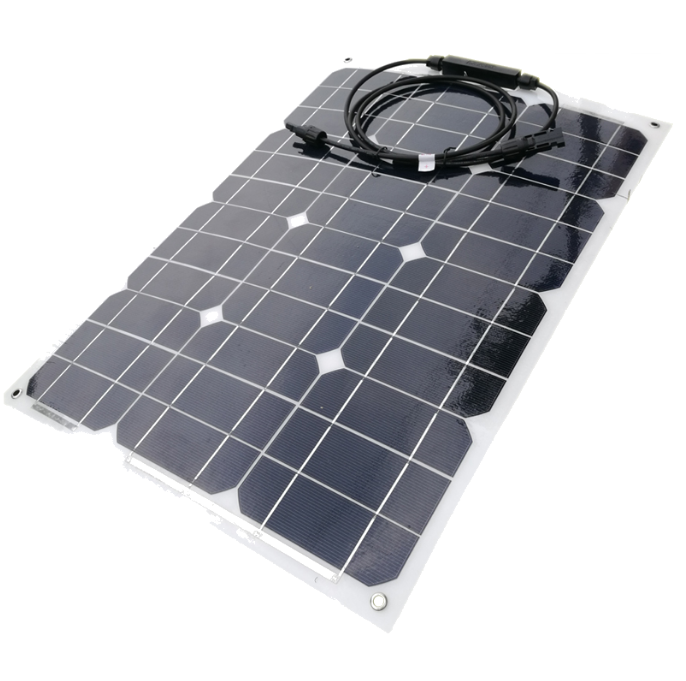

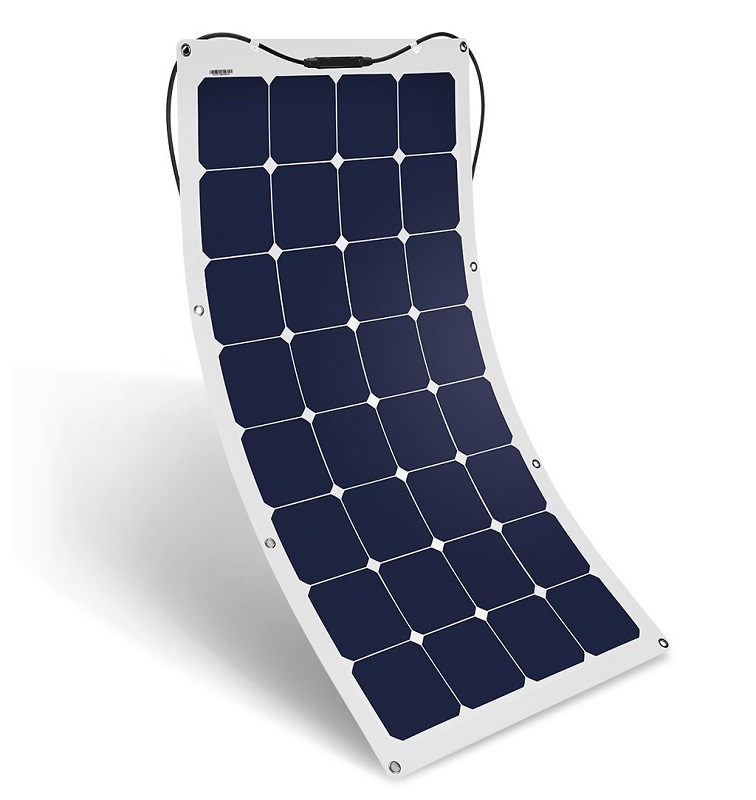

Light Weight Flexible 90w 100w 110w 150w 350w 600w Solar Panel Foldable Solar Manufacturing Solar Panel

Product Description

Product Description

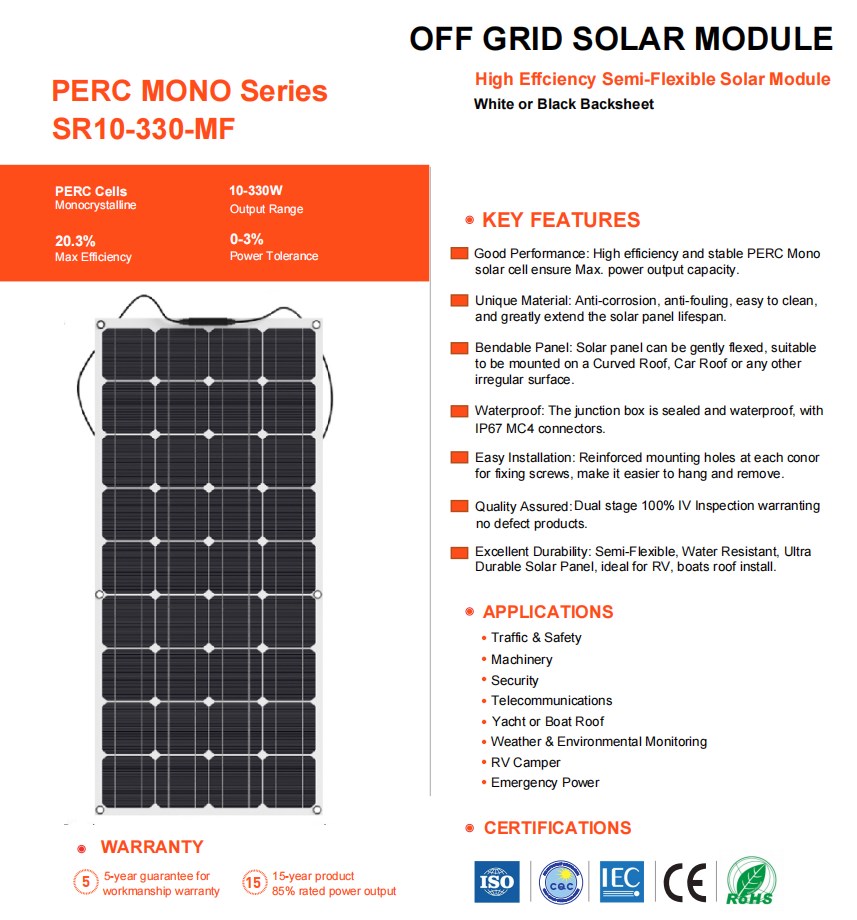

Solar Panel Banner

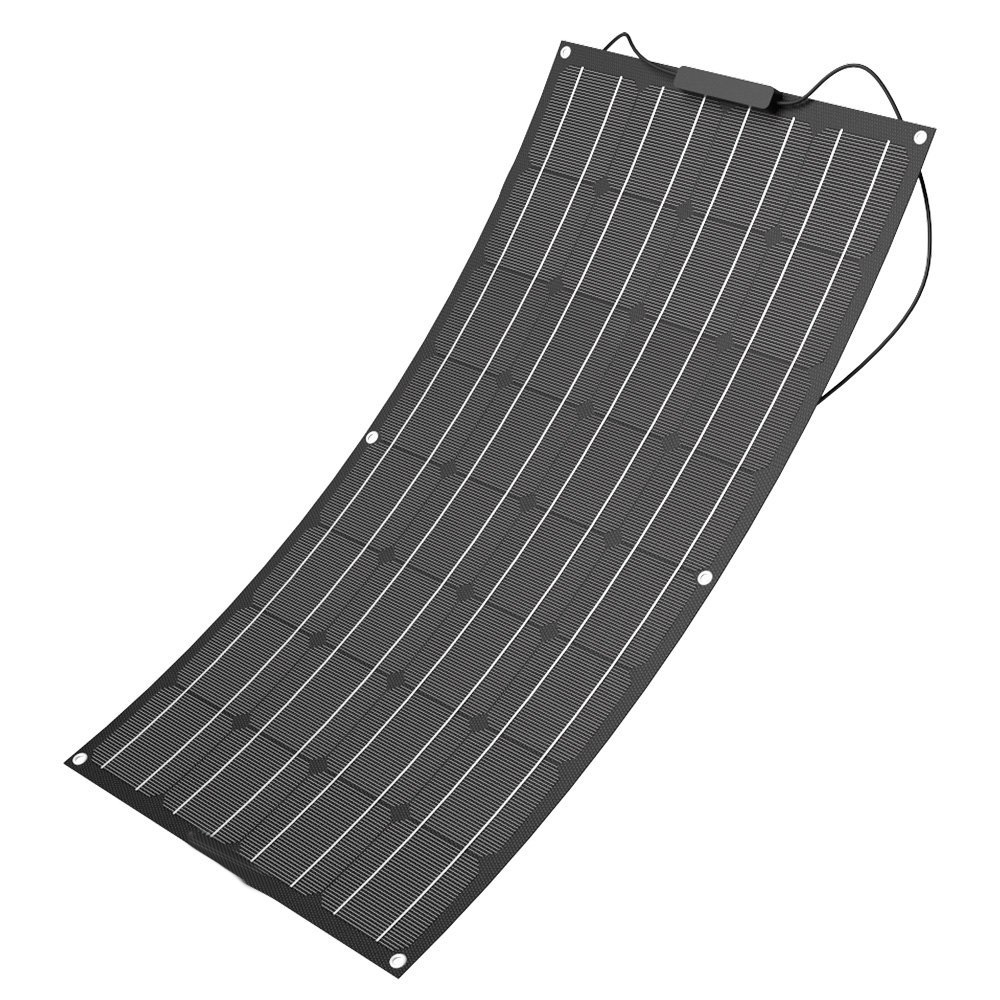

Solar Panel Detail 1

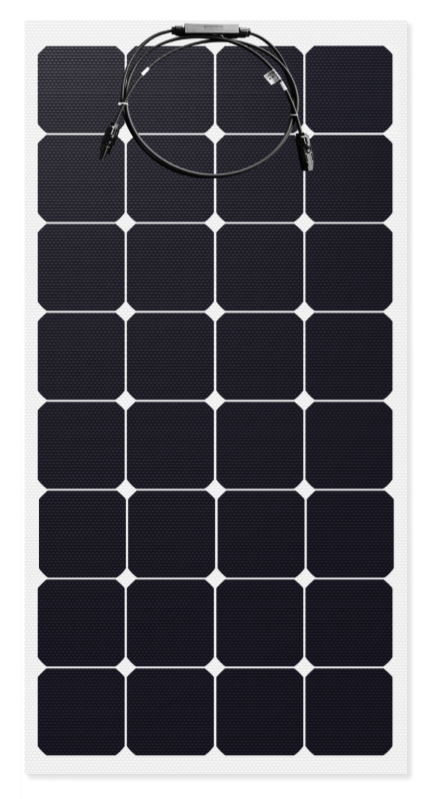

Solar Panel Detail 2
Solar Panel Detail 3
Solar Panel Detail 4
Specification
ELECTRICAL DATA(STC)
* STC: Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C
* Measuring Tolerance: ±3%.
Product Model SR10-MF SR30-MF SR60-MF SR100-MF SR180-MF SR200-MF
Maximum power (Pmax) 10 30 60 100 180 200
Voltage at Pmax (Vmp) 6.0 17.8 18.1 18.2 19.2 36.5
Current at Pmax (Imp) 1.67 1.69 3.32 5.49 9.38 5.48
Open-circuit voltage (Voc) 7.2 21.36 21.72 21.84 23.04 43.8
Short-circuit current (Isc) 1.77 1.82 5.51 5.82 9.94 5.81
Module Efficiency (%) 12.8 15.8 16.8 15.6 18.2 16
Module Size (mm) 340*230*2.5 540*350*2.5 530*670*3 1190*540*3 1480*670*3 1580*790*3
Technical Specifications Grid
Packing & Delivery

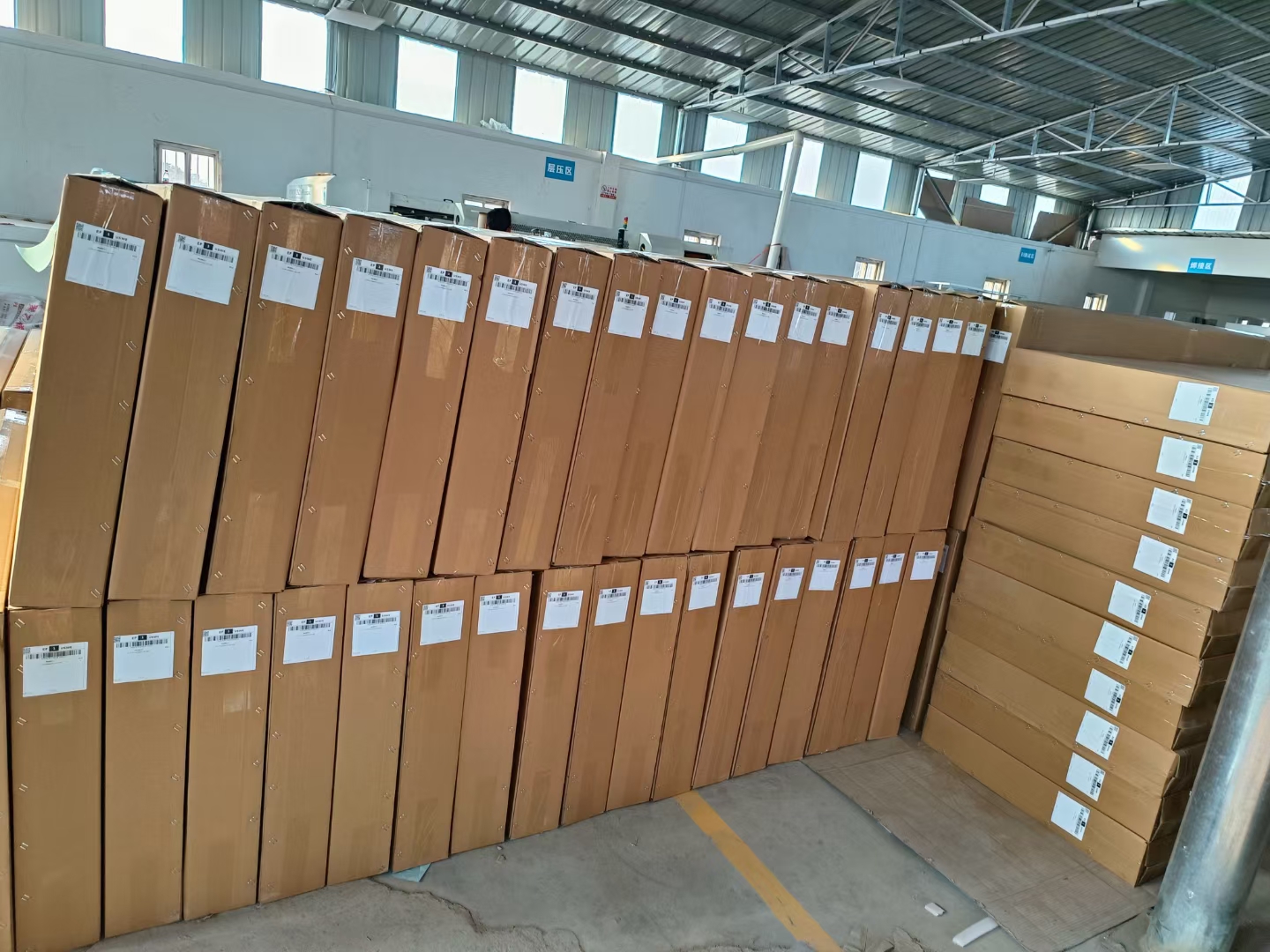

Packaging Box View

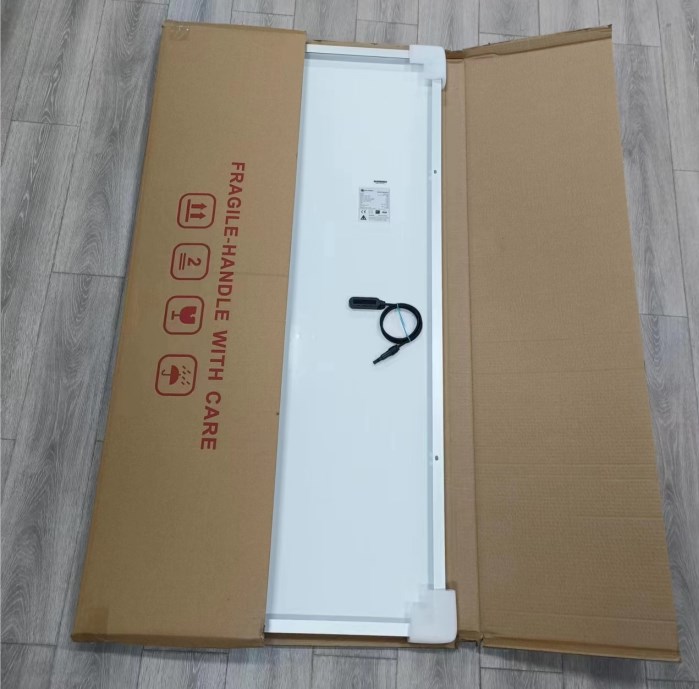

Carton Packing Details 1

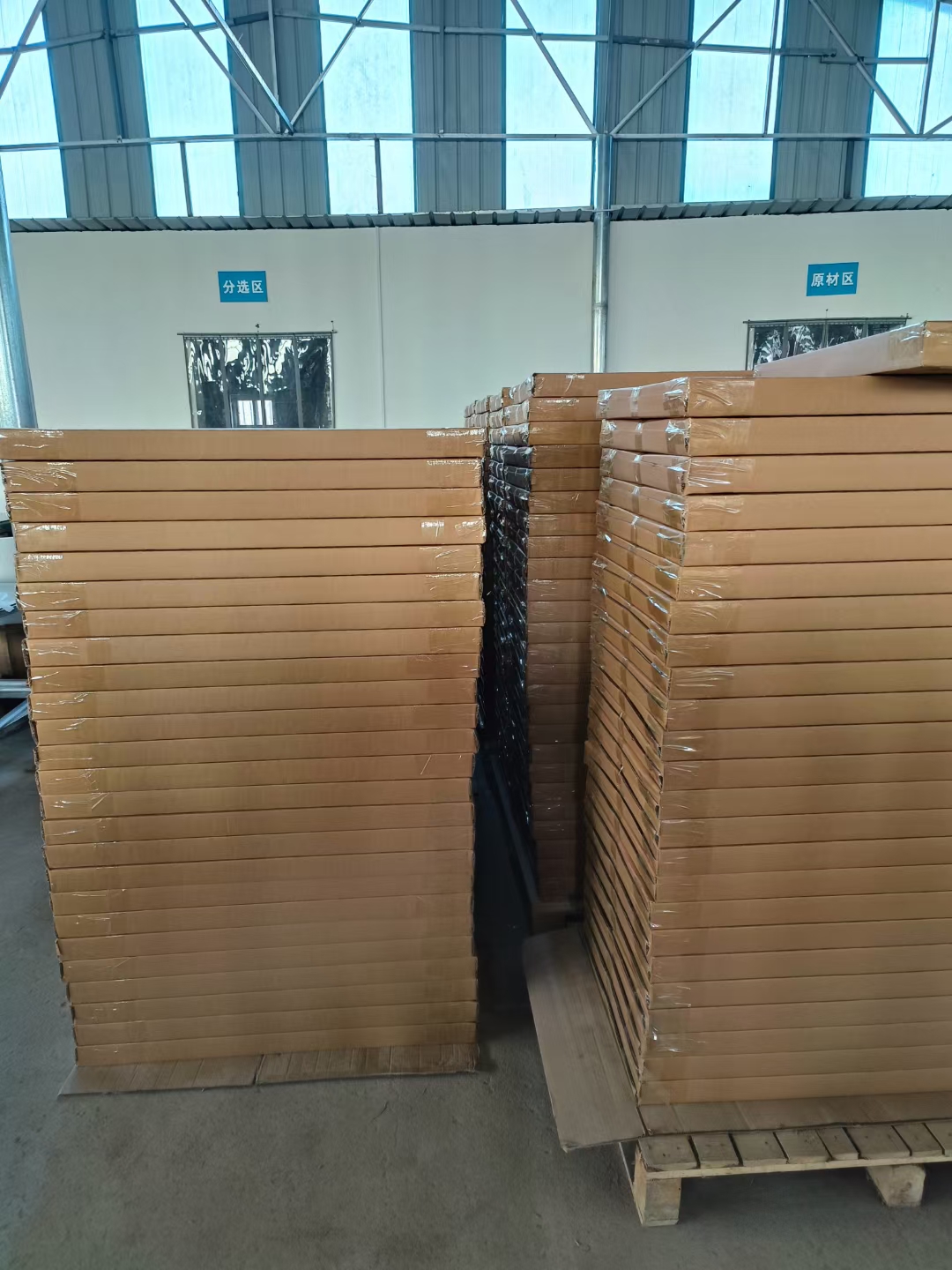

Carton Packing Details 2
To better ensure the safety of your goods, we use hard cardboard 3 layer or 5 layer carton box to pack the solar panels.
Packing material is professional, environmentally friendly, to support your reselling best.
Any other customized convenient and efficient packaging services will be provided.
About Us
Factory Overview
We are a professional solar panel manufacturer and solar power system designer and supplier since 2013, successfully involved in many renewable energy projects around the world. With more than 10 years’ professional solar panel manufacturing experience, our company realized a rapid development since 2017. Adopting the advanced solar module production equipments, integrating the top-notch manufacturing engineering & management system, together with our excellent solar industry R&D capacity, we are confident to provide high performance solar modules with competitive costs.
Our solar panels and solar power system products delivering to more than 90 countries, winning a good reputation all over the world, we provide various solar modules including half cell high efficiency mono and poly, bifacial double glass, special customized types. Single module power can reach to Max. 720W which is widely used in household, industrial, commercial solar power systems. Our solar products already obtained the certificates of CE, ROHS, CQC, TUV, etc.

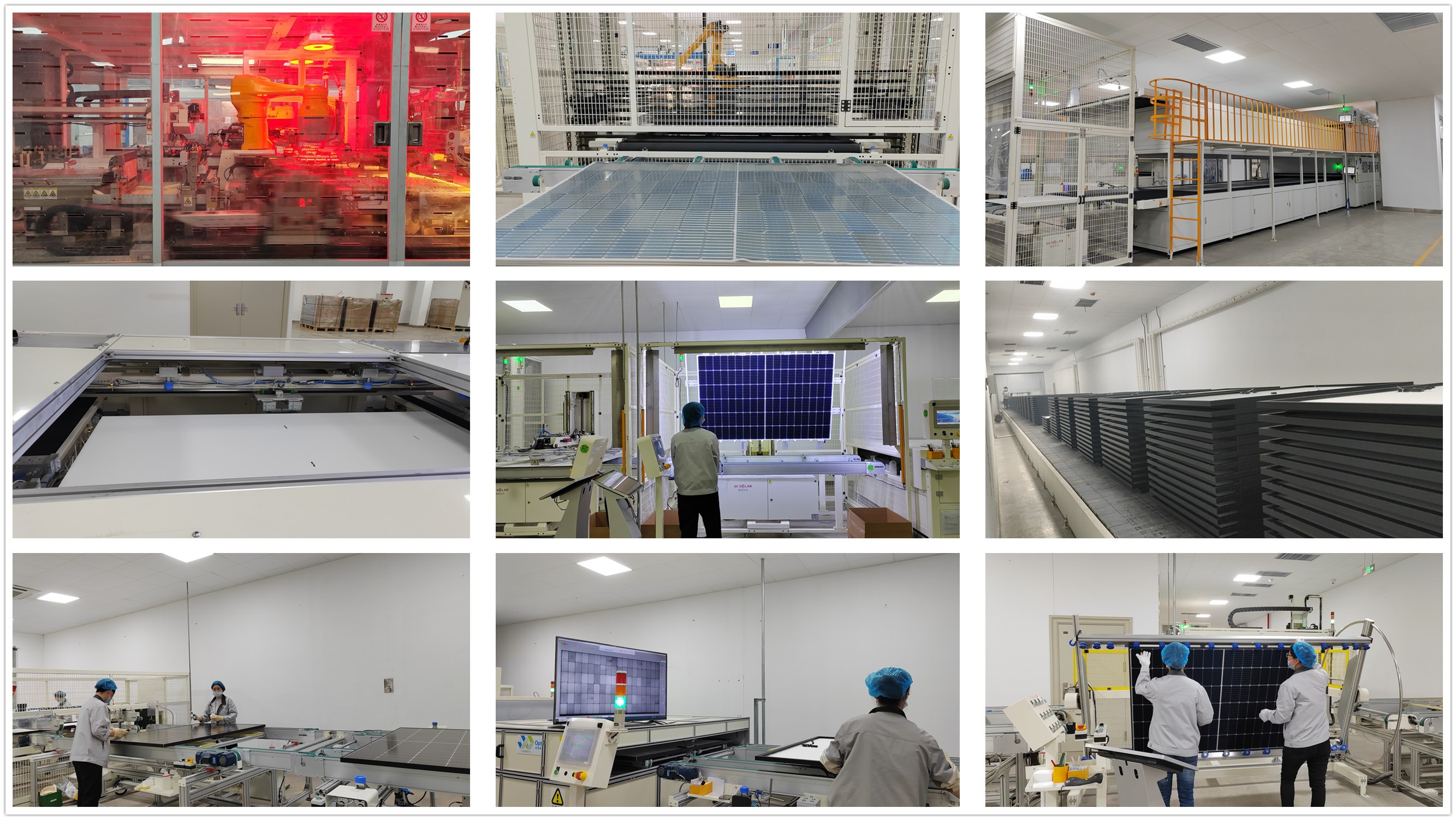

Manufacturing Line

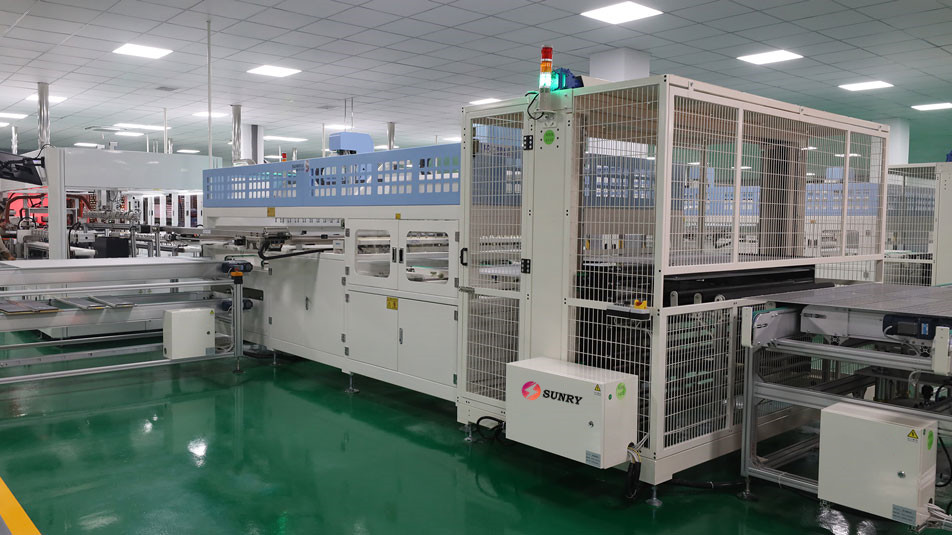

Automatic Production Line
Automatic solar module production line
Strict Raw material quality control system management, Automatic screening of incoming materials and manual secondary sampling inspection, Excellent solar module production process quality control.

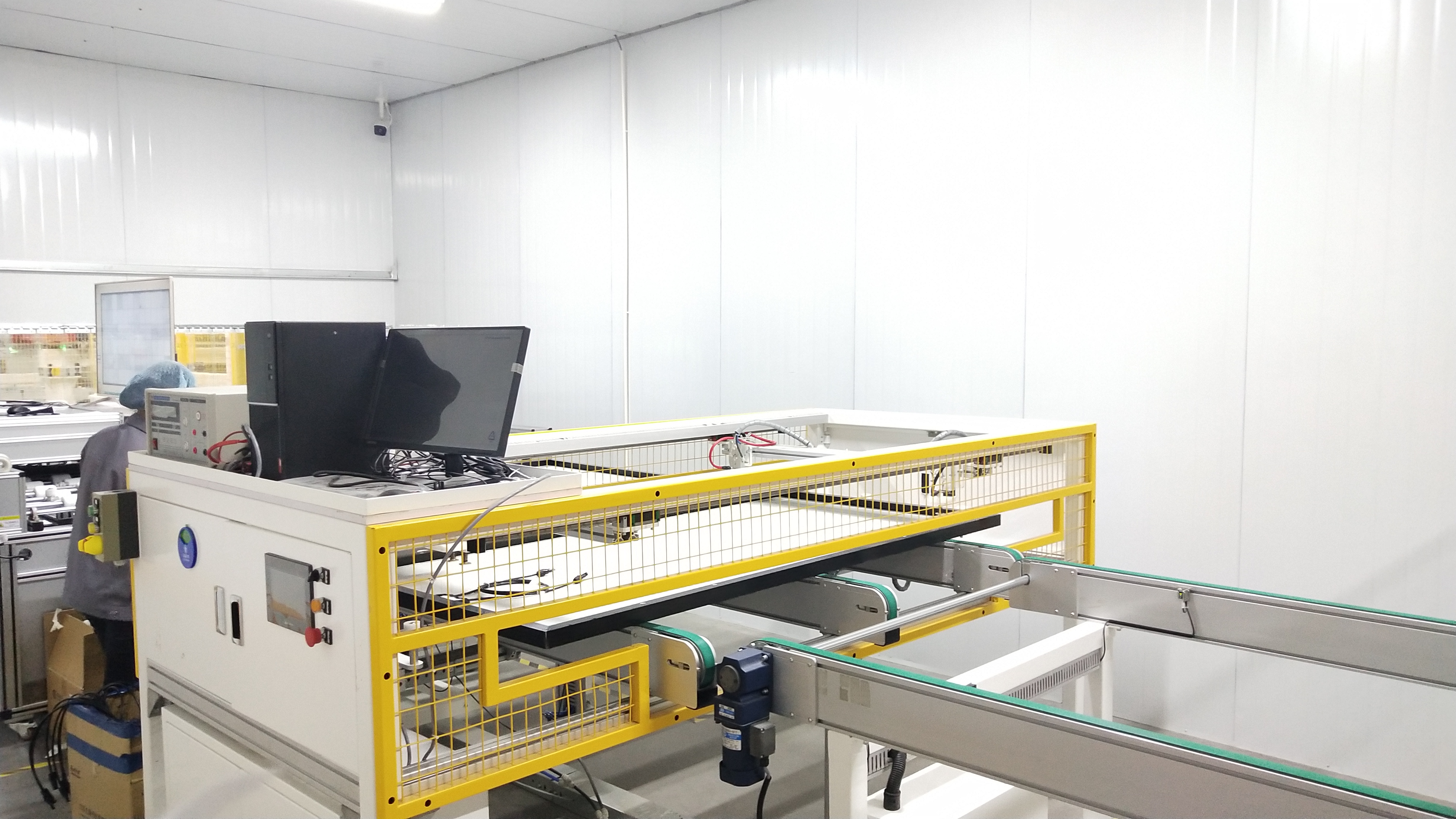

IV & EL Test Equipment
Strict IV&EL Test
Full production process quality monitoring. Three times 100% EL test. ERP manufacturing online working system to minimize solar panel defect rate.
Strict QC Inspection

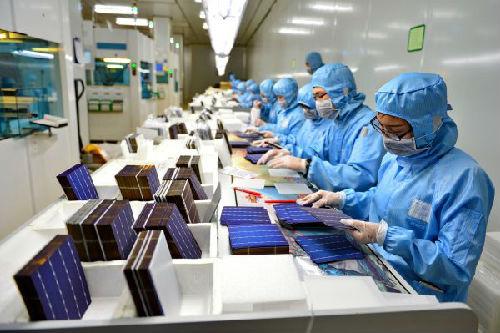

Solar Cells Sorting
1. Solar Cells Sorting
To ensure solar cell color and power output in a module is capable. Ensure high yields, consistent performance and durability.

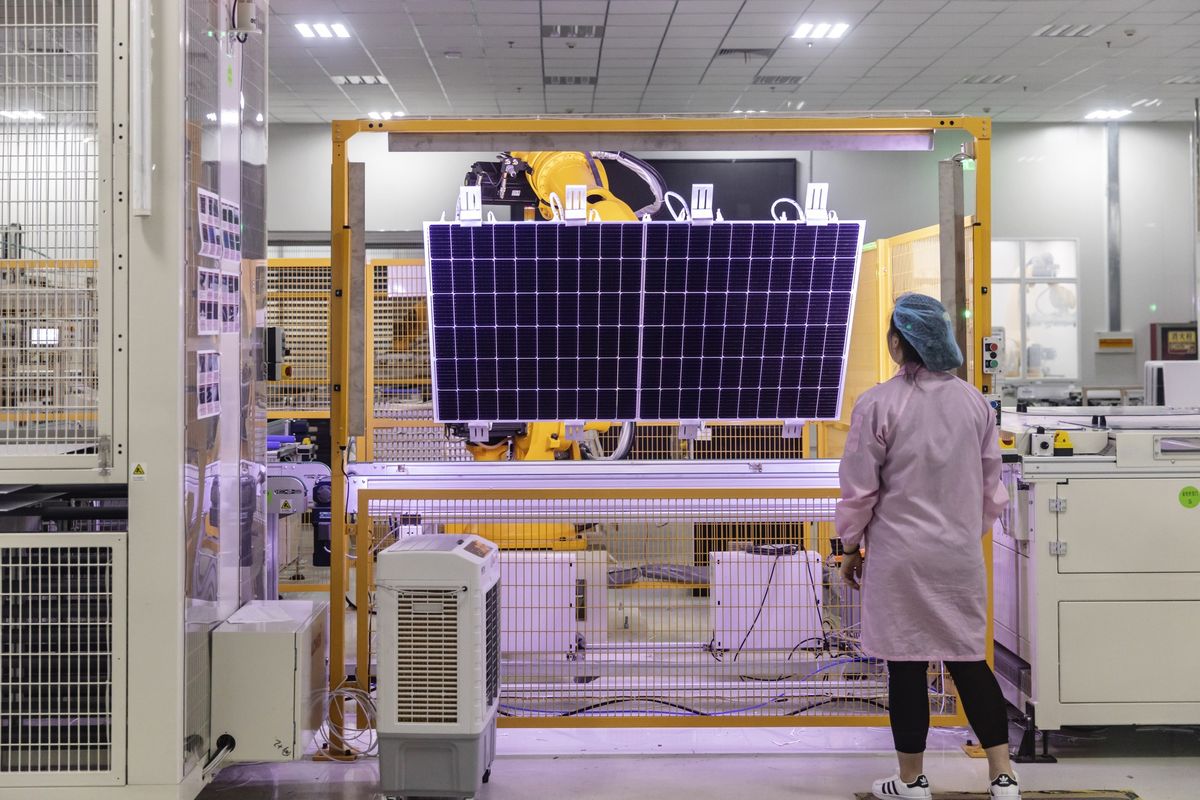

100% Inspection
2. 100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance, Intelligent alarm and stop mechanism in case of any deviation or errors.

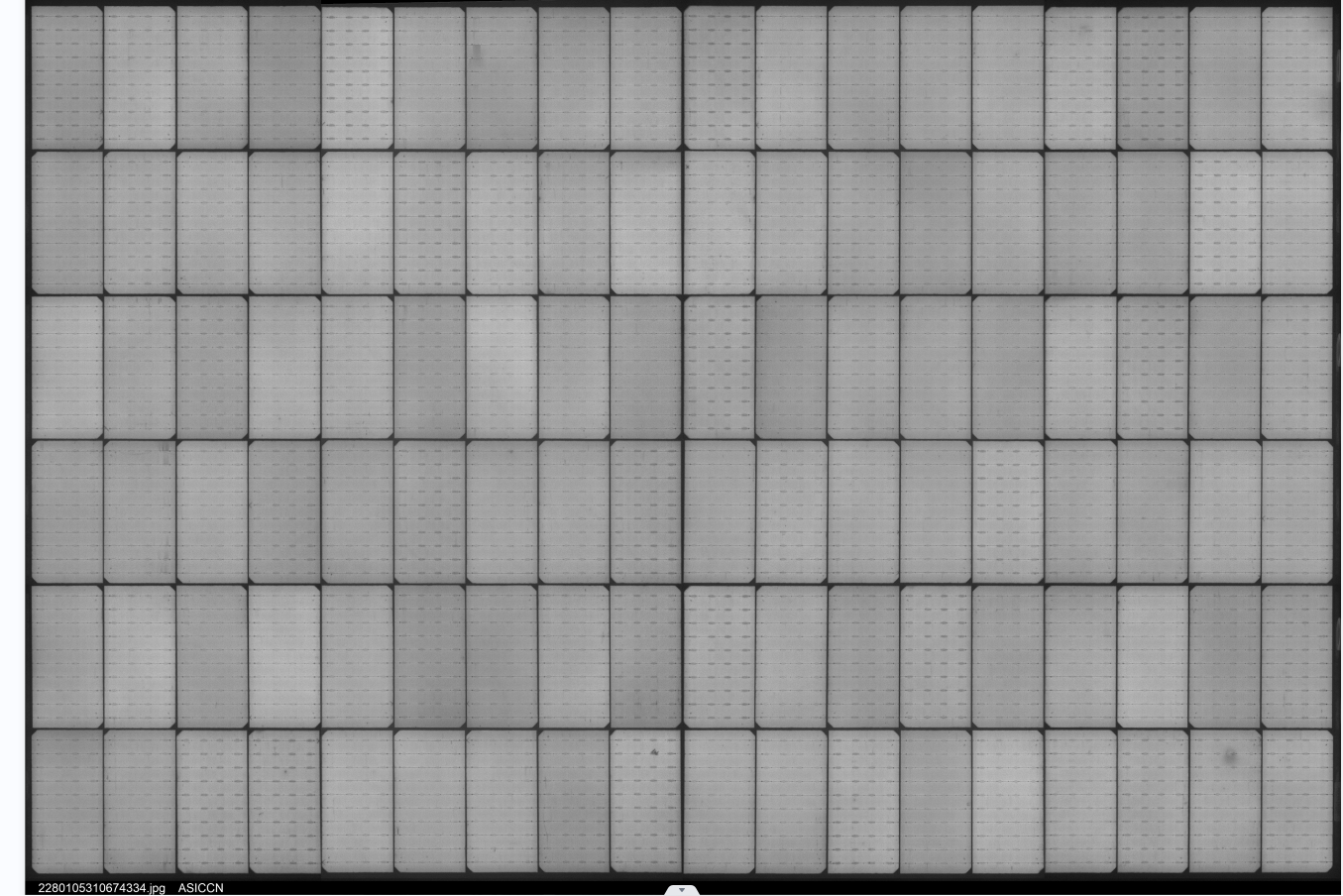

Three EL Test
3. Three EL test
Before and after lamination, before packing. Automatic finished product glass divide, to assure only A grade will be delivered.

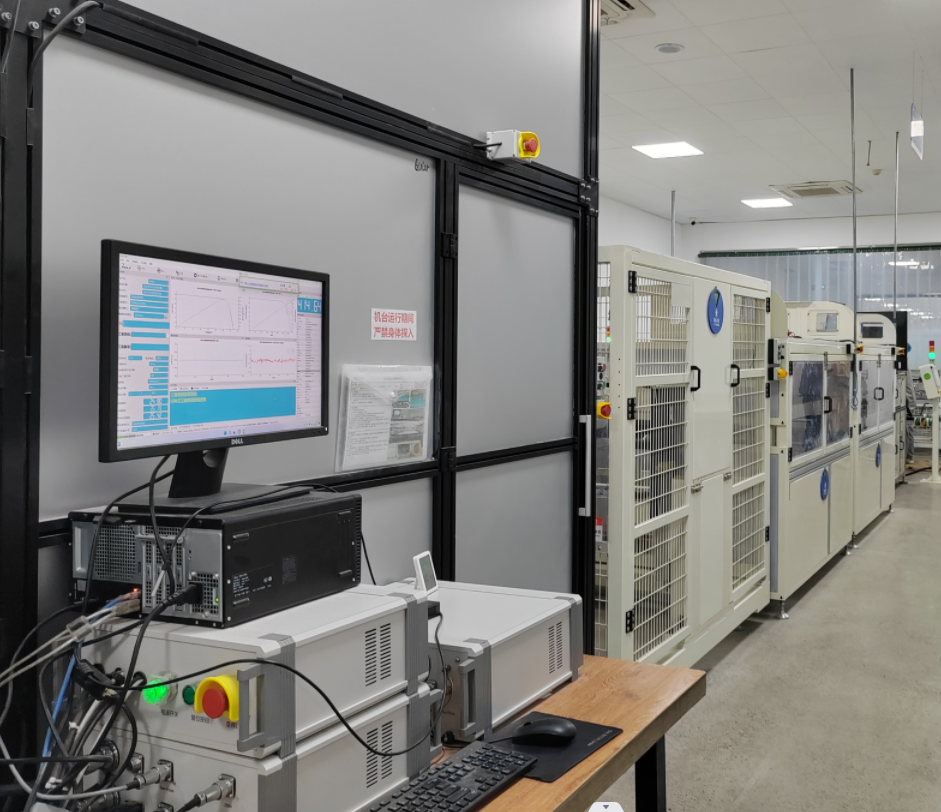

Power Testing
4. Optimal Power Strict Testing
+3% Power tolerance assurance. Comprehensive QC information management system with each barcode ID to record. Quality traceable system in place to allow quality data flow constantly.
Certifications
Product Certifications
Project Gallery

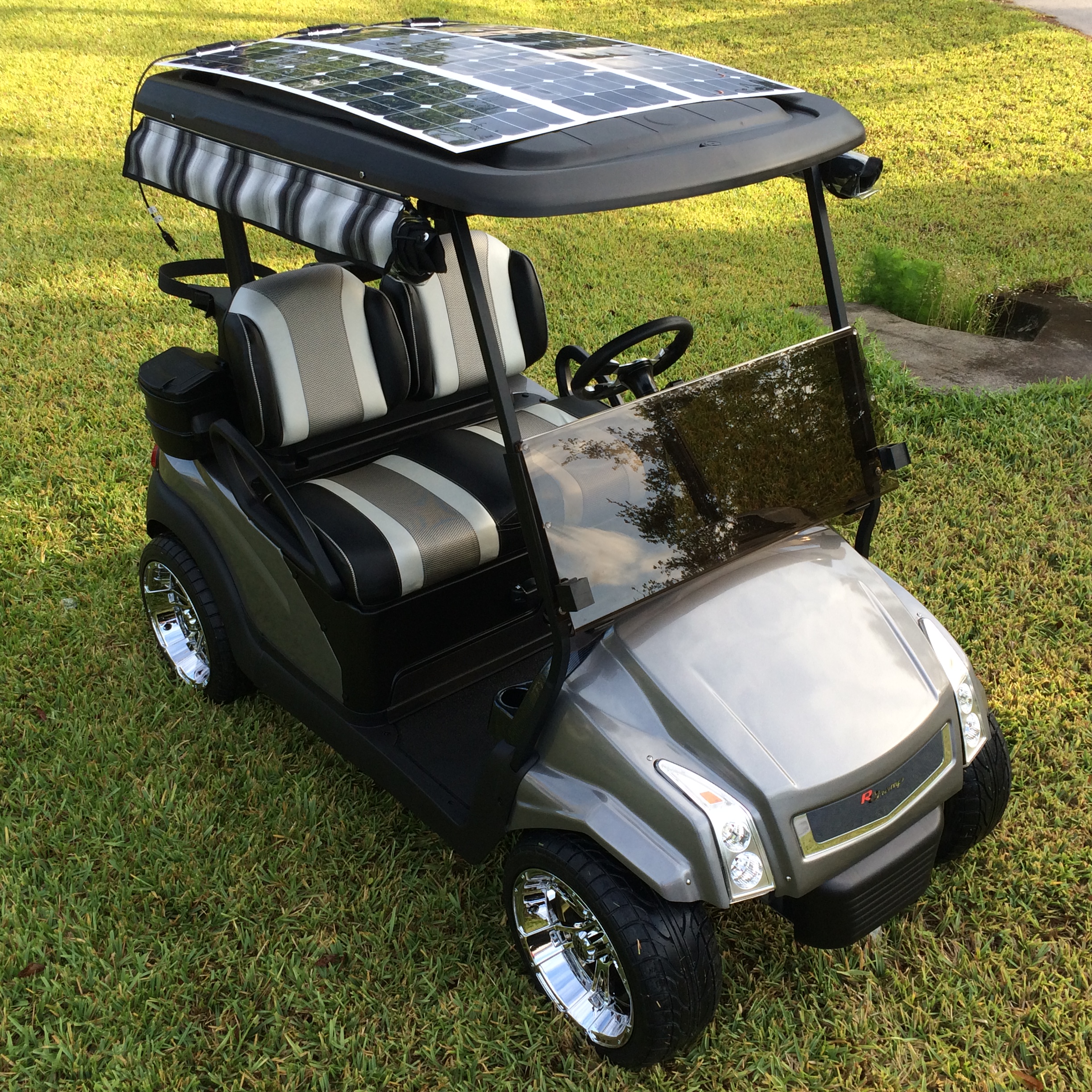

Solar Project 1

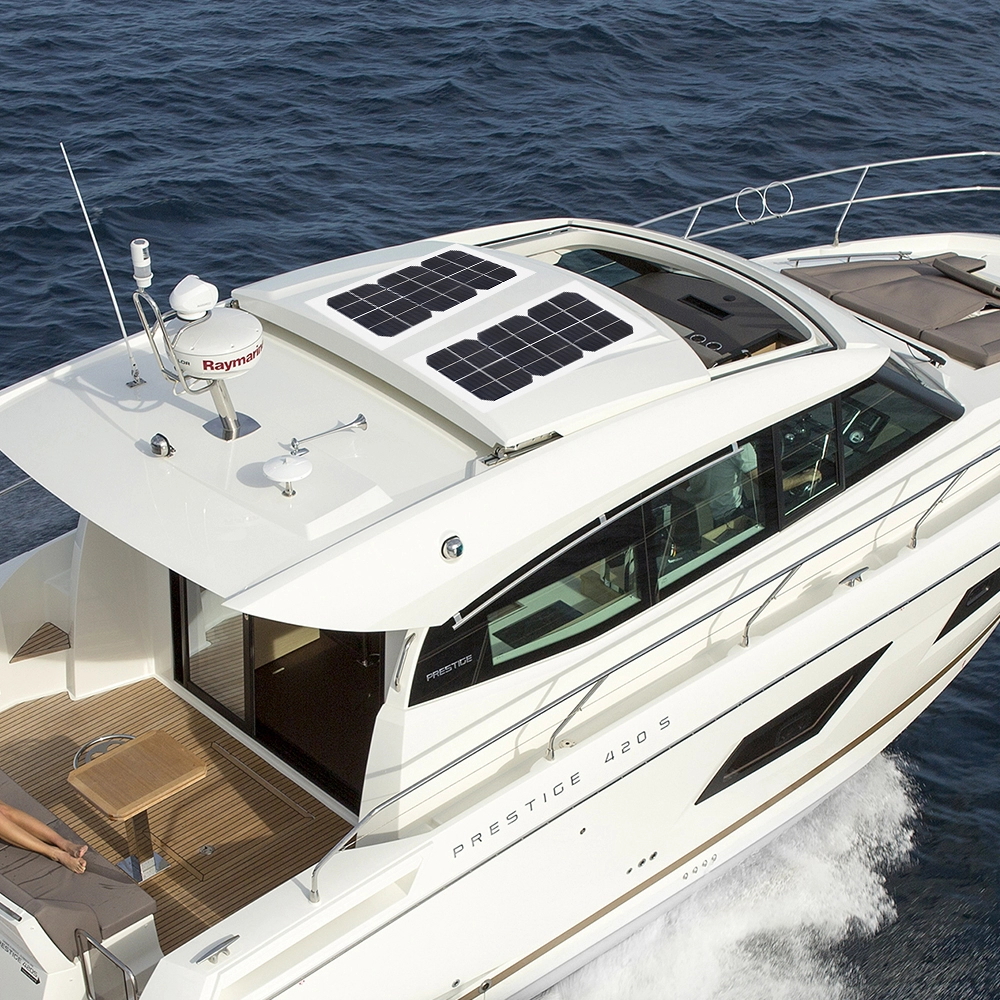

Solar Project 2

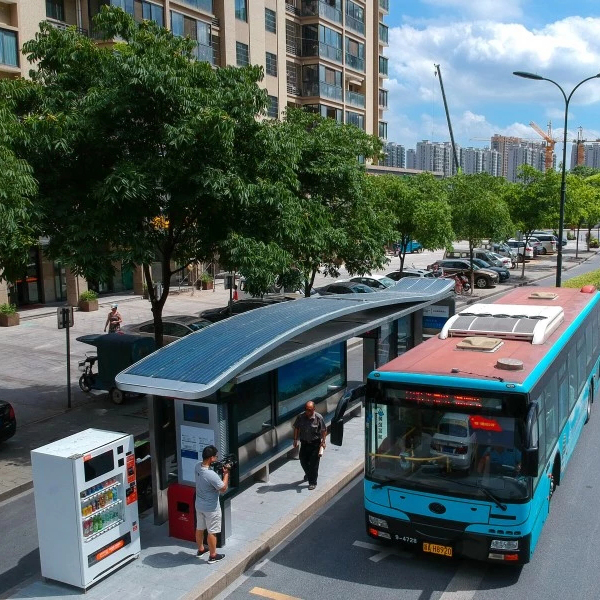

Solar Project 3

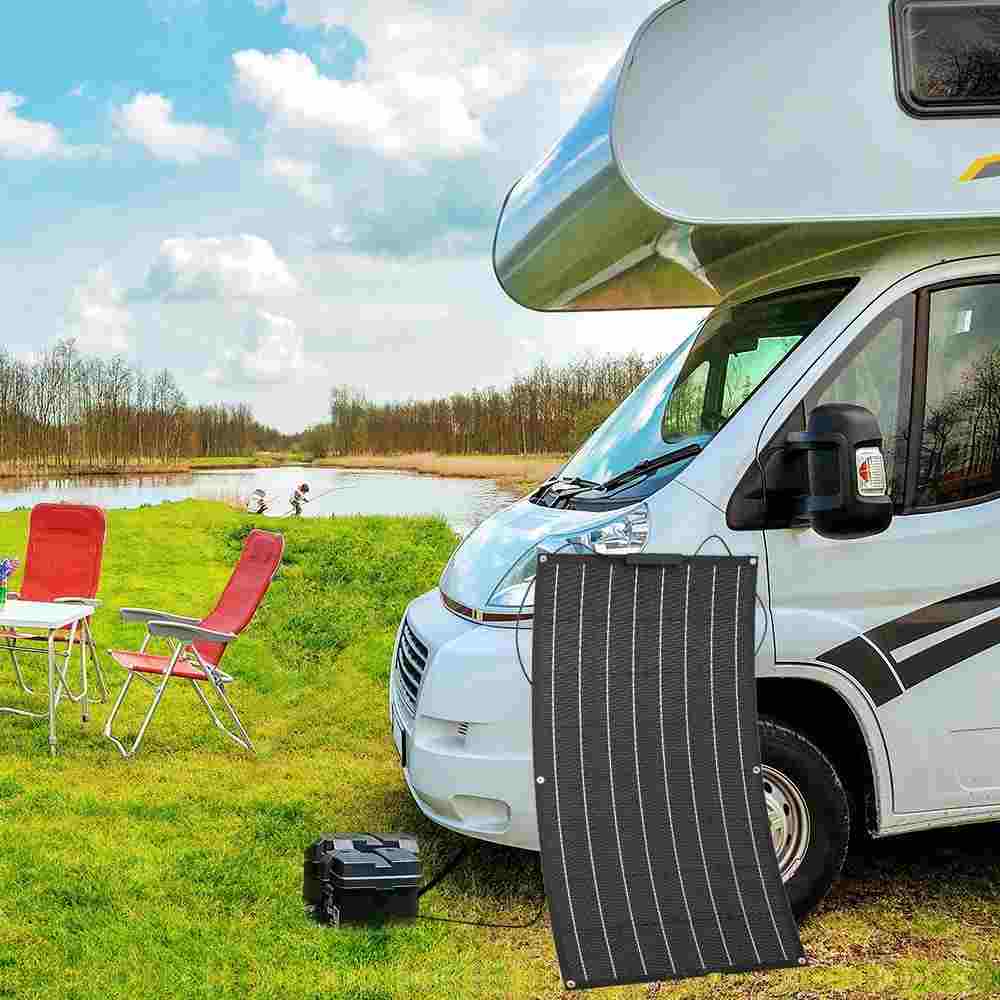

Solar Project 4
Recommend Products

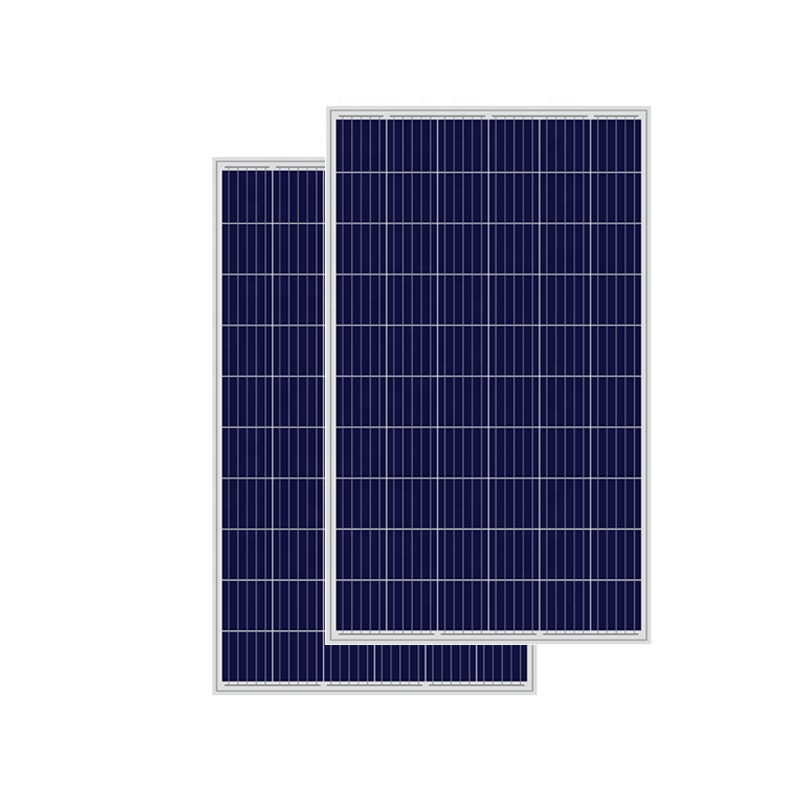

Poly solar panel
Poly solar panel 80W 100W 18V for solar street lighting

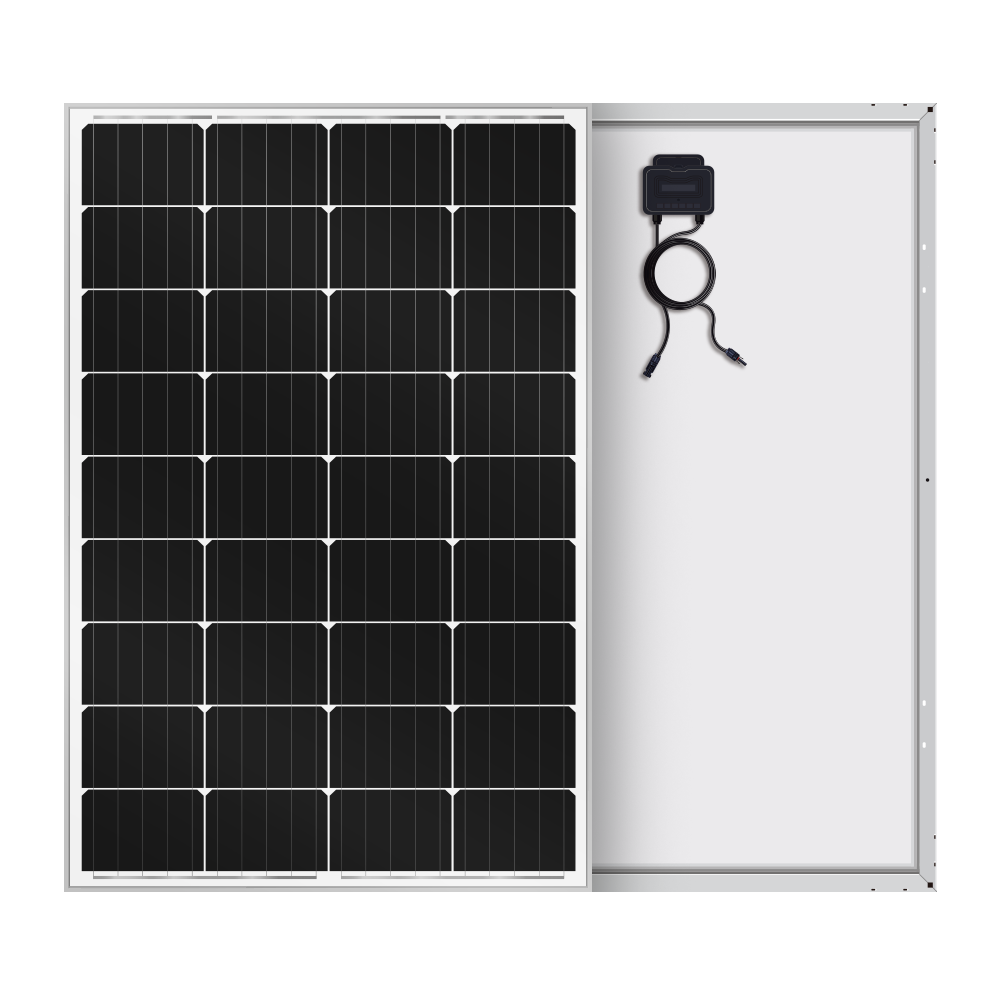

Customized solar panel
Customized solar panel 100W 150W black color

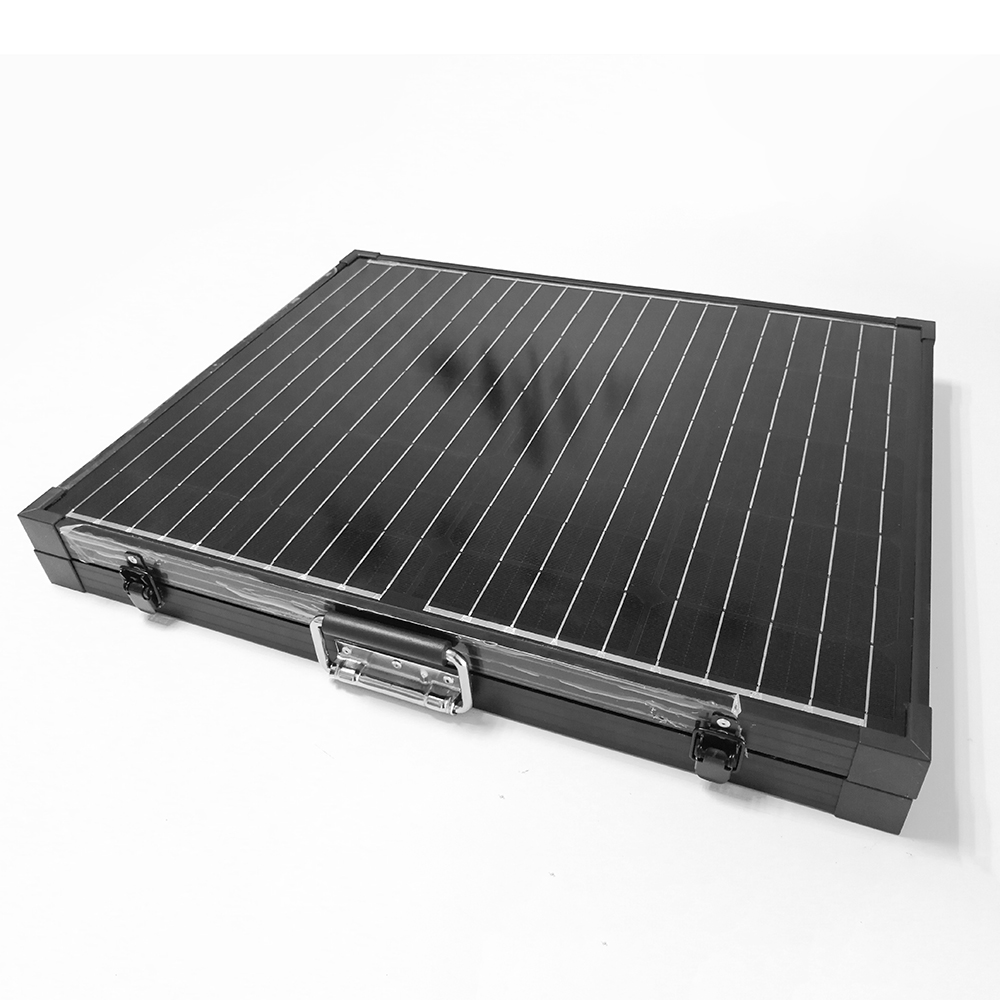

Portable folding solar panels
Portable folding solar panels 120W for camping outdoor use
Why Choose Us
SOLUTIONS
Customized solutions with rich site experience as our value-added service
PRICES
Competitive prices with high performance and complete certificates
FAST DELIVERY
Fast delivery under 1.2GW/year production capacity
Advantage Overview
Frequently Asked Questions
What types of solar panels do you offer?
We design and manufacture various solar modules, including high-efficiency monocrystalline and polycrystalline half-cell panels, bifacial double-glass modules, and specialized customized panels to fit unique household, commercial, or industrial applications.
How is the quality of your solar panels controlled during production?
We run a comprehensive QC process including automatic sorting of raw solar cells, three iterations of 100% EL (Electroluminescence) testing (before lamination, after lamination, and prior to final packaging), and continuous ERP-integrated quality tracing for every module via individual barcode tracking.
Do your solar products meet international certification standards?
Yes, our solar modules have successfully met stringent test standards and obtained certificates including CE, ROHS, CQC, TUV, and other global certifications to ensure safe operation and high performance.
How do you pack the panels to avoid damage during shipping?
We pack the solar panels in heavy-duty 3-layer or 5-layer corrugated cardboard boxes using professional, eco-friendly protection materials. This minimizes the risk of micro-cracks and supports seamless shipping and reselling. Custom packaging options can also be provided upon request.
Can you provide custom dimensions and power outputs?
Yes, we specialize in providing tailored solar solution designs, ranging from low-power modules for street lighting (80W–100W) to high-power modules up to 720W, utilizing customized sizes, frame colors, and specifications to align with your project requirements.
