Whc 5kwh/5kVA/10kw/20kw/100kw/550W Solar Tied PV Photovoltaic Energy Storage Hybrid Home Industry Micro 410W Panel off on Grid Complete Kit Power Controller

1 / 5

Whc 5kwh/5kVA/10kw/20kw/100kw/550W Solar Tied PV Photovoltaic Energy Storage Hybrid Home Industry Micro 410W Panel off on Grid Complete Kit Power Controller

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

Basic Specifications

Model NO. 20KW Li-20KWH

Nominal Voltage AC220V

Discharge Rate High Discharge Rate

Shape Square Battery

Electrolyte Li-ion

Installation Packaged

Rechargeable Chargeable

Product Name Offgrid Solar Power System Home

Power 20kw

Solar Panel Type Half Cell Solar Panel

Battery Type LiFePO4 Lithium Battery

Inverter Pure Sine Wave Inverter

Controller MPPT Solar Charge Controller

Solar Panel Bracket Aluminum Alloy

Mounting Support Pitched / Flat Roof / Ground

System Type Off-Grid Solar Power System

Battery Cell 3.2V 100ah LiFePO4 Cell

Production Capacity 10000 pieces/Month

Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

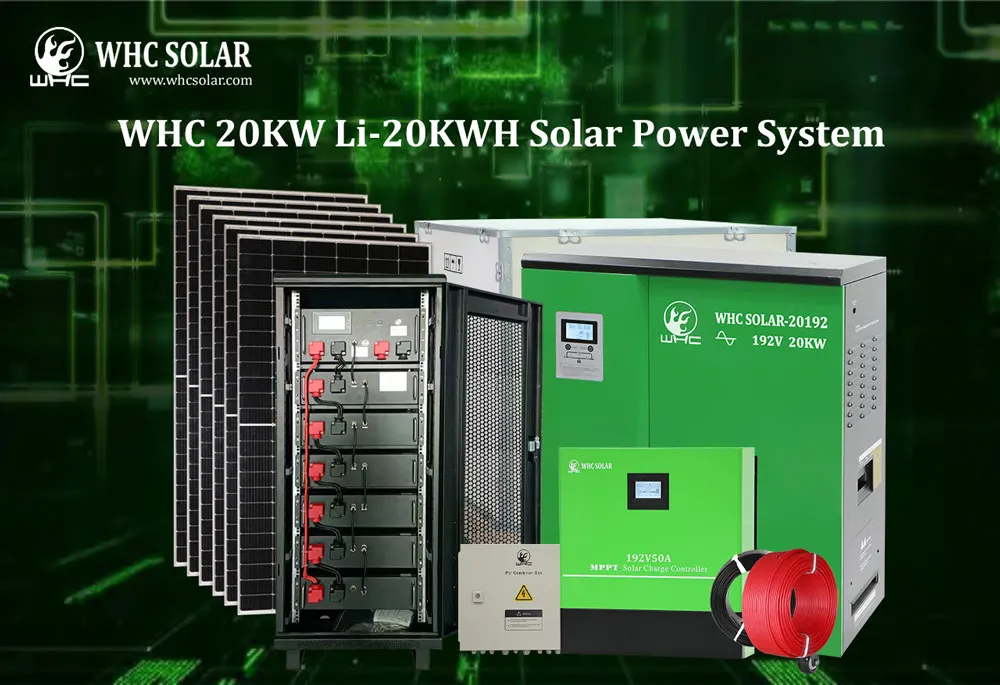

Model: 20KW Li-20KWH | Product Name: Offgrid Solar Power System Home

This off-grid solar system is a highly cost-effective energy solution for residential properties. It represents a complete solar setup integrated with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery storage, and standard solar accessories. This system ensures continuous electricity supply while significantly reducing grid reliance and utility expenses.

System Bill of Materials (10KW-Li-10KWH Configuration)

Item	Description	Quantity
Solar Lithium Battery	192V100AH LiFePO4 Lithium Battery	1 Piece
Solar Panel	450W Solar Mono Panel	450W Solar Mono Panel
Solar Controller	192V 50A MPPT Controller	1 Piece
Solar Inverter	192V 20KW Solar Inverter	1 Piece
PV Combiner Box	Six Input + Two Output	1 Piece
PV Cable	Single-core 6mm² PV cable 100m	2 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	30 Pieces

Component Specifications

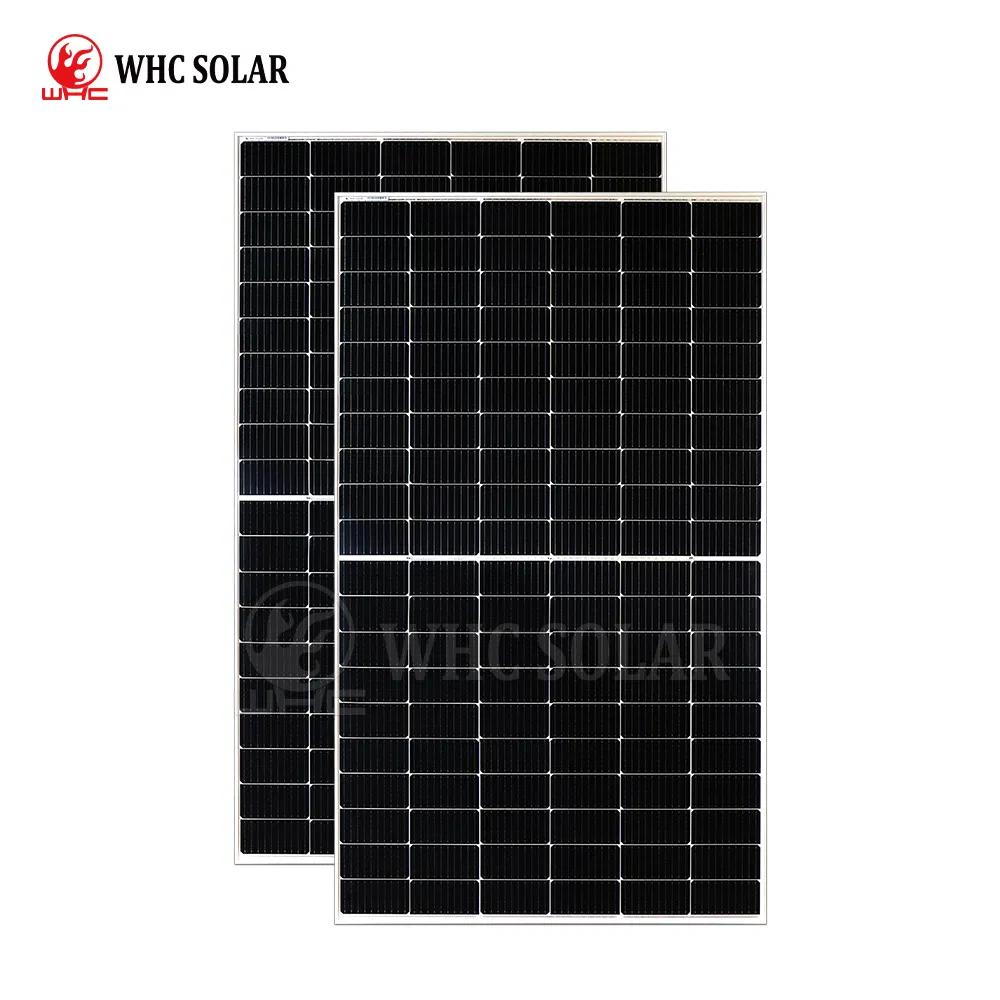

Mono Solar Panel

Model: WHC-450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

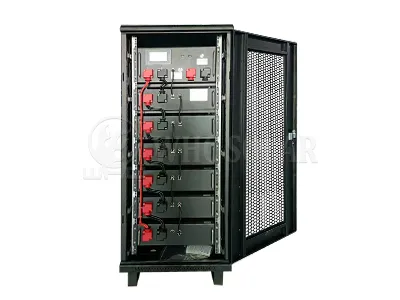

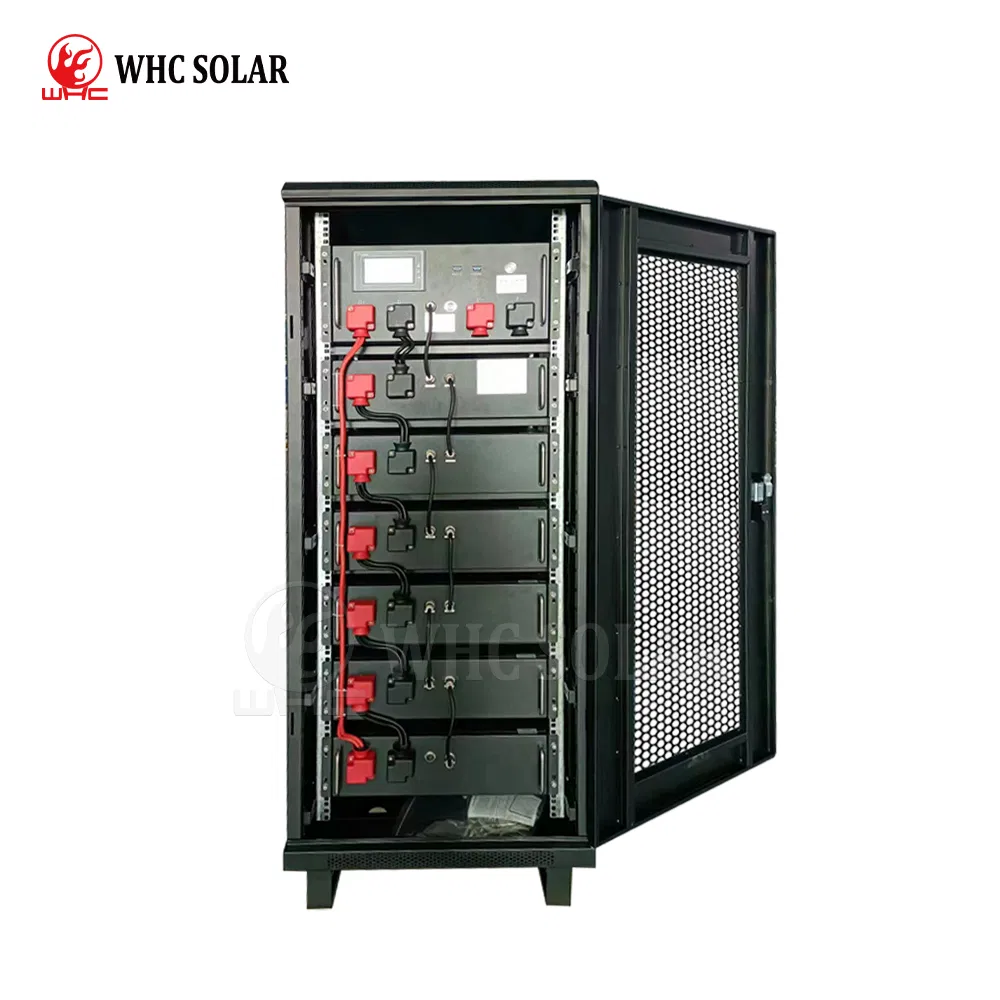

LiFePO4 Lithium Battery

Model: WHC192V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

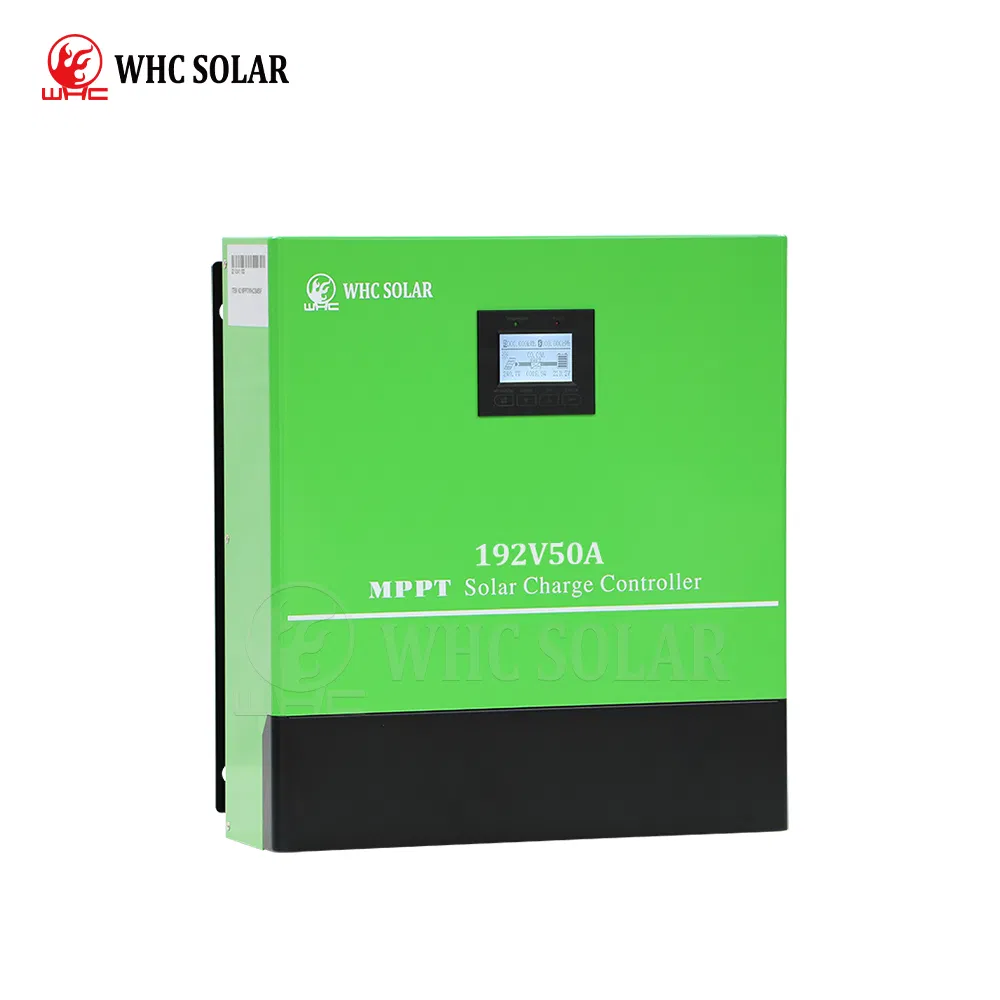

Solar Controller

Model: MPPT/WHC19250F
Cooling Type: Heatsink Cooling
Max. Charging Current: 50A
Max. PV Open Circuit Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%

Solar Inverter

Model: 192V 20KW Inverter
Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
DC Input Voltage: 192V
AC Input Voltage: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ

PV Combiner Box

Combiner Box: N6 Plus
Waterproof Rating: IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

Mounting Support

Product: Solar Panel Bracket
Wind Load Rating: 55m/s
Structure: Anodized Aluminum / Stainless Steel
Adjustability: Angle Adjustable

PV Cable

Specification: Solar Cable 100m
Type: RVV 1*6mm²
Material: Pure Copper
Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)

MC4 Connector

Product: MC4 Solar Connector
Waterproof Rating: IP68
Material: Copper Core Connection
Features: Safe Protection, Quick Operation

Production & Quality Standards

Production Facility

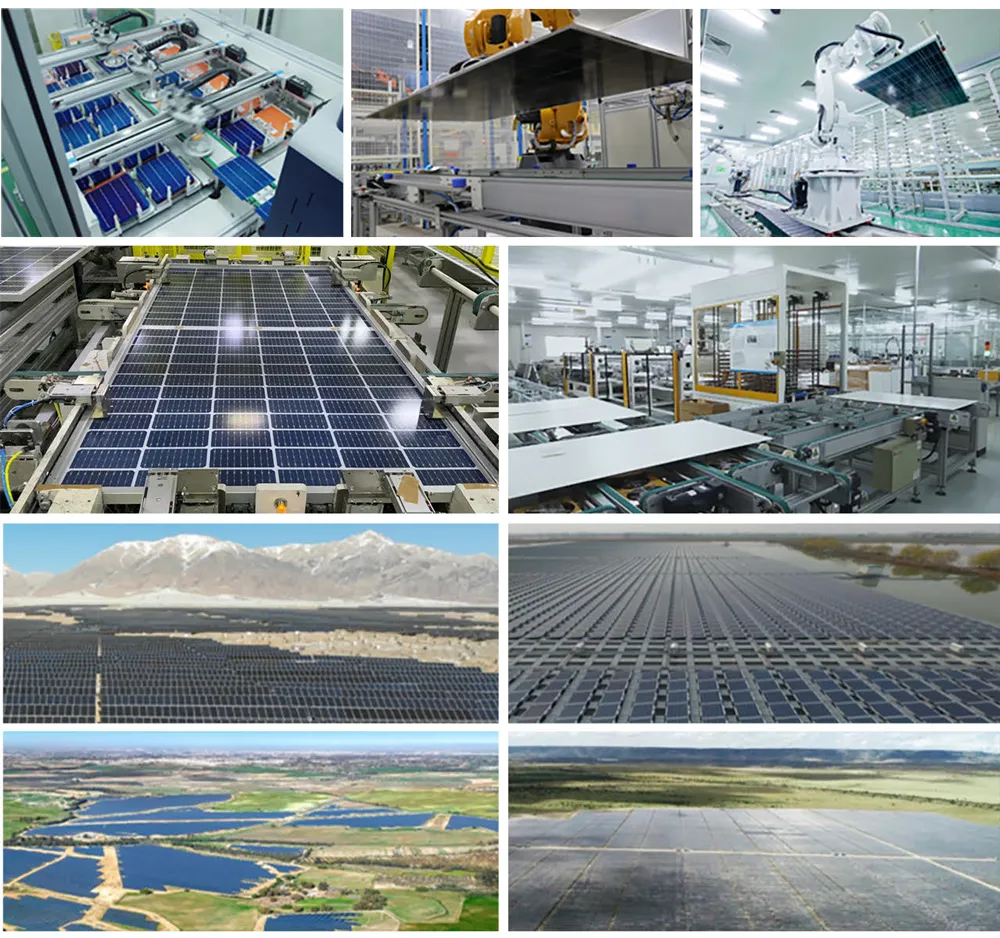

Manufacturing Capacity

Certificates

Packing & Delivery

Frequently Asked Questions

Q1: Are you a factory or a trading company?

We are a professional factory manufacturing and assembling high-performance off-grid solar power systems and energy storage units.

Q2: Can we print our own logo on the products?

Yes, OEM is fully supported. We can brand your logo on the battery cases, combiner boxes, or solar system cabinets based on your design requirements.

Q3: What certifications do your solar products hold?

Our products are developed according to strict international quality standards, holding multiple patents and certified under CE, RoHS, and ISO9001:2008 quality management guidelines.

Q4: What is the average production and delivery timeline?

Standard orders typically require 14 to 20 days. The precise timeline depends on the specific order configurations and quantities.

Q5: Where are your primary export markets?

Our primary user bases and distribution networks span across Africa, South America, the Middle East, and Western countries.

Q6: Which payment terms do you support?

We accept Western Union, MoneyGram, and wire transfers (T/T). Other secure payment channels can be configured upon mutual agreement.
