Ultra-Light (1.8kg) | 30° Arc Flexibility | Salt Mist Resistant

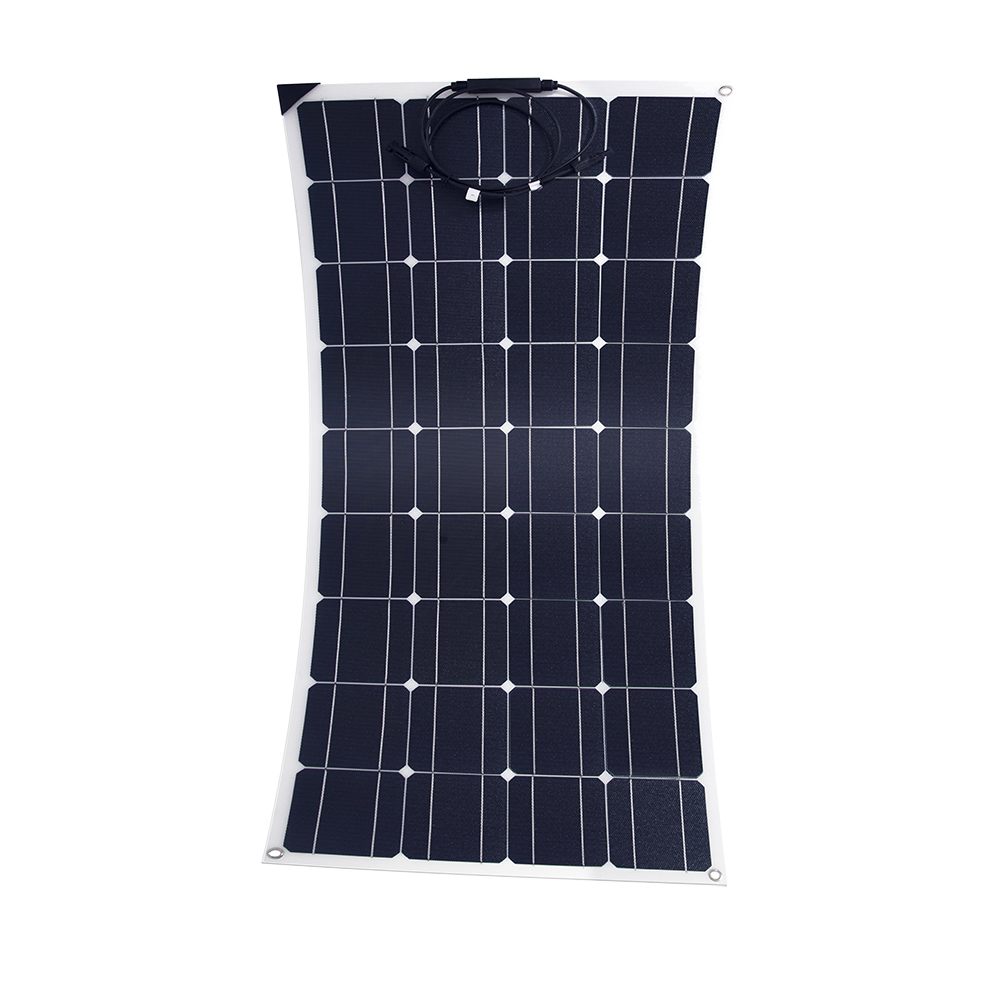

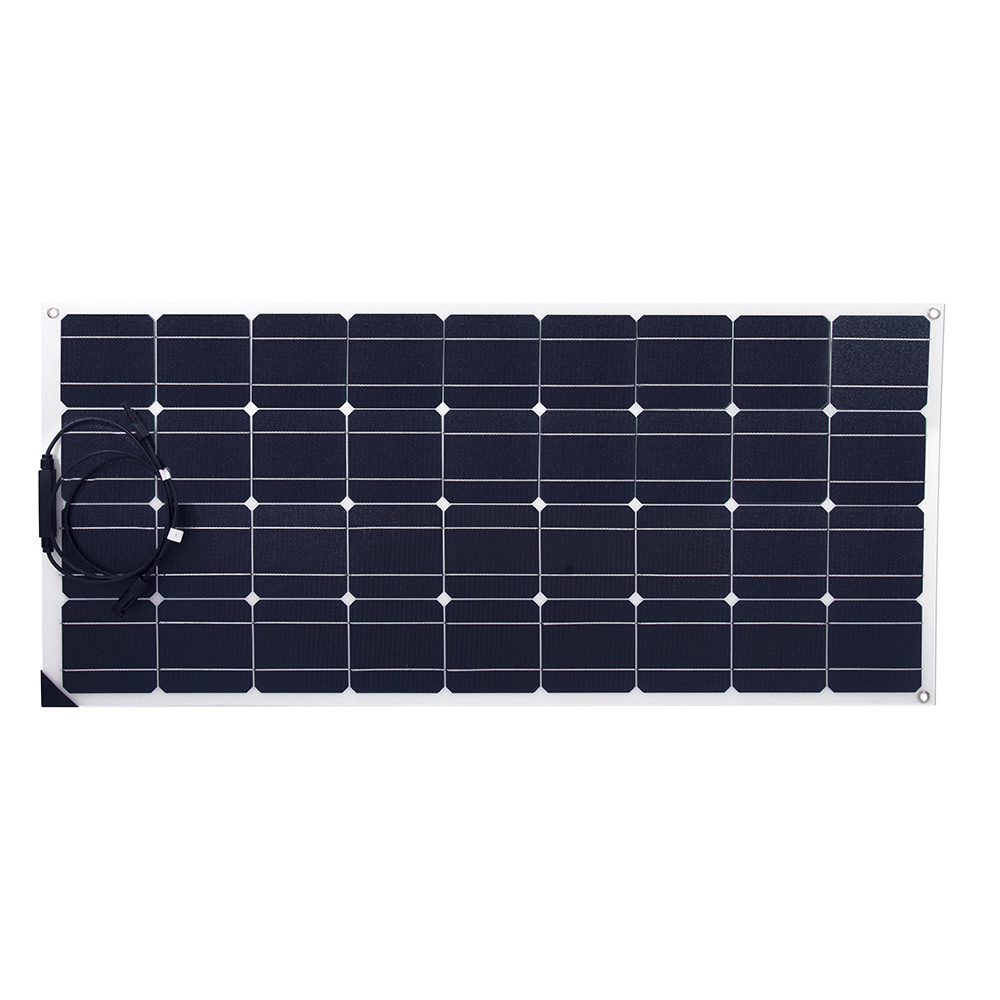

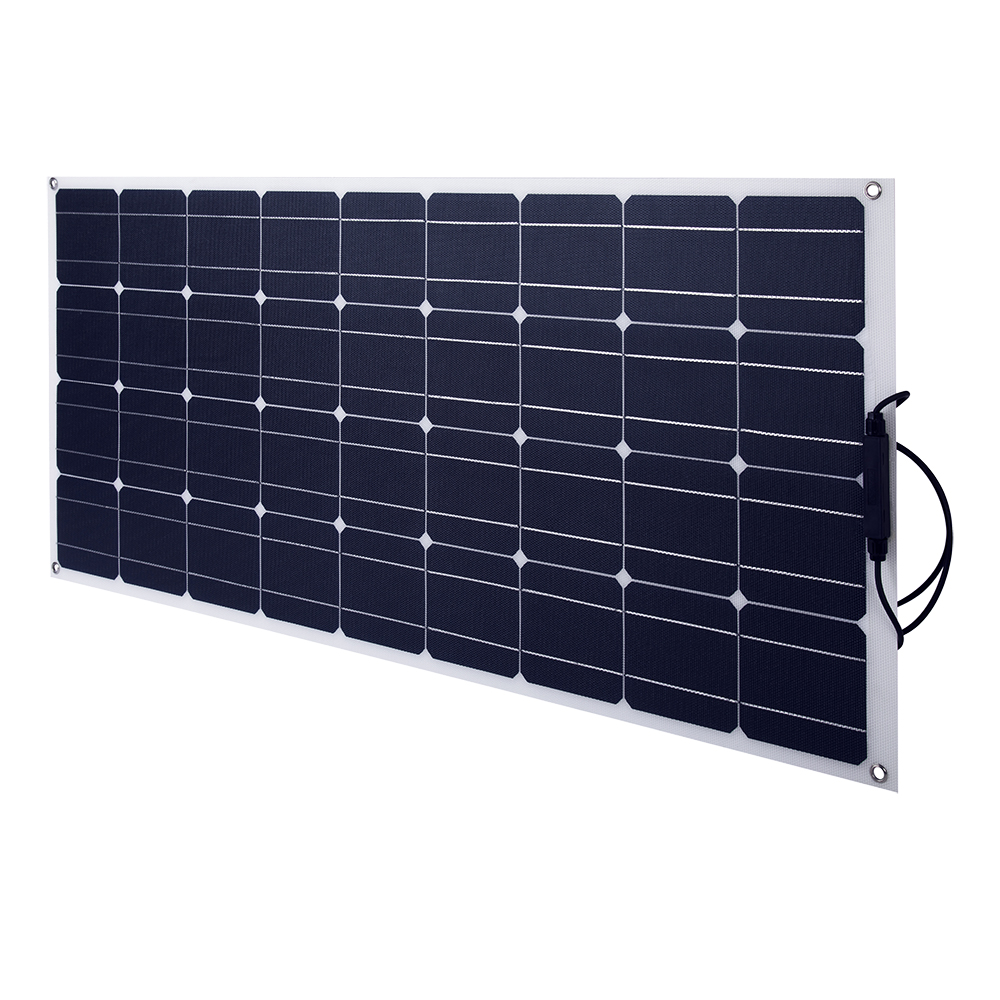

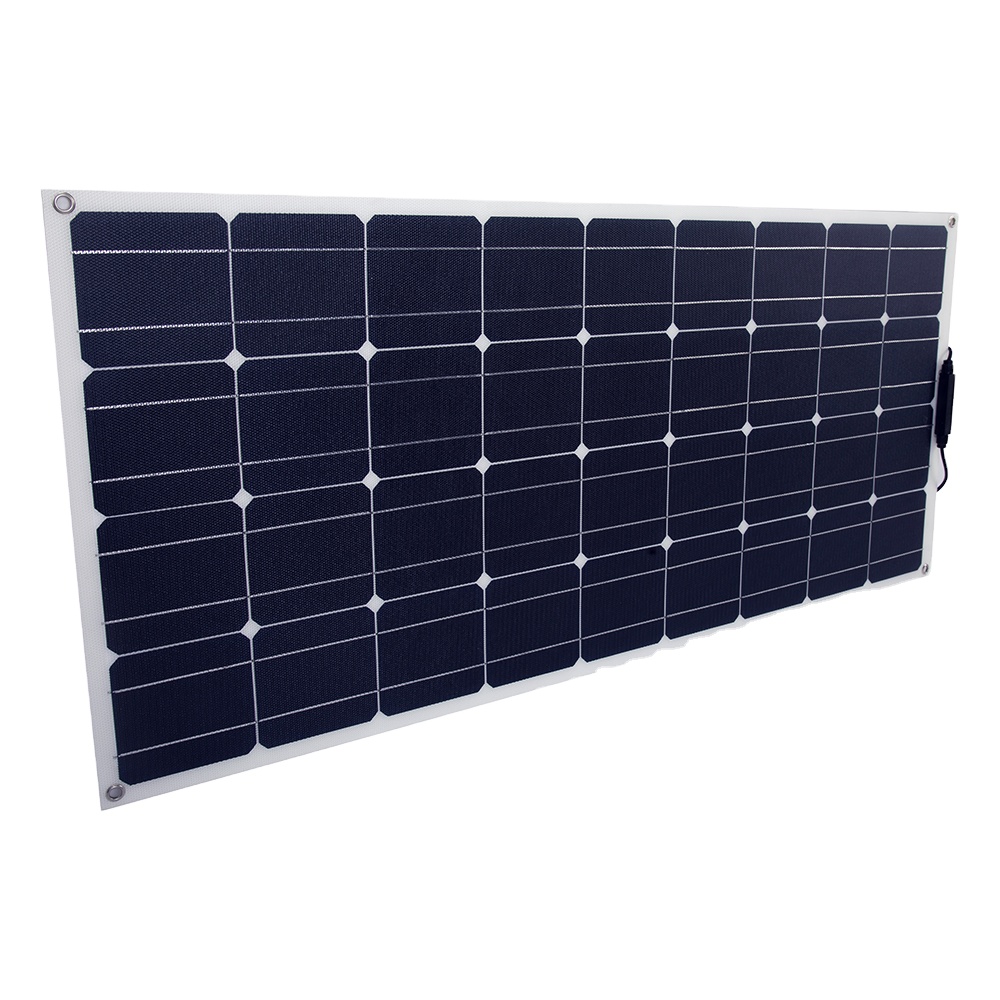

Upgrade your energy system without the weight. This 100W ETFE Flexible Solar Panel is the industry standard for marine and RV applications. Weighing only 1/10th of a traditional glass panel, it molds perfectly to curved surfaces, making it ideal for sailboat decks, catamarans, and aerodynamic caravan roofs.
Capable of bending up to 30 degrees. It fits seamlessly onto the curved roof of an Airstream or the bow of a yacht where rigid panels simply cannot go.
We use advanced ETFE coating which is non-stick and self-cleaning. Highly resistant to salt spray corrosion and harsh UV rays, ensuring a long lifespan at sea.
Thickness: Only 2.5mm.
Weight: Approx 1.9 kg.
Installs flush to the roof, creating zero wind noise and adding negligible weight to your vehicle.
Uses Grade-A Monocrystalline cells (22%+ efficiency) to deliver maximum power in a compact footprint.
| Parameter | Details |
|---|---|
| Product Name | Semi flexible solar panel 100w Plate Flexible Solar Panel Home Plate Energy System Panel Kit solar sheet used in the roof of RV |
| Size | 1090mm*540mm*2.5mm |
| Solar Cell | Monocrystalline 20.5%~22.5% efficiency rate |
| Material | PET lamination, or ETFE lamination, with monocrystalline solar cells |
| Feature | Lightweight, Ultra-Thin, Portable, 360 degree bending |
| Warranty | 12 months |
| Certificate | CE, ROHS, FCC |
| Cell number | 36pcs of Monocrystalline cells |
| Net weight | 2.25kg |
| Solar Panel type | ETFE laminated solar panel optional with PET lamination, for cheaper cost |
| Maximum power(Pm) | 100W |
| Voltage at max power(Vmp) | 18V |
| Current at max power(Imp) | 5.6A |
| Open circuit voltage(Voc) | 21.8V |
| Short circuit current(Isc) | 6.2A |
| Output cable | MC four, SAE, DC, Anderson connector, Battery Clip Jumper, Car Cigarette Lighter Sockets |
| Specification | Details |
|---|---|
| Model Number | SOL-MPX-100W |
| Cell size | 125*125mm or 161*161mm |

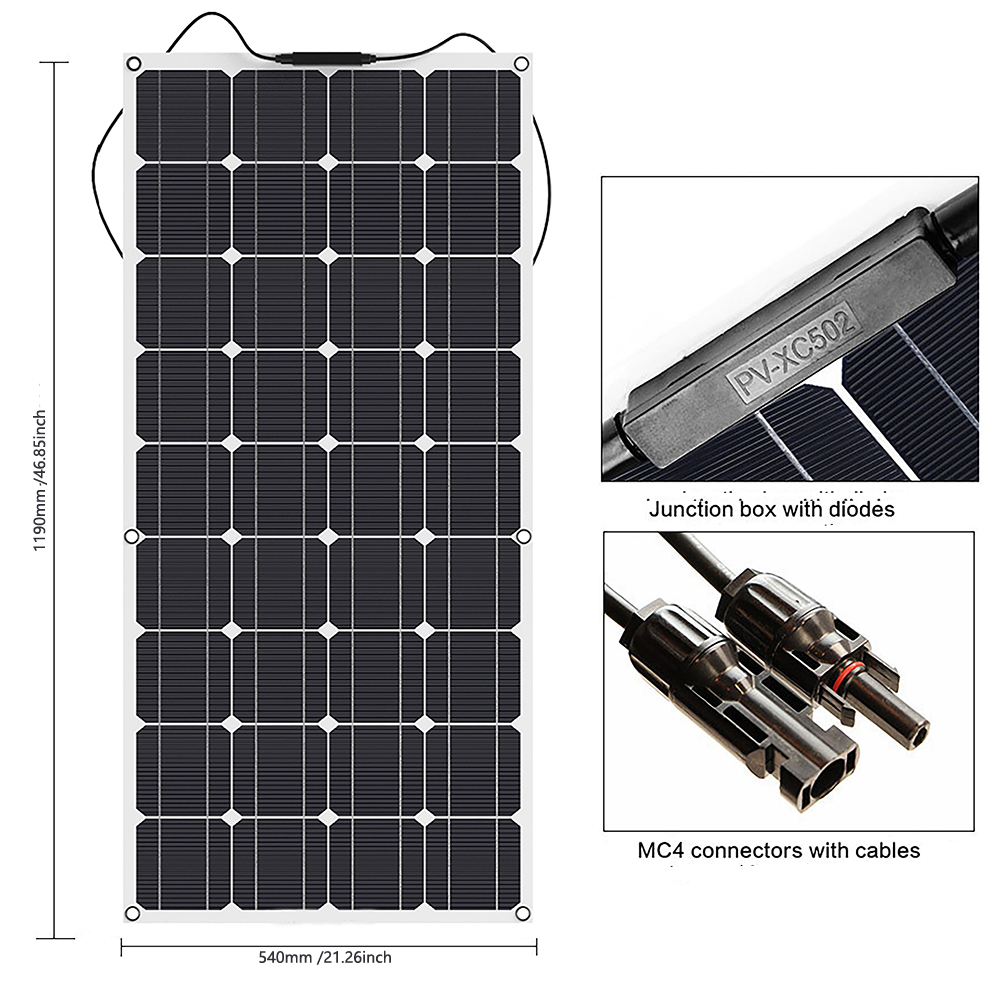

| Panel Dimensions | 1190mm*540mm*2.5mm |
| Panel Efficiency | 20.5%-22.5% |
| Type | Flexible, Mono solar panel flexible 100W~200W |
| Application | Charging all kinds of 12V batteries, power packs, etc. |
| Power Max | 100W |
| Color | Black and Blue and White |
| Size | 1190mm*540mm*2.5mm |
| Certificate | CE/ROHS/FCC |
| Material | ETFE Lamination |
| Solar Cell | High quality Mono A grade |
| Output | 18.0V |
| Connector | MC four Compatible Connector |
A: Glue or Screw. Method A (Recommended): Use construction adhesive (like Sikaflex 252 or 3M VHB Tape) to glue the panel directly to the roof/deck. Method B: Use the stainless steel eyelets (grommets) to zip-tie or screw it down.
A: Yes, absolutely. Parallel: Connect 2 panels (+ to +, - to -) to keep 12V but double the amps (faster charging). Series: Connect 2 panels (+ to -) to make a 24V system.
A: Flexible panels sit flush on the roof, so airflow is limited. Pro Tip: If installing on a plastic or canvas surface, we recommend using a Corrugated Plastic Sheet (Twin-wall) underneath to create a small air gap for cooling.
A: Generally No. Unless you bond it completely flat to a rigid deck with zero air gaps, stepping on it can cause cell micro-cracks. For high-traffic areas, please ask for our "Walkable Reinforced" version.
A: This flexible solar panel is ultra-thin at only 2.5mm in thickness and extremely lightweight, weighing approximately 1.9 kg to 2.25kg, making it highly portable and aerodynamic.
A: Our flexible solar panels are certified with CE, ROHS, and FCC standards to ensure they meet global safety, health, and environmental protection requirements.
