| Model | Voltage (Vmp) | Current (Imp) | Dimension | Array |
|---|---|---|---|---|
| SS-M50W | 18V | 2.78A | 660x500x2.8(mm) | 3x12 |
| SS-M80W | 18V | 4.44A | 1015x500x2.8(mm) | 3x12 |
| SS-M100W | 18V | 5.56A | 1230x500x2.8(mm) | 3x12 |
| SS-M180W | 18V | 10.00A | 1460x670x2.8(mm) | 4x9 |
| SS-M200W | 18V | 11.11A | 1560*700*2.8(mm) | 4x9 |

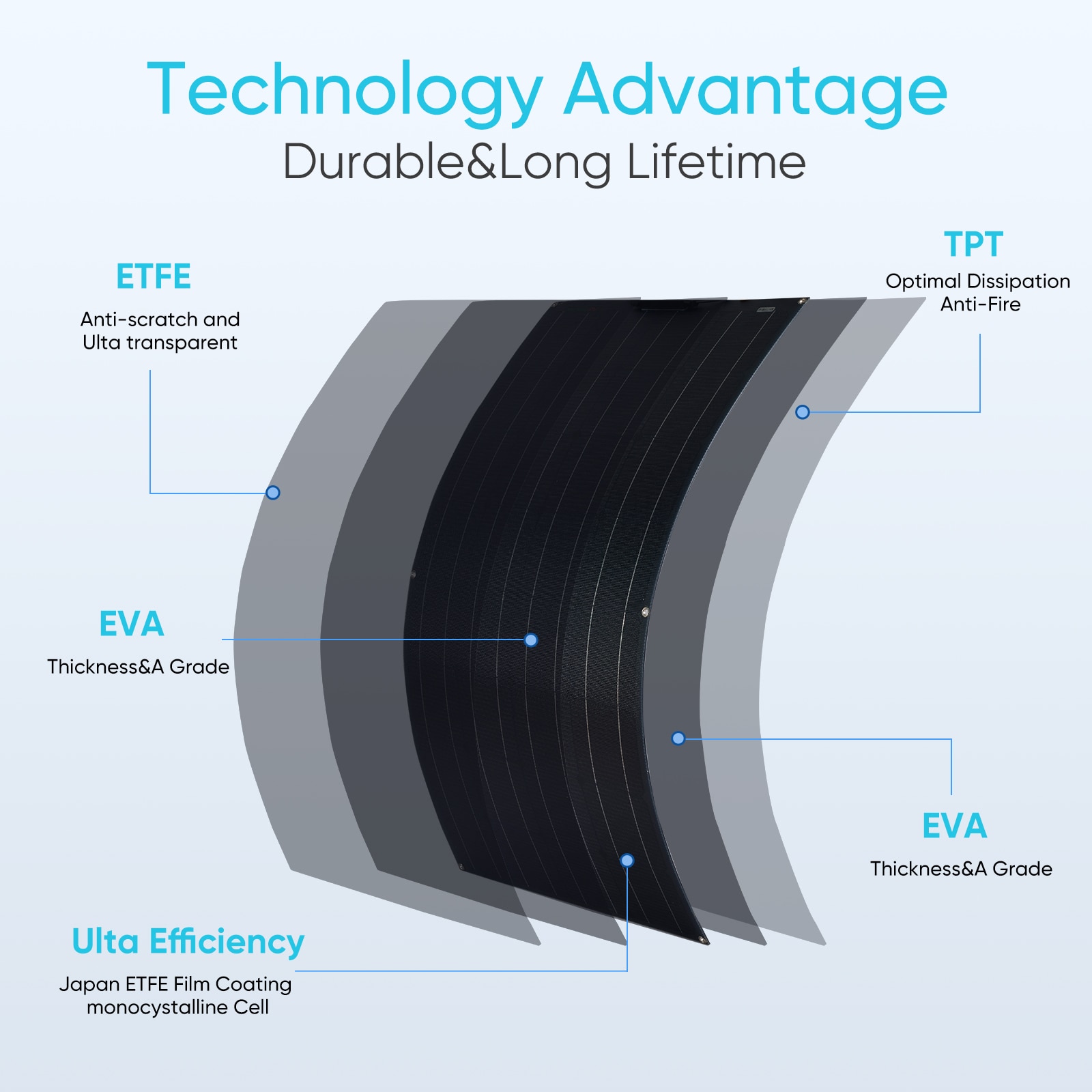

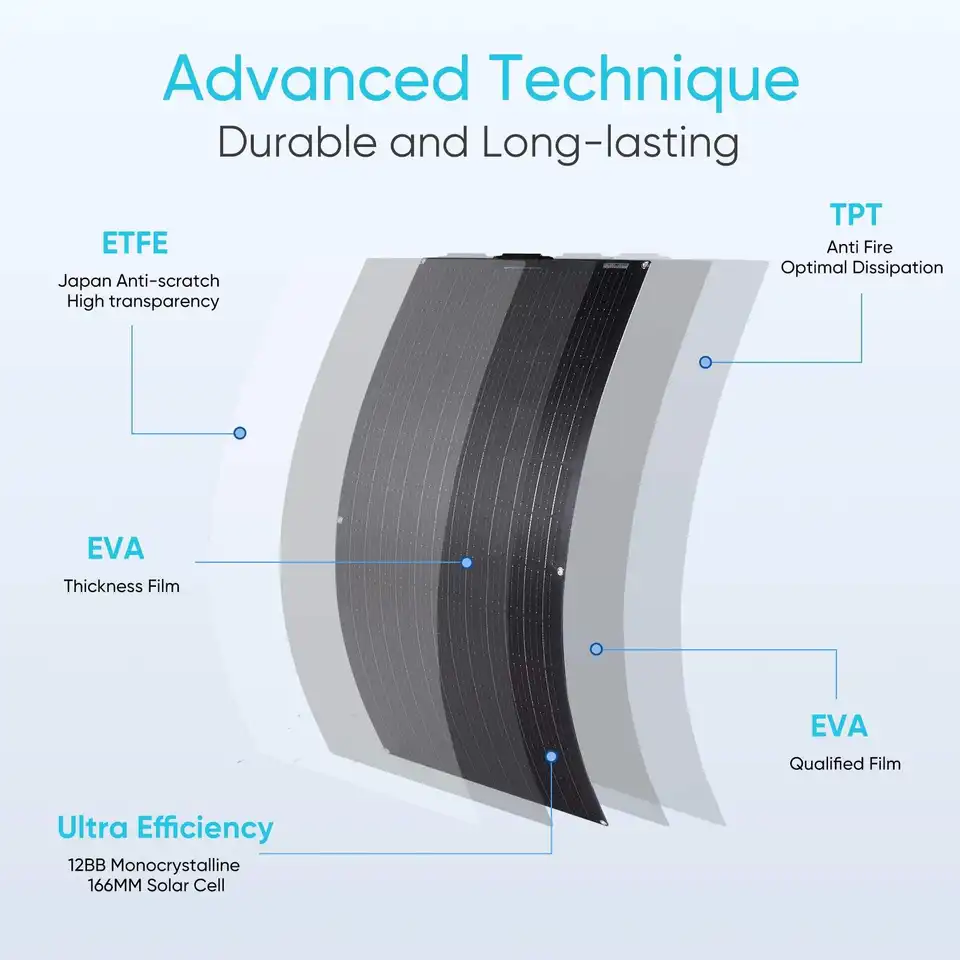

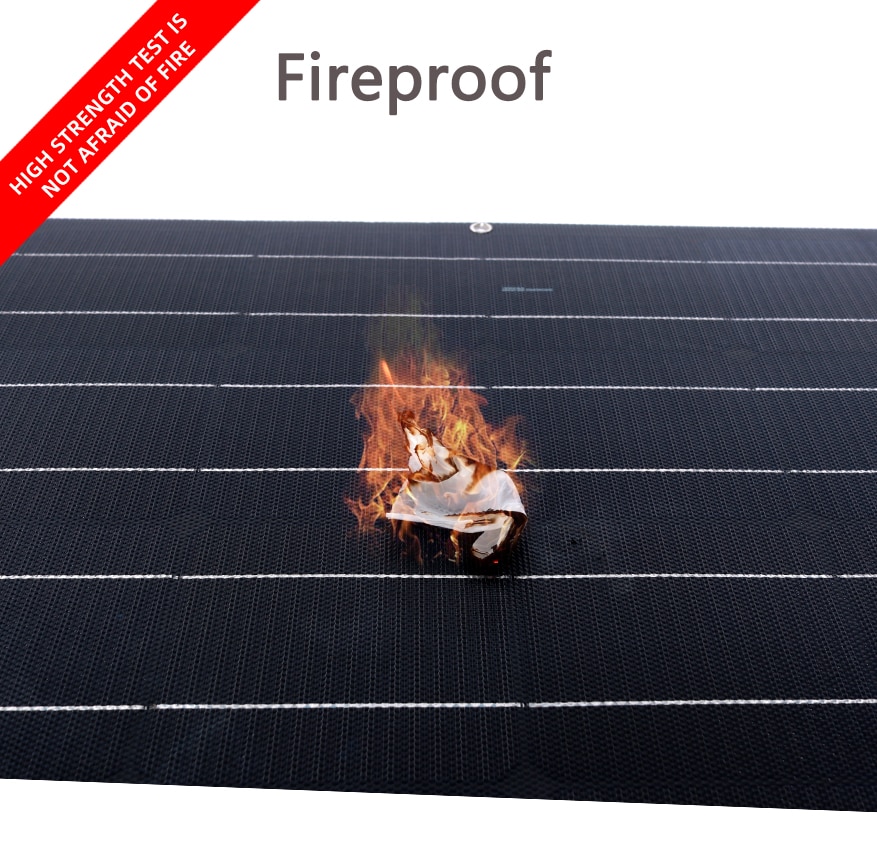

ETFE (Ethylene Tetrafluoroethylene) provides superior light transmission, high flame retardancy, and outstanding durability against harsh weather conditions. Unlike standard PET panels, ETFE panels are highly resistant to corrosion, dust, UV radiation, and have self-cleaning properties, resulting in a much longer lifespan.

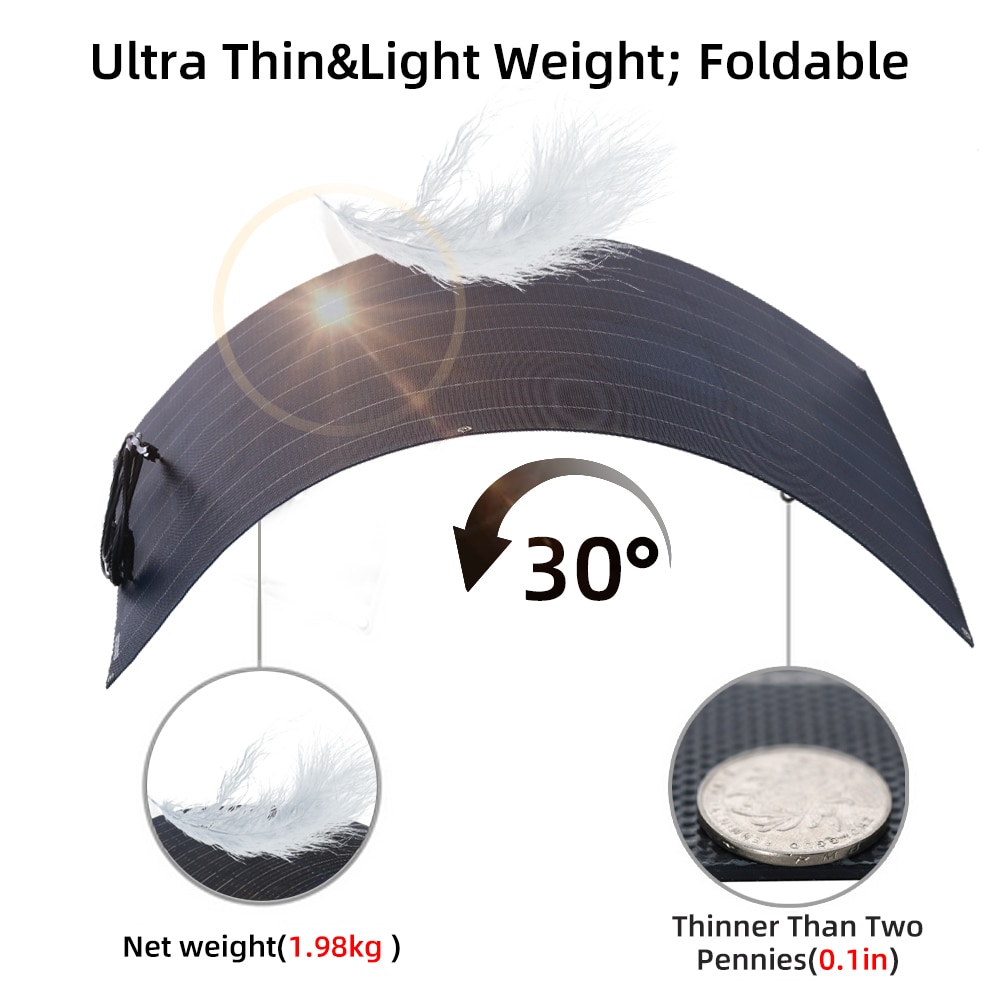

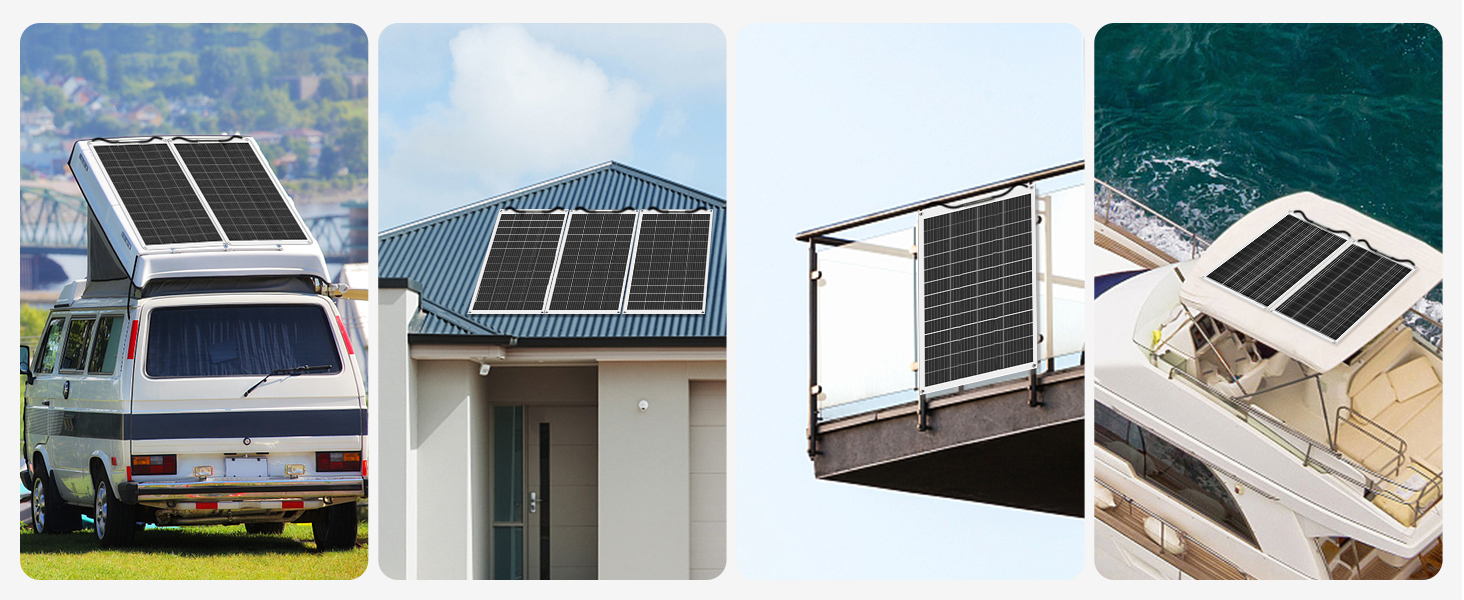

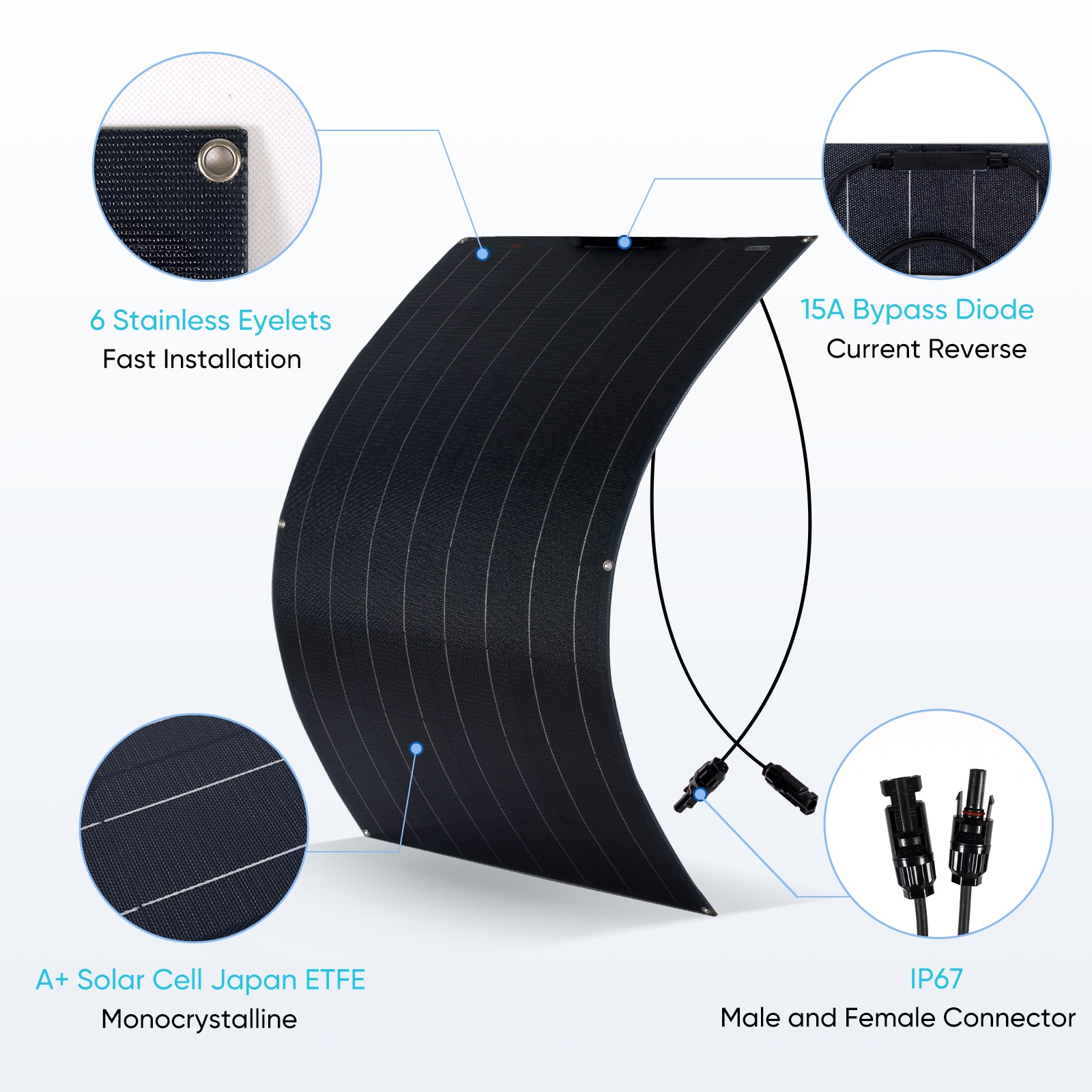

Our semi-flexible solar panels can bend up to a 30-degree angle. This flexibility allows them to mount flush on curved or uneven surfaces, such as RV roofs, campervans, yachts, boats, and teardrop trailers.

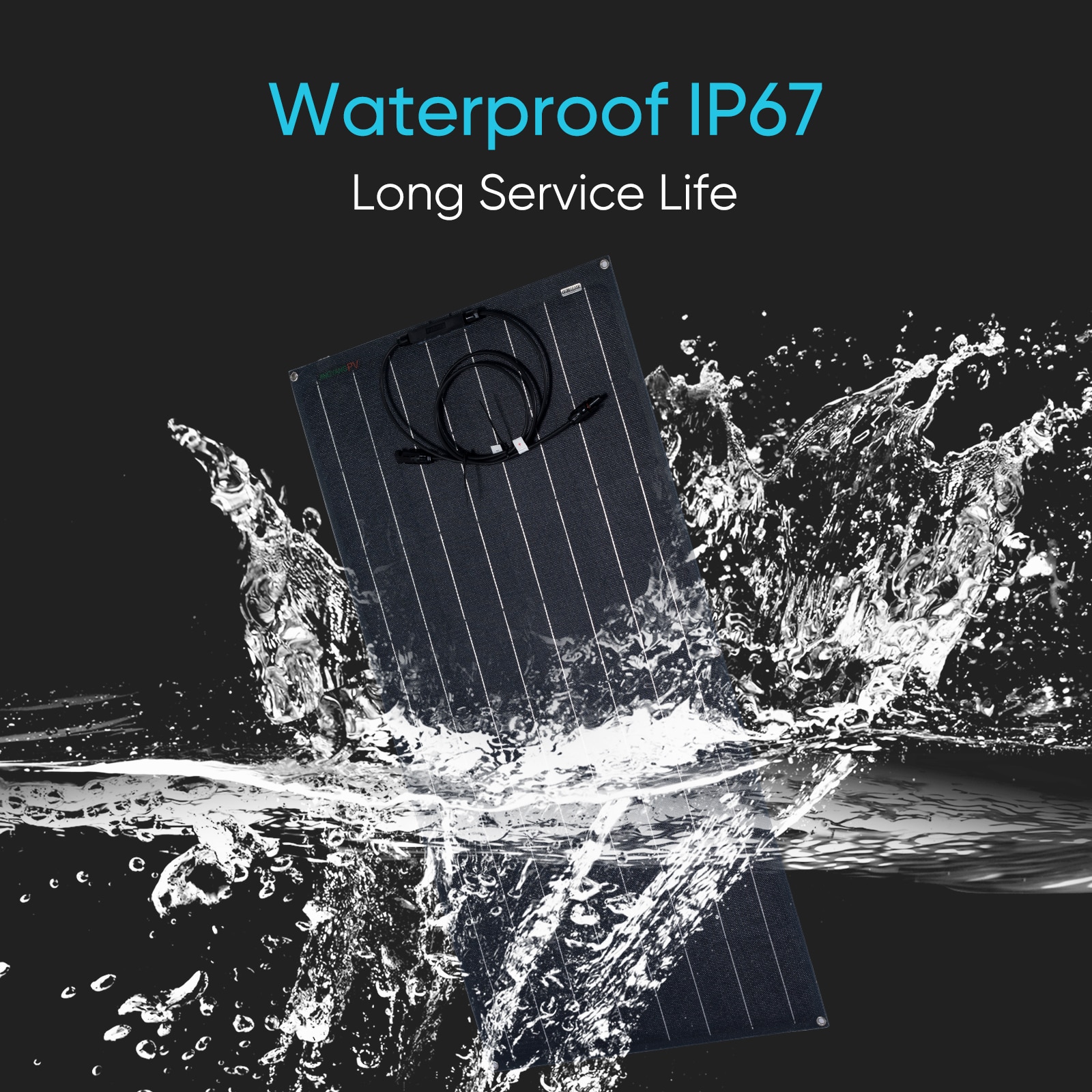

Yes, our flexible solar panels feature an IP67-rated sealed junction box that completely protects internal electronics from water and dust ingress. They are highly suitable for marine applications, including yachts, boats, and coastal setups.

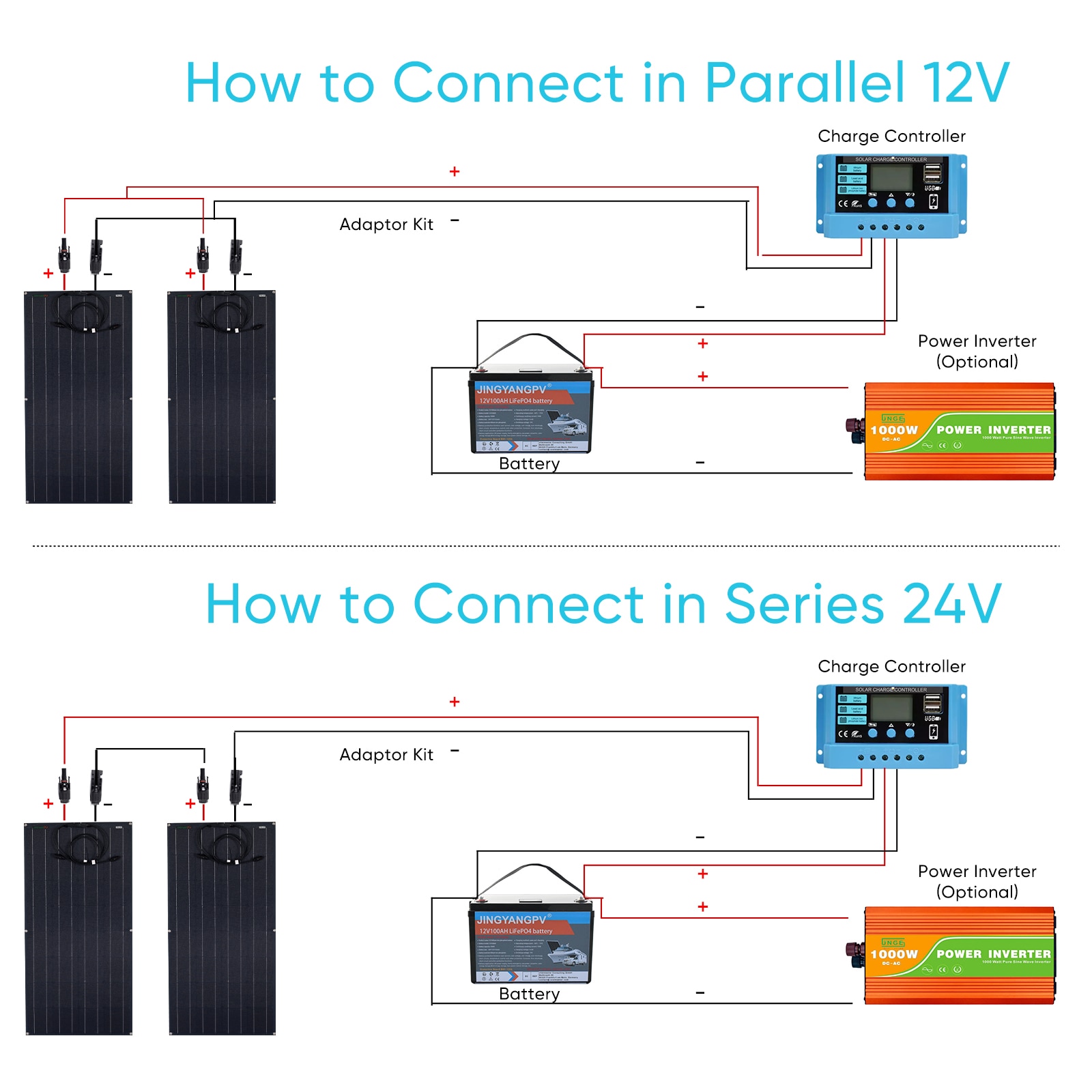

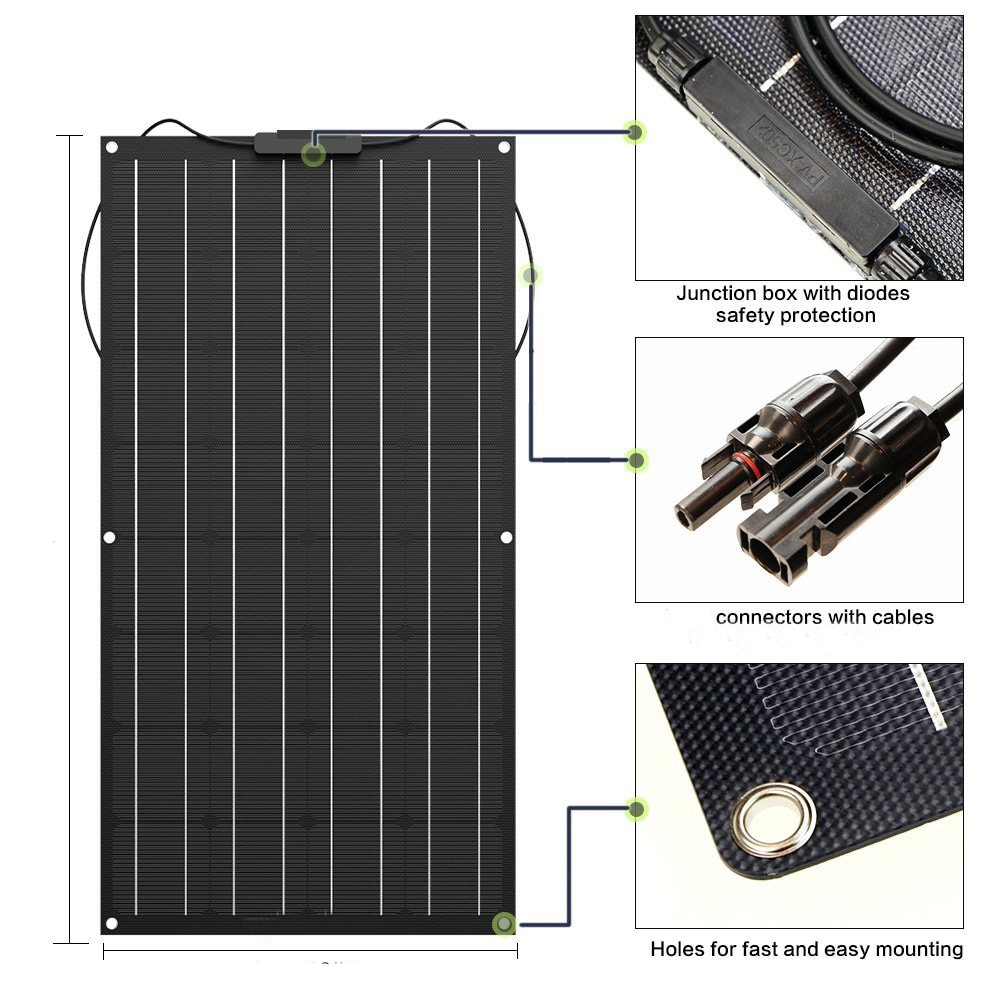

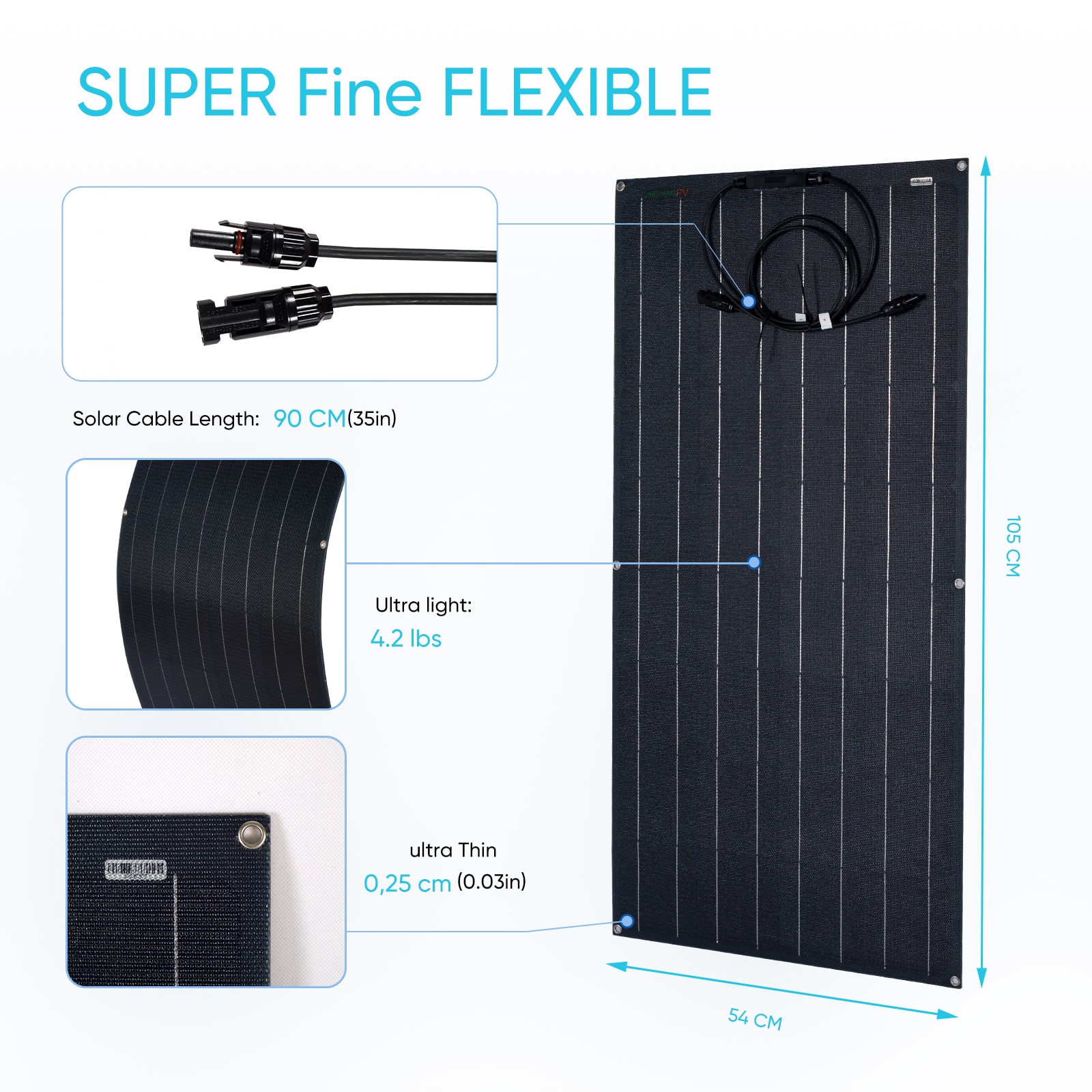

Absolutely. Each panel comes standard with a 1-meter cable and MC4 male/female waterproof connectors, allowing you to easily link multiple panels in series or parallel to meet your specific battery charging voltage and current requirements.
These panels are designed with a standard 18V output voltage, making them compatible with both PWM and MPPT charge controllers. For optimal power conversion efficiency, we recommend using an MPPT controller, especially when wiring multiple panels together.
