Halkirk Solar
1 / 5
| Peak Power(Pmax) | 20W | 30W | 50W | 60W |
|---|---|---|---|---|
| Voltage at Nominal Power(Vmp) | 19.38V | 20.52V | 18.24V | 18.24V |
| Circuit at Nominal Power(Imp) | 1.04A | 1.47A | 2.75A | 3.29A |
| Open Circuit Voltage(Voc) | 23.12V | 24.48V | 21.76V | 21.76V |
| Short Circuit Current(Isc) | 1.09A | 1.54A | 2.88A | 3.46A |
| Module Efficiency(%) | 20% | 20% | 20% | 20% |
| Cell Type | MONO Half Cell 210x26.2mm | MONO Half Cell 182x22.7mm | MONO Half Cell 210x35mm | MONO Half Cell 210x42mm |
| No. of Cells | 34(17x2) | 36(18x2) | 32(16x2) | 32(16x2) |
| Dimensions | 490×240×15mm | 430×400×16 mm | 650×400×25 mm | 670×450×25 mm |
| Weight | 1.3kg | 1.8kg | 3.2kg | 4.1kg |

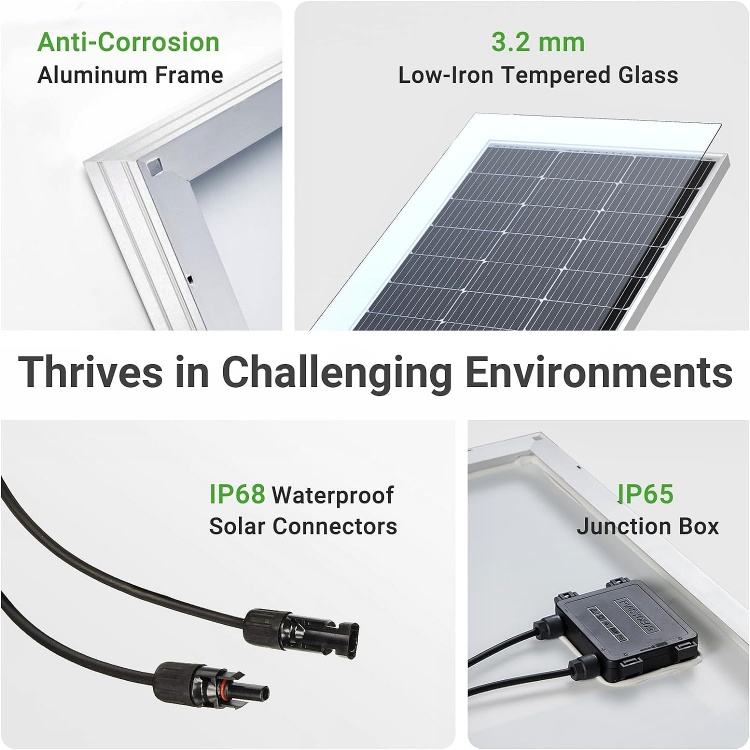

| Front Glass | 3.2mm, Low Iron Tempered Glass | |||
| Frame | Anodized Aluminium Alloy | |||
| Output cables | 4mm², Length 900mm or customized | |||
| Junction box | IP 67 Rated | |||
| Connector | PV Connector(compatible) | |||
