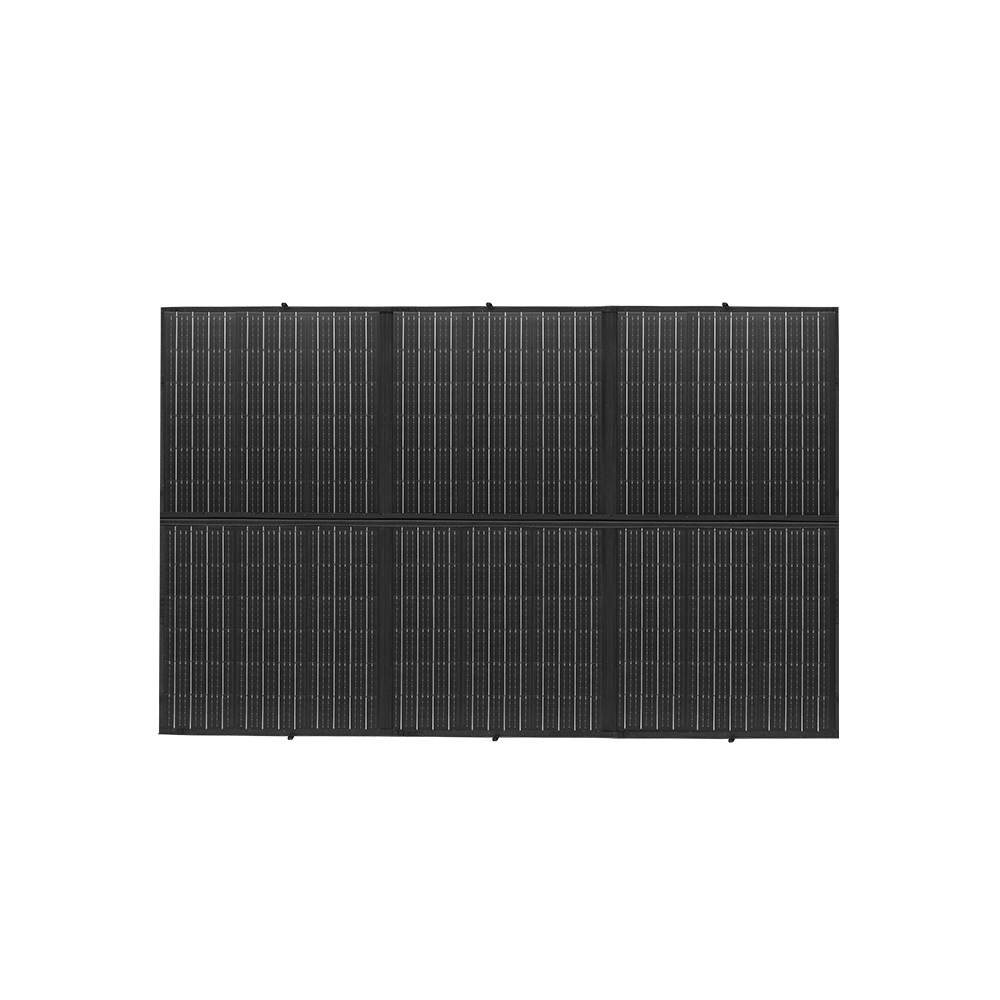

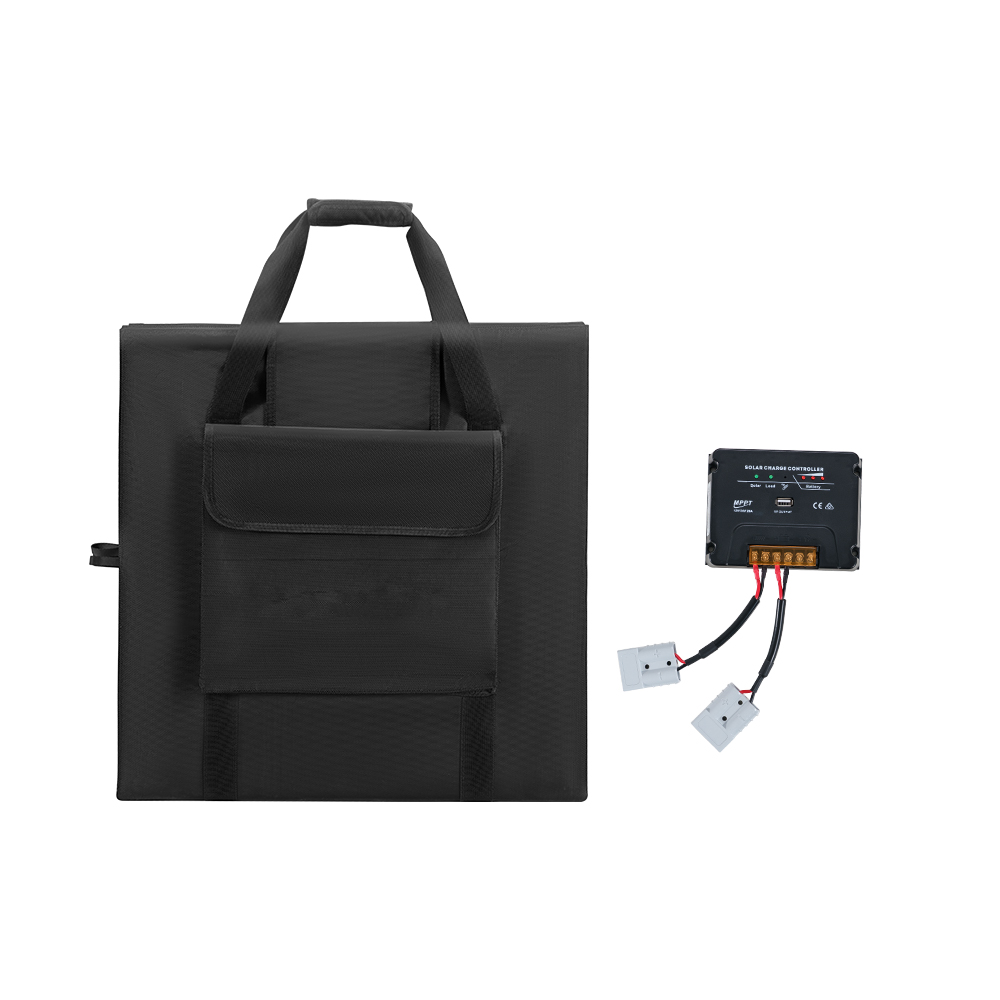

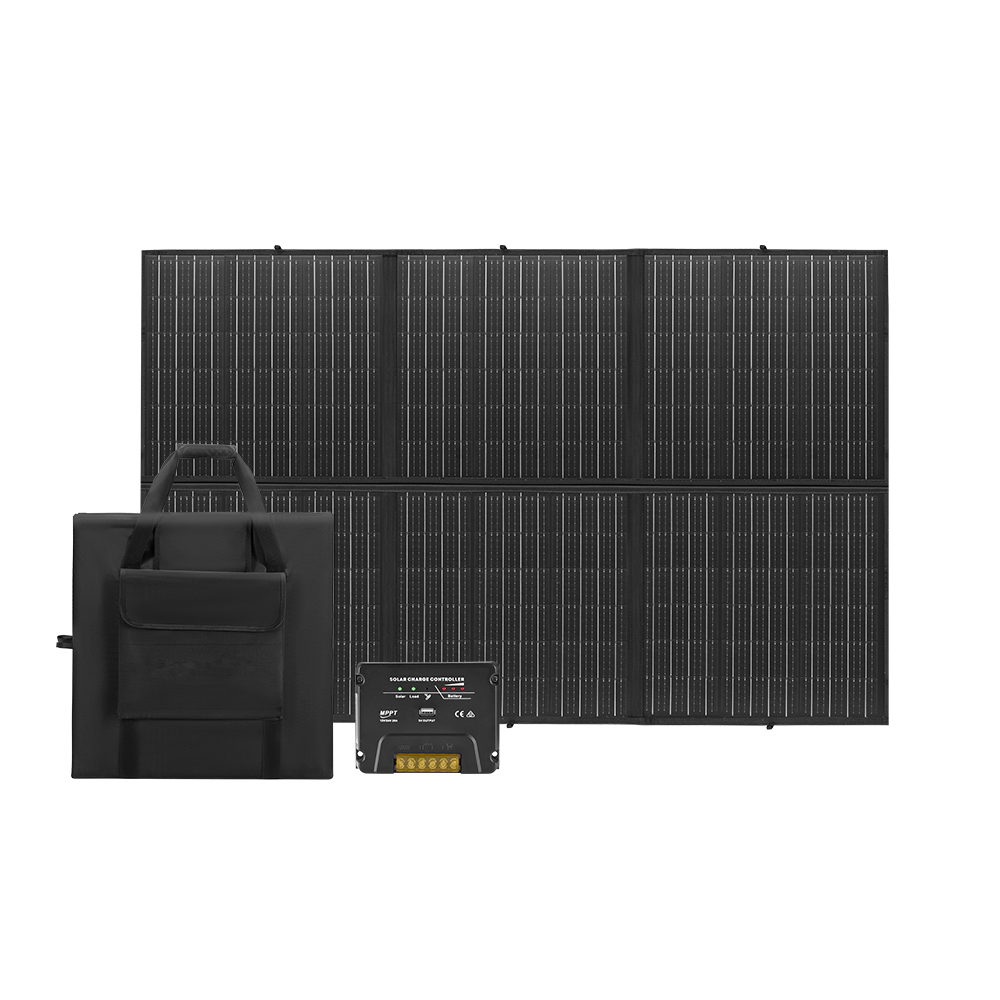

Portable Mono 300W Folding Solar Panel Foldable Solar Blanket RV Camping Solar Panel

Product Description

Product Specifications

Solar Blanket Specifications

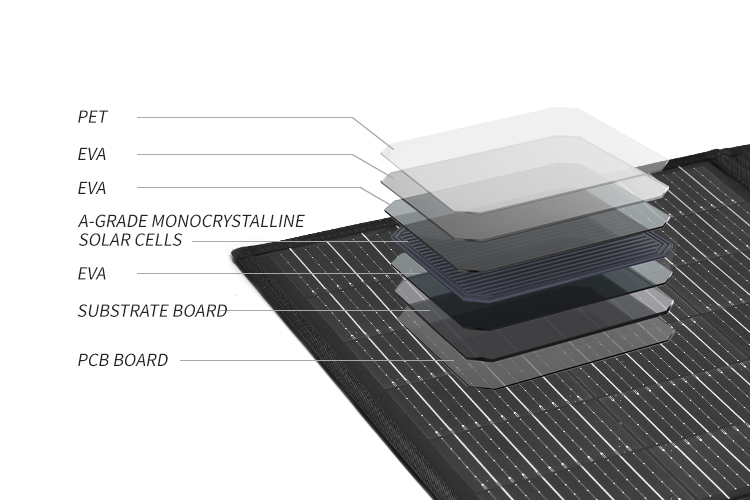

Material A-Grade Monocrystalline

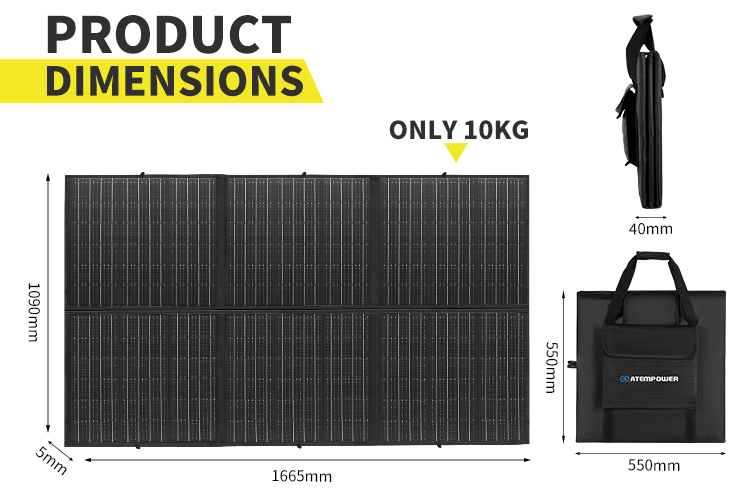

Product Dimension (Unfolded) 1840 x 1150 x 5mm
Product Dimension (Folded) 615 x 575 x 40mm
Panel Weight 10.4kg
Maximum Power 300w
Open Circuit Voltage (VOC) 22.4V
Short Circuit Current (ISC) 17.7A
Voltage at Pmax (VMP) 18.2V
Current at Pmax (IMP) 16.5A
Temperature Range -40°C to +85°C
Warranty 1 Year
MPPT Controller Specifications
Product Dimension 131 * 98 * 33mm
Battery Voltage Range 12V/24V
Max. PV Open Circuit Voltage 50V
Max. Solar Input Voltage 50V
Rated Charge Current 20A
Rated Discharge Current 20A
Max. PV Input Power 500W
Discharge Circuit Voltage Drop ≤ 0.3V
Self Consumption ≤ 8ma
No Load Current < 10ma
Tracking Efficiency 99%
Conversion Efficiency ≤ 98%
USB Output Type A + Type C; 5V/2.4A
Operation Temperature -20°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Relative Humidity ≤ 90%

Specification Details

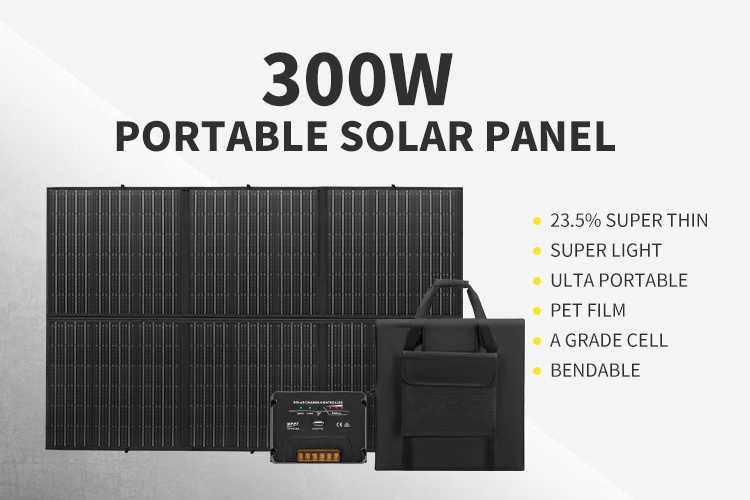

Solar product specification detail 1
Solar product specification detail 2

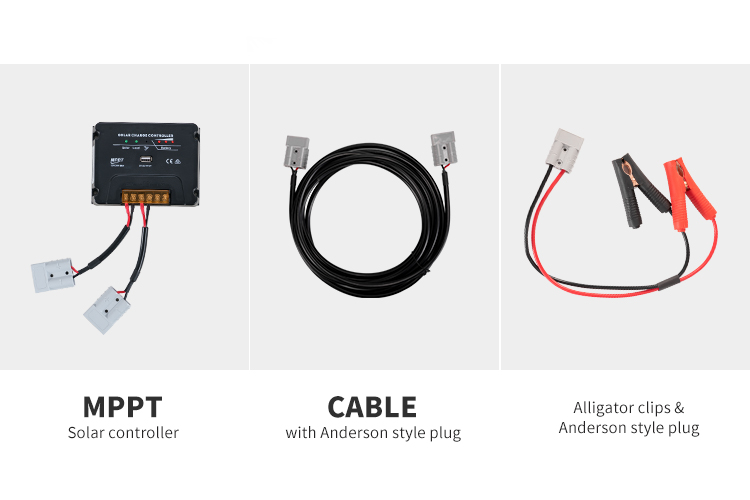

Solar product specification detail 3
Solar product specification detail 4

Manufacturing Overview

Production facility overview 1
Production facility overview 2

Product Line

Assembly and product line display

Certifications

Quality certifications and standards

Frequently Asked Questions

1. What materials are used in the solar blanket?

The solar blanket is manufactured using premium A-Grade Monocrystalline solar cells, ensuring optimal conversion efficiency and long-term durability.

2. What are the folded and unfolded dimensions of the solar blanket?

When completely unfolded, the solar blanket measures 1840 x 1150 x 5mm. For compact storage and transport, it folds down to a highly portable 615 x 575 x 40mm.

3. What is the operational temperature range for this solar equipment?

The solar blanket is designed to work in extreme environments, supporting a temperature range of -40°C to +85°C. The MPPT controller operates efficiently within a range of -20°C to 50°C.

4. What type of efficiency can I expect from the MPPT controller?

The MPPT controller features an exceptional tracking efficiency of 99% and a maximum conversion efficiency of up to 98%, ensuring minimal power loss during transfer.

5. Does the MPPT controller support direct USB charging?

Yes, the MPPT controller comes equipped with both Type A and Type C USB ports, delivering a standard 5V/2.4A output to charge external mobile devices directly.

6. What is the warranty coverage for this solar system?

This solar blanket and controller system includes a 1-year product warranty covering manufacturing defects under normal operating conditions.
