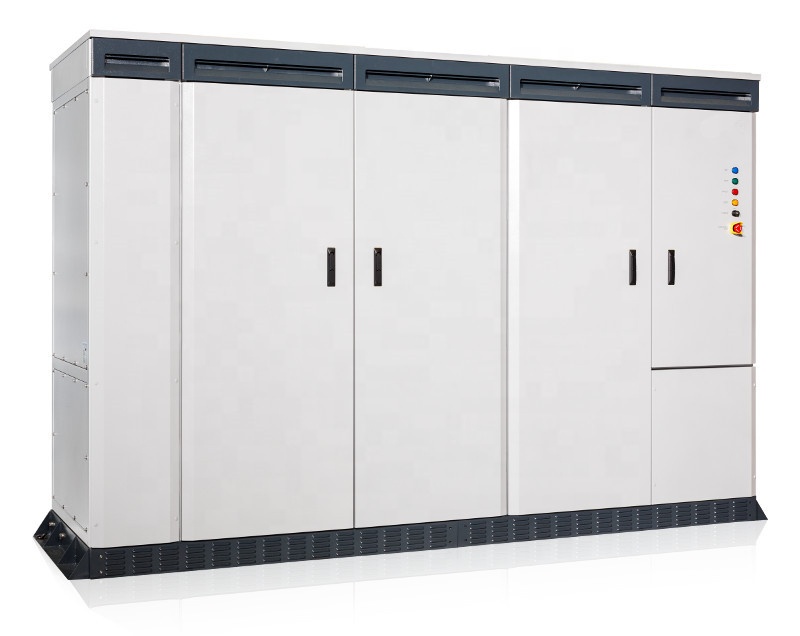

5mw on Grid Industrial Utility Scale Solar Pv System

1 / 5

5mw on Grid Industrial Utility Scale Solar Pv System

Send Inquiry

Product Description

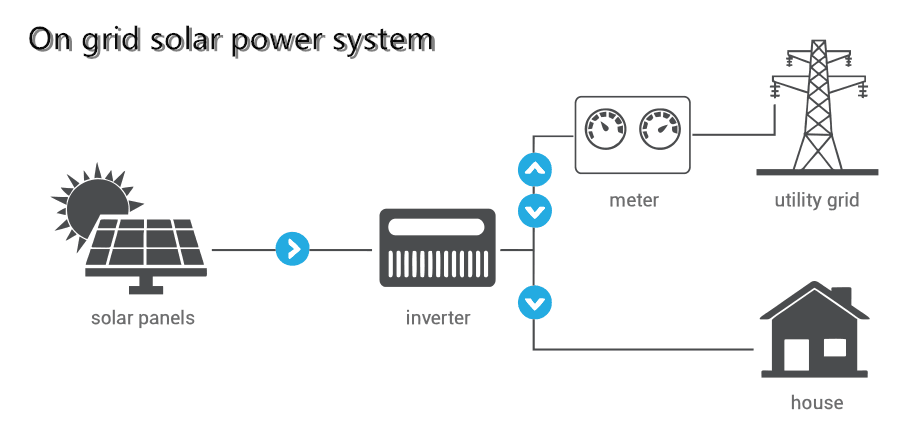

5MW Industrial Utility-Scale On-Grid Solar Power System

This system includes high-performance solar modules and a high-efficiency inverter system—a revolutionary way of maximizing the sun's power using power optimizers. The power optimizers maximize energy from modules through the MPPT controller.

Full support for your project from planning and design to commissioning.
Optimal system solutions perfectly tailored to your project.
Ideal dimensioning of the PV system for maximum module capacity.
Quick and easy implementation solution.
Minimal expense for dimensioning, transportation, logistics, and installation.

Product Specifications

5MW Utility-Scale On-Grid Solar Power System Parameters
Type	Grid Tied
Max. Power	5,000,240W
Output Voltage	EU And US Standard
Certificate	TUV, ETL, ISO, CE
Lead Time	10 Days
Payment	T/T, L/C, Paypal, Western Union

Components List

No.	Component	Description	Quantity
1	Solar Panel	Poly 280W solar panel	17,858 pieces
2	50kw Grid Tied Inverter	AC 220v-240v, 380V 418V 50/60hz	100 pieces
3	Monitoring System	Wifi	1 piece
4	Mounting Support	Pitched / flat roof, ground	1 set
5	Cable	Single-core 4mm² and 10mm² PV cable	85,000 meters
6	Connector	QC4 connector	1,700 pairs

Component Details

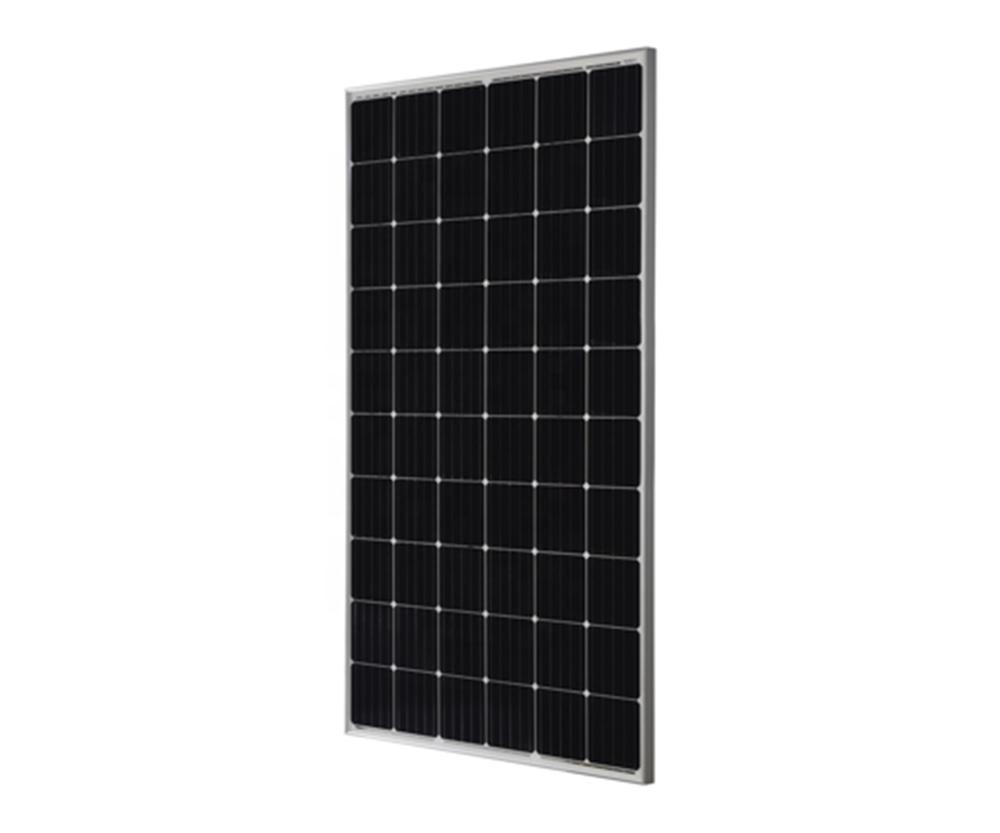

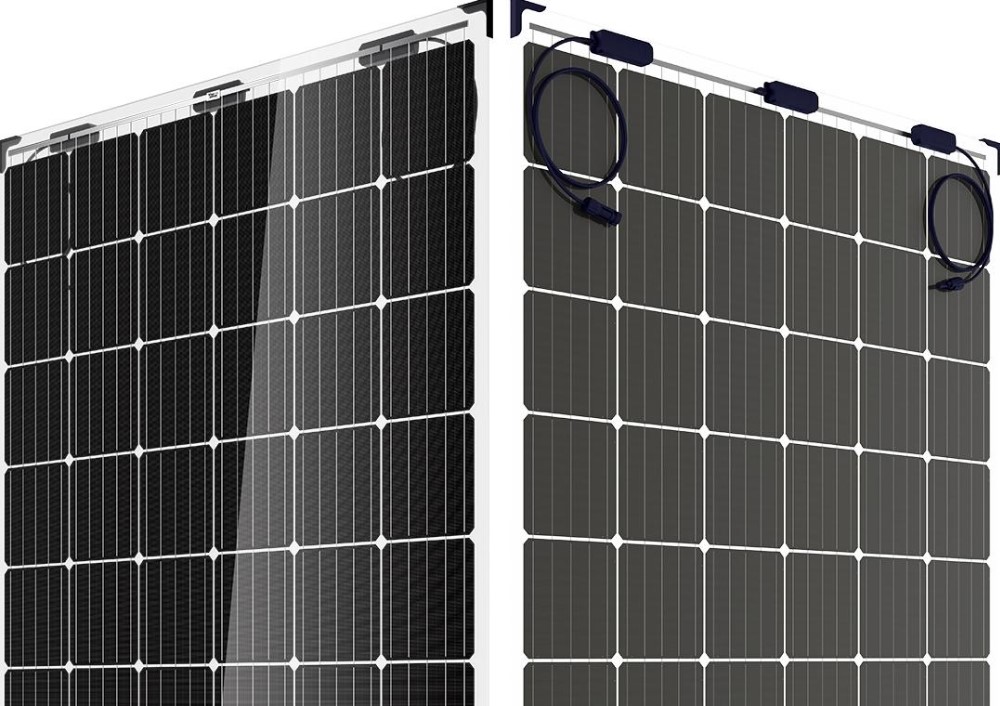

Components 01: Solar Panels

25 years Warranty
Highest conversion efficiency of 17%
Anti-reflective and anti-soiling surface minimizes power loss from dirt and dust
Excellent mechanical load resistance
PID Resistant, High salt and ammonia resistance

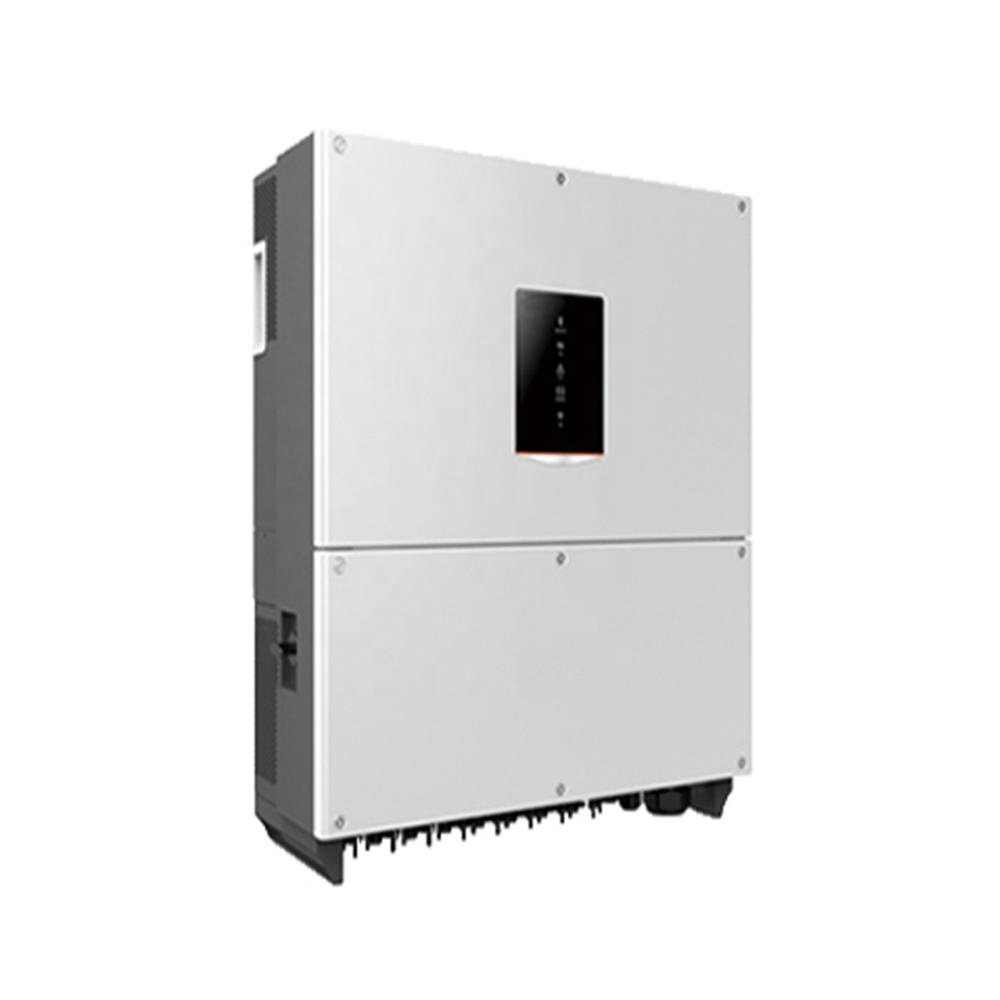

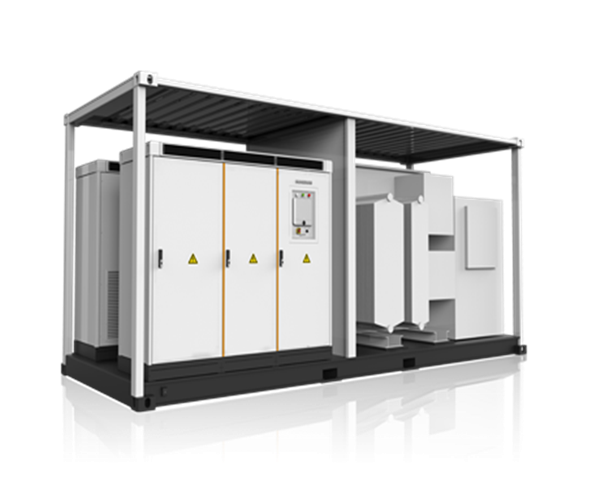

Components 02: On Grid Inverter

5 years standard warranty
Max. Efficiency 99.6%, European efficiency 99%
Integrated DC switch for added safety protection
Power factor continuously adjustable
Transformer-less design and high power density, lighter and more convenient installation
Flexible communication connection, supports RF and WIFI

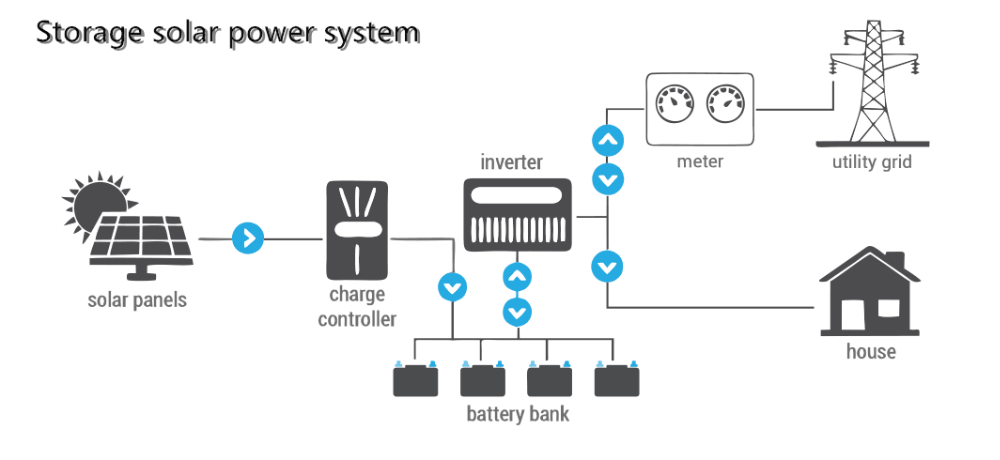

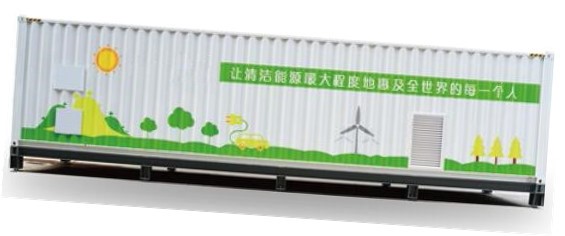

Components 03: Energy Storage System (Optional Upgrade)

The integrated system includes an inverter, battery charger, monitoring device, and batteries.

Self-sufficient
Modular battery
Intelligent control
Long lifespan
Essential load protected
5KW integrated system

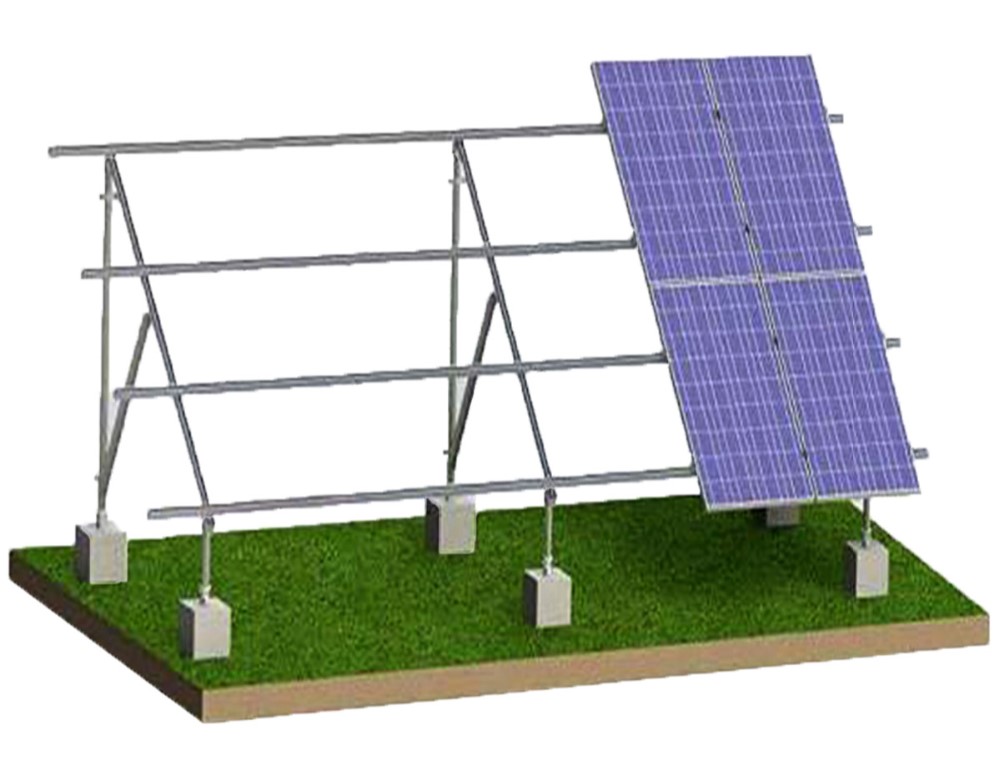

Components 04: Mounting Structure

Installed on ground or rooftop
Strictly tested according to design standards
Simple installation exercise with high efficiency
Anodized aluminum & stainless steel material with high durability

Components 05: Accessories

PV Cable 4 sqr.mm & 6 sqr.mm
AC Cable
DC Switches
AC Breaker
AC/DC Combiner box

Related Products

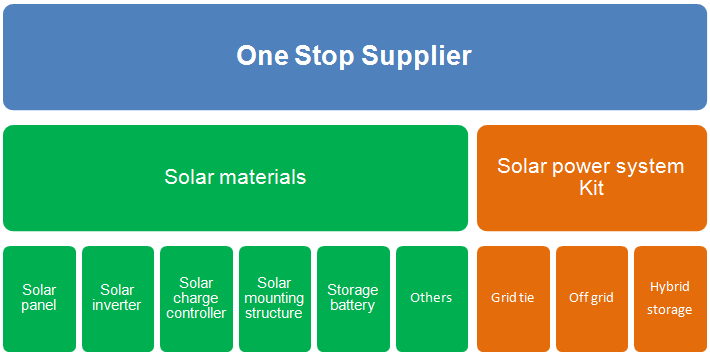

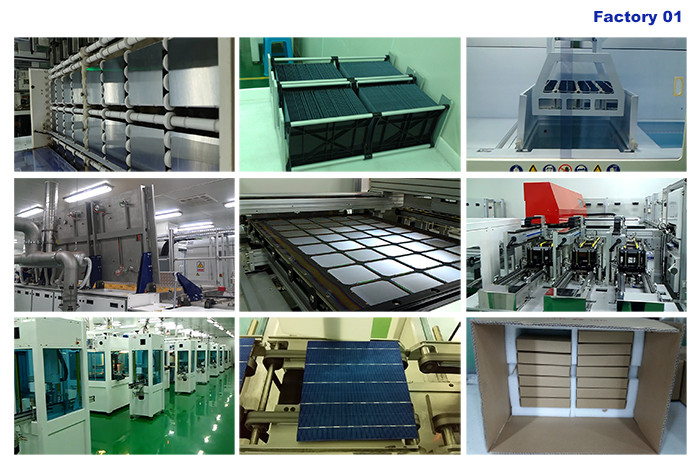

Production Facilities & Team

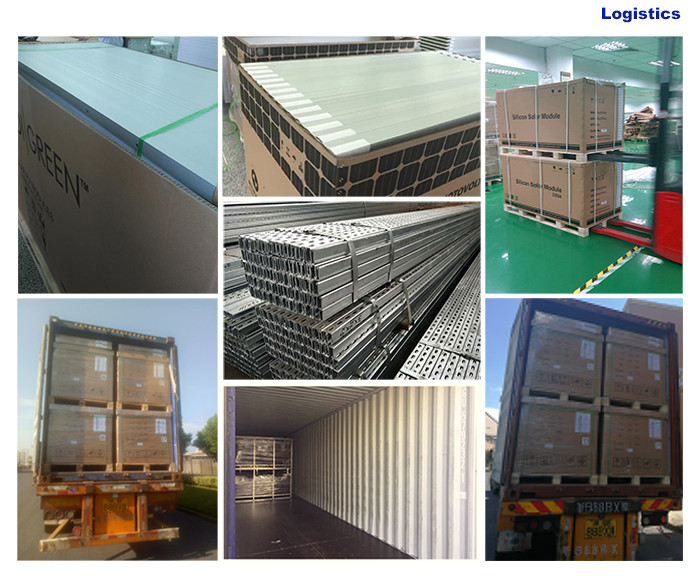

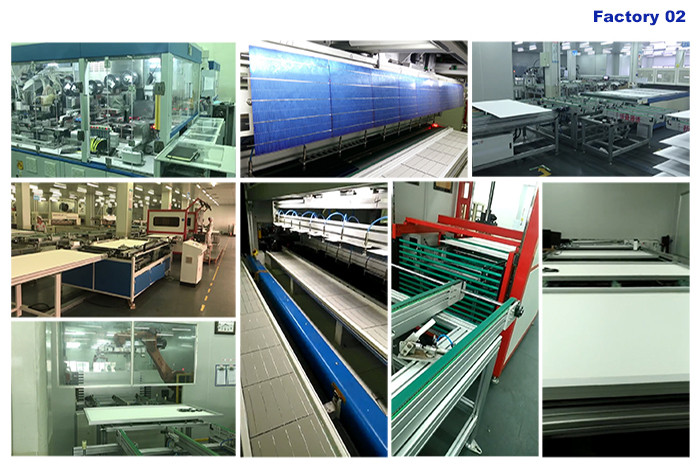

Workshop & Logistics

Frequently Asked Questions

QHow do solar photovoltaic (PV) panels work?

Solar panels absorb the sun's energy throughout the day and convert it into direct current (DC) electricity. Most homes and businesses run on alternating current (AC) electricity, so the DC electricity is then passed through an inverter to convert it to usable AC electricity.

QWill I still receive an electric bill if I have solar panels?

Unless your solar energy system includes battery storage and you are fully off the grid, you will still receive a bill from your utility. However, you can dramatically reduce your bill, or even cut the amount you owe to $0, with a solar panel system that matches your energy use.

QIs my roof suitable for solar panels?

Sun-facing roofs with little to no shade and enough space to fit a solar panel system are ideal for installing solar. However, in many cases, there are workarounds if your home doesn't have the ideal solar roof. Please consult to learn more about options based on actual roof images.

QWhat happens if I sell my solar house?

If you own your solar energy system, your solar house will sell at a premium, and studies have shown that solar increases property values. However, if you lease your system, you will need to either buy out your lease before you sell your home, or work with your leasing company to transfer the lease agreement to the new owner.

QHow long is the delivery time for orders?

Generally, it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock. The final delivery time depends on the specific order quantity.

QWhat are the standard payment terms?

For orders below 5,000 USD, 100% payment in advance is required. For orders of 5,000 USD and above, the terms are 30% T/T in advance, with the remaining balance due before shipment.
