Halkirk Solar
1 / 5
BESS enables efficient storage of energy from renewable or grid sources, ensuring stable and reliable power supply. It stores low-cost electricity during off-peak hours and releases it when demand is high, helping balance energy supply and demand. By stabilizing grid frequency, BESS reduces the risk of blackouts and minimizes the need for load shedding — making the power system more secure, flexible, and efficient.
| PERFORMANCE SPECIFICATIONS | ||
|---|---|---|
| DC Data | Cell spec | 3.2V/280Ah |
| Number of strings | 10 | |
| String rated energy capacity | 215kWh | |
| DC rated energy capacity | 2MWh | |
| Rated voltage | 768V | |
| BMS communication interface | Ethernet, CAN, RS485 | |
| BMS communication protocol | Modbus RTU, Modbus TCP | |
| AC Data | Rated AC power | 1000kW |
| Rated AC voltage | 400V | |
| AC PF | 1 leading ~ 1 lagging | |
| Output THDi | ≤3% | |
| Nominal grid frequency | 50/60Hz | |
| Isolation method | 3 Phase 4 Line Transformer | |
| General Data | L*W*H | 12196*2438*2896mm |
| Weight of whole system | <30MT | |
| Degree of protection | IP67 | |
| Operating temperature range | -20~65°C | |
| Relative humidity | 0~95% (non-condensing) | |
| Max working altitude | 3,000m/9,842ft | |
| Cooling concept of DC hatch | HAVC | |
| Cooling concept of PCS hatch | Forced air cooling | |
| Fire extinguisher system | HFC bottle group | |
| Communication interfaces | RS485, Ethernet, GPRS | |
| Communication protocols | Modbus RTU, Modbus TCP | |

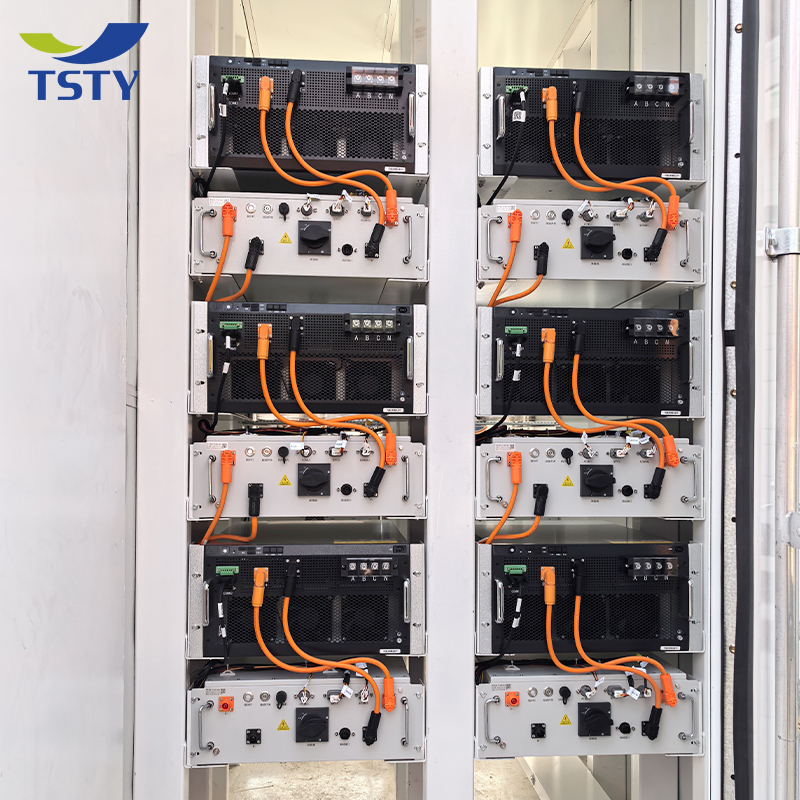

Keep every battery cluster under intelligent supervision — voltage, temperature, SOC, and system status are all tracked 24/7 for reliable performance.
The EMS automatically balances charging and discharging to achieve the highest energy efficiency and lowest operating cost.
Built-in fault diagnosis and safety protocols instantly detect and respond to abnormal conditions, ensuring long-term system stability.

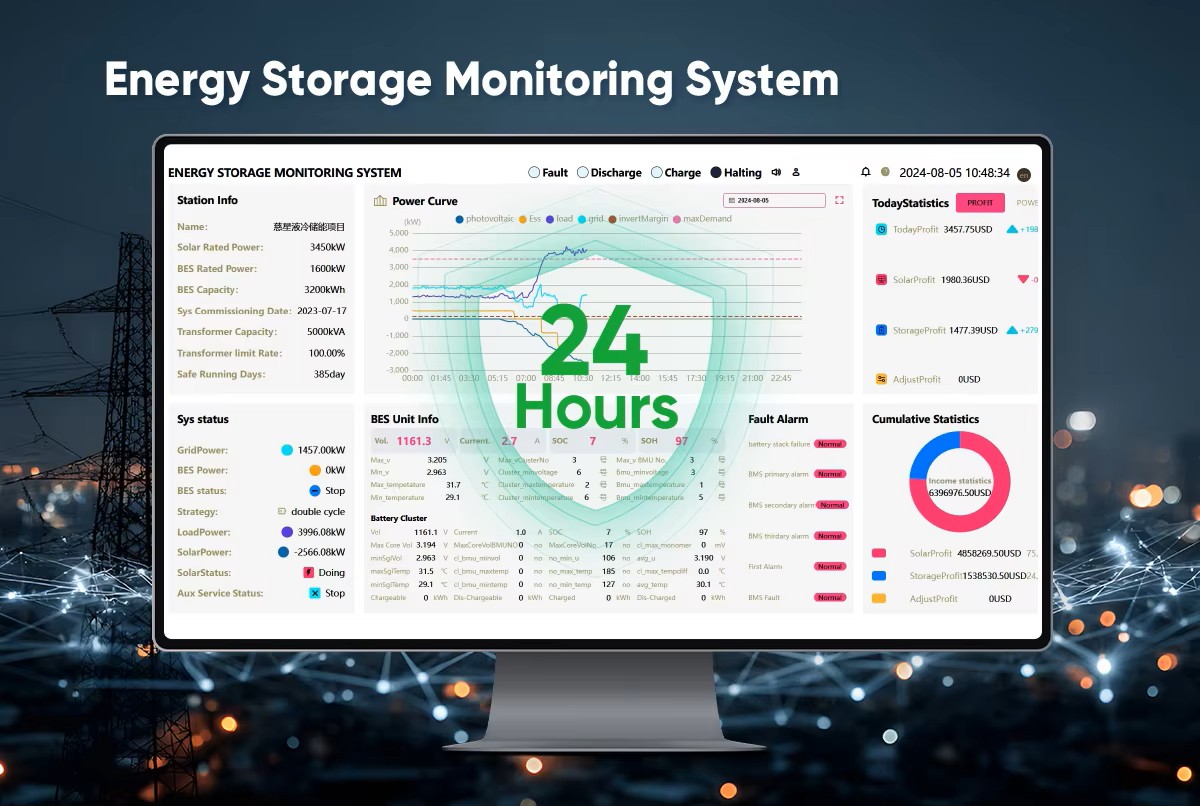

Manage and analyze your system anytime, anywhere — full data logging, remote control, and performance reporting at your fingertips.

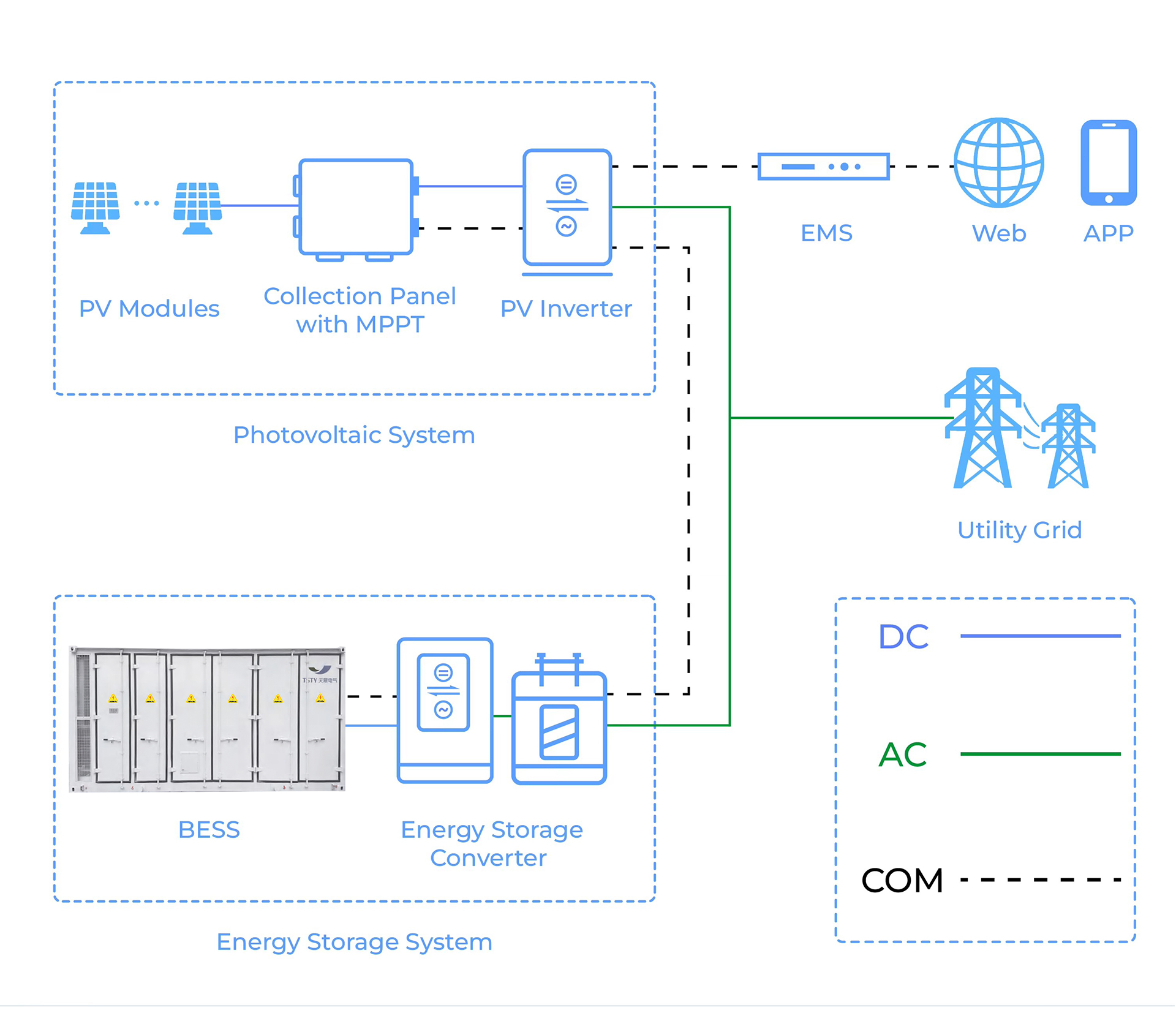

Compatible with PCS, BMS, and multiple communication protocols (Modbus, CAN, TCP/IP) for smooth connection and coordinated operation.
