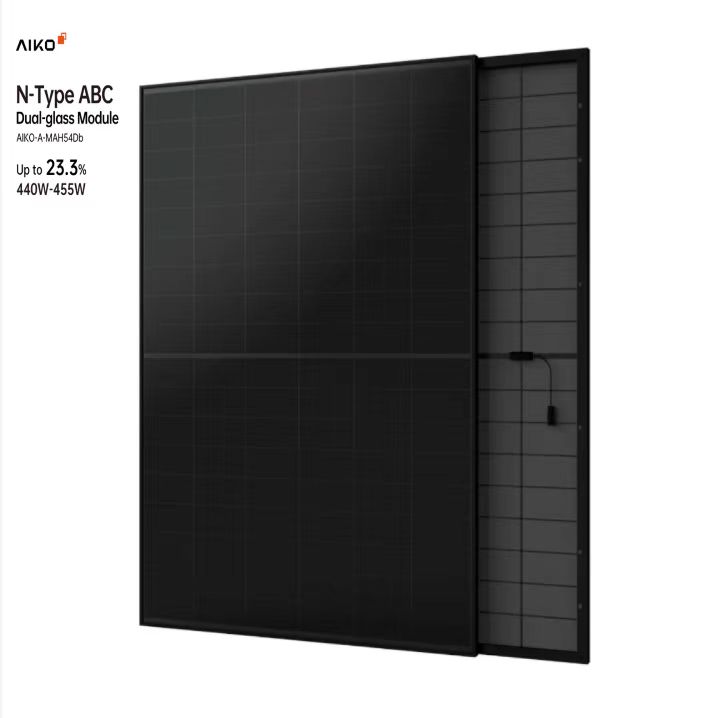

Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
1 / 5
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel

Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel

Send Inquiry

Product Description

Home Use Aiko-A-MAH54Db Pv Solar Panel 440W 445W 450W 455W N-Type Abc Dual-Glass High Efficiency Solar Panel
Products Description

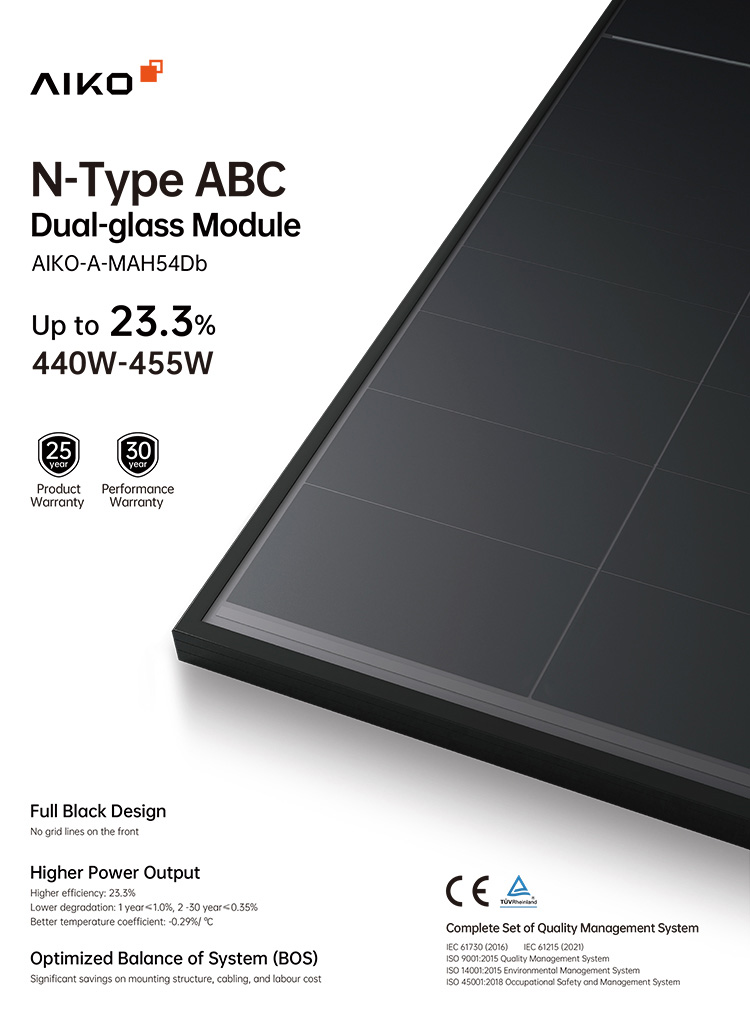

Aiko Solar Panel Front Design

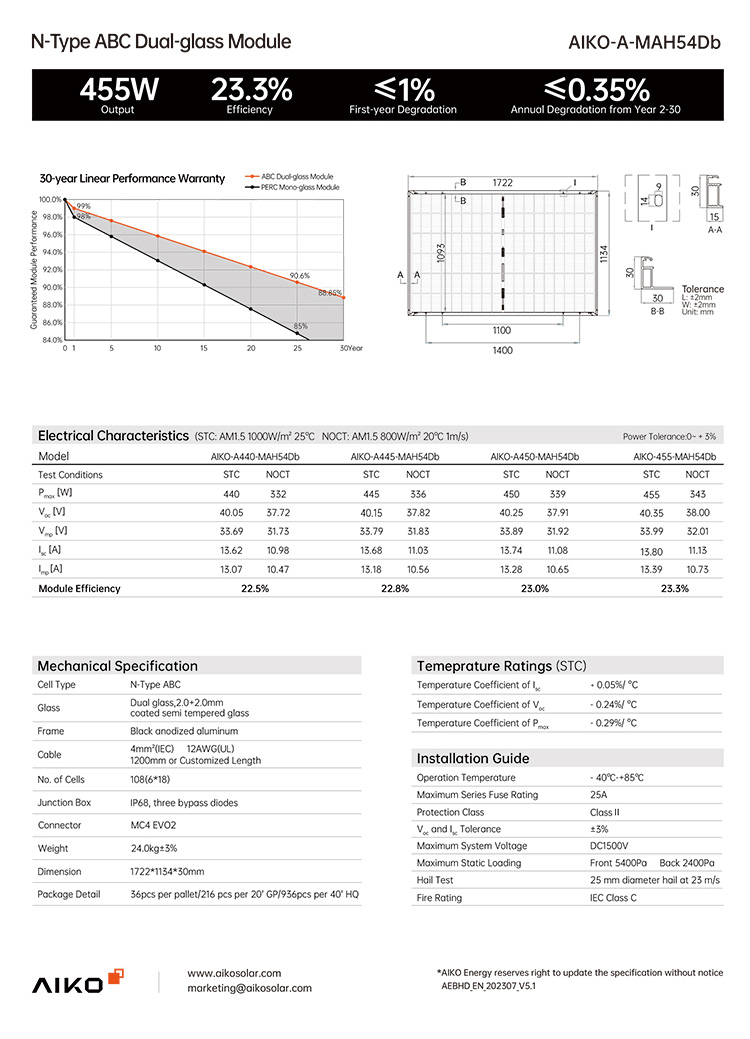

Aiko Solar Panel ABC Technology Detail

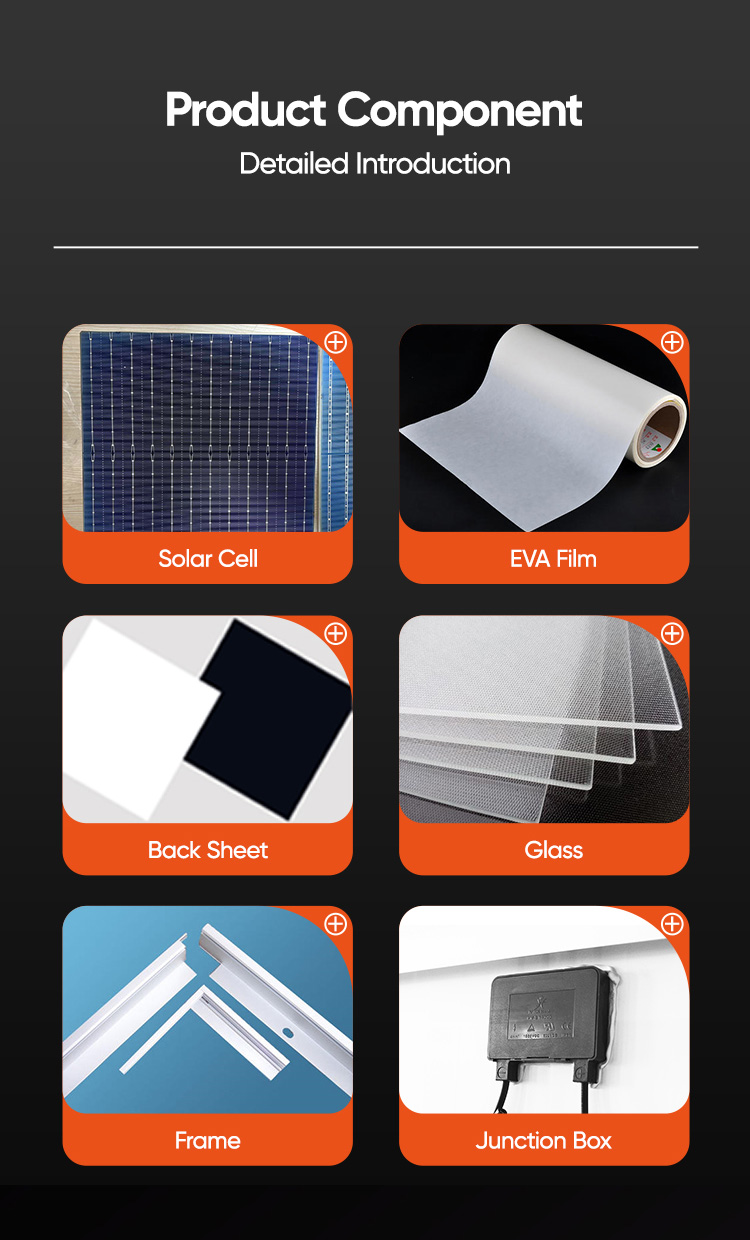

Aiko Solar Panel Dual-Glass Structure
Specification
Electrical Characteristics (STC: AM1.5 1000W/m² 25℃)
Module Type AIKO-A440-MAH54Db AIKO-A445-MAH54Db AIKO-A450-MAH54Db AIKO-455-MAH54Db
Max. power (Pmax) [W] 440 445 450 455
Open circuit voltage (Voc) [V] 40.05 40.15 40.25 40.35
Operating current (Imp) [A] 13.07 13.18 13.28 13.39
Operating voltage (Vmp) [V] 33.69 33.79 33.89 33.99
Short circuit current (Isc) [A] 13.62 13.68 13.74 13.80
Power tolerance [W] ±3 ±3 ±3 ±3
Operating temperature -40°C ~ +85°C
Solar panel efficiency [%] 22.5% 22.8% 23.0% 23.3%
Aiko Solar Panel Dimensional Layout
Aiko Solar Panel Technical Drawings

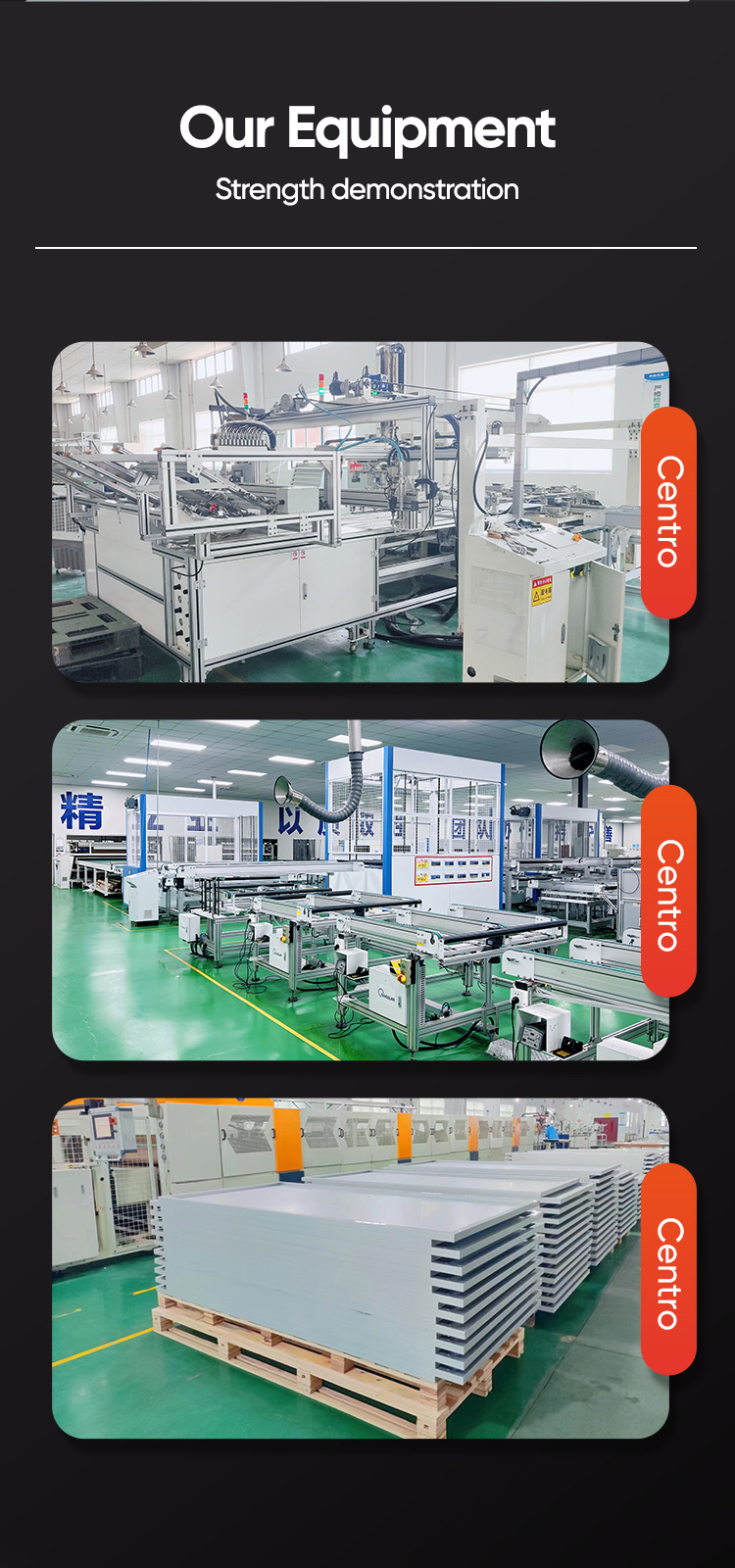

Our Equipment
Solar Panel Manufacturing Factory Equipment
Product Packaging
Solar Panel Safe Packaging details

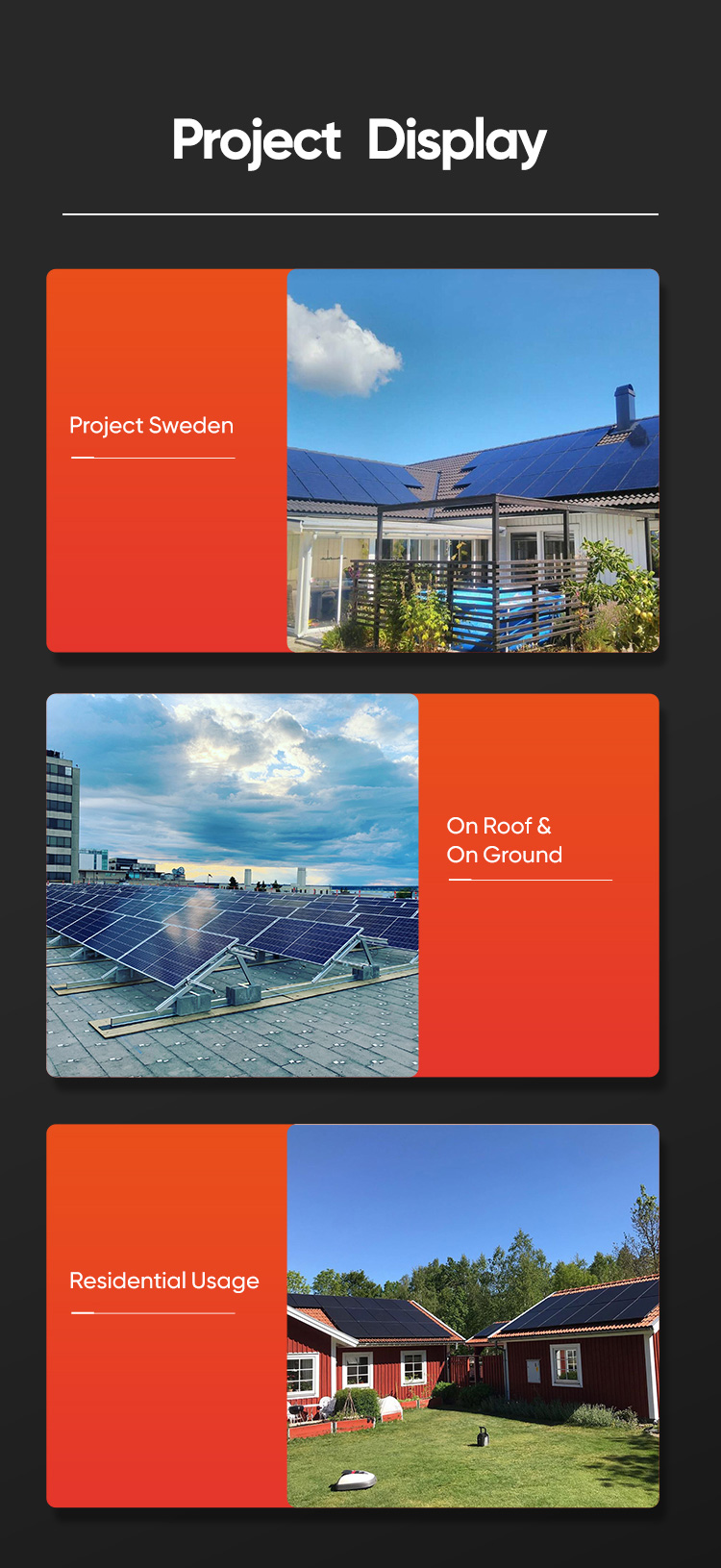

Project Display

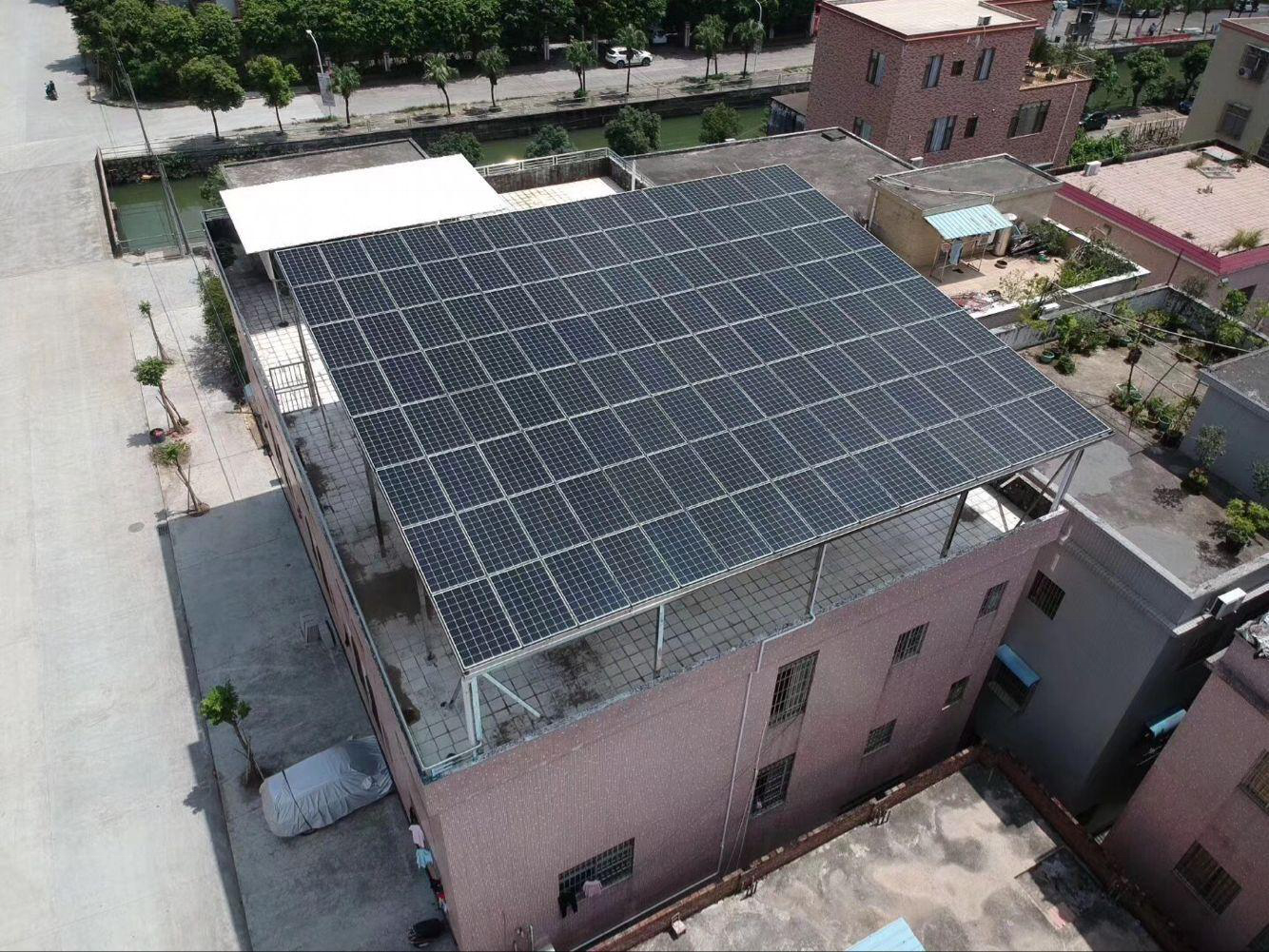

Residential Solar Panel Installation Project
Commercial Solar Panel Array Project

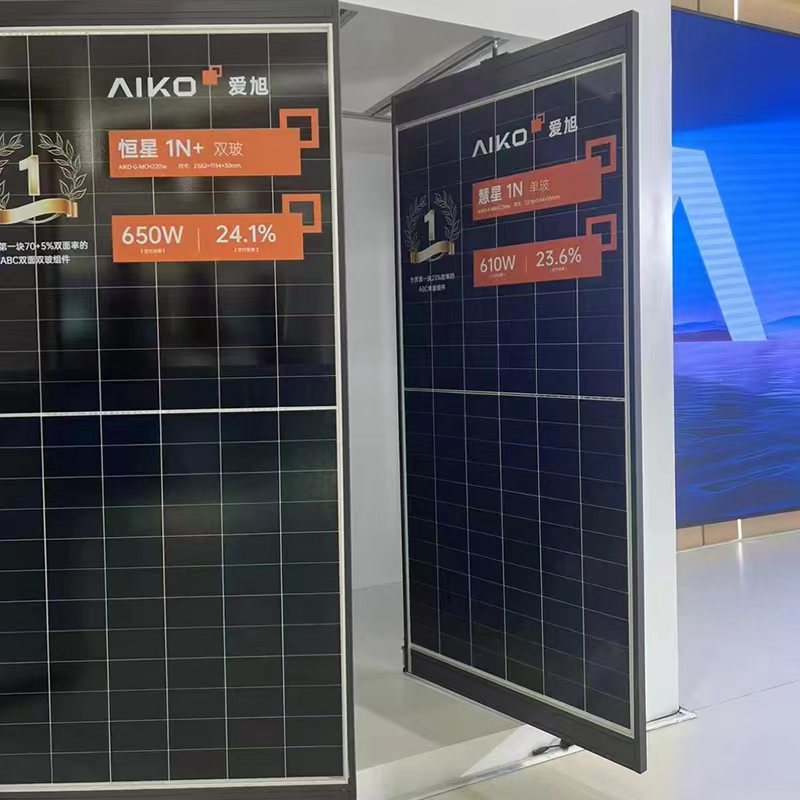

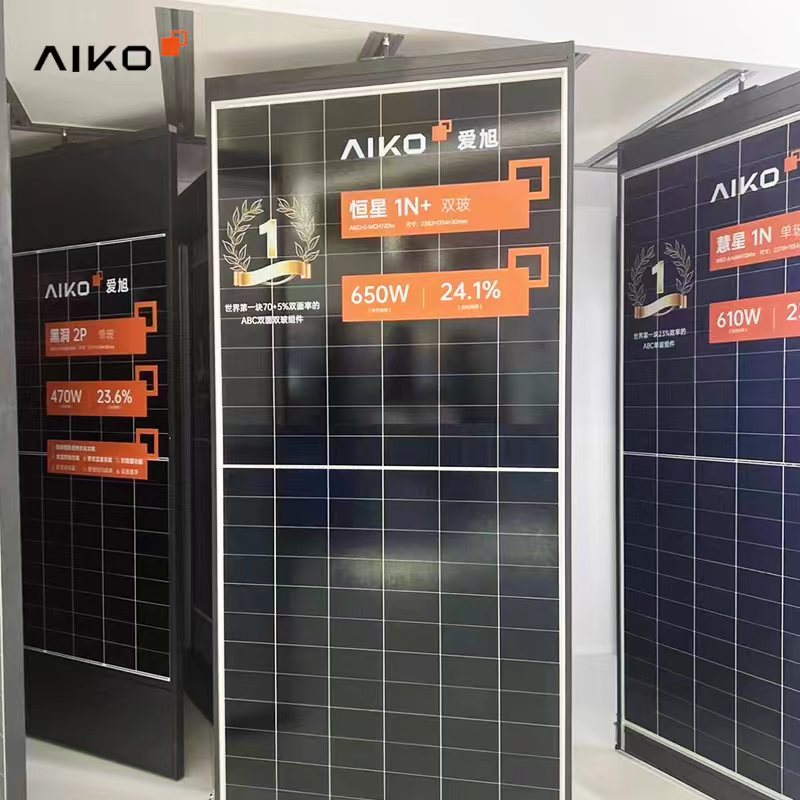

Exhibition
Solar Energy Industry Exhibition Booth
Why Choose Us
Why Choose Our Solar Panel Products
FAQ
Solar Panel FAQs
What is N-Type ABC technology in Aiko solar panels?
N-Type ABC (All Back Contact) technology places all electrical contacts on the rear side of the solar cell. This eliminates front-side shading from metal busbars, maximizes the light-absorbing surface area, and delivers industry-leading cell efficiency of up to 23.3%.
What are the benefits of the Dual-Glass design?
The Dual-Glass (glass-on-glass) design provides superior protection against harsh environmental factors. It offers excellent resistance to PID (Potential Induced Degradation), micro-cracks, and moisture ingress, resulting in enhanced mechanical durability and a longer operational lifespan.
How does these panels perform in low-light and high-temperature conditions?
Aiko ABC panels feature an exceptional temperature coefficient and outstanding low-light response. They start producing power earlier in the morning and continue later into the evening, maintaining high output levels even during hot summer peak hours.
What ranges of power output are available for this series?
This specific home-use dual-glass series is available in 440W, 445W, 450W, and 455W power ratings, allowing you to select the optimal capacity to suit your roof space and system configuration.
Can these solar panels be used for residential installations?
Yes, these panels are specifically optimized for residential/home use. Their compact footprint, high power density, and elegant aesthetics make them ideal for maximizing energy generation on residential rooftops.
What is the typical lifespan of these dual-glass PV panels?
Due to the robust N-type cell architecture and dual-glass encapsulation, these panels suffer from extremely low annual degradation rates. They are engineered to operate reliably and efficiently for over 25 to 30 years.
