Products Description
FLAT ROOF SOLAR MOUNT BRACKET
The flat roof ballast solar mounting system, with innovative design to provide fast & easy installation. It is made of extruded anodized aluminum and stainless steel. This product provides strong durability, anti-corrosion, rust-resistance and flexible application for any residential and industrial solar panel installation.
Focusing on manufacturing and designing Solar Mounting Systems for more than 9 years, these products have been installed in more than 60 countries. Customized designs are available.

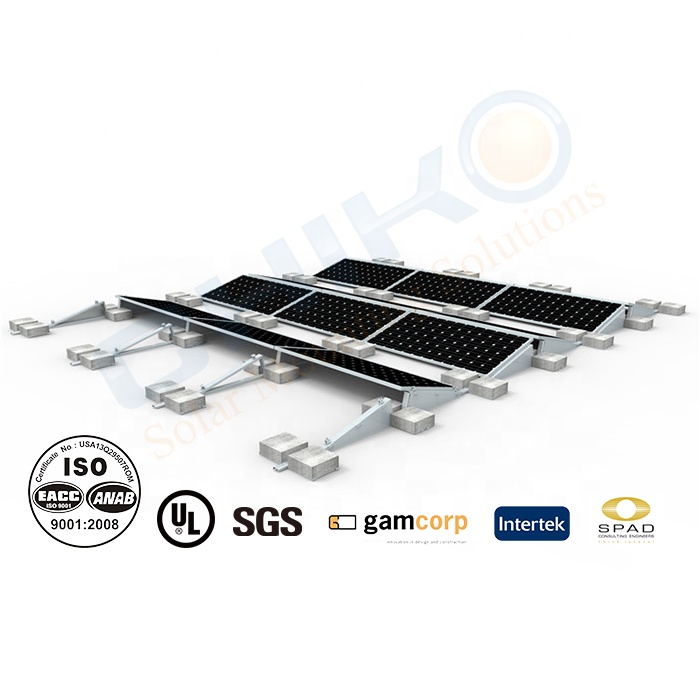

A. BALLAST MOUNT SOLAR SYSTEM

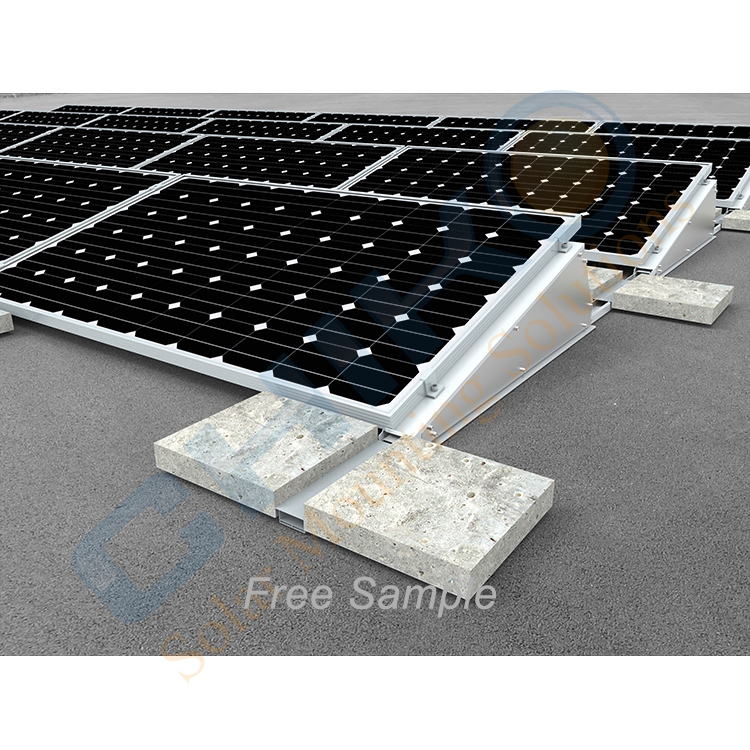

No need for drilling on the rooftop surface; secured by concrete ballasts. Customized angles are supported.
Ballast I-2 Mount
- Most universal design
- 1 panel Landscape orientation & East to West
- 10°, 15°, 20°, 25°, 30° tilted angle available
- Various module configurations are possible
- Made of AL 6005-T5
- High-class anodizing surface treatment
- Pre-assembled and foldable
- Non-penetrating to roof & light-weight roof loading

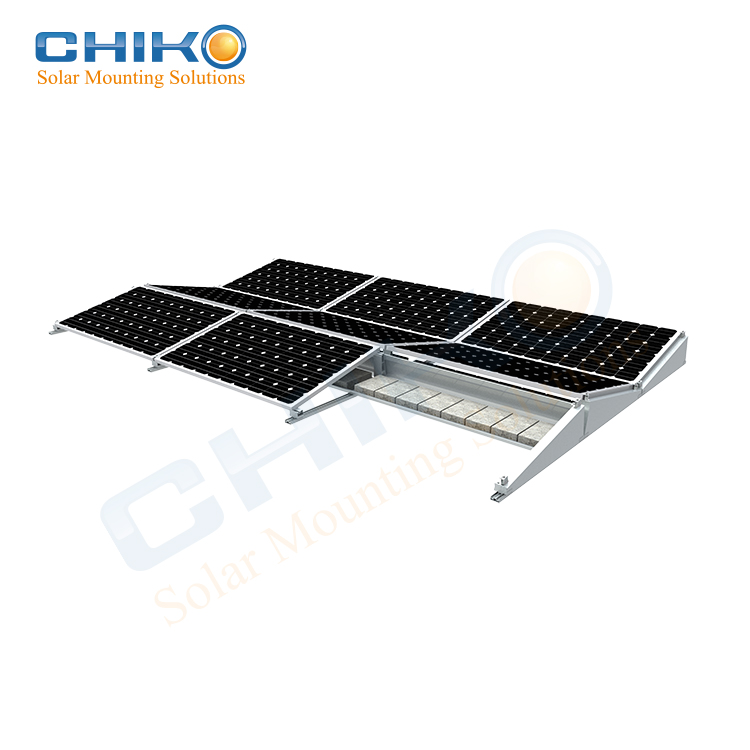

Ballast VI Mount
- Universal design
- 1 panel Landscape orientation & East to West
- Fixed tilt angle at 12°
- Made of AL 6005-T5
- High-class anodizing surface treatment
- Only 1 tool installation needed for all fixing
- Pre-assembled structure
- Non-penetrating to roof & light-weight roof loading

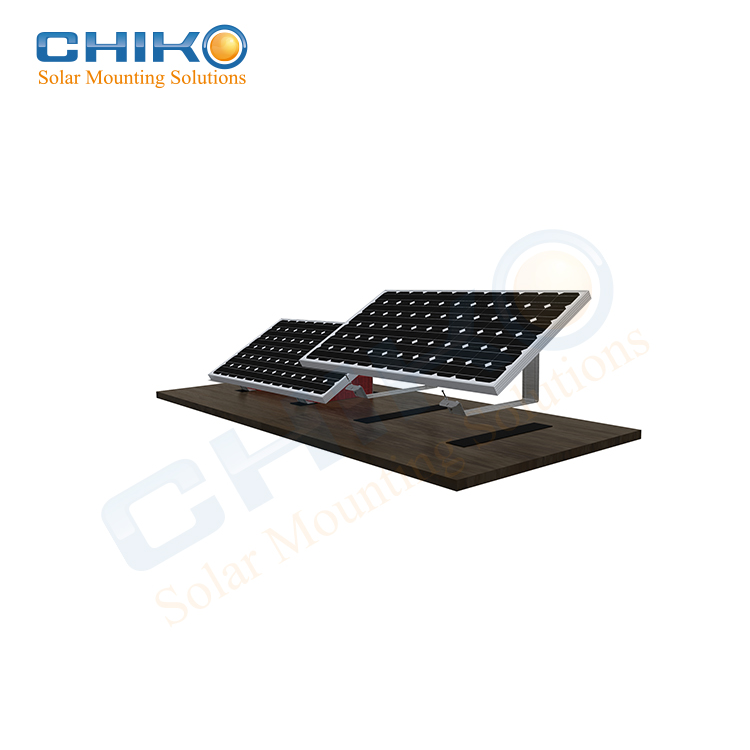

Ballast III Mount
- Most cost-effective choice
- 1 panel Landscape orientation
- 10°, 15°, 20°, 25°, 30° tilted angle available
- Various module configurations are possible
- Made of AL 6005-T5
- High-class anodizing surface treatment
- 1-step installation
- Non-penetrating to roof & light-weight roof loading
B. TRIANGULAR SOLAR MOUNTING SYSTEM
Adjust the span between feet to meet different angles at different latitudes. Moving arms allow adjustments for different required angles across different seasons.
- 1 panel Portrait orientation
- Made of AL 6005-T5
- Pre-assembled and foldable

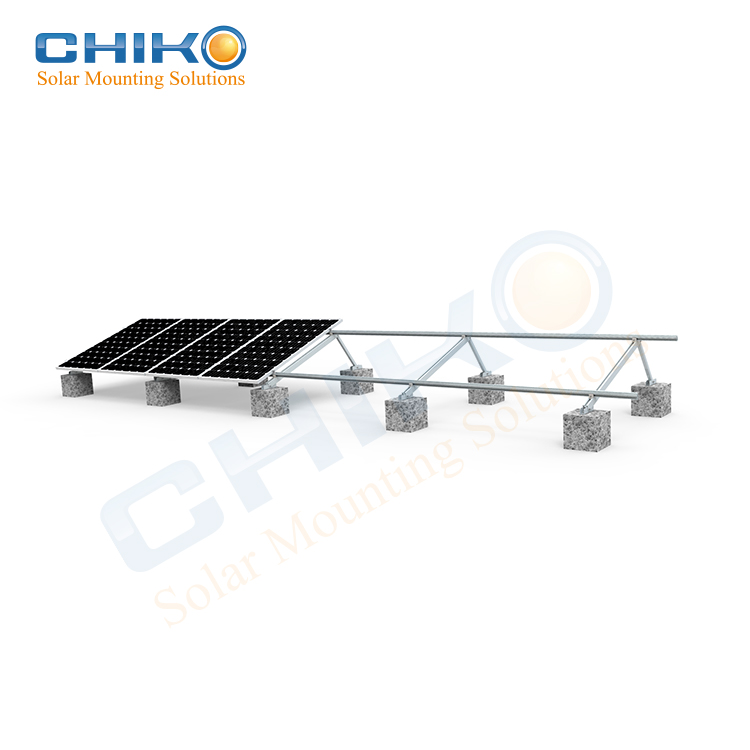

Adjustable Aluminum Triangular Mount
- Highly cost-effective
- 10°-30° tilted angle adjustable
- High-class anodizing surface treatment
- Non-penetrating to roof and light weight roof loading

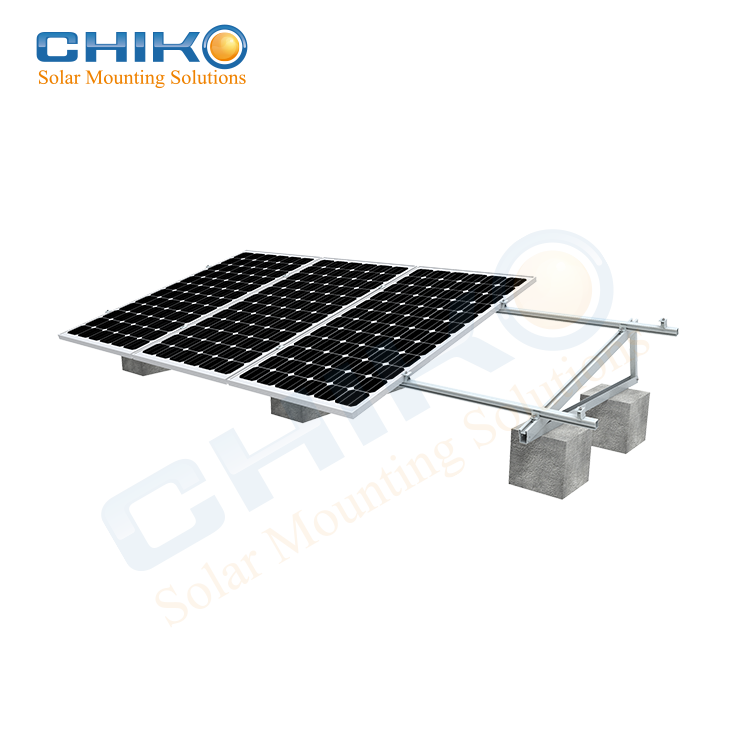

Fixed Aluminum Triangular Mount
- Highly universal design
- 10°, 15°, 20°, 25° tilted angle available
- Hot Dip Galvanizing surface treatment
- Non-penetrating to roof with lower cost
Our service
Please provide project information as below when sending inquiries:
- 1. The dimensions of your common solar panel? ________(L*W*T)
- 2. The PV array layout? _________
- 3. Max wind speed in your area? _________
- 4. Tilt angle required for your area? _________
If you have any special requirements, our design team will help you make the most suitable solution.
WHY CHOOSE US?
- Cost-effective: Direct factory manufacturing pricing.
- Installation: Special customized designs are available.
- Guarantee: 10-year warranty and a designed service life of up to 30 years.
- Delivery: Globally managed warehousing.
Product packaging
Packaging Details: Solar mounting products are packed into standard cartons, wooden pallets, or other customized packages.
Shipping Lead-time: 1-2 weeks after the order payment confirmation.
| Rail |
8 Pcs/Pkg, 320 Pcs/Pallet |
| Rail Splice Kit |
50 Pcs/Box, 10000 Pcs/Pallet |
| Mid Clamp |
100 Pcs/Box, 20000 Pcs/Pallet |
| End Clamp |
100 Pcs/Box, 20000 Pcs/Pallet |
| Hanger Bolt |
100 Pcs/Ctn, 10000 Pcs/Pallet |
| Grounding Lug |
140 Pcs/Box, 28000 Pcs/Pallet |
Company Profile
Started in 2009, our manufacturing facility focuses on solar mounting systems, providing around 15.4 MW solar PV installation support every week. We provide a series of rooftop and ground solar mounting systems to support your PV project installation.

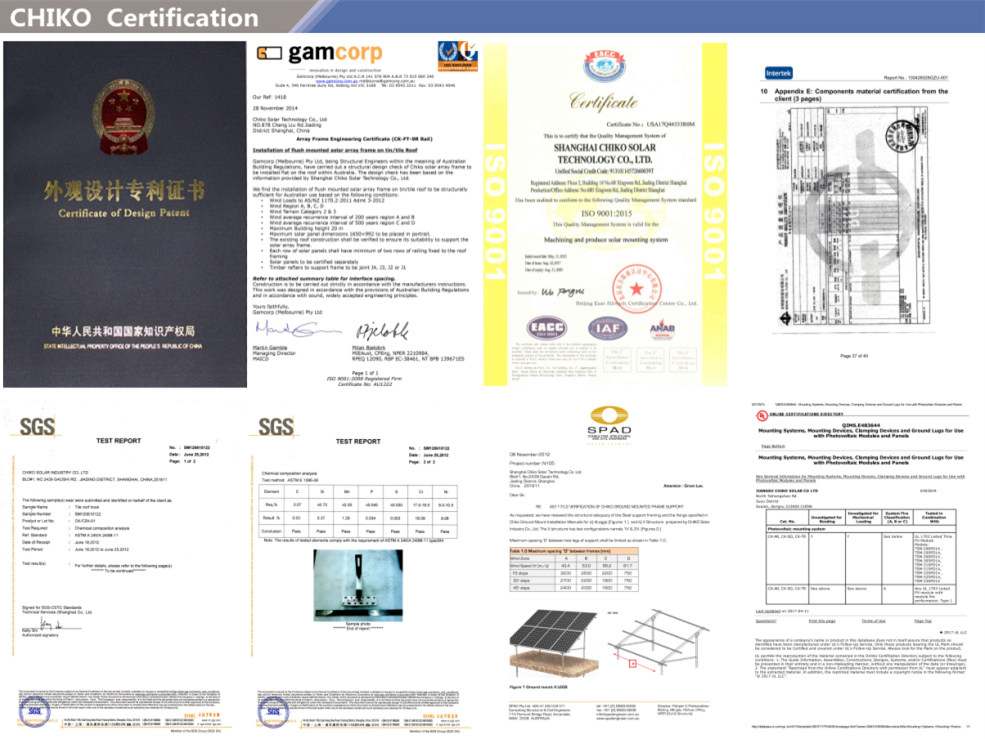

Certification & Global Reach: We have established good cooperation with countries across the world, including USA, Mexico, Germany, UK, Thailand, Australia, and Japan. Besides, our experienced team provides prompt and professional customized designs to meet all your needs.
Featuring easy installation & cost savings, our Roman Tile Roof Solar Photovoltaic Mount is a top seller among our solar mount kits.
Our Advantages
Quality Standards
We deliver the highest standard of quality. All of our Aluminum profiles are made of 6005 T5 with surface protection anodic oxidation 12-15 micron (μ). Hooks and bolts are made of Stainless steel 304. Ground mounting systems made of Q235 steel are hot-dip galvanized with an average thickness of 80 micron (μ).
Frequently Asked Questions (FAQ)
What materials are used in the flat roof solar mounting systems?
Our flat roof solar mounting brackets are made of extruded anodized aluminum (AL 6005-T5) and stainless steel (SUS 304). This combination ensures excellent strength, high durability, and superior resistance to rust and corrosion.
Does the ballast mount solar system damage the roof surface?
No, the ballast mount system uses concrete block ballasts to secure the installation. It is a non-penetrating solution, meaning it requires no drilling or penetration of the roof surface, protecting the integrity of the roof membrane.
Are the tilt angles of the mounting brackets adjustable?
Yes. We offer fixed tilt angle systems (such as 12° options) and adjustable triangular mounting systems that support angles between 10° and 30° to optimize seasonal solar energy capture.
What is the warranty and expected lifespan of your mounting systems?
We offer a 10-year product warranty. All our systems are designed with high-quality components to achieve a structural service life of up to 30 years under normal environment conditions.
What information is needed to design a custom solar mounting solution?
To provide an optimized design, we require the solar panel dimensions (Length * Width * Thickness), the overall PV array layout, the local maximum wind speeds, and the desired tilt angle for your project site.
What is the standard shipping lead-time for orders?
Our standard shipping lead-time is generally 1-2 weeks after the order payment has been confirmed, depending on the scale and custom design requirements of the project.
