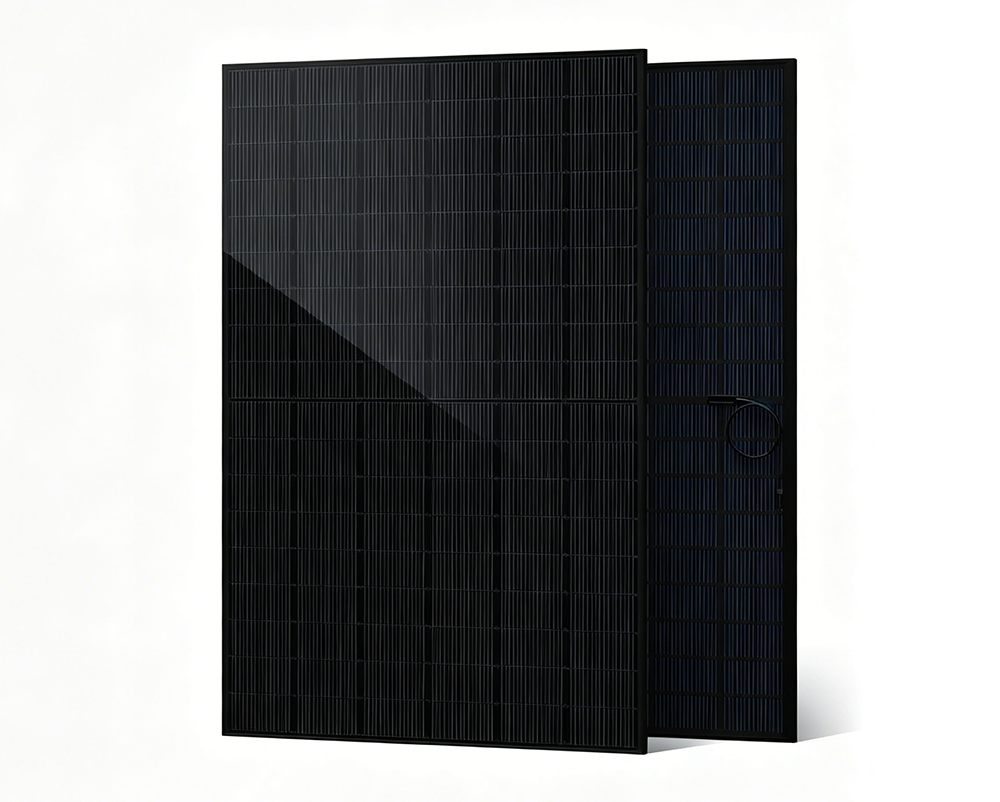

High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
1 / 5
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale

High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale

Send Inquiry

Product Description

Product Highlights

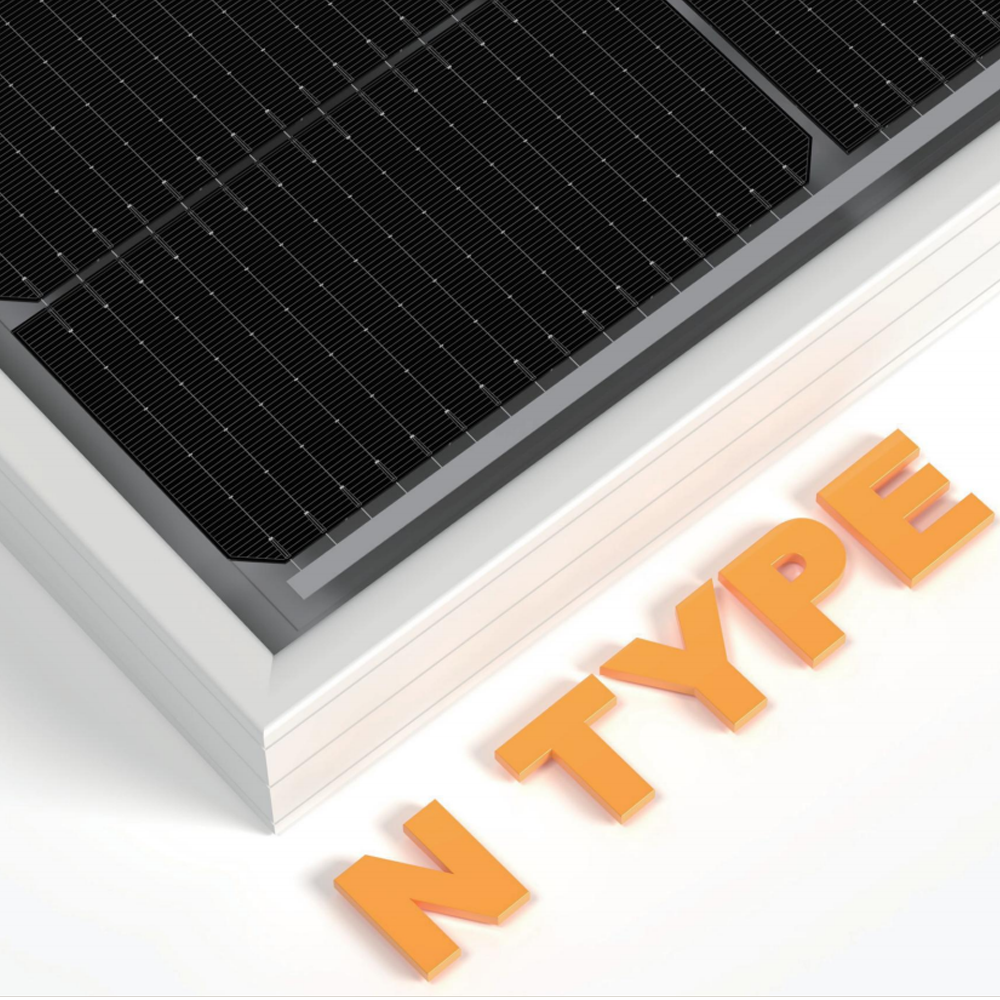

  • N-Type TOPCon Technology: Significantly improves efficiency for higher power output.
  • 182mm 16BB 156Cells Solar Cells: Enhances light absorption and boosts energy conversion.
  • High Efficiency: Achieves up to 21.5% module efficiency for superior performance.

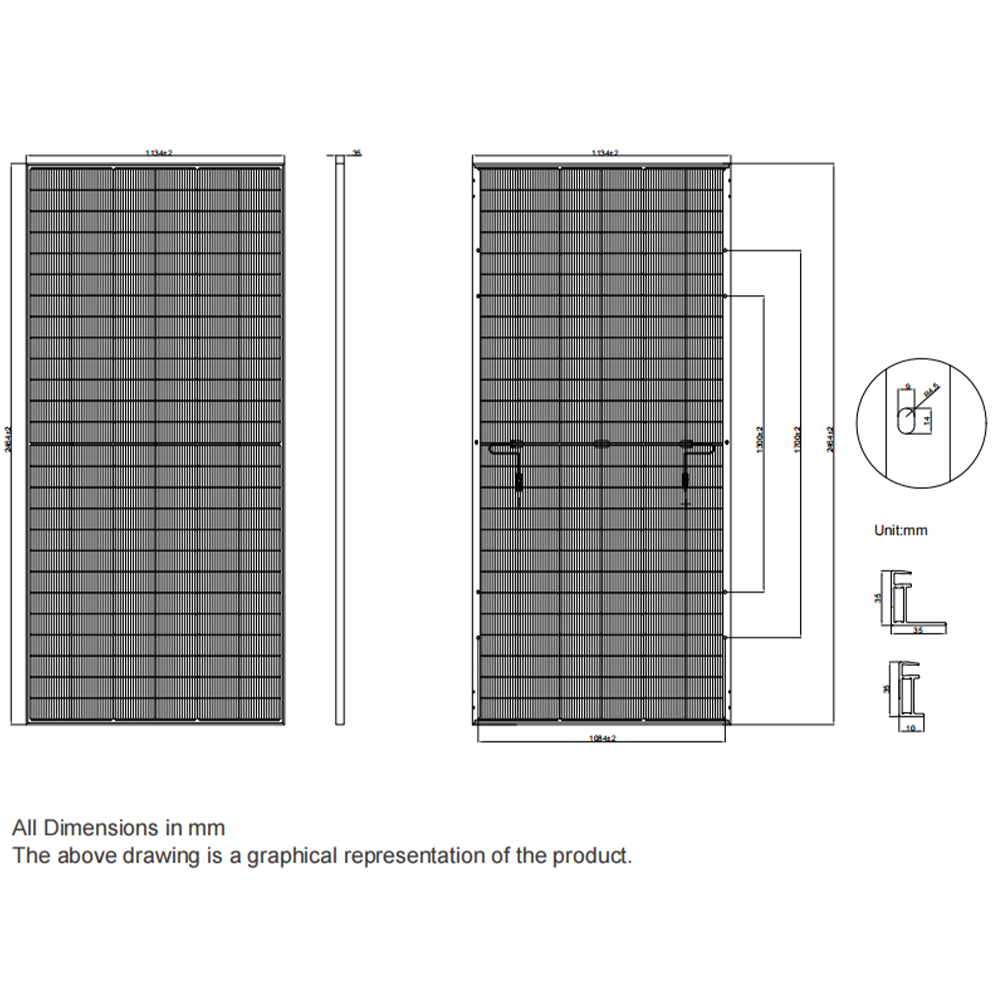

  • Compact Design: 2464*1134*35mm dimensions ensure easy installation and space-saving.
  • Made in China: Ensures quality and reliability from a trusted manufacturer.

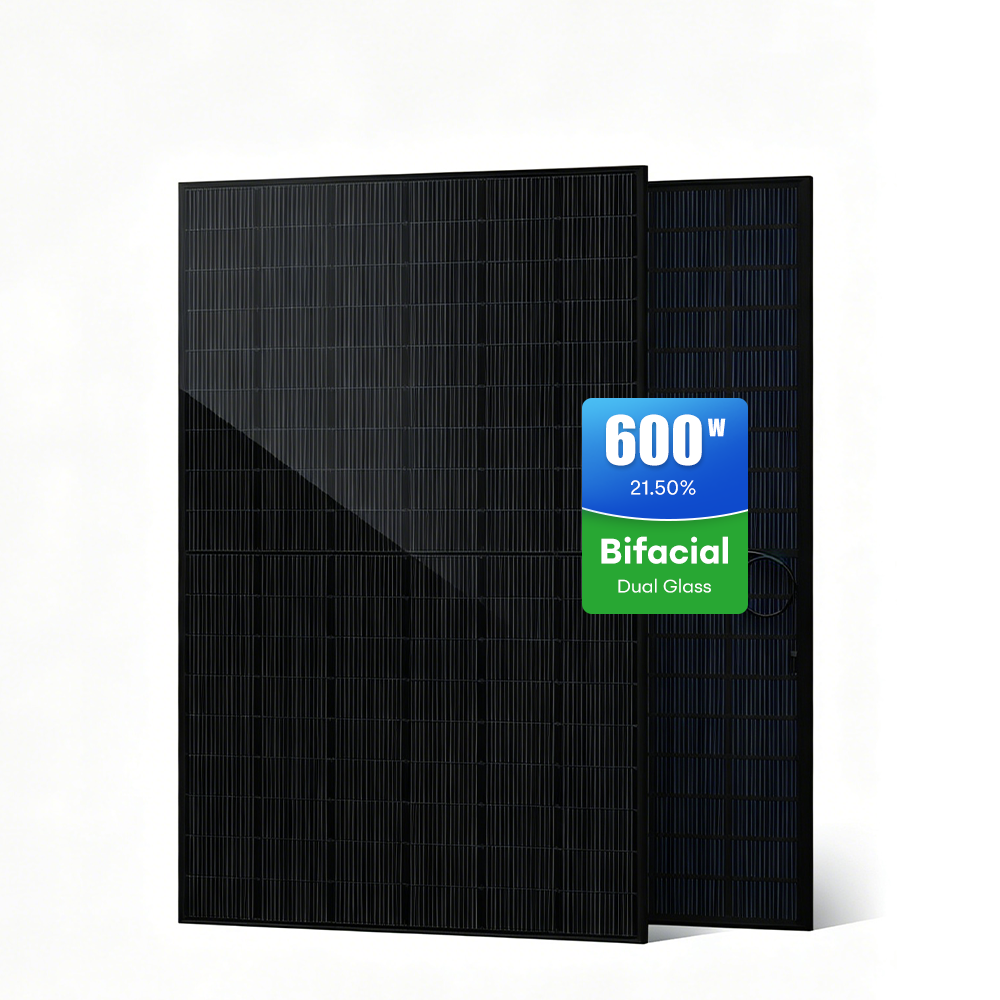

Detail Shot
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale

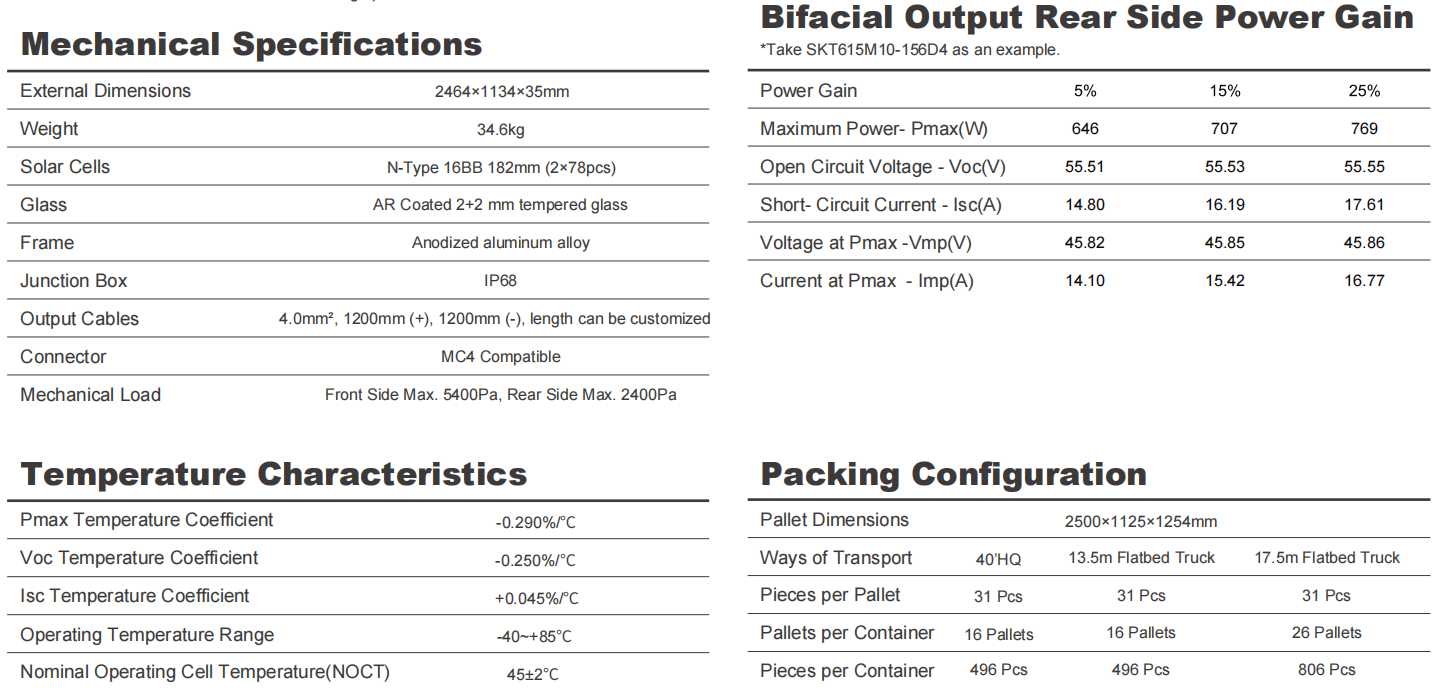

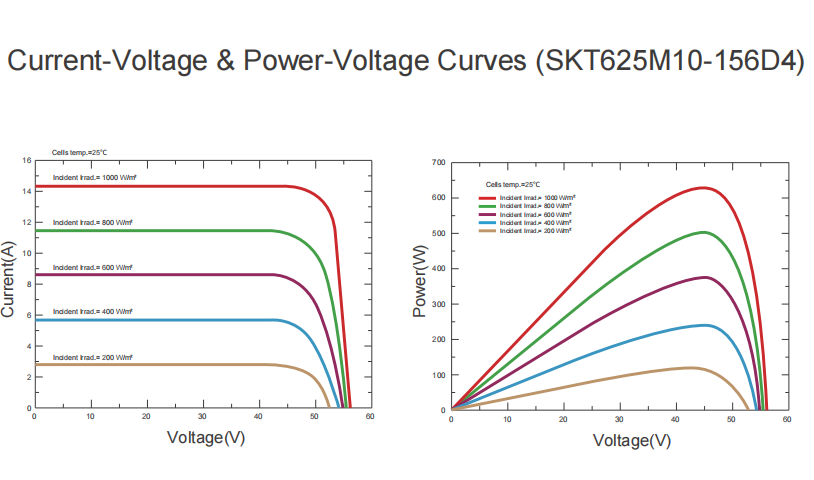

Technical Specifications
Electrical Characteristics (STC/NOCT)
Module Type SKT600M10-156D4
Test Conditions STC      NOCT
Maximum Power - Pmax(W) 600      451
Open Circuit Voltage - Voc(V) 55.04      52.28
Short-Circuit Current - Isc(A) 13.87      11.19
Voltage at Pmax - Vmp(V) 45.25      42.04
Current at Pmax - Imp(A) 13.26      10.73
Module Efficiency - ηm(%) 21.50      /
Power Tolerance(W) (0, +4.99W)
Maximum System Voltage(V) 1500Vdc (IEC / UL)
Maximum Series Fuse Rating (A) 30A
*STC : Irradiance 1000W/m², Cell Temperature 25℃, Air Mass 1.5
*NOCT: Irradiance 800W/m², Ambient Temperature 20℃, Air Mass 1.5, Wind Speed 1m/s.
*Measurement tolerance: ±3% *Power binning up to: +3%
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale

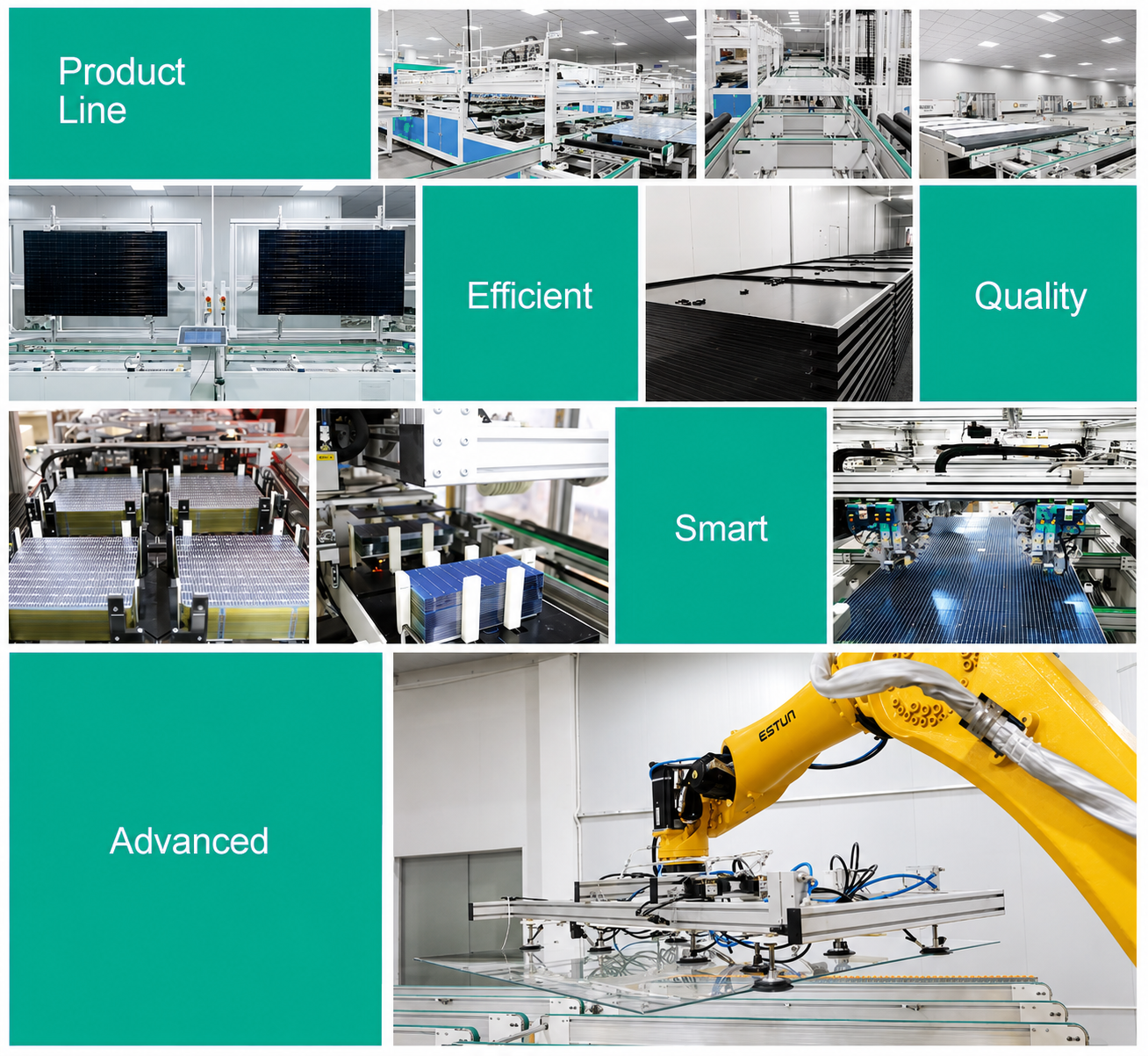

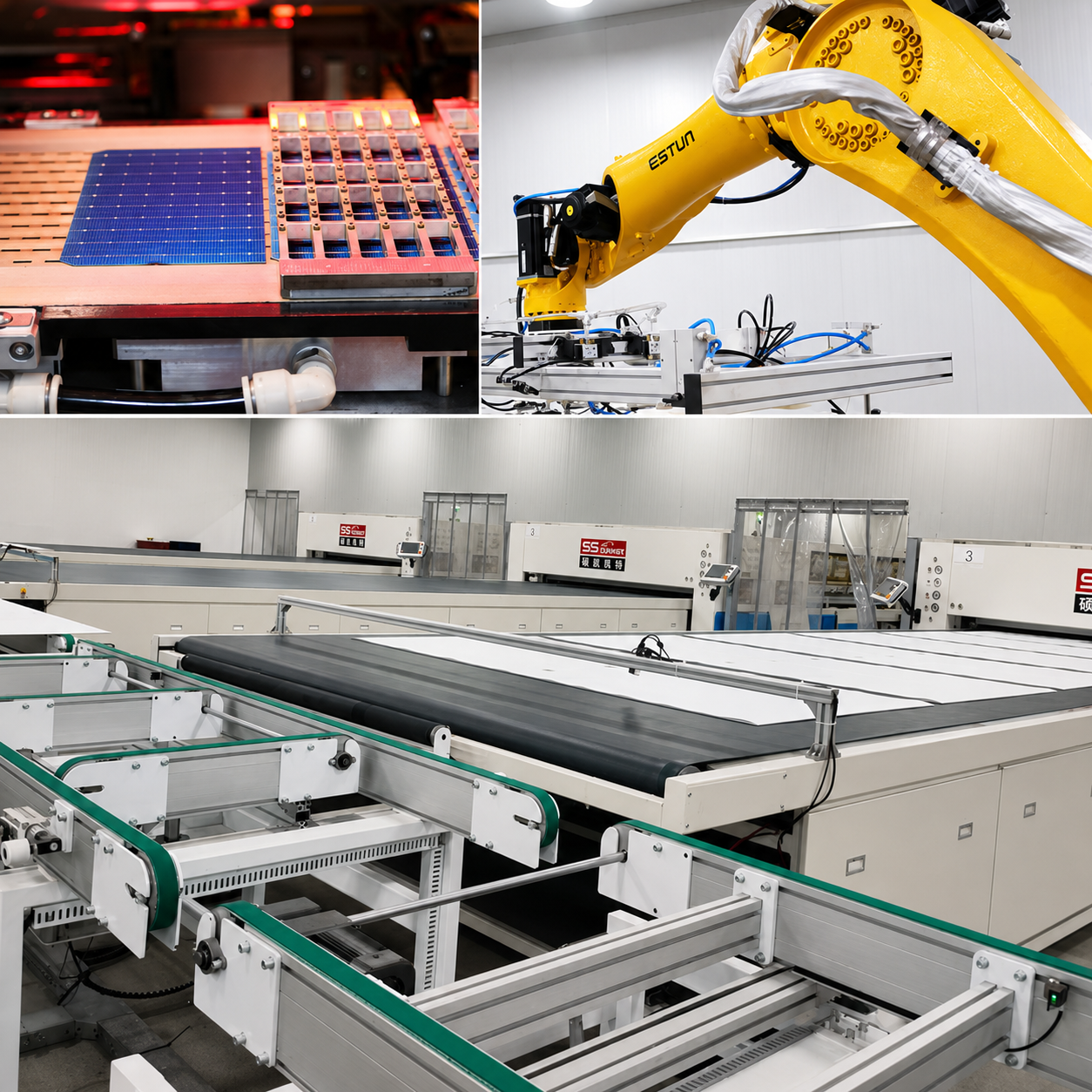

Other Product Images
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
Overview
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
Competitive Advantages
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
Trade Show Participation
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
Packaging & Shipping Specifications
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
High Energy Performance Double Glass Bifacial N Type Mono Half Cell PV Module Series 600W Solar Panel for Utility Scale
Frequently Asked Questions
Are you a trade company or factory?
We have our own factories.
Do you offer customization service?
Yes, we do.

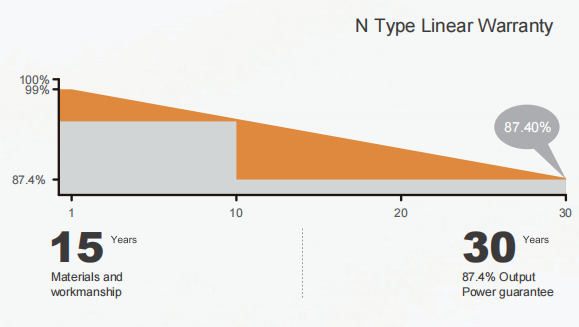

If any quality problem is caused, what can you do?
We can issue you a warranty letter which ensures that if any quality problem is caused within our warranty time, we will send the replacement to you without any charge.
How long is your delivery time?
It depends on how big the order is, for regular size orders it is 15-20 working days.
What technology is used in these solar panels to ensure high efficiency?
These solar panels utilize advanced N-Type TOPCon Technology and feature 182mm 16BB 156Cells layout to maximize energy conversion and reach up to 21.5% efficiency.
What are the dimensions and maximum voltage of this solar module?
The physical dimensions are 2464*1134*35mm, and it supports a maximum system voltage of 1500Vdc (under IEC/UL specifications).
