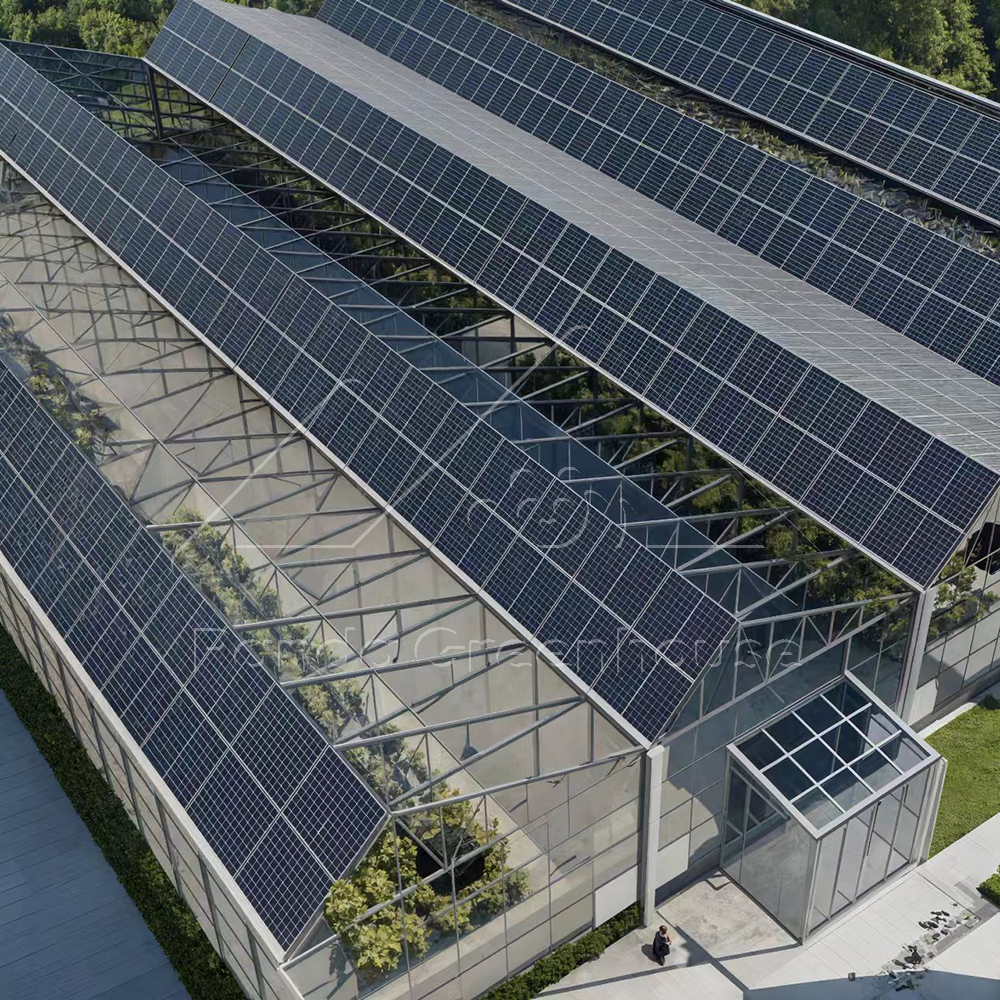

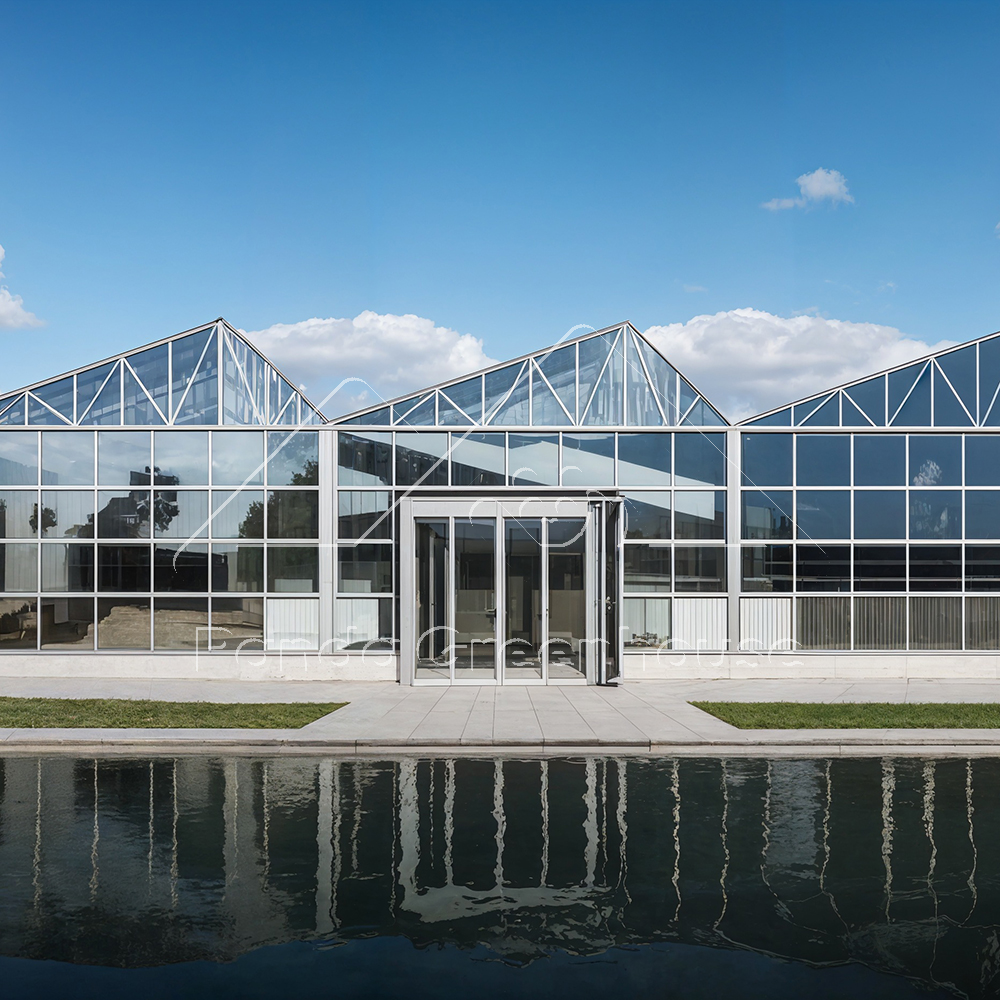

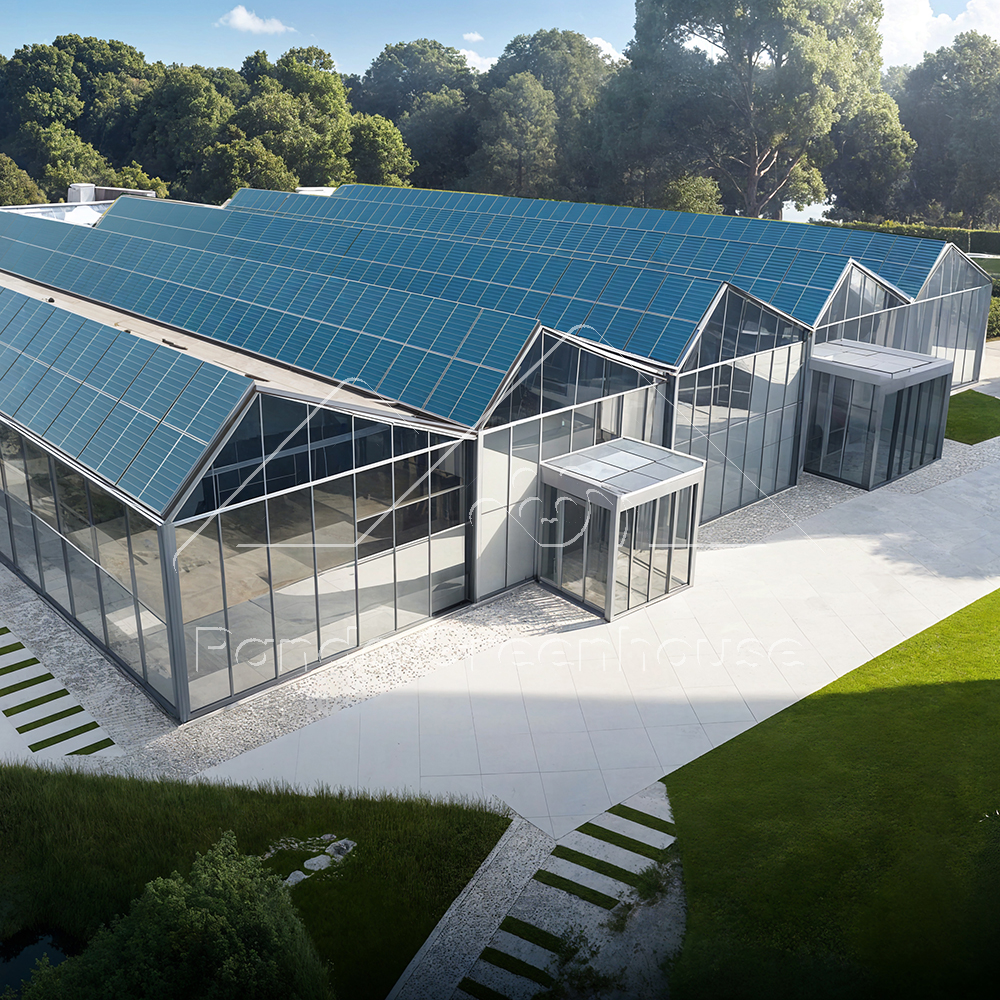

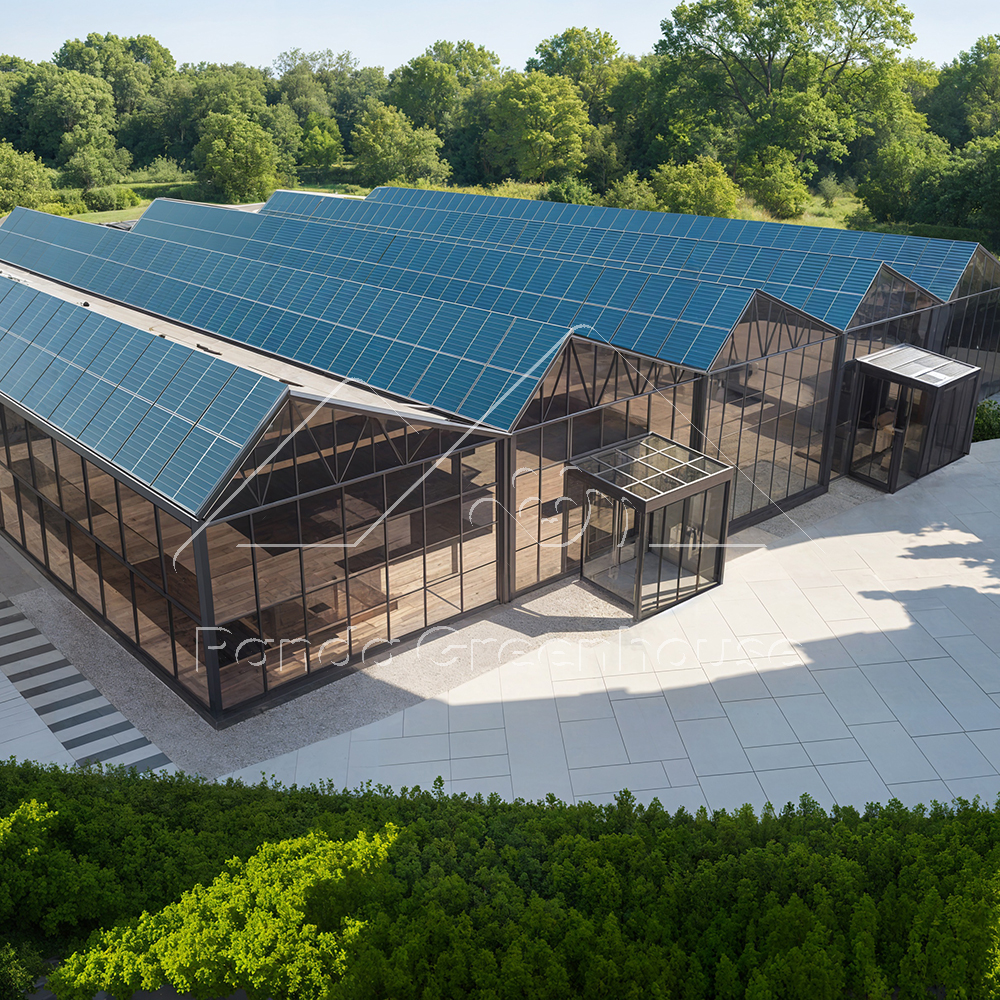

Large Integrated Solar Panel Glass Multi-Span Greenhouse Hybrid Power System For Commercial Organic Fruit Vegetable Flower Farm

Product Description

Feature Overview
Suitable for regions with abundant sunlight and can be integrated with solar power systems to regulate indoor temperature and humidity, creating an optimal environment for crop growth while reducing energy costs. For certain vegetable and fruit crops that demand stable warmth and light conditions, the solar greenhouse is more effective for year-round cultivation and improving yield. Its main structure uses a hot-dip galvanized frame, ensuring extended service life.
Solar Greenhouse Feature 1

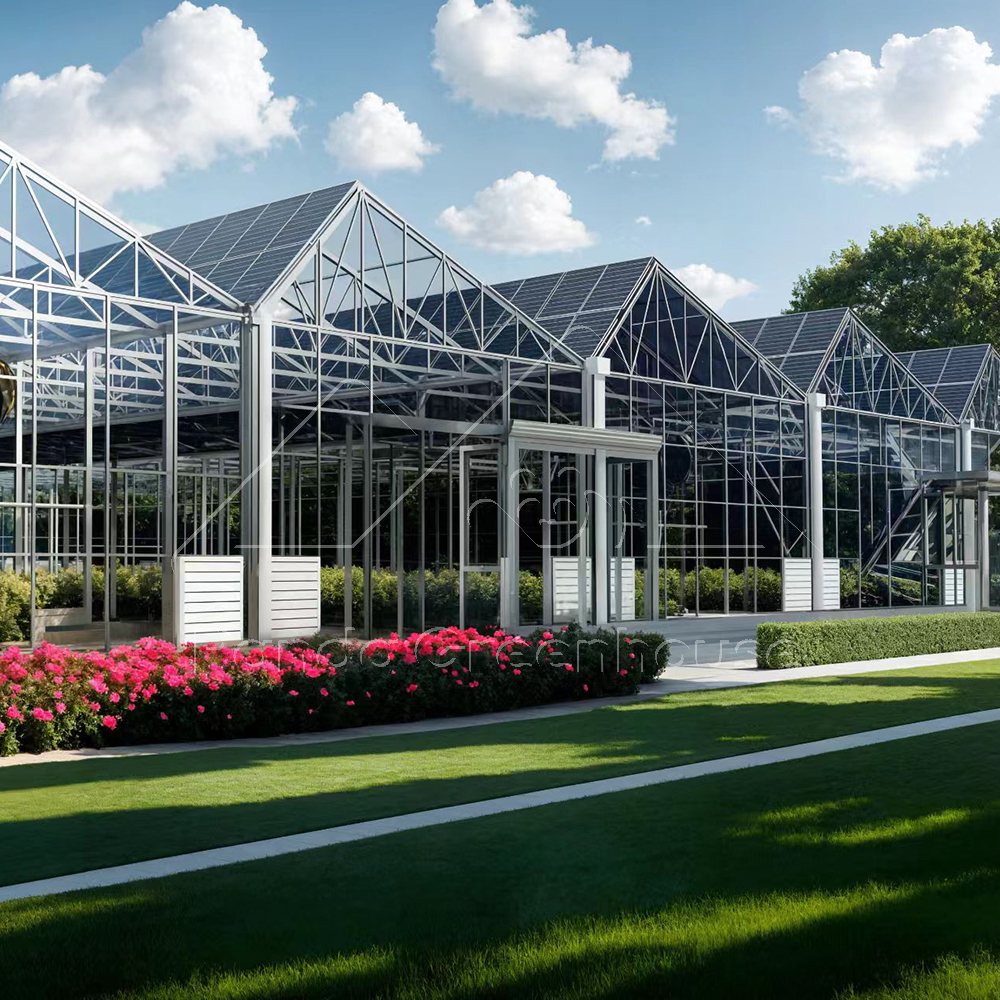

Solar Greenhouse Feature 2
Product Specifications
Span 9.6m / 10.8m / 12m Customized
Length Customized
Eaves Height 2.5m - 7m
Wind Load 0.5 KN/m²
Snow Load 0.35 KN/m²
Max. Discharge Water Ability 120 mm/h
Covering Material (Roof) 4, 5.6, 8, 10mm single layer tempered glass & solar panel
Covering Material (4-side surrounding) 4m+9A+4, 5+6A+5 hollow glass
Structure & Covering Materials

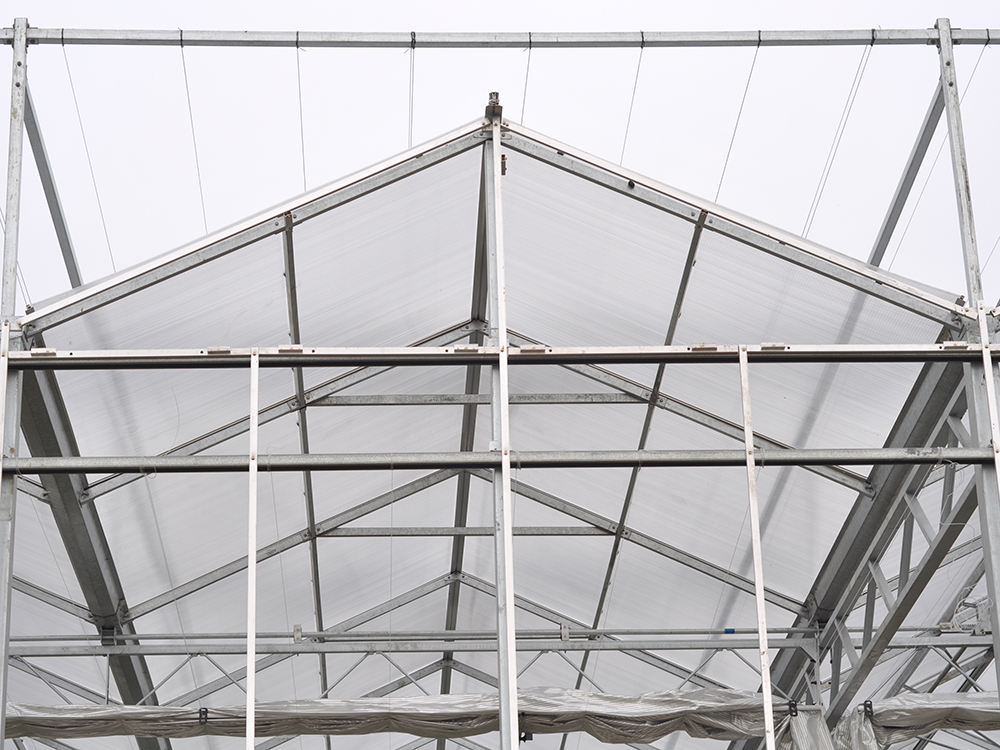

Frame Structure Materials
Frame Structure Materials
1. High-quality hot-dip galvanized steel structure, designed for a 20-year service life.
2. All steel materials are pre-fabricated for on-site assembly, requiring no secondary treatment.
3. Galvanized connectors and fasteners provide strong rust resistance.
Covering Materials

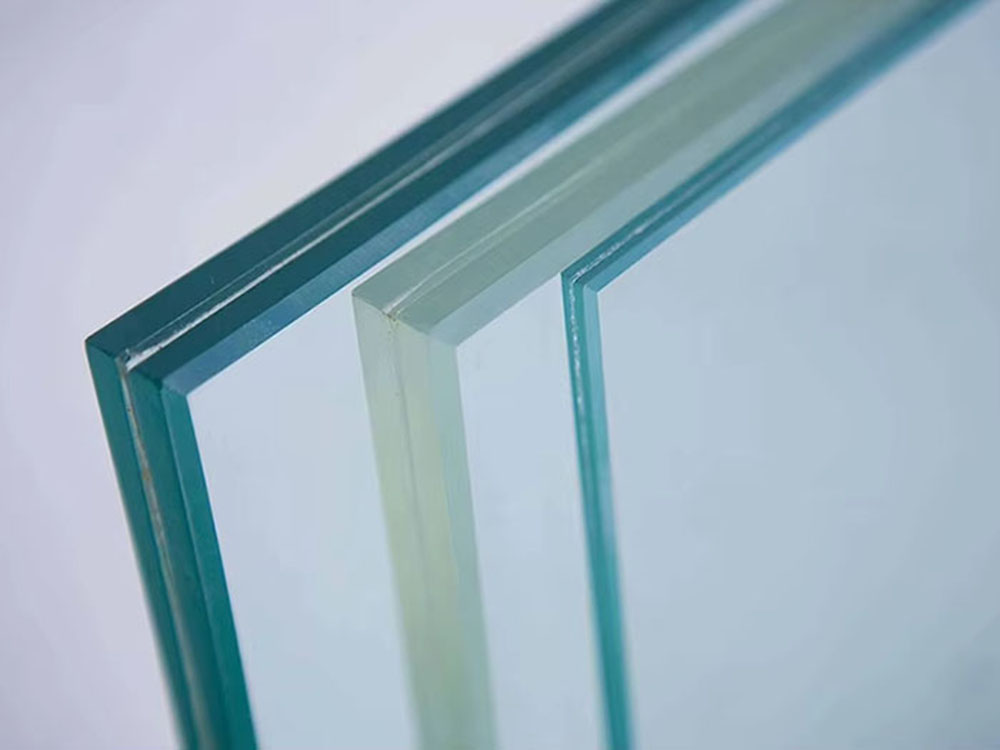

Covering Materials
Solar panel-glass: 300W-450W
Tempered glass: 5mm/6mm/8mm/10mm/12mm etc.
Hollow glass: 5+8+5, 5+12+5, 6+6+6 etc.
Transmittance: 82% - 99%
Temperature range: From -40°C to -60°C

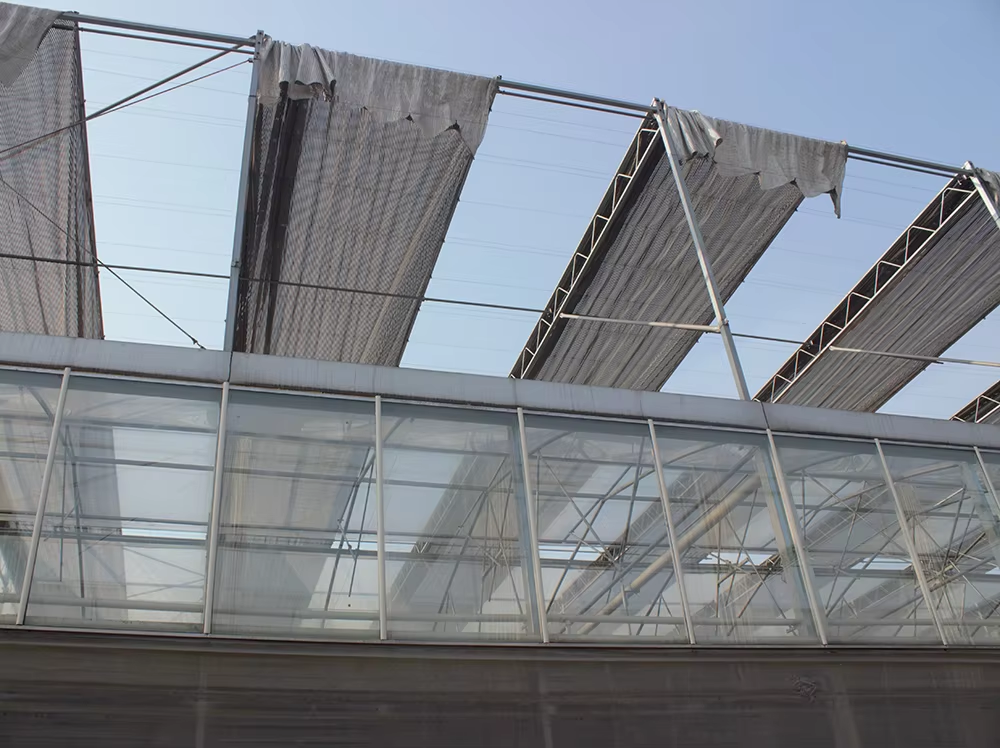

Shading System
It is distinguished by the location of the greenhouse shading system. The shading system of greenhouse is divided into external shading system and internal shading system. The shading system in this case is to shade the strong light and reduce the intensity of light to achieve a suitable environment for plant production. At the same time, the shading system can reduce the temperature inside the greenhouse to a certain extent. The external shading system provides some protection to the greenhouse in areas where hail is present. Depending on the preparation material of shade netting, it is divided into round wire shade netting and flat wire shade netting. They have a shading rate of 10%-99%, or are customized.
Shading System 1

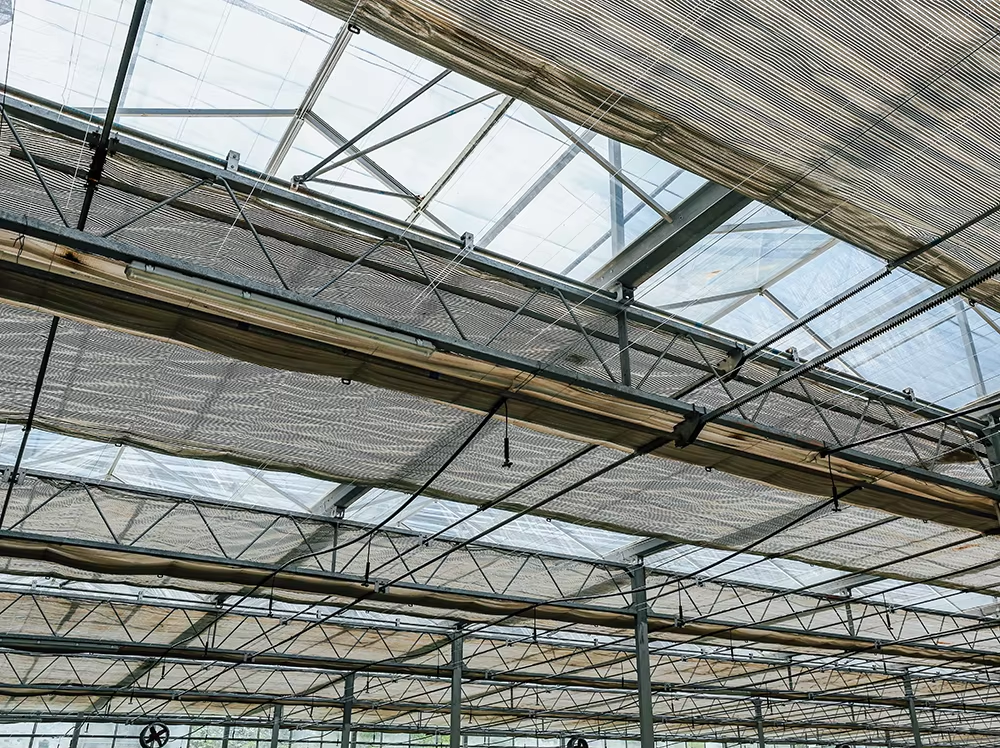

Shading System 2

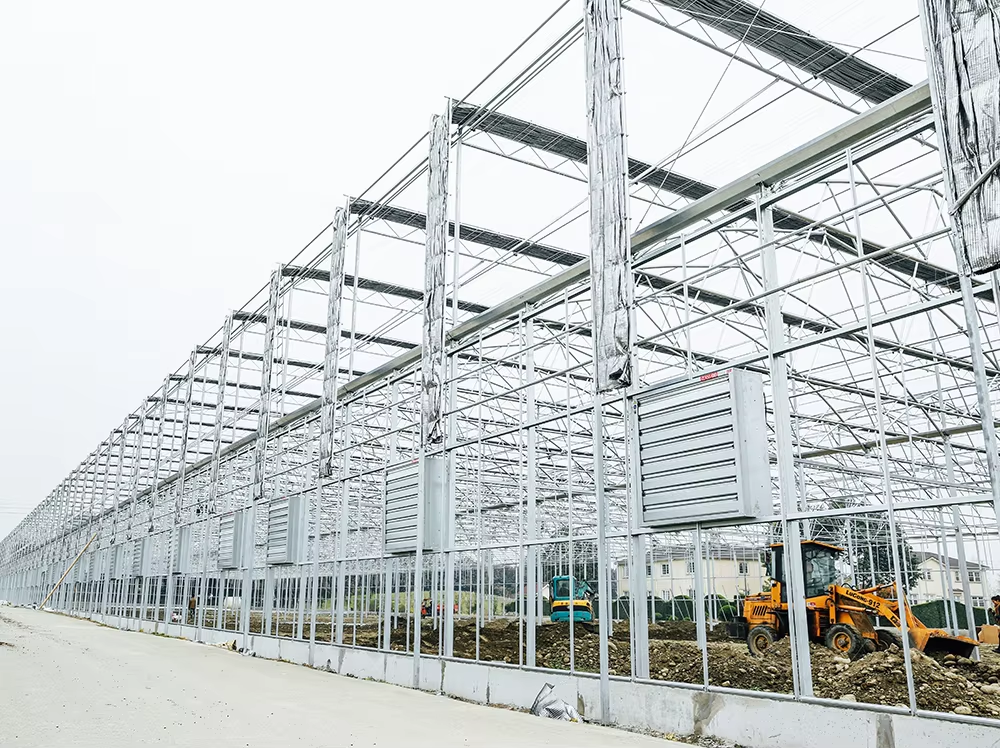

Cooling System
Depending on the environment of the greenhouse location and the needs of the customer, we can use air conditioners or fan & cooling pad to cool the greenhouse. Generally speaking, from the aspect of economy, we usually use a fan and a cooling pad together as a cooling system for the greenhouse. The cooling effect is determined by the temperature of the local water source. In the water source greenhouse about 20 degrees, the internal temperature of the greenhouse can be reduced to about 25 degrees. Fan and cooling pad is an economical and practical cooling system. In combination with the circulating fan, it can reduce the temperature inside the greenhouse faster. At the same time, it can accelerate the air circulation inside the greenhouse.
Cooling System 1

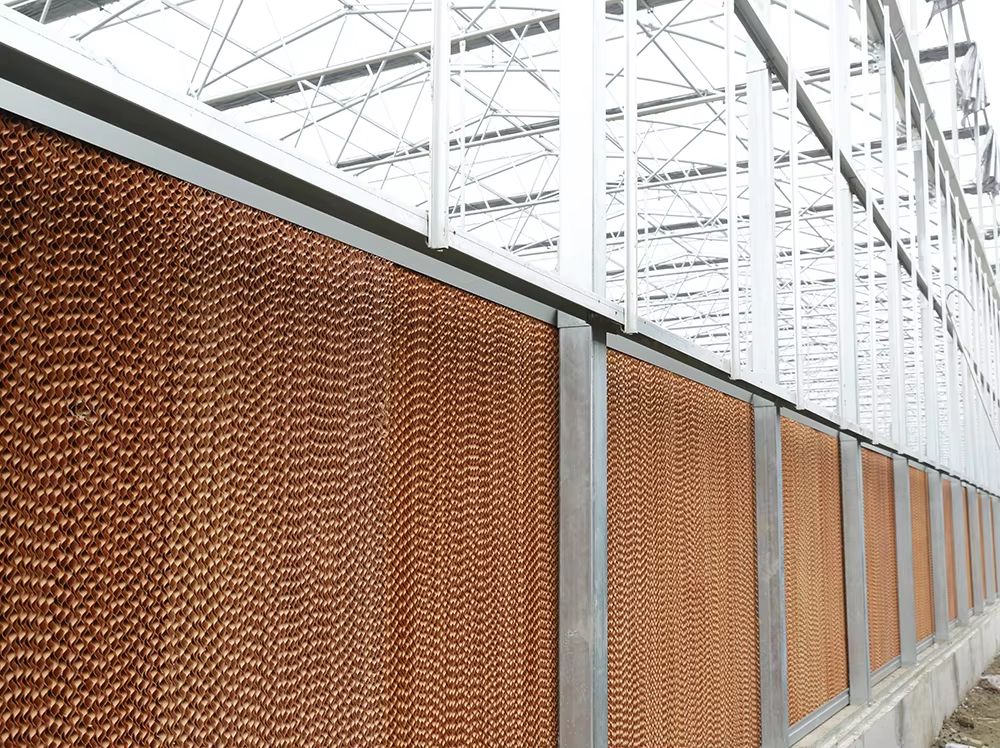

Cooling System 2

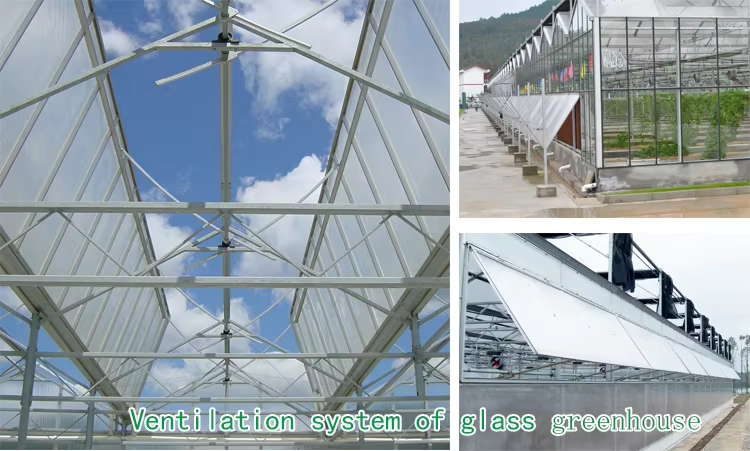

Ventilation System
Ventilation System
According to the location of ventilation, the ventilation system of greenhouse is divided into top ventilation and side ventilation. The temperature difference or wind pressure inside and outside the greenhouse is used to achieve air convection inside and outside the greenhouse to reduce the temperature and humidity inside.

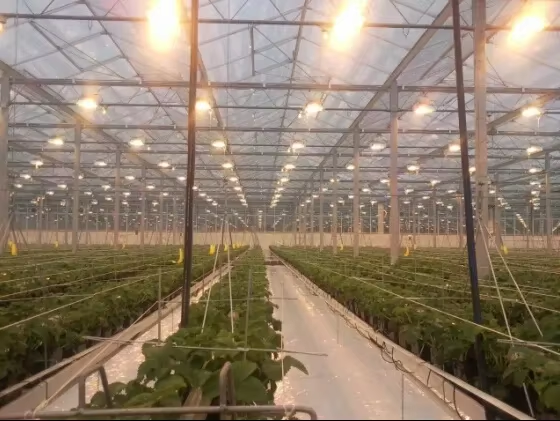

Lighting System
The greenhouse's supplemental light system has several advantages. Suppressing short-day plants; promoting flowering of long-day plants. In addition, more light can extend the time of photosynthesis and accelerate plant growth. At the same time, the light position can be adjusted to achieve a better photosynthesis effect for the plant as a whole. In cold environments, supplemental lighting can increase the temperature in the greenhouse to a certain extent.

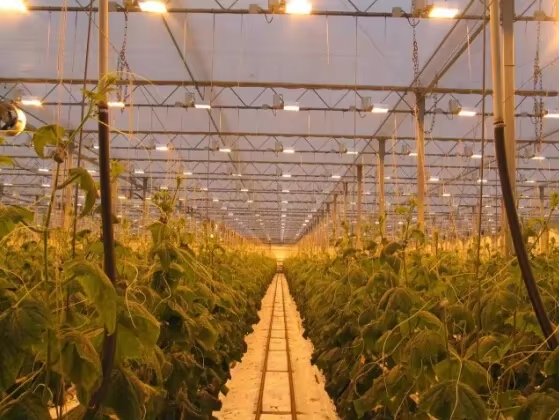

Lighting System 1
Lighting System 2

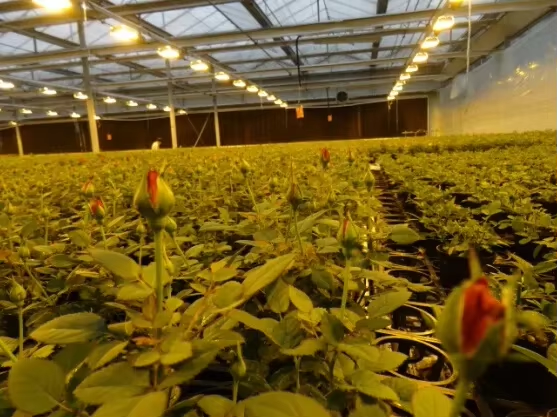

Lighting System 3
Successful Projects

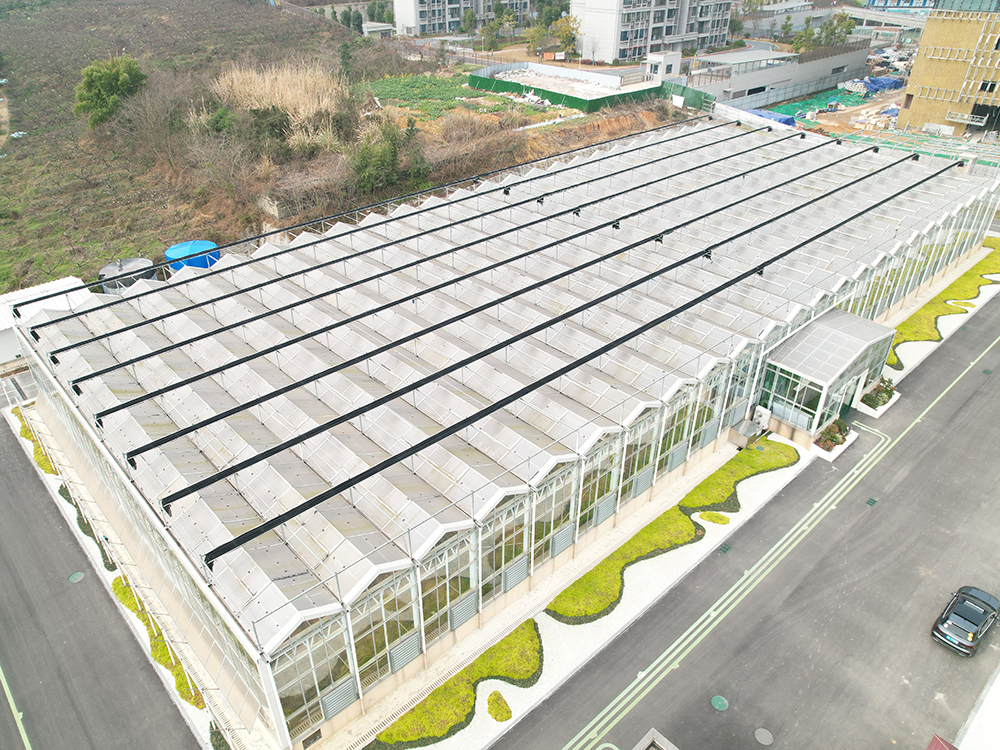

Plant research
Plant research
Flower cultivation

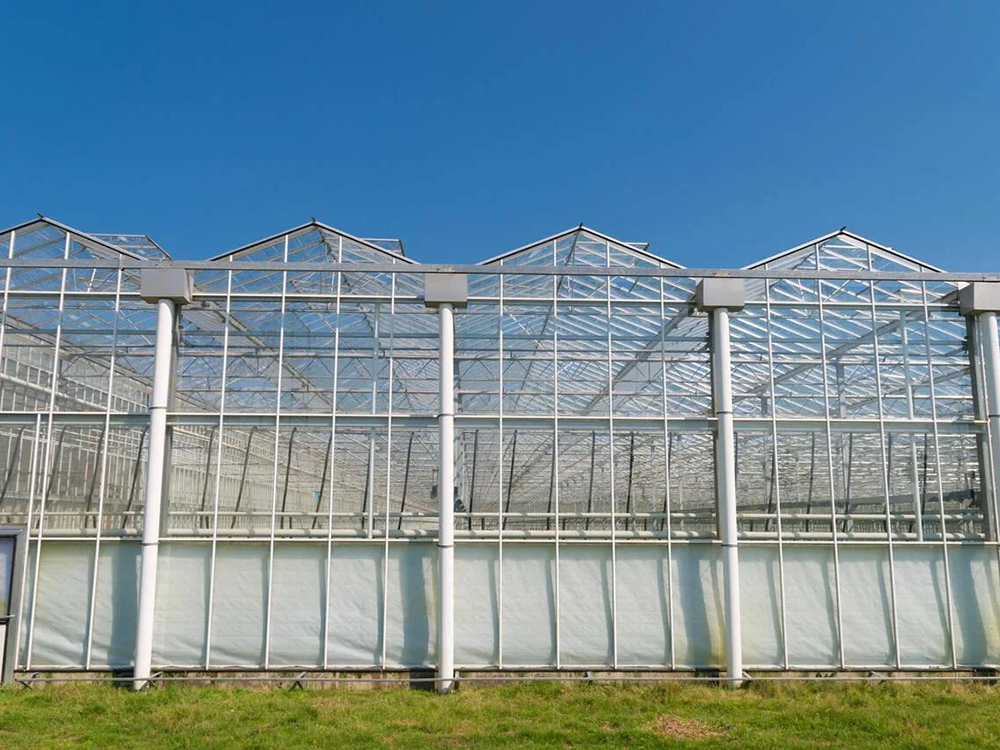

Flower cultivation
Seedling propagation

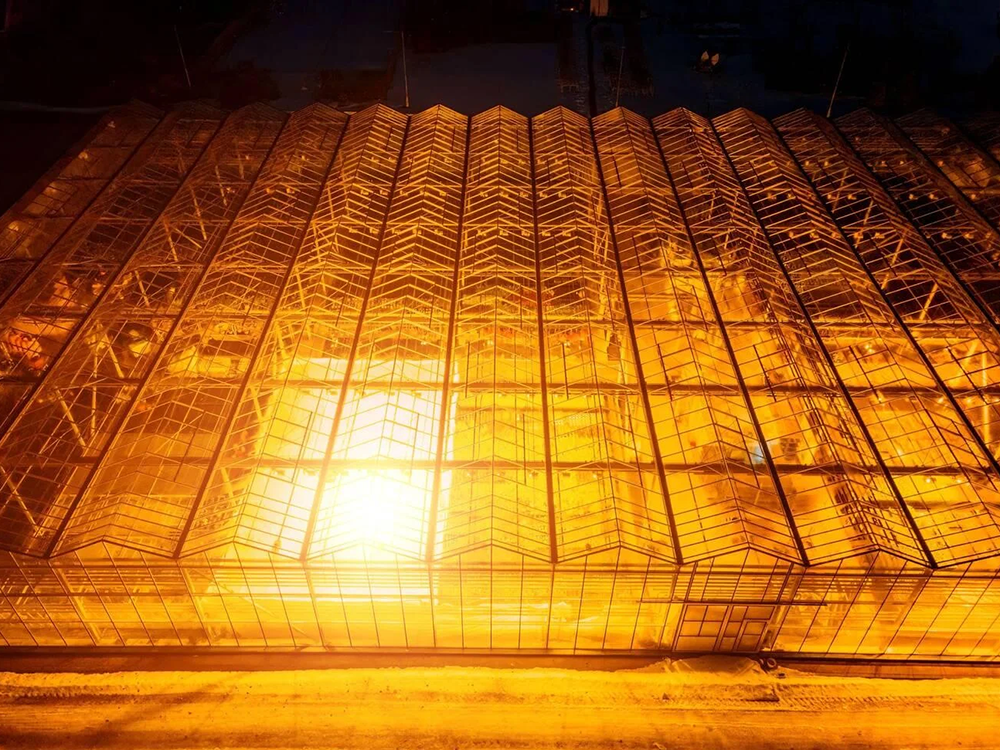

Seedling propagation
Frequently Asked Questions
Q: What types of greenhouses do you design and manufacture?
We specialize in producing a variety of greenhouse designs, including blackout, glass, PC-sheet, plastic-film, tunnel, and solar greenhouses. The complete production process is managed from raw material processing to final assembly.
Q: Can you accommodate custom greenhouse requirements?
Yes, our facilities span 30,000 square meters with five efficient production lines supporting both standardized and custom manufacturing to ensure each project meets your specific requirements.
Q: Do you provide full system accessories for the greenhouses?
Yes, in addition to the main greenhouse structure, we supply all auxiliary systems including ventilation, automation controls, cooling pads, and lighting equipment to offer a complete growing solution.
Q: What support do you offer for installation?
We provide comprehensive installation instructions for setup. When necessary, on-site technical support can also be arranged to ensure construction meets design specifications.
Q: What are the default covering options for your solar greenhouses?
The roof utilizes 4mm to 10mm single layer tempered glass integrated with solar panels. The surrounding walls are protected by multi-layer hollow glass (e.g., 4mm+9A+4mm or 5mm+6A+5mm).
Q: What cooling systems are recommended?
For an economical and practical setup, we typically recommend a combined system of fans and cooling pads alongside circulation fans to optimize air movement and lower indoor temperature efficiently.
