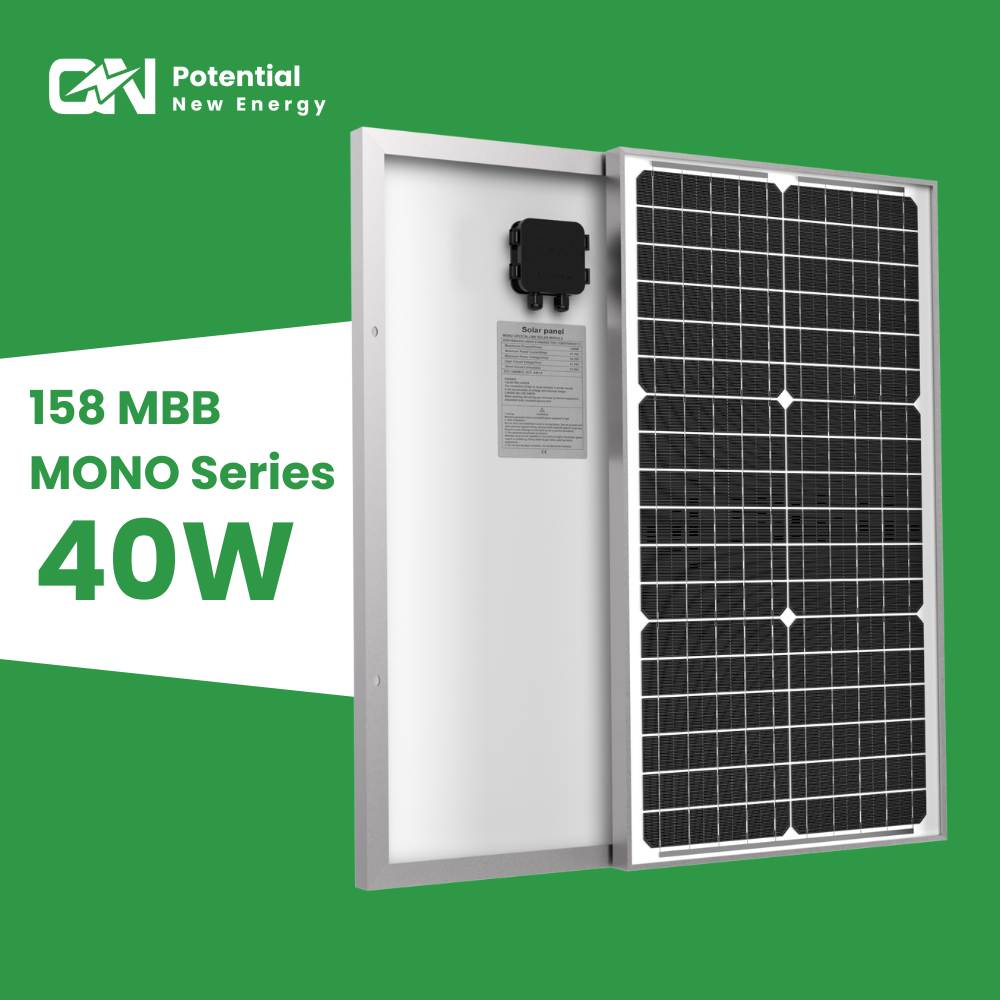

Potential New Energy Solar Panels That Can Power a House Wholesale Solar Panels Solar Panel Battery System

Product Description

Solar panels that can power a house wholesale solar panels solar panel battery system
Solar panel battery system
Products Description

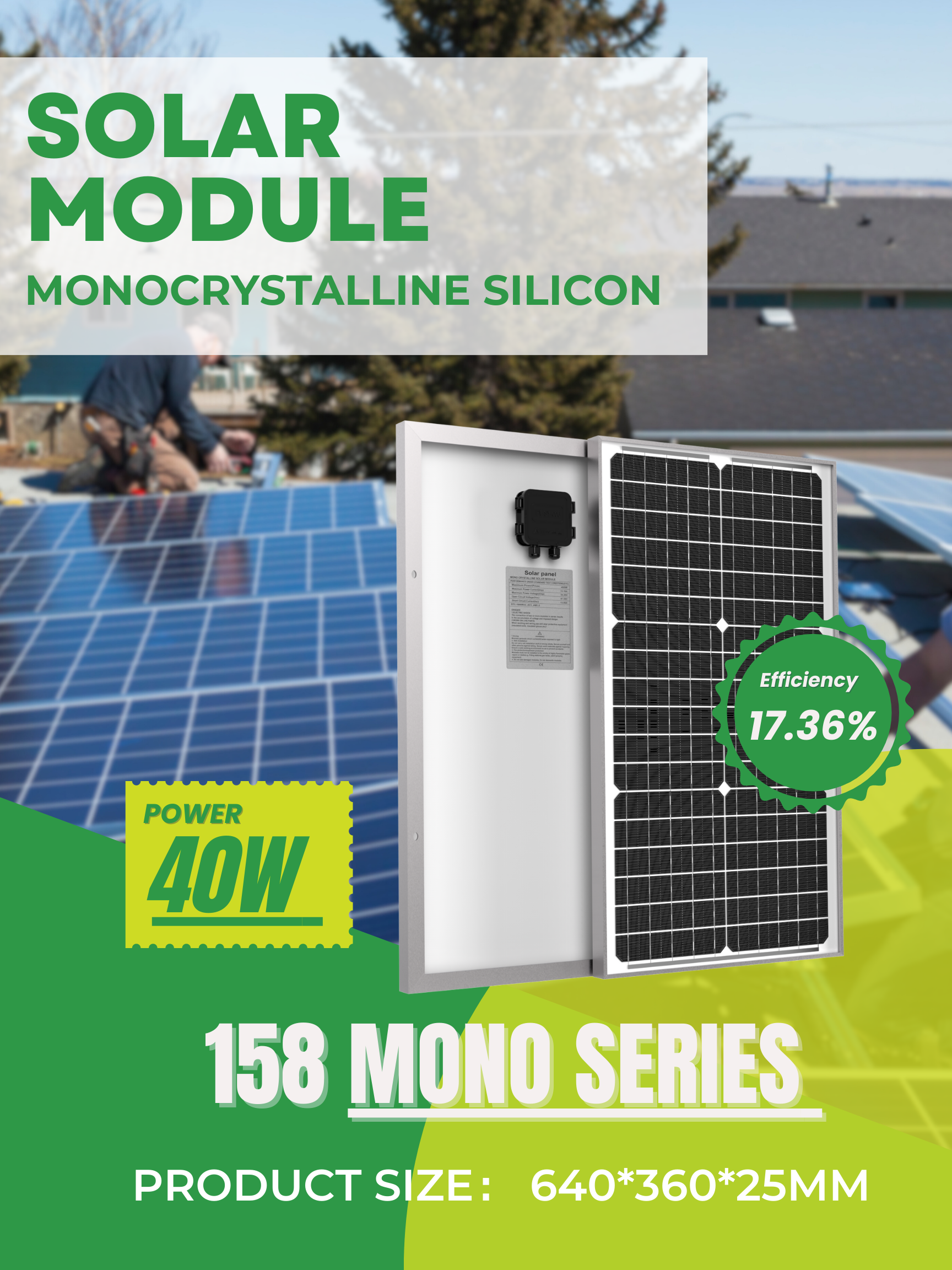

Product specifications detail

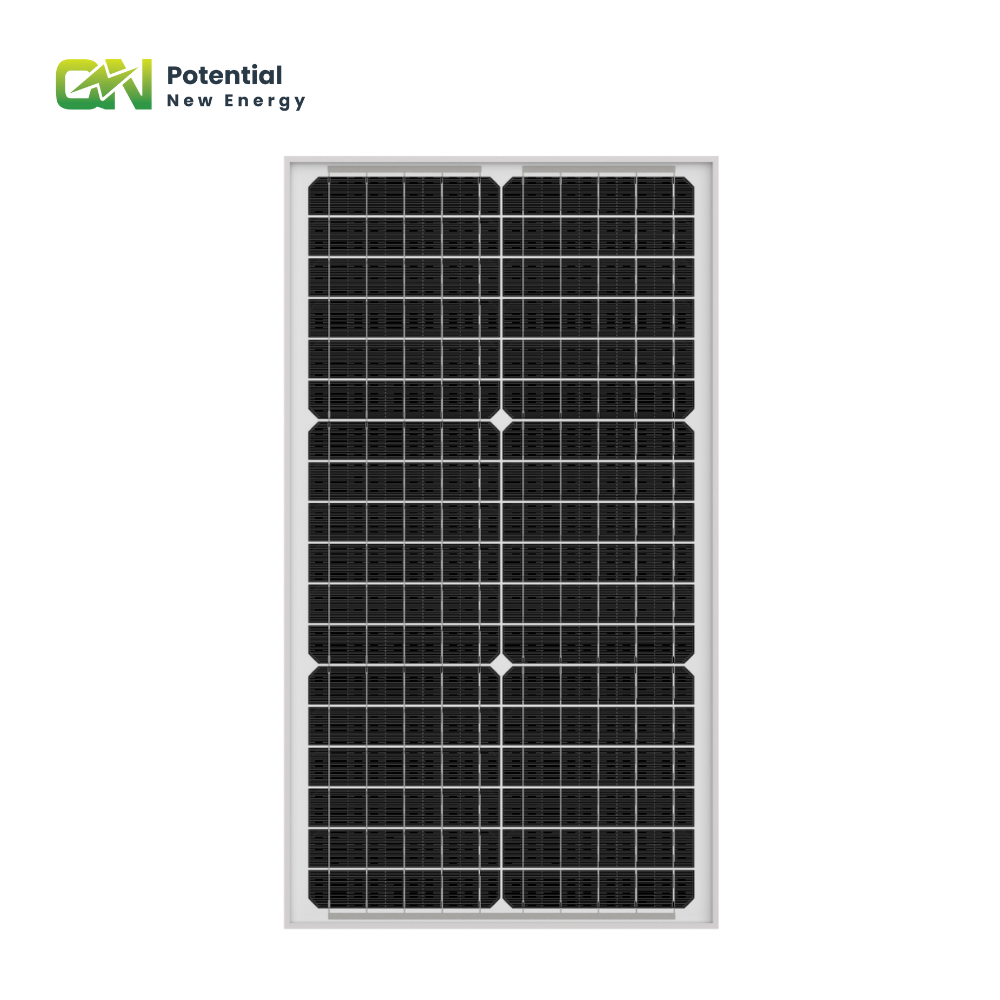

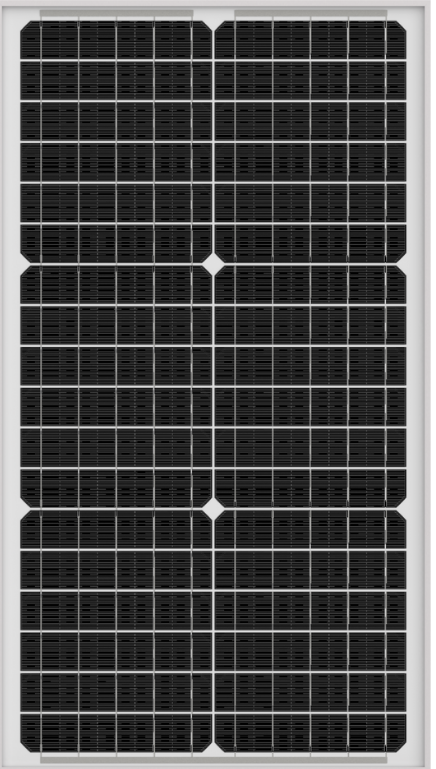

Solar module view 1

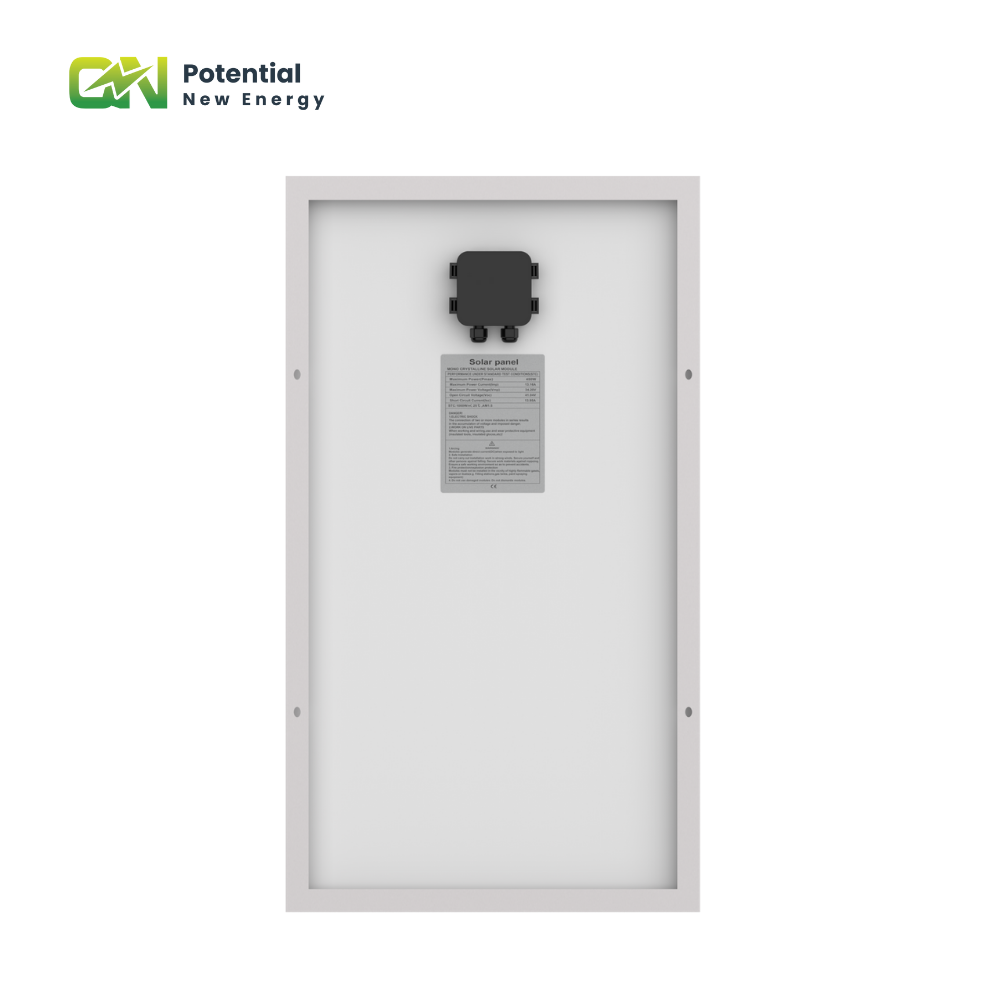

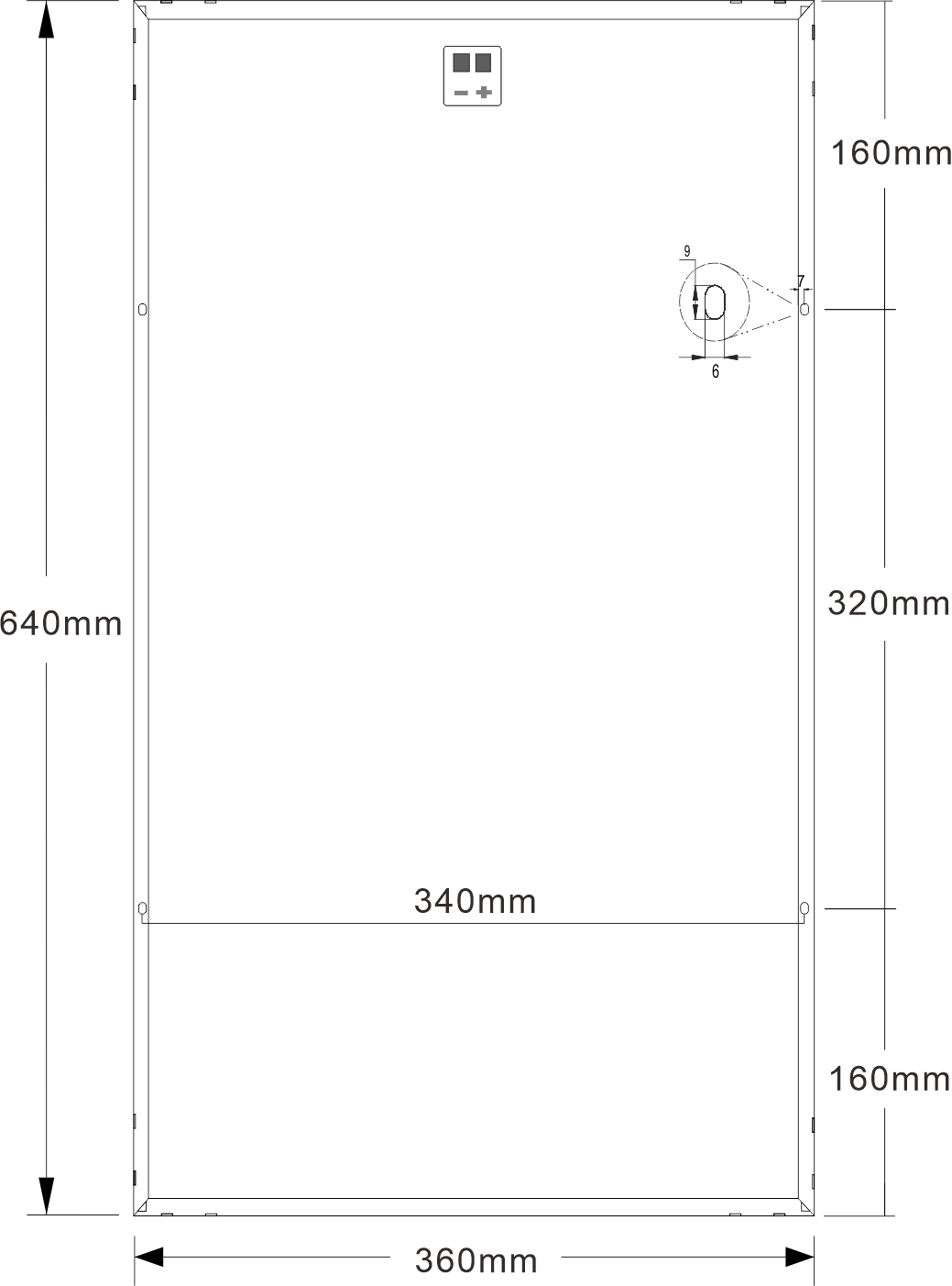

Solar module view 2
Electrical Parameters (at STC) Mechanical Parameters
Power (W) 40W Solar Cell (Type/Size) Mono (158mm)
Module Efficiency (%) 17.36% Solar Cells Number 36 Pcs (2*18)
Voltage at Pmax (Vmp) 17.5V Dimension 640*360*25mm
Current at Pmax (Imp) 2.29A Weight //
Open Circuit Voltage (Voc) 21.5V Junction Box IP67 / 0*bypass diode
Short Circuit Current (Isc) 2.48A Cable //
Power Tolerance (W) ±3% Connector //
PS: If you have special requirements, customization is available.

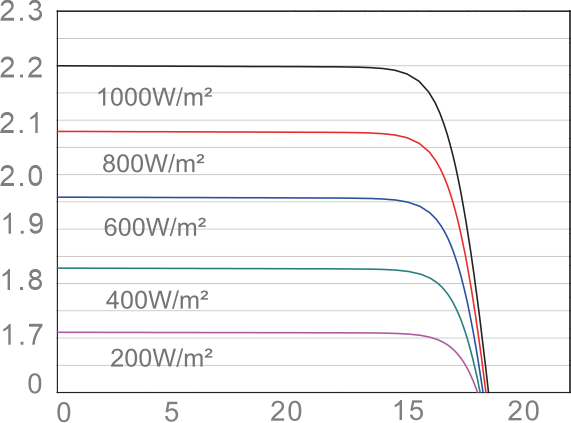

Feature showcase 1

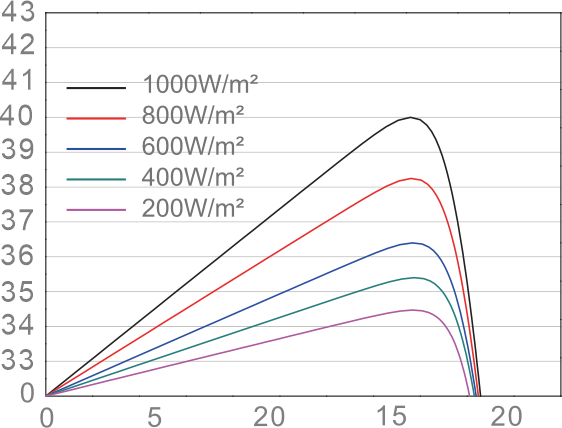

Feature showcase 2

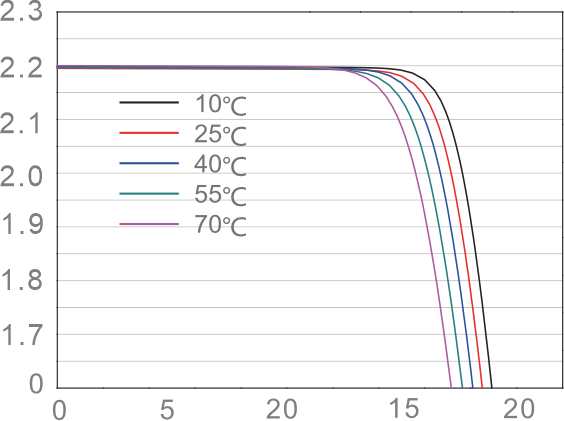

Feature showcase 3
Product Packaging

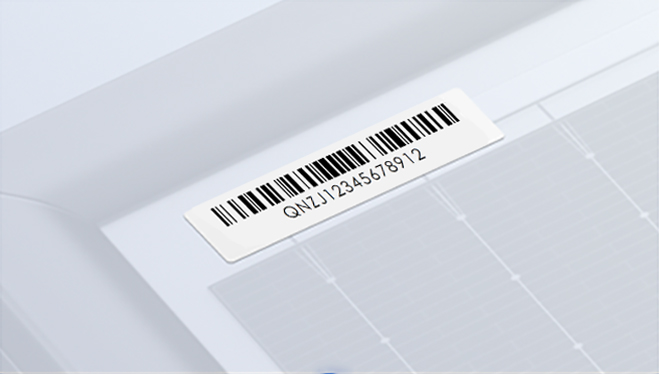

Product Barcode
Product Barcode

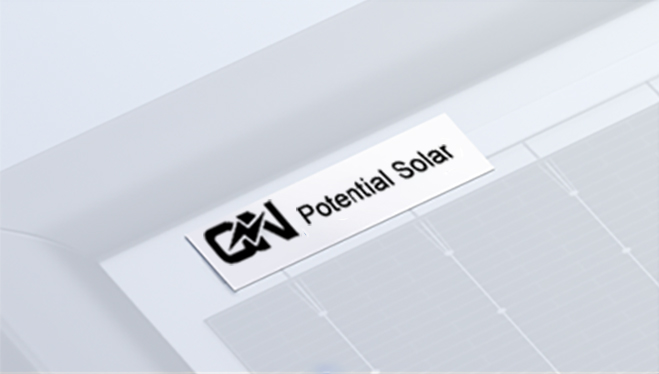

Brand Logo
Brand Logo

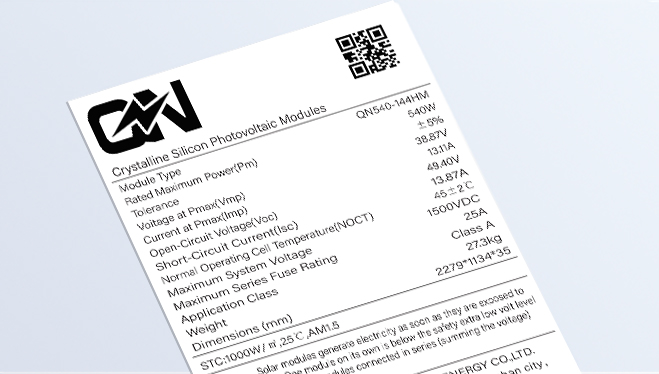

Parameter Label
Parameter Label

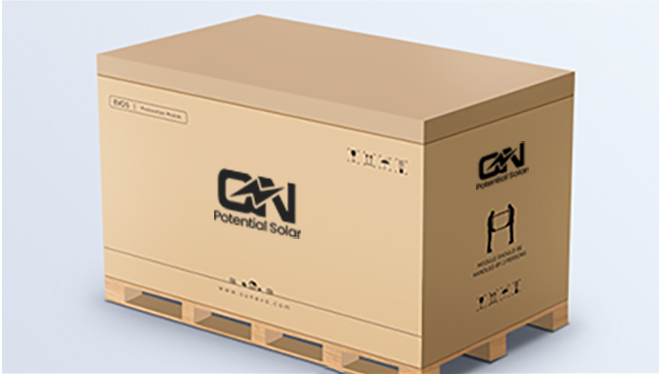

Package Details
Package
Packing specifications
Carton Size 655*375*140mm Number 5 Pcs/Ctn
Weight // 20GP Container 4070 Pcs
Volume 0.034 Cbm/Ctn 40HQ Container 10175 Pcs
Customizable: LOGO, parameter label, product batch number, packaging.
Company Profile
2018
Established Time
15000m²
Plant Area
120+
Total Employees
2~550w
Power Range
20+
Technical Staff
3GW
Accumulative Shipments
We focus on the R&D, design, and production of non-standard solar modules, operating three modern production bases with multiple certifications including ISO, TUV, CE, and IEC. Our main business is to produce high-quality non-standard solar modules, covering various types such as glass modules, flexible modules, folding modules, and double-glass modules. Our products range in power from 2 watts to 550 watts to meet various application needs. With years of industry experience and technical accumulation, we provide customized solar system solutions to meet the requirements of different scenarios.
Production facility overview
Manufacturing Technique
Manufacturing technique flow
Production line process
Standard Solar Module Production Factory
Customer Photos
Since our establishment, we have become an internationally recognized solar non-standard module manufacturer. We have successfully welcomed more than 300 customers from over 40 countries around the world who visited our production plants in person, establishing long-term cooperative partnerships with them.
Customer visiting photos
Certifications
Factory certifications
FAQ
Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region details.
Q2: What about the lead time?
A2: Typically 10 working days for demands below 200kW. For needs exceeding or equal to 200kW, the timeline can be negotiated.
Q3: How can I make payment?
A3: We accept 100% TT, or a maximum of 30% TT in advance and the remaining 70% TT once goods are ready before shipment.
Q4: What is the warranty?
A4: We offer a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty. Please refer to our limited warranty statement for details.
Q5: Can the product specifications be customized?
A5: Yes. We can support customization requirements on LOGO, parameter labels, batch numbers, and specific packaging layouts.
Q6: What certifications do your solar products hold?
A6: Our design and manufacturing processes comply with international standards, holding certifications including ISO, TUV, CE, and IEC.
