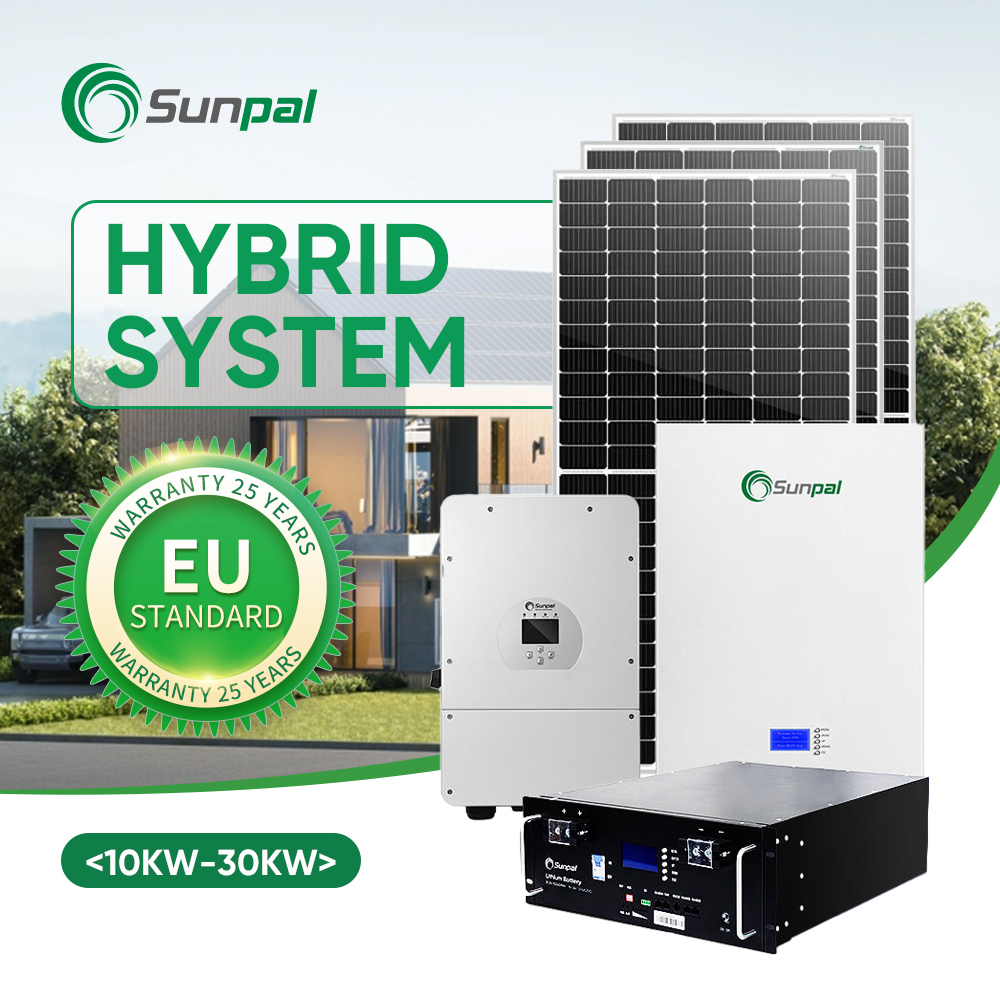

Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
1 / 5
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power
Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power

Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power

Send Inquiry

Product Description

Product Description

Product Description Details

Warranty

Warranty Terms

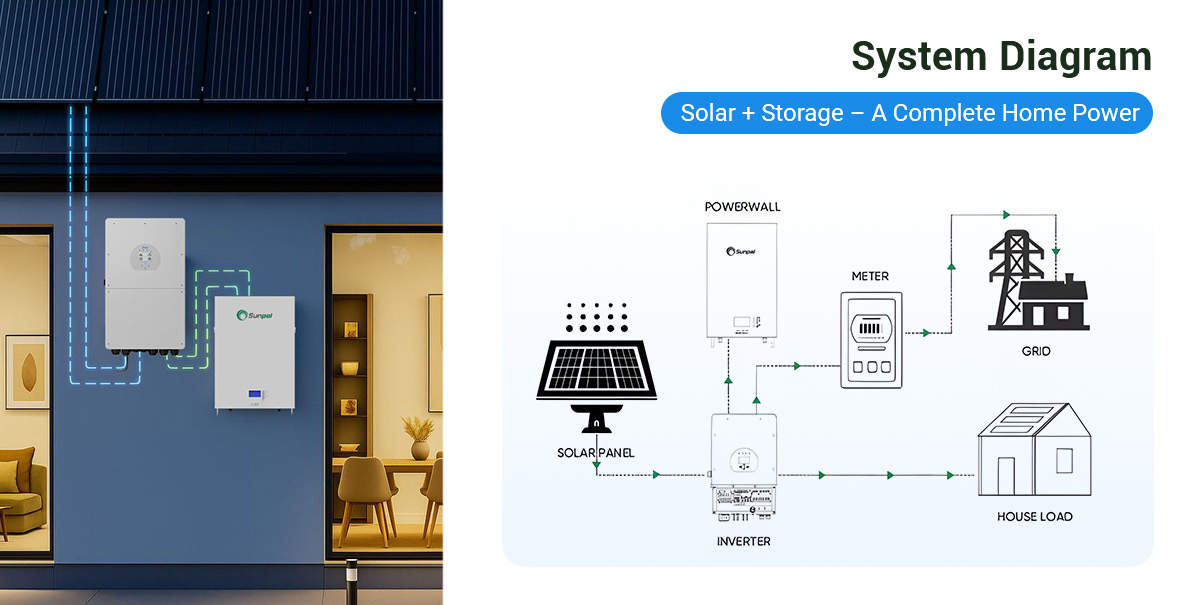

How It Works

Operation Process 1

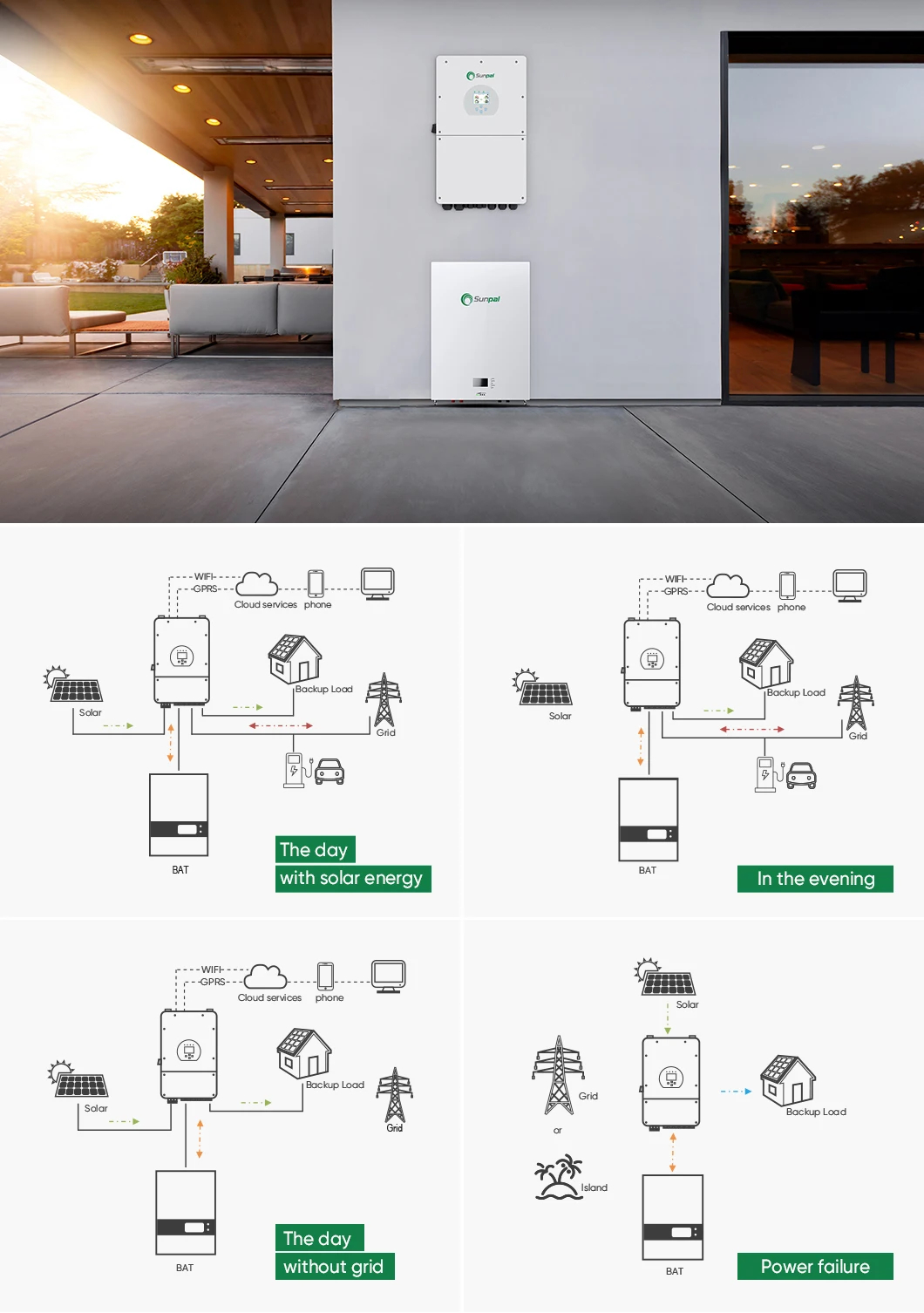

Operation Process 2
Operation Process 3

What's Included:

Model SP-10KW-HY SP-15KW-HY SP-20KW-HY SP-30KW-HY
Half Cut Mono 550W Solar Panel 20 Pieces 30 Pieces 42 Pieces 63 Pieces
DC Disconnect Switch 3 Pieces 4 Pieces 6 Pieces 9 Pieces
Hybrid Inverter SUN-10K-SG04LP3-EU SUN-5K-SG03LP1-EU (3 Pieces) SUN-10K-SG03LP1-EU (2 Pieces) SUN-10K-SG04LP3-EU (3 Pieces)
Wall Mounted LiFePo4 Battery 10Kwh 15Kwh 20Kwh 30Kwh
DC Cable 4mm2 400 meter 600 meter 800 meter 1000 meter
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set

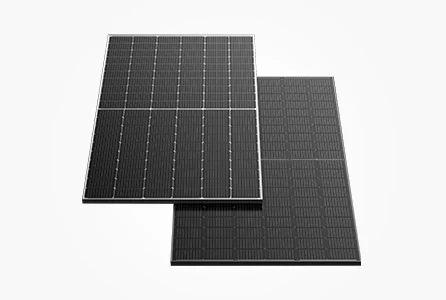

Solar Panel
BiMAX 5N 580-590W / BiMAX 6R 610-630W, 16BB SMBB Half Cut N-type Bifacial Double Glass
  • Max efficiency: 22.84% (5N) / 23.30% (6R)
  • Max system voltage: 1500Vdc (IEC), IP68 rated junction box
  • Warranty: 25-year material / 30-year linear power guarantee
BiMAX Solar Panel Details

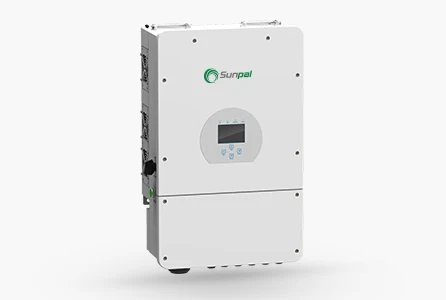

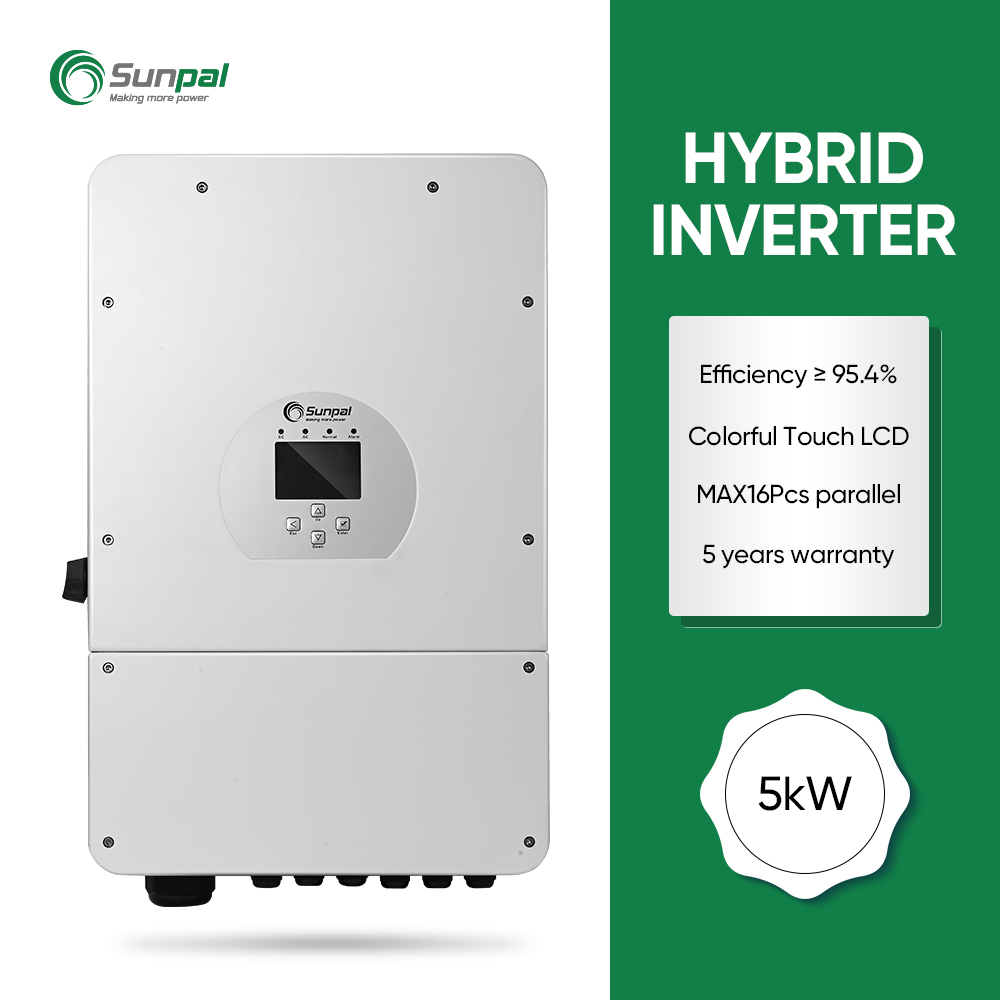

Hybrid Solar Inverter
Deye 5-18KW , >99% MPPT Efficiency
  • Max charging/discharging current: 190A (3.6-8KW) / 250A (10-12KW) / 350A (18KW)
  • Supports up to 16 units parallel operation, 6 time periods for battery charging/discharging
  • Protection grade: IP65 outdoor rated, 5-year standard warranty (10-year optional)
Hybrid Solar Inverter
Monitoring System
Open station supports one-click installation and registration. Problem support one-click dispatch and navigation.
  • Safe operation, traceable logs, etc.
  • Support full lifecycle data storage to ensure data security and reliability.

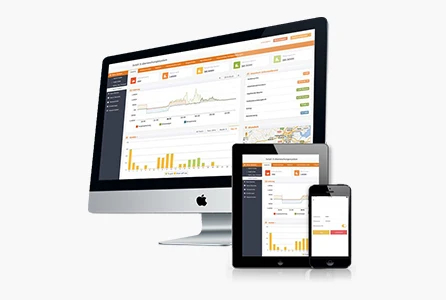

Solar Monitoring System Interface

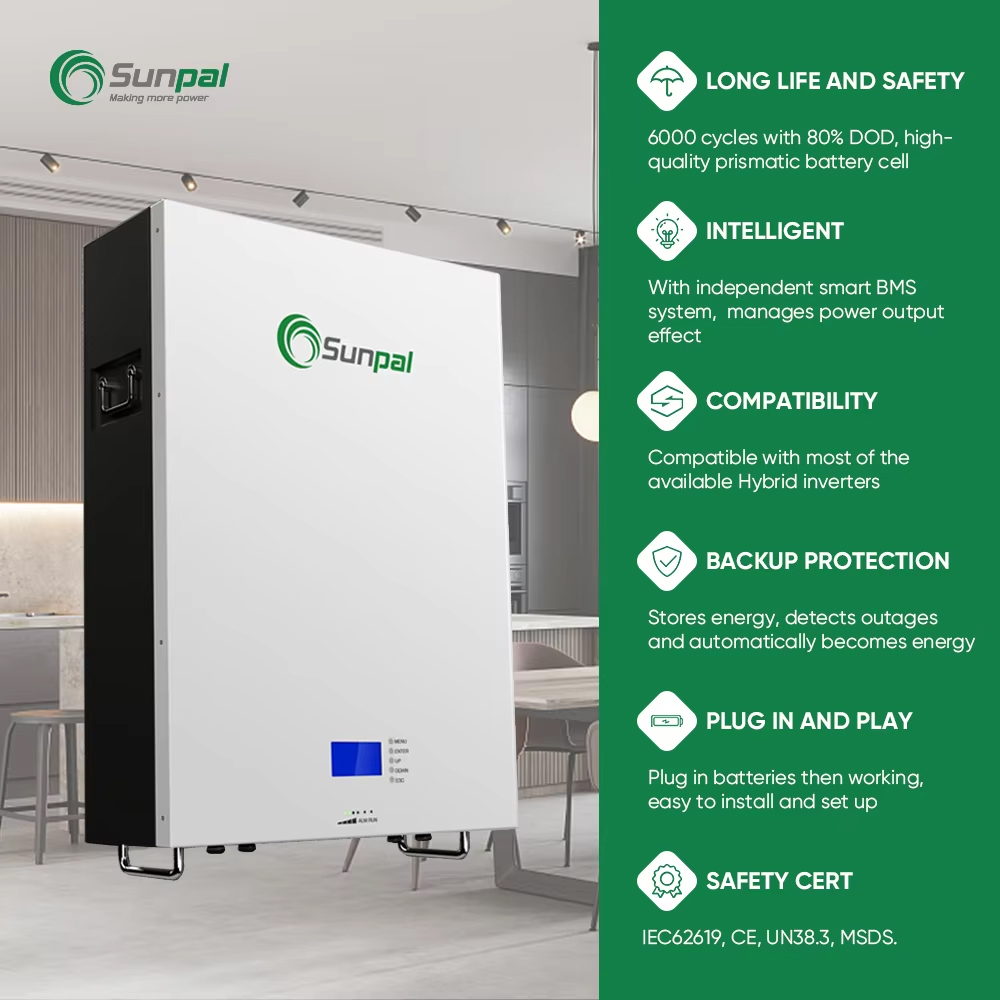

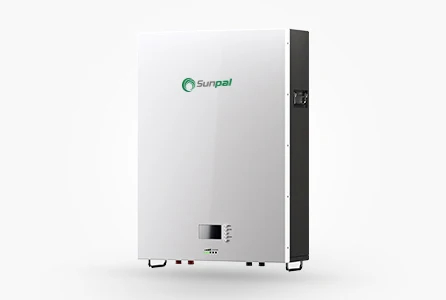

Wall Mounted LiFePo4 Battery
15-20 years design life with up to 6000+ cycle life.
  • Wall mount or ground stack brick, simply connecting to inverter.
  • Battery module is scalable for any larger storage system.
  • Battery modular built in high quality BMS. Protect battery cells all the way.
  • Wall-mounted: PowerPal Y1 5kWh/10kWh, plug-and-play installation
  • Floor-mounted: LP-F1 16kWh, supports up to 15 units parallel expansion
  • Certifications: IEC62619/CE/UN38.3, built-in intelligent BMS
Wall Mounted LiFePo4 Battery

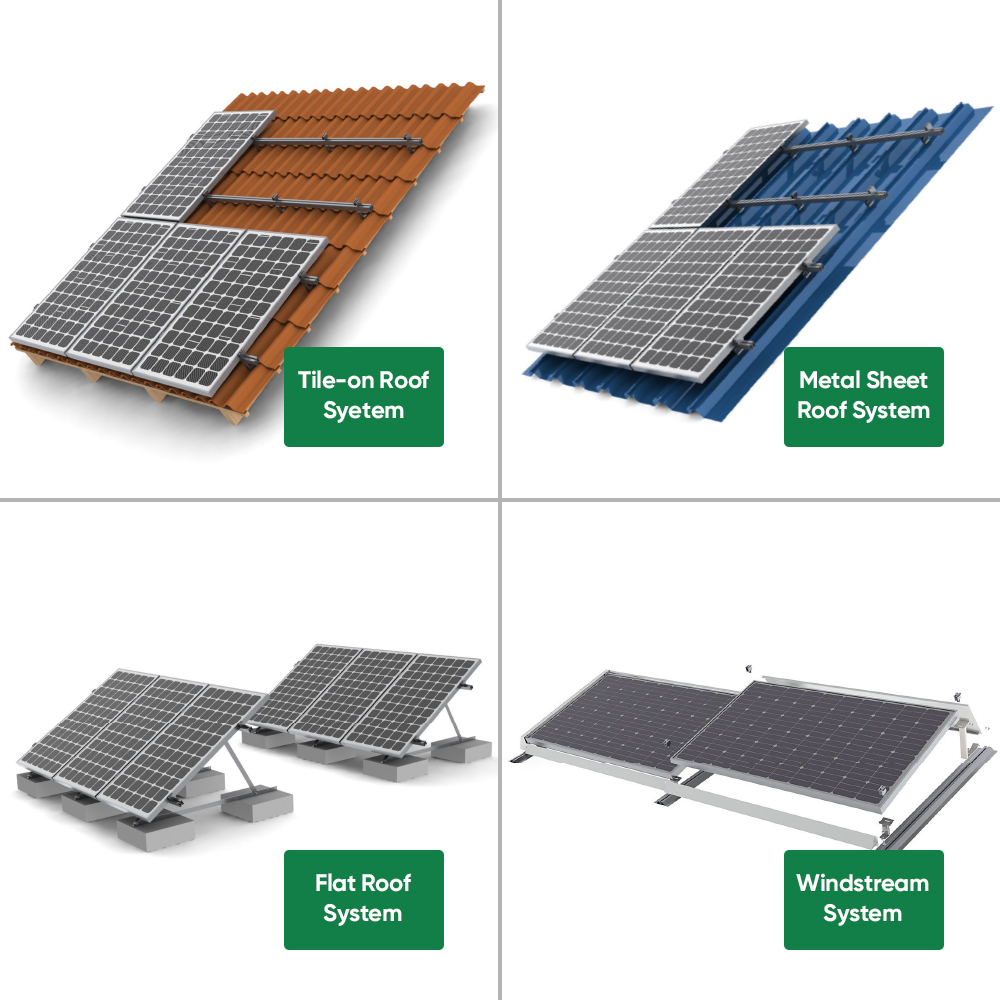

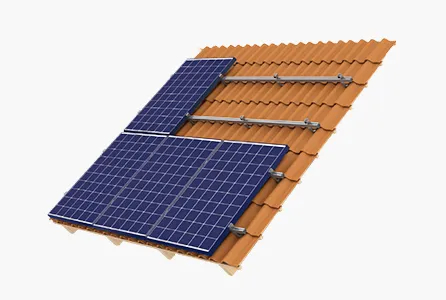

PV Mounting System
Sturdy and flexible installation structure options.
  • Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
  • Mid & End Clamps: 35, 40, 45, 50mm
  • L Foot Asphalt Shingle Mount & Hanger Bolt Optional
  • Cable Clip & Tie Optional
  • Ground Clip & Lugs Optional
PV Mounting System Components

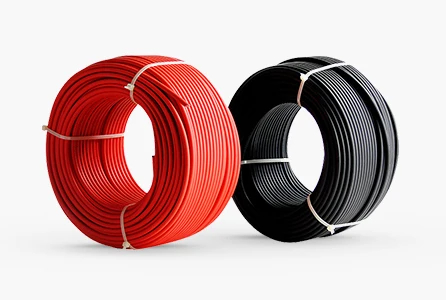

DC Cable & MC4 Connector
Professional PV connections for safety and durability.
  • Cross Section: 4mm2, 6mm2 Optional
  • Rated Voltage: 600VDC/1000VDC (TUV)
  • Rated Current: 55A, 70A
  • Colors: Black for standard, Red optional
  • Life Time: ≤25 Years
DC Cable & MC4 Connector

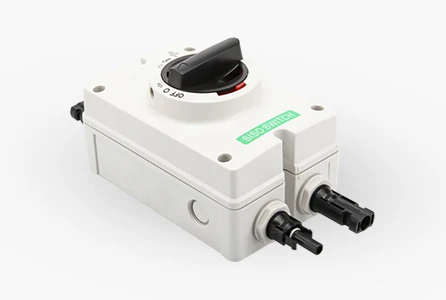

DC & AC Disconnect Switch
Reliable system isolators for system maintenance.
  • IP Rating: IP66 waterproof and dustproof
  • Rated Voltage: 1000VDC
  • Connection Type: M20, M25, MC4
  • Rated Current: 16A, 20A
DC & AC Disconnect Switch
PV Tools
Professional tools required for solar installation.
  • Wire Cable Cutter & Stripper
  • MC3 MC4 Crimper
  • MC4 Connectors Assembly
  • Disassembly Tool

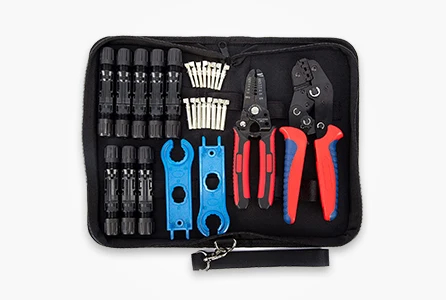

PV Installation Tools

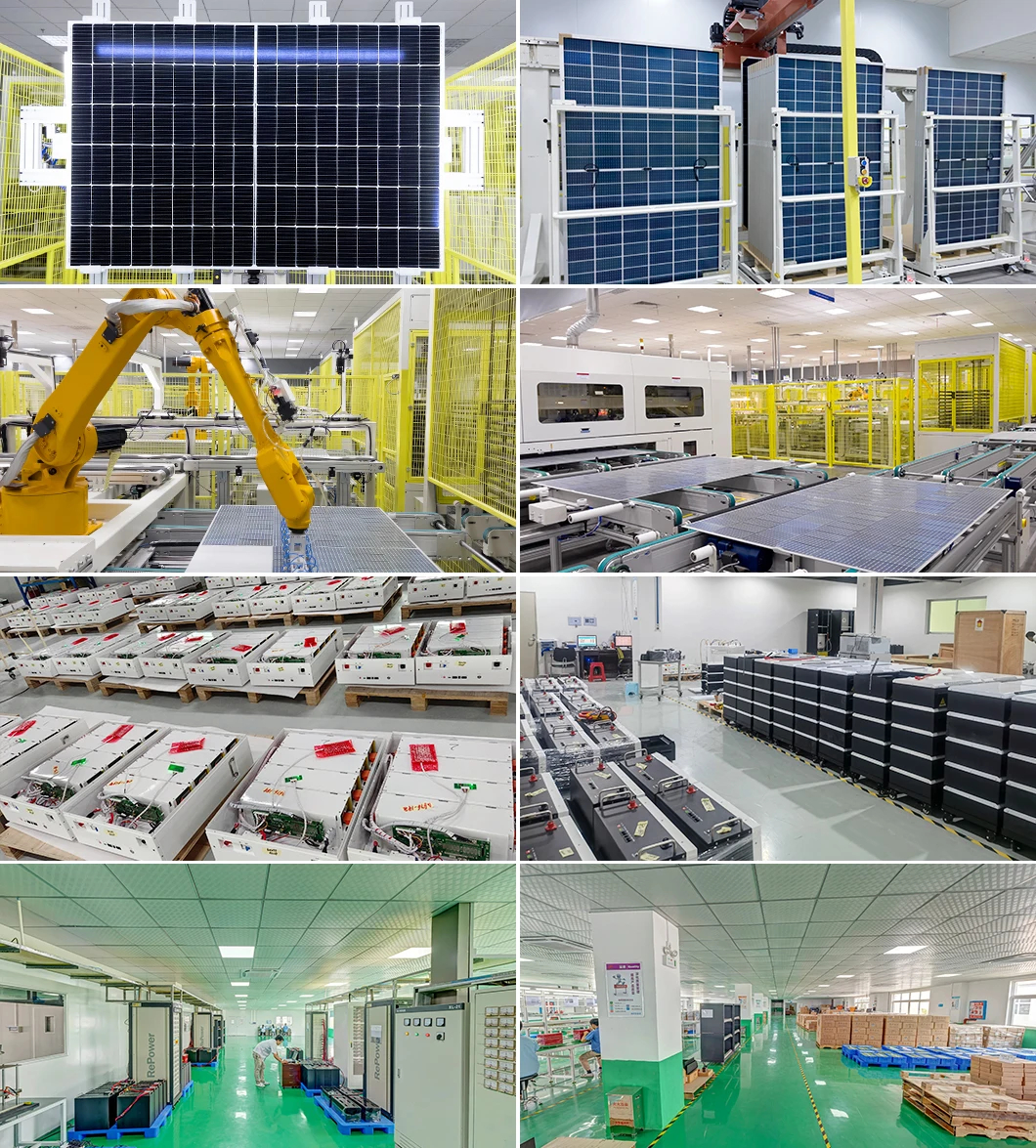

Our Factory

Factory Workshop View 1
Factory Workshop View 2

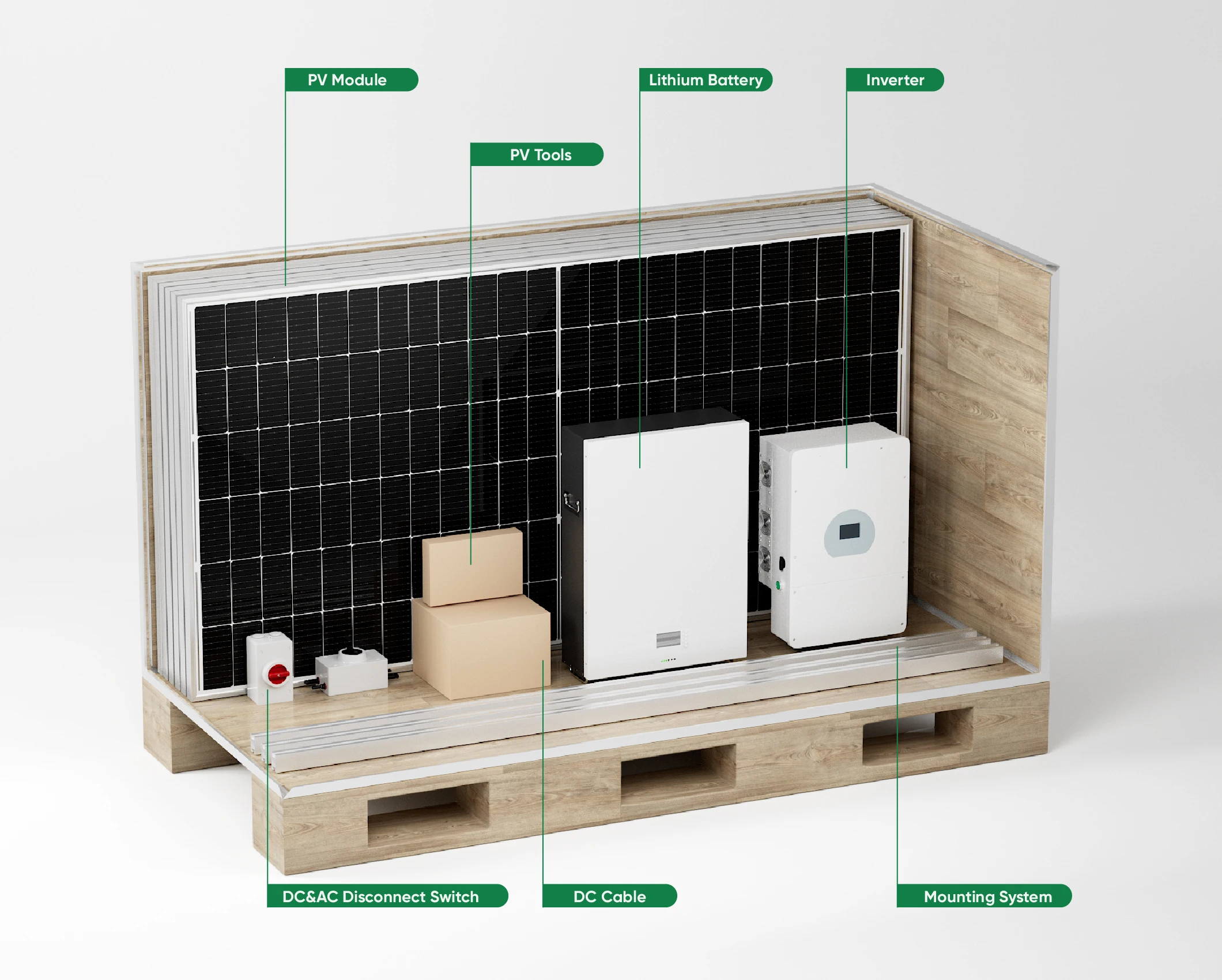

Product Packing

Packaging Box Processing
Secured Loading Logistics

Project Case

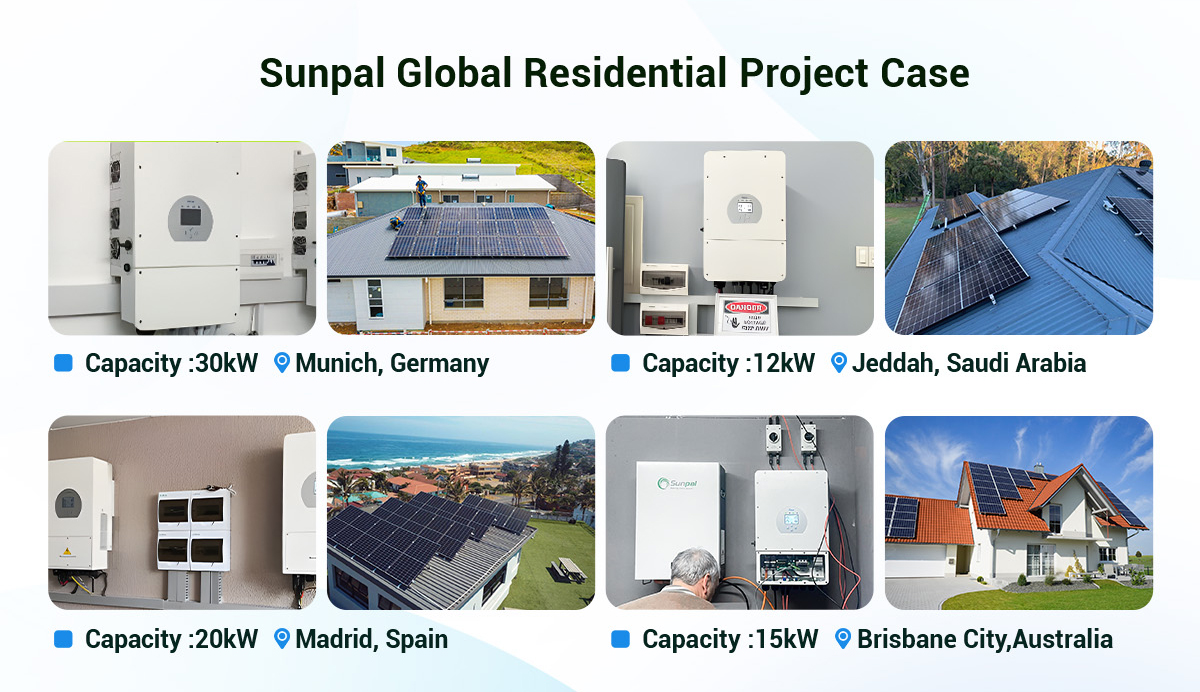

Project Case Installation Site 1

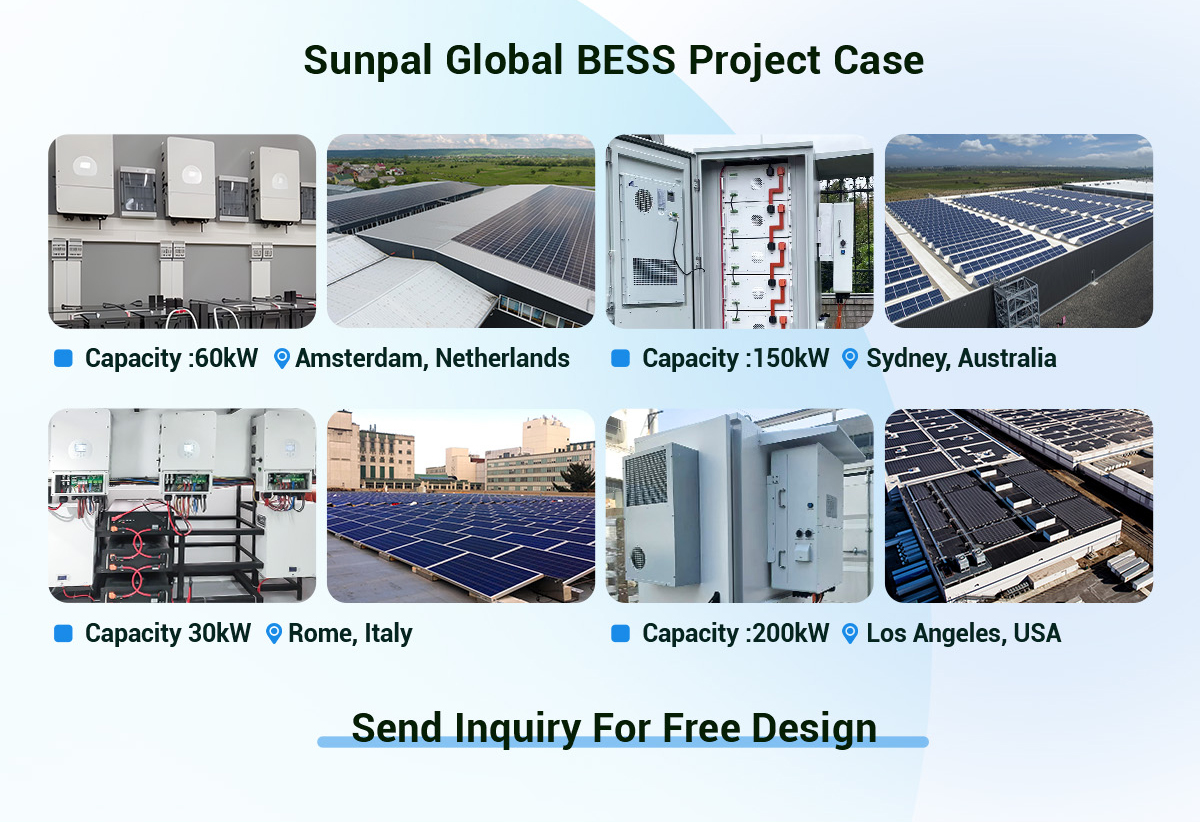

Project Case Installation Site 2

Customer Photo

Customer Visit Photo

Our Exhibition

Exhibition Presence

Frequently Asked Questions

Q: What is your minimum order quantity (MOQ)?
A: Our MOQ is 1 set. Formal bulk orders are based on FCL (20GP/40HQ). Mixed loading of full system products is supported.
Q: What is the lead time for bulk orders?
A: 7-15 days for in-stock bulk orders; 15-30 days for large customized orders (negotiable by volume), with fixed global shipping schedules.
Q: What certifications do the products have?
A: All products have full CE/IEC/TUV/UN38.3 certification. We provide a full set of certification, customs and tender documents for free.
Q: Can you provide custom system design for our projects?
A: Yes. Our in-house engineer team provides free custom system design, load calculation, construction drawings and revenue simulation according to your project requirements.
Q: What shipping terms do you support?
A: We support full international trade terms including EXW, FOB, CIF, DDP door-to-door delivery, with a complete global supply chain and logistics system.
Q: How do you handle after-sales and warranty claims?
A: We have a dedicated after-sales team, which will provide a solution within 48 hours. We will fully assist you to complete the warranty claim with the original factory.
