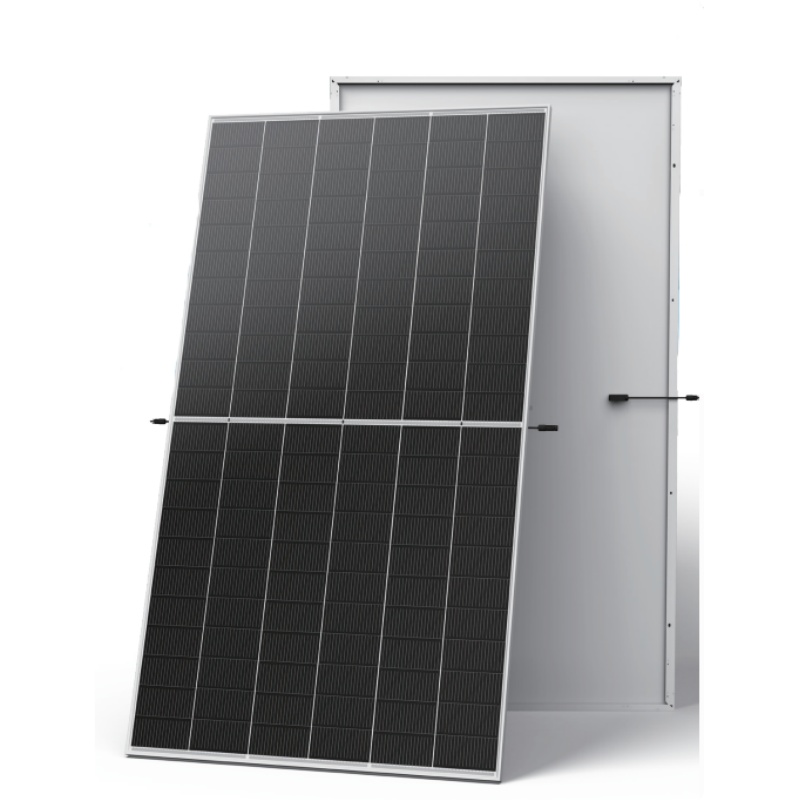

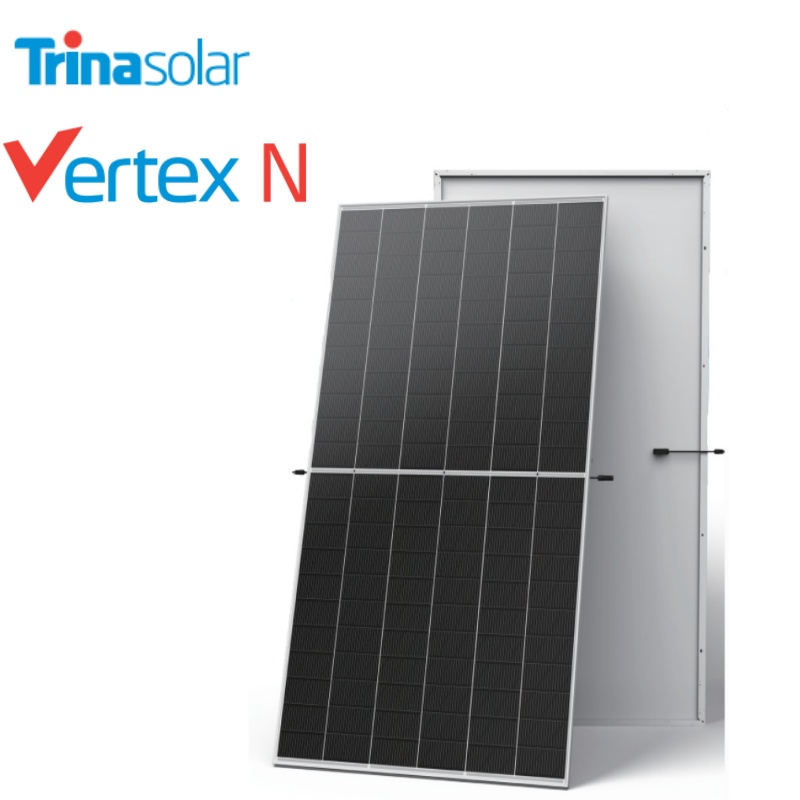

| Product Name | Trinasolar High-Efficiency N-type i-TOPCon Monocrystalline Silicon Bifacial Solar Panel TSM-NE21-720 |
| Model Number | TSM-NE21-720 |
| Place of Origin | China(Mainland) |
| Weight | 32.9 kg |

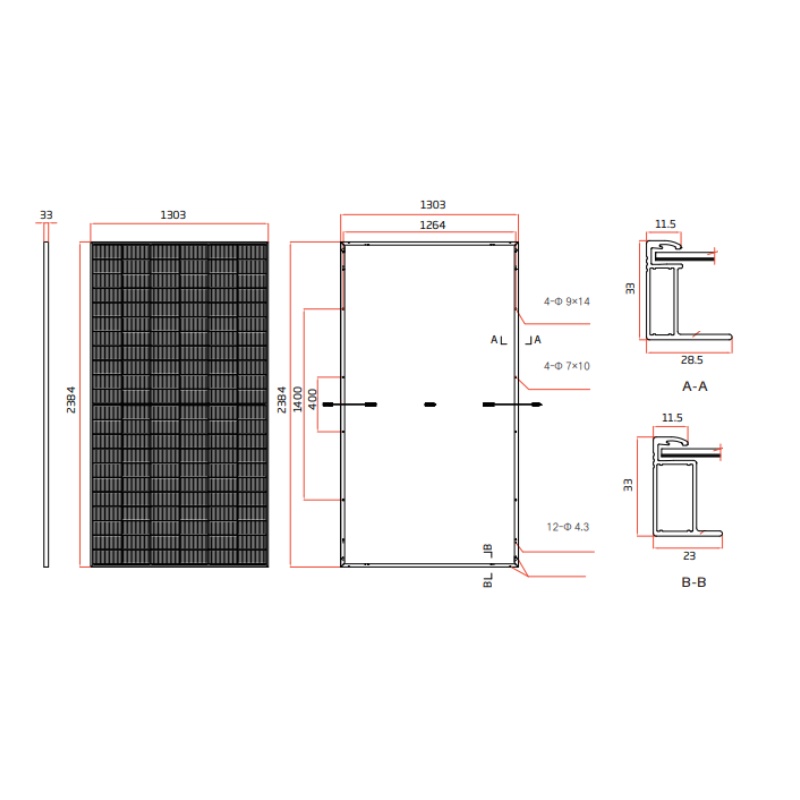

| Single package size | 2384×1303×33mm |
| Cell Orientation | 132 |
| Frame | 33mm Anodized aluminum alloy frame |
| Front Glass | 3.2mm, AR Coating Tempered Glass |
| Junction Box | IP68 |
| Packaging | Modules per box: 33pieces Modules per 40’ container: 594 pieces |
| Operational Temperature | -40 °C ~ +70 °C |
| Protection Class | Class II |
| Power Output Tolerance | 0 ~ 3% |
| Fire Rating | IEC Class C |
| Output Cables (Including Connector) | 4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length |
| OEM Order | Acceptable |
| Connector | MC4 EVO2 / TS4 Plus / TS4* |
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2) Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized |
| Backsheet | White |
Solar generator power station products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country's importing requirements.
Yes, please contact us for sample inquiries and our sales manager will reach out to you shortly.
Yes, we accept OEM/ODM orders. You can customize the branding, logo, and functions according to your requirements.
We have a comprehensive product quality assurance policy. If you encounter any issues, please inform us, and we will provide you with the best solution promptly.
We promise to provide comprehensive and reliable warranty services for all energy storage products. The specific warranty period will be determined based on the product type and technical specifications to ensure protection commensurate with the product value.
