For solar systems, currently there are three types of solutions: off-grid system, off-grid system with grid power bypass and on-grid system (also known as grid-tied or grid connected).
The solar system with mppt solar charge controller provides an off grid power supply for all users, which is independent, reliable and stable. Users shall not rely on grid power any more. The solar system operates for quite long service time, with little maintenance. No bills for electricity; environment friendly.
| Item Name | Specifications | Qty |
|---|---|---|
| System Basic Info | Solar Panel Rated Output Power: 1000W Solar Power for Daily Consumption: 4000WH Allowable Max Loads Power: 1000W |
- |
| Solar Panel | Type: Crystalline Silicon PV Module Max Power: 250W Vmp: 30.5V; Imp: 8.20A Size: 1655*992*45 mm Weight: 22.5kg/pc 25 years power output guarantee (Note: 5pcs panels in series as a string, 4 strings in parallel) |
4 Pcs |
| Controller-Inverter Integrator | Rated Output Power: 1000W Rated DC Voltage: 48V Inverter Controller and Batteries Getting Together Grid Power Input: Voltage 165-275VAC, Charge Current 15A Inverter Output: Voltage 220VAC±5%, Frequency 50Hz/60Hz±1%, Pure Sine Wave, THD<4% Solar Input: Max Voltage 84Vdc, Rated Solar Input Power 1000W, Charge Current 20A Battery Rated Voltage: 48V (Can fit the batteries into the box) |
1 Pcs |
| Battery | 12V/120AH per piece Solar special lead-acid battery, fully sealed, deep cycle, free maintenance type Service Life: 5~6 years Warranty: 2 years |
4 Pcs |

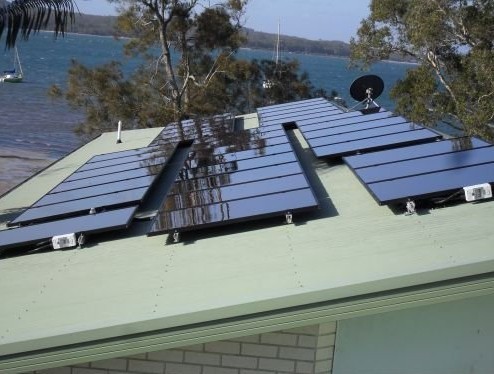

| Solar Panel Rack | Slope steel-tile roof type mounting rack including complete fittings (Other types of racks can be customized as per client's requirement) |
1 Set |
| Cables | International standard, with specification suitable for solar system, RVV series | 80m |
| Item Name | Specifications | Qty |
|---|---|---|
| System Basic Info | Solar Panel Rated Output Power: 2000W Solar Power for Daily Consumption: <8000WH Allowable Max Loads Power: 2000W |
- |
| Solar Panel | Type: Crystalline Silicon PV Module Max Power: 250W Vmp: 30.5V; Imp: 8.20A Size: 1655*992*45 mm Weight: 22.5kg/pc 25 years power output guarantee |
8 Pcs |
| Controller | 48V40A, PWM charging mode, intelligent control, complete LCD display | 1 Pcs |
| Inverter | DC48V input, AC220V/110V 1-phase output, high inverting efficiency up to 90% | 1 Pcs |
| Battery | 12V/150AH per piece, Solar special lead-acid battery | 8 Pcs |
| Solar Panel Rack | Slope steel-tile roof type mounting rack including complete fittings | 1 Set |
| Cables | International standard, with specification suitable for solar system, RVV series | 80m |
| Item Name | Specifications | Qty |
|---|---|---|
| System Basic Info | Solar Panel Rated Output Power: 2000W Solar Power for Daily Consumption: <8000WH Allowable Max Loads Power: 2000W |
- |
| Solar Panel | Type: Crystalline Silicon PV Module Max Power: 250W Vmp: 30.5V; Imp: 8.20A Size: 1655*992*45 mm Weight: 22.5kg/pc 25 years power output guarantee |
8 Pcs |
| Controller-Inverter Integrator | 48V40A, complete LCD display, simplified wiring, various protections, solar-grid dual power sources | 1 Pcs |
| Battery | 12V/150AH per piece, Solar special lead-acid battery | 8 Pcs |
| Solar Panel Rack | Slope steel-tile roof type mounting rack including complete fittings | 1 Set |
| Cables | International standard, with specification suitable for solar system, RVV series | 80m |
| Item Name | Specifications | Qty |
|---|---|---|
| System Basic Info | Solar Panel Rated Output Power: 5000W Suitable for Max Daily Power Consumption: 20KWH Rated Output AC Capacity: 5KW |
- |
| Solar Panel | Type: Crystalline Silicon PV Module, A-class Max Power: 250W Vmp: 30.5V Size: 1655*992*50 mm Weight: 22.5kg/pc 25 years power output guarantee (Note: 5pcs panels in series as a string, 4 strings in parallel) |
20 Pcs |
| Controller | 96V 50A; PWM high-efficiency charging controller, LCD display with operating parameters, intelligent control; Temperature compensation, various protections. Warranty: 1 year |
1 Pcs |
| Inverter (UPS type) | DC96V input, AC220V/230V/240V/110V 1-phase output, 50/60Hz; Rated Output Capacity: 5KW; True sine-wave output, off-grid type; automatic power tracking, high inverting efficiency up to 90%; various protections. Warranty: 2 years Note: This inverter provides grid power switch and battery charging functions. |
1 Pcs |
| Battery | 12V/170AH per piece Solar special lead-acid battery, fully sealed, deep cycle, free maintenance type Service Life: 5~6 years Warranty: 3 years |
16 Pcs |
| Solar Panel Rack | Slope steel-tile roof type mounting rack including complete fittings; aluminum material (Other types of racks can be customized as per client's requirement) |
1 Set |
| Cables | International standard, with specification suitable for solar system, RVV series | 120m |
This solar system solution is just for reference. It can be adjusted based on actual condition and requirement. All parts have been tested and proven in actual operation with enough reliability and stability. It is suggested to source the whole system as a package to guarantee system compatibility.
