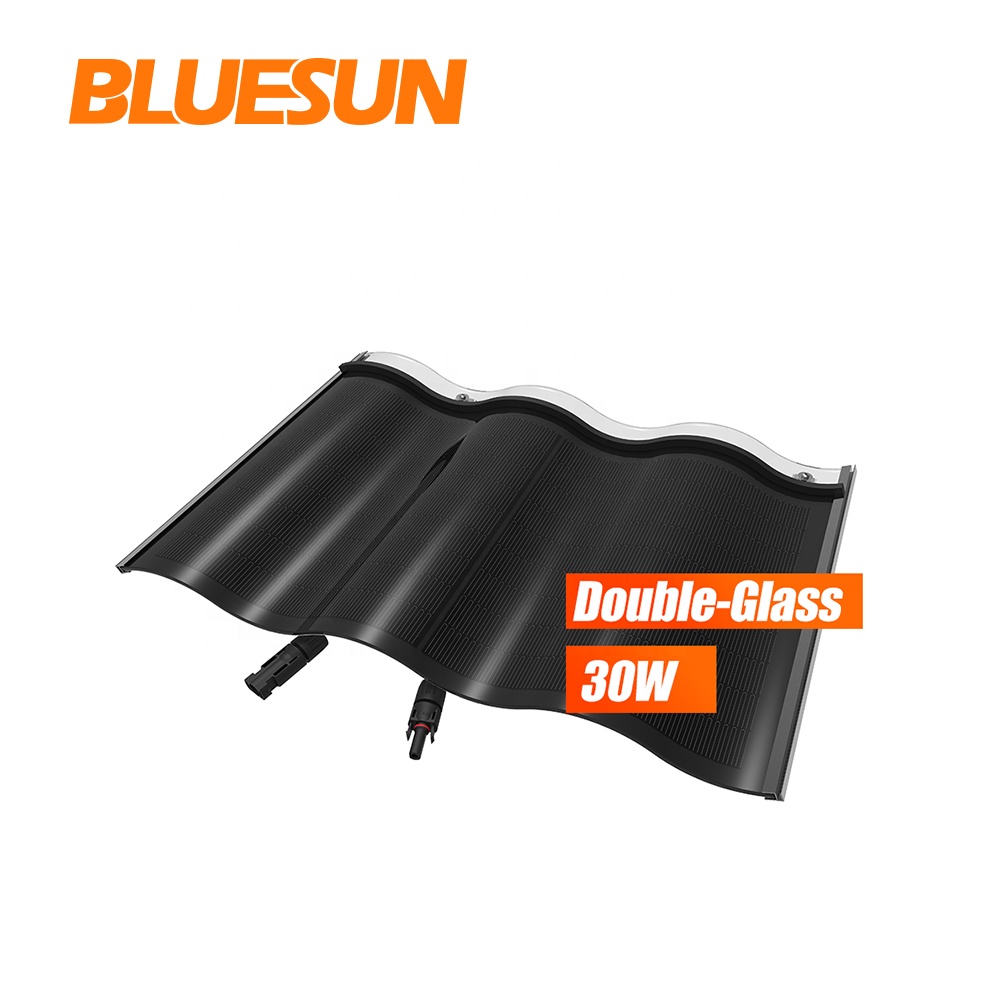

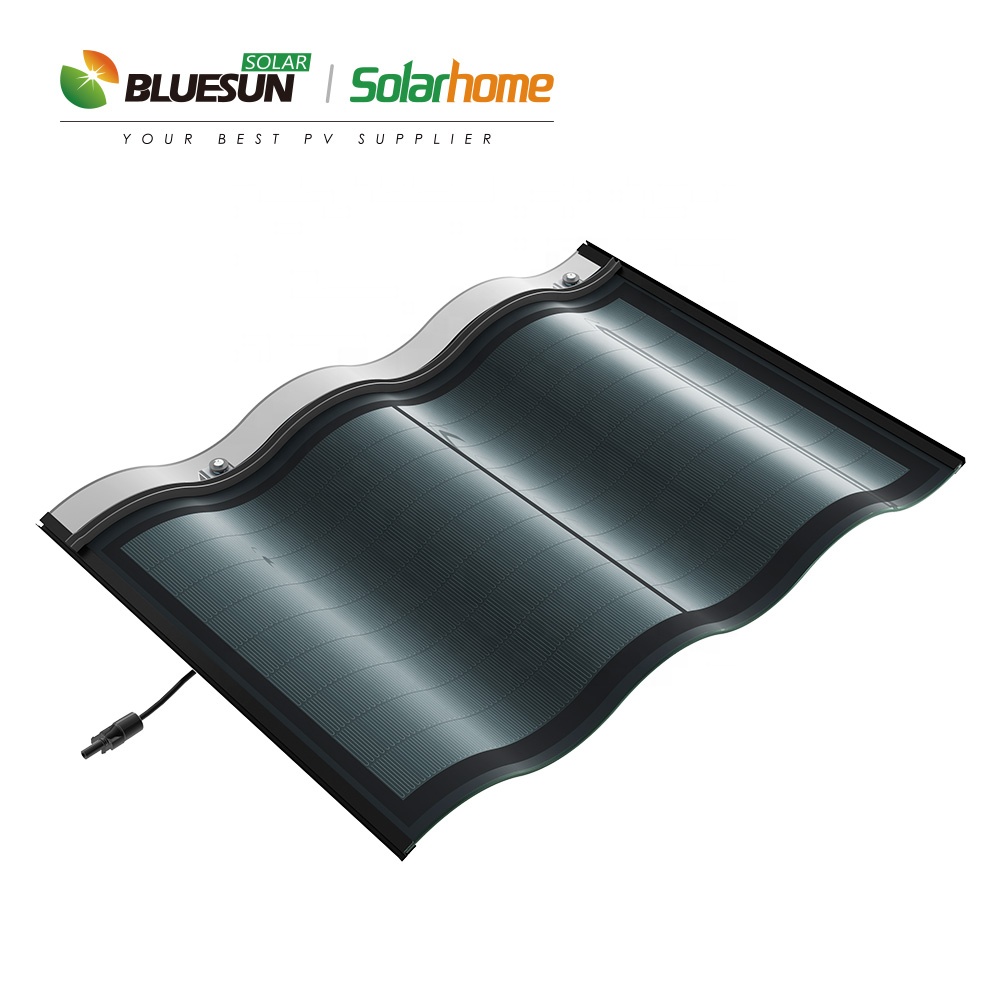

It is gleaming and with graceful curve, inheriting the beauty of GLAZE. Thin-film solar core technology will lead the fashion.
Environmentally friendly building materials

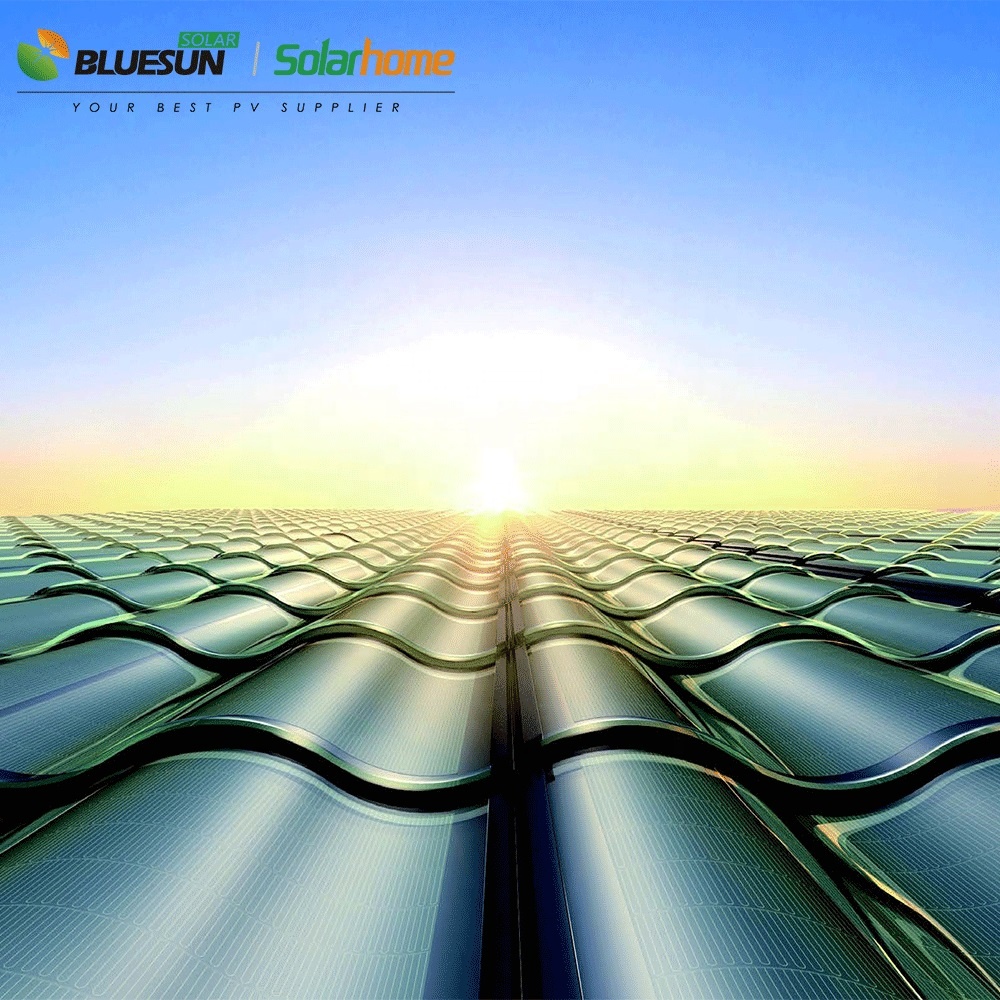

The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Technical Specifications
Parameter Name
Specification Details
Physical Parameters
Product Model
BSM-30D
Length
500mm
Width
718mm
Arch Height
41mm
Weight
10KG
Color
Black, Gray
Junction Box
39*46*16.6 (mm) IP67
Cable Type
2.5mm solar cable 450 (+10/-0) mm
Cable Connector
PV connector
Electrical Parameters
Chip Type
CIGS
Power
30W
Short-circuit Current
4A
Open-circuit Voltage
10.6V
Current at PMPP
3.5A
Voltage at PMPP
8.6V
Safety & Durability
Loading Grade
2400Pa
Waterproof Grade
IP67
Fire-proof Grade
A
Hail-proof Grade
Level 4 (ANSI FM 4473)
Working Temperature
-40°C to +85°C
Applications
Shipping Method
Delivery / Departure details
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL
Packing & Delivery
Box Unit
Packing Specification (mm)
Gross Weight (kg)
Net Weight (kg)
Number per Carton (pcs)
One Box
1260*780*690
263
210
40
Container Type
Loading Quantity (CTN)
Loading Quantity (PCS)
Total Weight (T)
Volume (m³)
20ft Container
39
1560
10.3
27.6
40ft Container
81
3240
21.5
54
Frequently Asked Questions
What is the core technology used in the Double-Glass Roof solar tile?

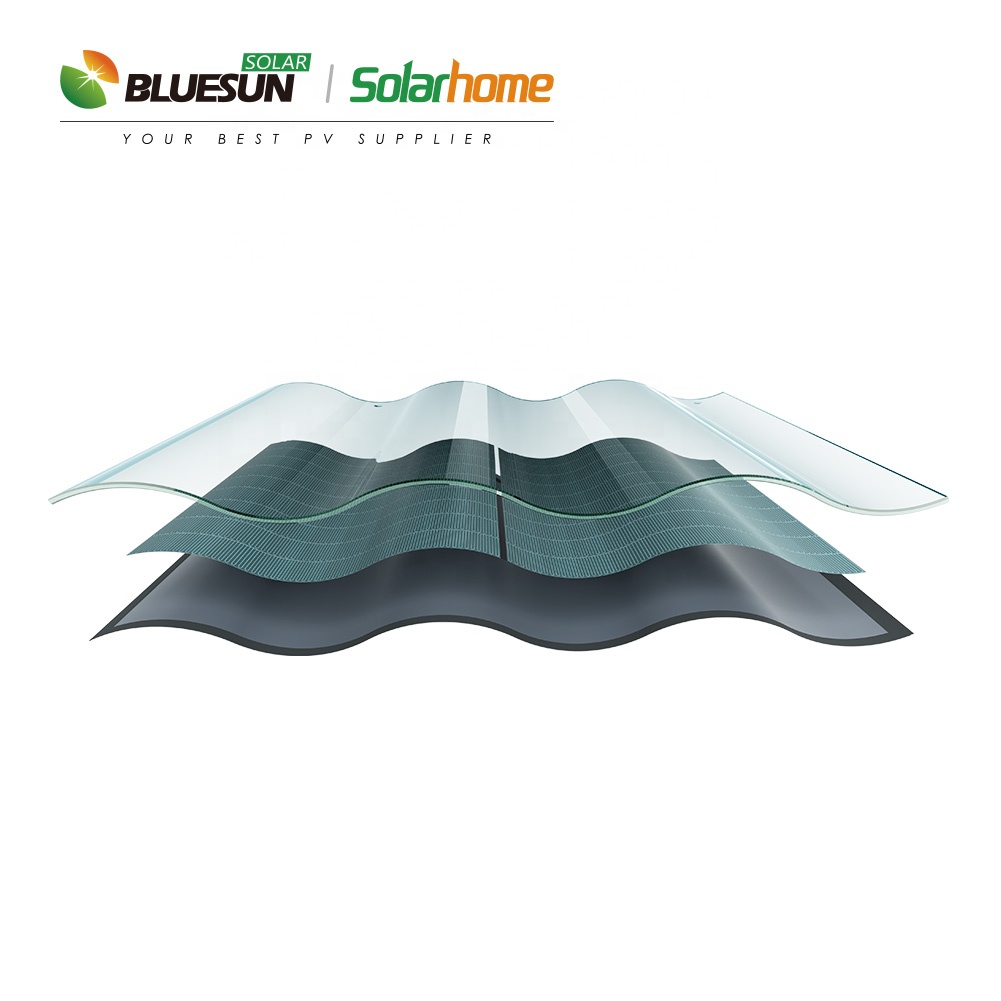

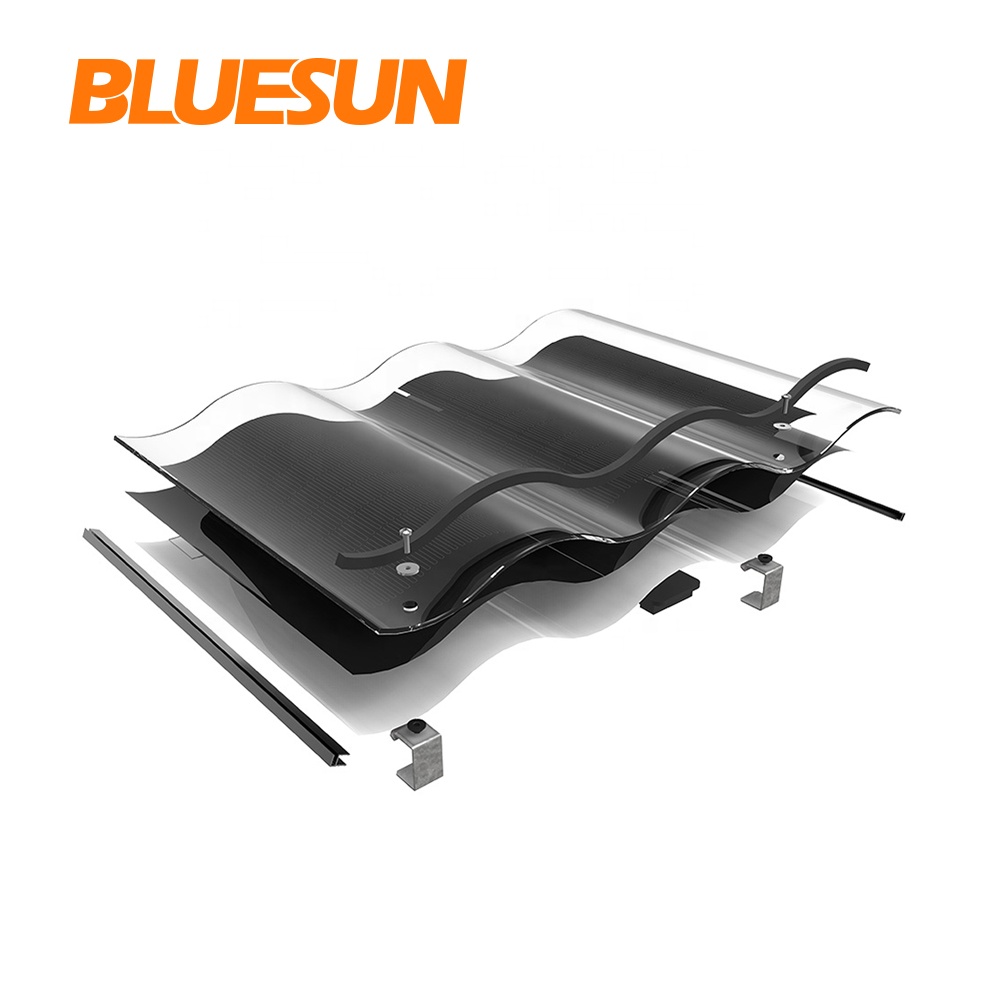

The Double-Glass Roof solar tiles utilize CIGS (Copper Indium Gallium Selenide) thin-film solar technology. It integrates high-efficiency photovoltaic materials directly into elegant glass tiles, serving both as robust structural building elements and clean energy generators.
What are the physical dimensions and weight of each BSM-30D tile?
Each BSM-30D solar tile measures 500mm in length, 718mm in width, and has an arch height of 41mm. The net weight of a single tile is approximately 10KG, allowing for efficient structural layout and load distribution.
How do these tiles perform under extreme weather conditions?
These tiles are built for maximum durability, featuring a Level 4 hail-proof rating (ANSI FM 4473), Class A fire resistance, and an IP67 waterproof-rated junction box. They are designed to withstand structural loads up to 2400Pa and operate efficiently within a temperature range of -40°C to +85°C.
What are the default electrical ratings for the BSM-30D model?
The BSM-30D model has a rated power output of 30W. It operates at an open-circuit voltage of 10.6V and a short-circuit current of 4A. The peak power operating point (PMPP) values are 8.6V voltage and 3.5A current.
What are the standard packaging and container loading capacities?
Tiles are packed 40 pieces per carton, with dimensions of 1260*780*690 mm and a gross carton weight of 263 kg. A standard 20ft container loads up to 39 cartons (1,560 pcs), while a 40ft container can hold up to 81 cartons (3,240 pcs).
