| Solar Panel Data Sheet | |||||||
| Description of Specification | Configuration | Units | Model | ||||
| NES60-6-300M | |||||||
| General Data | |||||||
| Maximum Power | Pm(W) | Watts | 300W | ||||
| Watt Tolerance | % | 0-3 | |||||
| Application | DC24V | ||||||
| Storage & Operating Temperature | Deg .C | -45~85 | |||||
| Standard Test Conditions:Cell Temperature:25 Deg. C,Irradiance:1kW/,Air Mass: 1.5 | |||||||
| Voltage & Ampereage | |||||||
| Maximum System Voltage | Volts | 1000VDC | |||||
| Maximum Operating Voltage | Vmp | Volts | 32.97 | ||||
| Maximum Operating Current | Imp | Amps | 9.1 | ||||
| Open Circuit Voltage | Voc | Volts | 39.97 | ||||
| Short Circuit Current | Isc | Amps | 9.48 | ||||
| Solar Cell | |||||||

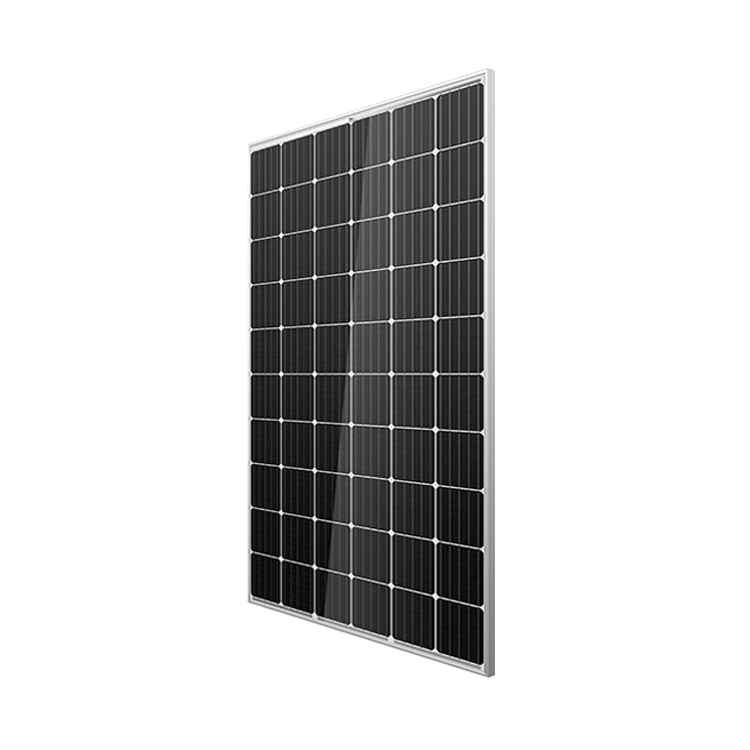

| Cell Type and Diameter | Monocrystalline, 156mm×156mm | ||||||
| Number of Cells | In Series | 60(10*6) | |||||
| Temperatures Coefficients | |||||||
| Temp Coefficent of Isc | Tk Isc | % per deg.C | 0.05 | ||||
| Temp Coefficent of Voc | Tk Voc | % per deg.C | -0.34 | ||||
| Temp Coefficient of Pmax | Tk Pmax | % per deg.C | -0.45 | ||||
| Normal Op. Cell Temp (NOCT) | deg.C | 45±2 | |||||

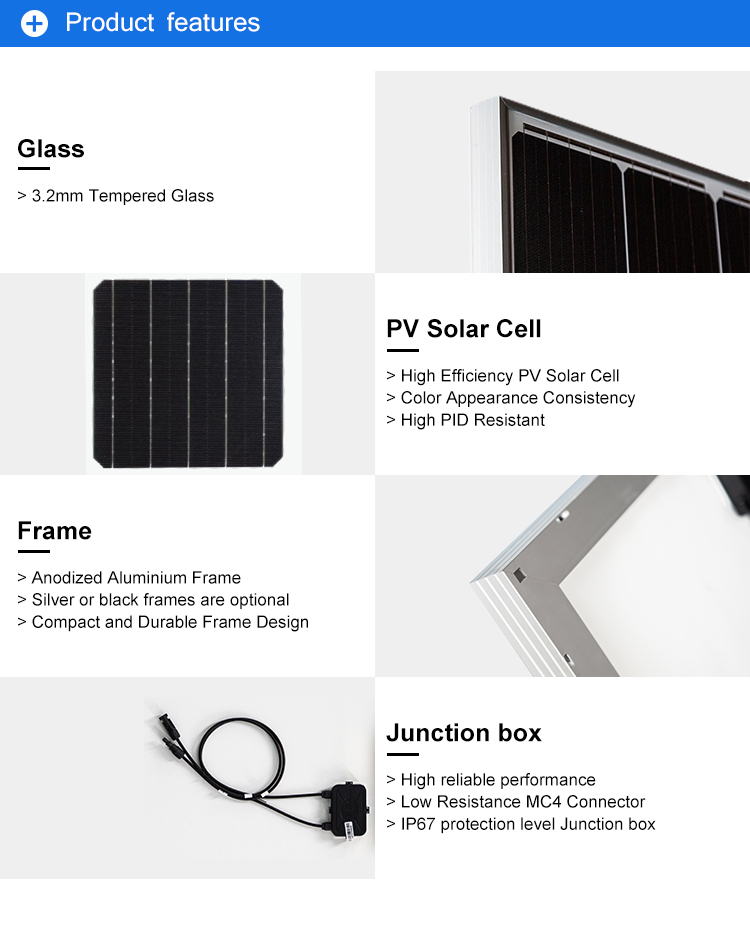

| Materials & Accessories Data (All Certified by CE and TUV) | |||||||
| Junction Box | IP67 rated | ||||||
| Output Cable:Wire Diameter :4m | Length | mm | 900 | ||||
| Type of Cable Connector | MC Plug Type IV | ||||||
| Frame:Aluminum Alloy | Anodized | ||||||
| Front Glass:Low Iron,High Transmisson,Tempered glass | Thickness | 3.2mm | |||||
| Cell Encapsulation Material | EVA | mm | 0.5mm | ||||
| Backsheet Cover Material | TPT | mm | 0.3mm | ||||
| Quality Warranty (Output Power) | |||||||
| Power Production | 90% | Years | 10 | ||||
| 80% | Years | 25 | |||||
| Manufacturing | Years | 10 | |||||
| Dimensions, Packing & Loading | |||||||

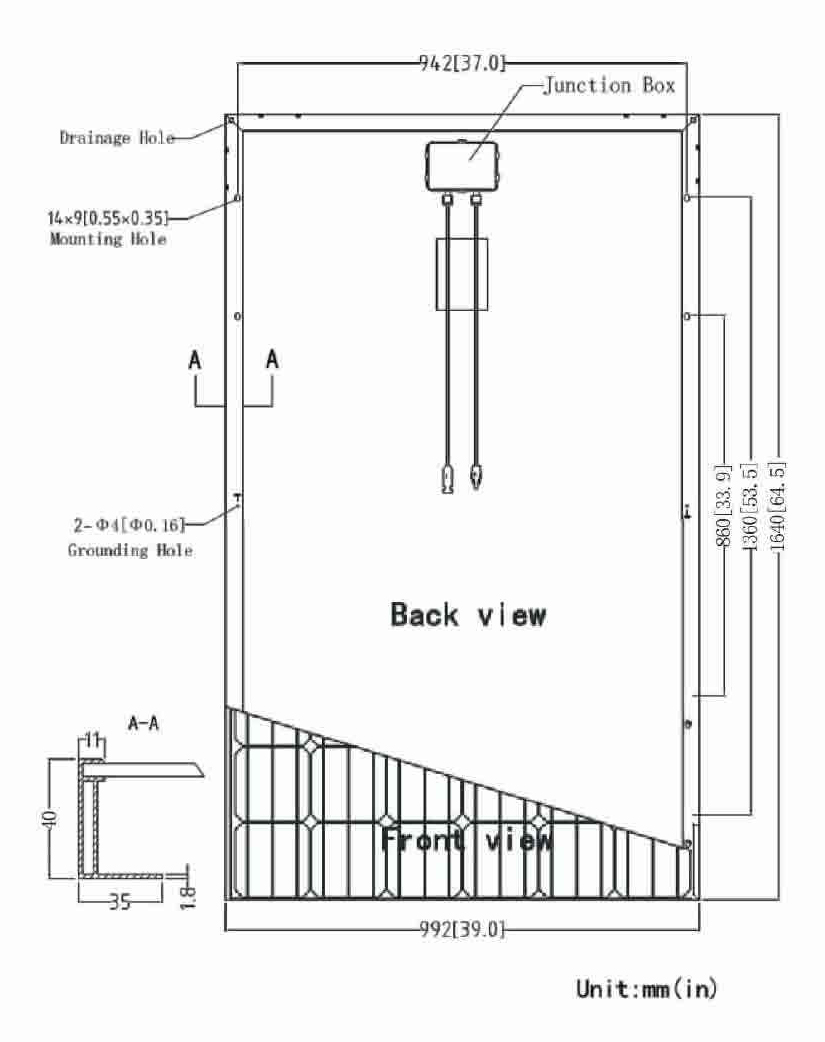

| Dimensions:Length×Width×Height | mm | 1640×992×40/35 | |||||
| Weight | kg | 18 | |||||
