Halkirk Solar
1 / 5

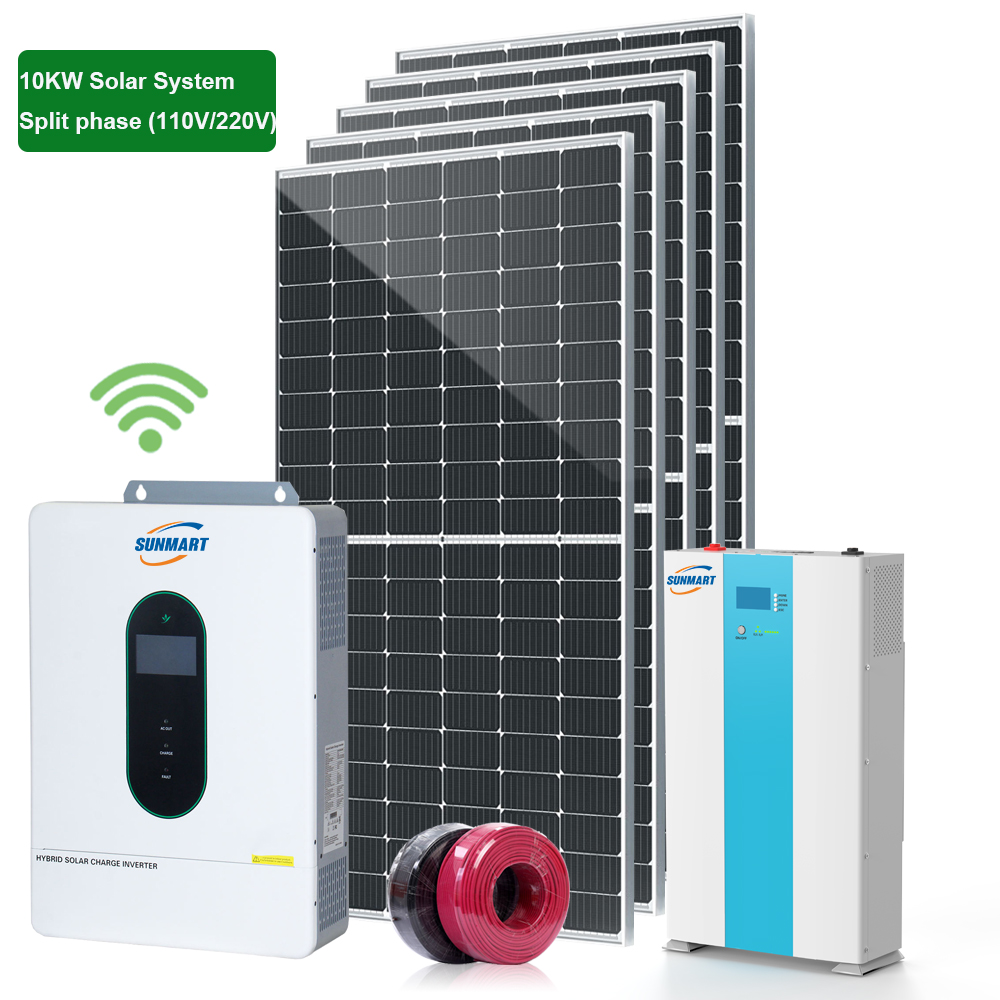

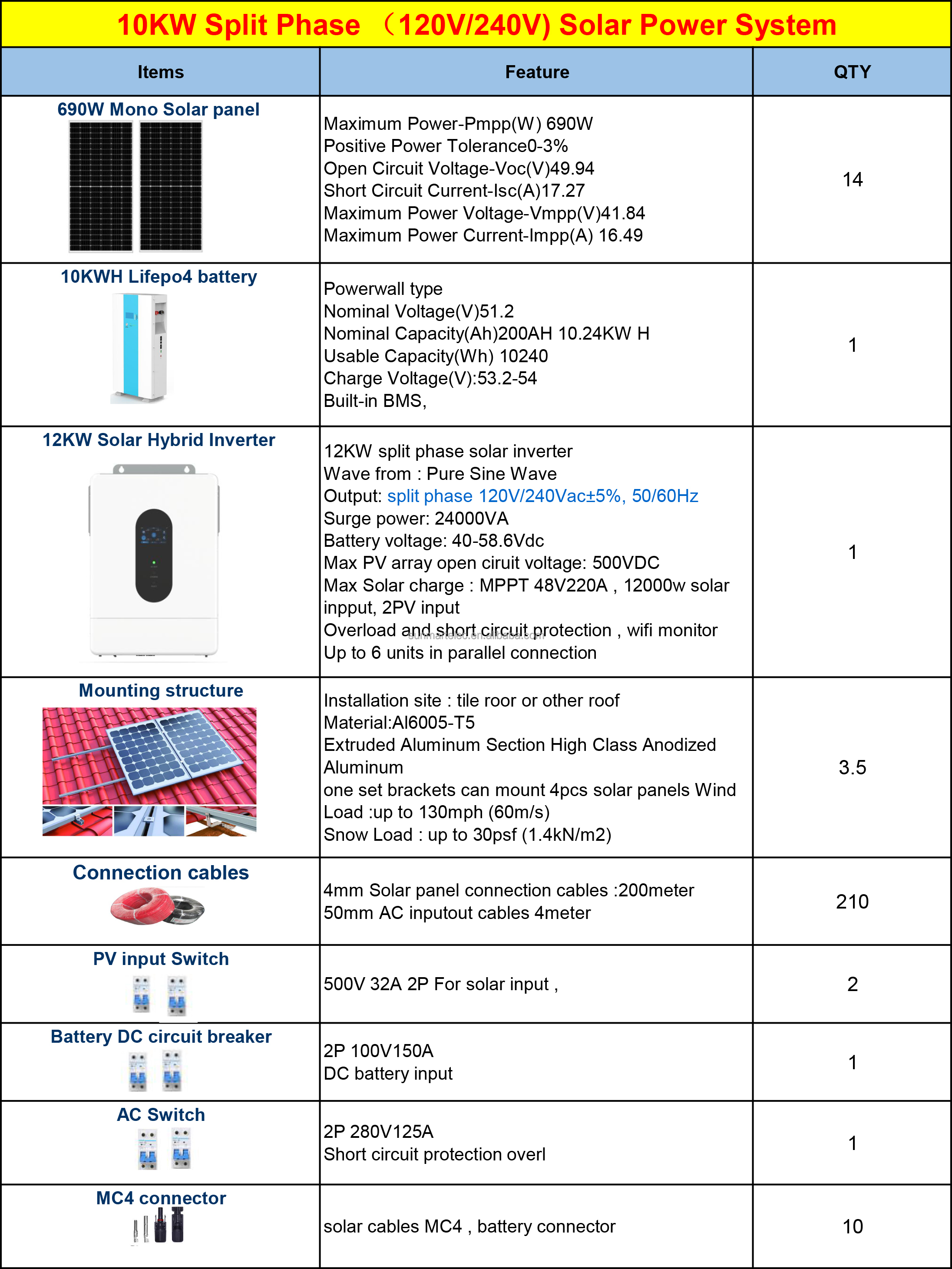

| System MODEL | SPS5KW | SPS10KW | SPS12KW |
| PV System Size Nominal (kWp) | 5.2 | 10 | 12 |

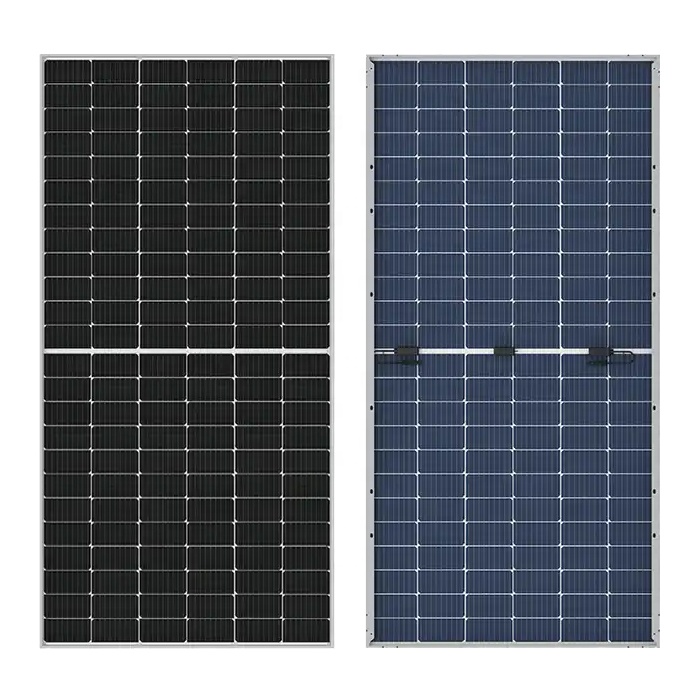

| PV MODULE SPECIFICATIONS (*half cell mono) | |||
| Power (W) | 650 | ||
| Number of panels | 8pcs | 14pcs | 18pcs |
| Vmp (V) | 41.96 | ||
| Dimensions (L x W x H) (mm) | 2382*1134*30 | ||
| Certififications | CE / TUV (IEC 61215 & IEC 61730) | ||

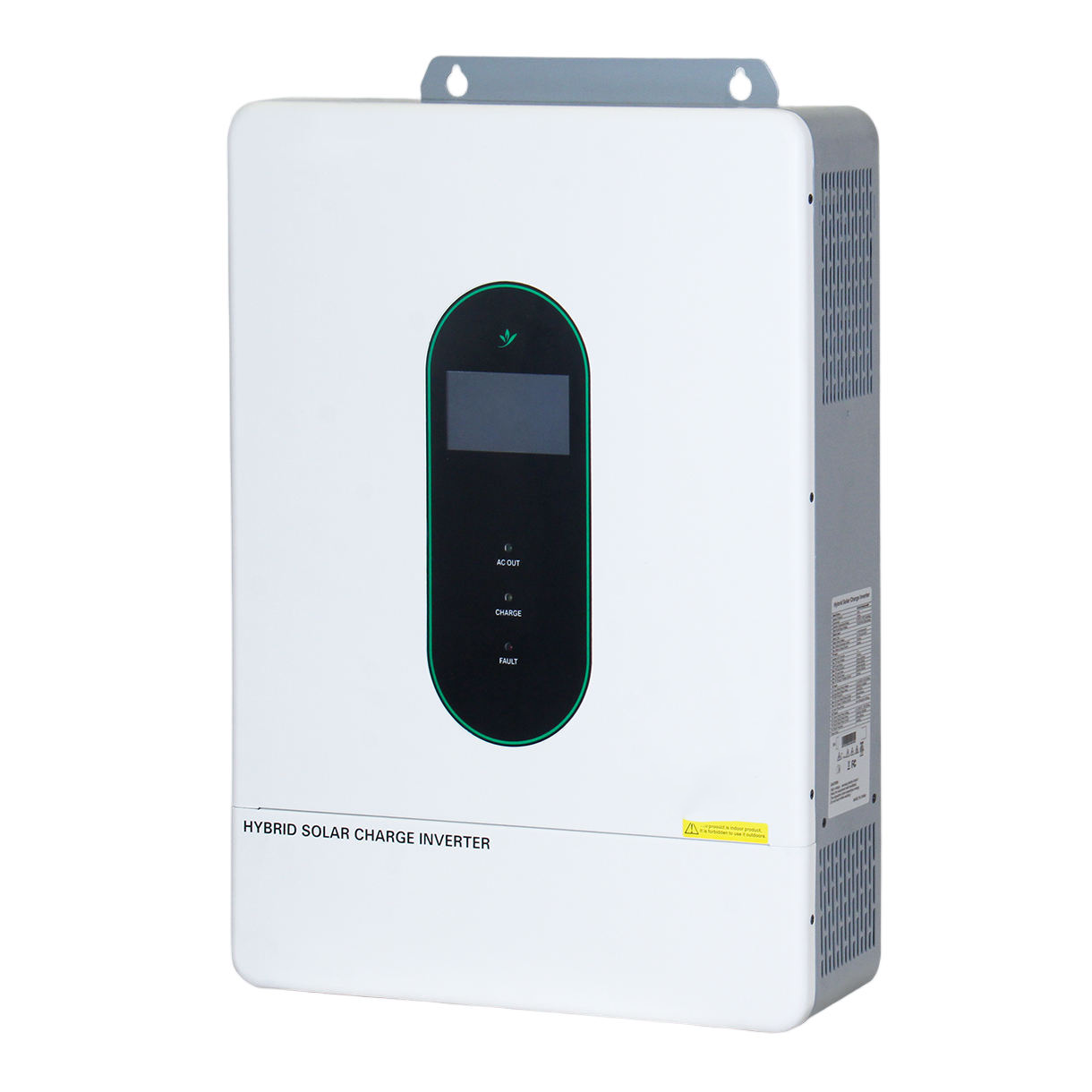

| INVERTER SPECIFICATIONS | |||
| Inverter Size (kW) | 6.2 | 10 | 12 |
| Max DC Power (W) | 6500 | 10000 | 15600 |
| Max DC Voltage (V) | 500 | 500 | |
| MPPT Voltage Range(V) | 150-425 | 90Vdc~450Vdc | 90Vdc~450Vdc |
| Output Voltage split phase | Split phase : 120(L1/N, L2/N)/240Vac(L1/L2) | ||
| UPS (Off Grid Model with Battery) | |||
| Rated Power (VA) | 5000 | 10000 | 12000 |
| Max DC Charge/Discharge Current(A) | 120 | 220 | 220 |
| Max Power(W)for 10 Seconds | 12000 | 20000 | 24000 |

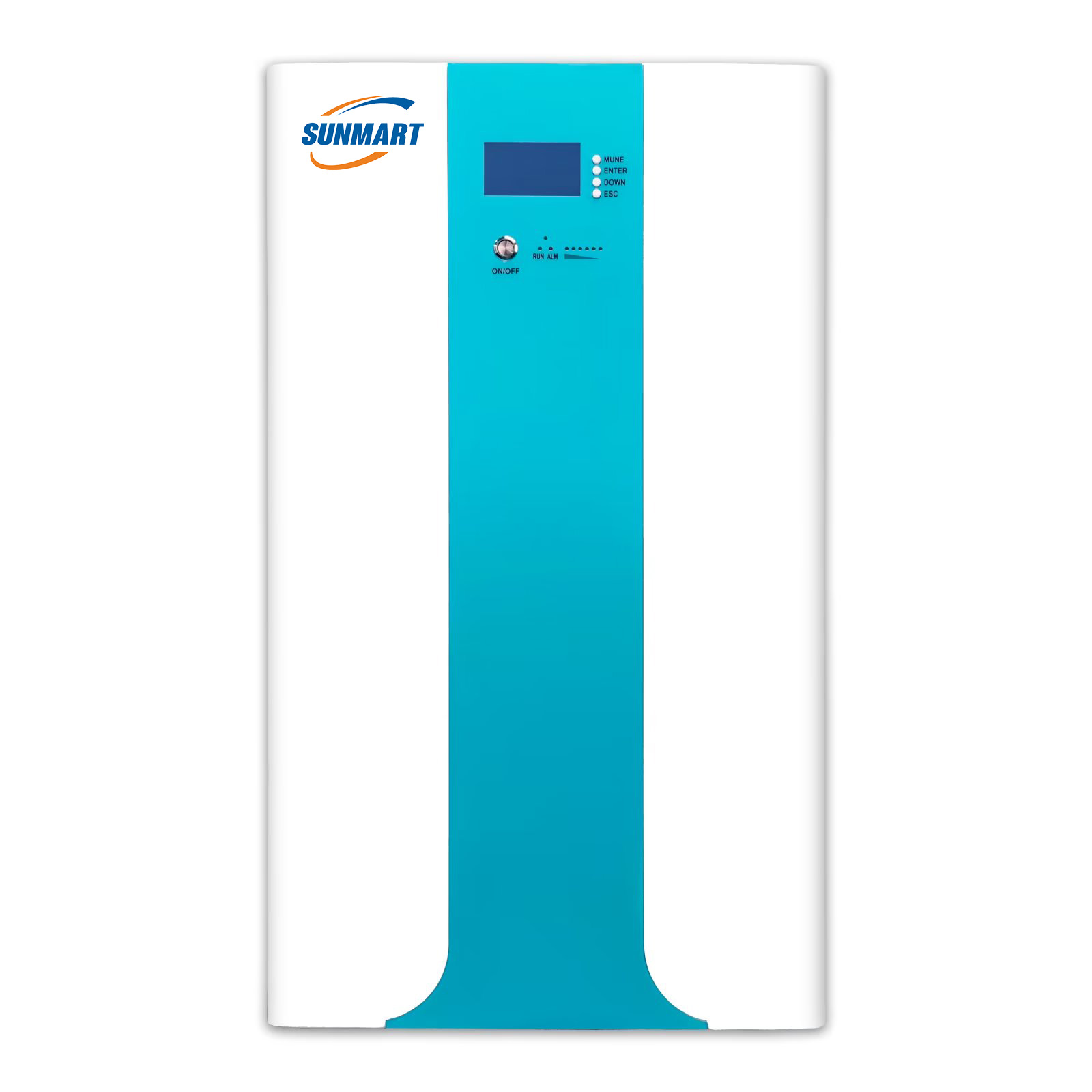

| BATTERY BANK SPECIFICATIONS | |||
| Battery Type | Li-Ion(LifePO4) | ||
| Total Batteries | 1 | 3 | 4 |
| Battery Bank Power(kWh) | 5.12 | 10.24 | 15 |
| Battery Voltage (V) | 48 | ||
| Battery Capacity | 100AH | 200AH | 300AH |
| Solar Panel Mounting Structurer | |||
| Metail | Alumiinum | ||
| Wind Load | up to 130mph (60m/s) | ||
| Snow Load | up to 30psf (1.4kN/m2) | ||
