Complete Home 5000W Hybrid Solar Panels System 5kW Power off Grid Solar Energy System

Send Inquiry

Product Description

Complete Home Solar Panels System 5kW Power Off Grid Solar Energy System

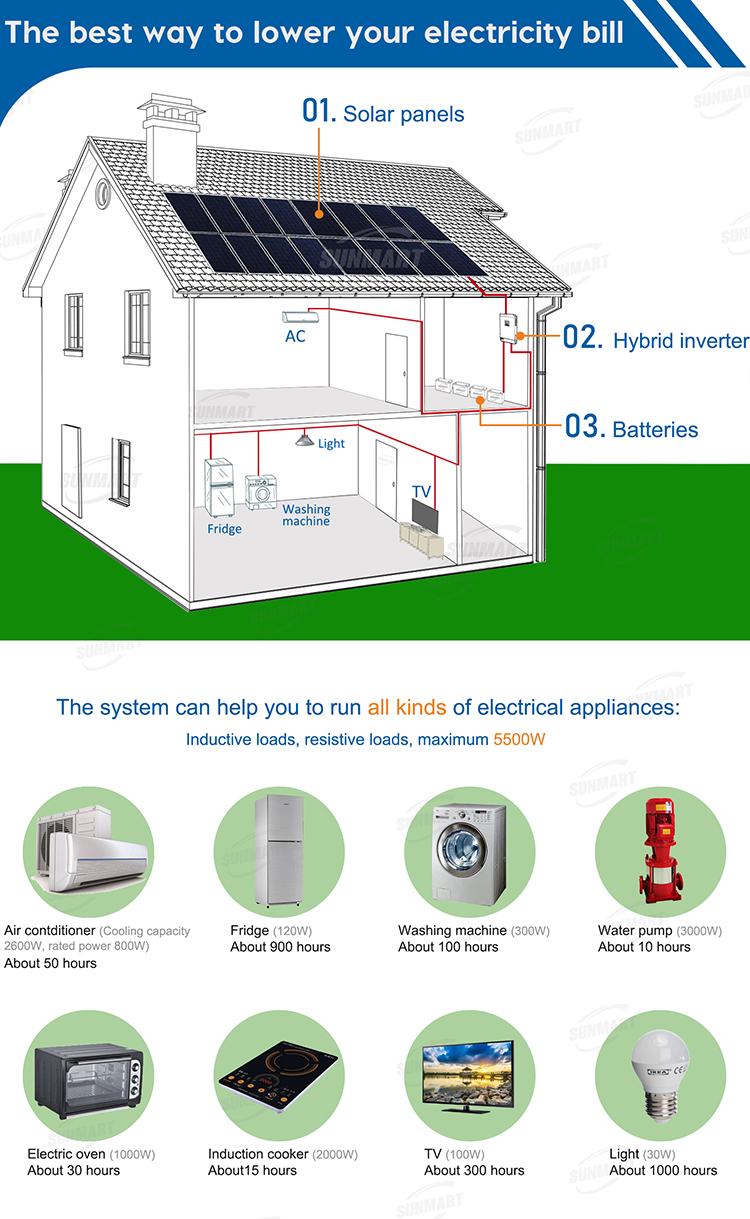

Working diagram

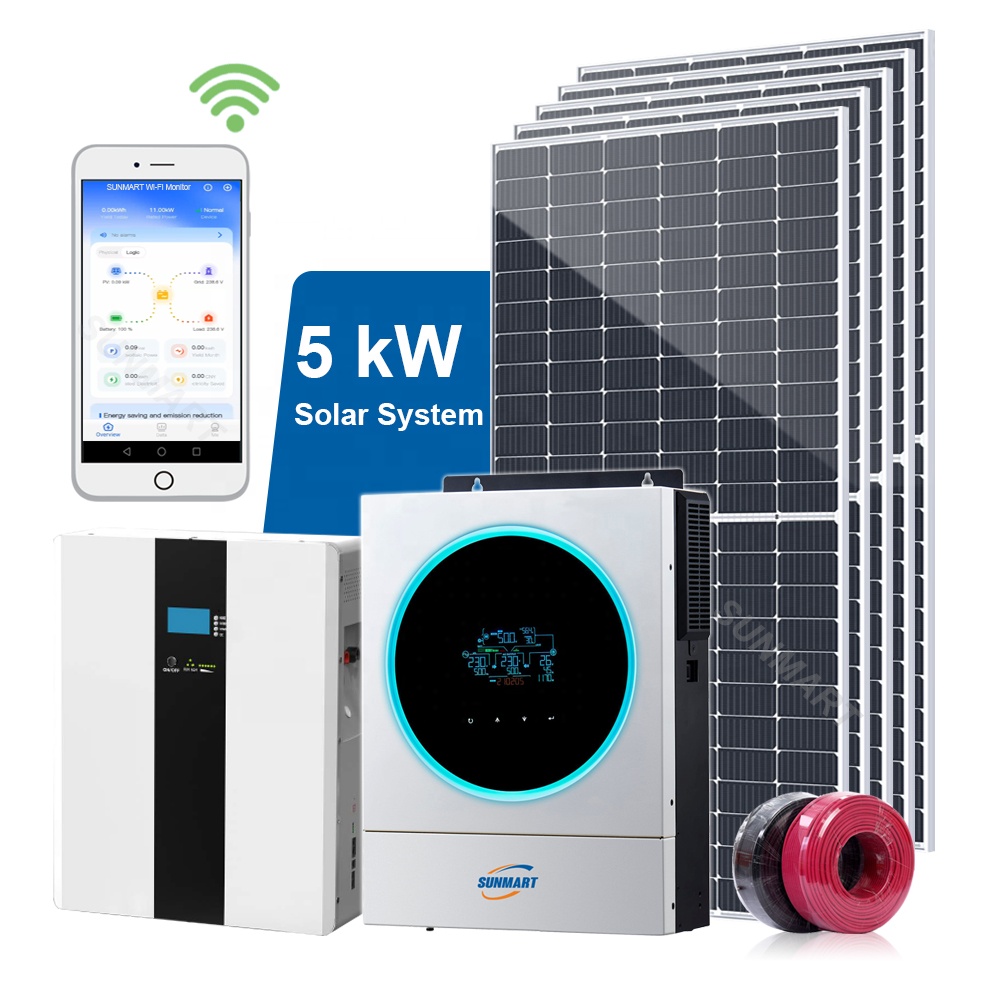

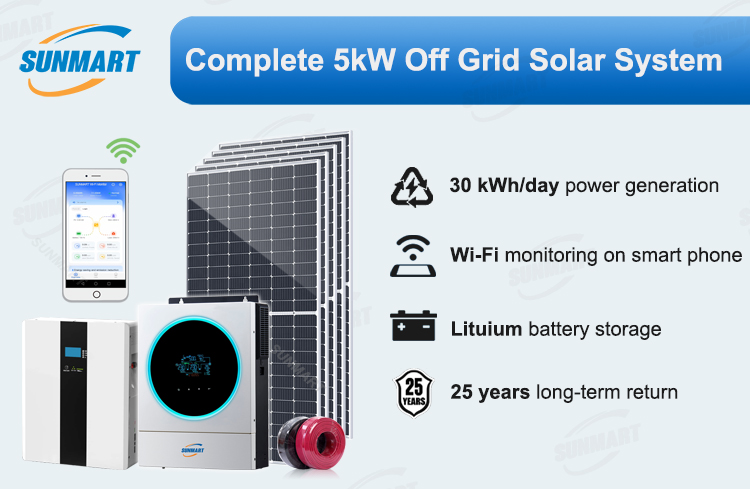

5kW off grid solar power system including:

Item	Model	Description	Quantity
1	Solar panel	Monocrystal half cut cells 600W solar panel	8 PCS
2	Solar inverter	5.6 kW inverter	1 PC
3	Lithium Battery	5.12 kWh lithium battery (51.2V 100Ah)	1 PC

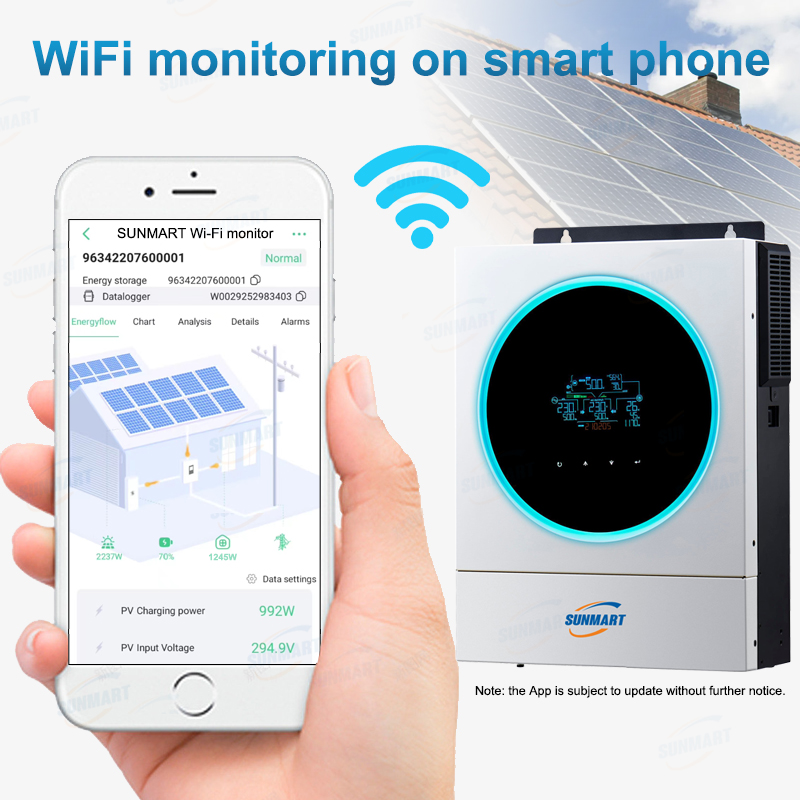

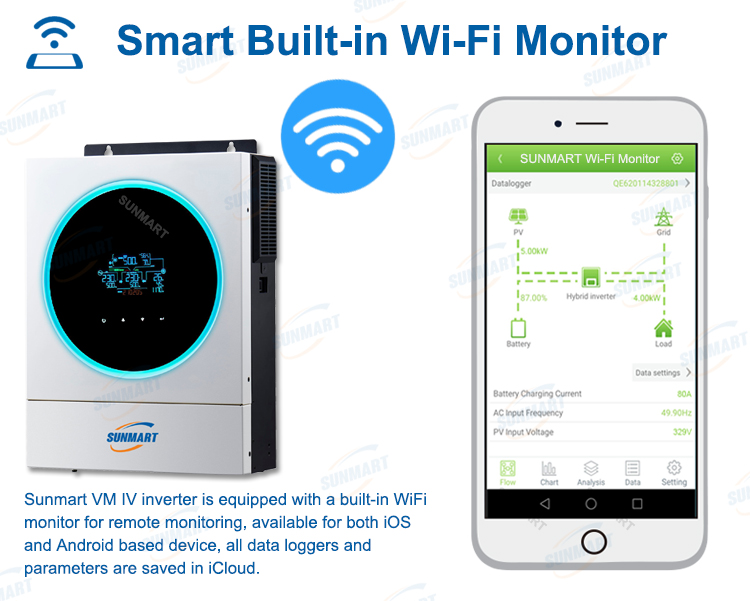

4	WiFi module	WiFi monitoring through cellphone App	1 PC
5	Mounting brackets	Pitch roof, flat roof or ground for optional	1 set
6	Solar cables	4 mm² solar cables	100 meters
7	Battery cables	35 mm² battery cables	4 meters
8	Cable connectors	MC4 solar cable connectors, battery cable connectors	1 set

Product details:

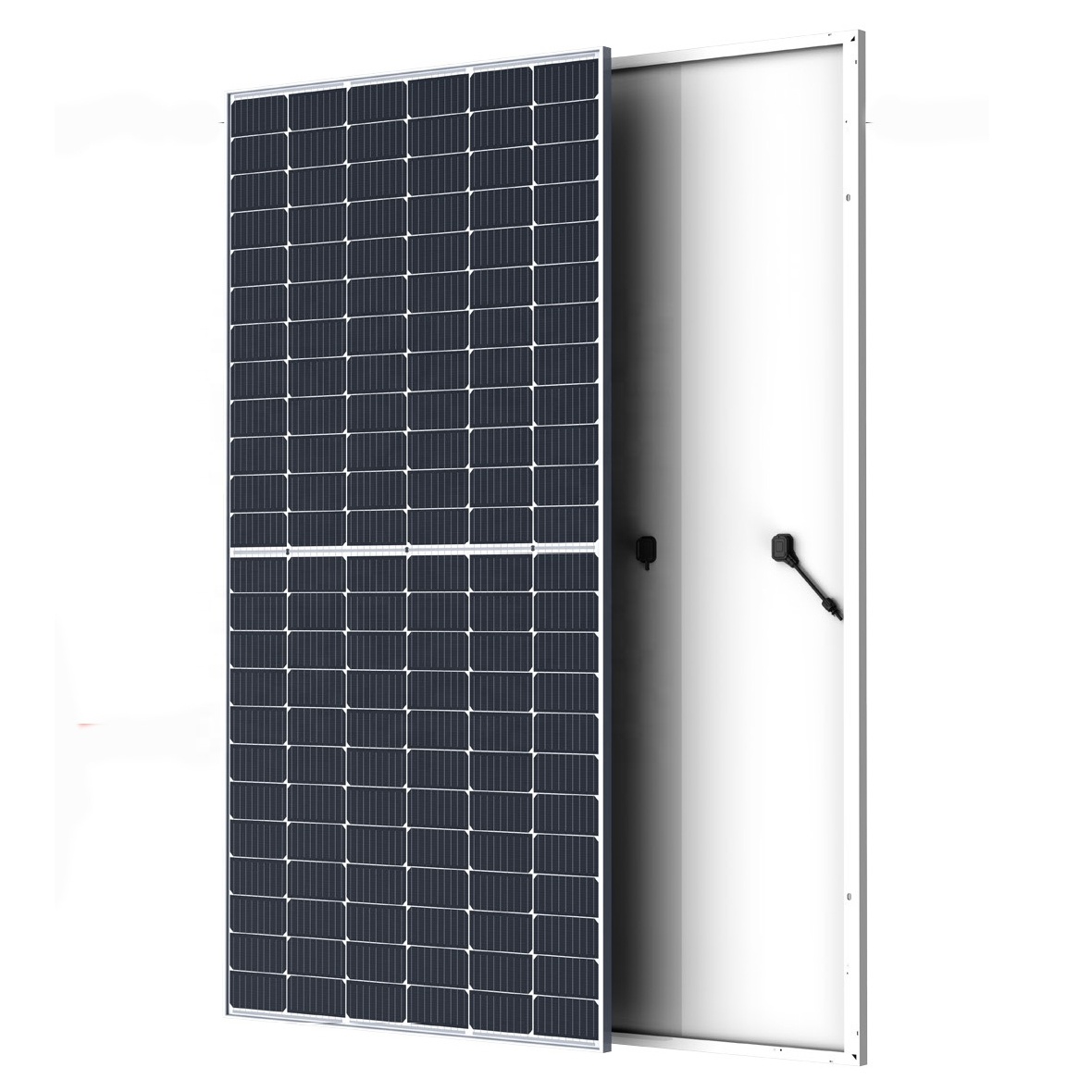

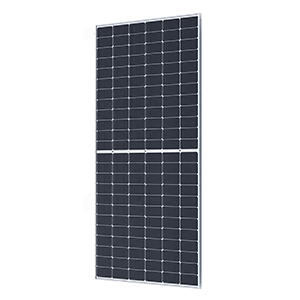

Half Cut Cells Monocrystalline Solar Panels (600W x 8 pcs)

High efficiency A Grade monocrystal half cut cells
Anti-reflection tempered glass
Anodic aluminium-alloy frame
IP67 MC4 junction box

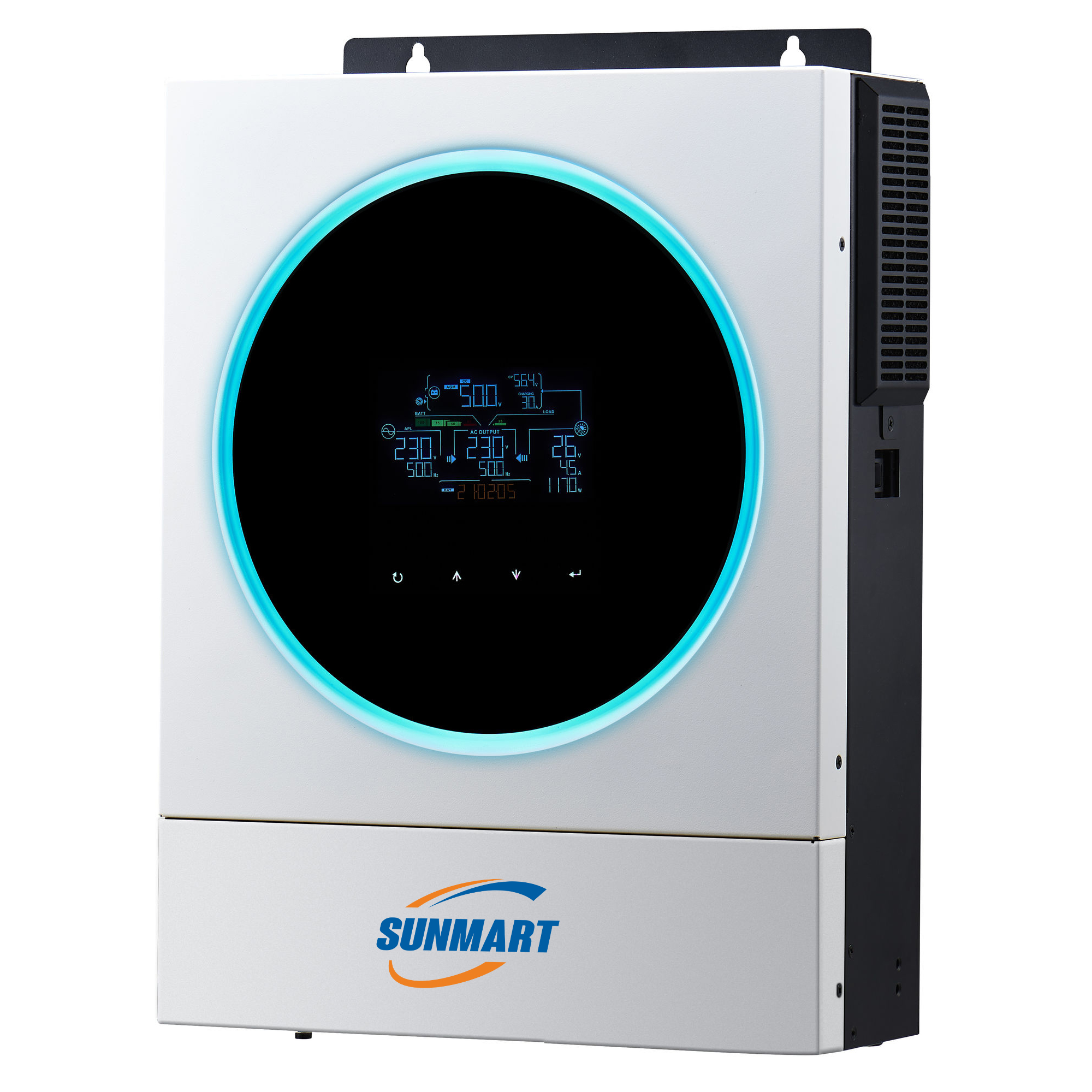

5.5 kW Off Grid Inverter

Rated output power: 5.6kW
Surge power: 11200VA
Max solar input power: 6000W
Output voltage: 230VAC±5%, 50/60Hz
Battery voltage: 48VDC
MPPT range@operating voltage: 120-450VDC
Max PV array open circuit voltage: 500VDC
Max solar charging current: 120A
Size: 115x300x400 mm

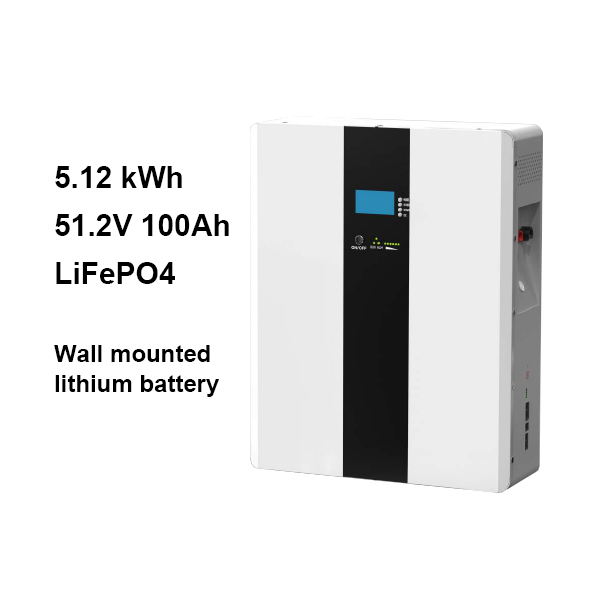

5.12 kWh Lithium Battery (51.2V 100Ah)

Total storage of 5.12 kWh
Wall mounted design
Built-in BMS (Battery Management System)
Maintenance-free operational lifetime

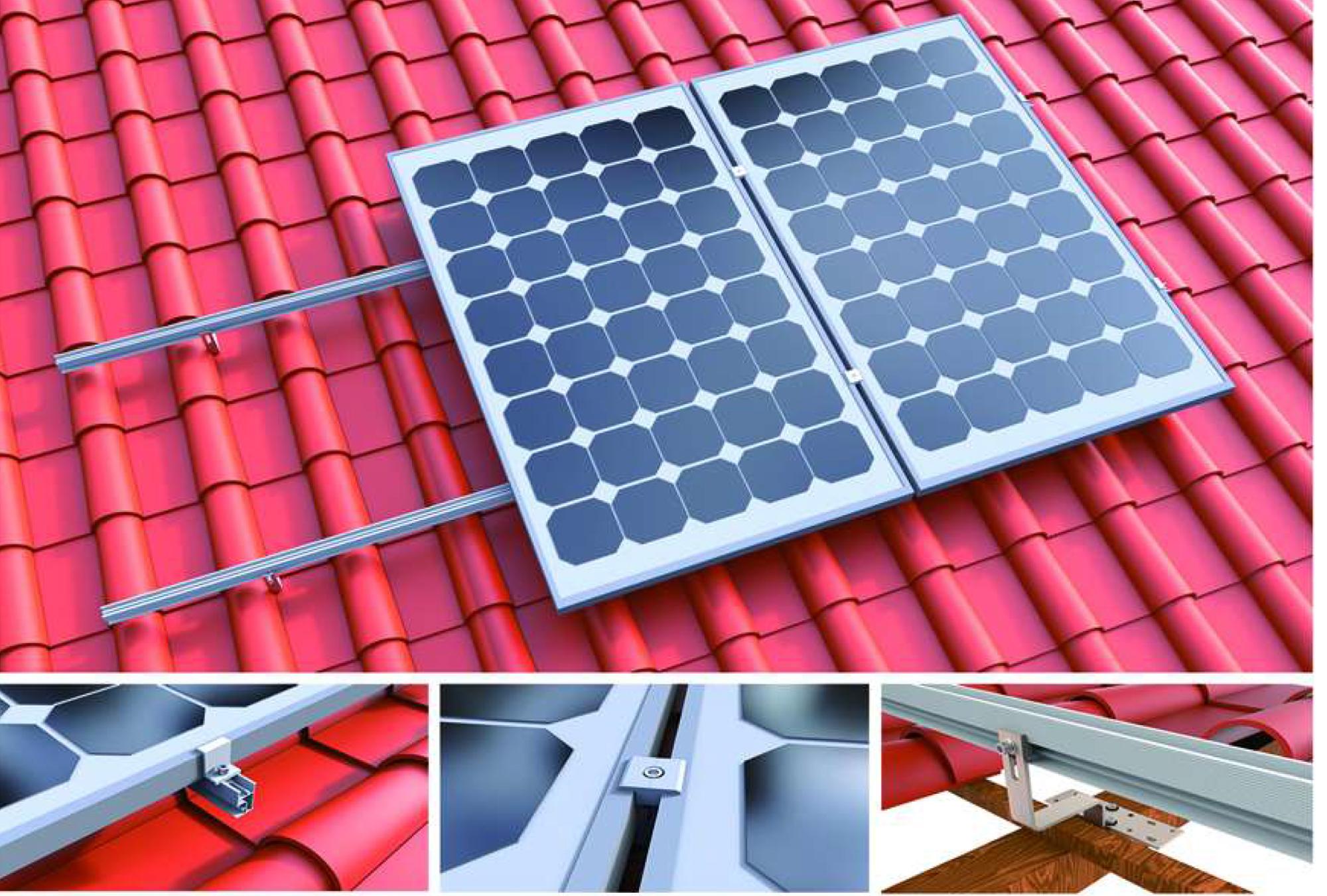

Mounting Structure

Suitable for: Pitched roof, flat roof, tile roof, tin roof, ground, vertical wall
Material: High class anodized aluminium

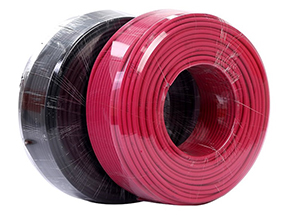

Connection Cable

Solar panel cables: 4 mm² x 100 meters
Battery connection cables: 35 mm² x 4 meters

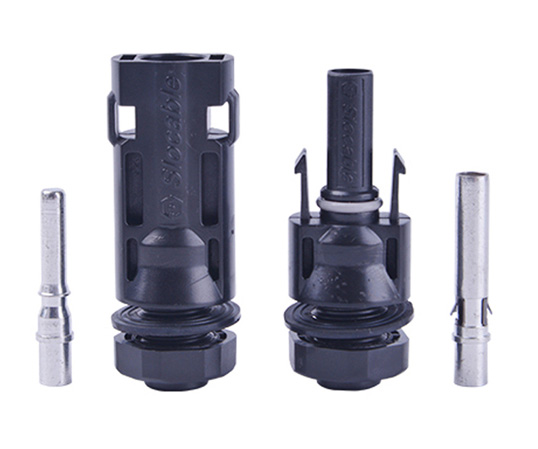

Cable Connectors

MC4 solar cable connectors
Battery cable connectors

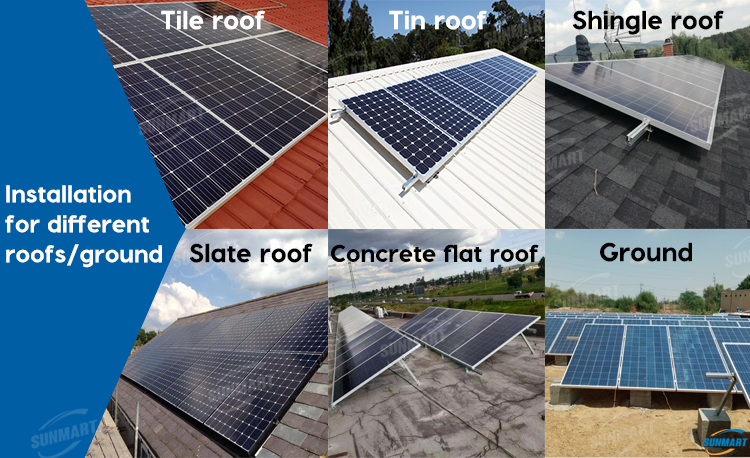

Professional mounting brackets for all kinds of roofs and ground installation

Payment & Delivery terms

Payment Term	T/T (EXW, FOB, CFR, CIF) T/T 30% deposit, T/T the balance before shipment
Delivery Time	15 days after receiving payment for one container

Frequently Asked Questions

1 Are you a factory?

Yes, welcome to visit our factory.

2 Which size of solar system do you produce?

We can produce different sizes from 100w to 100kw, both on grid and off grid systems.

3 Can you design if we have any special requirement for the power consumption?

Yes, we can. You can just let us know the power consumption of each day or month, and also the power of the main equipments you need to load.

4 Where can we use the system?

You can use our system for home, village, power station, office, communication station, lighting system, farm and so on, where there is no enough power or the grid power is expensive.

5 What is the voltage of the system?

We can adjust any voltage according to different countries or customers' requirements, such as AC 110V, 220V, 240V, 380V - 450V and so on, and DC 12V, 24V, 48V, 96V, 192V, 240V, 380V and so on.
