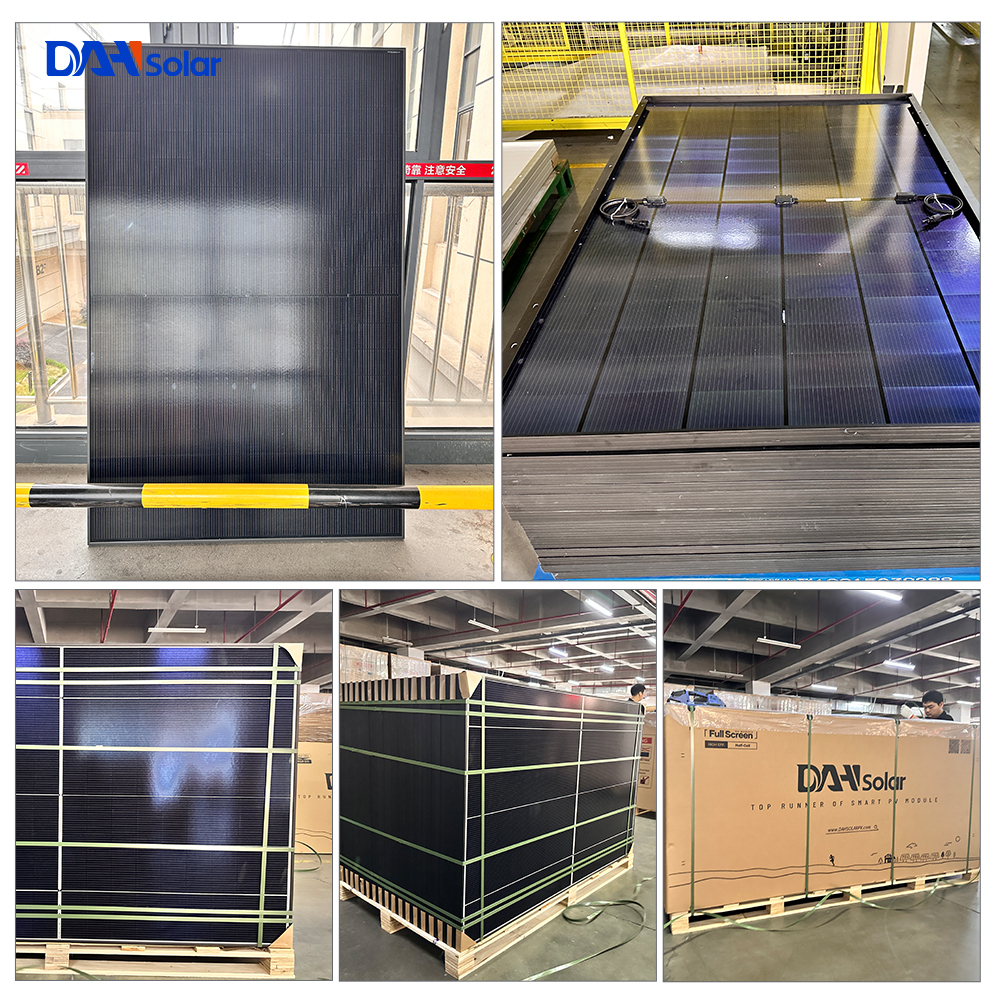

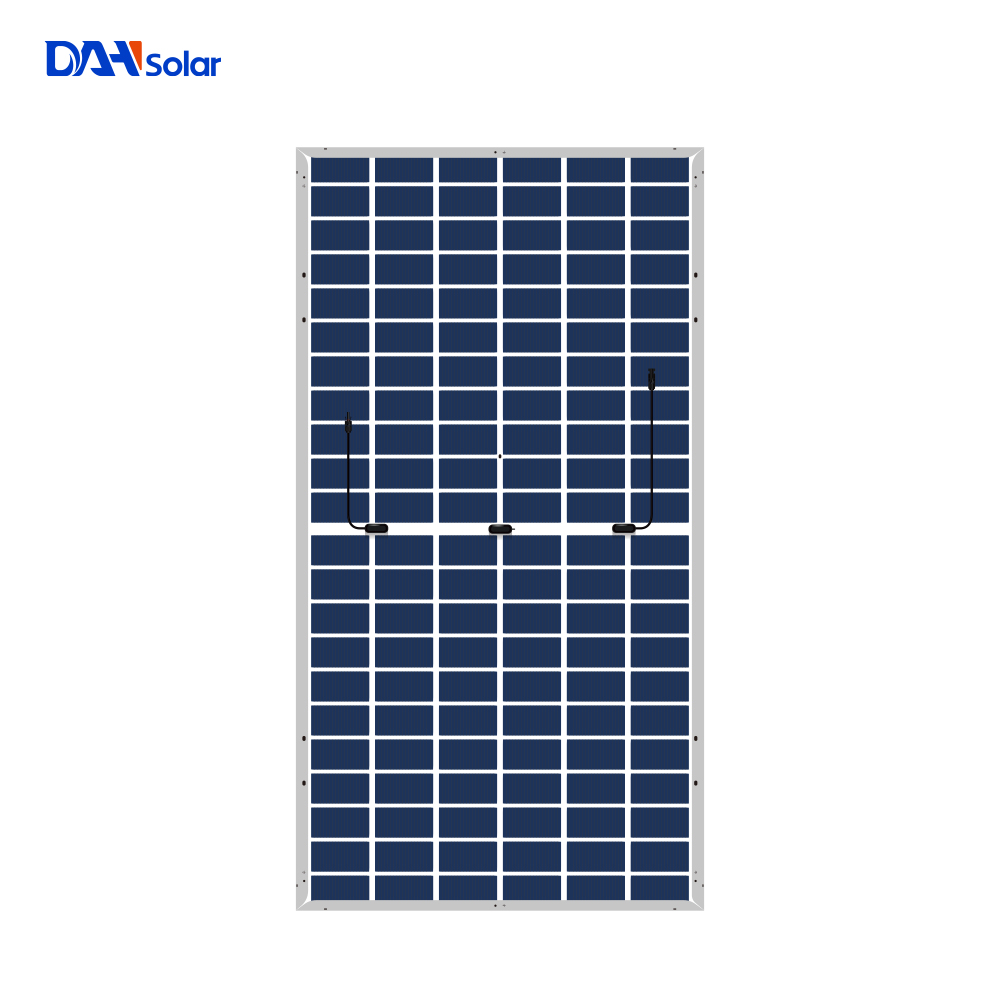

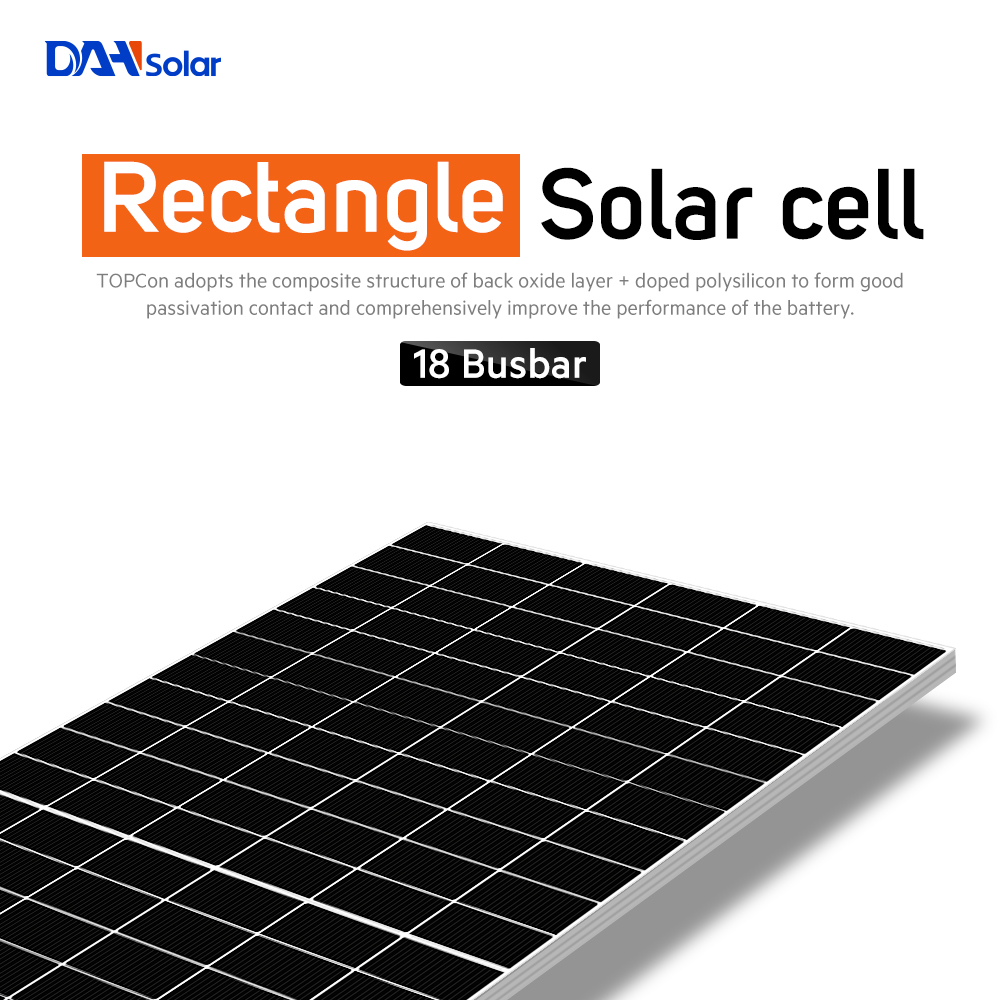

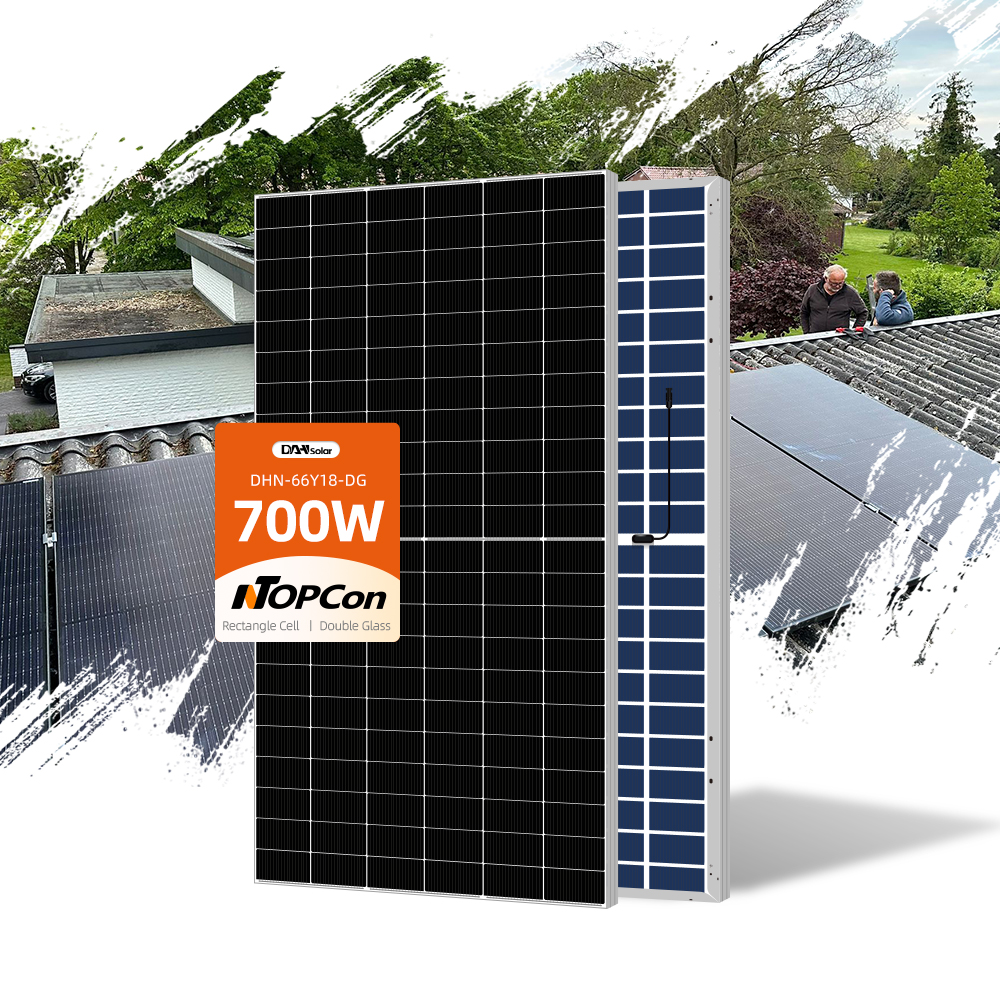

2025 New Technology Rectangle Solar Roof Panels 1000W 700W 690W 680W Best Solar Panels for Home Roof Installation

1 / 5

2025 New Technology Rectangle Solar Roof Panels 1000W 700W 690W 680W Best Solar Panels for Home Roof Installation

Send Inquiry

Product Description

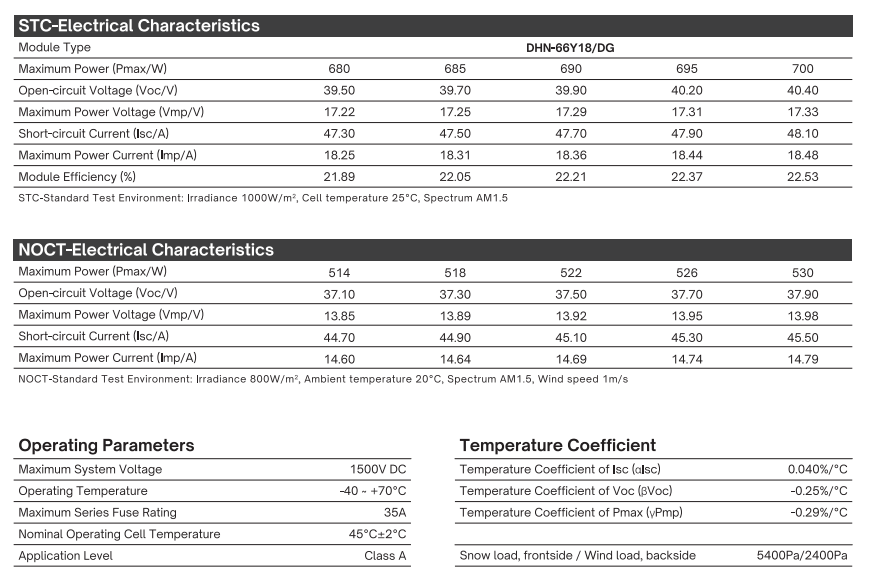

Maximum Power (Pmax/W)	680W	685W	690W	695W	700W
Open-circuit Voltage (Voc/V)	39.5	39.7	39.9	40.2	40.4
Maximum Power Voltage (Vmp/V)	17.22	17.25	17.29	17.31	17.33
Short-circuit Current (Isc/A)	47.3	47.5	47.7	47.9	48.1
Maximum Power Current (Imp/A)	18.25	18.31	18.36	18.44	18.48
Solar Panel Efficiency (%)	21.89	22.05	22.21	22.37	22.53

Frequently Asked Questions (FAQ)

Q1: What is the power range available in this solar panel series?

This solar panel series offers five high-power options: 680W, 685W, 690W, 695W, and 700W, to meet diverse commercial and industrial energy demands.

Q2: What is the maximum module efficiency achieved by these panels?

The solar panel efficiency ranges from 21.89% for the 680W model, scaling up to an impressive maximum of 22.53% for the 700W model.

Q3: What are the Open-circuit Voltage (Voc) and Short-circuit Current (Isc) specifications?

Depending on the model, the Open-circuit Voltage (Voc) ranges from 39.5V to 40.4V, and the Short-circuit Current (Isc) ranges from 47.3A to 48.1A.

Q4: How does the Maximum Power Current (Imp) perform on the 700W module?

The 700W module operates with a Maximum Power Current (Imp) of 18.48A and a Maximum Power Voltage (Vmp) of 17.33V.

Q5: Are these solar panels suitable for utility-scale ground installations?

Yes, with their high-power output (up to 700W) and superior conversion efficiency, they are highly optimized for utility-scale solar farms, commercial rooftops, and grid-connected systems.
