280W 30V PV Solar Module Polycrystalline PV Solar Panel

1 / 5

280W 30V PV Solar Module Polycrystalline PV Solar Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

JGN-280W

Application

Light Industry

Condition

New

Certification

ISO, CE

Material

Polycrystalline Silicon

Size

1650*987*40mm

Voltage

30V/Customized

Power

Customized

White

White/Black

Transport Package

Cartons and Pallets, Standard Export Packing

Specification

280W 30V

Origin

China

HS Code

8541430000

Production Capacity

50000

Product Description

High Modules Conversion Efficiency, polycrystalline solar panel. Customized solar panel accepted.

High Efficiency

High efficiency crystalline solar cell utilizing advanced surface texturing processes to increase light absorption.

Long Lifespan

Designed with a lifetime span of 25 years. Power decrease is kept below 8% in the first 10 years and below 10% within 20 years.

Robust Protection

Sealed modules with highly transmissive tempered glass, strong mechanical resistance, EVA resin, and a waterproof back sheet film.

Applications: Suitable for Solar street lights, Commercial Lighting, Home Lighting, Horticultural operations, and Residential Rooftops.

This solar light system relies on clean, endless, and environment-friendly solar energy. During the daytime under sunlight, the solar panel converts solar energy into electrical energy to be stored in the battery. The system components include the solar panel, light source, and battery (we supply the solar panel).

Module Characteristics	JGN280W-P Details
Peak power / Pm(W)	280 ±3%
Max. power voltage / Vmp(V)	30.0
Max. power current / Imp(A)	9.33
*Dimensions(LWT)*	165098740mm
Solar cell / solar cells arrangement	polycrystalline silicon
Front cover(material/thickness)	Low-iron tempered glass / 3.2mm
Encapsulation(material)	Ethylene Vinyl Acetate(EVA)
Solar backsheet(material/color)	TPT / White-color(black color is optional)
Frame(material/color)	Anodized aluminium alloy / Silver
Cable /Cable connector Model	900mm solar cable with MC4 compatible connectors
Standard Testing Conditions	Irradiance:1000W/m³, Cell temperature:25ºC, AM:1.5(air mass).

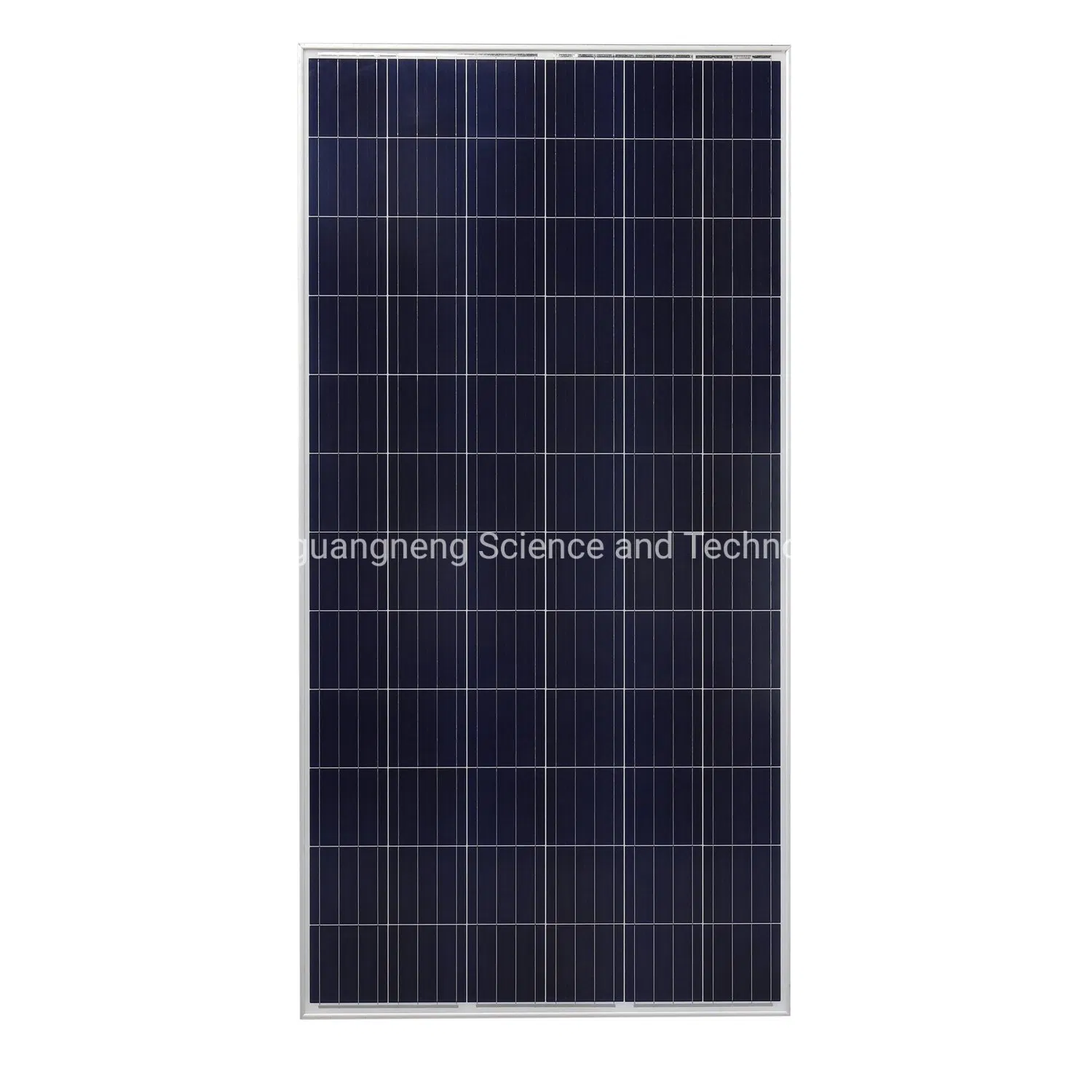

280W 30V PV Solar Module Polycrystalline PV Solar Panel Front View

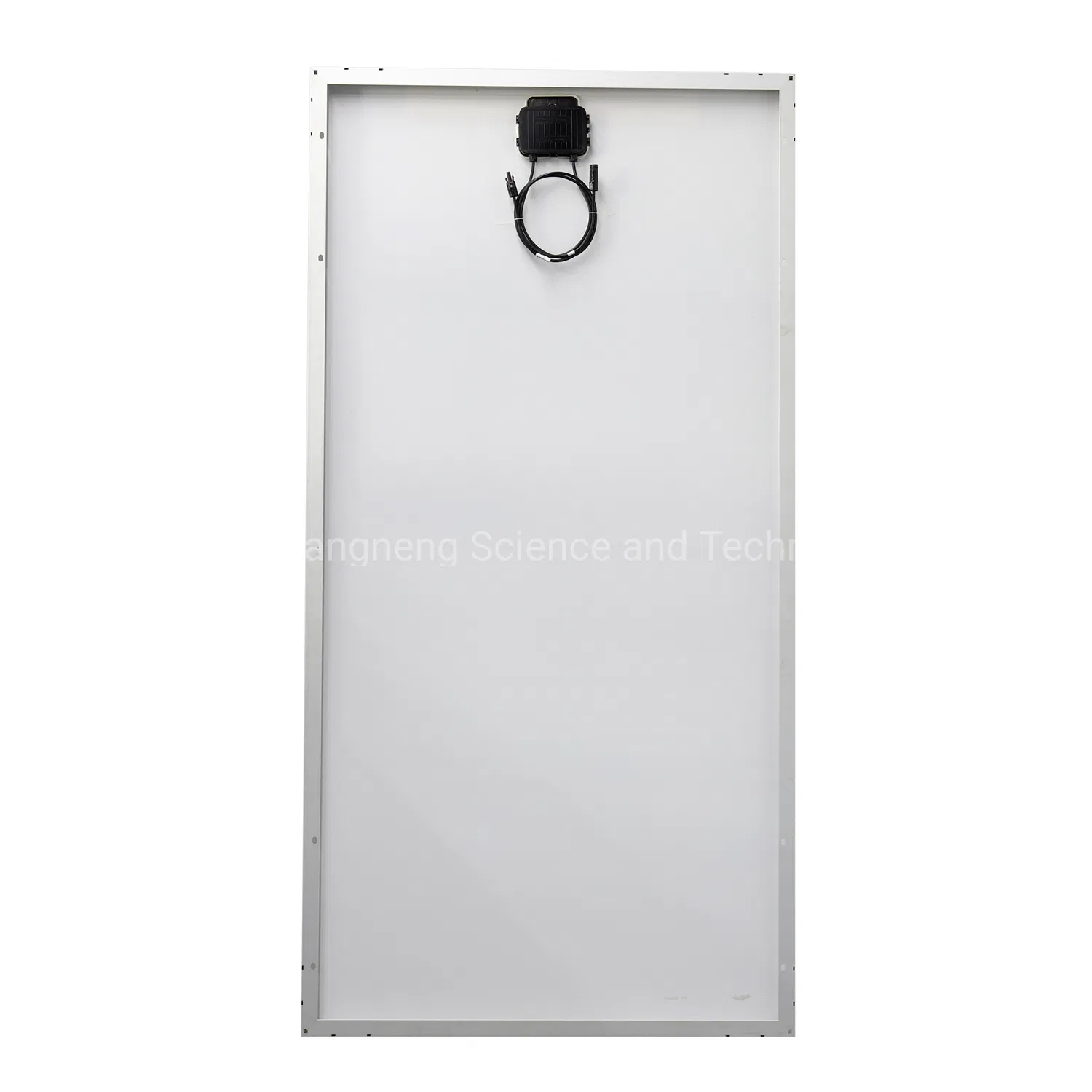

280W 30V PV Solar Module Polycrystalline PV Solar Panel Angle View

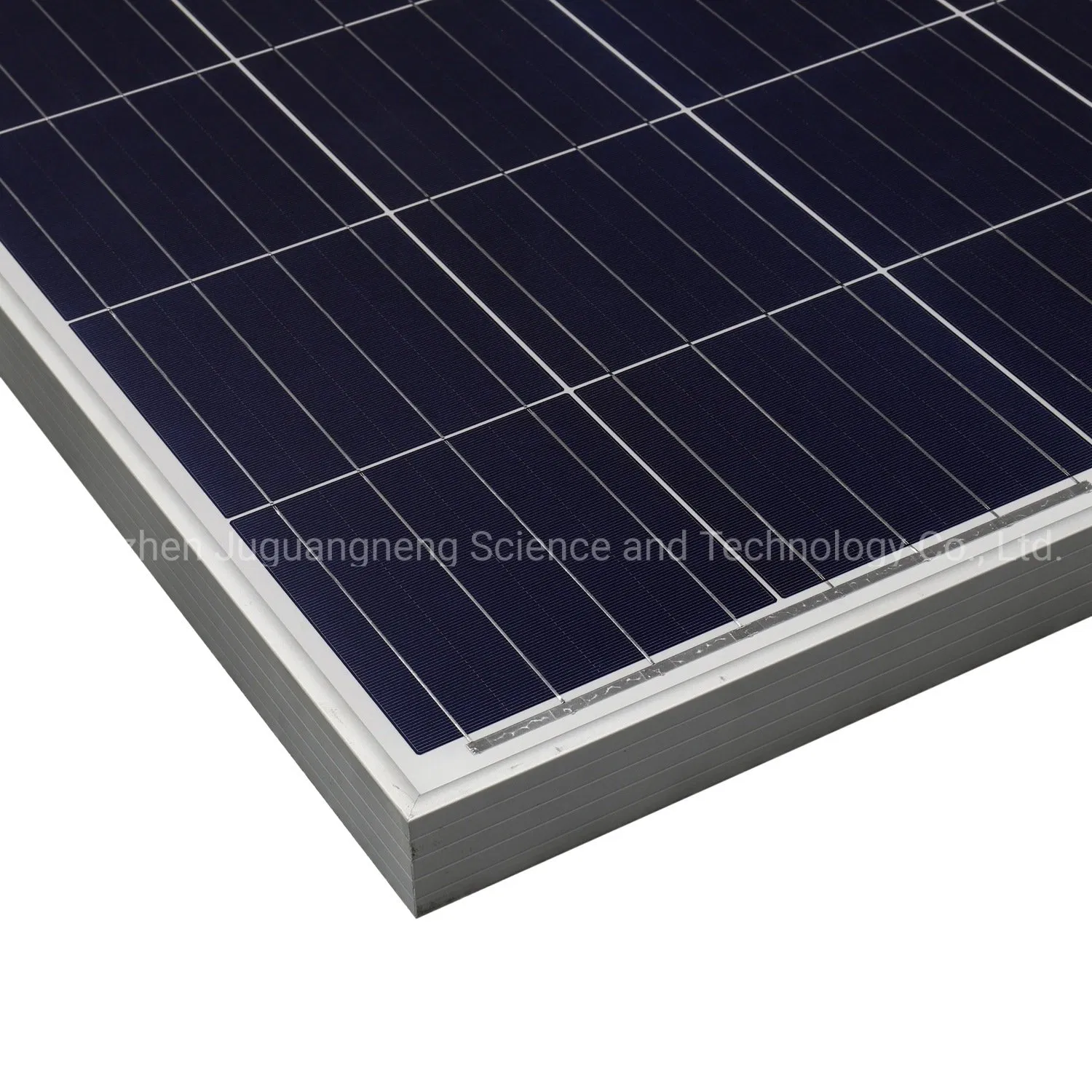

280W 30V PV Solar Module Polycrystalline PV Solar Panel Detail View

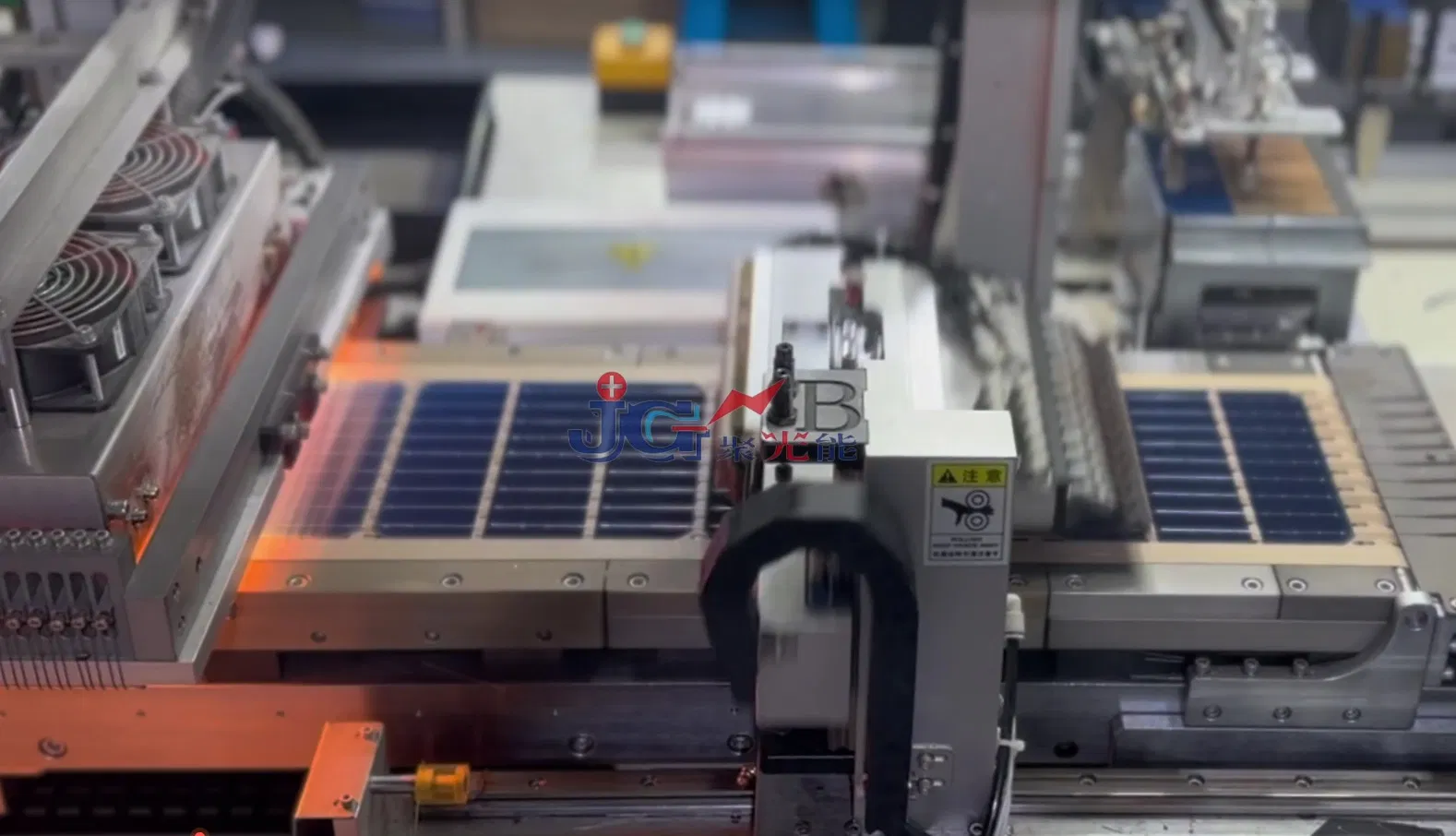

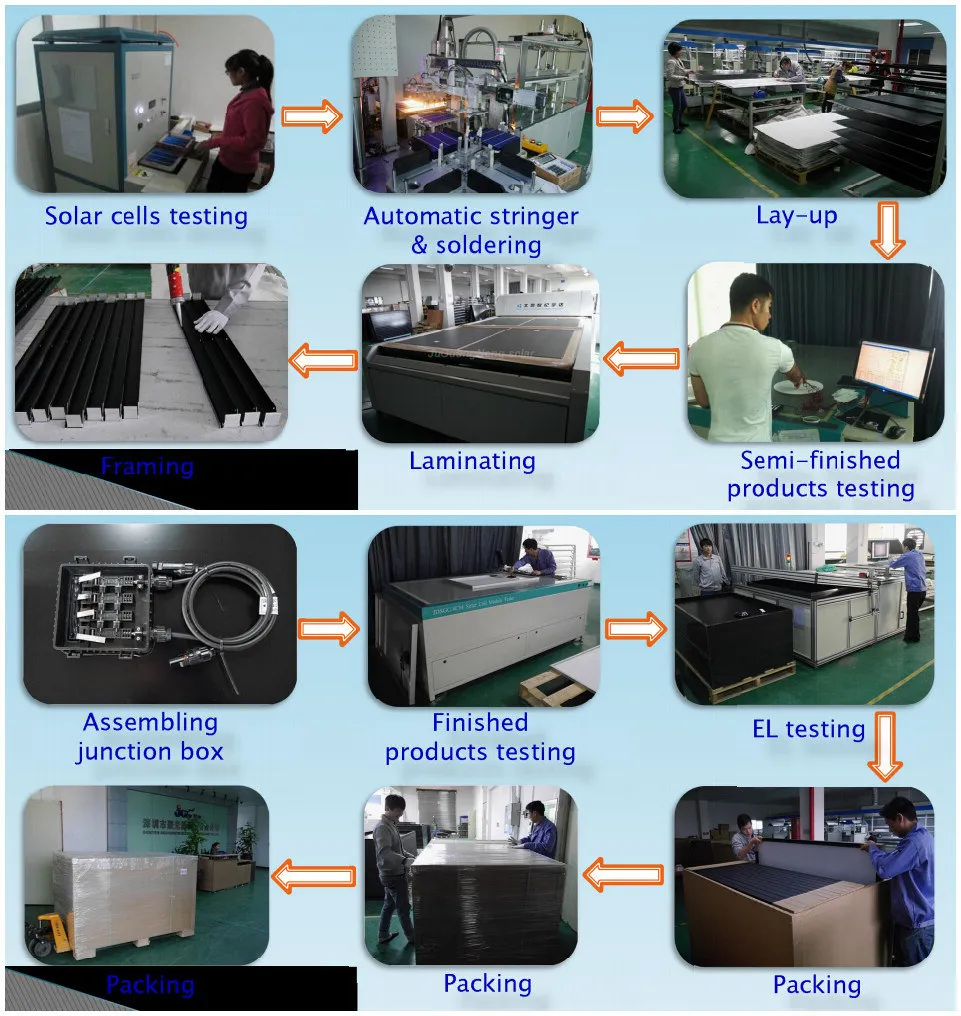

Manufacture Process

Frequently Asked Questions

What is the lifespan of this polycrystalline solar panel?

The solar panel is designed for a long lifespan of up to 25 years. The peak power decrease is guaranteed to remain under 8% during the first 10 years and under 10% within the first 20 years.

What are the primary applications for this 280W solar module?

This solar module is ideal for solar street lights, residential roofs, commercial lighting, home backup systems, and horticultural applications.

What materials are used in the construction of this module?

The module features high-efficiency polycrystalline silicon solar cells, encapsulated in Ethylene Vinyl Acetate (EVA), with a low-iron 3.2mm tempered glass front cover, a durable TPT backsheet, and an anodized aluminum alloy frame.

Can the voltage and size of the panels be customized?

Yes, we support customized solar panel options. While the standard module size is 1650*987*40mm and the standard voltage is 30V, both can be tailored to meet specific project specifications.

Under what conditions are the module specifications measured?

The performance metrics are measured under Standard Testing Conditions (STC): an irradiance of 1000W/m³, a cell temperature of 25ºC, and an air mass (AM) index of 1.5.
