Polycrystalline Silicon Photovoltaic Panels Flexible Solar Panel

Basic Info.

Model NO.3000W-500KW

ApplicationPhotovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall

Max. Power530W

Optimum Operation Voltage39.68 V

Open- Circuit Voltage48.65V

Module Operating Temperature Range-40-85

Optimum Operating Current13.36A

Short-Circuit Voltage14.02A

Max. System VoltageDC 1000/ 1500V (IEC)

Power Tolerance Range0-5W

Max. Power Temperature Coefficient-0.26 %

Max. Fuse Current25A

Junction Box Protection LevelIP68

UsagePhotovoltaic Venues, Greenhouse, Sun-Shading Device

Short-Circuit Voltage Temperature Coeffi0.04%

Transport PackageWooden Box

Specification2400*1314*4mm

OriginChina

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm

Package Gross Weight15.000kg

Product Description

Basic information

Basic information	Data
cell type	TOPCon cell 182*91 mm
cell arrangement	144 pcs(12*12)
module size	226012193 mm
Module weight	9.1KG
Junction box	Enclosure rating IP68
Output cable	4mm2, 500mm cable net length. cable length can be customized
Connector registration	MC4 compatibility
Frame	N/A
Front static load (snow pressure)	2400Pa
Rear static load (wind pressure)	N/A

Photovoltaic Module Technical Specifications Comparison

Parameter	x-solar Crystalline Silicon	ASP-S2-80	ASP-S2-85	ASP-54-85	Notes
Basic Information
Material	Crystalline Silicon	Thin Film	Thin Film	Thin Film
Dimensions (L×W×D)	2260×1219×3mm	1200×600×6.8mm	1200×600×6.8mm	1200×600×6.8mm
Weight	-	11.8kg	11.8kg	12.0kg
Origin	China	-	-	-
Electrical Characteristics
Nominal Power (Pm)	580W	80W	85W	85W
Open Circuit Voltage (Voc)	53.03V	58.8V	60.2V	29.2V
Short Circuit Current (Isc)	13.86A	1.90A	1.97A	4.19A
Voltage at Pmax (Vm)	44.19V	47.4V	48.3V	23.0V
Current at Pmax (Im)	13.13A	1.68A	1.76A	3.71A
Max System Voltage	DC 1000/1500V (IEC)	-	-	-
Max Fuse Current	25A	-	-	-
Temperature Coefficients
Power (%/°C)	-0.26	-0.214	-0.214	-0.214	Negative = power decreases with heat
Voltage (%/°C)	-0.24	-0.321	-0.321	-0.321
Current (%/°C)	+0.04	+0.060	+0.060	+0.060	Positive = current increases slightly
Warranty & Certifications
Power Output Guarantee	-	90% (10y), 80% (25y)	Same	Same
Materials/Workmanship Warranty	-	10 years	10 years	10 years
Other
Applications	PV Venues, Greenhouses, etc.	-	-	-
Transport Package	Wooden Box	-	-	-

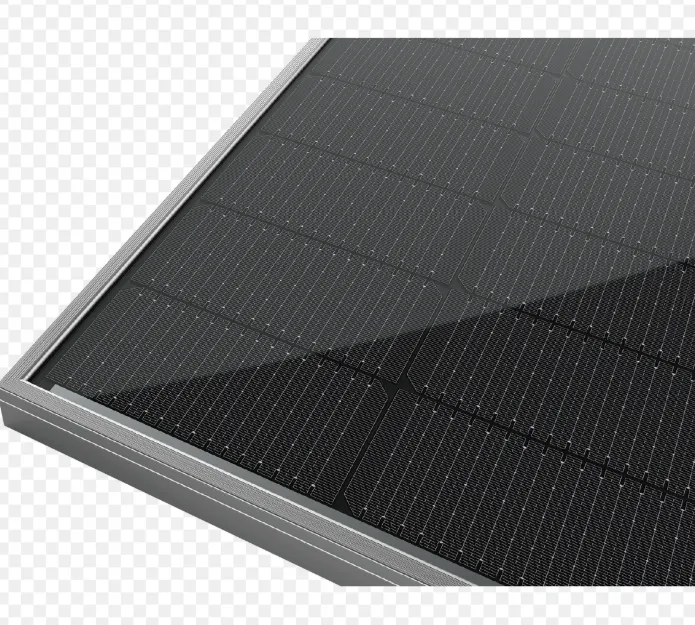

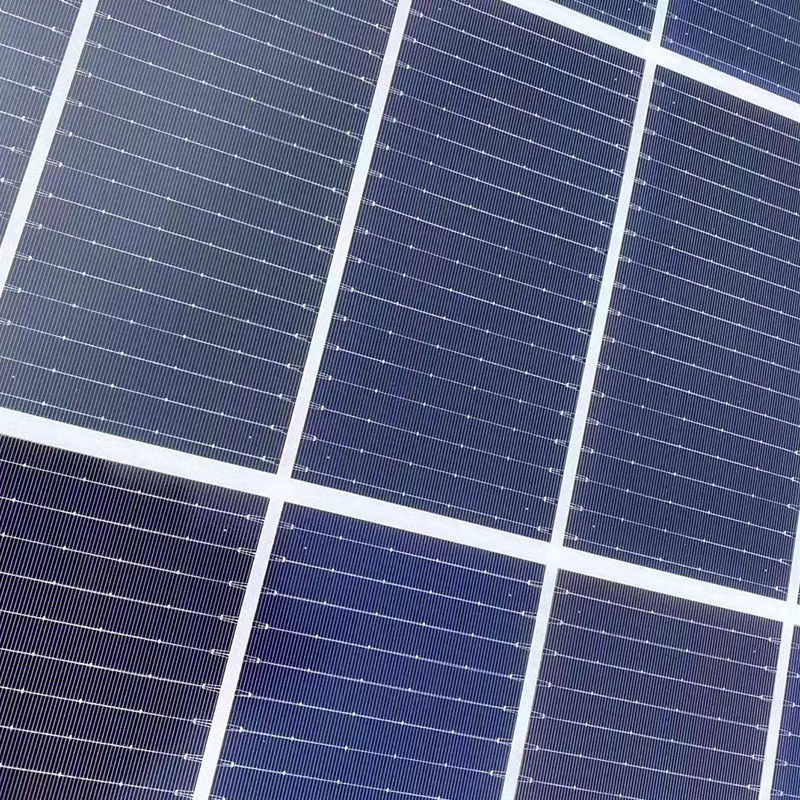

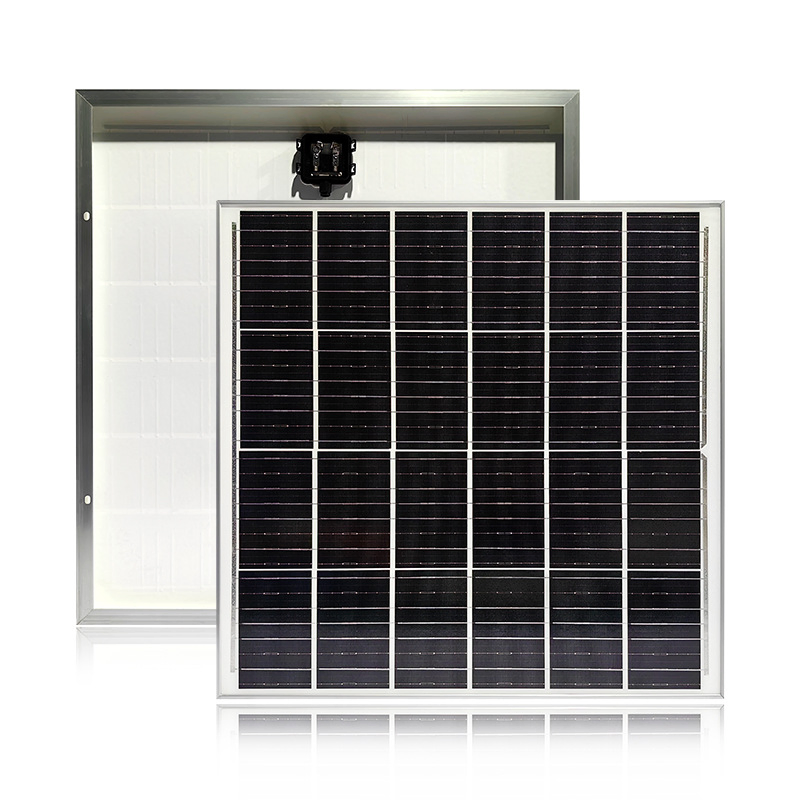

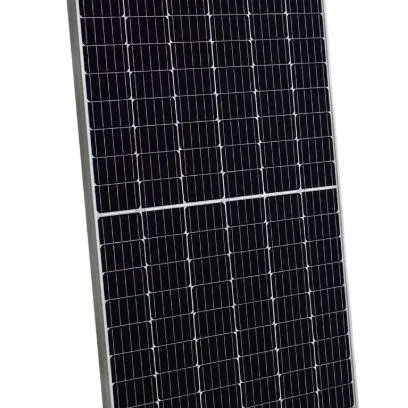

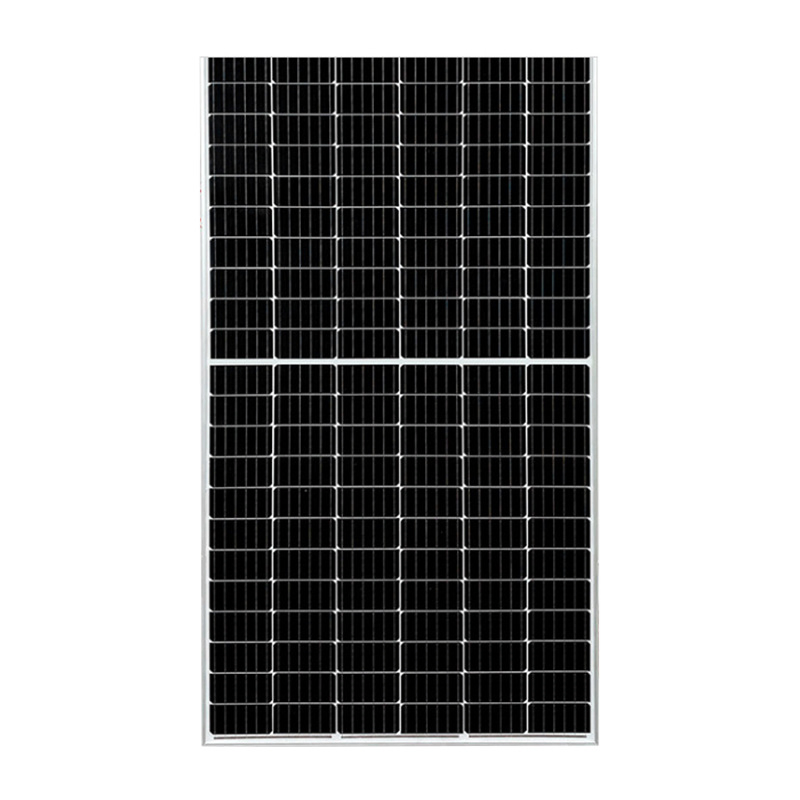

Detailed Photos

Polycrystalline Silicon Photovoltaic Panels Flexible Solar Panel

Product Parameters

Standard Thin Film Module ASP-S1/S4 Series Specifications

Parameter	ASP-S1-100	ASP-S1-105	ASP-S1-110	ASP-S1-115	ASP-S1-120	ASP-S4-85	Notes
Nominal Power (Pm)	100W	105W	110W	115W	120W	85W	STC Conditions
Open Circuit Voltage (Voc)	123.5V	124.0V	176.84V	180.49V	181.00V	29.2V
Short Circuit Current (Isc)	1.24A	1.28A	0.90A	0.918A	0.98A	4.19A
Voltage at Pmax (Vm)	91.7V	92.9V	138.0V	138.18V	138.62V	23V	Maximum Power Point
Current at Pmax (Im)	1.09A	1.13A	0.80A	0.834A	0.87A	3.71A
Dimensions (L×W×D)	1200×600×6.8mm	Same as S1-100	Same as S1-100	Same as S1-100	Same as S1-100	To be specified	All models unless noted
Weight	12kg	Same as S1-100	Same as S1-100	Same as S1-100	Same as S1-100	To be specified
Temperature Coefficients
- Power (%/°C)	-0.214	Same as S1-100	Same as S1-100	Same as S1-100	Same as S1-100	To be specified	Negative = power decreases with heat
- Voltage (%/°C)	-0.321	Same as S1-100	Same as S1-100	Same as S1-100	Same as S1-100	To be specified
- Current (%/°C)	+0.060	Same as S1-100	Same as S1-100	Same as S1-100	Same as S1-100	To be specified	Positive = current increases slightly with heat
Warranty & Certifications
Warranty	10-year material/workmanship, 25-year power output	Applies to all models
Certifications	1500V system certified (IEC/UL)	Applies to all models

Packaging & Shipping

Packing Details

Transportation	Platform Lorry (13m)	Platform Lorry (17.5m)	Container (40 degree)
Size	13m	17.5	40 degree
Pallet	22	28	/
Piece/Pallet	45	45	/
Total Pieces	990	1260	/

Our Advantages

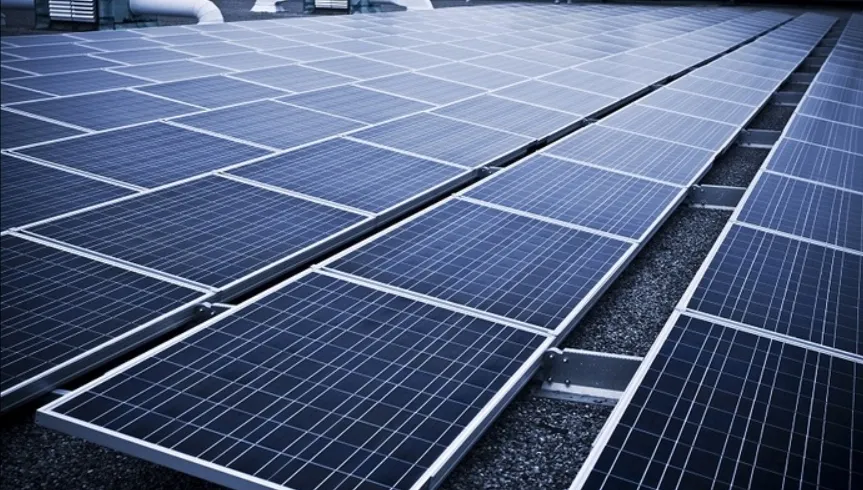

It can replace the decorative panels of traditional building materials, applicable to the eastern, southern and western facades of the building and provide green energy for the building.
It can be applied to building interlayers, sun shields and daylighting roofs; agricultural greenhouse roof, photovoltaic fence, sound barrier, etc.
High reliability packaging materials ensure a service life of up to 30 years.
Customizable colors and patterns according to customer needs.
It conforms to the building system standards and is easy to install.

FAQ

Q1: How can I get a quotation from you?

A1: You can leave us a message, and we will reply to every message in time. Or we may talk online by Trademanager.

Q2: Can I get samples before order?

A2: Yes, of course. Usually our samples are free. We can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3: How can you guarantee what I got will be good?

A3: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q4: How much will the transportation freight be?

A4: The freight is offered depends on the weight & packing size and shipping address and different kinds of shipping method, such as shipping by sea, by air and by express. (We will help you choose a more favorable and safer way of transportation.)

Q5: What is the operating temperature range for these modules?

A5: The module operating temperature range is -40°C to 85°C, providing robust performance under varying environmental conditions.

Q6: What certifications do these standard thin film modules hold?

A6: They are certified for 1500V systems under both IEC and UL international safety standards.
