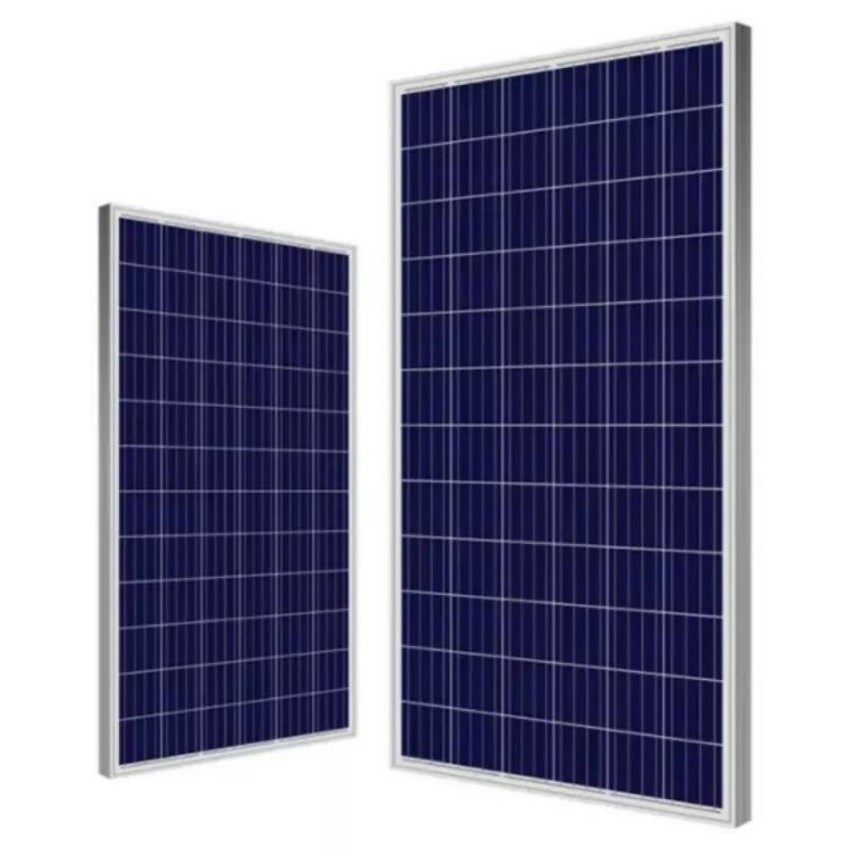

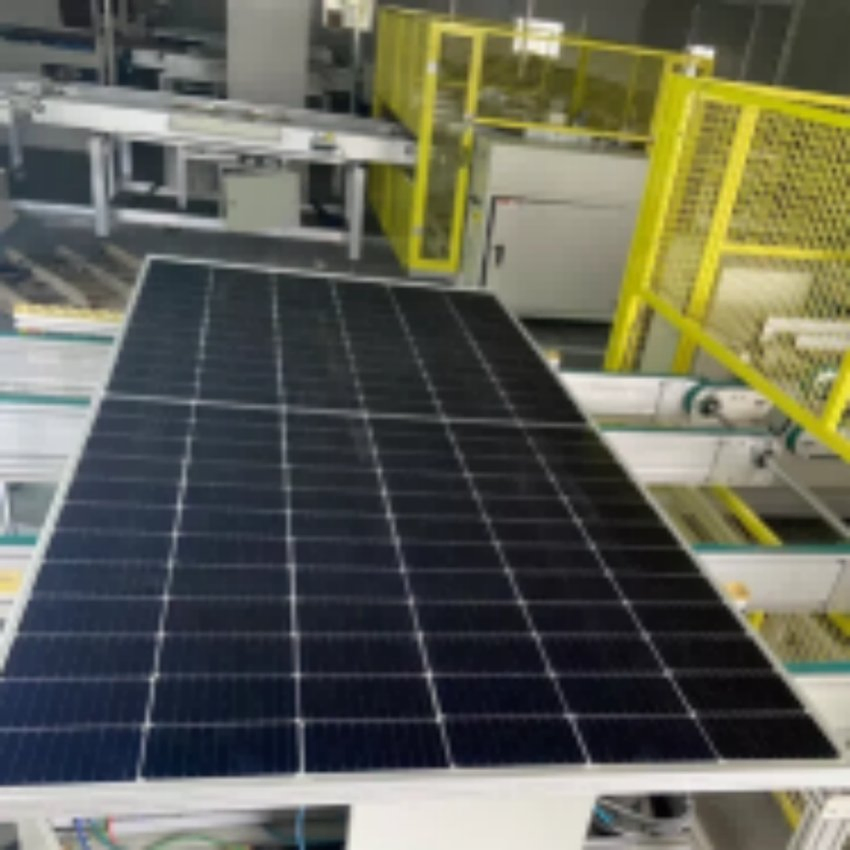

Solar Power Panels 550 Watt Poly Mono Solar Panel 530W Polycrystalline for Home Electricity

Customization: Available
After-sales Service: 1 Year
Warranty: 10 Years

Product Description

Basic Info.
Model NO.
Monocrystalline Solar Panel
Number of Cells
as Your Request
Application
Light Industry
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Junction Box
IP68
Grade
A Grade
OEM
Acceptable
Connector
Mc4
Type
Perc, Half Cell, Mono
Transport Package
Carton Box with Wooden Pallet
Specification
Customized
HS Code
8541402000
Production Capacity
800MW/Year
Product Description

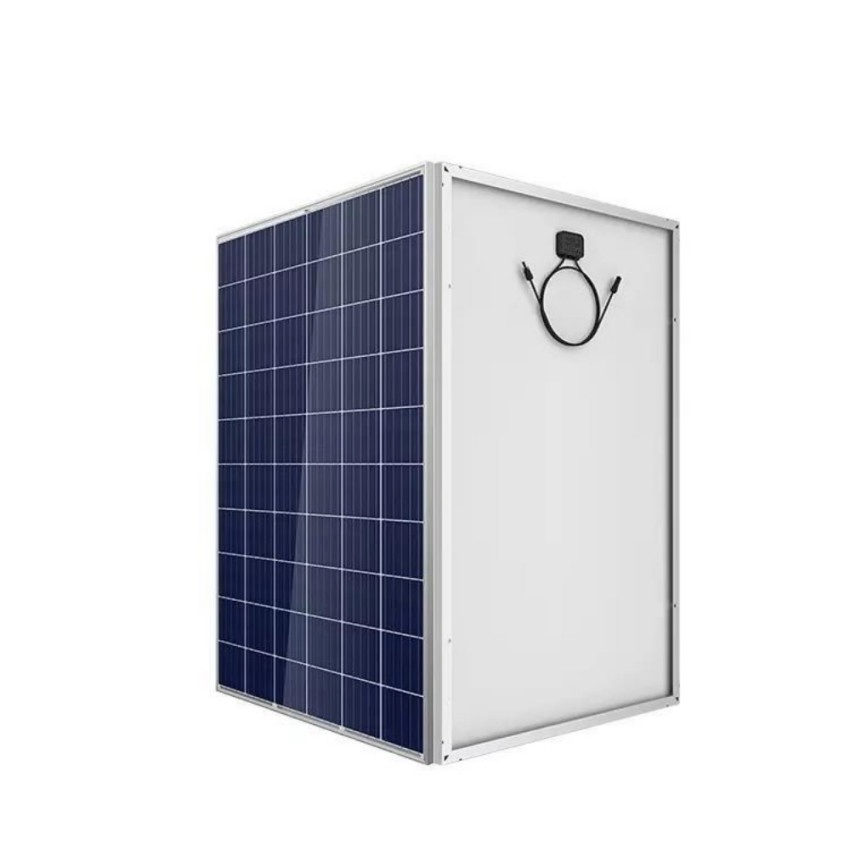

Solar Power Panels 550 Watt Poly Mono Solar Panel 530W Polycrystalline for Home Electricity

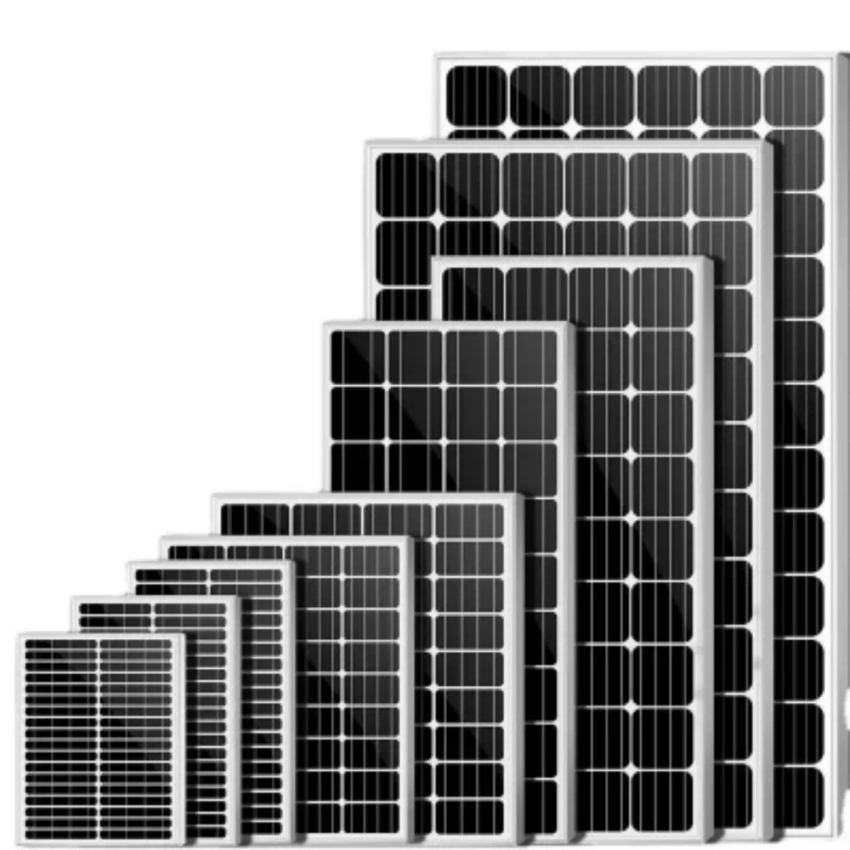

Mono Solar Panel

To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.

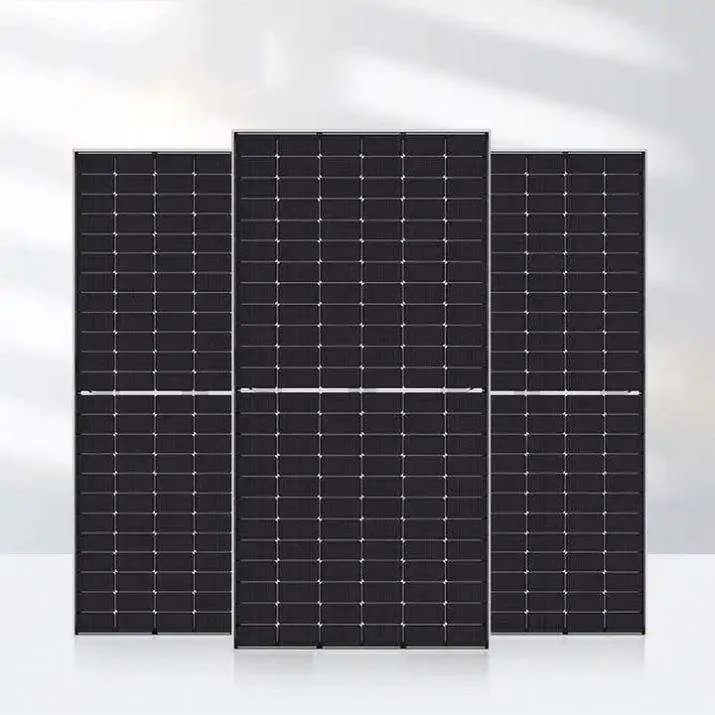

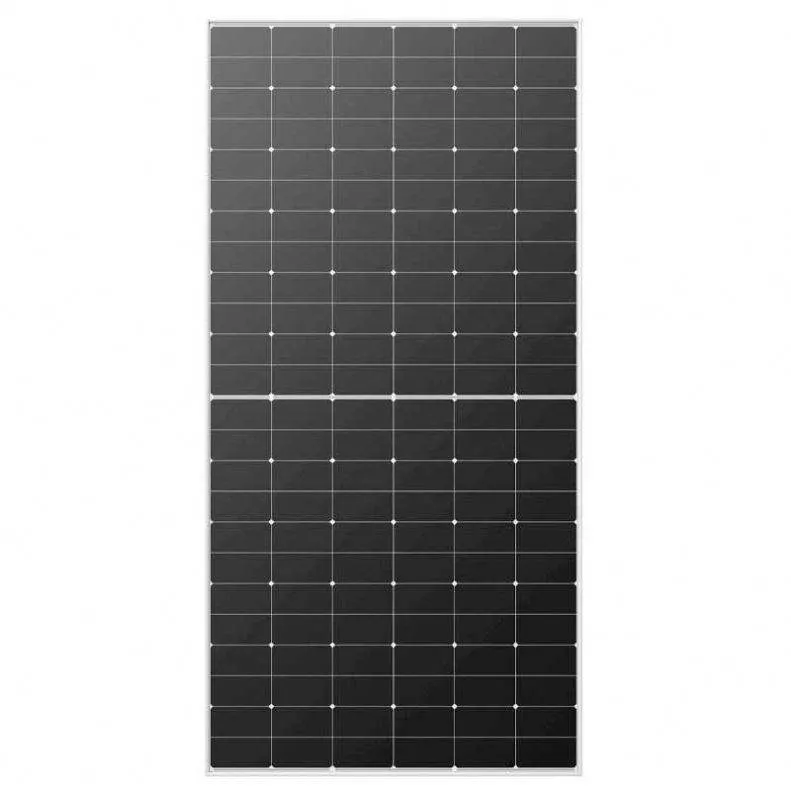

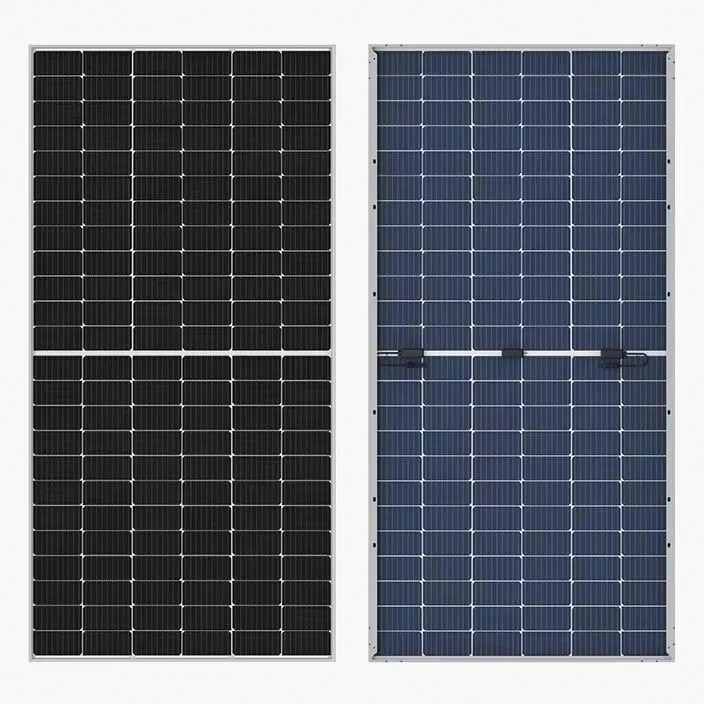

Solar Panel Details 1 Solar Panel Details 2 Solar Panel Details 3

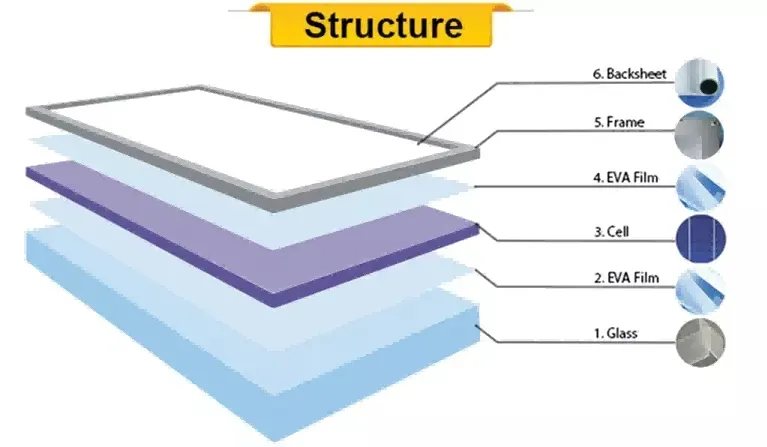

Solar Power Panels Design Chart
ELECTRICAL Characteristics
Maximum Power-Pmax(w) 100 110 120 130 140
Open Circuit Voltage-Voc(V) 20.60 21.23 21.60 21.95 23.16
Short Circuit Current-Isc(A) 5.94 6.41 6.87 7.21 7.46
Maximum Power Voltage-Vmpp(V) 17.82 18.15 18.48 19.08 19.80
Maximum Power Current-Impp(A) 5.62 6.07 6.50 6.82 7.08
Module Efficiency(%) 18.80 20.70 22.69 21.30 20.30
Temperature Characteristics
Pmax Temperature Coeffcient -0.40%/ºC
Voc Temperature Coeffcient -0.32%/ºC
Isc Temperature Coeffcient +0.05%/ºC
Operating Temperature -40-+85ºC
Nominal Operating Cell Temperature(NOCT) 45±2ºC
ELECTRICAL Characteristics
Maximum Power-Pmax(w) 150 160 170 180 190
Open Circuit Voltage-Voc(V) 23.58 21.05 21.53 24.42 24.88
Short Circuit Current-Isc(A) 7.86 9.31 9.71 9.02 9.35
Maximum Power Voltage-Vmpp(V) 20.16 18.15 18.48 21.06 21.45
Maximum Power Current-Impp(A) 7.45 8.82 9.20 8.55 8.86
Module Efficiency(%) 21.70 19.50 20.70 17.80 18.80
Temperature Characteristics
Pmax Temperature Coeffcient -0.40%/ºC
Voc Temperature Coeffcient -0.32%/ºC
Isc Temperature Coeffcient +0.05%/ºC
Operating Temperature -40-+85ºC
Nominal Operating Cell Temperature(NOCT) 45±2ºC

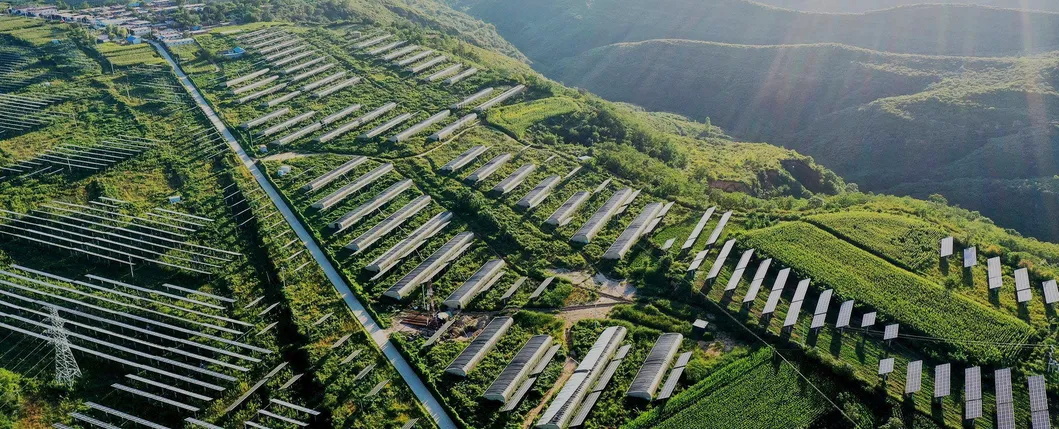

Eco-friendly PV Power Plants
Eco-friendly PV Power Plants
Eco-friendly PV power plants are grid-friendly, environmentally-friendly, and economic benefits-friendly. The featured applications are divided into large-scale PV power plants on mostly flat terrain, PV power plants on mountainous terrain, PV power plants on more complex mountainous terrain, and large-scale PV power plants floating on water (floatovoltaics).
Industrial Decarbonization
Industrial Decarbonization
Solar PV can be paired with high-energy-consuming enterprises' own power plants to meet consumer demand. PV can also power the production of green hydrogen as a replacement for carbon-producing fuels, thereby helping companies achieve their decarbonization goals.
Petroleum Industry
Petroleum Industry
Help petroleum enterprises become greener and enhance the industry's environmental protection, societal benefits and brand equity.

Environmental protection value: reduce energy consumption and reduce pollution; social value: improve regional environment and improve public service level; brand value: reduce long-term operating costs and improve brand equity.

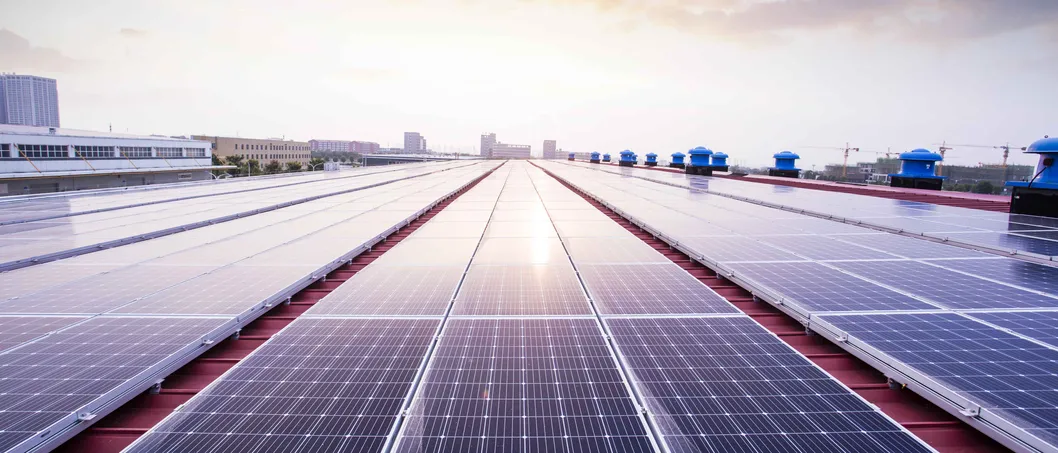

Green Industry Solution
Green Industry Solution
Create a new industrial paradigm with clean energy as the main energy system, which promotes global green environmental protection.
Solutions for Every Project

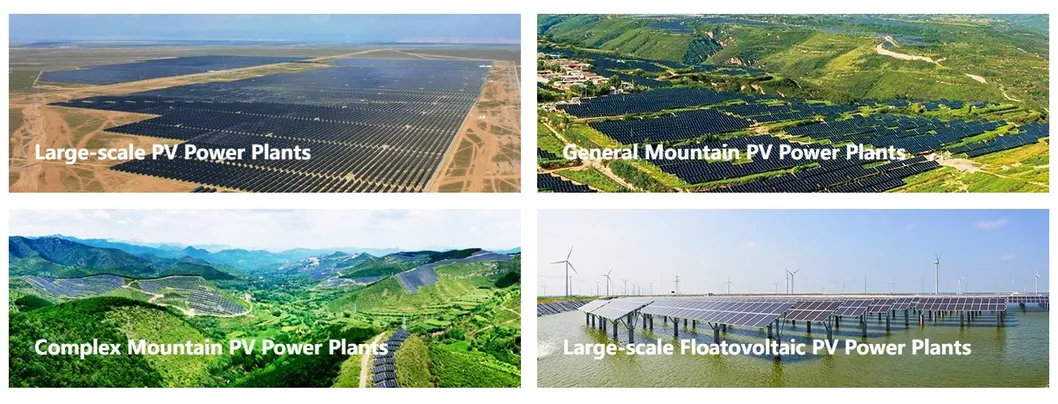

Depending on the different types of construction sites, installation locations and methods, we can provide solutions for large-scale PV power plants, general mountain PV power plants, complex mountain PV power plants, and floatovoltaic PV power plants.

Solutions for Every Project
Recommended Products
Recommended Solar Products
Company Profile
Company Overview Image 1 Company Overview Image 2

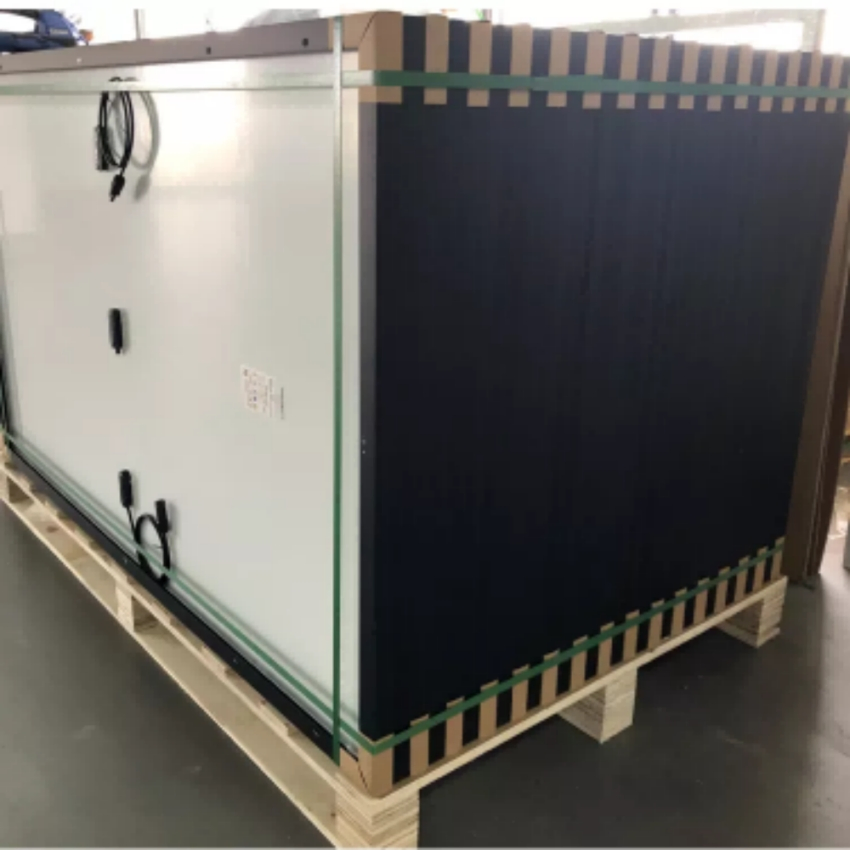

Packaging & Shipping
Packaging and Shipping Details
FAQ
FAQ Separator
How to choose the right panel?
Tell us your demand, then our sales will recommend a suitable panel for you.
What's the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
How about the delivery time?
Delivery time is 7 days for samples, and 15 days for bulk orders.
What is the warranty for solar panels?
Generally, the warranty for our solar panels is 10 years. We also offer a 25-year linear output power warranty.
How can I get better service from you?
We have a professional engineer team that can provide you with the best support based on your requirements. If you have any problems during usage, we offer 24-hour online service and will solve your problem within 1 hour.
Are these solar panels customizable?
Yes, we support OEM and ODM services. Customizations such as changes to cell numbers, custom dimensions, connector types, and specifications can be accommodated upon request.
