| MECHANICAL DATA | |
|---|---|
| Module Dimensions | 2278*1134*35mm |
| Weight | 27.3kg |
| Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass |
| Junction-Box | IP 68, three diodes |
| Cables | 4.0mm² , 300mm in length |
| Cell Orientation | 144cells(6*24) |
| SPECIFICATIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Module Type | MY-M6/144-430 | MY-M6/144-435 | MY-M6/144-440 | MY-M6/144-445 | MY-M6/144-450 | MY-M6/144-455 | ||||||
| Metric | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax) | 430 | 319.9 | 435 | 323.6 | 440 | 327.3 | 445 | 331 | 450 | 334.7 | 455 | 338.4 |
| Maximum Power Voltage(Vmp) | 40.72 | 36.9 | 41.08 | 38.2 | 41.4 | 38.5 | 41.75 | 38.8 | 42.1 | 39.1 | 42.4 | 39.3 |
| Maximum Power Current(Imp) | 10.56 | 8.441 | 10.59 | 8.471 | 10.63 | 8.501 | 10.66 | 8.531 | 10.69 | 8.56 | 10.73 | 8.611 |
| Open-circuit Voltage(Voc) | 48.69 | 45.3 | 48.98 | 45.5 | 49.25 | 45.7 | 49.55 | 46 | 49.84 | 46.2 | 50.2 | 46.4 |
| Short-circuit Current(Isc) | 11.07 | 8.948 | 11.1 | 8.98 | 11.14 | 9.01 | 11.17 | 9.044 | 11.2 | 9.075 | 11.24 | 9.128 |
| Module Efficiency STC(%) | 19.46% | 19.69% | 19.92% | 20.14% | 20.37% | 20.60% | ||||||
| Operating Temperature(°C) | -40°C~+85°C | |||||||||||
| Maximum System Voltage | 1500VDC(IEC) | |||||||||||
| Maximum Series Fuse Rating | 20A | |||||||||||
| Power Tolerance | 0~+5Wp | |||||||||||
| Temperature Coefficients of Pmax | -0.39%/°C | |||||||||||
| Temperature Coefficients of Voc | -0.30%/°C | |||||||||||
| Temperature Coefficients of Isc | -0.06%/°C | |||||||||||
| Nominal Operating Cell Temperature(NOCT) | 45±2/°C | |||||||||||

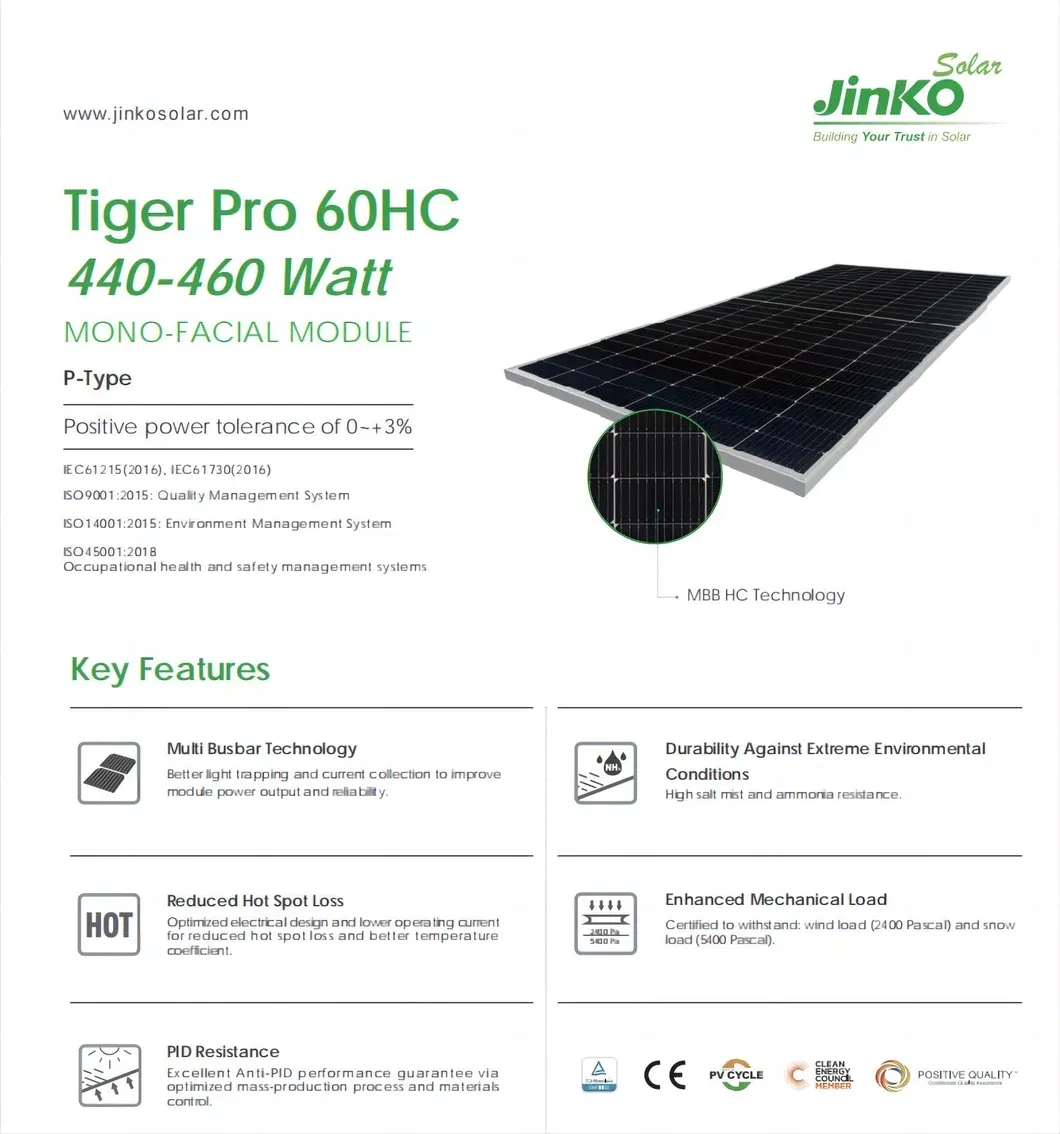

| Module Type | JKM440M-60HL4-V | JKM445M-60HL4-V | JKM450M-60HL4-V | JKM455M-60HL4-V | JKM460M-60HL4-V |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 440 | 445 | 450 | 455 | 460 |
| Maximum Power Voltage (Vmp) | 33.72 | 33.82 | 33.91 | 34.06 | 34.20 |
| Maximum Power Current (Imp) | 13.05 | 13.26 | 13.27 | 13.36 | 13.45 |
| Open-circuit Voltage (Voc) | 41.02 | 41.10 | 41.18 | 41.33 | 41.48 |
| Short-circuit Current (Isc) | 13.73 | 13.79 | 13.85 | 13.93 | 14.01 |
| Module Efficiency STC (%) | 20.39 | 20.62 | 20.85 | 21.08 | 21.32 |
| Operating Temperature(ºC) | -40ºC~+85ºC | ||||
| Maximum system voltage | 1000/1500VDC (IEC) | ||||
| Maximum series fuse rating | 25A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.35%/ºC | ||||
| Temperature coefficients of Voc | -0.28%/ºC | ||||
| Temperature coefficients of Isc | 0.048%/ºC | ||||
| Nominal operating cell temperature (NOCT) | 45±2ºC | ||||
We employ the latest state-of-the-art fully automatic production equipment to maintain the highest quality standards. Our rigorous, step-by-step final inspection system ensures every product is thoroughly vetted before shipment.
Explore our offerings: Solar Panels and complete system sets tailored to your needs.
We are a Manufacturer, committed to excellence.
Delivery Terms we offer include FOB, CIF, EXW, and Express Delivery for your convenience. We accept payments in multiple currencies: USD, EUR, HKD, CNY, and more. For payment, we accept T/T and Cash. Our team is multilingual, speaking English, Chinese, and French to serve you better.
Typically, orders are processed and ready for dispatch within 15 working days following advance payment.
We stand as a professional manufacturer with over 15 years of expertise in the Solar Panel industry, crafting quality and innovation. Our diverse product lineup includes poly and mono solar panels, solar batteries, power systems, charger controllers, inverters, lights, and even solar air-conditioning. We excel in bespoke solar system solutions, reaching clients across more than 60 countries in Europe, Asia, the Americas, and Africa.
