Product Overview
| No. |
Specification Parameter |
Details (Model: eGo S50M) |
| 1 |
Number of Cells |
36pcs |
| 2 |
Maximum Power[Wp] |
50 |
| 3 |
Solar Cell |
Topcon Solar Cell |
| 4 |
Cell Efficiency |
25.4% |
| 5 |
OEM Order |
Acceptable |
| 6 |

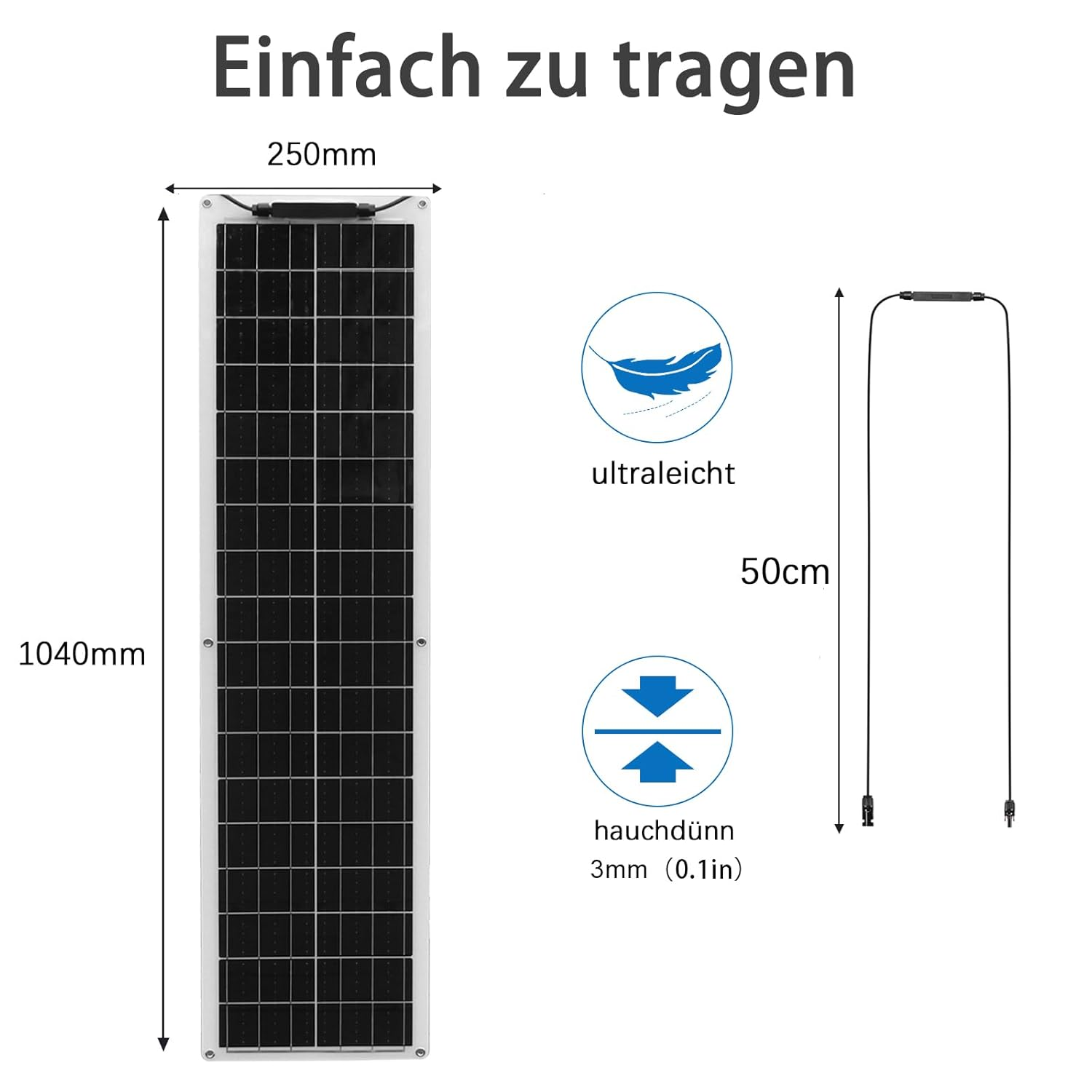

Module Size[mm] |
250*1040*2mm |
| 7 |
Max Power Voltage Vmp[V] |
22.03 |
| 8 |
Max Power Current Imp[A] |
2.27 |
| 9 |
Open Circuit Voltage Voc[V] |
25.78 |
| 10 |
Short Circuit Current Isc[A] |
2.41 |
| 11 |
Net Weight[kg] |
0.9 |
| 12 |
Power tolerance[%] |
±3% |
| 13 |
NOCT[°C] |
45±2 |
| 14 |
Certification |
CE ROHS |
| 15 |
Material |
Monocrystalline Silicon |
Main Features of Direct Produce Solar Module
✓
Certified Quality Control: Produced by a professional PV module manufacturer with CE, ROHS, SGS salt spray test, IEC61215, and IEC61730 certifications under a strict quality control process. The facility is managed according to ISO9001 and ISO14001 standards.
✓

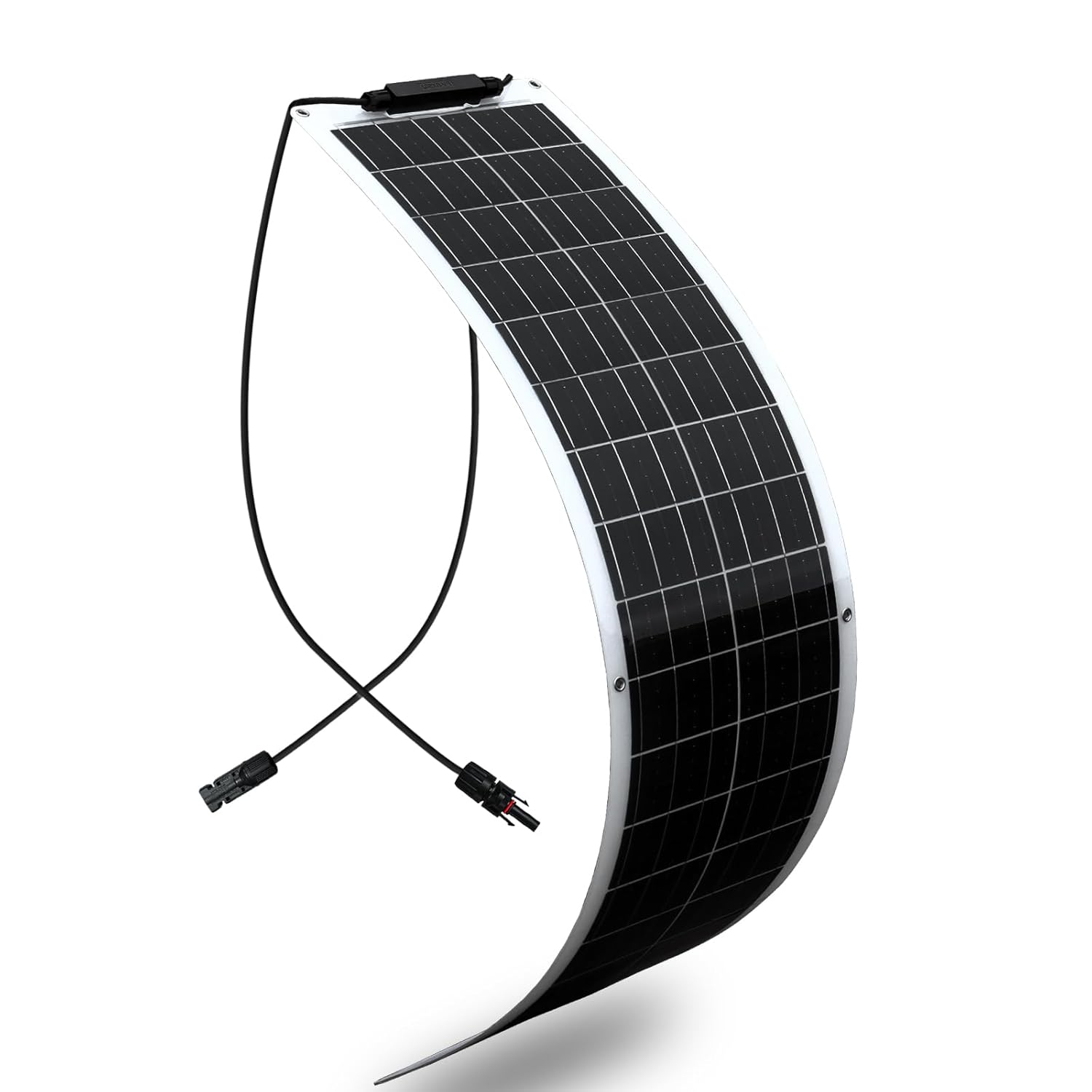

High Efficiency: The factory-direct 50W semi-flexible solar panel adopts A-grade monocrystalline solar cells, delivering a conversion efficiency of up to 25.4%, enabling higher power output from a compact surface area.
✓
Versatile Mounting: The flexible solar panel can be easily bent and springs back automatically. It is ideal for mounting on RVs, boats, cottages, tents, cars, trucks, trailers, flexible solar module fences, or any other irregular surfaces.
✓

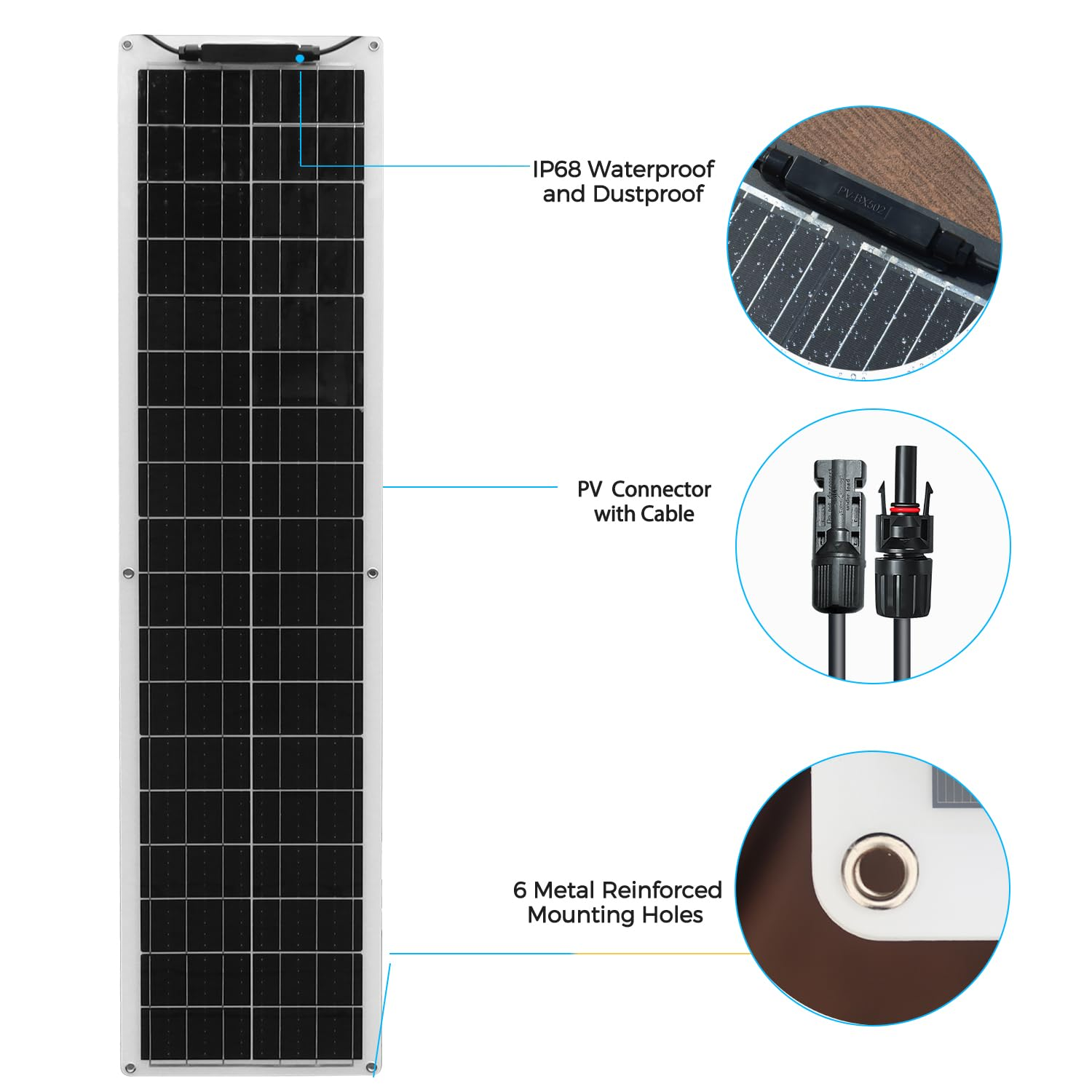

Lightweight & Portable: Weighing only 0.9kg (a quarter of the weight of conventional 50W solar panels) with a thickness of no more than 0.3cm, it is exceptionally easy to carry. Pre-set holes on the panel allow for quick installation and removal.
✓
Robust Durability: The complete solar system holds an IP68 waterproof rating, ensuring long-term outdoor reliability. Engineered to withstand high wind pressure (2400Pa) and snow loads (5400Pa).
✓
Efficient Warehouse Service: Supported by a local warehouse in Germany, ensuring convenient delivery and efficient support for replacements or returns.

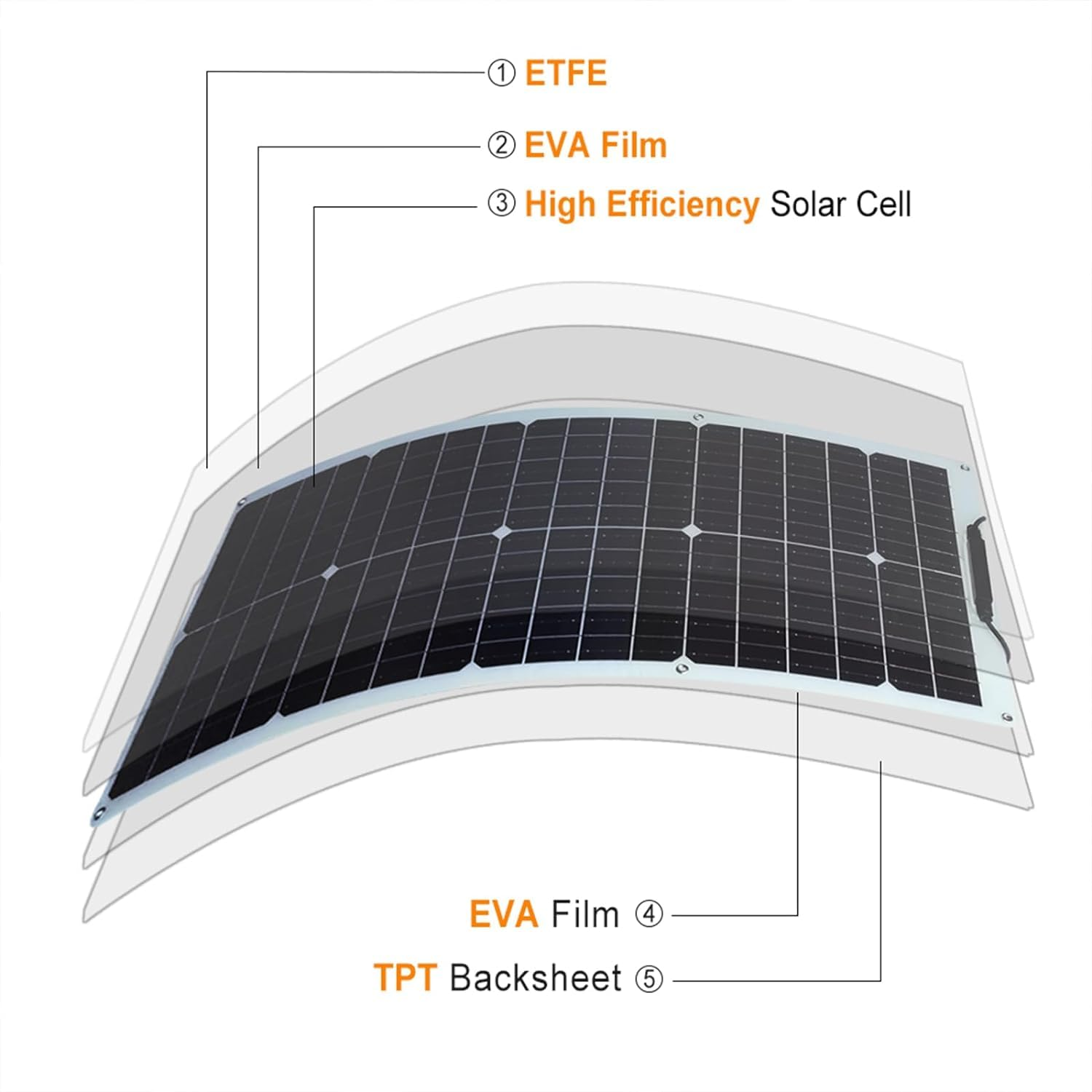

Features At A Glance
➢
Ultra-Thin & Light: Weight is only 0.9kg including cables, with a thickness of just 2mm.
➢
Highly Flexible: Easily supports up to a 60-degree bend for curved applications.
➢
Premium Performance: Leading Topcon cell technology provides 25.4% efficiency (with custom options up to 27%).
➢
Broad Application Range: Ideal for RVs, marine/boats, golf carts, and off-grid uses.
➢
High Transmittance & Resistance: Features 98% light transmittance and functions reliably in extreme environments from -40°C to +85°C.
Packing & Shipping

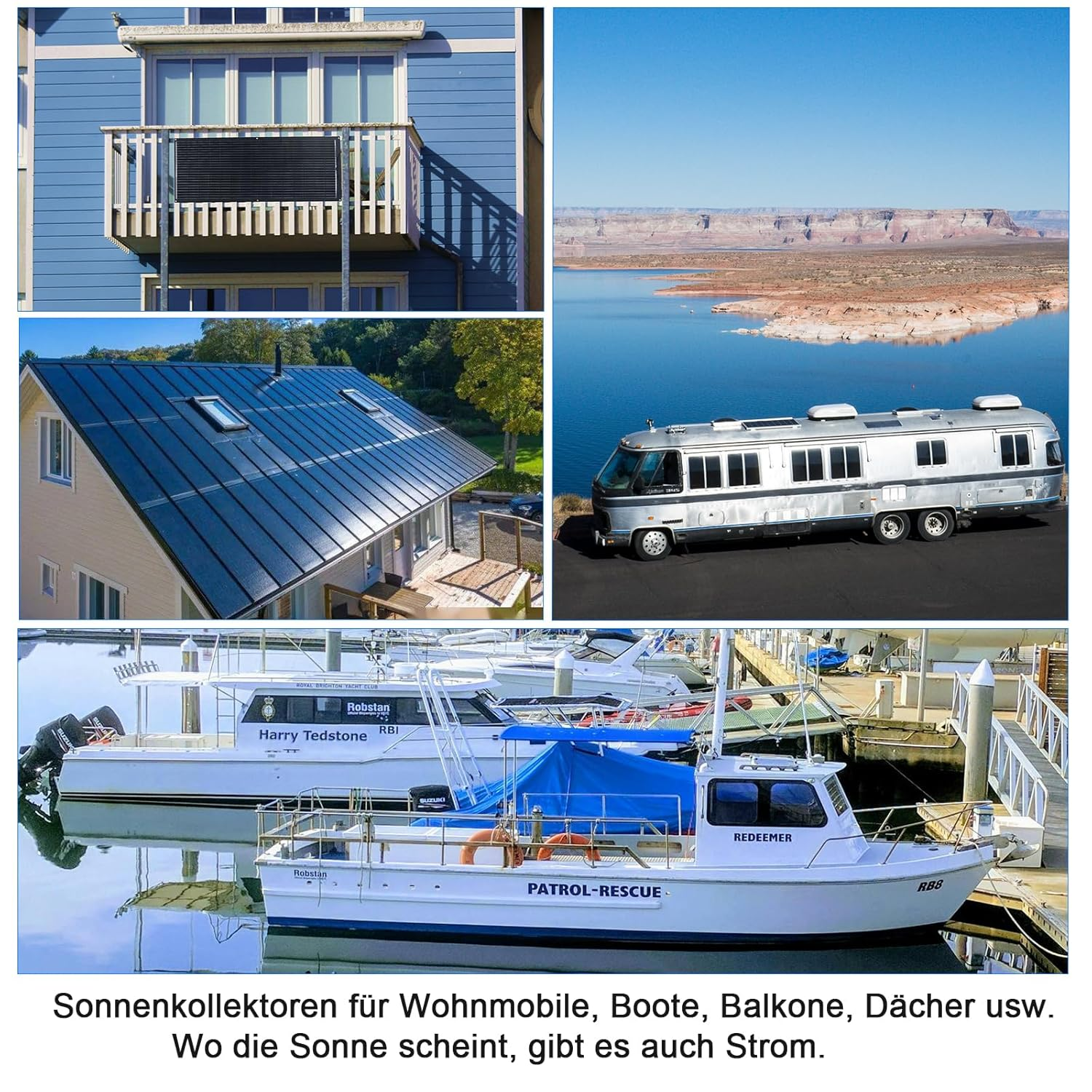

Application

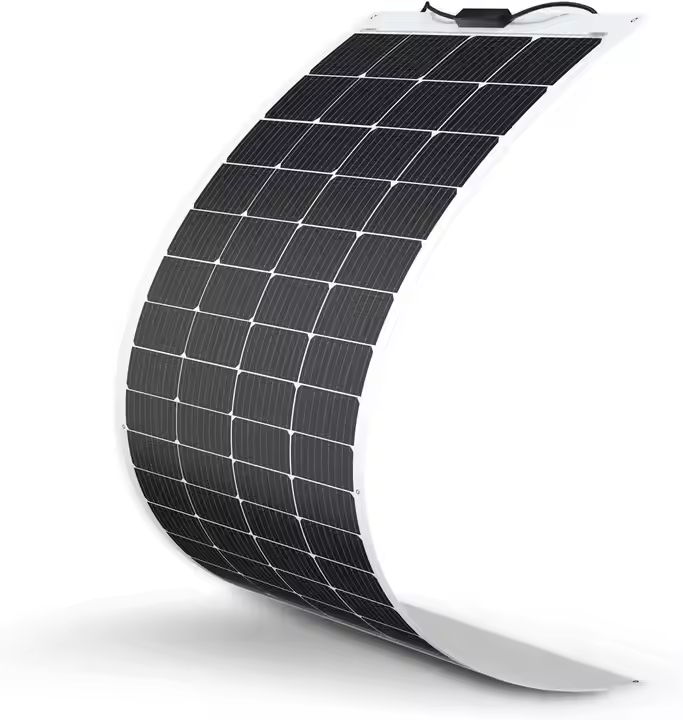

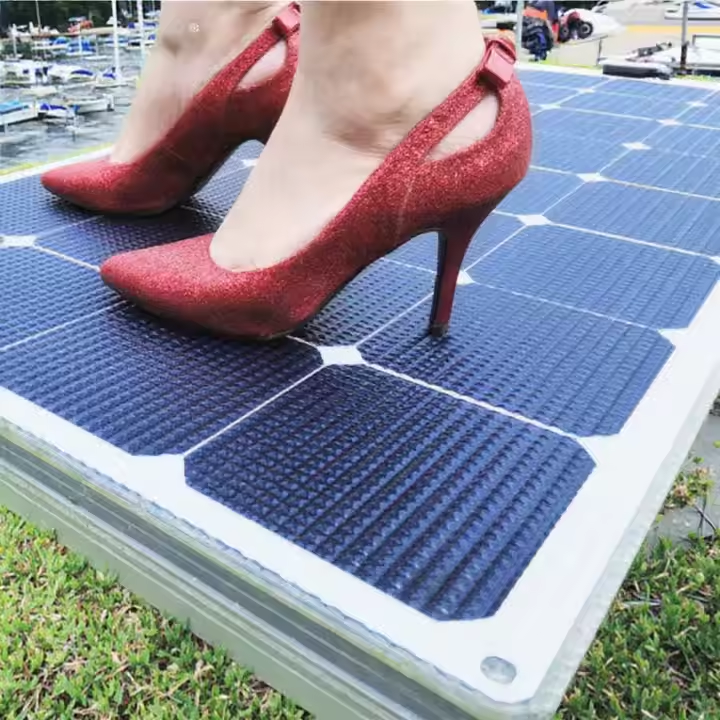

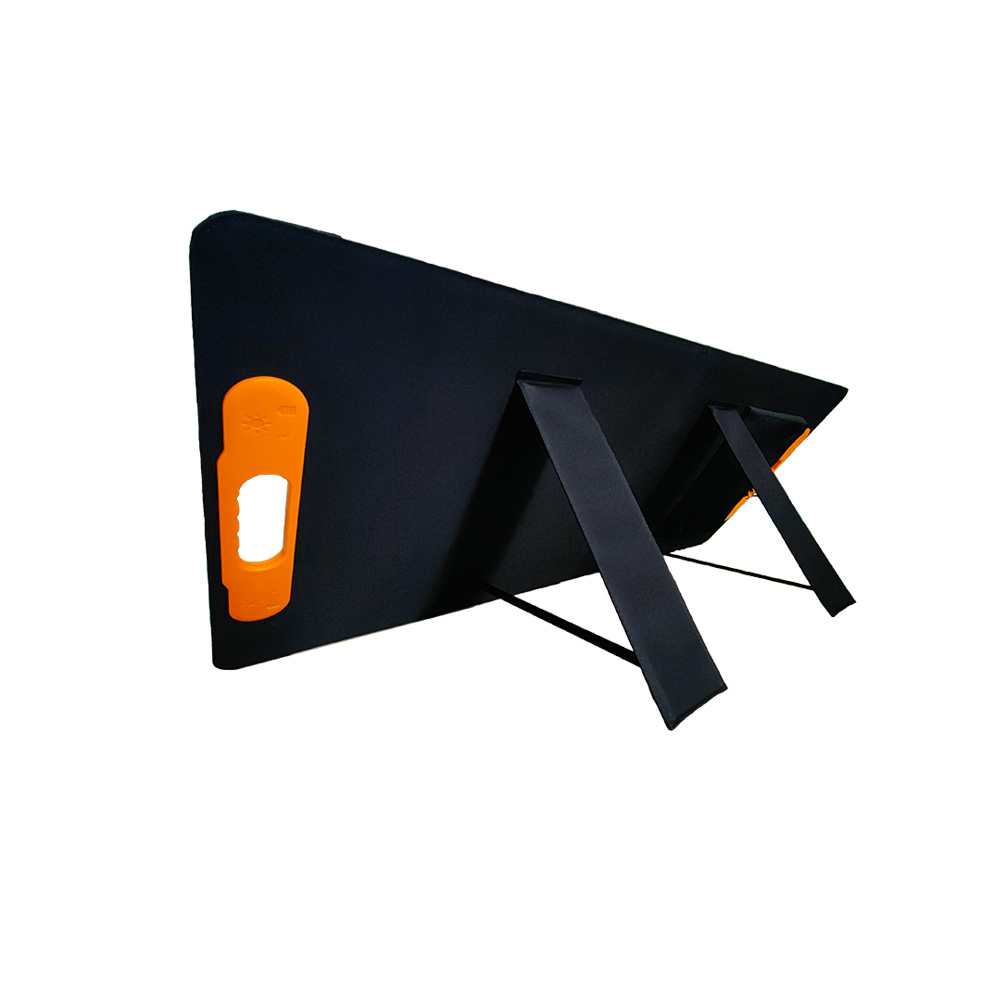

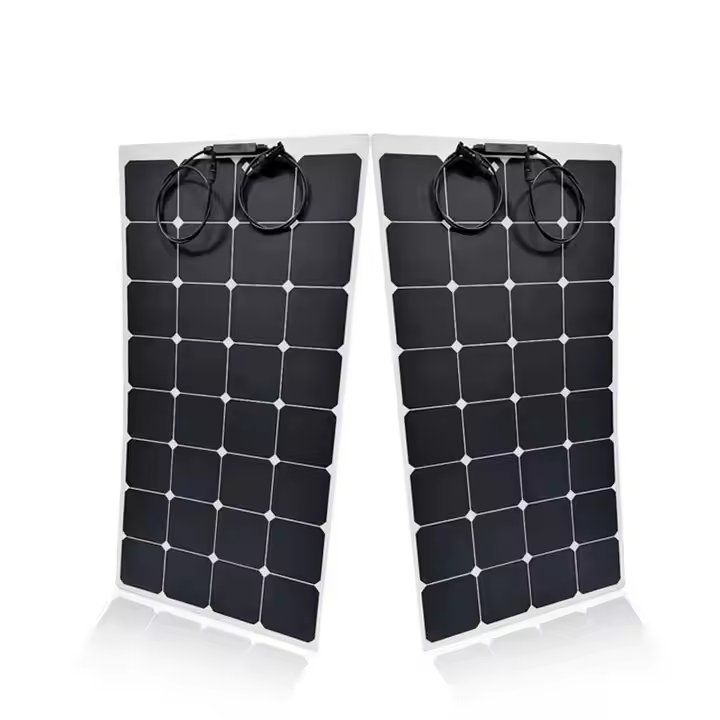

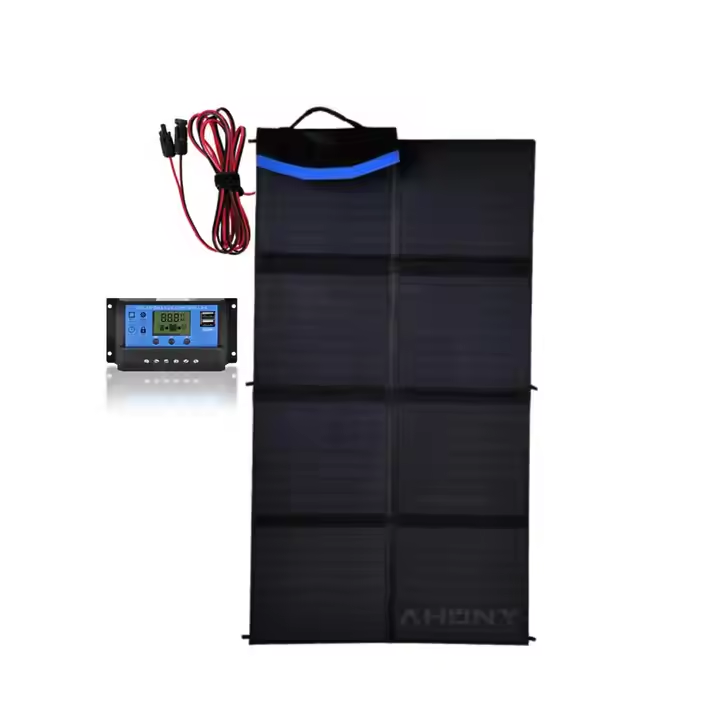

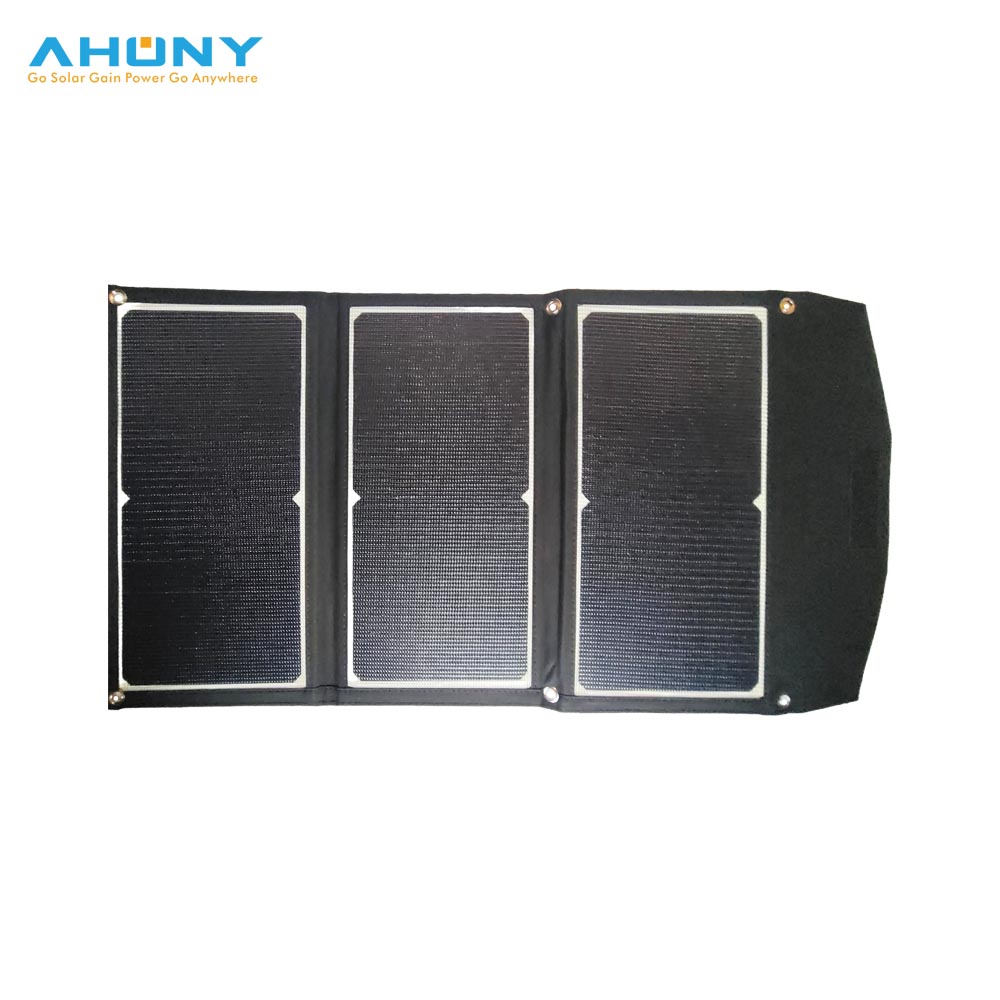

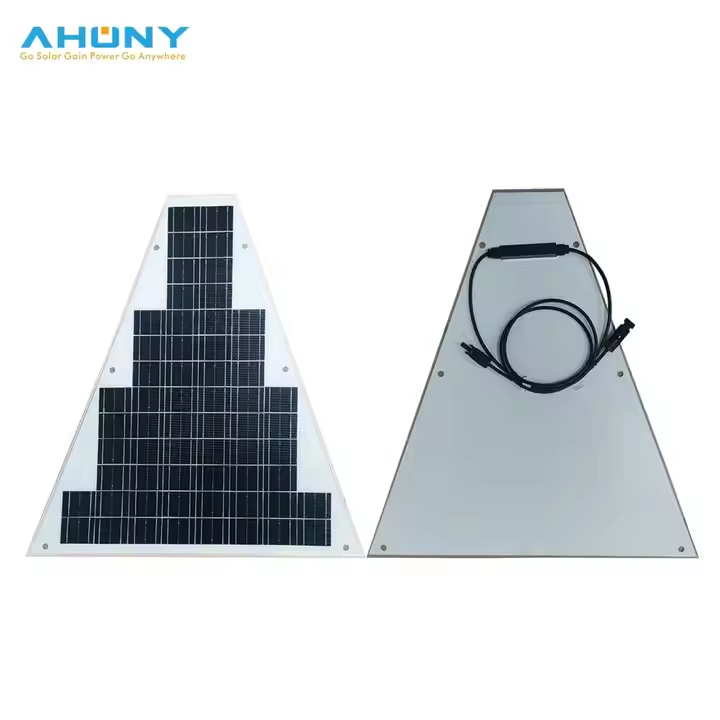

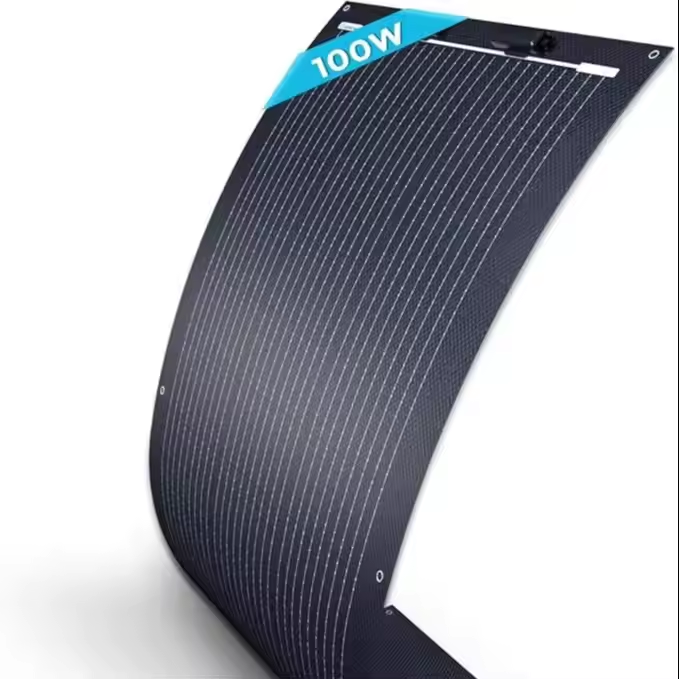

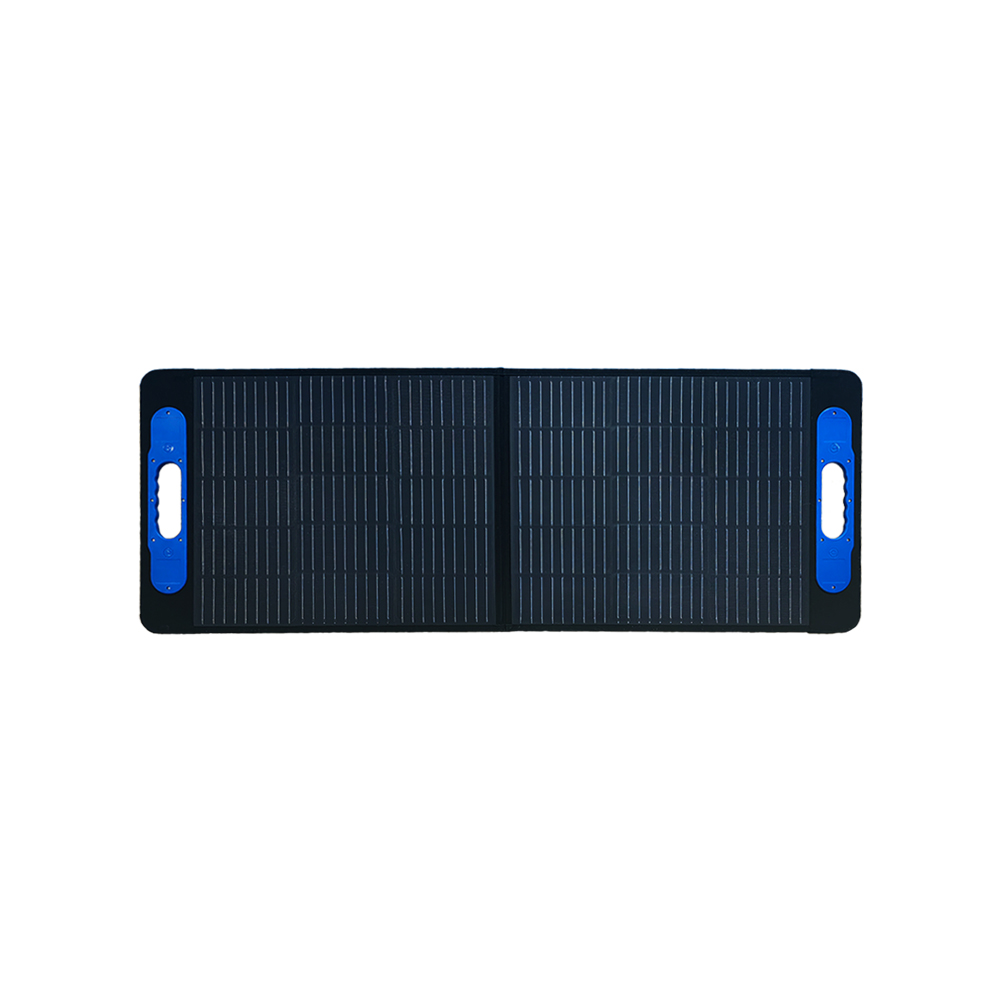

Similar Products
Sales And Service Network

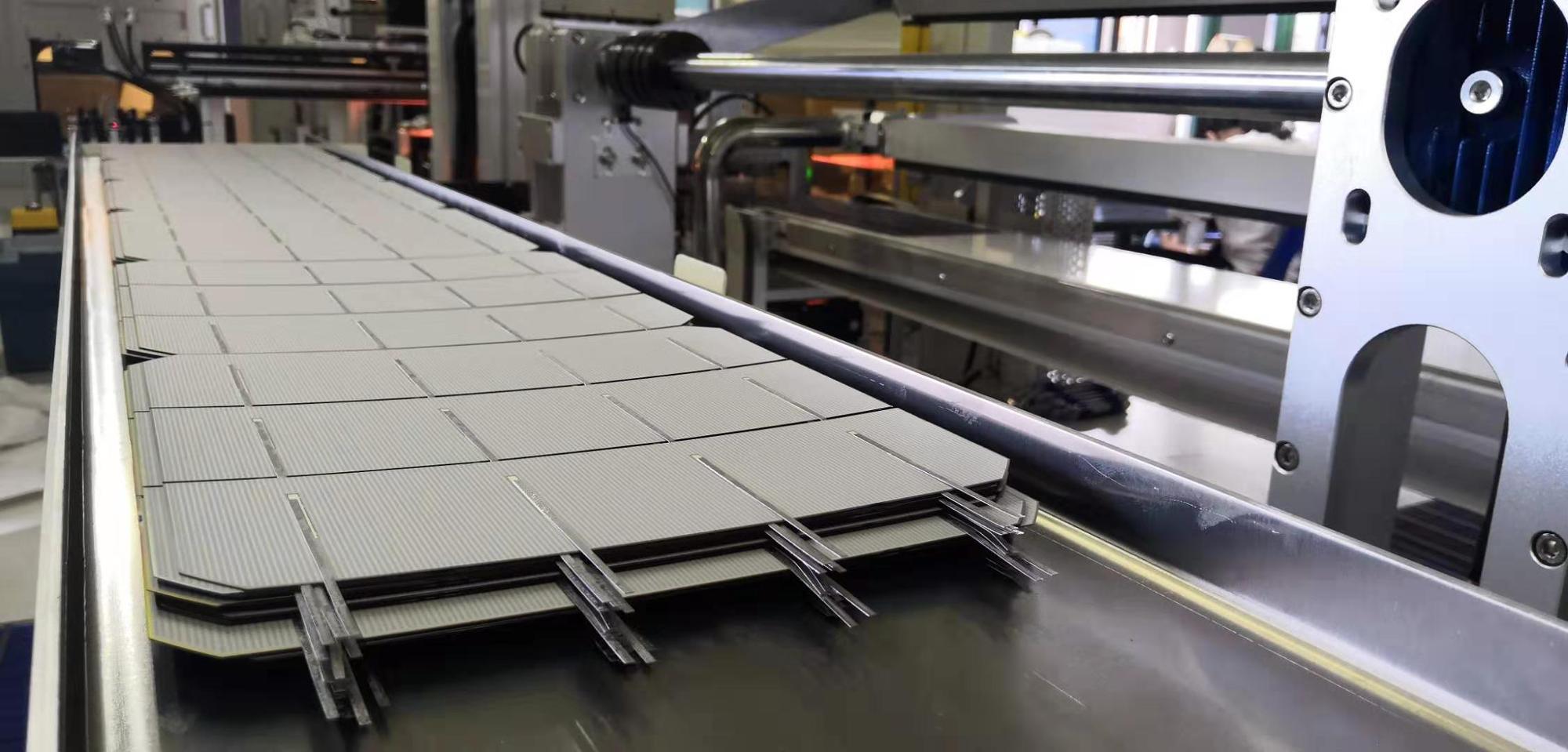

Production Facility
Frequently Asked Questions
Q1: What solar cell technologies do you specialize in?
We specialize in Monocrystalline, PERC, HJT Topcon, and Back contact cells modules. Nearly all of the solar cells we utilize are bifacial.
Q2: Which international certifications do your solar panels hold?
Our solar panels hold IEC61215, IEC61730, CE, ROHS, ISO9001, and SGS salt spray test certifications.
Q3: Do your products comply with the EU's RoHS and CE regulations?
Yes, all of our products are fully compliant with RoHS and CE standards.
Q4: Can you customize panel sizes, wattages, or frame colors?
Yes, we support full custom configurations for panel sizes, wattages (ranging from 1W to 500W), and frame color customization.
Q5: Do you offer OEM/ODM services with custom logos and packaging?
Yes, we offer comprehensive OEM and ODM services, including customized branding, logos, and tailored packaging designs.
Q6: What quality tests do you perform during production?
We run strict quality checks throughout production, including complete EL testing, IV testing, and regular environmental chambers testing (high temperature and high humidity).
