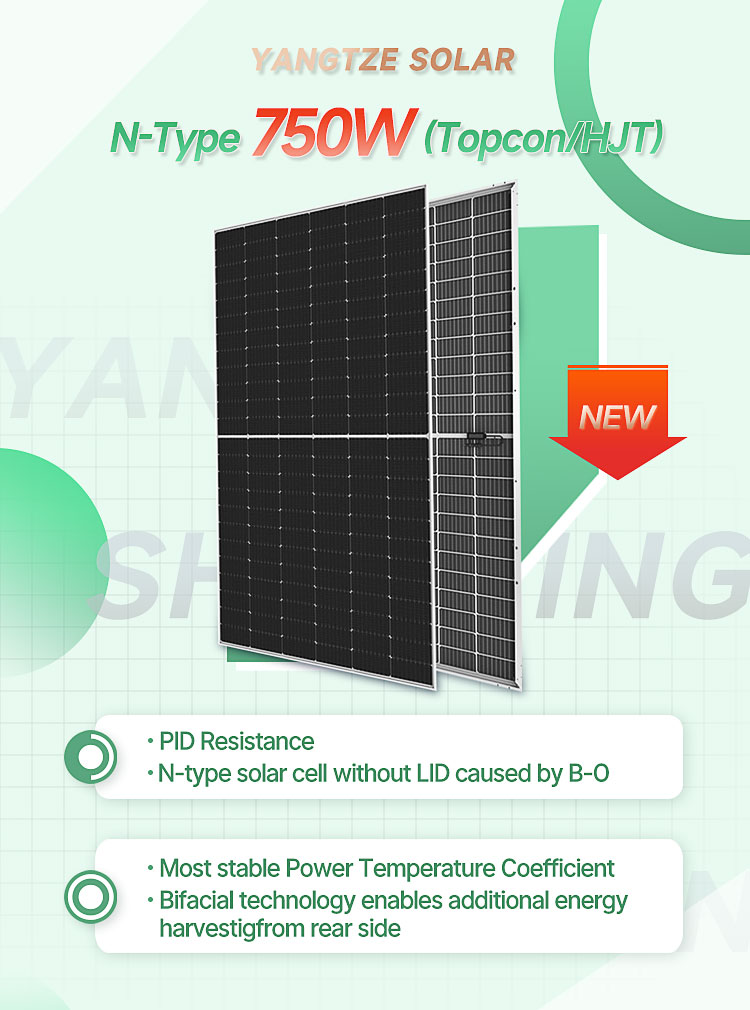

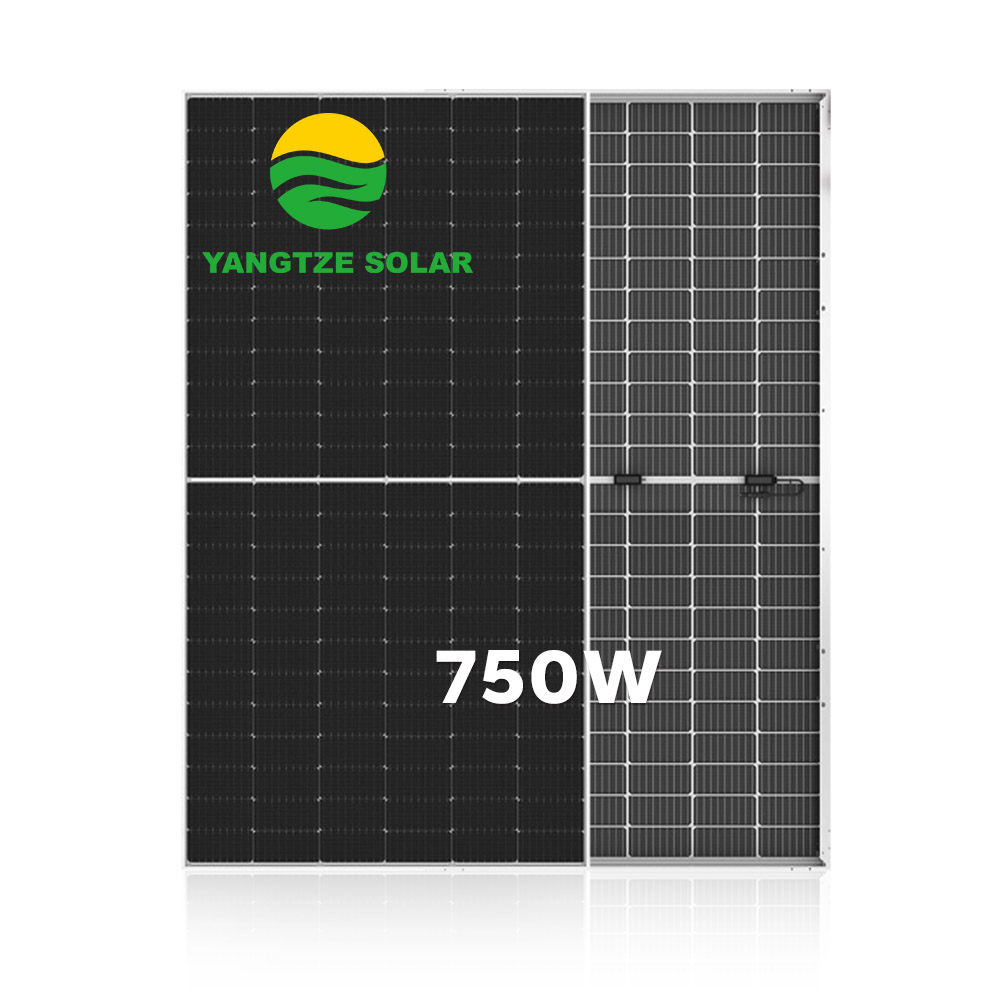

750W Solar Panel Weather-resistant Design, Ideal for Residential Commercial Systems. Boosts Renewable Energy Output

1 / 5

750W Solar Panel Weather-resistant Design, Ideal for Residential Commercial Systems. Boosts Renewable Energy Output

Send Inquiry

Product Description

Model Type	YS710M-132	YS720M-132	YS730M-132	YS740M-132	YS750M-132
Rated Maximum Power at STC	710W	720W	730W	740W	750W
Maximum Power Voltage (Vmp)	40.48V	40.86V	41.04V	41.34V	41.52V
Maximum Power Current (Imp)	17.54A	17.62A	17.78A	17.9A	18.06A
Open Circuit Voltage (Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	22.85%	23.17%	23.5%	23.82%	24.14%

Working Conditions
Operating Temperature	-40°c~+85°c
Maximum System Voltage	DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse	25A
Power Tolerance	0~+5W
Temperature Coefficient of Pmax	-0.35%/°c
Temperature Coefficient of Voc	-0.29%/°c
Temperature Coefficient of Isc	+0.048%/°c

STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 °C, Spectra at AM1.5

NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature 20 °C, Spectra at AM1.5, Wind at 1 m/S

Product Details

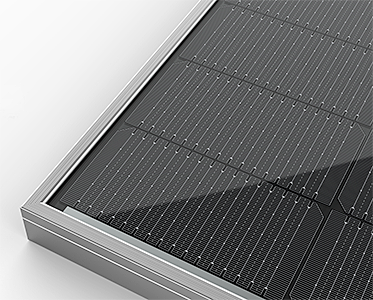

GLASS

3.2mm or 2+2mm or customized, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

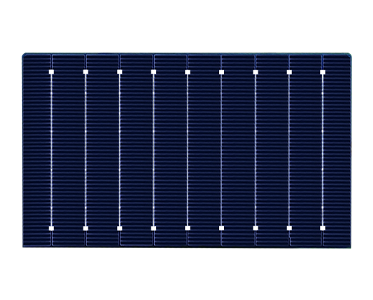

Solar Cell

12BB, tier 1, PERC/HJT/N Type/TOPCON technology, highest power, 10% more watt than others

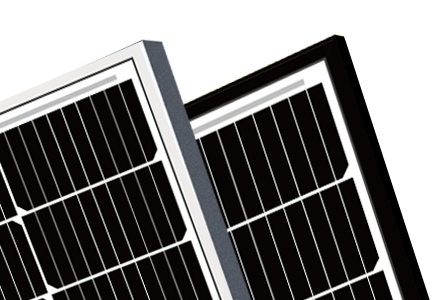

Frame

35mm 40mm Anodized Aluminium Alloy Black/Silver Color Optional

Junction Box

IP 68 rated Waterproof Innovative Full-Glue-Filled Portrait/Landscape Length Optional

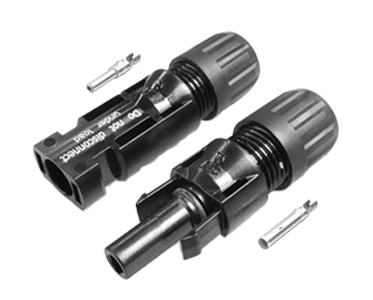

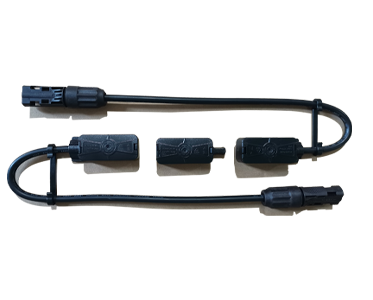

Compatible MC4

MC4 Compatible /MC4 EVO2/TS4* 500N Tensile Strength Female/Male/Fuse

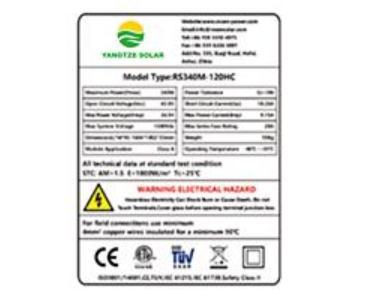

Label

Waterproof Customized Label OEM with your Logo Professional Silver Color

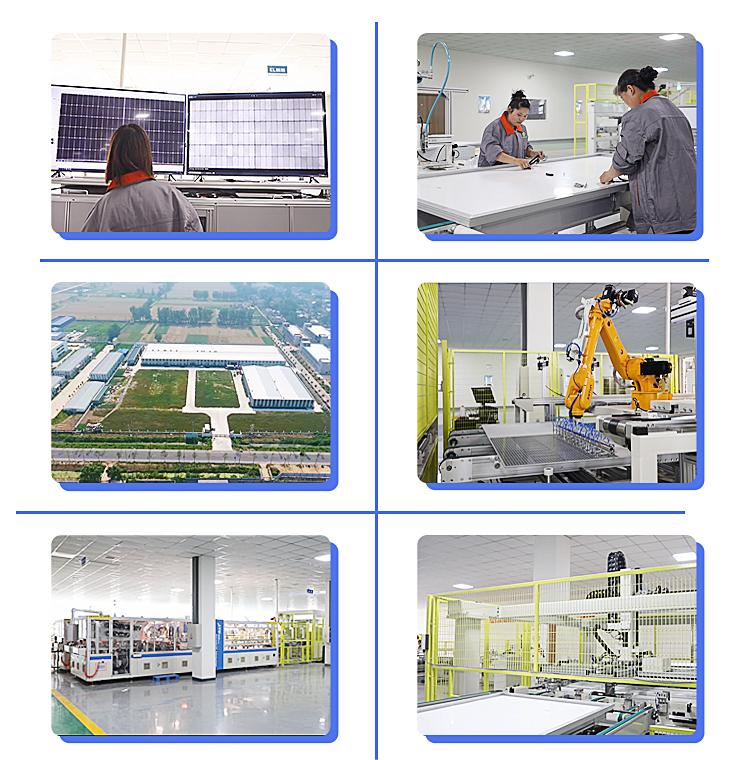

Our Factory

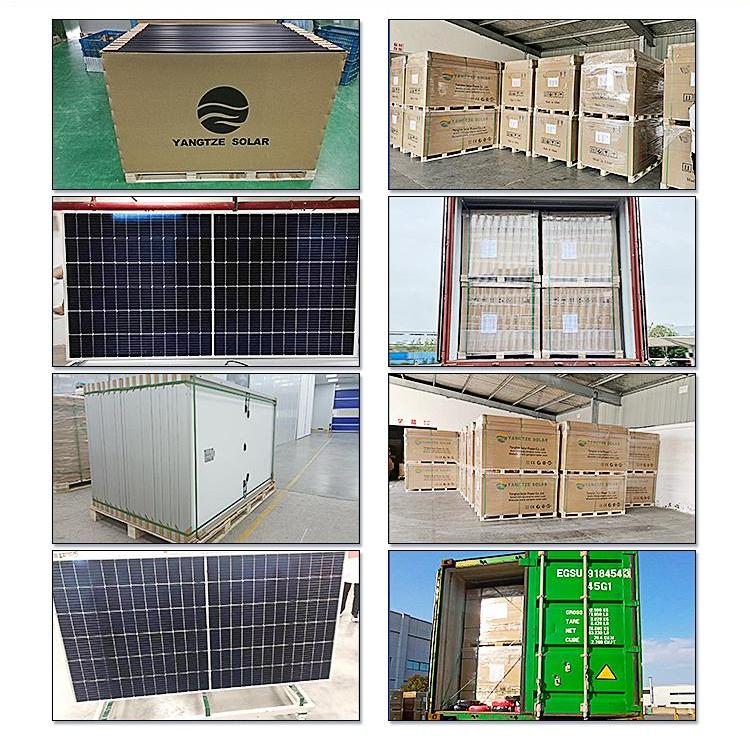

Packing & Delivery

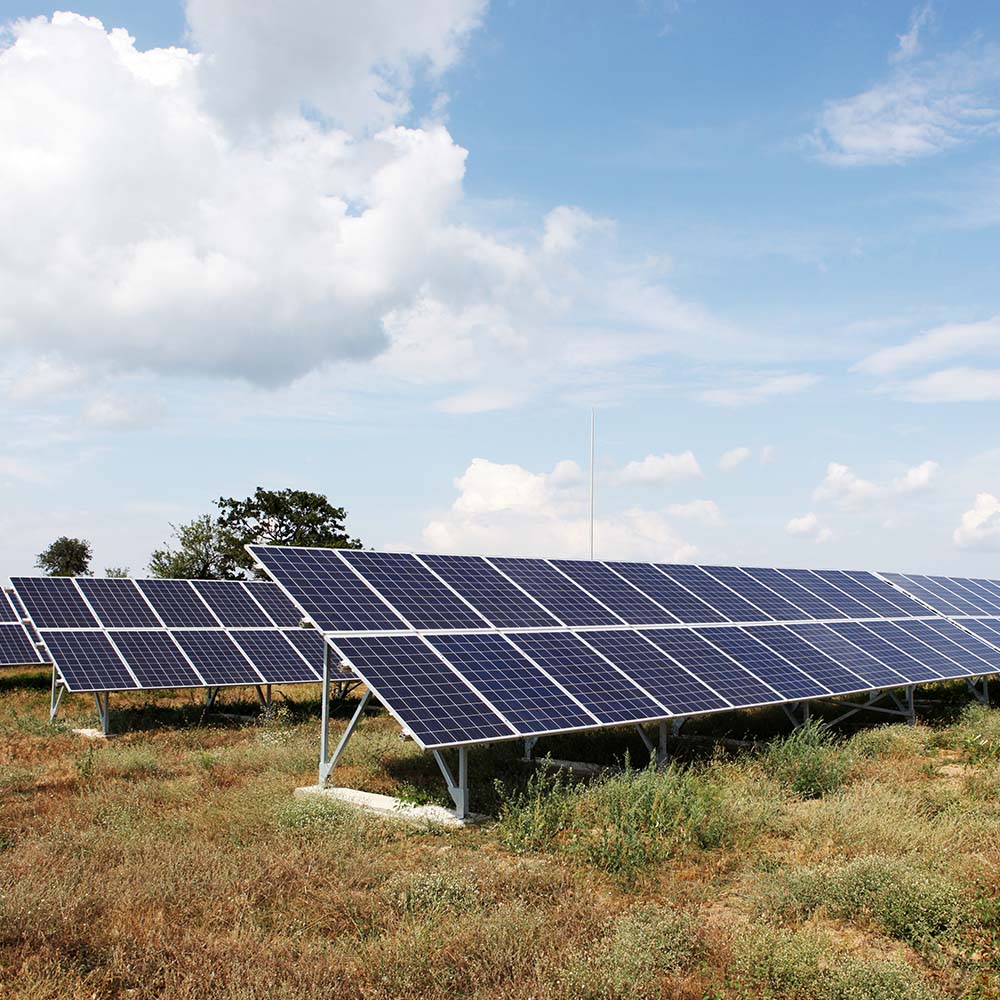

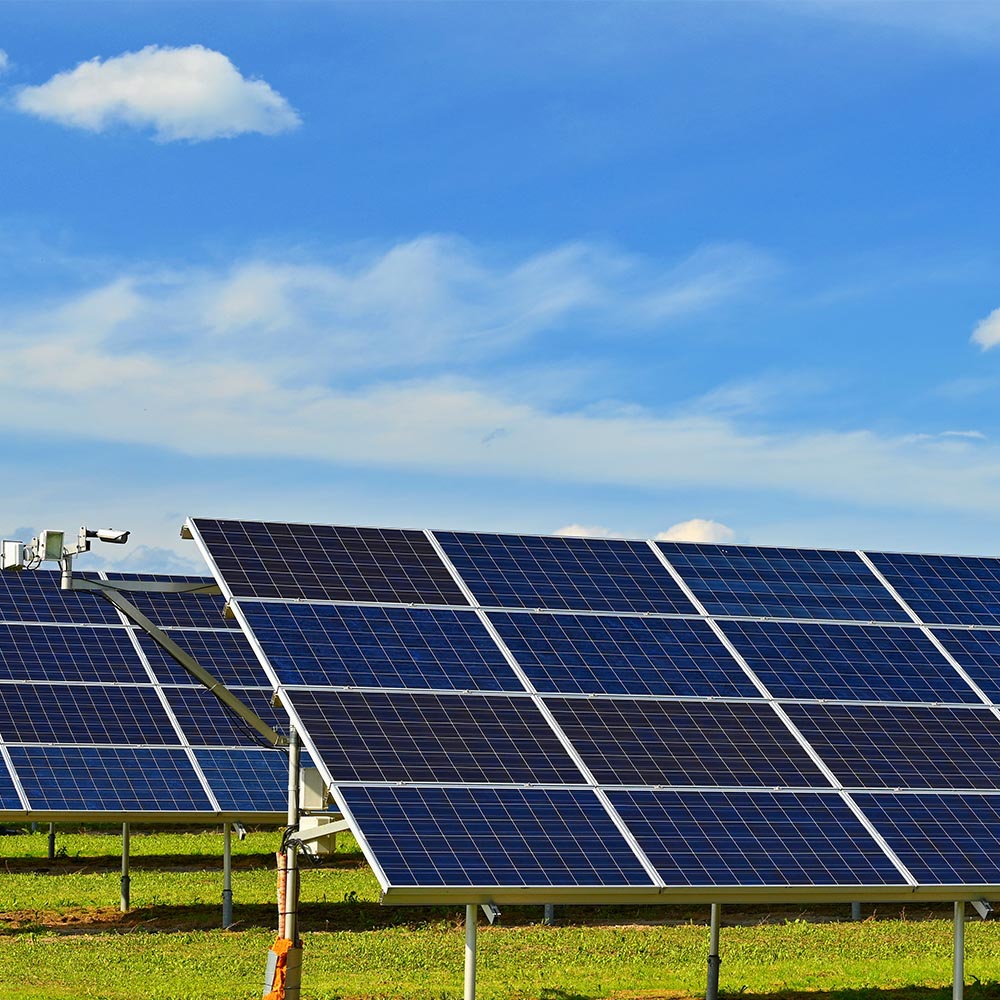

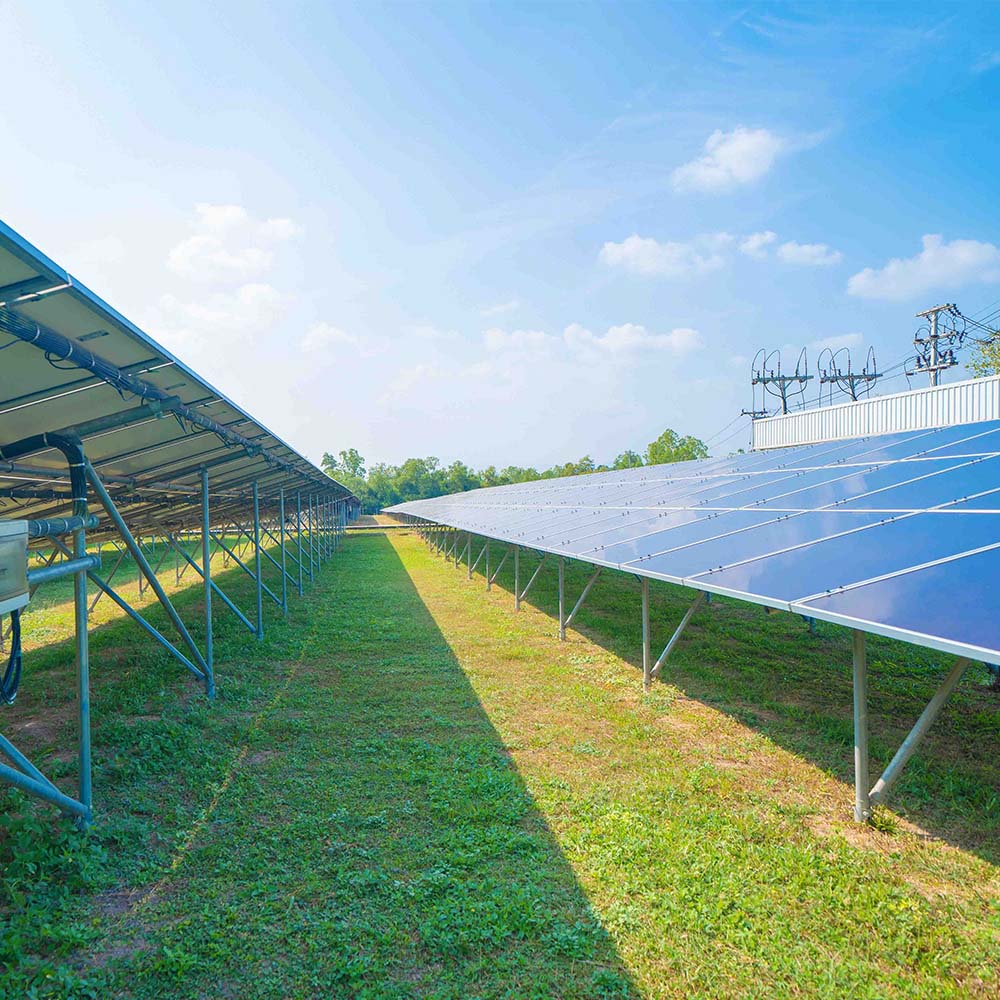

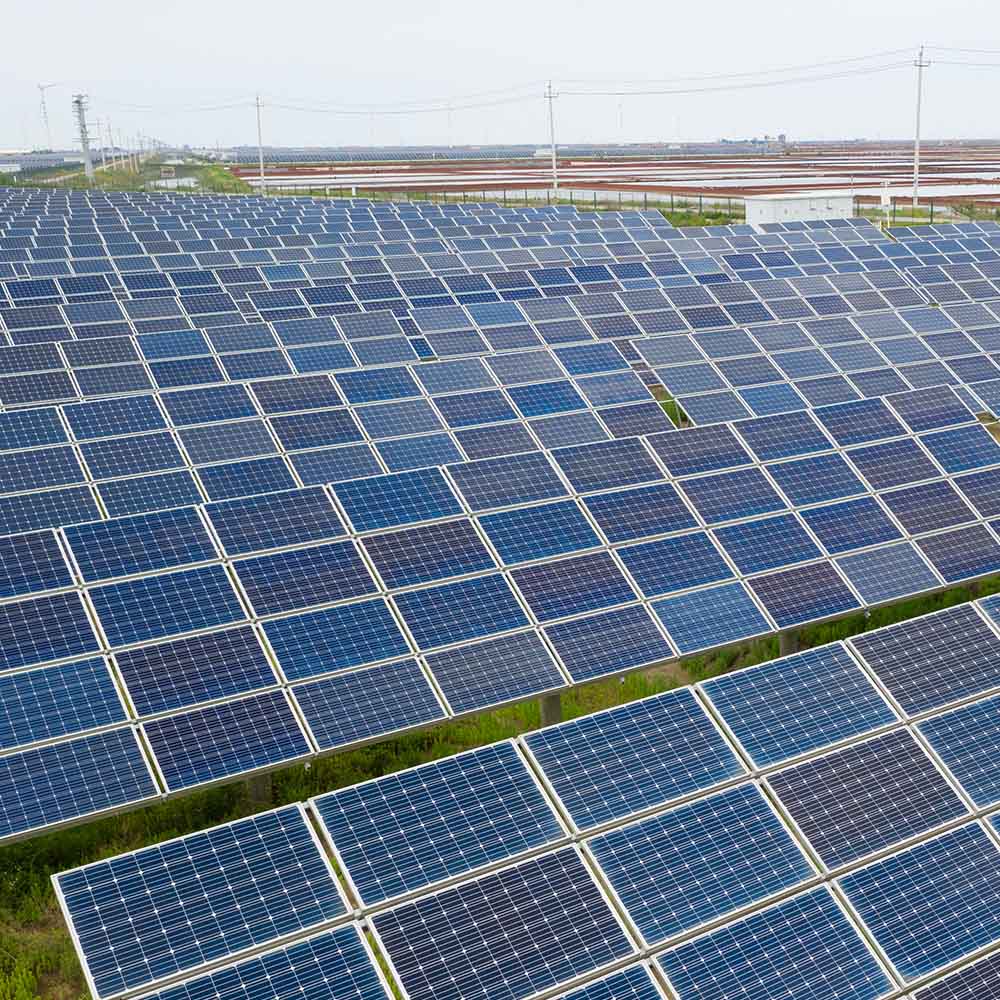

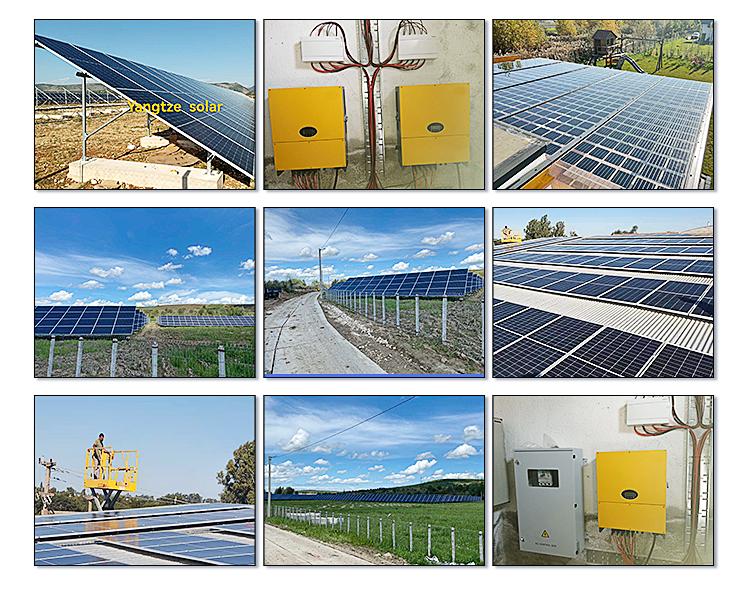

Project Case

Certifications

Exhibition & Customers

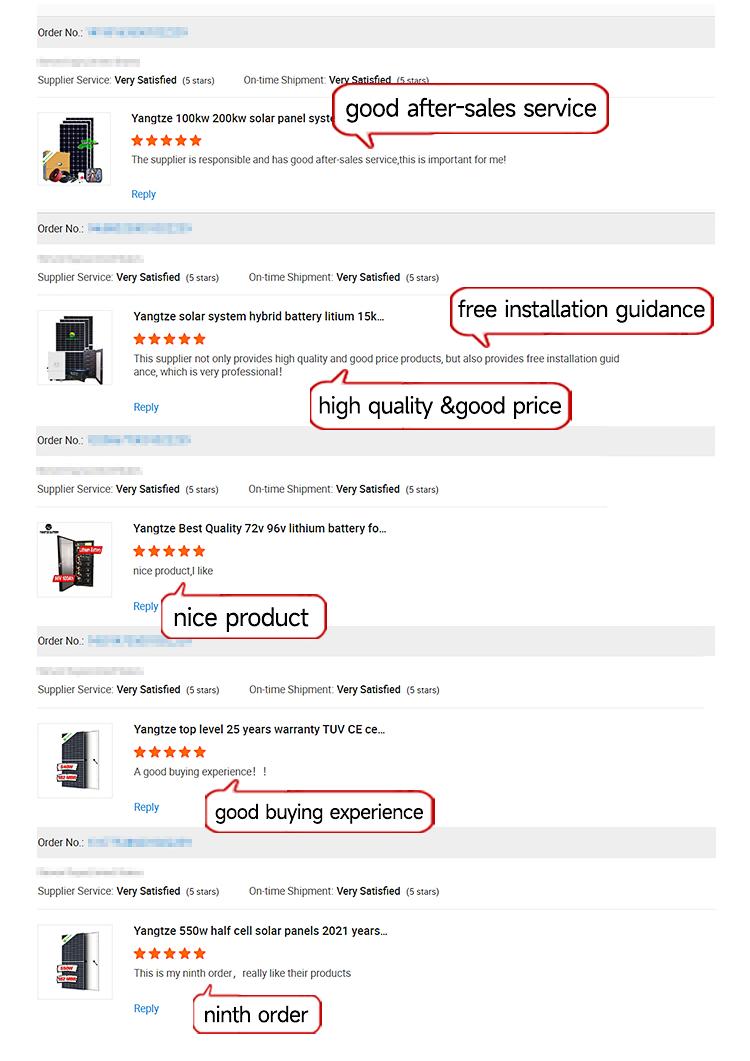

Feedback

Frequently Asked Questions

What are the primary benefits of 700W+ solar modules?

700W+ solar modules utilize advanced large-format cells (such as N-type TOPCon or HJT) to yield higher power output per panel. This efficiency substantially reduces the Balance of System (BOS) costs, including racking, cabling, and installation labor, while maximizing energy generation in limited spaces.

What configuration options exist for the protective glass?

The modules offer flexible glass configurations based on application requirements, including standard 3.2mm tempered glass for monofacial modules, or 2+2mm dual-glass structures for bifacial modules, enhancing durability and mechanical performance.

What level of weather protection do the junction boxes offer?

The junction boxes feature an IP 68 waterproof rating coupled with an innovative full-glue-filled design. This provides optimal protection against dust, water ingress, and extreme weather, guaranteeing long-term operational safety.

Are these solar modules compatible with standard mounting accessories?

Yes. Standard 35mm and 40mm anodized aluminum frames ensure compatibility with mainstream mounting and tracking systems. They also feature MC4 compatible connectors with a 500N tensile strength for reliable electrical hookups.

How do temperature coefficients impact the output of these modules?

With a temperature coefficient of Pmax at -0.35%/°C, these modules experience less power degradation under high ambient temperatures, making them highly efficient for projects located in hot and sunny climates.

What is the standard warranty period for these high-power modules?

These modules typically come with a 12-year standard product warranty on materials and workmanship, alongside a 25-to-30-year linear power output warranty, ensuring long-term yield and security for your investment.
