Product Description

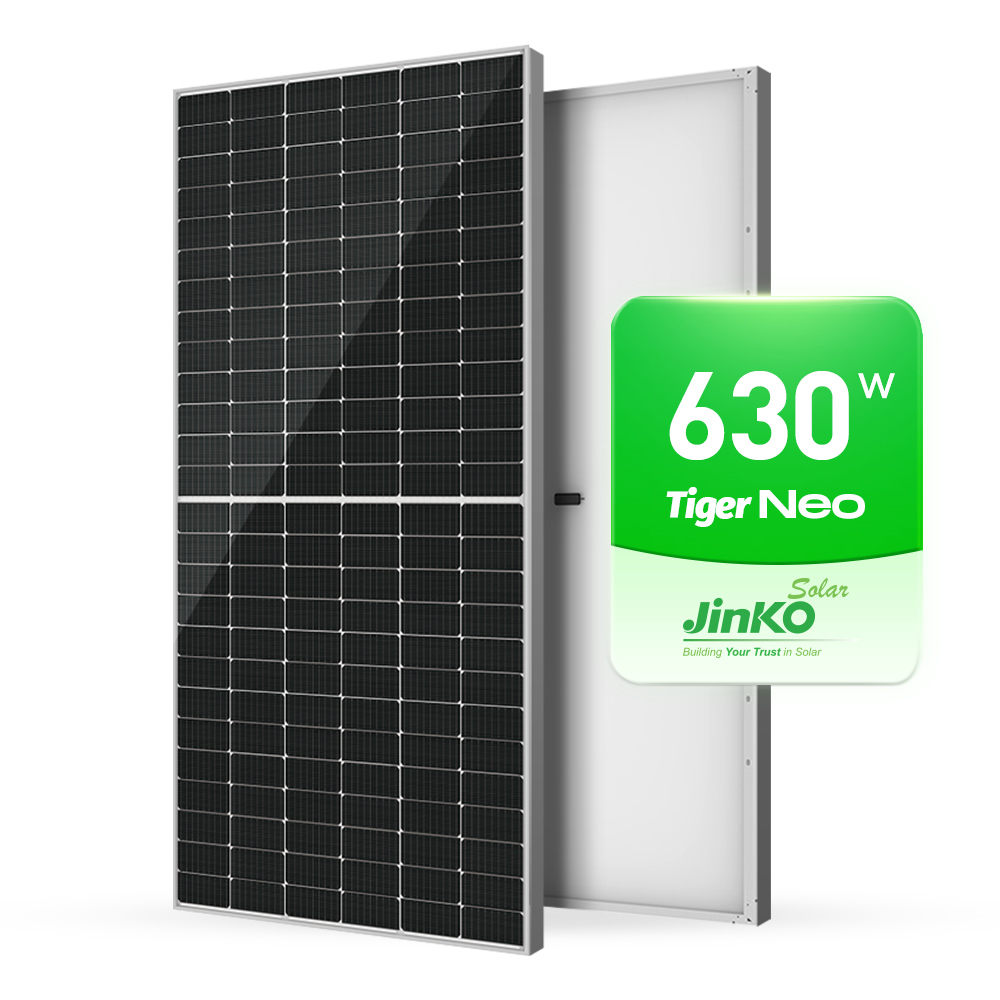

Jinko Solar Tiger Neo N Type 550W 580W 585W 630Watt Bifacial MODULE Half Cut Solar Panel
Jinko Solar Panel Banner
High reliability: 430w-700w
High power up to 700w: Good quality, high efficiency
Ultra-high power meets 22.5% efficiency. Great customer value: faster ROI, higher efficiency, as well as lower degradation, more yield. Back-side power gains included with Jinko's extended 30-year warranty.
Solar Panel Details
You can choose the model or type you want.
Solar Panel Features
Tiger Neo Series Specifications
Cell Type N type Mono-crystalline
No.of Half-cells 156 (2*78)
Dimensions 2456*1134*35mm (97.05*44.65*1.38 inch)
Weight 30.6kg (67.46 lbs)
Front Glass 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Output Cables TÜV 1x4.0mm2, (+) 400mm, (-) 200mm or Customized Length

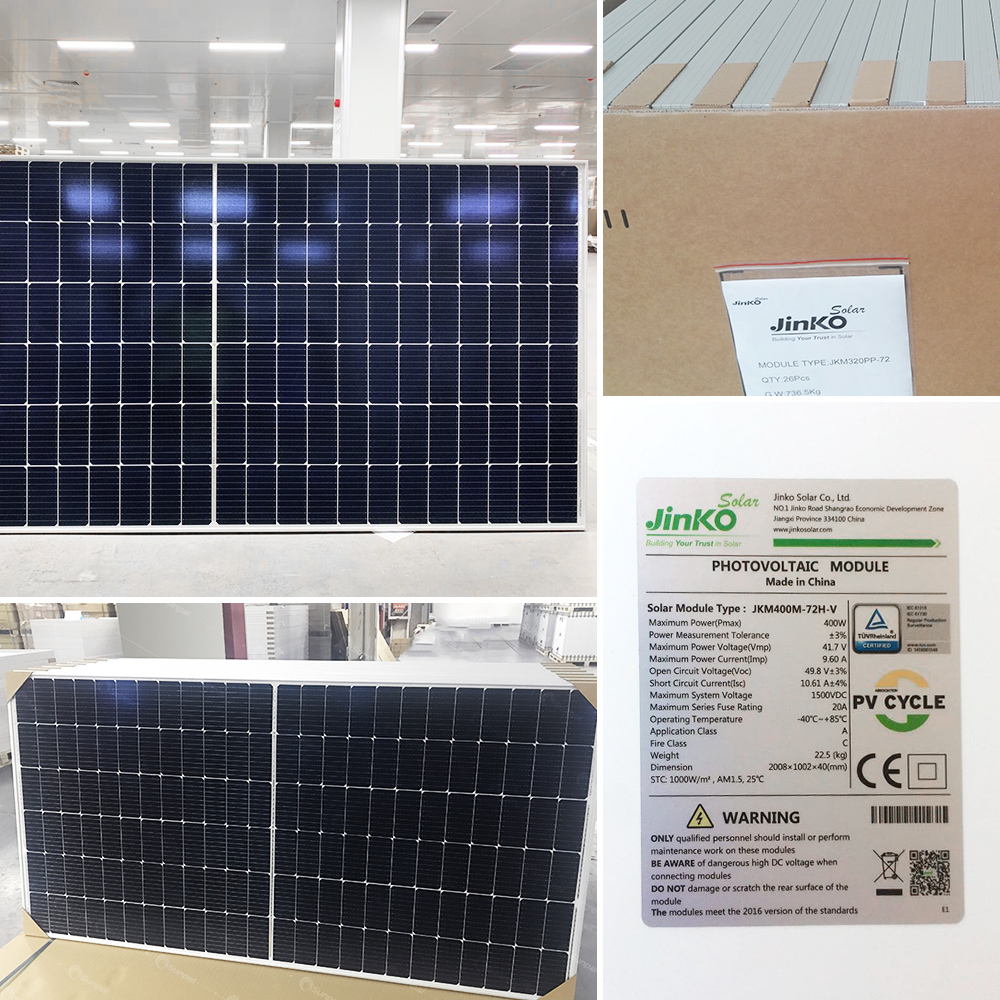

Pictures and Packages
Package Details 1
Package Details 2

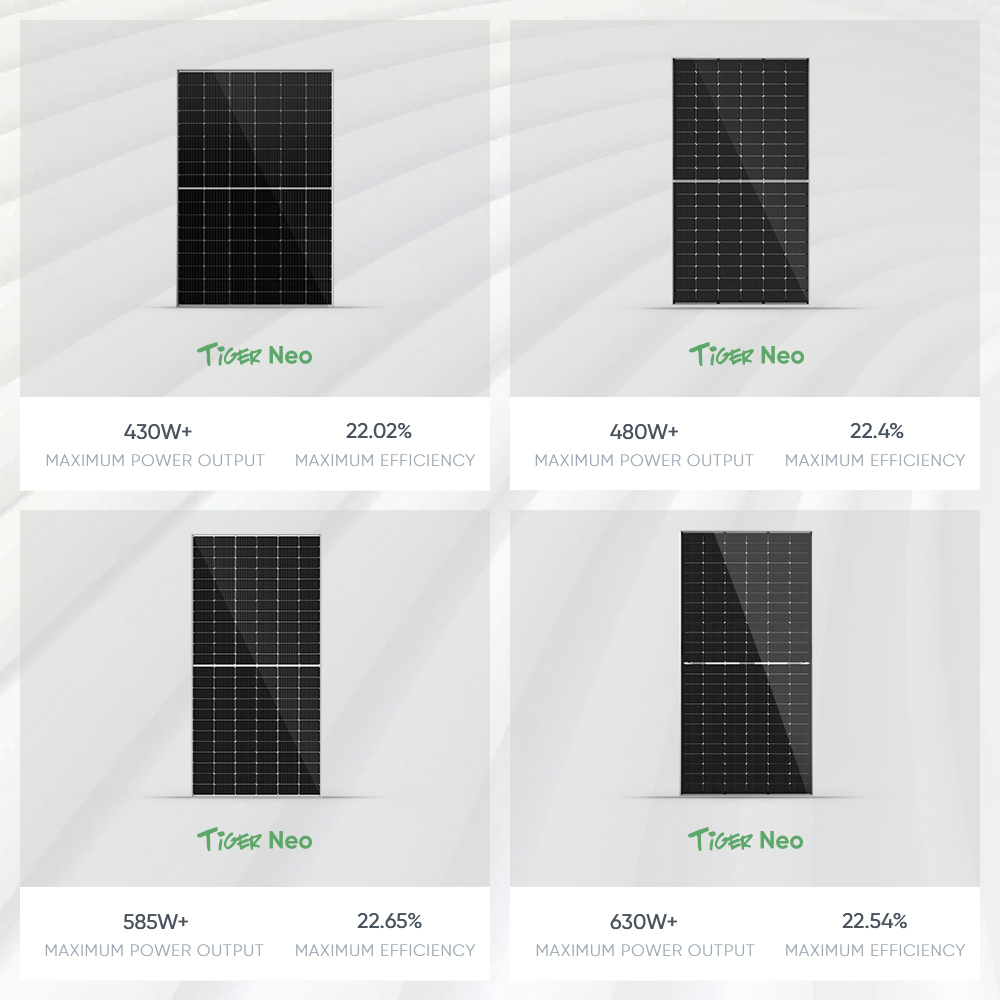

Product Series Range
Tiger Neo N-type 54HL4-(V)
Tiger Neo N-type 54HL4-(V)
Power Range: 410-430W
No. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 22 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Tiger Neo N-type 60HL4-(V)
Tiger Neo N-type 60HL4-(V)
Power Range: 460-480W
No. of Cells: 120 cells
Dimension: 1903×1134×30mm
Weight: 24.2 kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Tiger Neo N-type 72HL4-(V)
Tiger Neo N-type 72HL4-(V)
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Tiger Neo N-type 78HL4-(V)
Tiger Neo N-type 78HL4-(V)
Power Range: 610-630W
No. of Cells: 156 cells
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Tier 1 Solar Module
Tier 1 solar module certificate
Global Project Case
Global project case 1
Global project case 2
Global project case 3
OEM & ODM Services
OEM ODM Service 1
OEM ODM Service 2
Get Free Quote Now
Get Quote Details
Frequently Asked Questions
What are the advantages of N-type solar panels?
N-type solar panels feature higher efficiency, lower degradation rates, better temperature coefficients, and higher bifaciality, yielding more energy over their lifespan.
What is the efficiency rating of the Tiger Neo series?
The Tiger Neo series achieves ultra-high performance with panel efficiency reaching up to 22.5%, ensuring faster ROI and optimized energy output.
How long is the warranty coverage for these modules?
These Jinko panels feature an extended 30-year warranty covering linear power degradation and back-side power gains.
Can output cable lengths be customized?
Yes, output cables are customized to meet specific project needs, with standard configuration options such as TÜV 1x4.0mm² (+) 400mm / (-) 200mm.
Are these solar modules suitable for extreme weather conditions?
Yes, they are manufactured with IP68-rated junction boxes, high-transmission tempered glass, and anodized aluminum frames, providing top-tier reliability in demanding environments.
