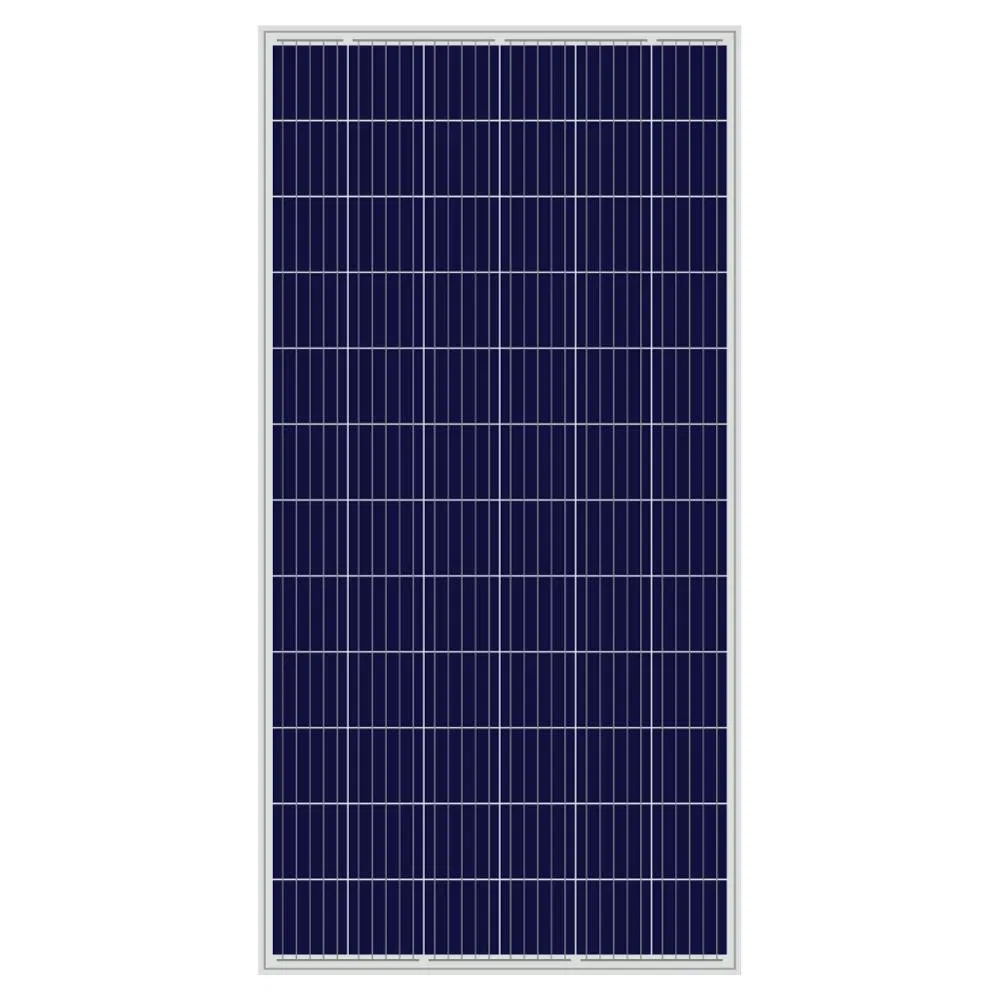

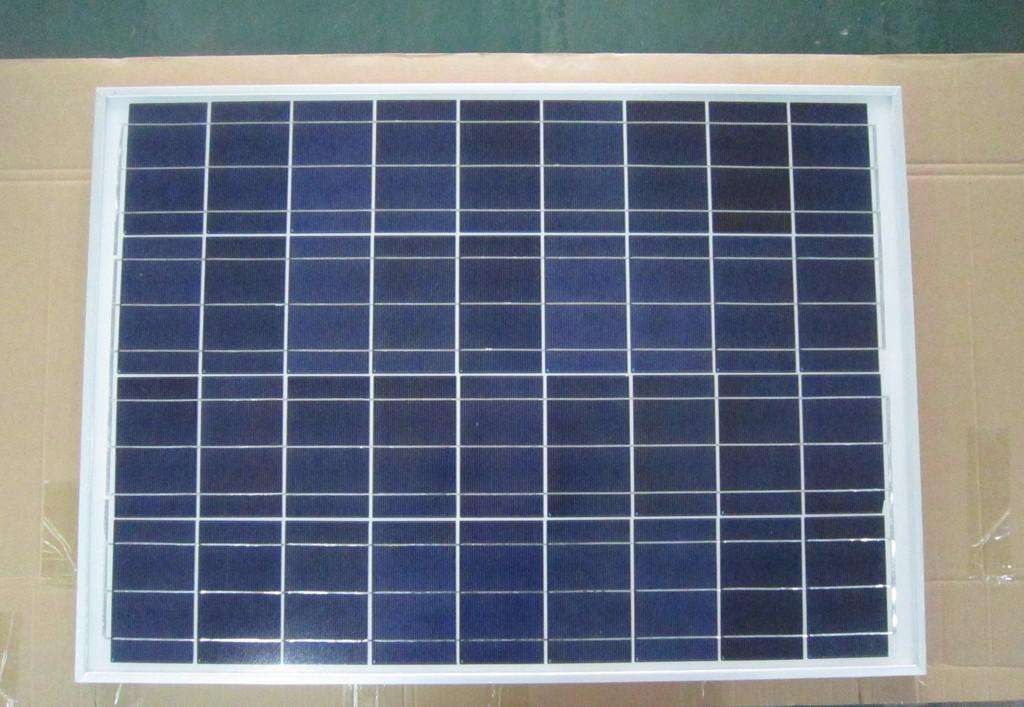

China Manufacture 80W Mono Polycrystalline Solar Panel 12V 18V 24V for Solar Energy System

Customization: Available
Warranty: 25 Years
Number of Cells: 36pcs

Product Description

  • Overview
  • Product Description
  • Project Case
  • Packaging & Shipping
  • Certifications
  • Company Profile
  • Product Warranty
  • FAQ
Overview - Basic Info.
Model NO.
FSP-080W
Application
Solar Street Light/Solar Power System
Condition
New
Certification
ISO, CE
Material
Polycrystalline Silicon
Power
80W
Cell
Poly
Voltage
18V
Weight
7kg
Size
820*670
Thickness
35mm
Package
2PCS/Carton
Type
Perc, Standard Solar Panel
Junction Box
IP67
Lifespan
More Than 25 Years
Glass
3.2mm Tempered Low Iron
Tpt Back Sheet
Black/White Backsheet
Color
Blue And Black
Cable
4mm2
Frame
Anodized Aluminium Alloy
Transport Package
2PCS/Carton
Specification
FSP-080W
Production Capacity
100MW/Year
Packaging & Delivery
Package Size
82.00cm * 67.00cm * 4.00cm
Package Gross Weight
6.000kg
Product Description

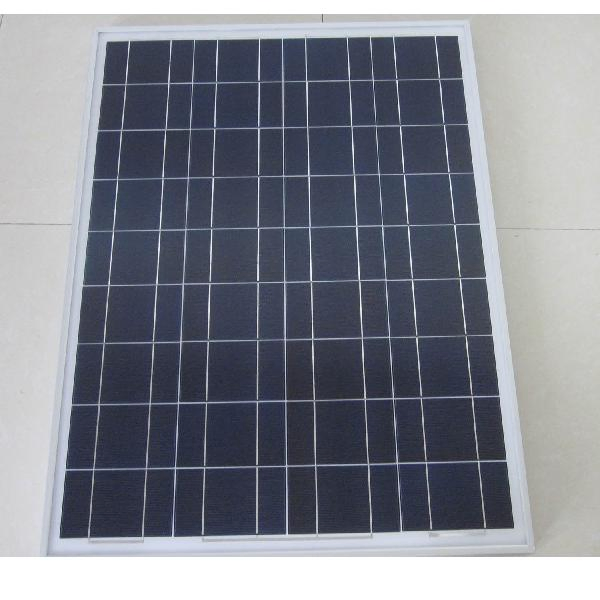

80W Poly Solar panel

TypeFSP080W
Type of Solar CellPoly-crystalline, 156mm×156mm
Number of Cells36 pcs (156×12)
Size of module820×670×35mm (156×156mm cell)
Module Weight5.65 kg
Junction box/ConnectorTOP, IP65, 1000V DC, TUV certificated
Cables, Length (+/-)Customizable
Front Cover GlassTempered glass
Front Cover Glass Thickness3.2 mm
FrameAnodized Aluminium
Maximum Power Pm(W)80 W
Power Tolerance+ 3%
Maximum Power Voltage(Vmp)18.3 V
Maximum Power Current (Imp)4.58 A
Open Circuit Voltage(Voc)21.6 V
Short Circuit Current(Isc)5.03 A
Module Efficiency15.00%
Maximum System Voltage1000 V
Operating temperature-40 Degree to 85 Degree
Heavy mechanical load5400Pa (meet IEC61215)

High efficiency poly solar cell with positive tolerance only

  • International quality management system with 100% panel power and EL test before shipment
  • Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
  • Nearest shipment port: Ningbo or Shanghai

Temperature Coefficients:

  • Power temperature coefficient (%/ºC): - 0.45 %/ºC
  • Current temperature coefficient (%/ºC): 0.065±0.015 %/ºC
  • Voltage temperature coefficient (%/ºC): - 0.35 %/ºC
  • NOCT-Normal Operating Cell Temperature: 45±2ºC

Related Products

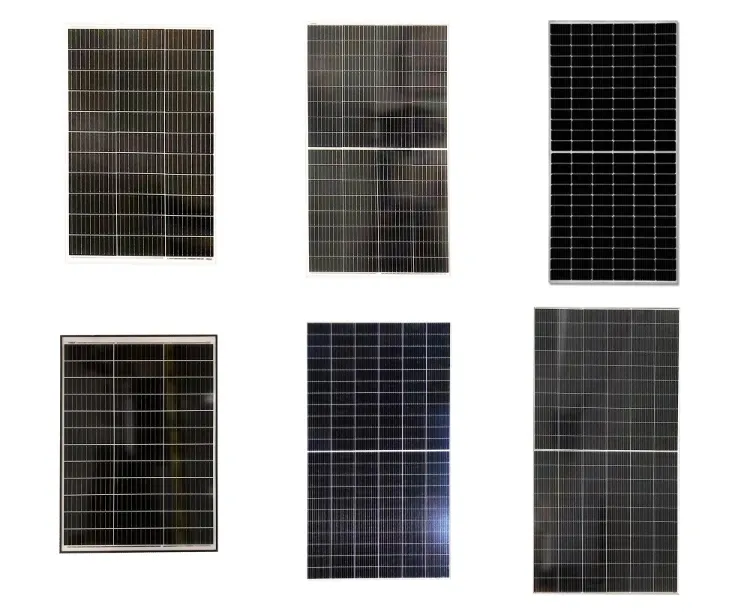

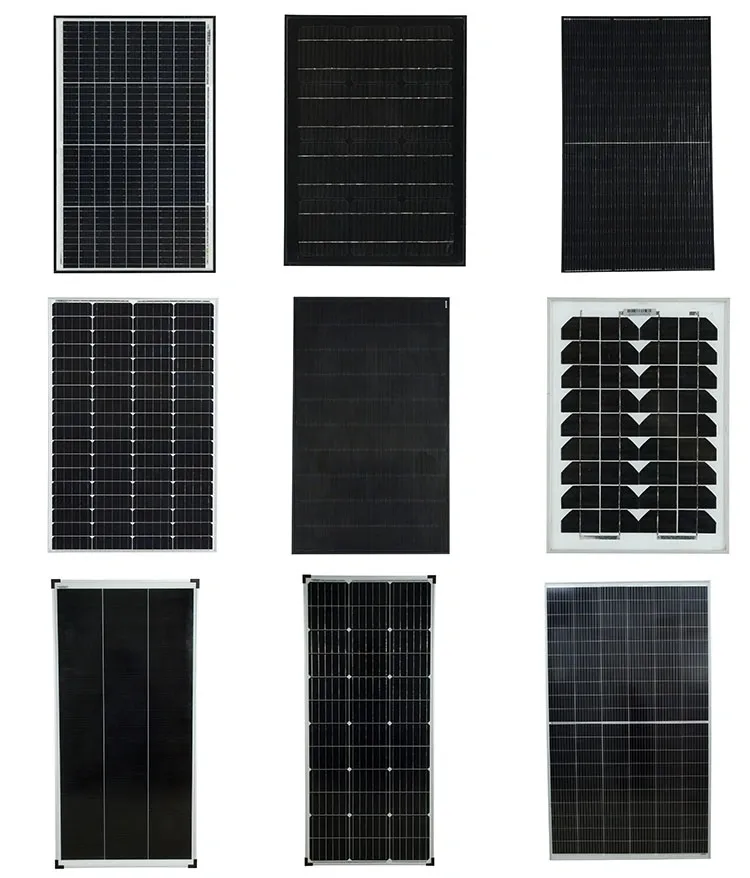

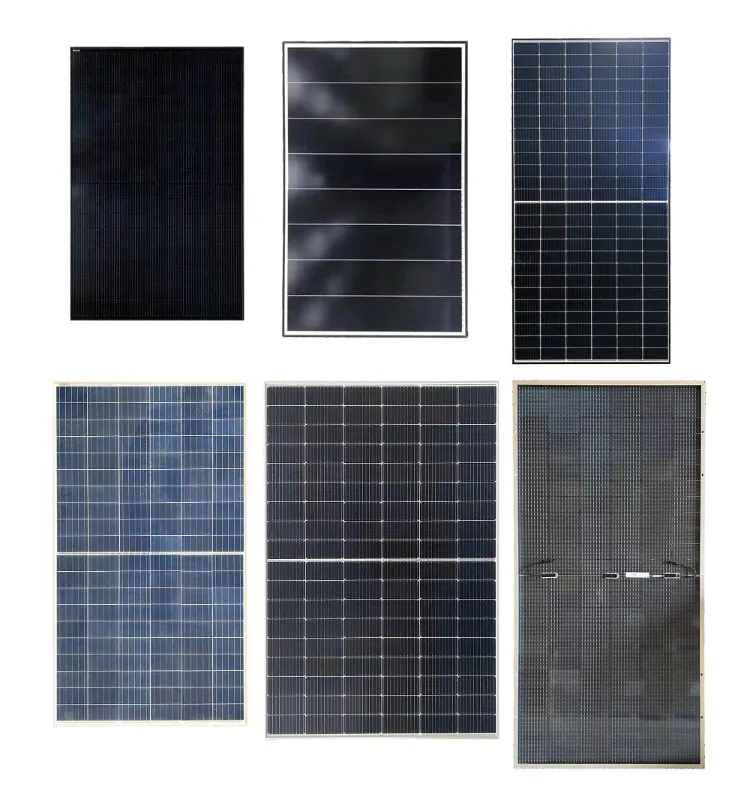

80W Mono Polycrystalline Solar Panel
80W Mono Polycrystalline Solar Panel
80W Mono Polycrystalline Solar Panel
Project Case

Till now, we have supplied solar products to 100+ companies from all over the world. We build the good relationship with our clients & provide best quality modules.

  • Asian: India, Japan, Korea, Singapore, Pakistan, Malaysia, Philippines, Israel, Bangladesh...
  • Europe: Germany, France, Austria, Slovakia, Sweden, Norway, Netherlands, Finland, Serbia.
  • Australia: Australia, New Zealand, Fiji
  • America: United States, Canada, Colombia, Brazil, Chile...
  • Africa: Ghana, Kenya, Nigeria, Mauritius, Congo...

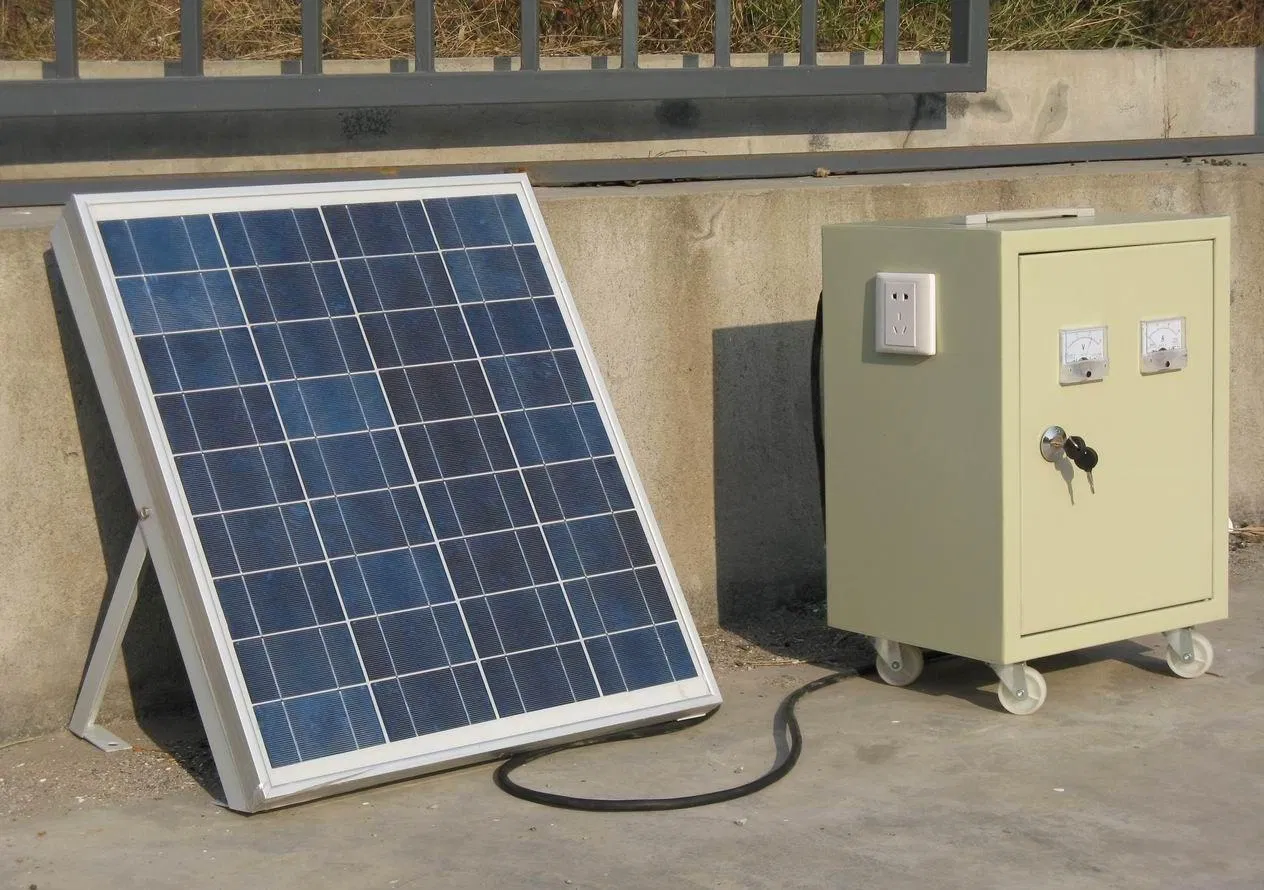

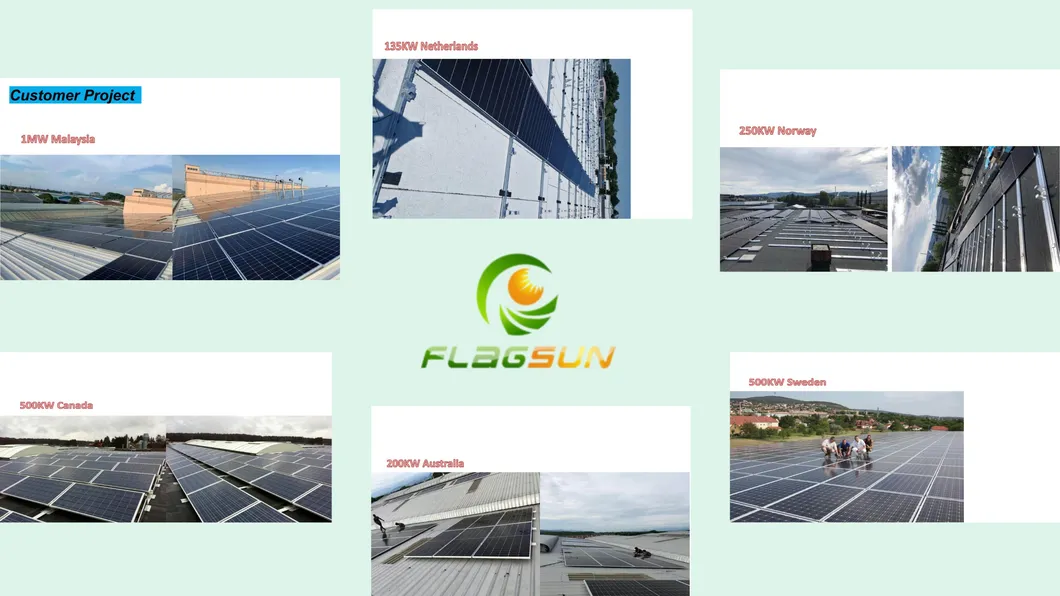

Project Case Solar Installation
Packaging & Shipping

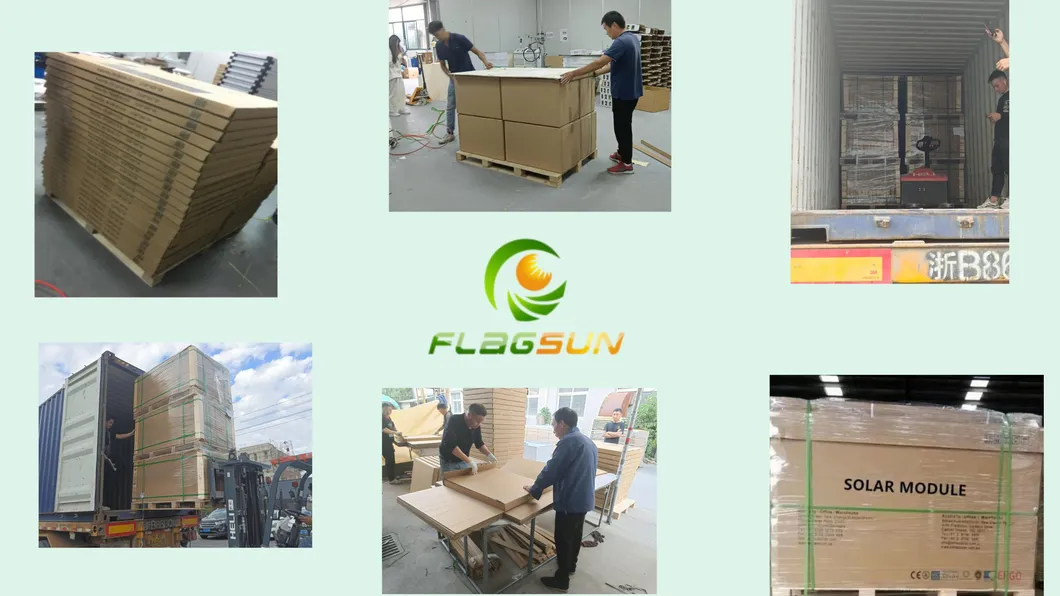

Packaging Box Details
Shipping Pallets Loading
Certifications

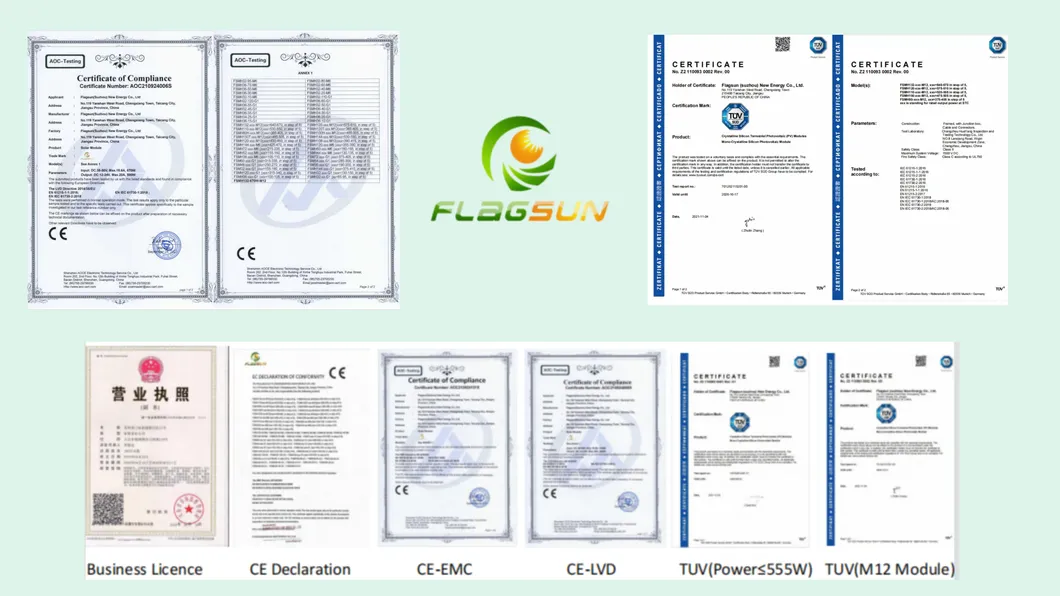

Solar Certifications
Company Profile
Factory Overview

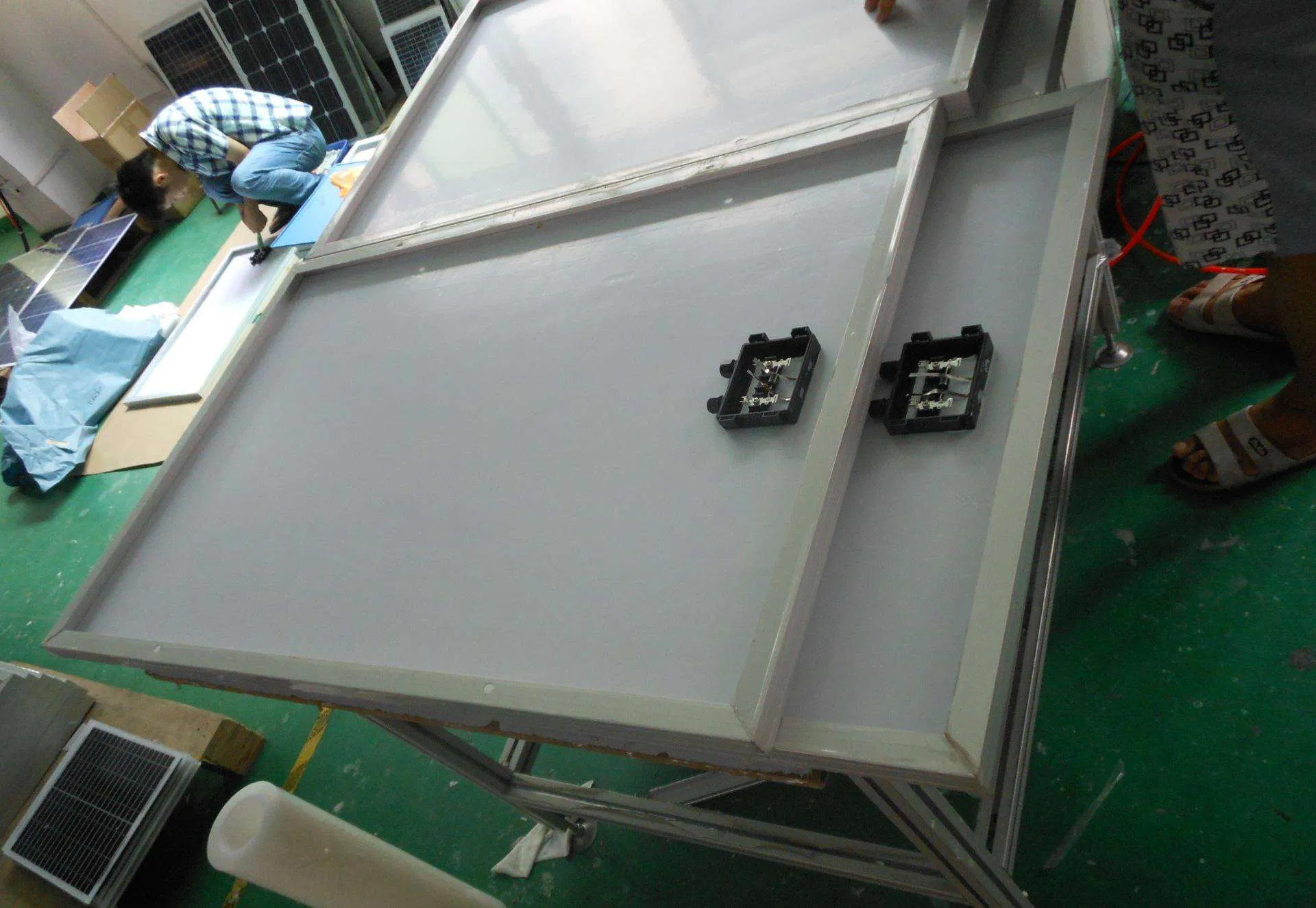

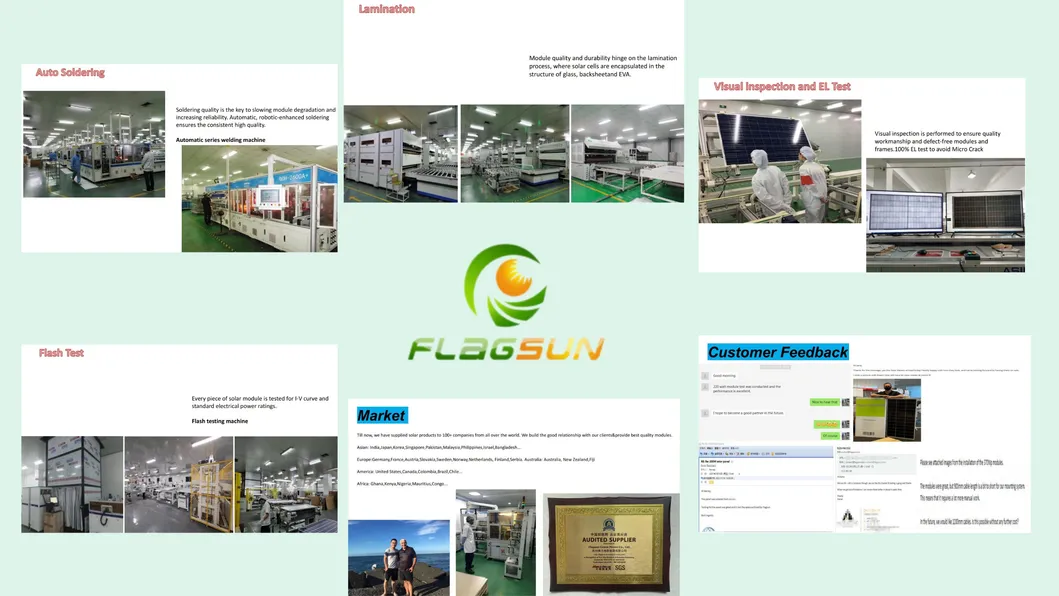

Production Workshop
Product Warranty

Module Warranty

  • 25 - year limited warranty of 80% power output;
  • 10 - year limited warranty of 90% power output;
  • 5 - year limited warranty of materials and workmanship.

12 Years Limited Warranty:

If, within a period of ten (10) years from the date of sale as shown in the invoice to the CUSTOMER, any MODULE(s) exhibits a power output less than 90.98% of the "Peak Power at STC" as specified at the date of invoice in the applicable product information sheet, the manufacturer will, at customer's option, either provide additional MODULES to the CUSTOMER to make up for such loss in power, or replace, or compensate the defective MODULE(s).

30 Years Limited Warranty:

Subject to standard terms, if, within a period of Twenty-five (25) years from the date of sale as shown in the invoice to the CUSTOMER, any MODULE(s) exhibits a power output of less than 81.77% of the "Peak Power at STC" as specified at the date of invoice in the PRODUCT INFORMATION SHEET, the manufacturer will, at customer's option, either provide additional MODULES to the CUSTOMER to make up for such loss in power, or replace, or compensate the defective MODULE(s).

The remedies set forth above shall be the sole and exclusive remedies with respect to any deficiency in the power output of MODULES.

Frequently Asked Questions
Q1: How can we guarantee the quality of the solar modules?
A: We guarantee quality through a strict process: always conducting a pre-production sample test before starting mass production, followed by a final inspection on all products before shipment.
Q2: What services and payment terms can we provide?
A: We accept multiple Delivery Terms including FOB, CFR, CIF, and EXW. Payments can be processed in USD, EUR, and CNY currencies through T/T, L/C, or Credit Card.
Q3: Why should you buy from us instead of other suppliers?
A: We are a global solar energy provider with a presence in more than 130 countries worldwide. More than 1.5GW of our solar modules have been successfully deployed in residential, commercial, and off-grid solar systems globally.
Q4: What is the warranty policy for this 80W solar panel?
A: We offer a comprehensive module warranty: a 25-year limited warranty for 80% power output, a 10-year limited warranty for 90% power output, and a 5-year warranty covering materials and workmanship.
Q5: What are the main physical dimensions and cell specifications?
A: The solar panel features Poly-crystalline cells (156mm×156mm) with a 36-piece (156×12) configuration. The physical size of the module is 820×670×35mm, weighing 5.65 kg.
Q6: What is the mechanical load resistance of this solar panel?
A: This solar panel is built to withstand heavy mechanical loads up to 5400Pa, which successfully meets standard IEC61215 requirements.
