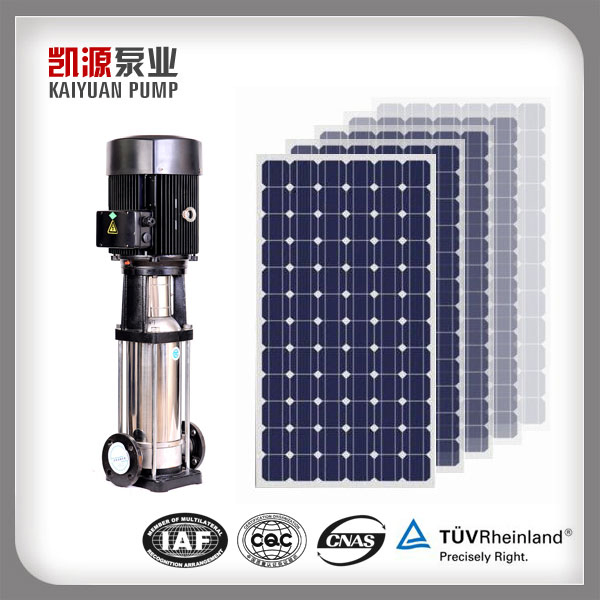

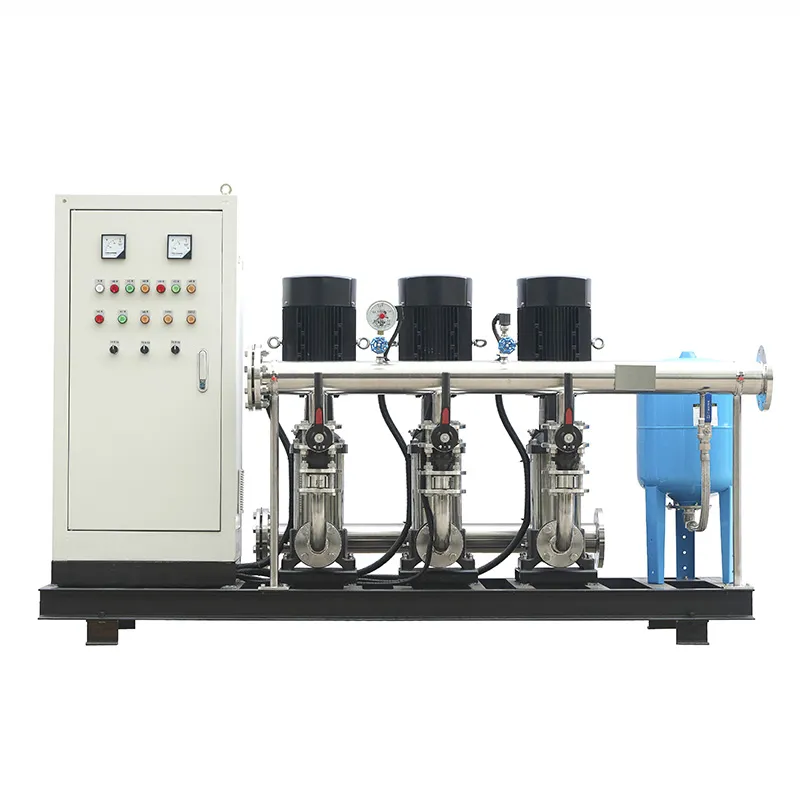

QDL/QDLF is a latest vertical multistage pump with light weight. It has the features of energy-saving, environmental friendly, less space demand, easy installation, stable performance and convenient maintenance. The pump is made of AISI 304 stainless steel with excellent quality. Such an ideal pump is a perfect substitute for the former pressurizing pumps.
The normal model is suitable for fluid delivery, circulation, and pressurizing for drinking hot or cold water and softened water. The stainless steel model is suitable for brackish water, mineral water, distilled water, swimming pool water, and other fluids containing chloride. Under these conditions, the fluid temperature should be lower than standard applications.
| Specification Parameter | Unit | Value Details |
|---|---|---|
| Size and Number of Cells | - | 156mm*104mm 36pcs(4*9) |
| Pmax | W | 80 |
| VOC | V | 22.06 |
| ISC | A | 4.77 |
| VMP | V | 17.48 |
| IMP | A | 4.58 |
| Max. System Operating Voltage | V | 1000V |
| Dimension | mm | 1000mm*670mm*30mm |
| Weight | kg | 9.5 |
| Operating Temp. Scope | ºC | -40 to +85 |
| Resistances | - | 227g steel ball fall down from 1m height and 60m/s wind |
| Model | No. Of Cell (Pcs) | Max. Power Pmax (W) | Open Circuit Voltage VOC (V) | Short Circuit Current ISC (A) | Max. Voltage VMP (V) | Max. Current IMP (A) | Module Dimension (mm) |
|---|---|---|---|---|---|---|---|
| KY40P36 | 36pcs(4*9) | 40 | 21.92 | 2.41 | 17.58 | 2.28 | 720*540*30 |
| KY60P36 | 36pcs(4*9) | 60 | 21.88 | 3.61 | 17.62 | 3.41 | 652*670*30 |
| KY80P36 | 36pcs(4*9) | 80 | 22.06 | 4.77 | 17.48 | 4.58 | 1000*670*30 |
| KY100P36 | 36pcs(4*9) | 100 | 22.12 | 5.95 | 17.84 | 5.61 | 1120*670*35 |
| KY120P36 | 36pcs(4*9) | 120 | 22.14 | 7.13 | 17.86 | 6.72 | 1242*670*35 |
| KY250P60 | 60pcs(6*10) | 250 | 40.62 | 8.27 | 32.86 | 7.76 | 1650*992*40 |
| KY60M72 | 72pcs(4*18) | 60 | 22.14 | 3.61 | 17.86 | 3.36 | 840*540*30 |
| KY80M36 | 36pcs(4*9) | 80 | 21.86 | 4.88 | 17.74 | 4.51 | 1200*540*30 |
| KY100M36 | 36pcs(4*9) | 100 | 22.06 | 6.04 | 17.93 | 5.57 | 1200*540*30 |
| KY120M48 | 48pcs(6*8) | 120 | 29.36 | 5.24 | 23.88 | 5.03 | 1065*808*35 |

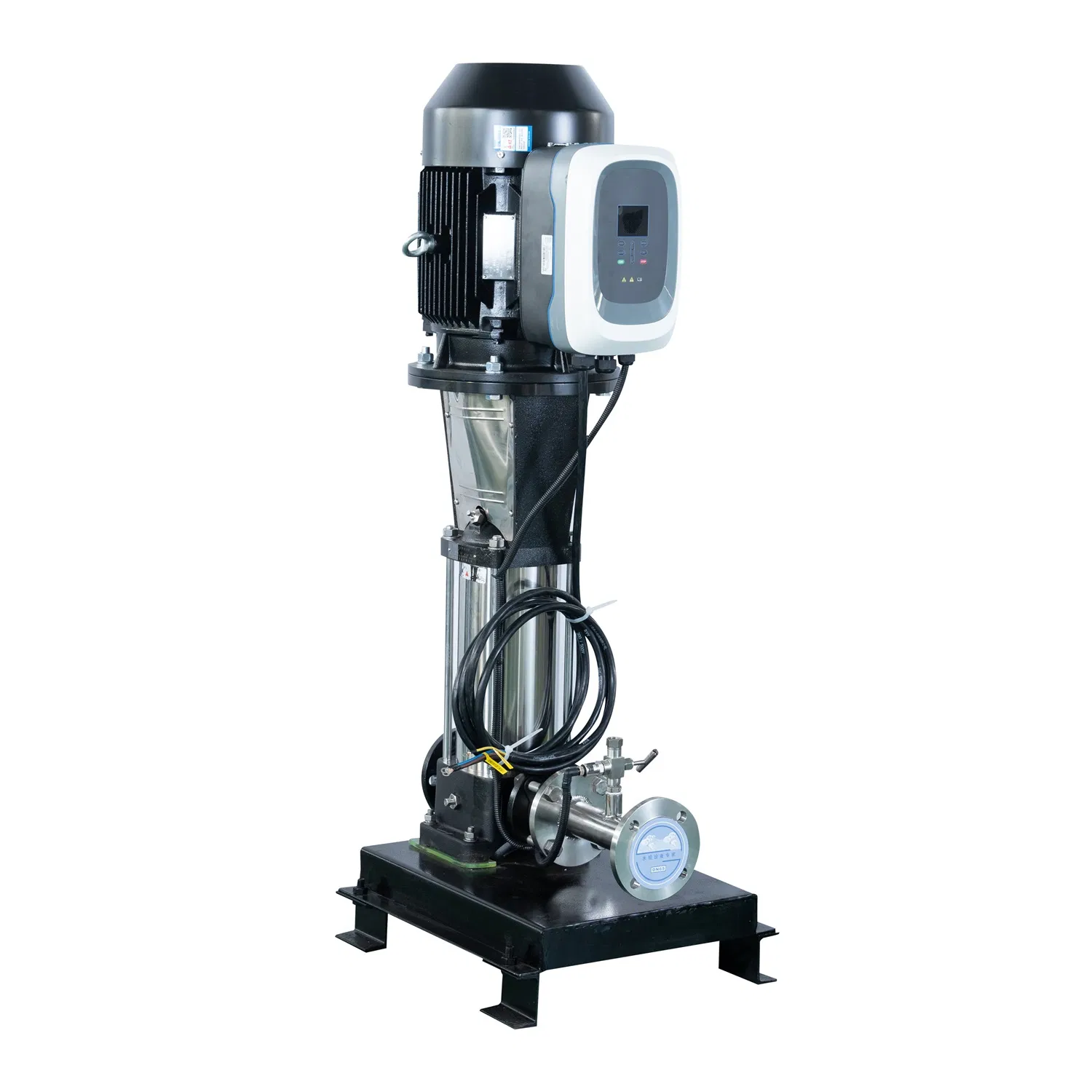

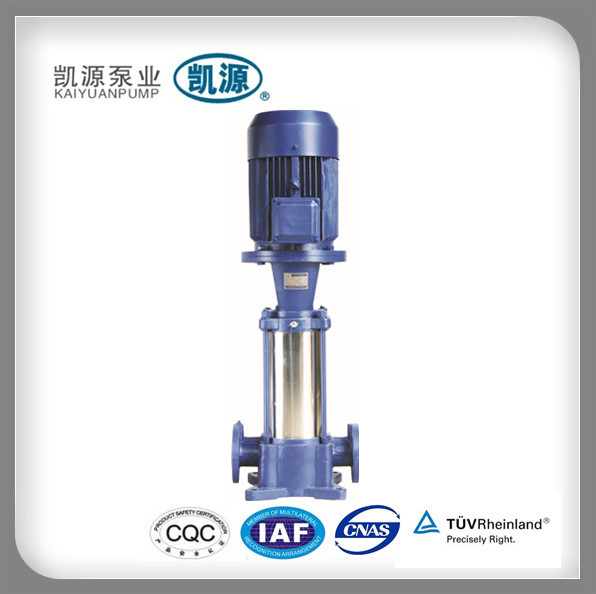

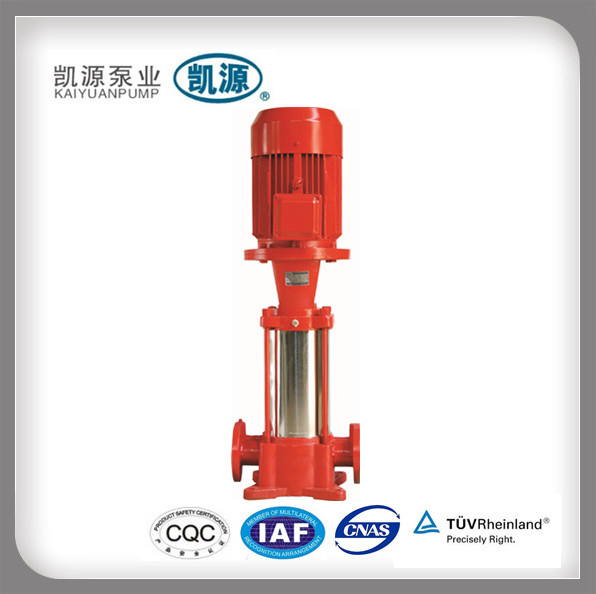

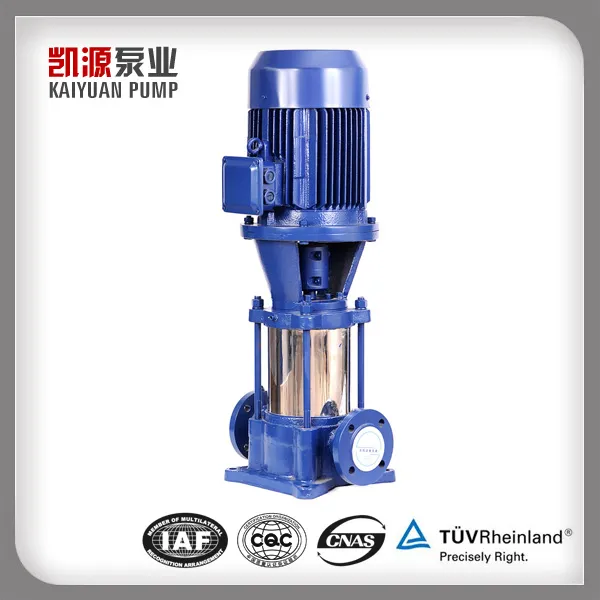

The QDL/QDLF pump features a lightweight vertical design, energy-saving performance, environmental friendliness, minimal space requirement, easy installation, stable operation, and convenient maintenance. It is constructed from premium AISI 304 stainless steel.
It is designed for clean, cold, or hot fluids containing no solid particles or fibers. It is not suitable for inflammable or explosive liquids. The allowable medium temperature ranges from -15ºC to +120ºC, with an ambient working temperature limit of ≤+40ºC.
The normal model is ideal for fluid delivery, circulation, and pressurization of clean hot/cold drinking water and softened water. The stainless steel model is specifically built to handle chloride-containing liquids like brackish water, mineral water, distilled water, and swimming pool water under lower fluid temperatures.
The KY80P36 is an 80W Polycrystalline Solar Panel featuring 36 cells. It operates with a Maximum Power Voltage (Vmp) of 17.48V, Open Circuit Voltage (Voc) of 22.06V, and has a physical dimension of 1000mm * 670mm * 30mm with a weight of 9.5 kg.
These solar panels are engineered to withstand harsh environments, capable of operating in temperatures ranging from -40ºC to +85ºC. They are tested to resist impact from a 227g steel ball dropped from a 1-meter height and wind pressures up to 60m/s.
