Model NO.
poly solar panel (130W-140W--150W)
Transport Package
Carton/PCS
Production Capacity
50, 000PCS/Month
Solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modules.
| Power (W) |
Size of Panel (MM) |
VM (V) |
IPM (A) |
VOC (V) |
ISC (A) |
| ZY-P10W |
350*240*17MM |
17.8V |
0.56A |
22.3V |
0.61A |
| ZY-P15W |
390*360*20MM |
17.8V |
0.84A |
22.3V |
0.92A |
| ZY-P20W |
420*350*17MM |
17.8V |
1.12A |
22.3V |
1.22A |
| ZY-P30W |
640*350*25MM |
17.8V |
1.68A |
22.3V |
1.82A |
| ZY-P40W |
670*420*25MM |
17.8V |
2.25A |
22.3V |
2.42A |
| ZY-P50W |
700*540*30MM |
17.8V |
2.81A |
22.3V |
3.03A |
| ZY-P60W |
830*540*30MM |
17.8V |
3.37A |
22.3V |
3.64A |
| ZY-P80W |
780*670*30MM |
17.8V |
4.50A |
22.3V |
4.90A |
| ZY-P100W |
1200*540*30MM |
17.8V |
5.62A |
22.3V |
6.12A |
| ZY-P150W |
1480*680*35MM |
17.8V |
8.42A |
22.3V |
9.18A |
| ZY-P200W |
1330*992*35MM |
36.1V |
5.54A |
44.6V |
5.98A |
| ZY-P270W |
1640*992*40MM |
30.2V |
8.94A |
36.9V |
8.94A |
| ZY-P330W |
1950*992*40MM |
37.59V |
8.91A |
44.6V |
8.98A |

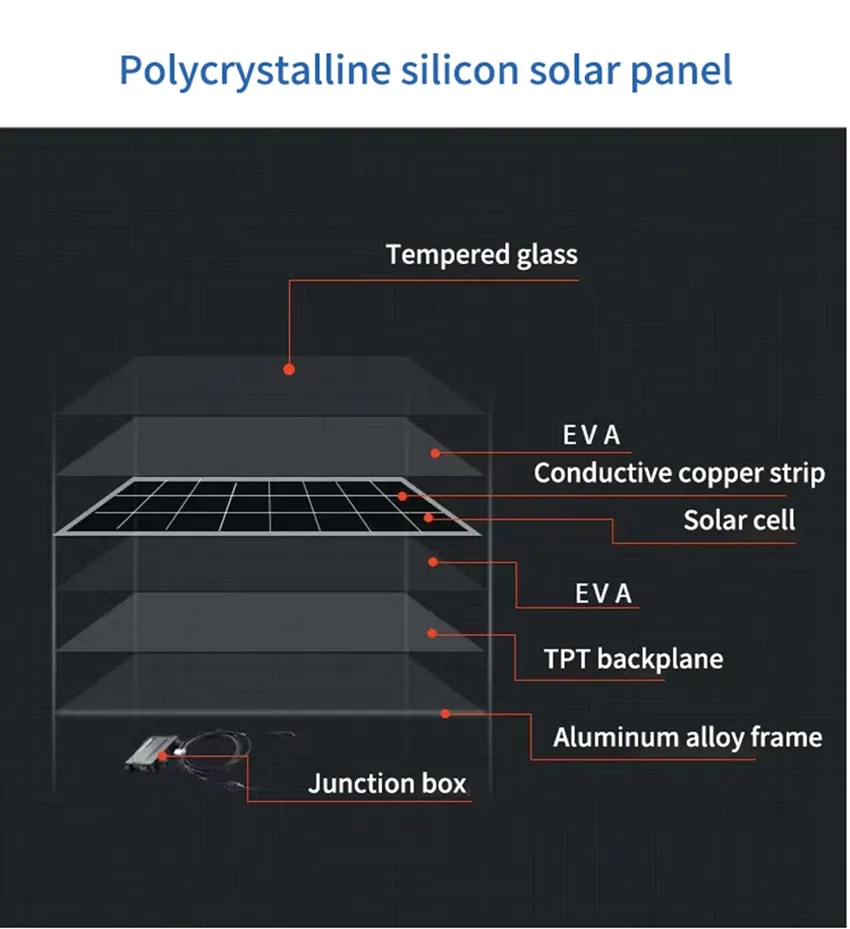

- All solar module produces without any aberration or bubble.
- Back sheet is TPT&PET, and the thickness is 0.3mm.
- The thickness of EVA is 0.4mm, better than other company use 0.3mm or 0.35mm. We use new EVA material, not the overdue, the overdue EVA will influence the performance and lifespan of solar panel.

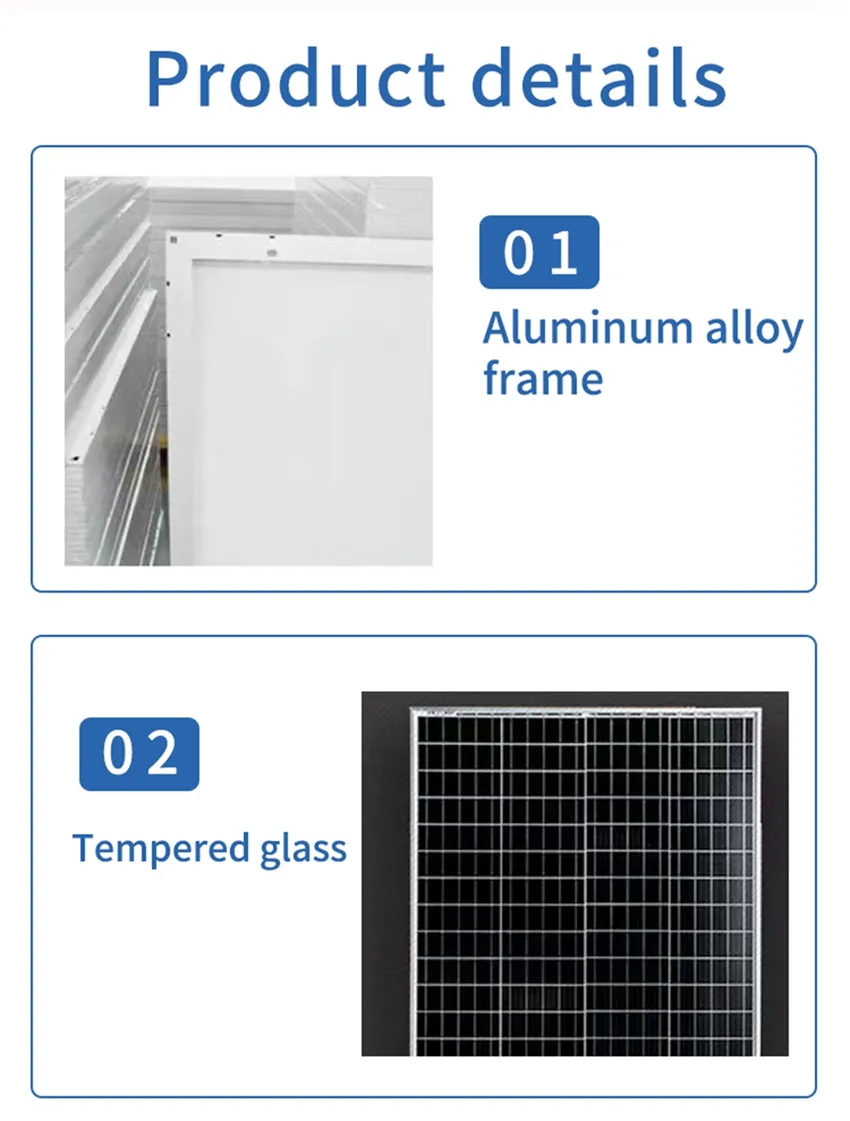

- New aluminum with 1.00mm thickness, high hardness, good impact resistance. Some company will use bad recycle aluminum.
- Tempered glass with 3.2mm has advantages of high strength, impact resistance, good light transmittance.

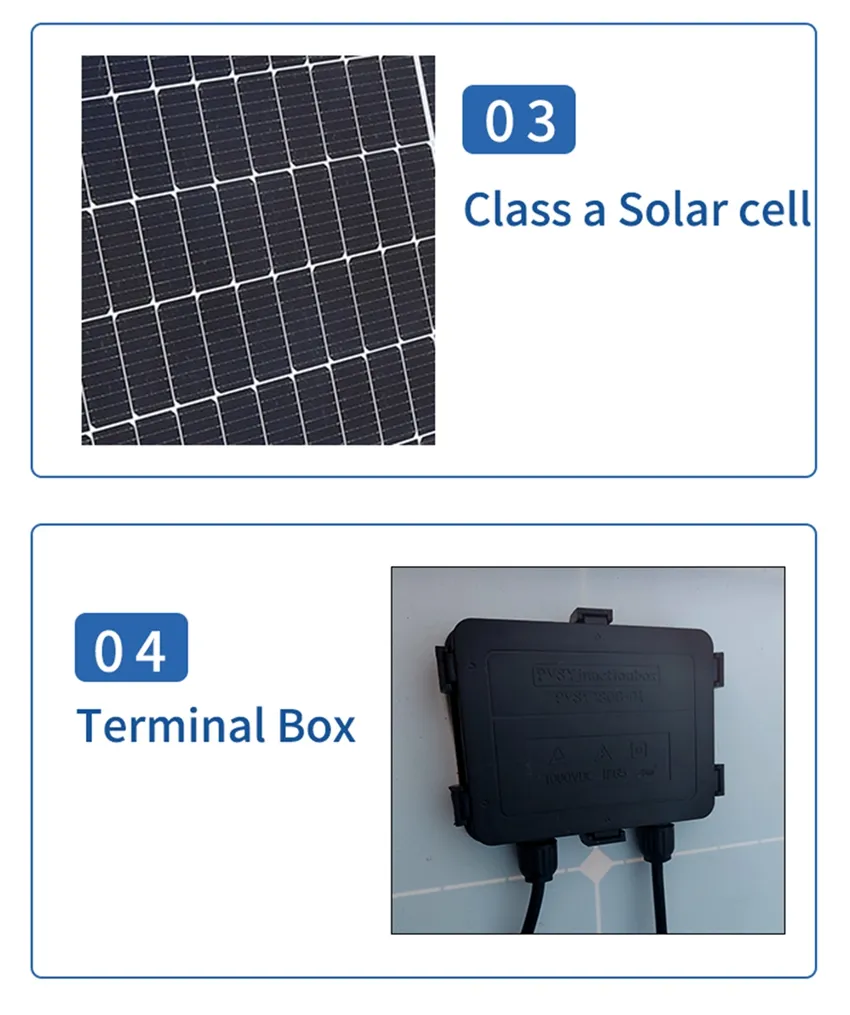

- The solar cells made in Taiwan, high efficiency, low attenuation, the attenuation is less than 10% within 5 years and less than 15% within 10 years.

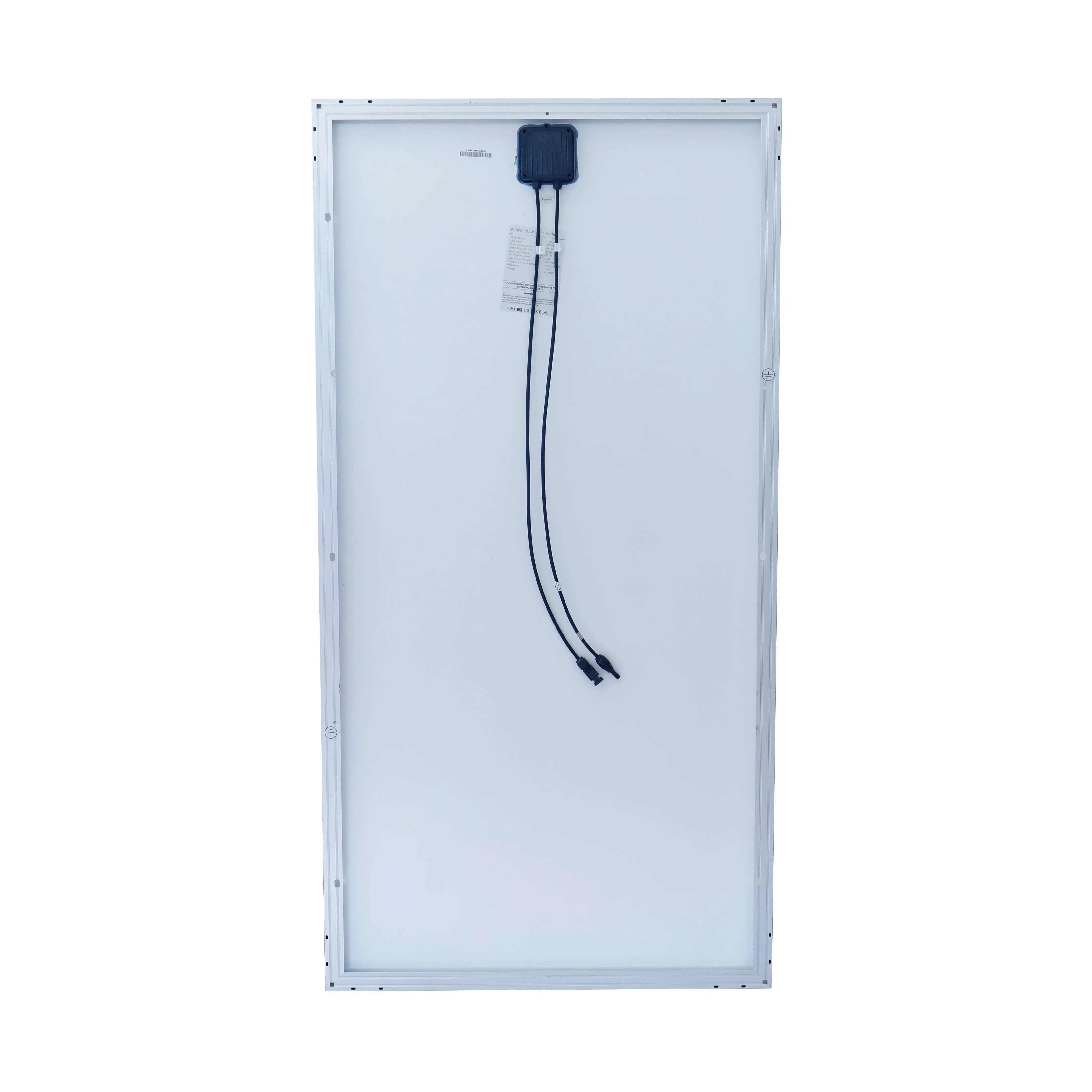

- The junction box has good waterproof, good anti-aging, PV wire. The PV wire is good for anti-aging and anti-corrosion, it's better than the normal wire.
- Package by 7 layers thick carton, moisture proof and anti-cracking. Two pieces in one carton, easy to delivery.

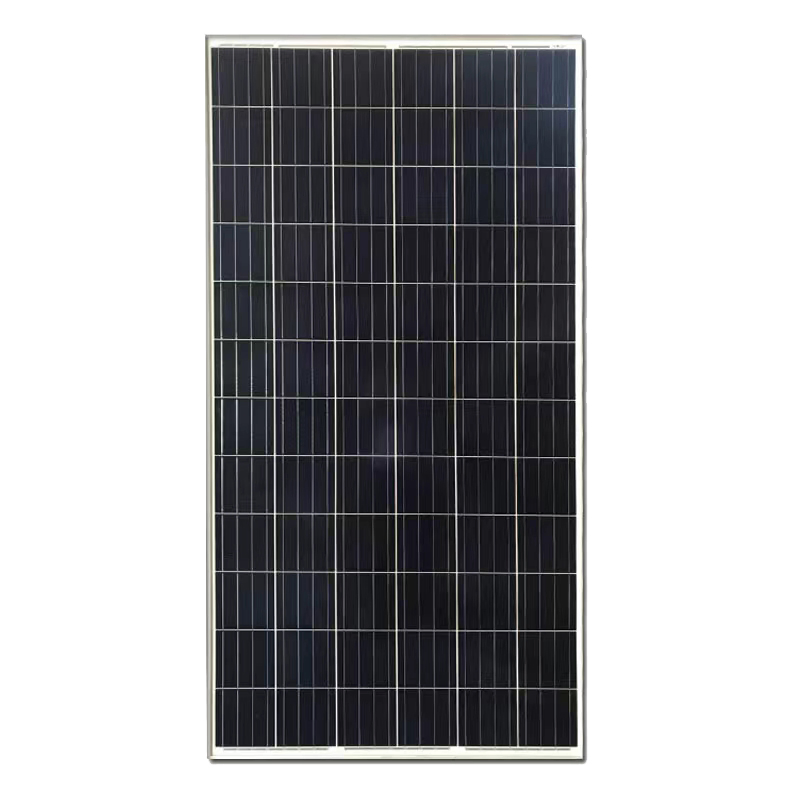

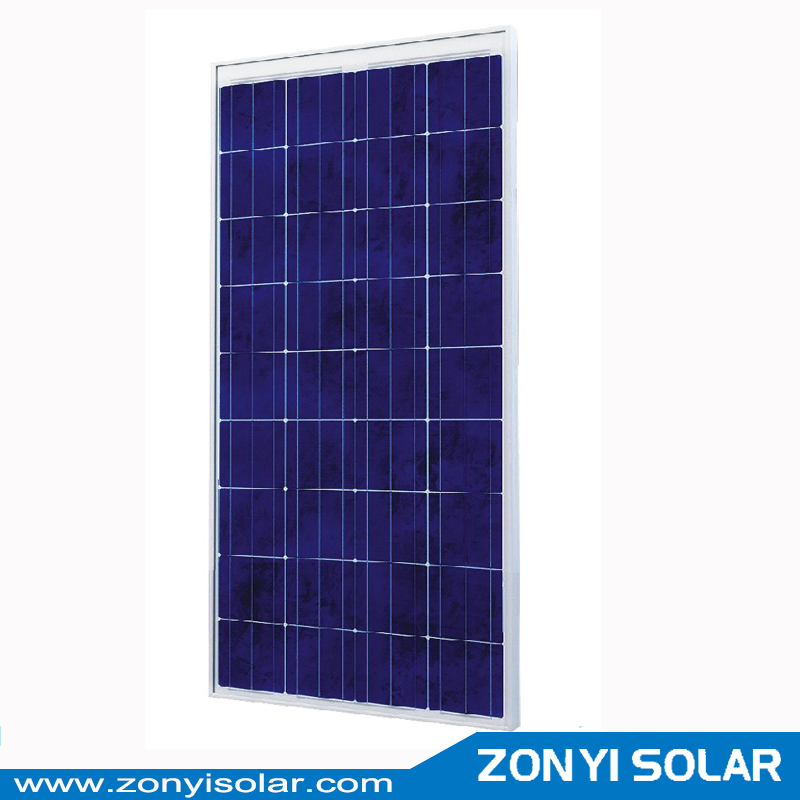

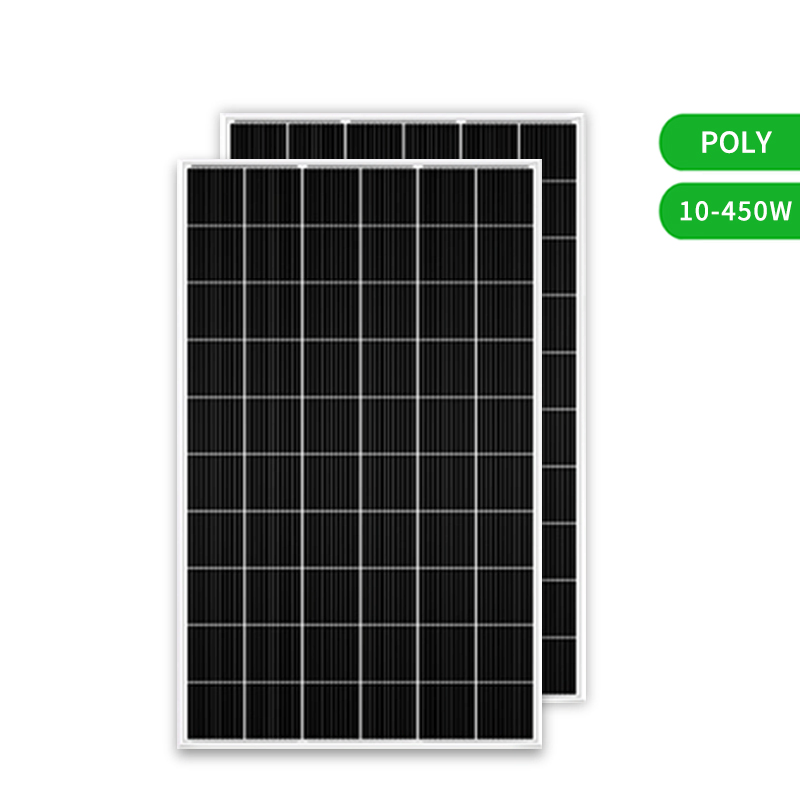

Poly Solar Panel
A polycrystalline solar module is made from a block of silicon that has multiple crystals. These panels are square in shape, and may have a surface that looks somewhat like a mosaic. This mix of different crystals makes the polycrystalline module a good performing type of cell. Polycrystalline solar panels historically have been a popular choice.
Q1 How to choose the right panel?
Tell us your demand, then our sales will recommend a suitable panel for you.
Q2 What's the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3 How about the delivery time?
Delivery time is 7 days for samples and 15 days for bulk orders.
Q4 What is the warranty for solar panels?
Generally, the warranty for solar panels is 10 years, and we also offer a 25-year linear output power warranty.
Q5 How can I get better service from you?
We have a professional engineering team that can provide you with the best support based on your requirements. If you have any problems during usage, we offer 24-hour online service and will solve your problem within 1 hour.
Q6 Do solar panels work during cloudy or rainy days?
Yes, solar panels can still generate electricity on cloudy or rainy days by utilizing diffuse light, although their efficiency will be lower compared to bright sunny days.
