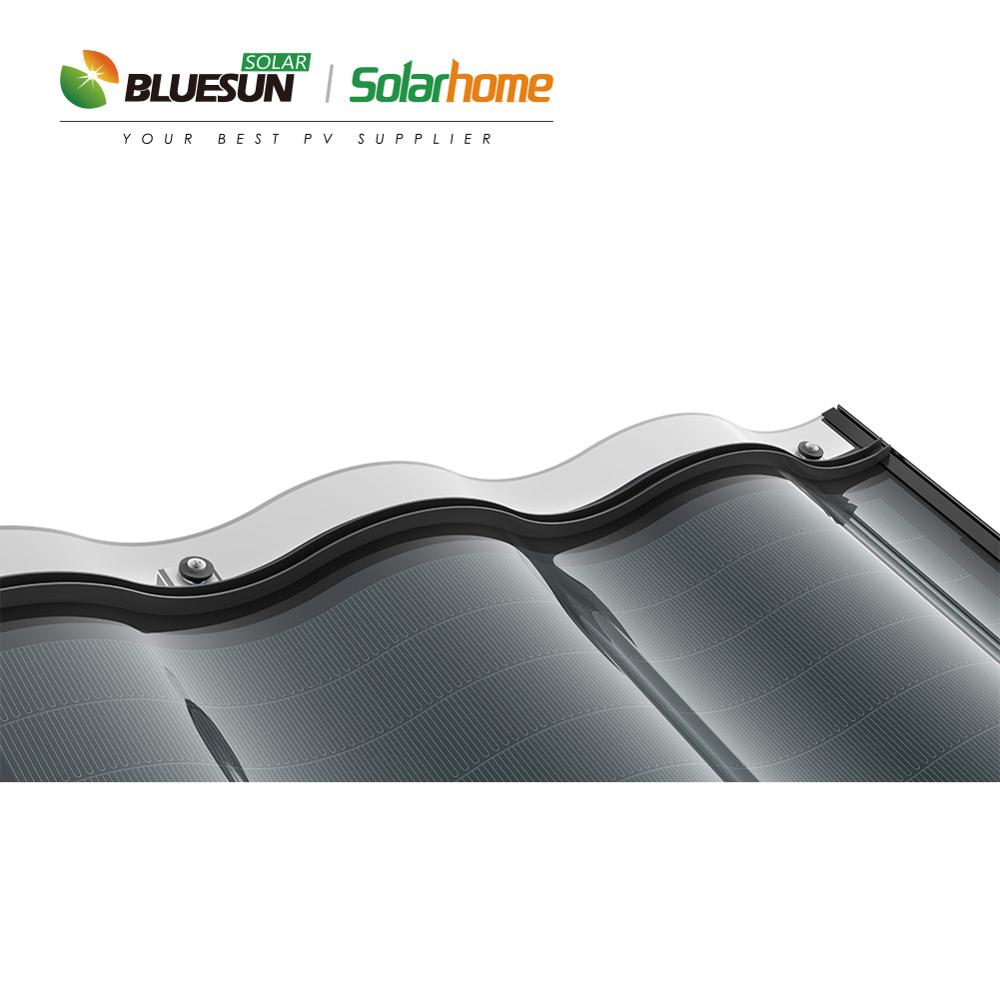

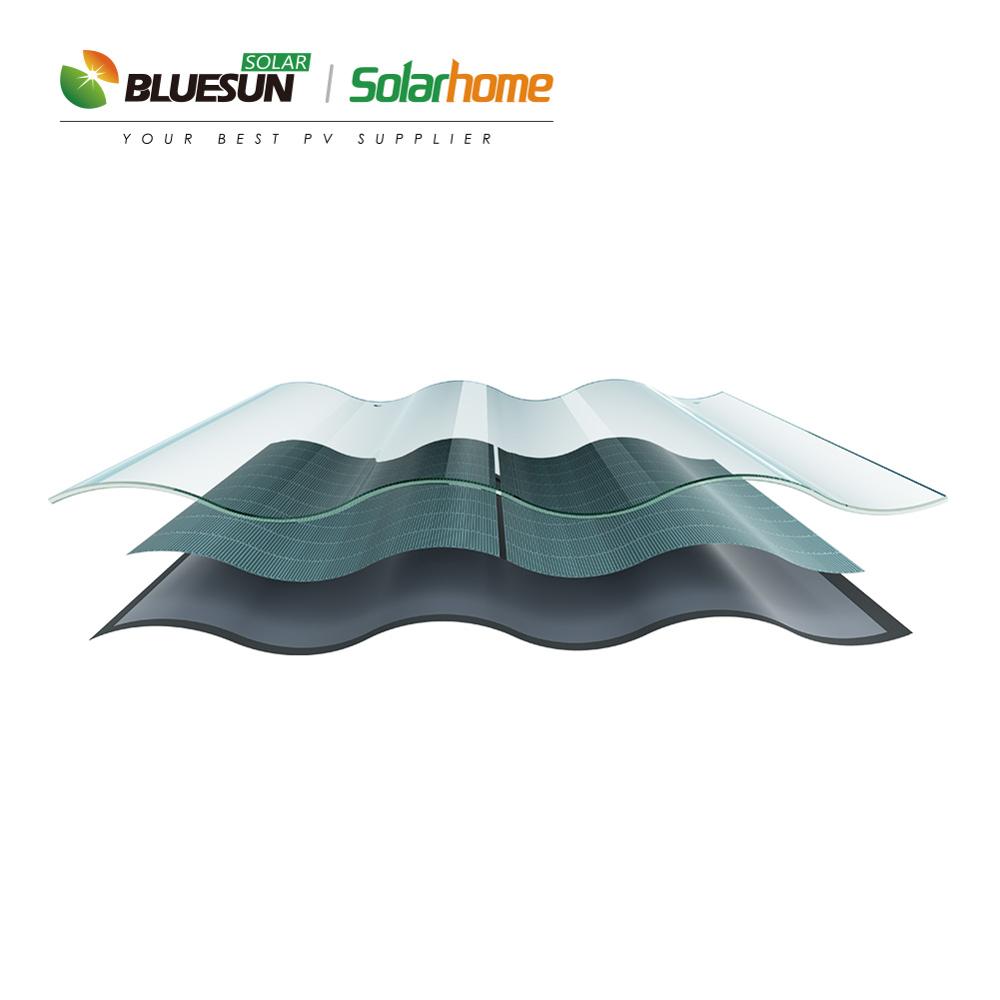

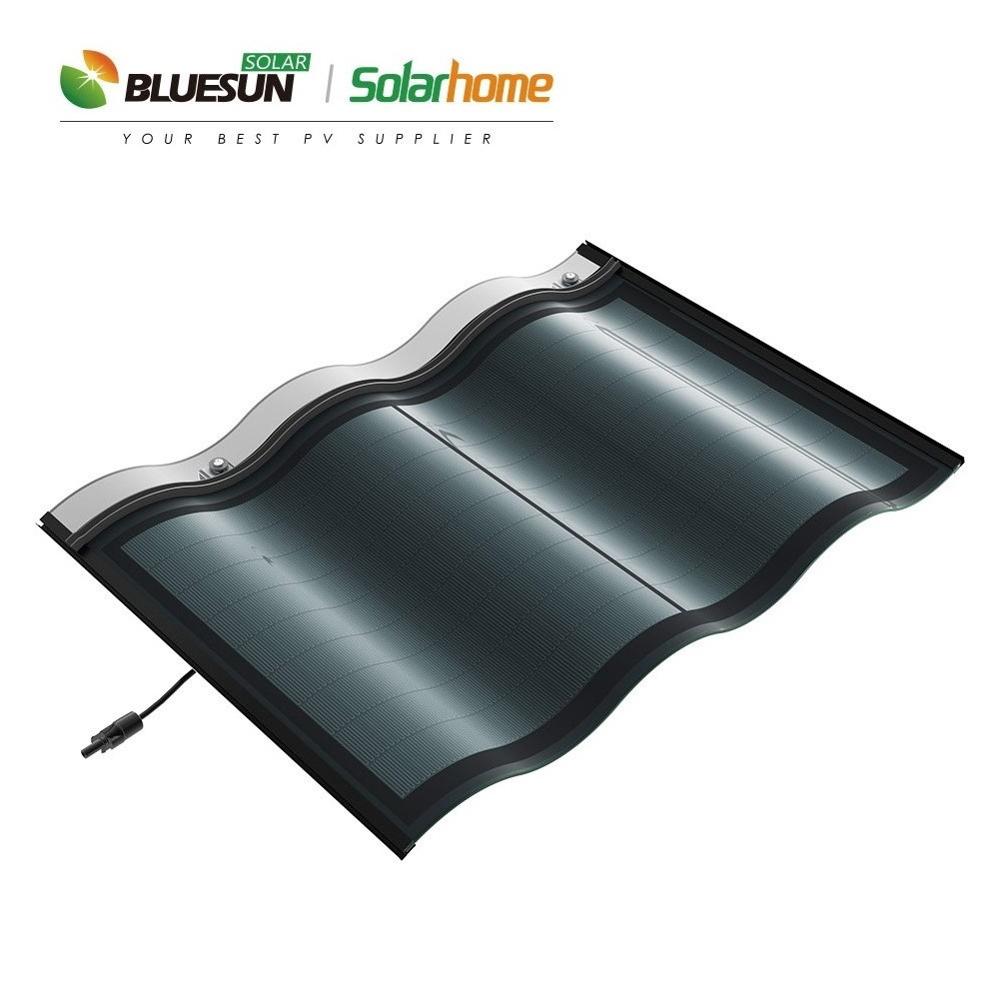

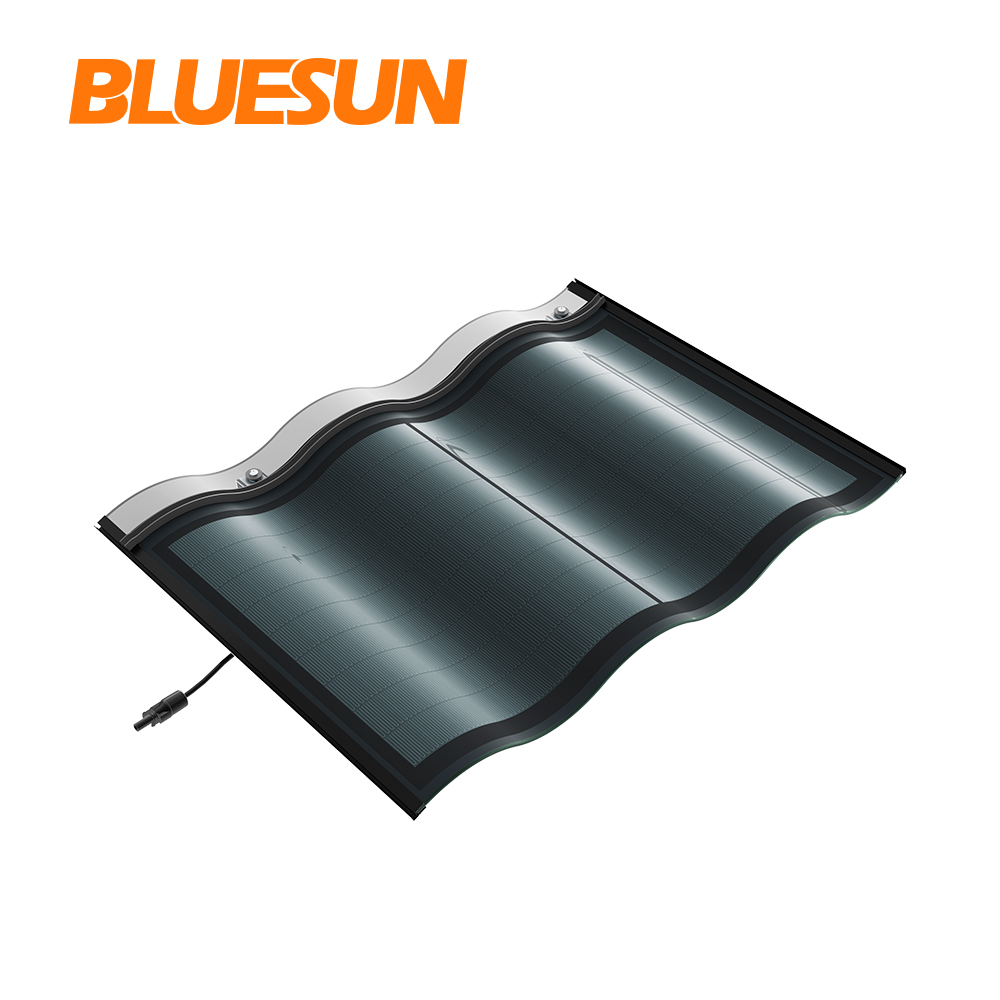

Environmentally friendly building materials. The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Solar tile not only has the functions of waterproofing and heat insulation, but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
| Specification Properties | |
|---|---|
| Physical Parameters | |
| Product Model | BSM-30S |
| Length | 700mm |
| Width | 500mm |
| Arch Height | 35mm |
| Weight | 5.2KG |
| Color | Black |
| Junction Box | 68*68*19.7 (mm) IP67 |
| Cable Type | 2.5mm² Solar Cable 450 (+10/-0) mm |
| Cable Connector | PV Connector |
| Electrical Parameters | |
| Chip Type | CIGS |
| Power | 30W |
| Short-Circuit Current | 4.45A |
| Open-Circuit Voltage | 10.16V |
| Current at PMPP | 3.87A |
| Voltage at PMPP | 7.79V |
| Function Grade | |
| Loading Grade | 2400Pa |
| Waterproof Grade | IP67 |
| Fire-Proof Grade | B1 |
| Hail-Proof Grade | Level 4 (ANSI FM 4473) |
| Working Temperature | -40°C to +85°C |

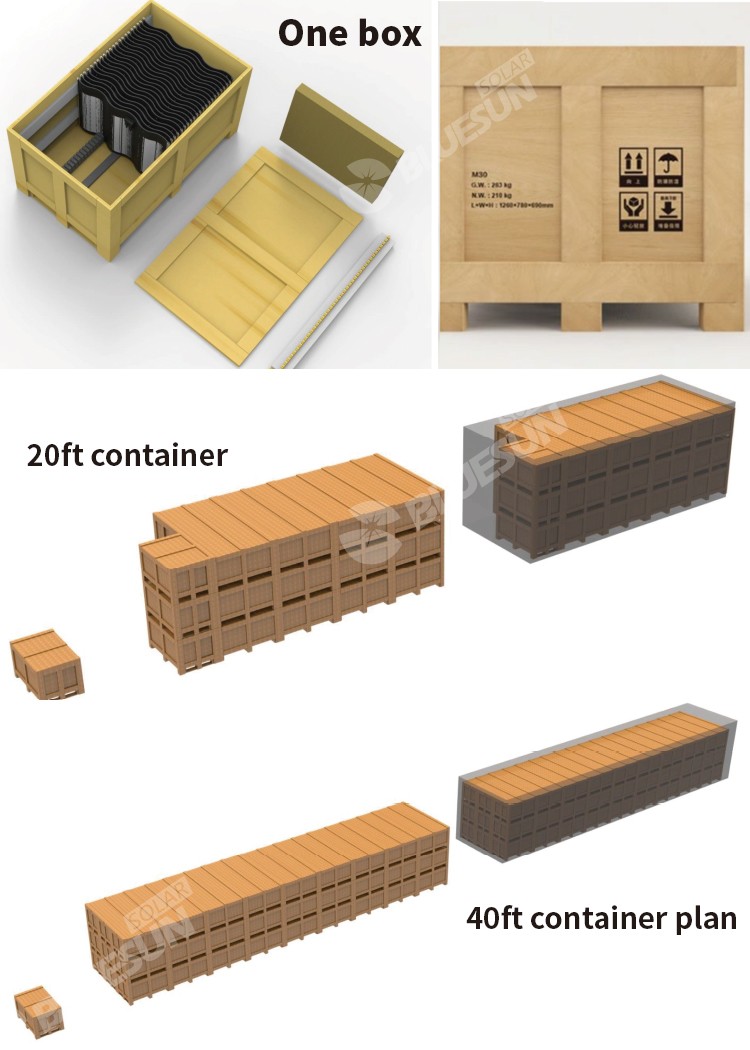

| One Box Packaging details | ||||
|---|---|---|---|---|
| Package Type | Packing Specification | Gross Weight | Net Weight | Number per Carton |
| One Box | 1260 X 780 X 690 mm | 263 kg | 210 kg | 40 pcs |
| Container loading Plan | ||||
|---|---|---|---|---|
| Container Type | Cartons Quantity | Total Pieces | Total Weight | Total Volume |
| 20 ft | 39 ctn | 1560 pcs | 10.3 t | 27.6 m³ |
| 40 ft | 81 ctn | 3240 pcs | 21.5 t | 54 m³ |
SOLAR PANEL
SOLAR CHARGE CONTROLLER
BATTERY
ON GRID INVERTER
OFF GRID INVERTER
MOUNTING STRUCTURE

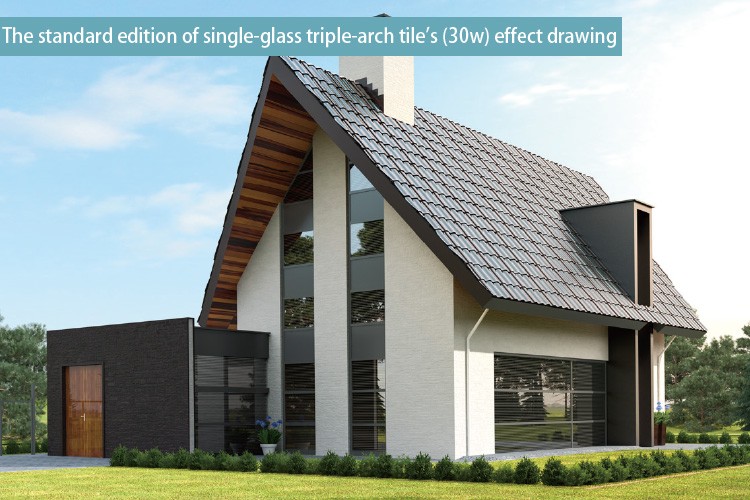

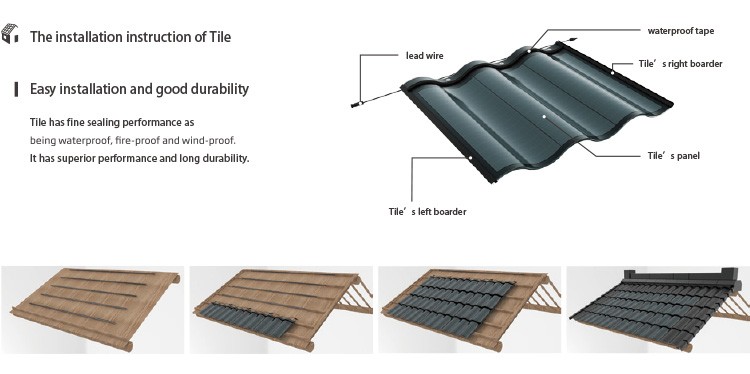

Solar tiles combine roofing materials and thin-film solar technology. They serve as functional building materials that replace traditional tiles, providing waterproofing and insulation while generating clean electricity without requiring extra rack-mounted PV panels.

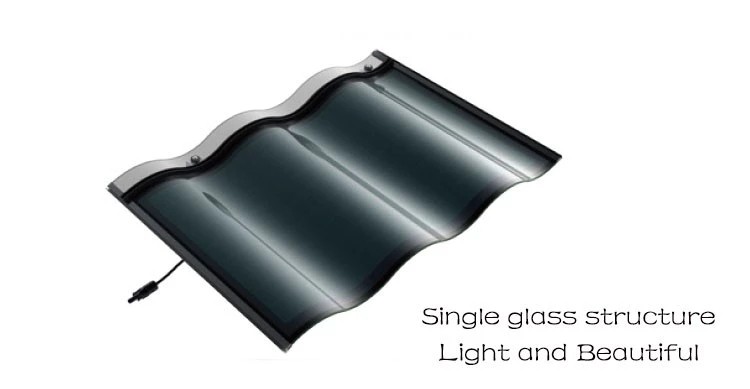

The BSM-30S model has a length of 700mm, a width of 500mm, an arch height of 35mm, and a total weight of 5.2kg. Each tile provides 30W of output power using high-efficiency CIGS thin-film technology.
Yes, these solar tiles are built for durability. They carry an IP67 waterproof rating, a B1 fire-proof rating, a 2400Pa loading grade, and a level 4 hail-proof certification (ANSI FM 4473). Their operational temperature range is from -40°C up to +85°C.
For single-box shipping, they are packaged 40 pieces per carton. The box dimensions are 1260 x 780 x 690 mm, with a gross weight of 263 kg and a net weight of 210 kg.
A 20ft container can accommodate 39 cartons (1,560 pieces), representing a total volume of 27.6m³ and a weight of 10.3t. A 40ft container can hold 81 cartons (3,240 pieces), with a total volume of 54m³ and a weight of 21.5t.
