N Type TOPCon Bifacial Solar Panel GSM-M10/108HBD 415W-435W
Model
GSM-M12/132HBD 715W
GSM-M12/132HBD 725W
GSM-M12/132HBD 735W
GSM-M12/132HBD 745W
GSM-MH12/132HBD 755W
Rated Maximum Power(Pmax) [W]
715
725
735
745
755
Open Circuit Voltage(Voc) [V]
50.10
50.28
50.45
50.64
50.82
Maximum Power Voltage(Vmp) [V]
41.99
42.13
42.27
42.41
42.55
Short Circuit Current(Isc) [A]
18.06
18.22
18.38
18.54
18.70
Maximum Power Current(Imp) [A]
17.02
17.20
17.38
17.56
17.70
Module Efficiency [%]
23.01
23.33
23.65
23.98
24.30
Power Tolerance
0~+5W
Temperature Coefficient of Isc(α_Isc)
+0.040%/℃
Temperature Coefficient of Voc(β_Voc)
-0.240%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.300%/℃
STC
Irradiance 1000W/m², cell temperature 25℃, AM1.5G

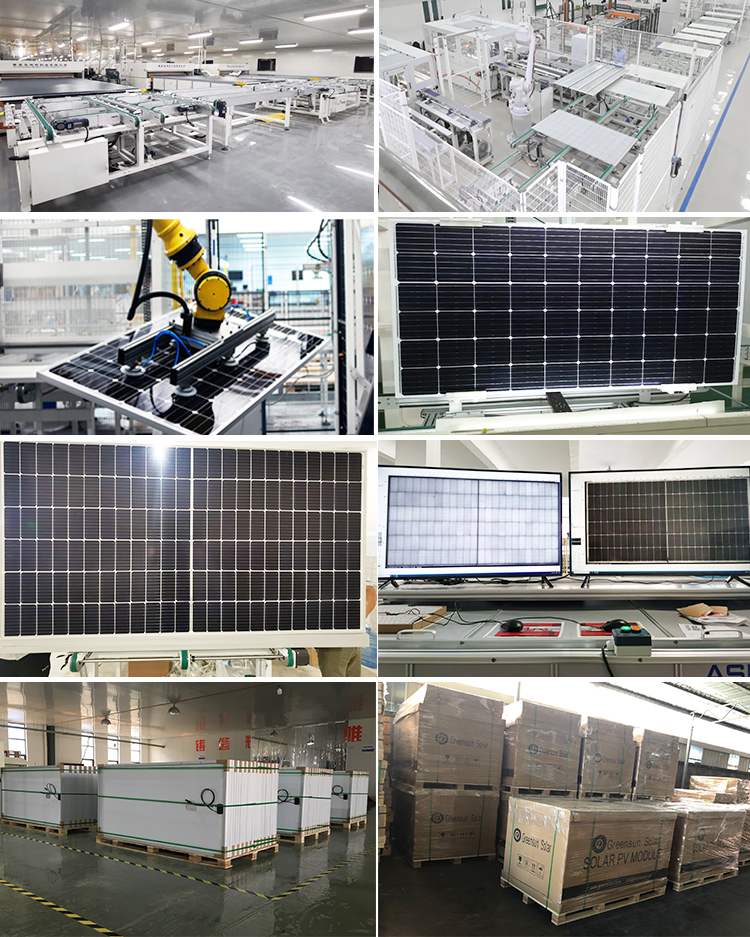

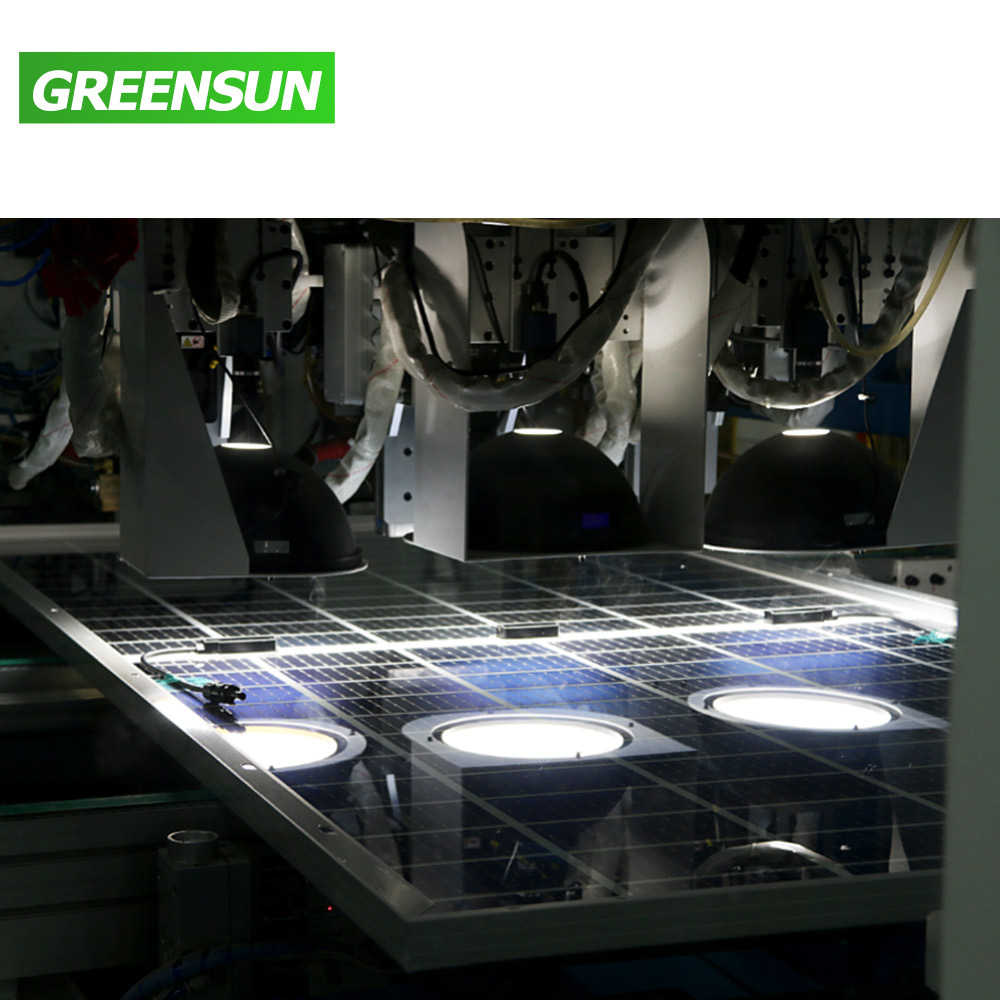

Factory & Production
We are a professional, fast-growing company. We are well known as a world-leading manufacturer of cost-effective, high-efficiency, and good-quality photovoltaic panels, storage batteries, and complete solar energy systems for residential and C&I applications. Founded in 2004, our factory covers a 90,000 square meters area and has more than 2,000 employees. With 15 years of experience in the solar industry, we are dedicated to research and development, production innovation, and strict quality control management. We aim to manufacture and provide reliable and innovative solar panels and solar energy solutions to the world.

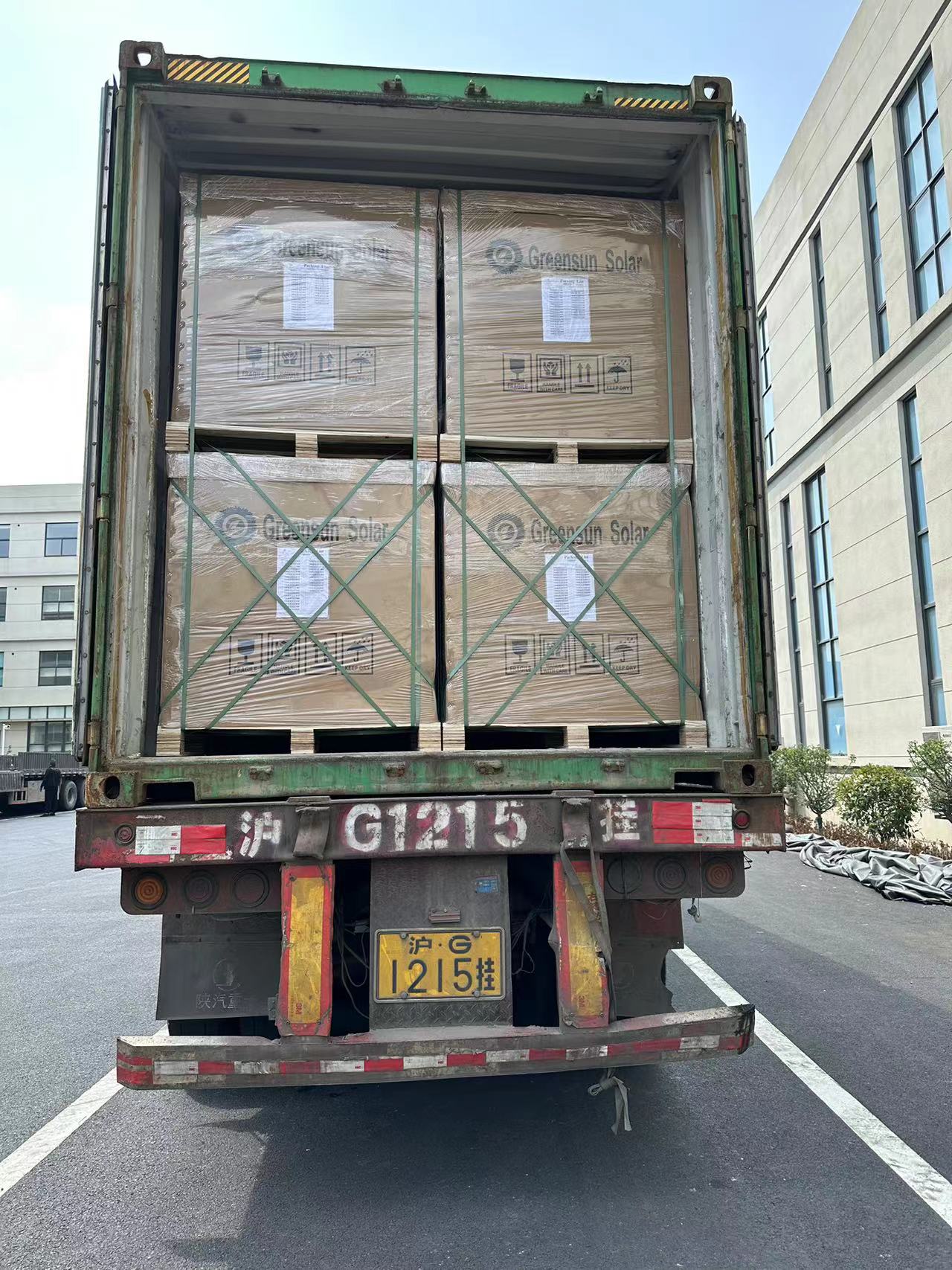

Packing & Transport
Container (144 Cells solar panel)
40'HC
40'HC
PCS/Pallet
33
36
PCS/Container
594
648

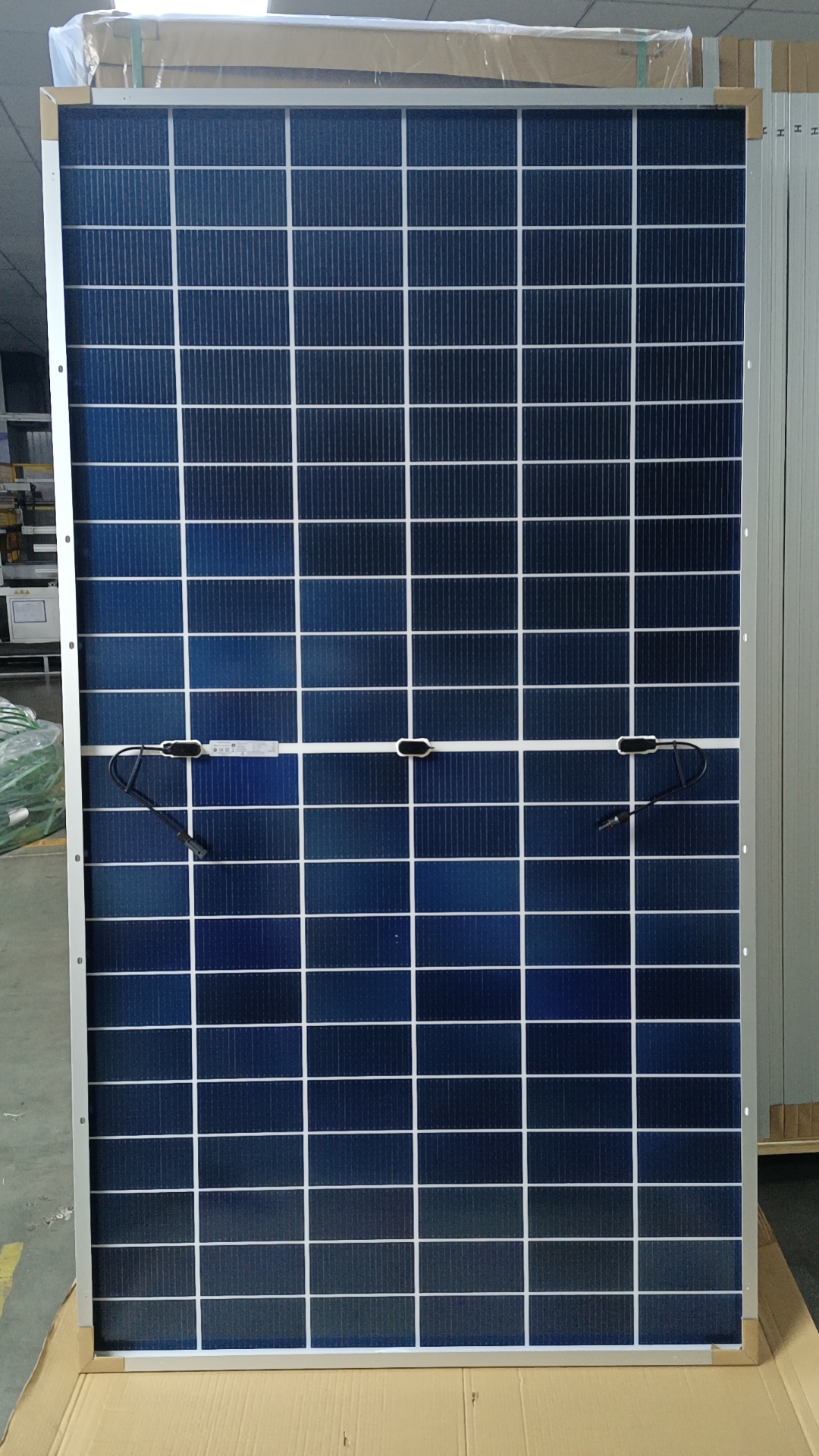

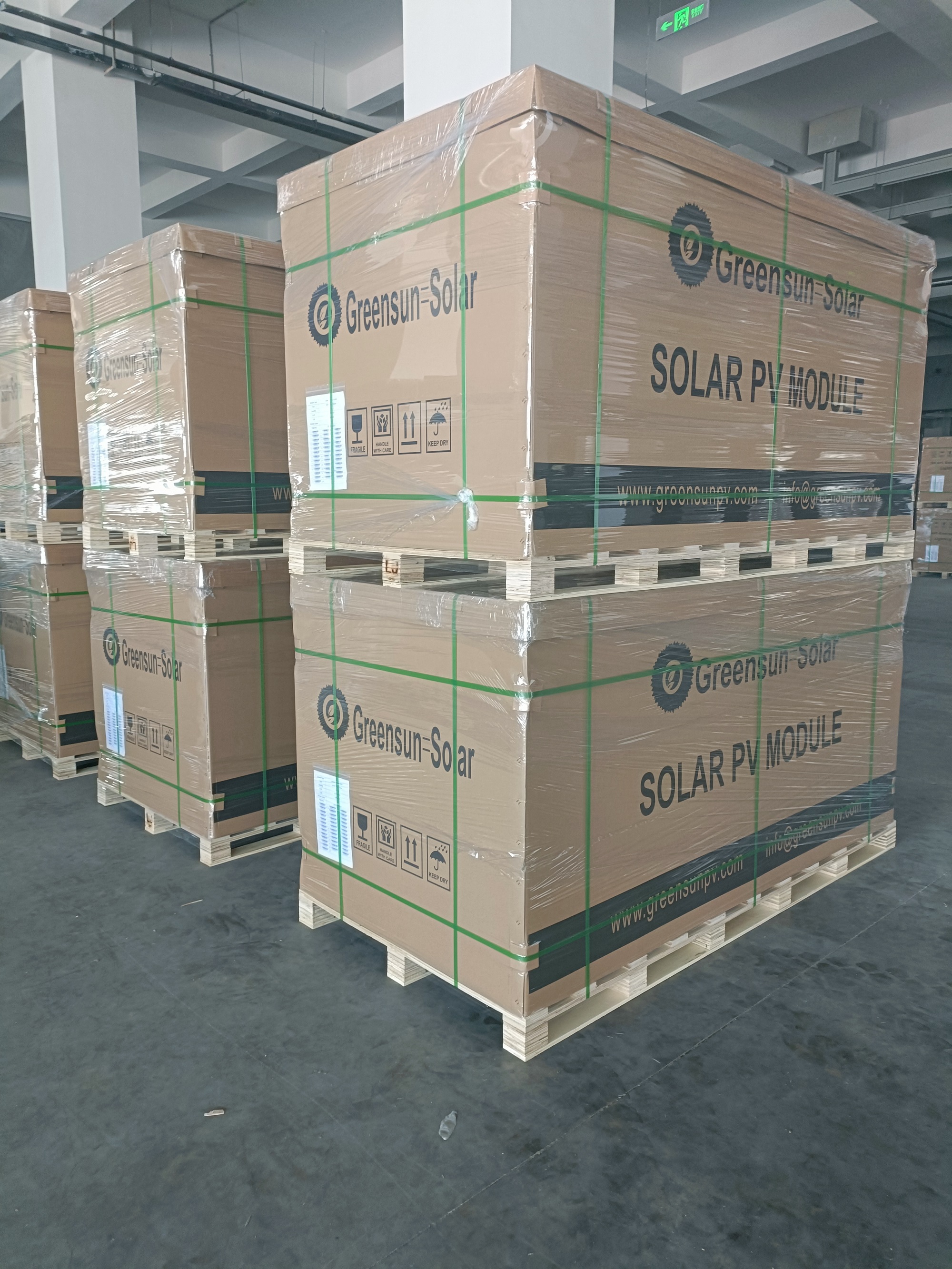

Packing Method: Customized Wooden & Carton with Pallet (offers 100% protection during transportation).
Transport Modes: According to your product quantity and requirement, we will choose secure and economical transportation for you, including Sea transportation, Air transportation, Land transportation, and Express.

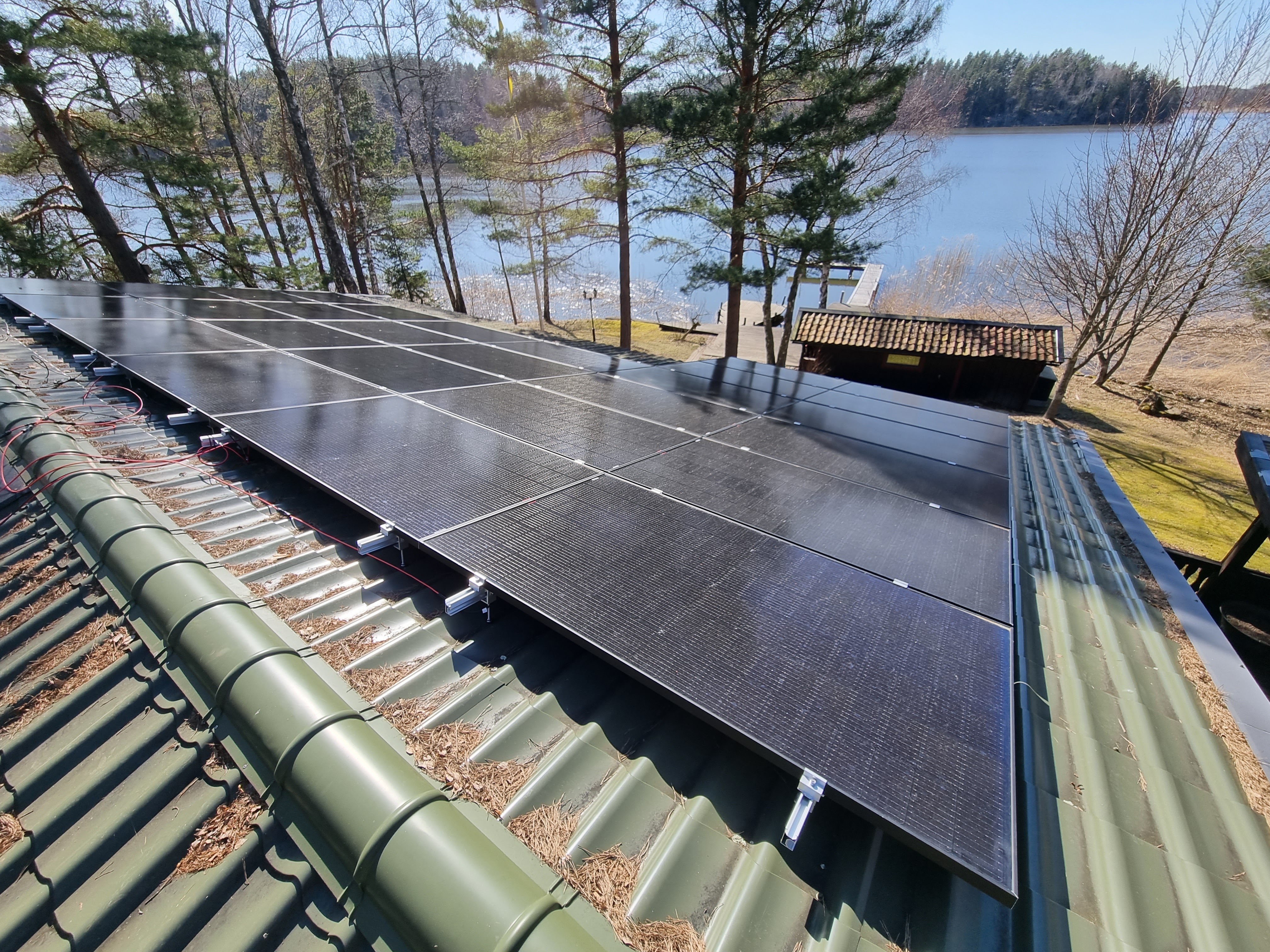

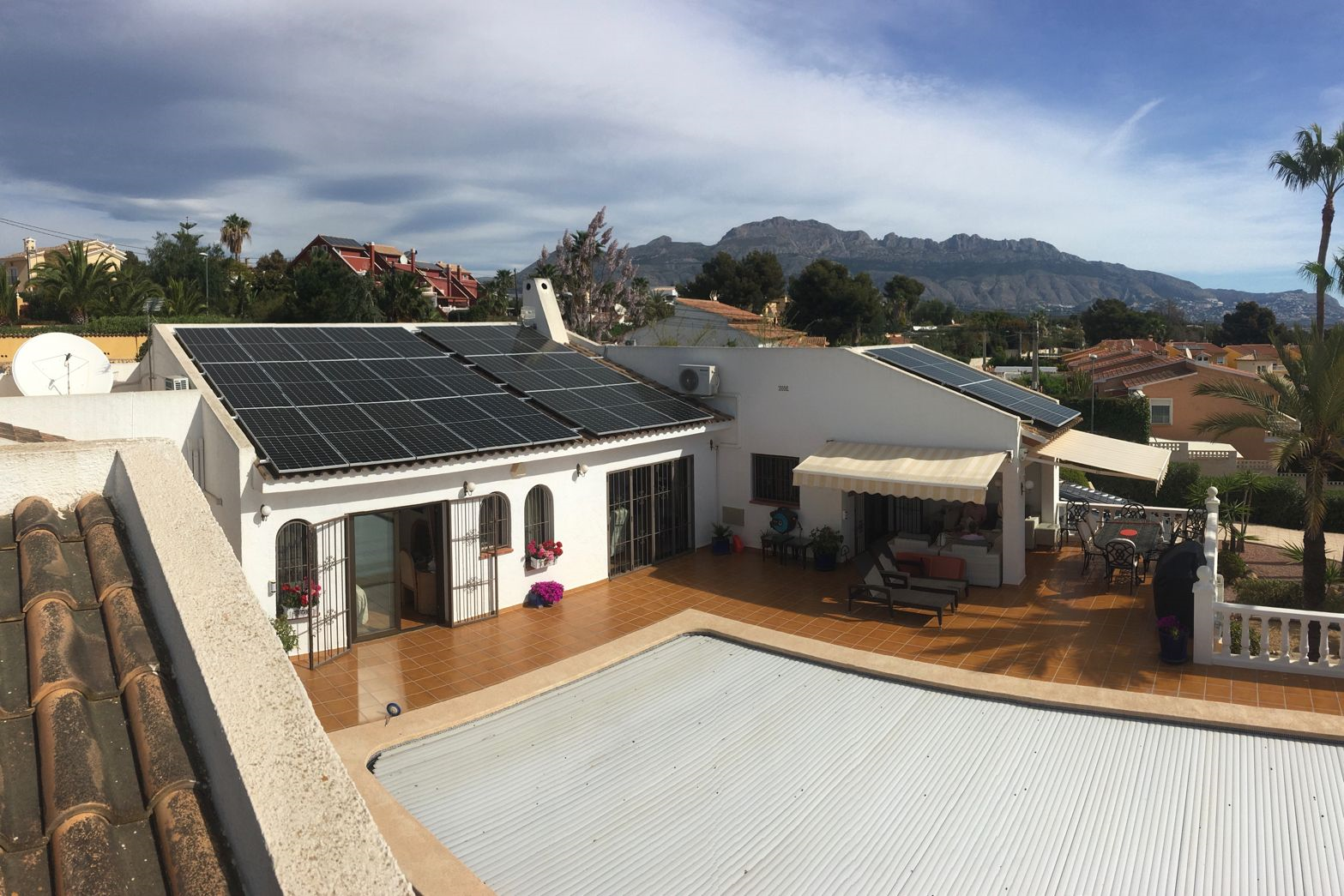

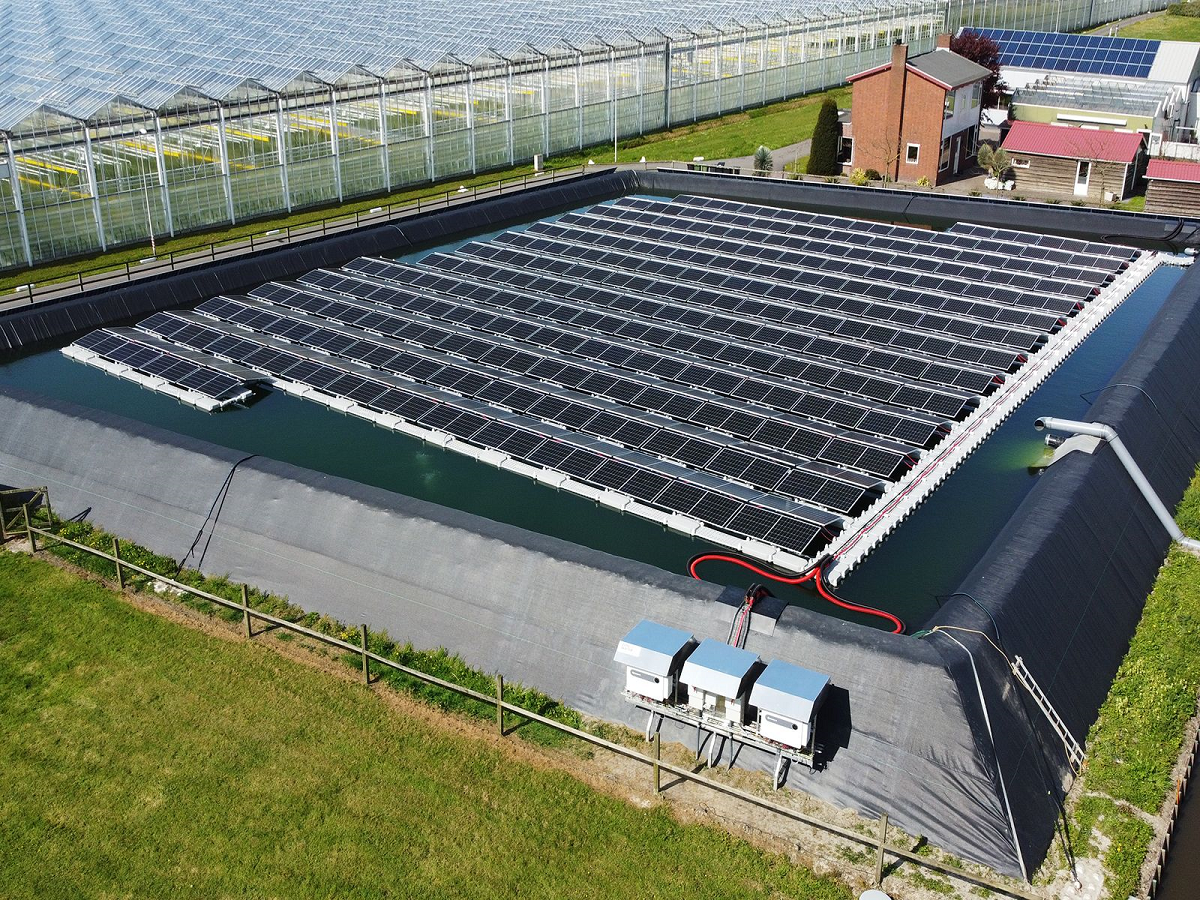

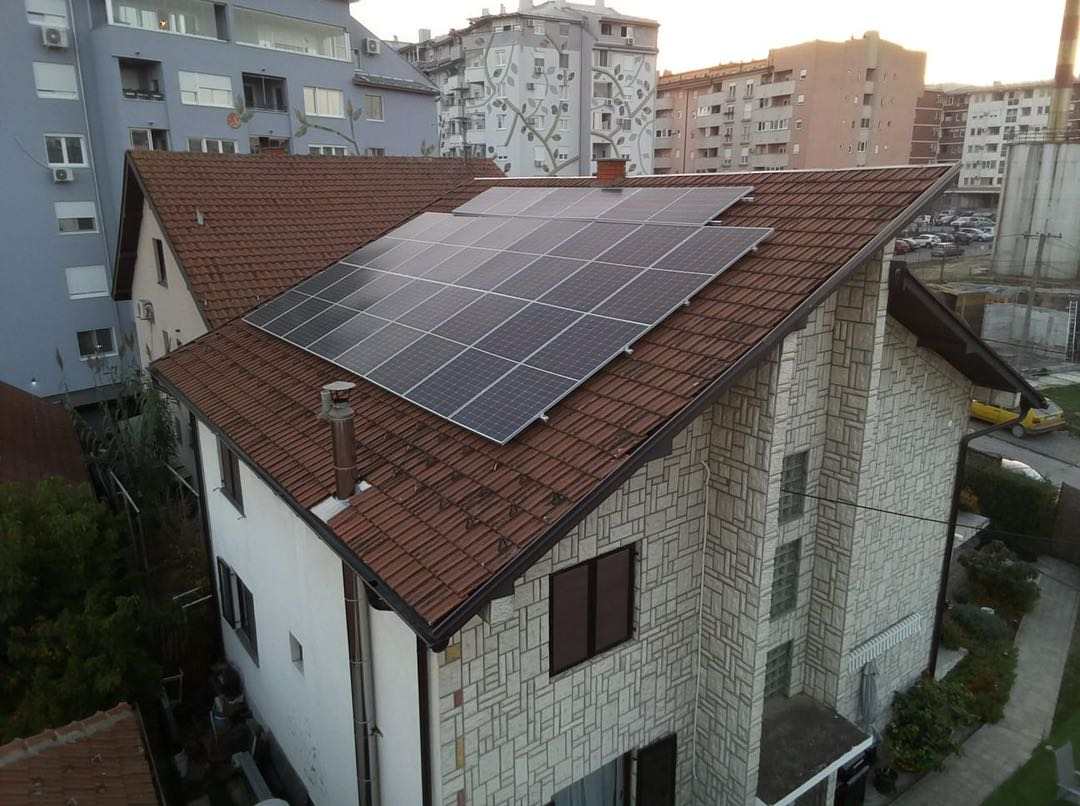

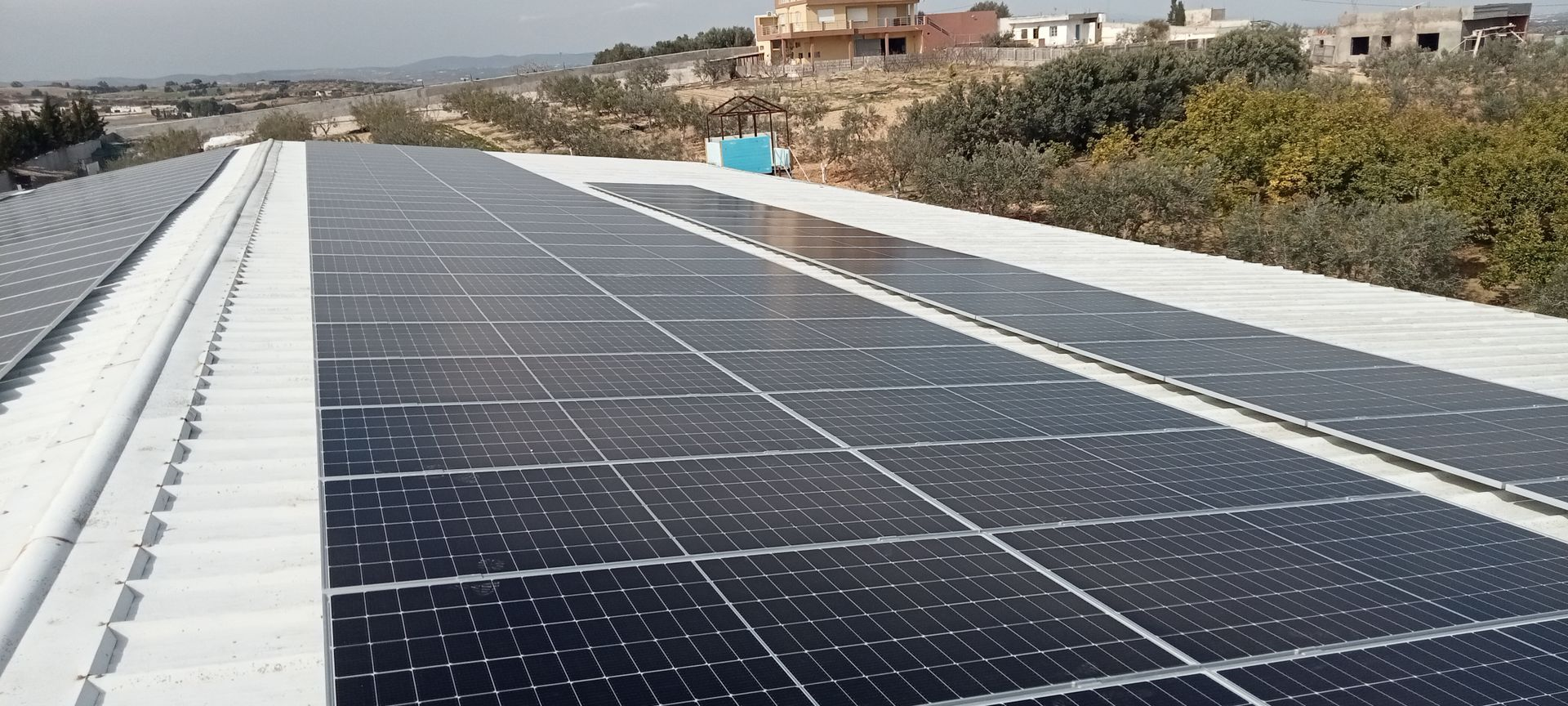

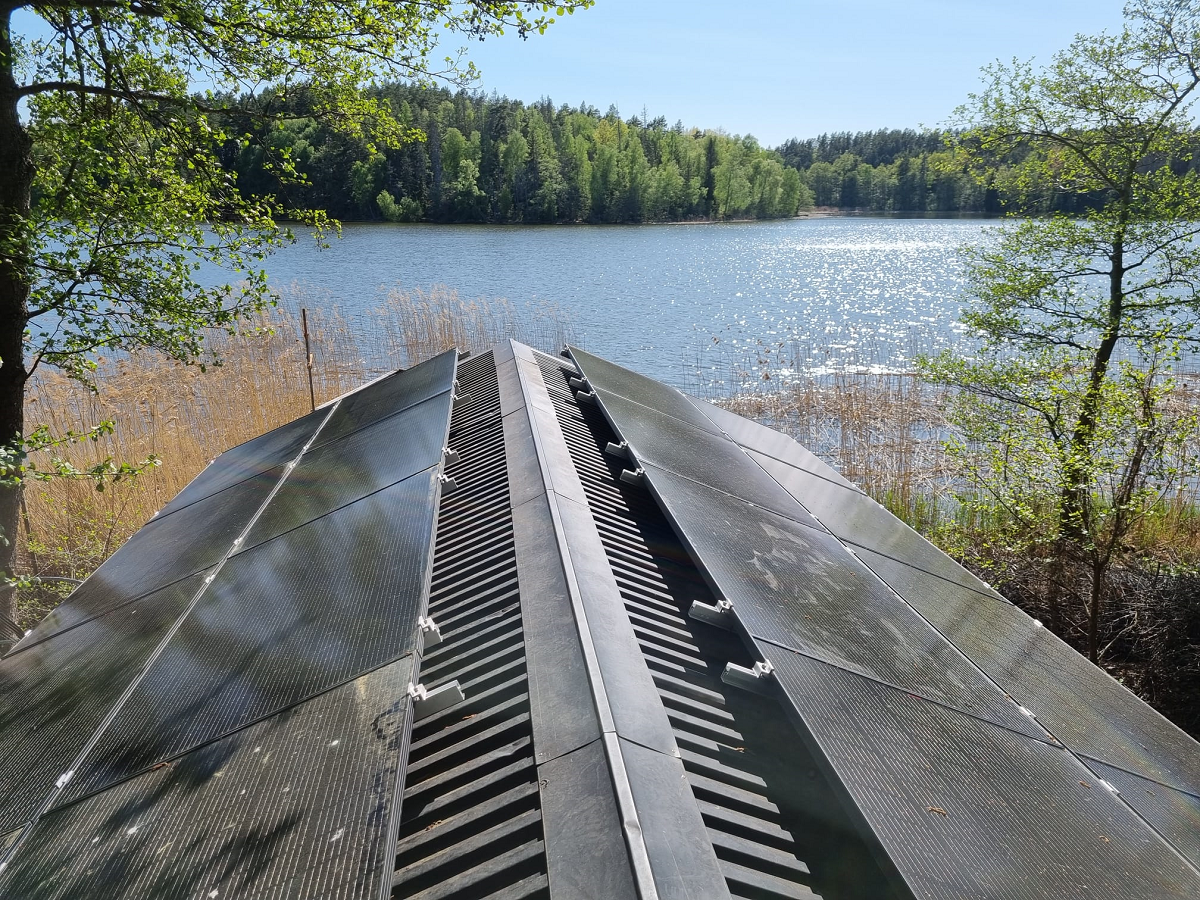

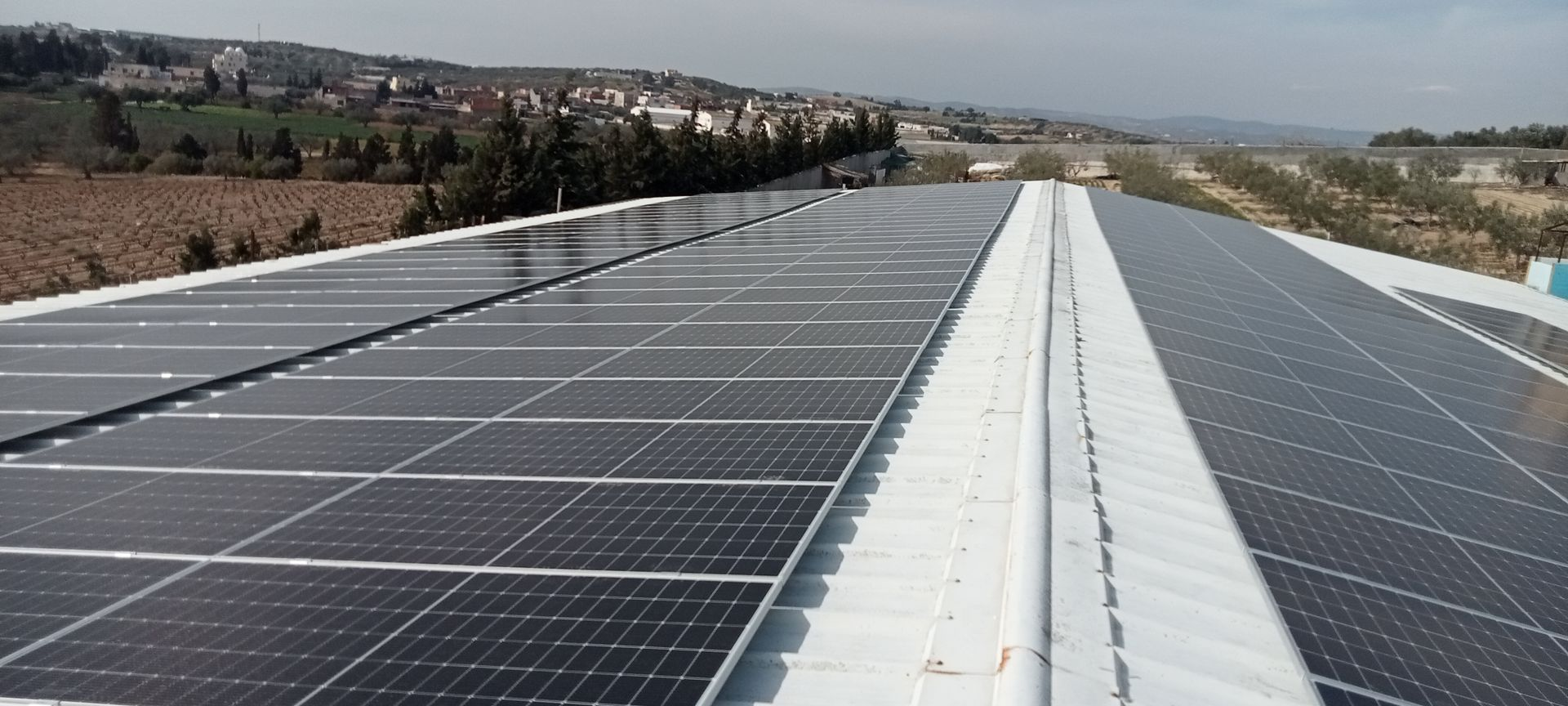

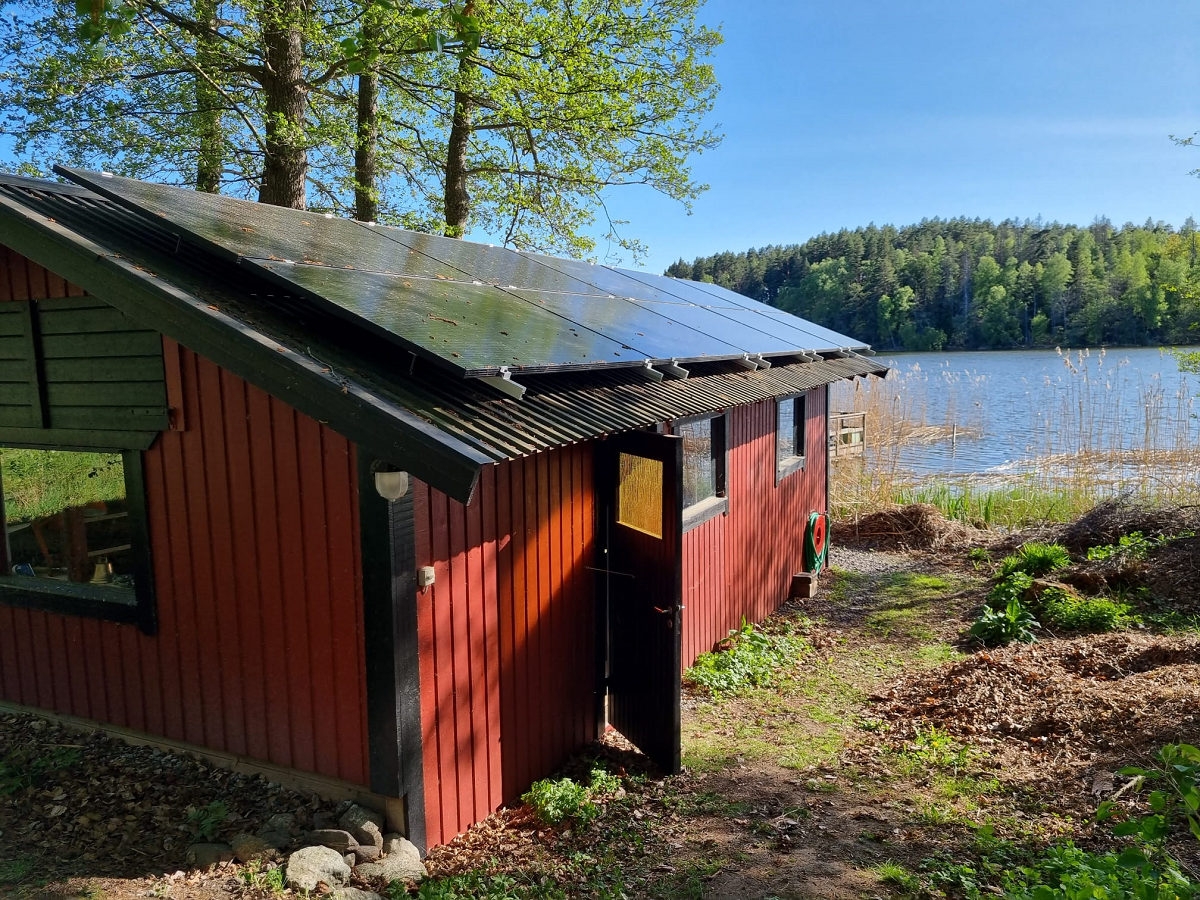

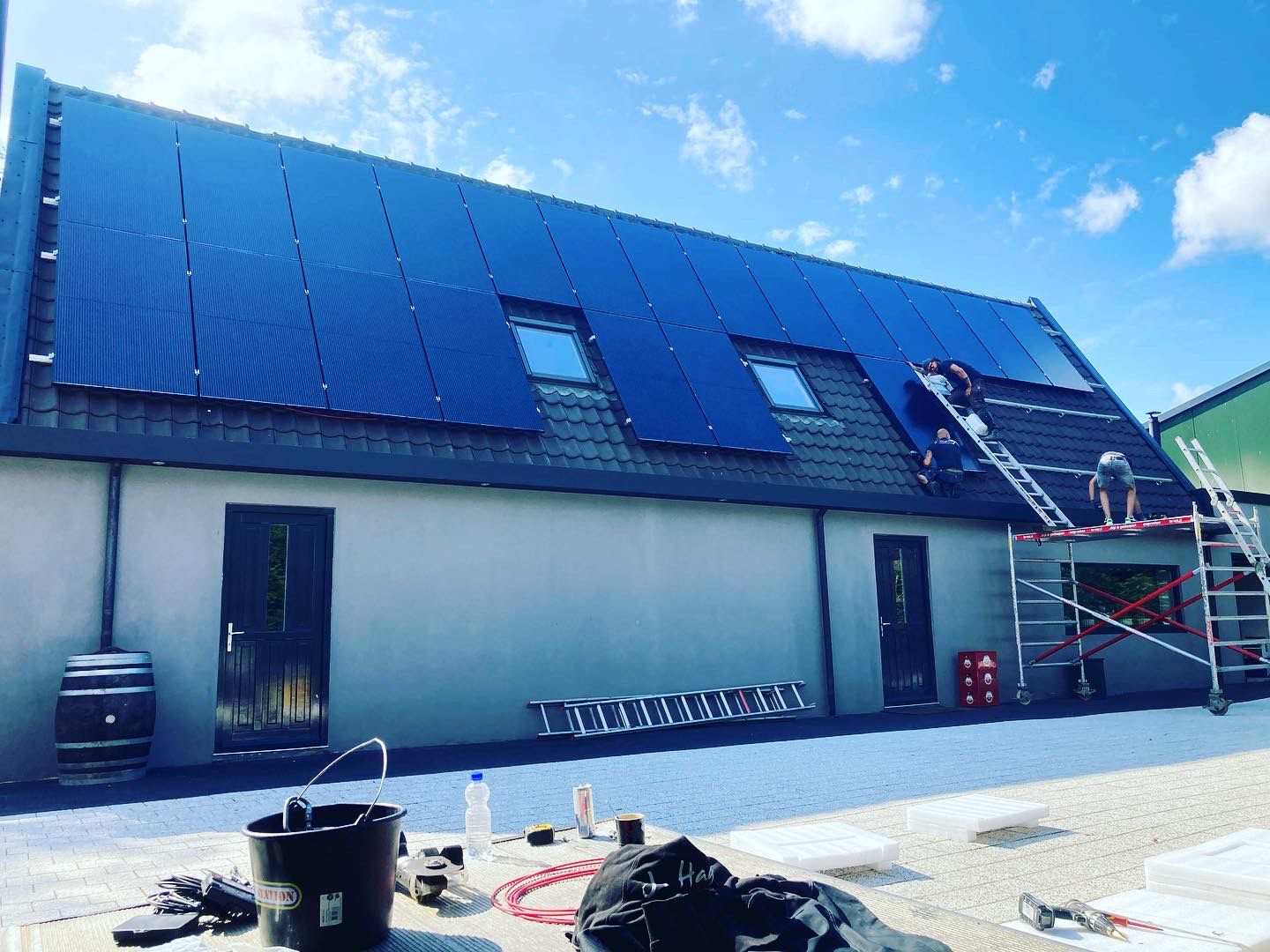

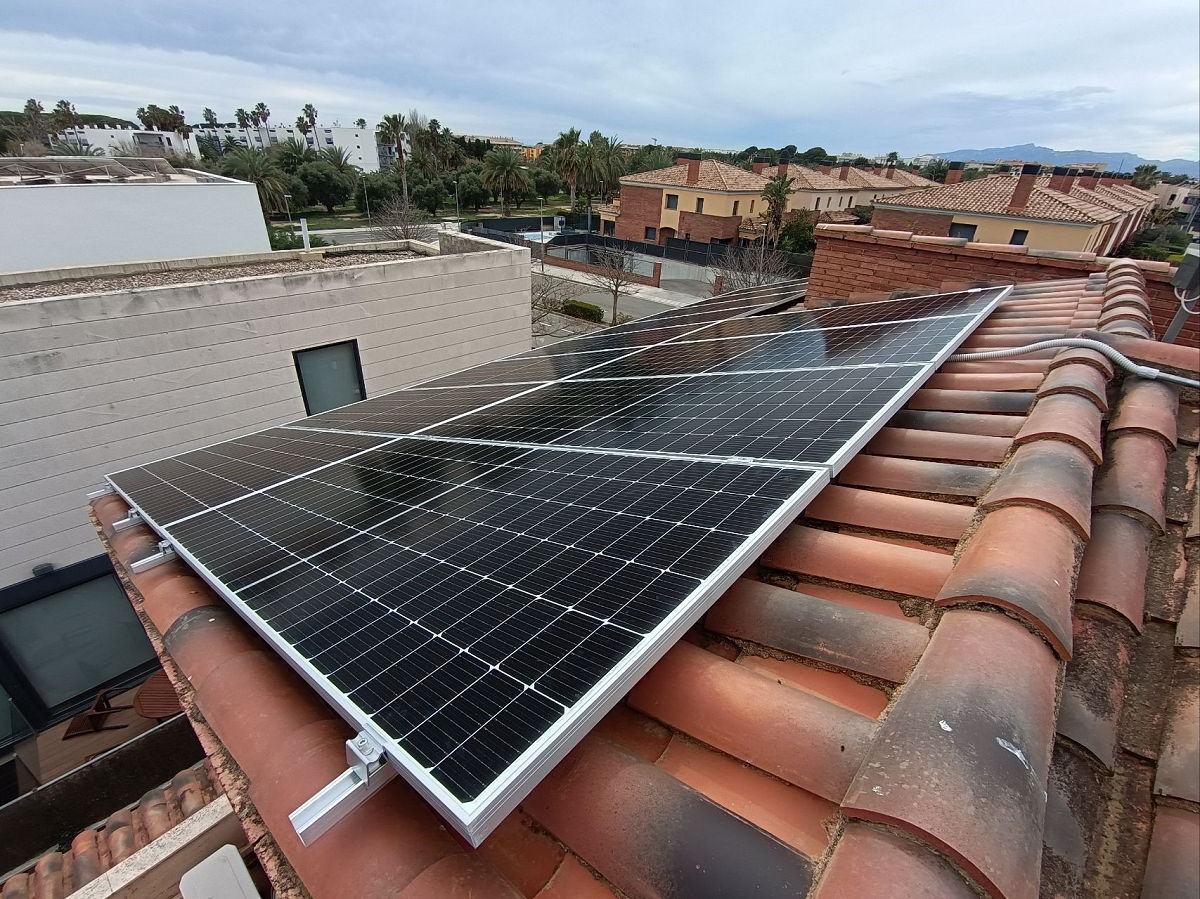

Projects
Frequently Asked Questions
What are the benefits of N-Type TOPCon bifacial solar panels?
N-Type TOPCon panels feature zero LID (Light Induced Degradation), lower temperature coefficients, better low-light performance, and higher bifaciality compared to traditional P-type panels. This translates to significantly higher energy yield over the lifetime of the system.
How does the temperature coefficient affect panel performance?
Our modules feature a very low temperature coefficient of Pmax (-0.300%/℃). This means that as temperatures rise in hot climates, our panels will experience less power drop compared to standard modules, ensuring optimal energy output.
What packaging security is provided for international shipping?
We utilize customized wooden and carton packaging reinforced with sturdy pallets. This configuration is specifically designed to absorb impacts and prevent any micro-cracks or physical damage during sea, land, or air transit.
What standard test conditions (STC) are used for these metrics?
All rated specifications are measured under Standard Test Conditions (STC): an irradiance of 1000W/m², a cell temperature of 25℃, and an Air Mass of AM1.5G.
What is the advantage of positive power tolerance?
A power tolerance of 0~+5W guarantees that you will always receive panels that produce at least their rated maximum power, and up to 5W more, ensuring you get maximum return on your investment.
