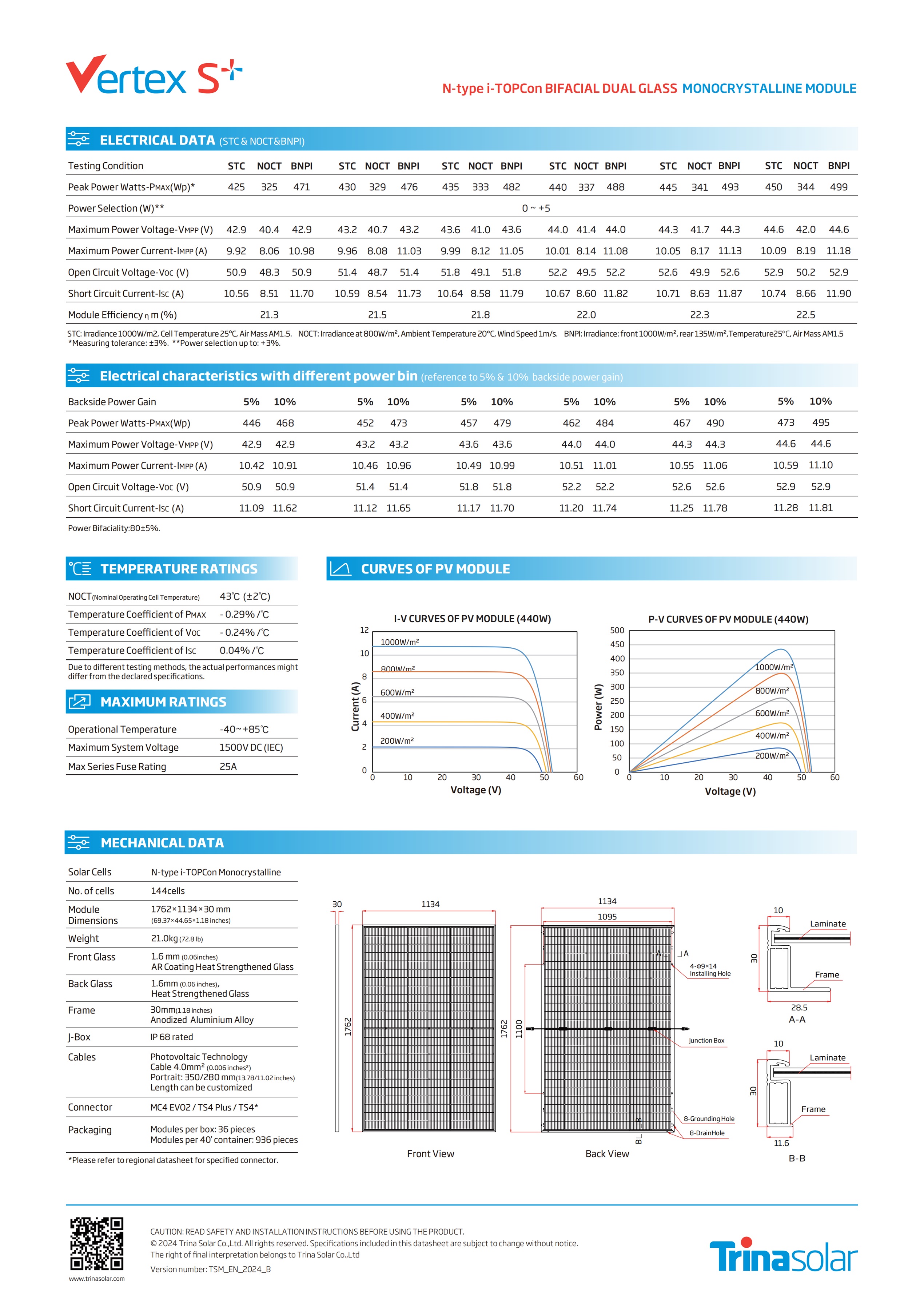

| Solar Cells | N-type i-TOPCon Monocrystalline |
| No. of cells | 144cells |
| Module Dimensions | 1762*1134*30 mm |
| Weight | 21.0kg |
| Front Glass | 1.6 mm (0.06inches) AR Coating Heat Strengthened Glass |
| Back Glass | 1.6mm(0.06 inches) Heat Strengthened Glass |
| Frame | 30mm(1.18 inches) Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Cables | Photovoltaic Technology Cable 4.0mm2(0.006 inches2) Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized |
| Connector | MC4 EVO2 / TS4 Plus / TS4* |

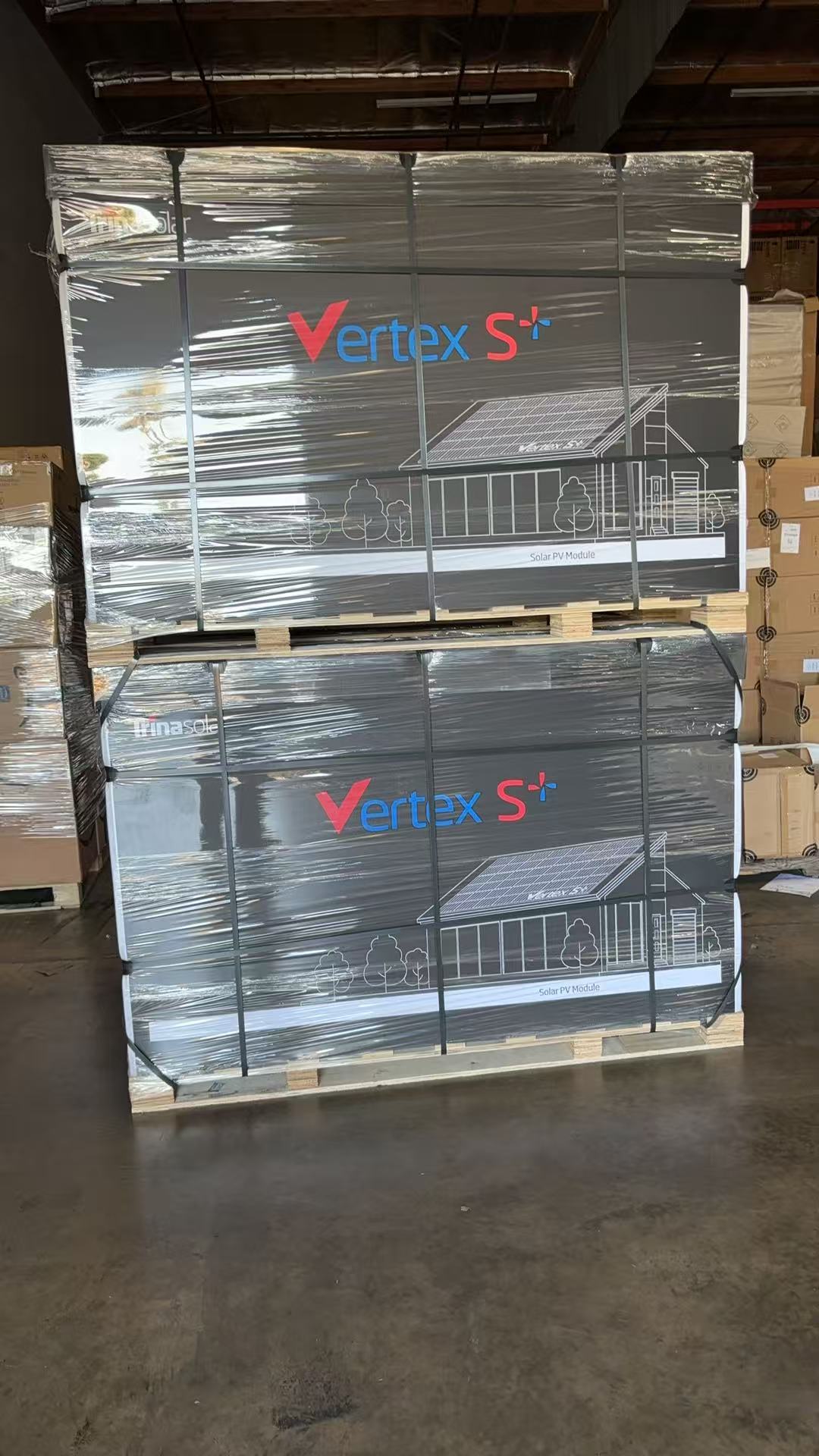

| Packaging | Modules per box: 36 pieces Modules per 40’ container: 936 pieces |
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability.
Before and Following Lamination. Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and panel.

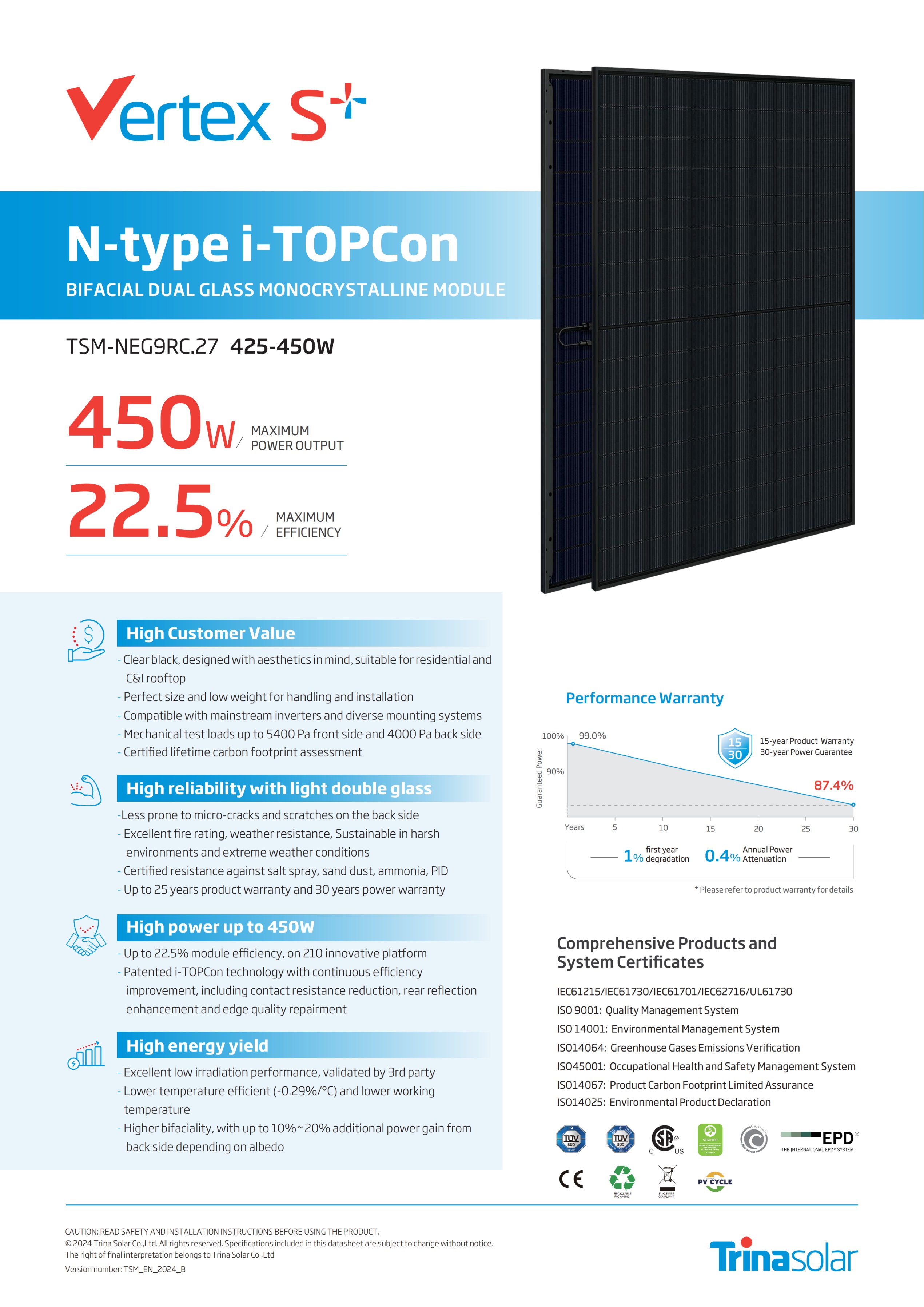

A1: N-type i-TOPCon cells offer higher conversion efficiency, a lower temperature coefficient, and reduced light-induced degradation (LID) compared to traditional P-type cells. This leads to higher energy generation over the module's lifespan.

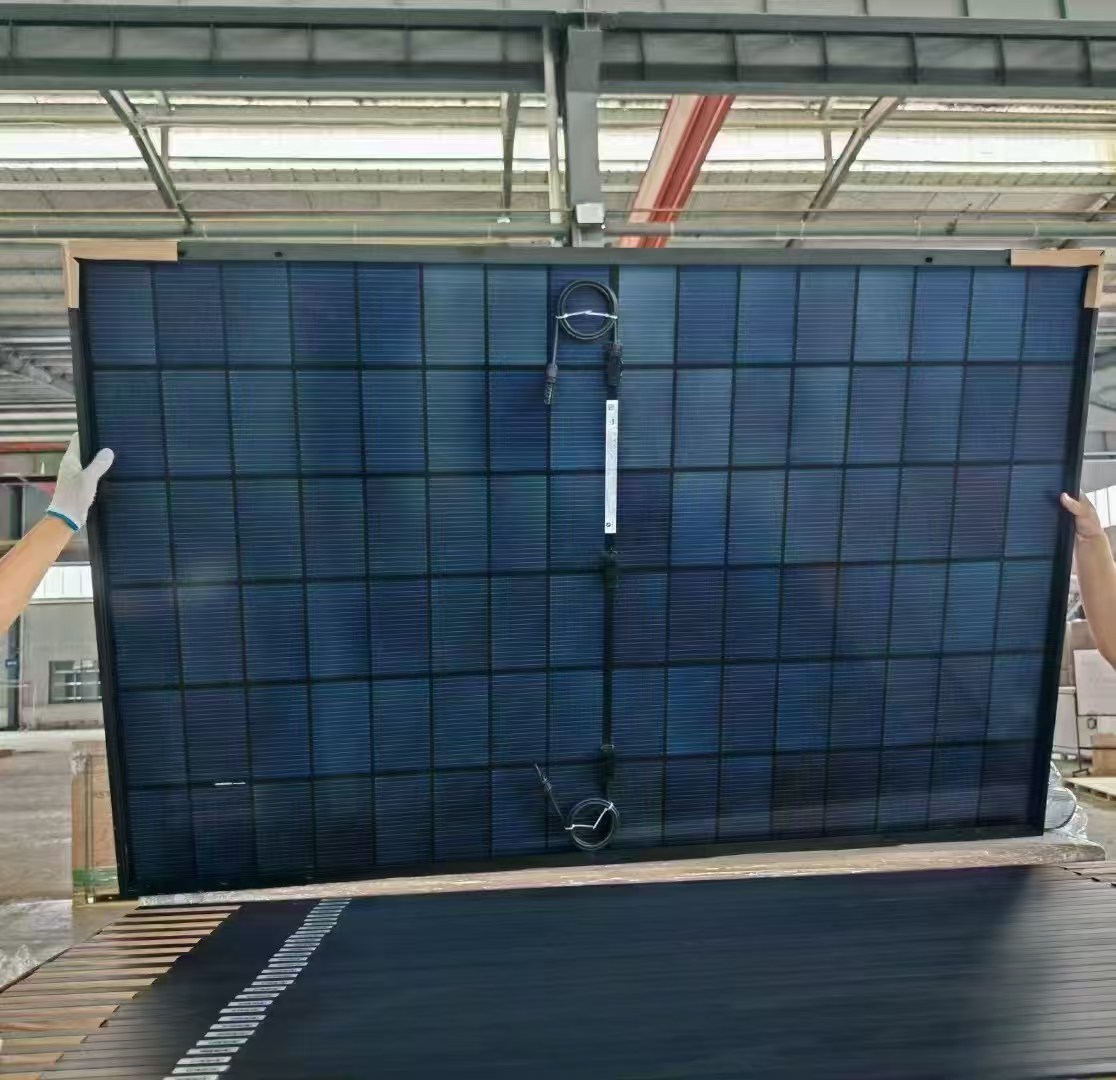

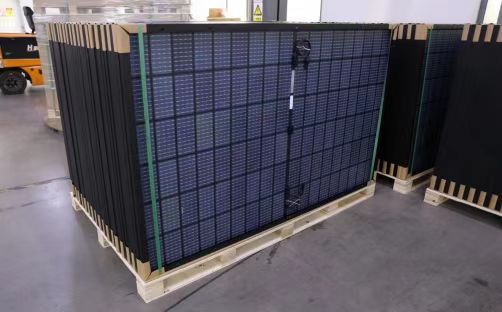

A2: The dual glass configuration provides exceptional mechanical durability and resistance to environmental stressors like moisture and salt spray. Furthermore, the bifacial feature allows the panel to absorb reflected light from the rear surface, boosting power output by up to 25% depending on the albedo of the mounting surface.

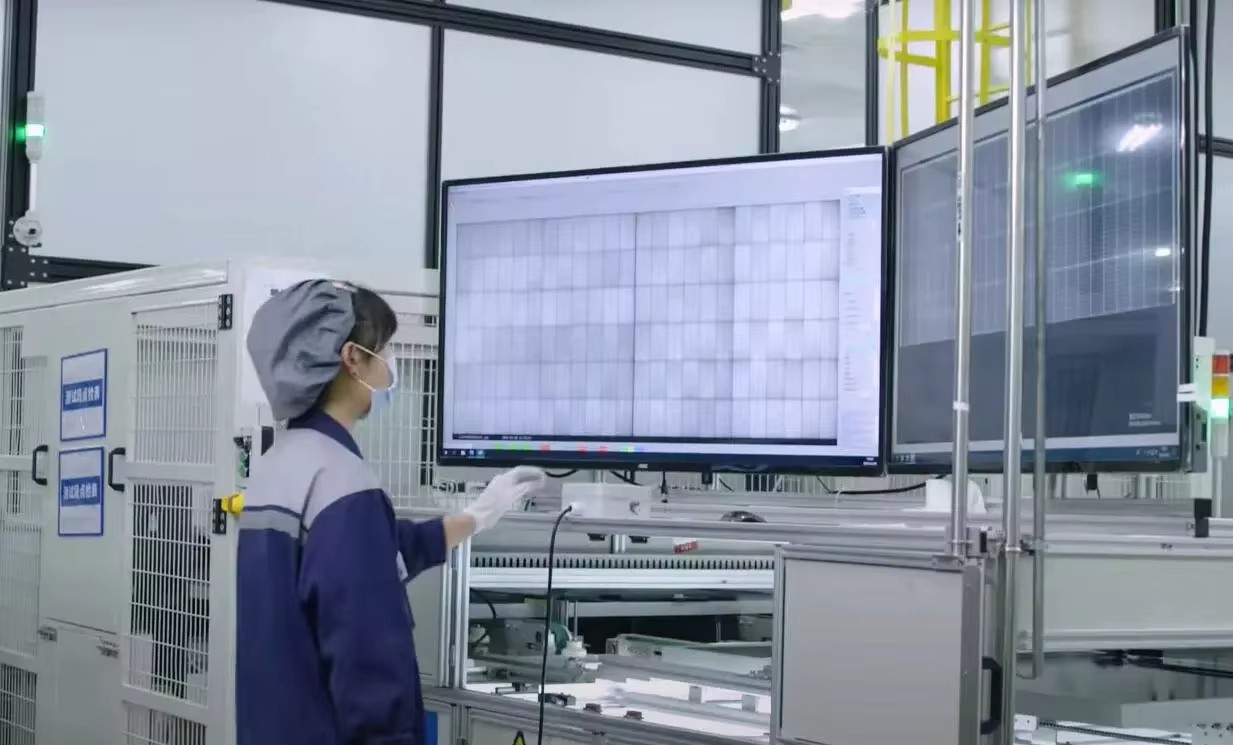

A3: Every module undergoes 100% EL (Electroluminescence) testing both before and after the lamination process. This visual inspection ensures that any micro-cracks or cell defects are detected and addressed prior to shipping.

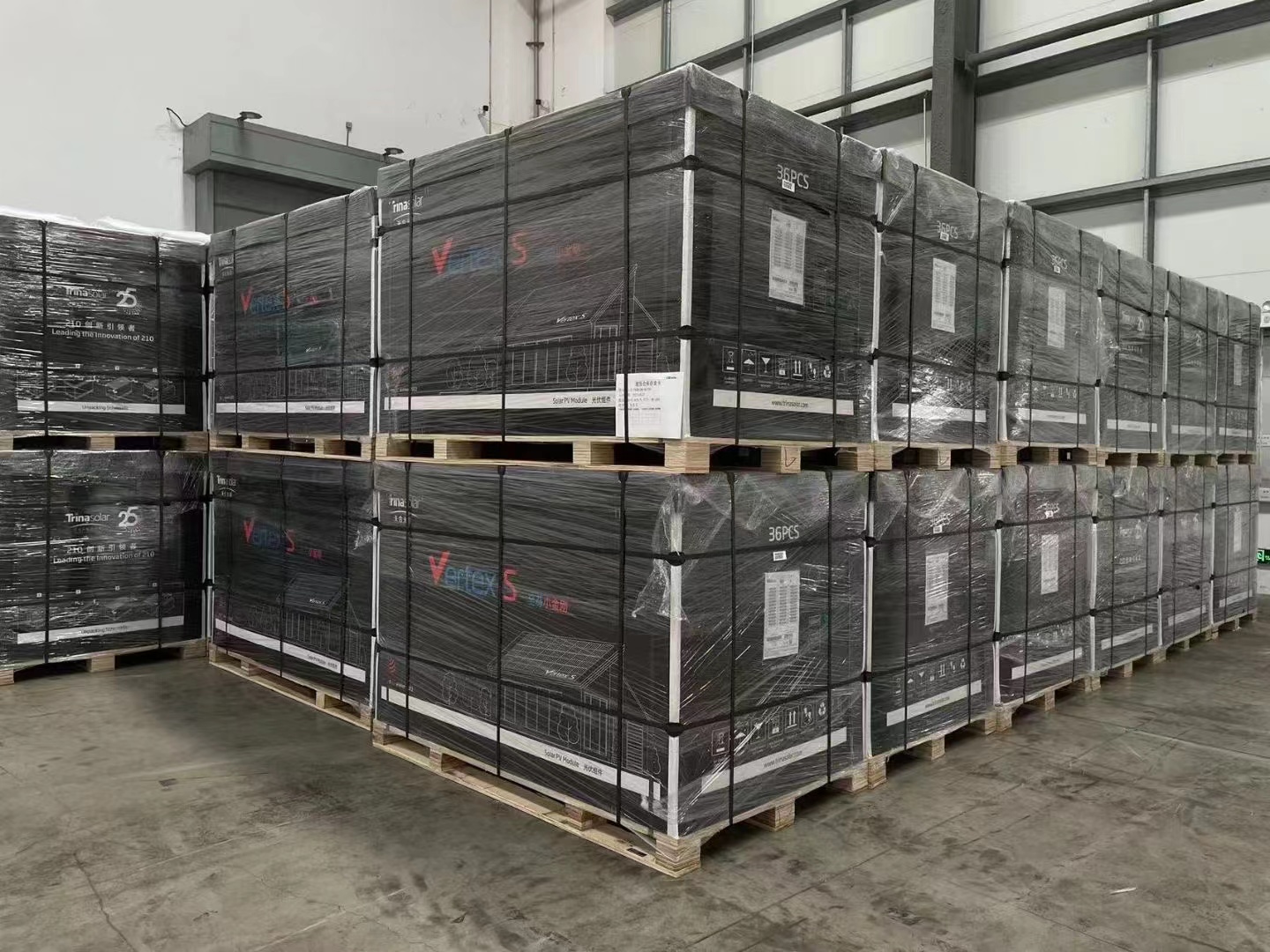

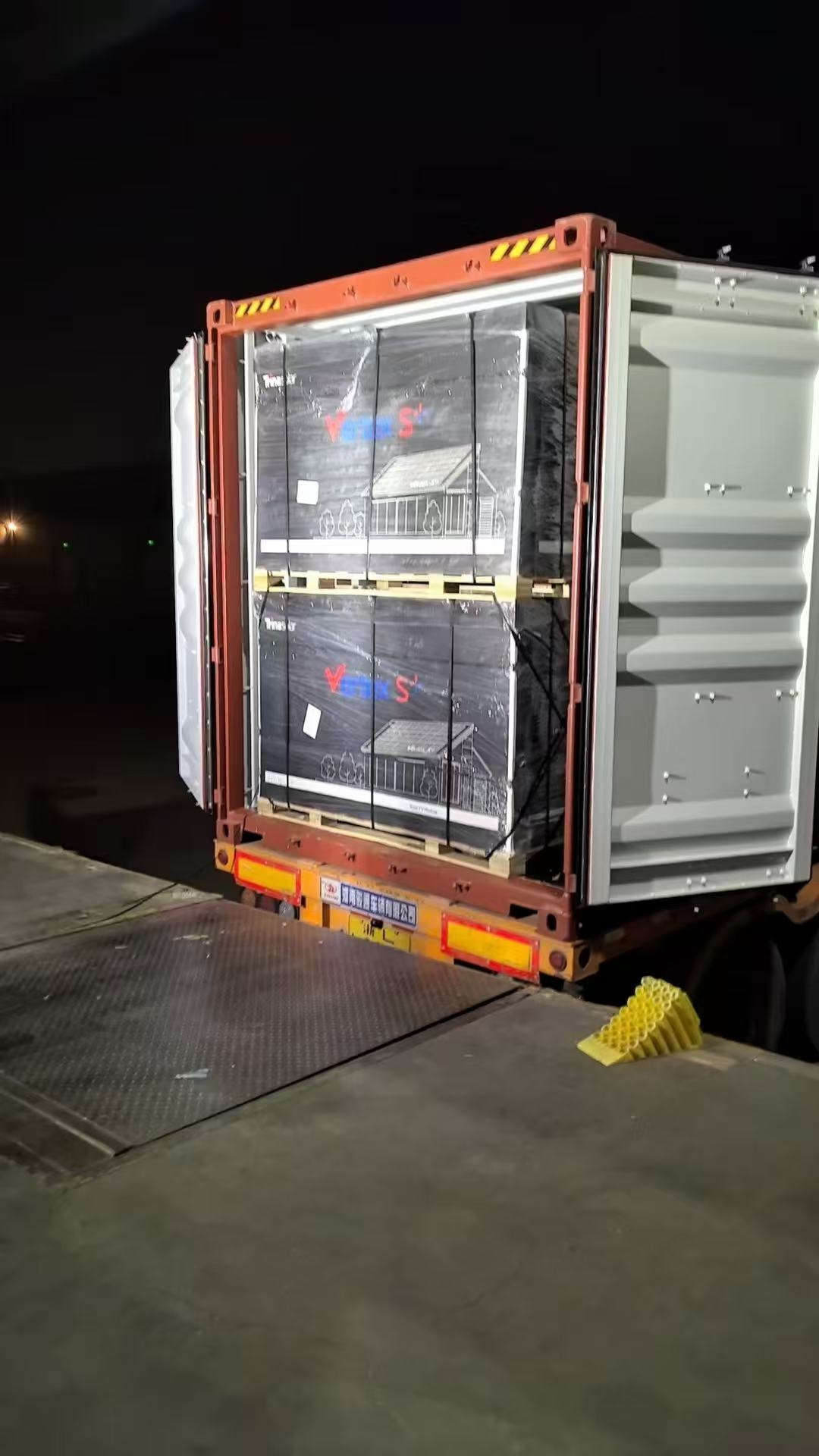

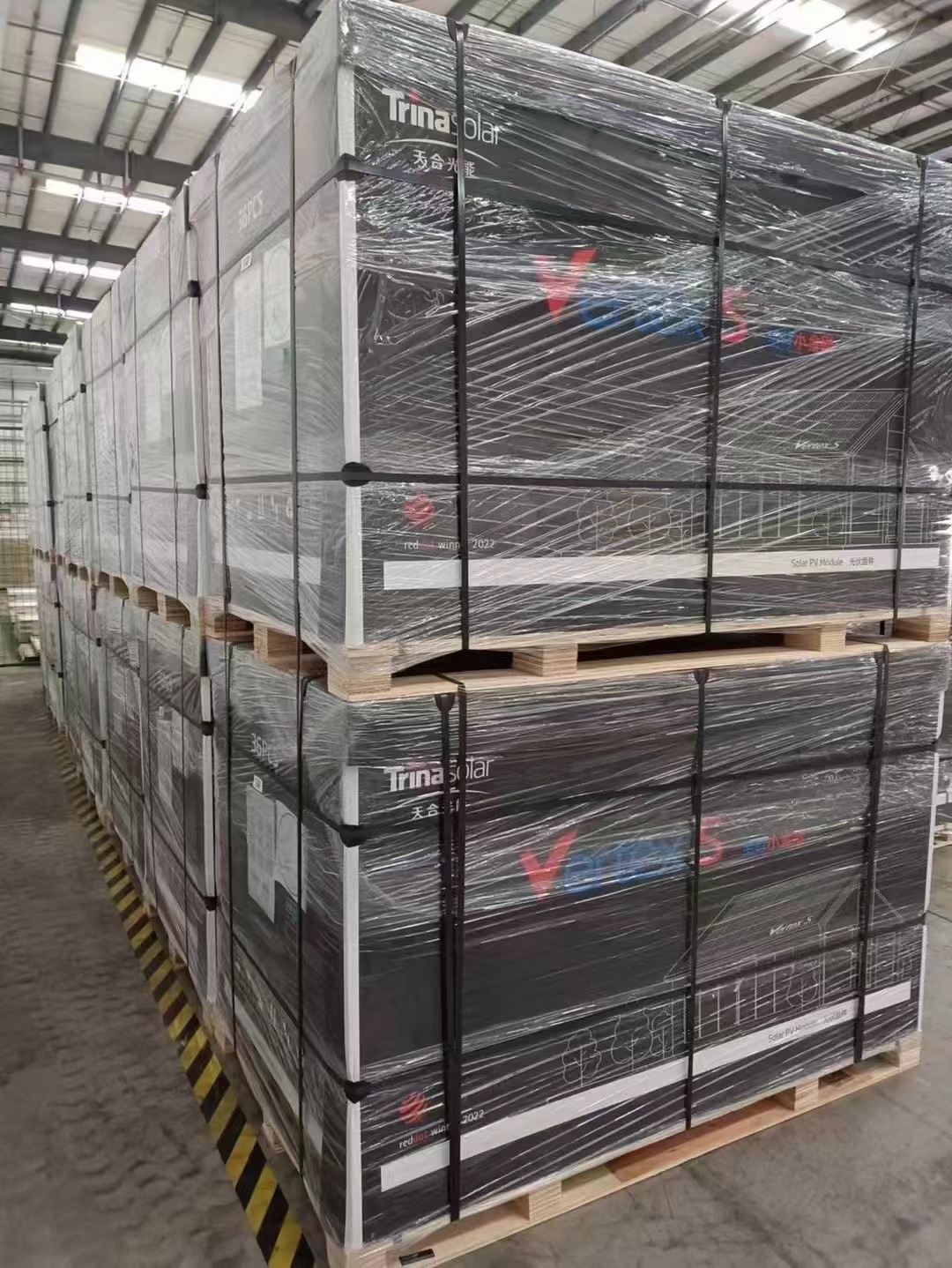

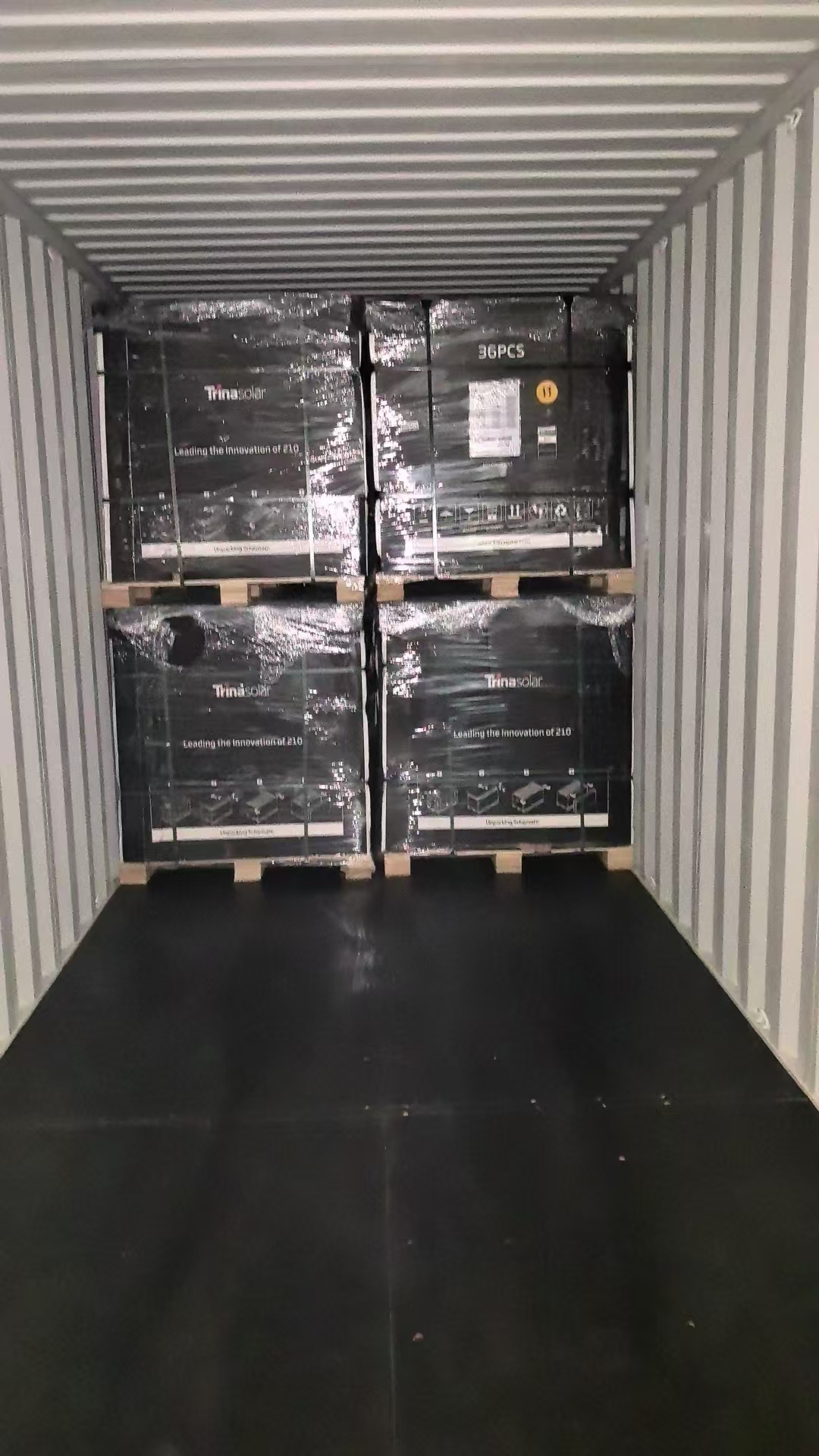

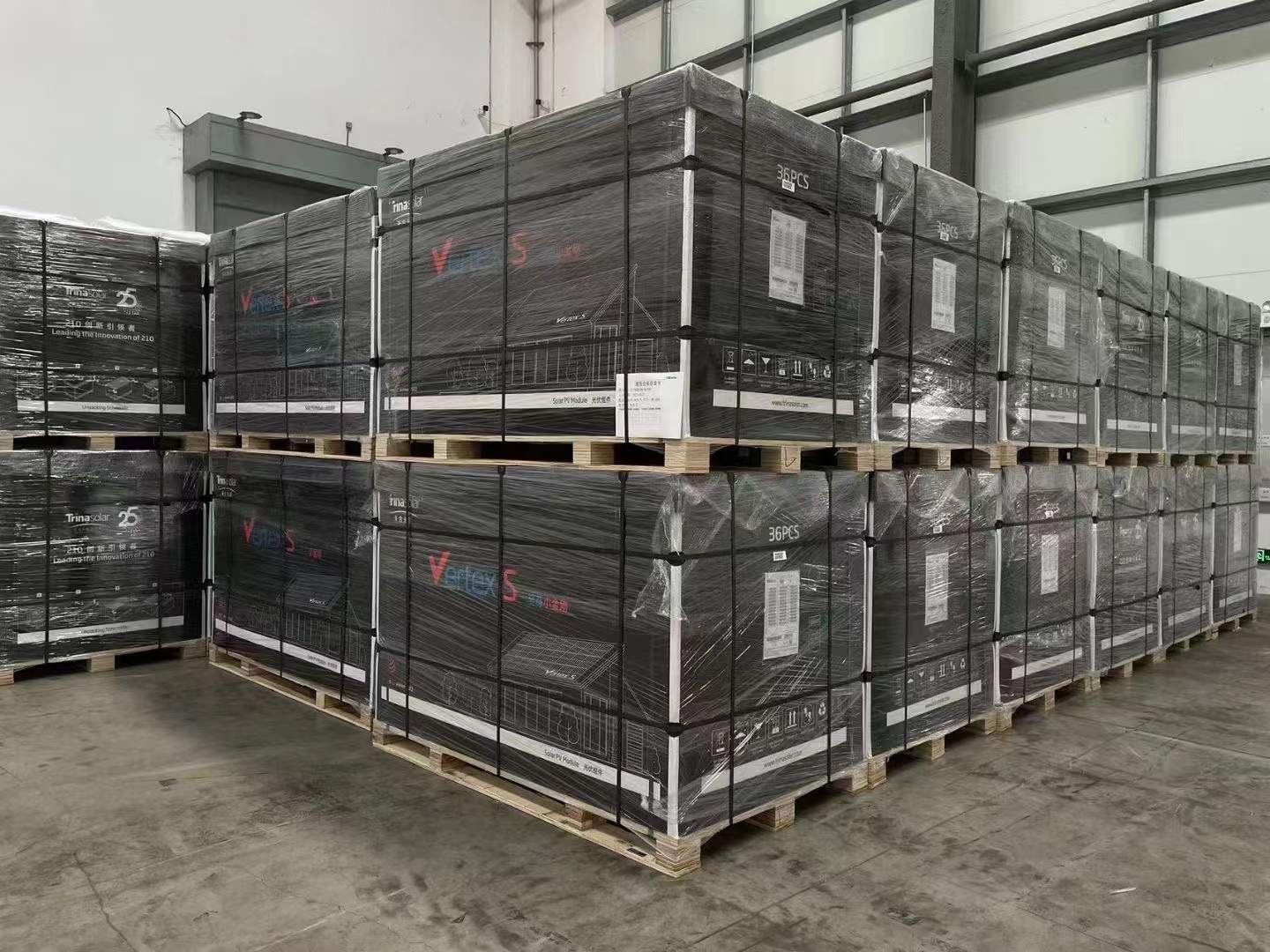

A4: The modules are packaged with 36 pieces per box. A standard 40’ container fits 936 pieces, structured to ensure optimal protection and safety during international or domestic transit.
A5: While the standard physical module dimensions are fixed at 1762*1134*30 mm for optimal structural compatibility, the portrait cable lengths can be customized upon request to fit specific installation designs.
