Configuration Details

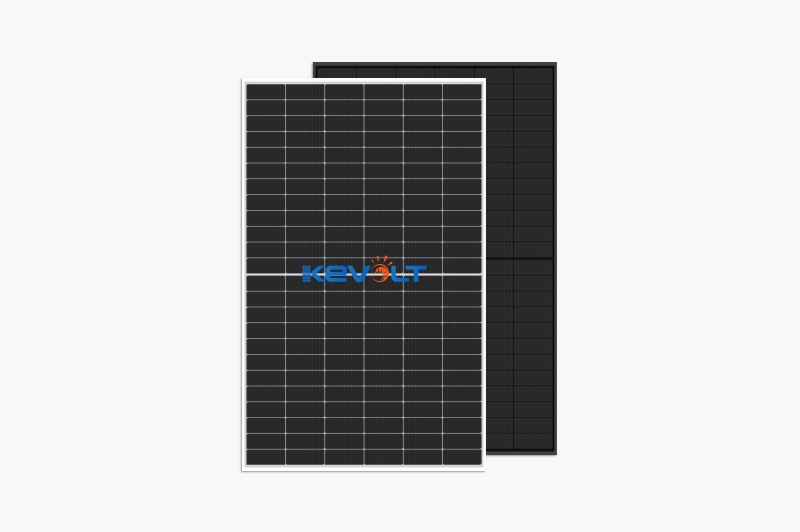

Solar Panels
- Brand Name: KEVOLT
- Peak Power: 550~580W
- Peak Voltage: 40.90V
- Peak Current: 13.45A
- Tolerance: -0~+3%
- Materials: Monocrystalline Silicon
- Batteries Number: 144
- Warranty: 15 Years

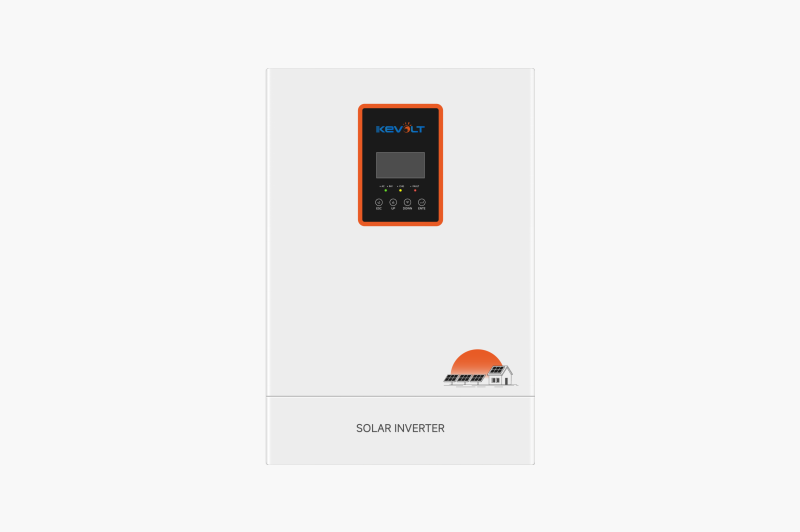

Solar Inverter
- Brand Name: KEVOLT
- Inventory: Spot Goods
- Rated Power: 5.5/6.2kW
- Input Voltage: 220/230/240V
- Output Voltage: 208/220/230/240V
- Output Type: Single/Three Phase
- System Type: Off Grid/Hybrid
- Warranty: 5 Years

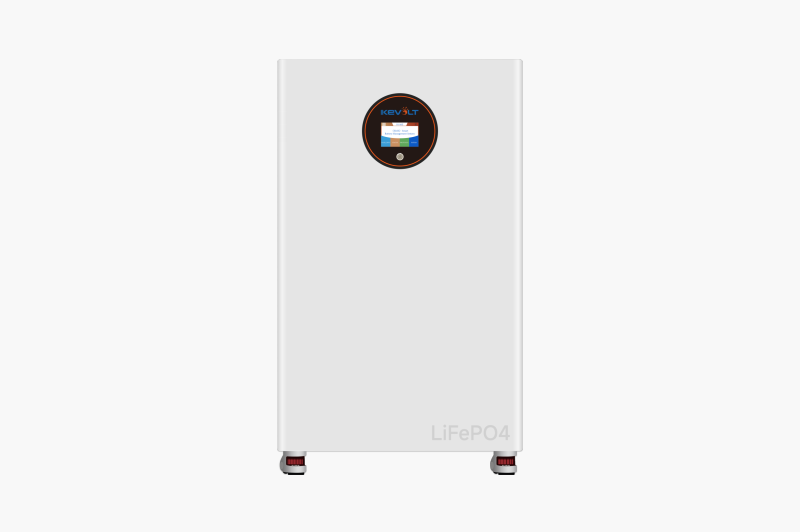

Solar Battery
- Brand Name: KEVOLT
- Battery Materials: Level A LiFePO4
- Capacity: 314Ah
- Rated Voltage: 51.2V
- Cycle Life: Max 11000 Cycles
- Max Charging Current: 200A
- Installation Method: Floor Mounted
- Warranty: 10 Years

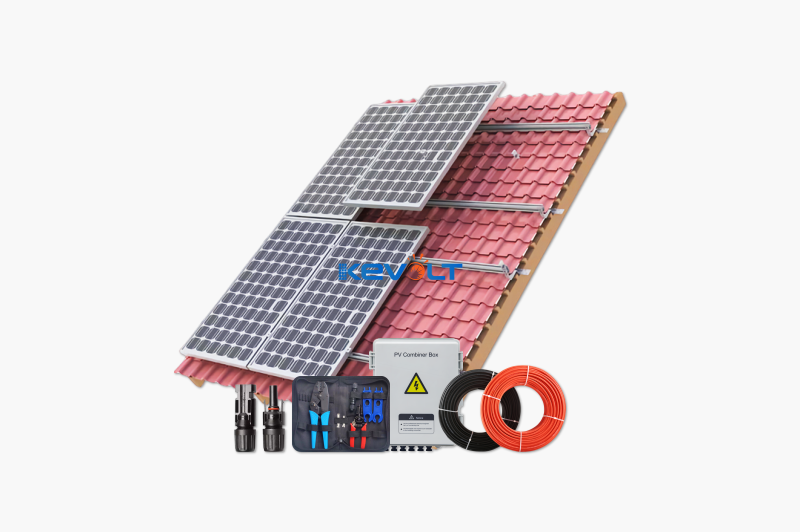

Installation System
- Installation Mode: Roof Mounting/ Ground Mounting/ Carport Mounting
- Support Material: Aluminium Alloy
- Tools Bag: Selectable
- MC4 Connector: 30A, 1000VDC
- PV Combiner Box: 8 Inputs, 1 Outputs
- PV Cable: 4mm²
- Breakers Switches: Selectable
Configuration List
5kW Solar System
| Item |
Model |
Description |
Quantity |
| 1 |
Solar Panels |
550W |
9 PCS |
| 2 |
Solar Inverter |
5kW |
1 PCS |
| 3 |
Solar Battery |
LiFePO4 5kWh |
1 PCS |
| 4 |
Mounting System |
PV Cable/PV Combiner Box/MC4 |
1 Set |
10kW Solar System
| Item |
Model |
Description |
Quantity |
| 1 |
Solar Panels |
550W |
18 PCS |
| 2 |
Solar Inverter |
10kW |
1 PCS |
| 3 |
Solar Battery |
LiFePO4 10kWh |
1 PCS |
| 4 |
Mounting System |
PV Cable/PV Combiner Box/MC4 |
1 Set |
15kW Solar System
| Item |
Model |
Description |
Quantity |
| 1 |
Solar Panels |
550W |
28 PCS |
| 2 |
Solar Inverter |
8kW |
2 PCS |
| 3 |
Solar Battery |
LiFePO4 16kWh |
1 PCS |
| 4 |
Mounting System |
PV Cable/PV Combiner Box/MC4 |
1 Set |
20kW Solar System
| Item |
Model |
Description |
Quantity |
| 1 |
Solar Panels |
550W |
36 PCS |
| 2 |
Solar Inverter |
10kW |
2 PCS |
| 3 |
Solar Battery |
LiFePO4 20kWh |
1 PCS |
| 4 |
Mounting System |
PV Cable/PV Combiner Box/MC4 |
1 Set |

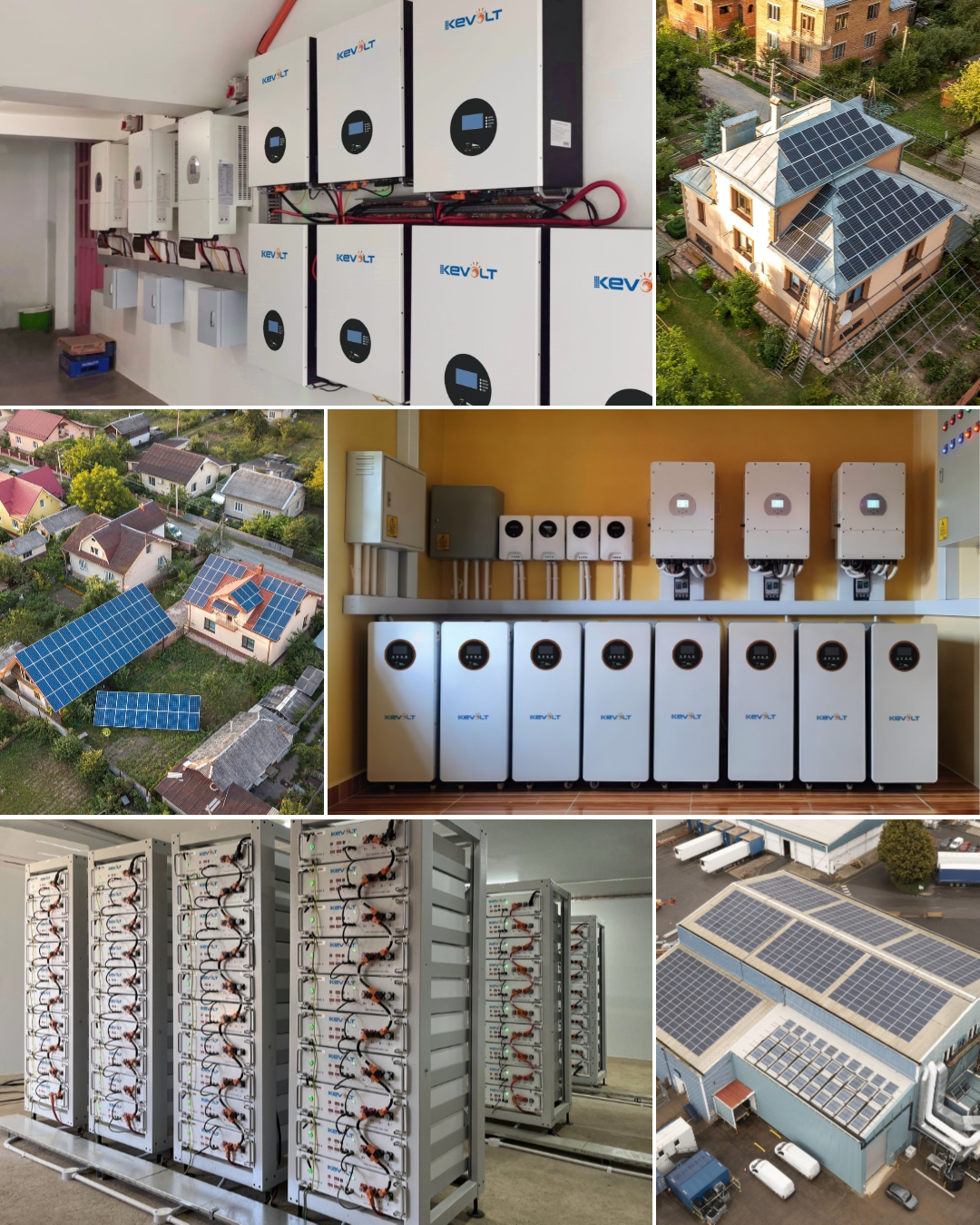

Project Case

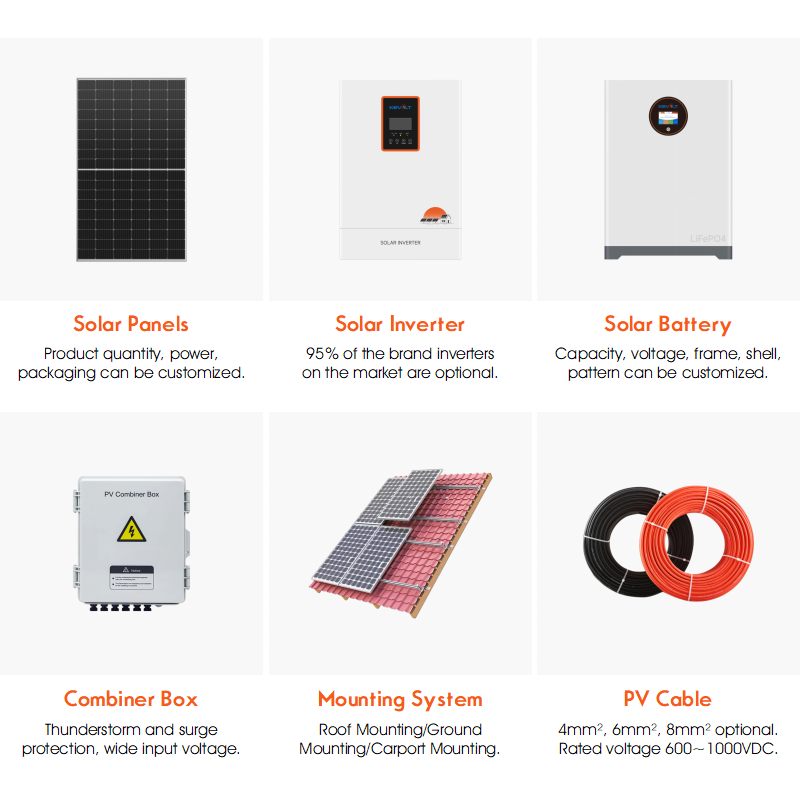

Solar System Customization
Company Profile
What materials are the solar panels made of?
The KEVOLT solar panels are made of high-quality Monocrystalline Silicon and consist of 144 cells, delivering a peak power range of 550W to 580W.
What is the warranty period for the system components?
We offer different warranty periods depending on the component: Solar Panels come with a 15-year warranty, Solar Batteries feature a 10-year warranty, and Solar Inverters have a 5-year warranty.
How many cycles does the solar battery support?
The solar battery is built with Level A LiFePO4 materials, providing a highly durable cycle life of up to 11,000 cycles.
Where can the solar mounting system be installed?
The mounting system is constructed from robust Aluminium Alloy and supports roof mounting, ground mounting, as well as carport mounting installations.
What types of solar system configurations are available?
Standard system configurations are offered in 5kW, 10kW, 15kW, and 20kW capacities. Each configuration includes a matched set of panels, inverter, battery capacity, and mounting system.
What type of phases and configurations do the inverters support?
The KEVOLT inverters support Single or Three Phase output configurations and are suitable for Off-Grid or Hybrid system types, with output voltages ranging from 208V to 240V.
