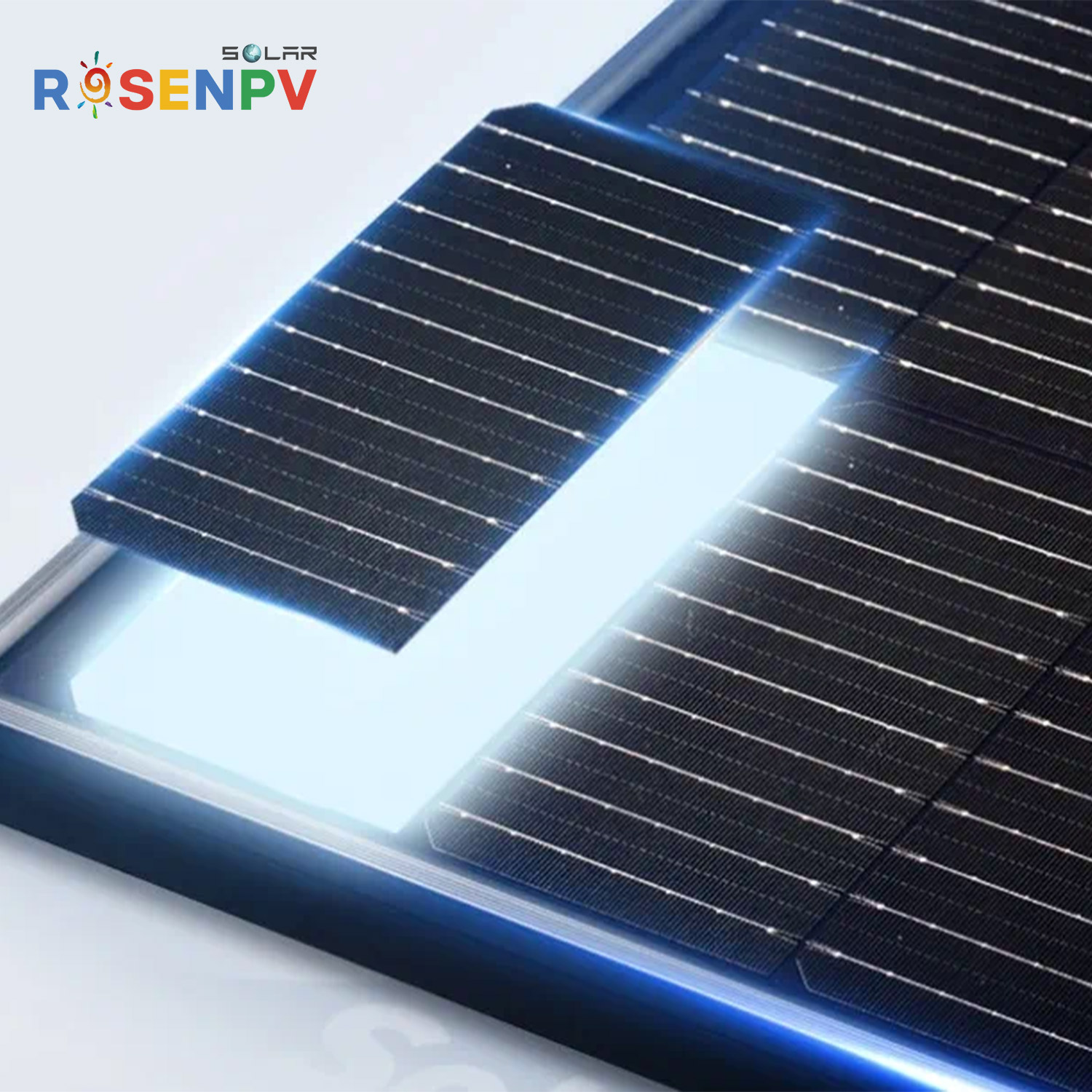

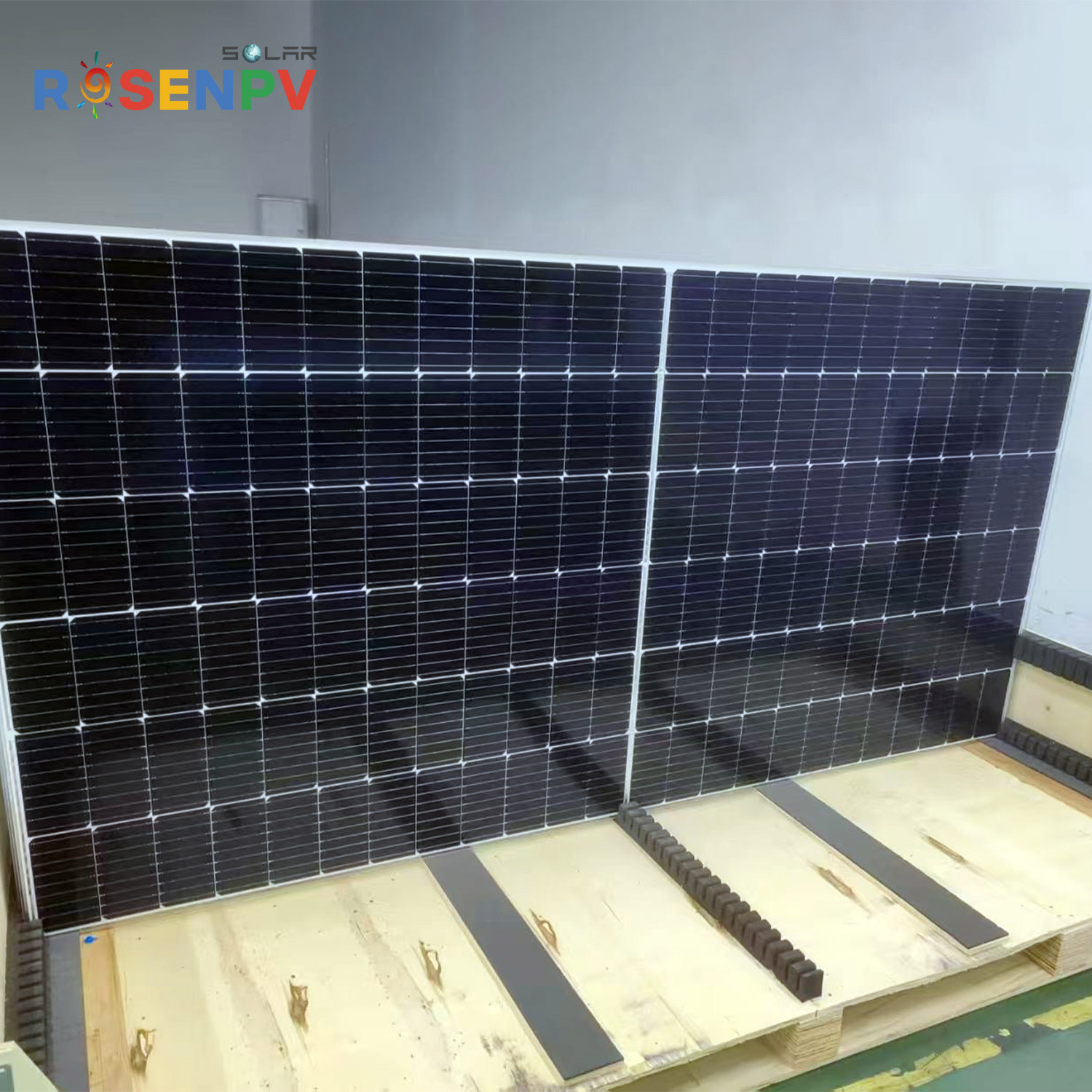

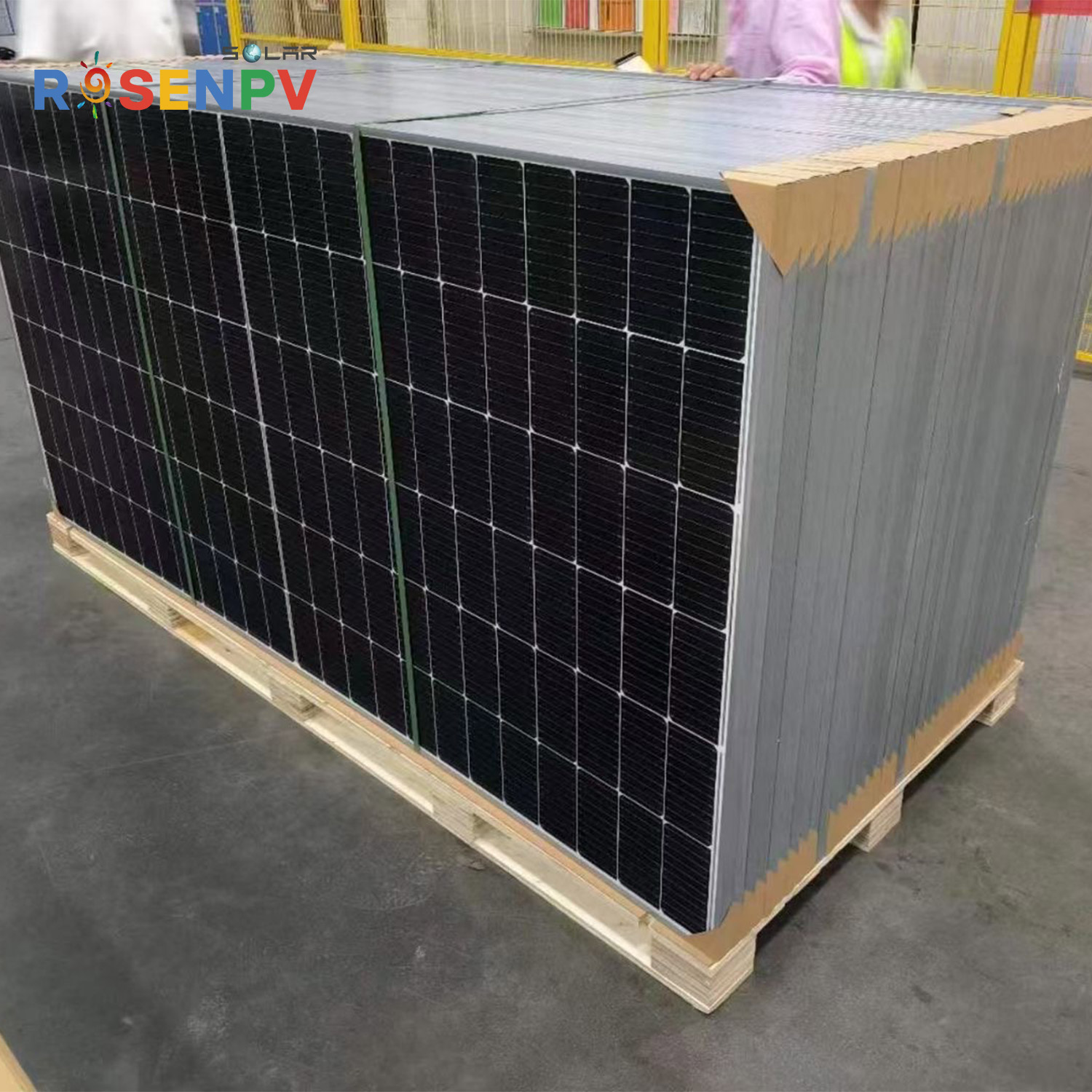

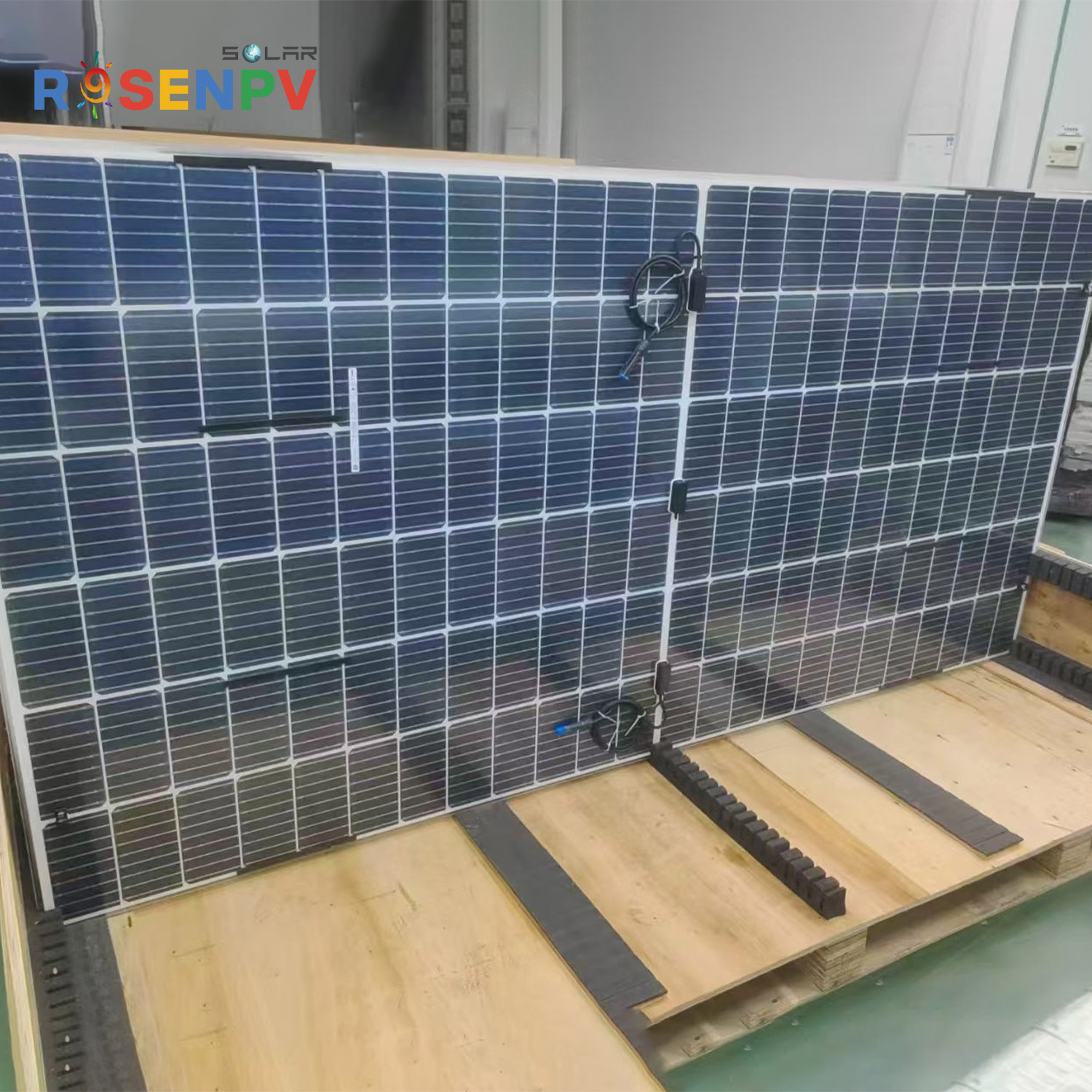

Rosen 30 Year Warranty N Type Pv Solar Panels 700W 720W 750W Topcon Bifacial Solar EU Stock

1 / 5

Rosen 30 Year Warranty N Type Pv Solar Panels 700W 720W 750W Topcon Bifacial Solar EU Stock

Send Inquiry

Product Description

Panels Description

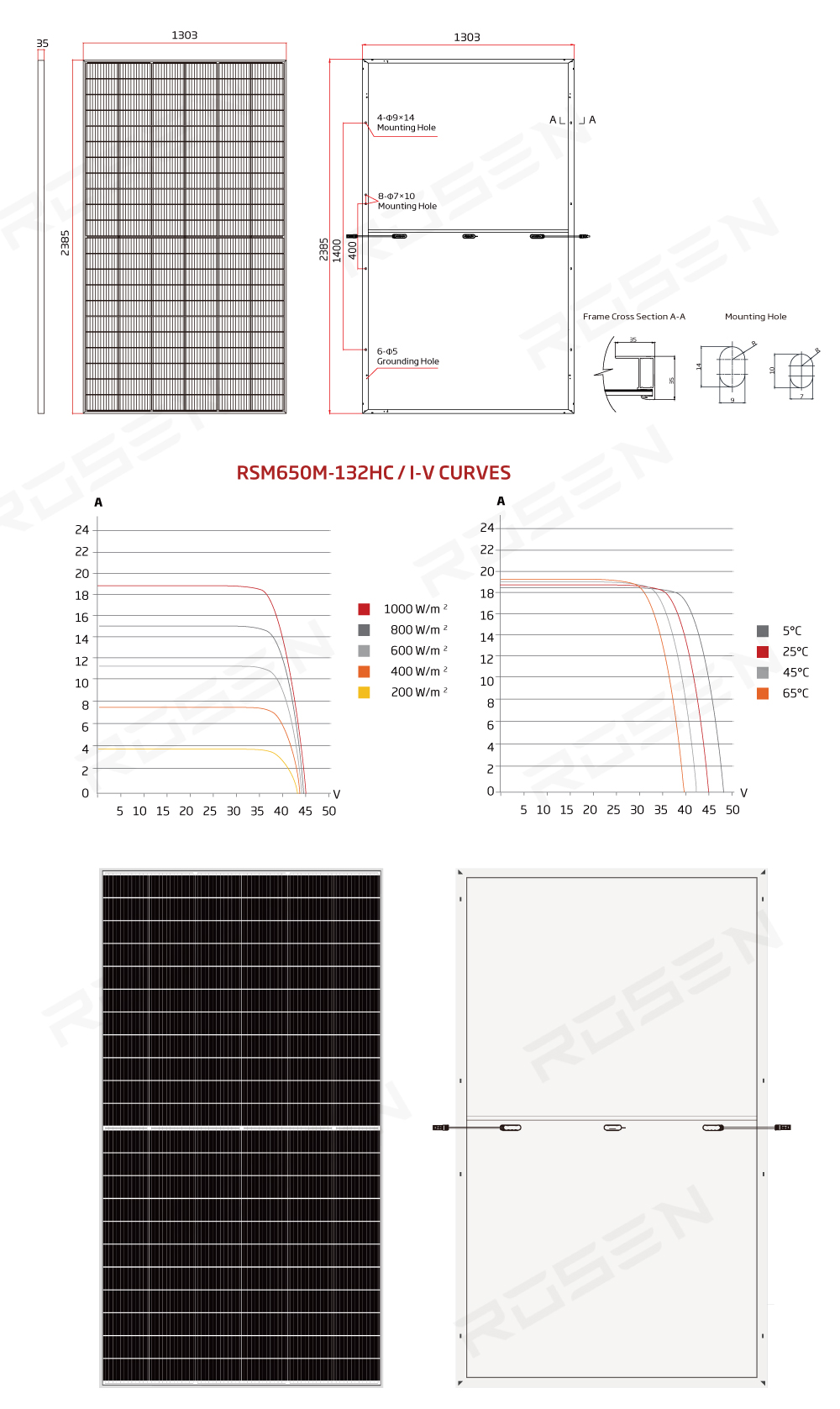

Technical Specification Data

Model	RSM650-132HC	RSM660-132HC	RSM680-132HC	RSM690-132HC	RSM700-132HC
Rated Maximum Power at STC	650W	660W	680W	690W	700W
Open Circuit Voltage(Voc/V)	45.0	45.4	46.2	46.8	47.2
Maximum Power Voltage(Vmp/V)	37.9	38.3	39.1	39.5	39.9
Short Circuit Current(Isc/A)	18.39	18.47	18.63	18.71	18.79
Maximum Power Current(Imp/A)	17.16	17.24	17.40	17.48	17.55
Module Efficiency	20.9%	21.2%	21.9%	22.2%	22.5%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp)	487	495	510	518	526
Maximum Power Voltage(VMPP/V)	35.5	35.9	36.7	37.1	37.5
Maximum Power Current-IMPP (A)	13.74	13.79	13.91	13.97	14.03
Open Circuit Voltage-VOC (V)	42.5	42.9	43.7	44.1	44.5
Short Circuit Current-ISC (A)	14.83	14.89	15.03	15.11	15.18
NOCT Condition	Irradiance 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.

Detailed Images

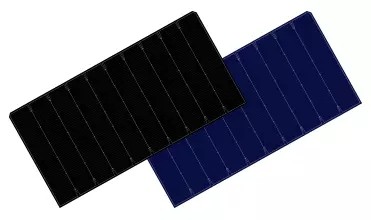

Solar Cells

• High efficiency 5BB PV cell Mono

• Uniform color

• Anti-PID

• Germany standard Cell

• Full test

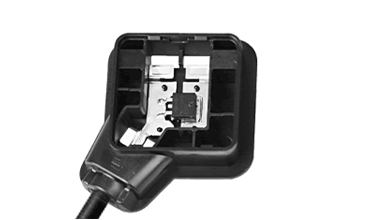

Junction Box

• Conventional standalone edition and engineering custom edition

• Quality diode ensures module running safety

• IP67 protection level

• Efficient heat dissipation

• Long service life

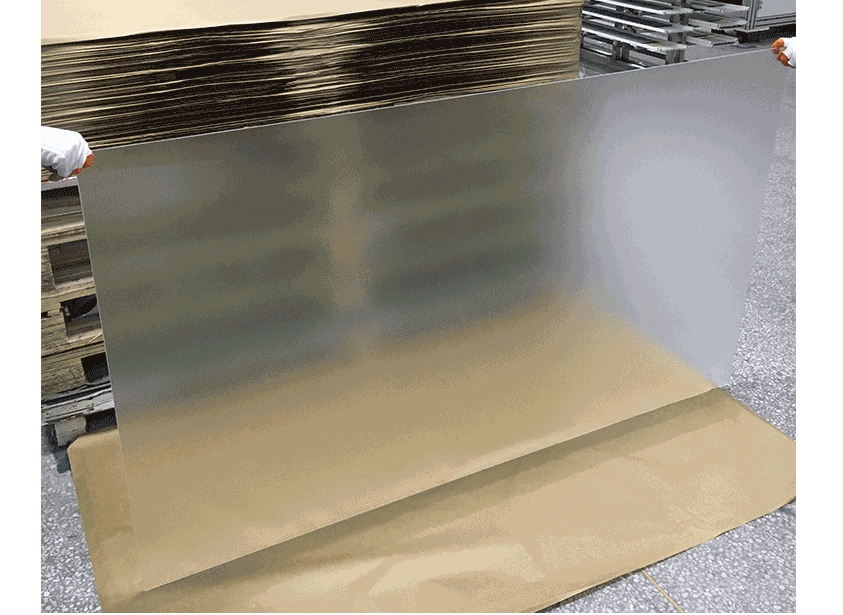

Glass

• Antireflective glass

• Translucency of normal luminance is increased by 2%

• Module efficiency is increased by 2%

• Self-cleaning function

• Service life of 25 years

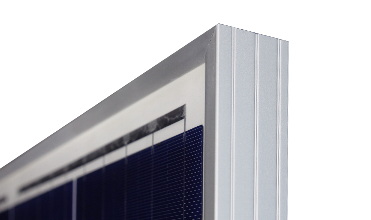

Frame

• Stock-size configurations

• Available in silver and black

• Thickness options: 30 / 35 / 40 / 50 mm

• Passed strict stress tests

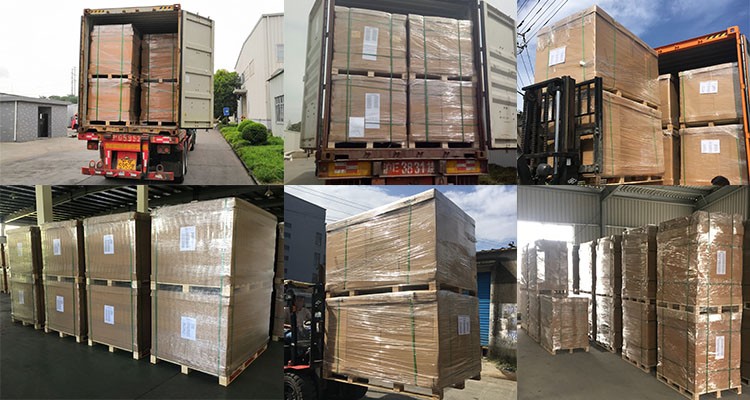

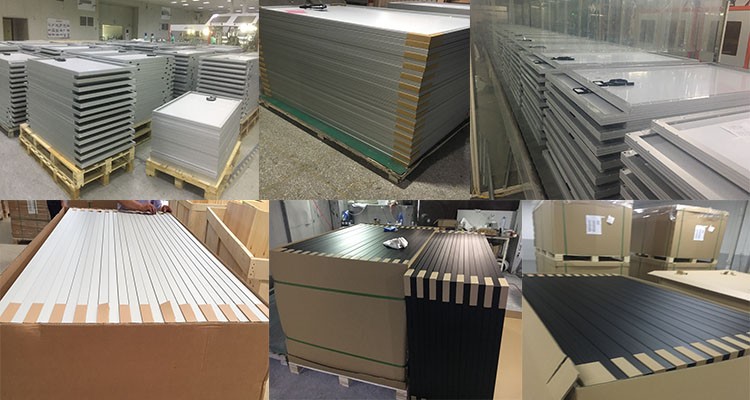

Packing & Delivery

Packing Details: In carton on pallet or wooden box

Delivery Details: 5-7 days

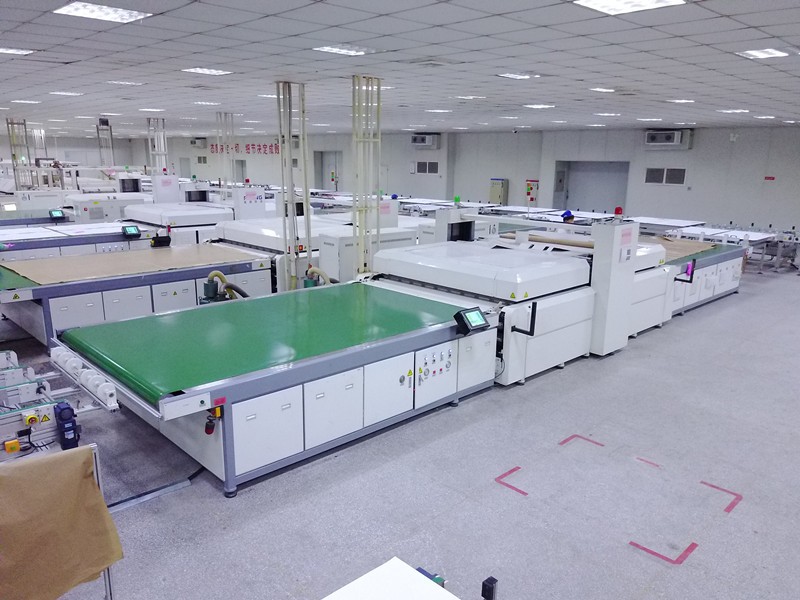

1. Lamination

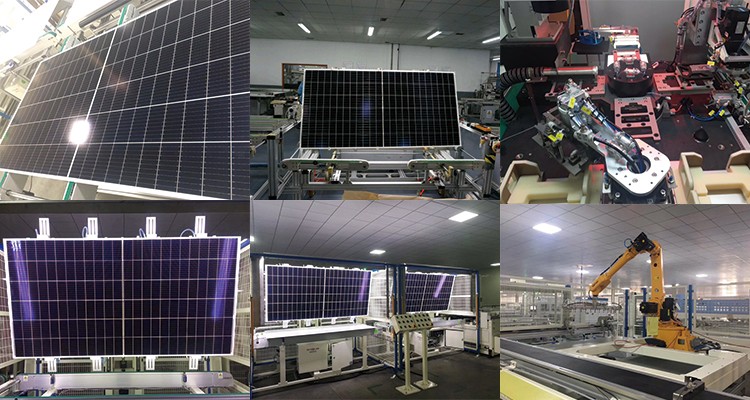

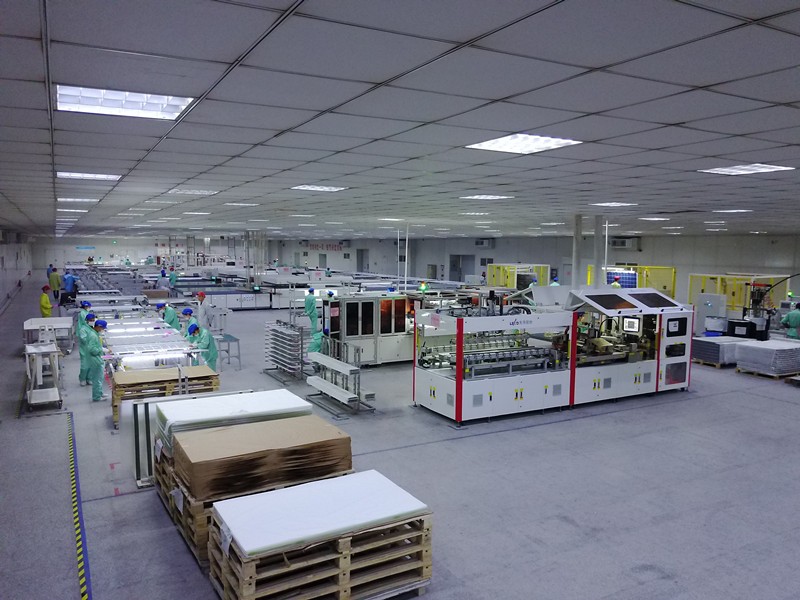

2. Production Line

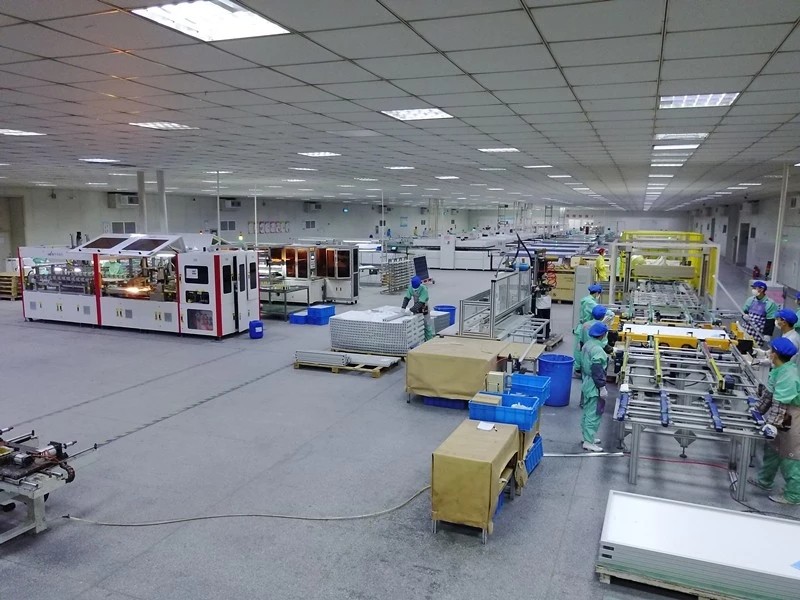

3. Assembling

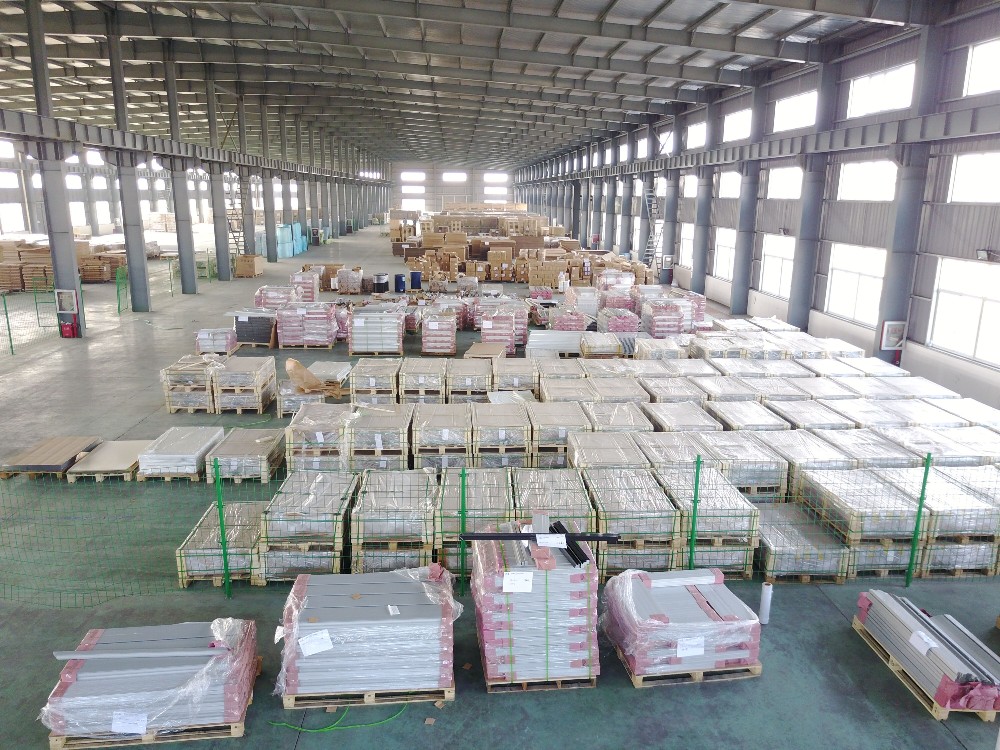

4. Warehouse

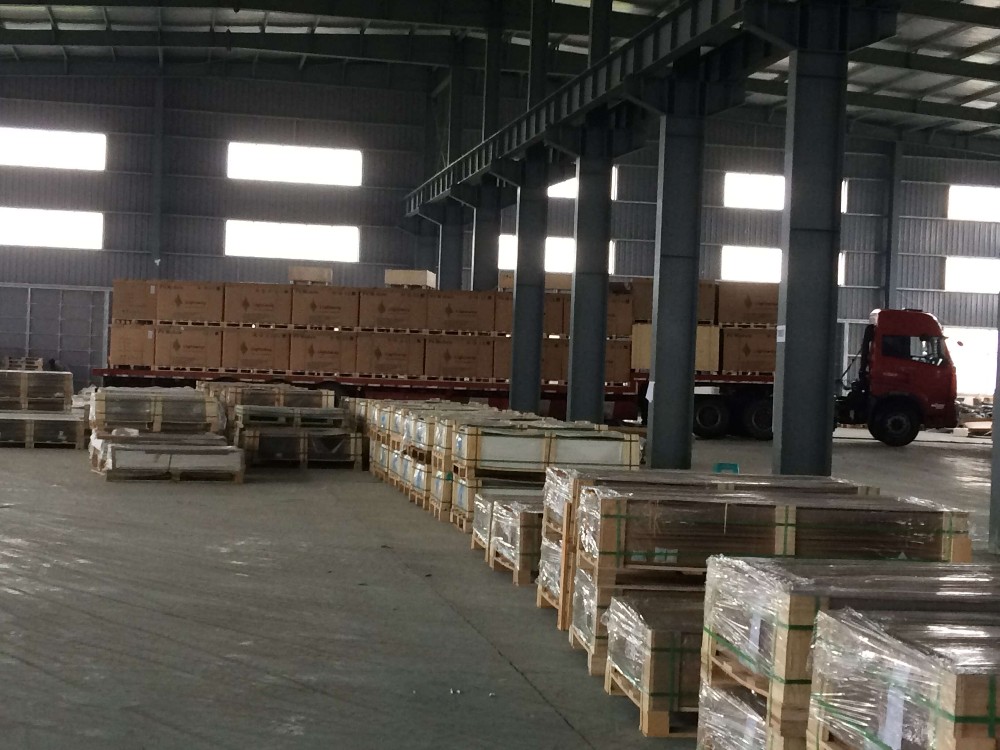

5. Loading

6. Delivery

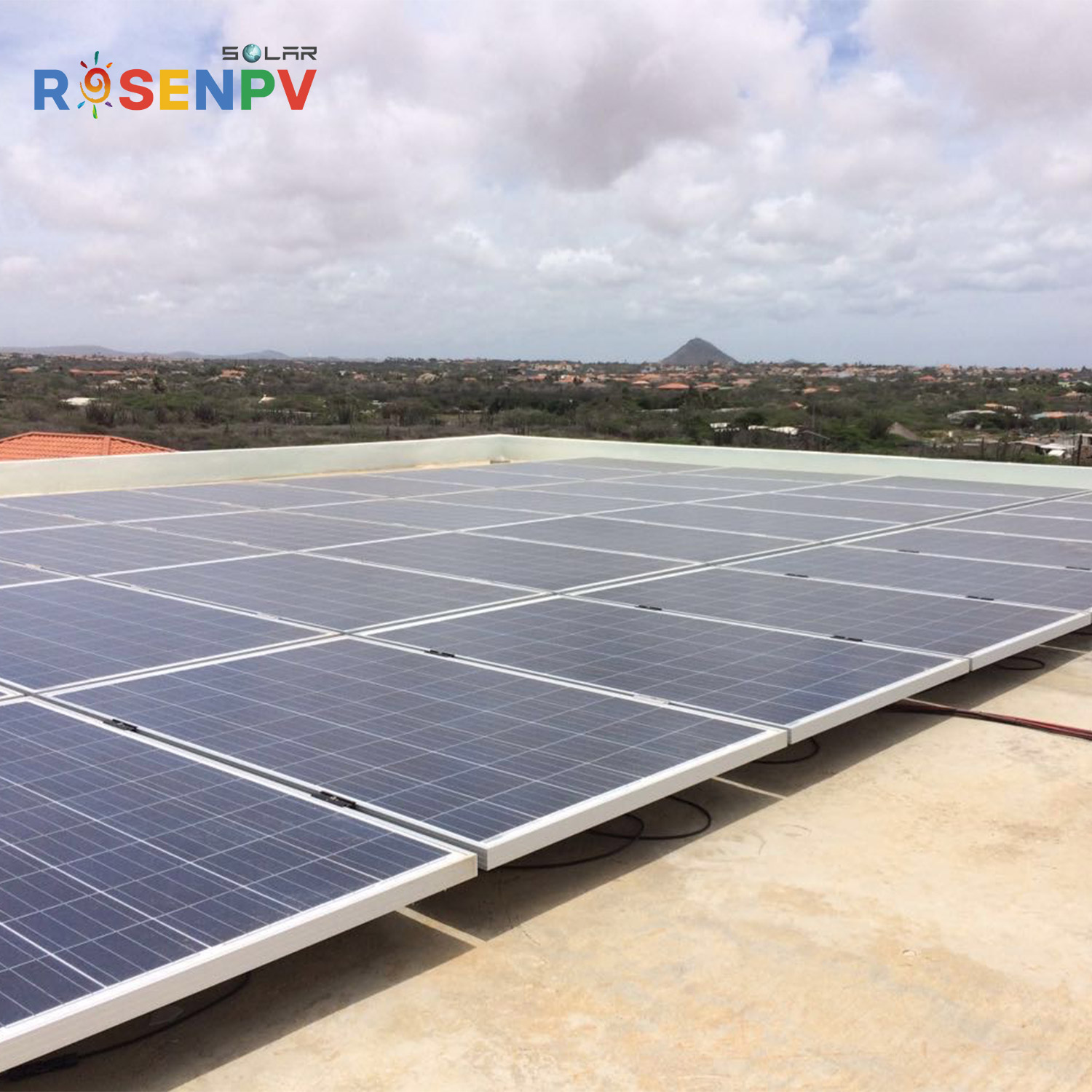

Our Projects

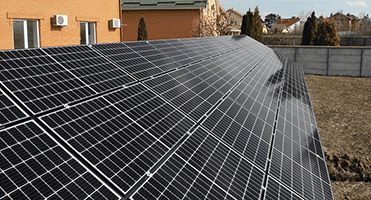

Malaysia

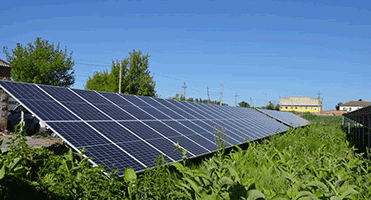

Sweden

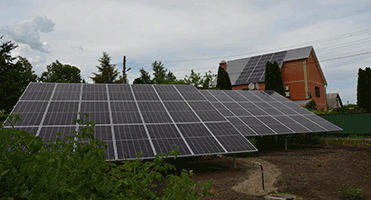

Mexico

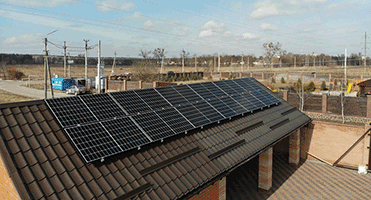

New Zealand

Our Company

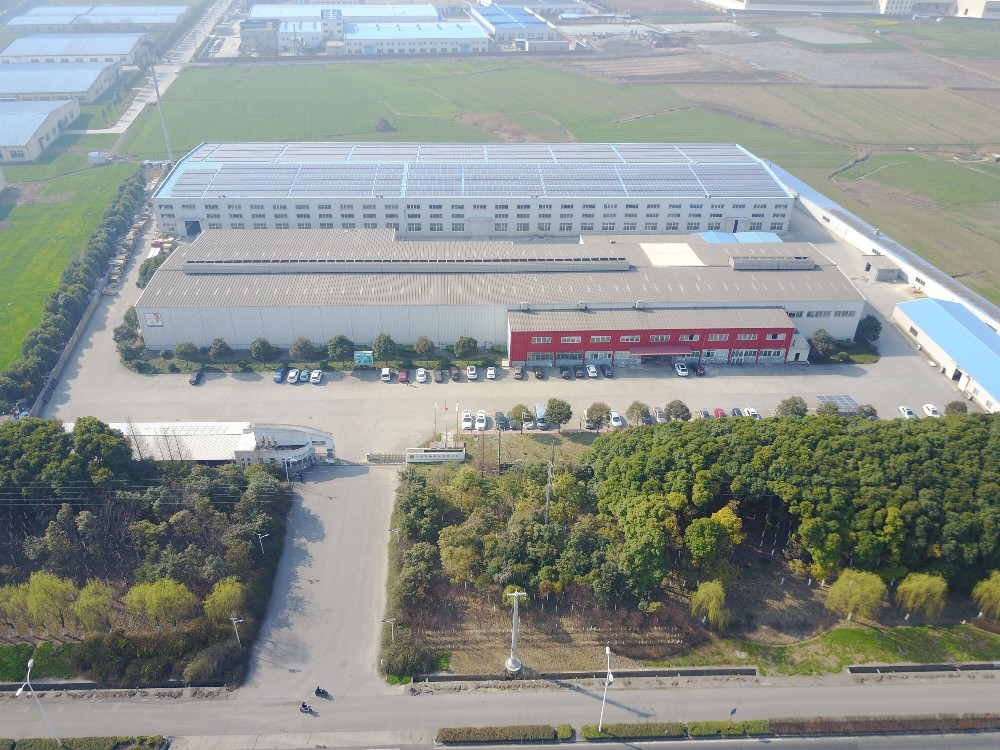

Factory

Our Factory

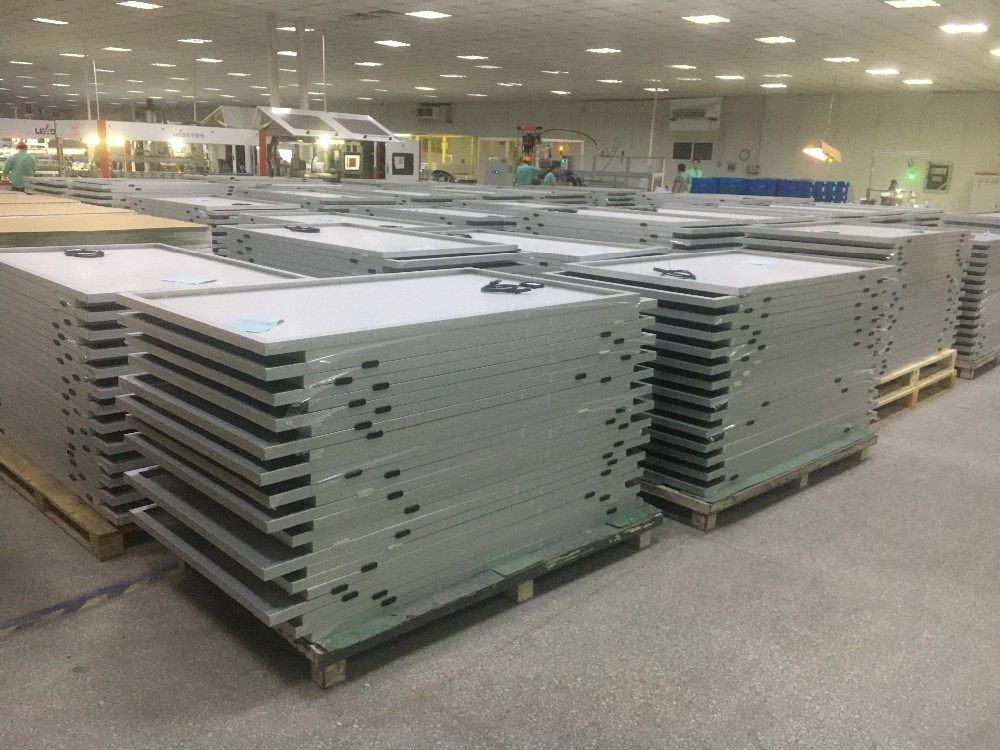

Workshop

Our Workshop

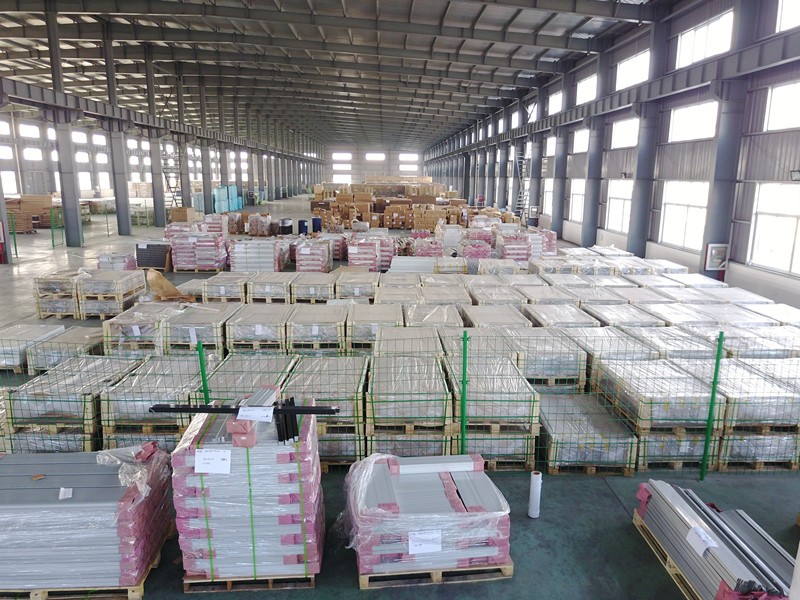

Warehouse

Our Warehouse

Team

Our Team

Frequently Asked Questions

What power range is available for these solar modules?

The solar modules are available in a maximum power output ranging from 650W to 700W under Standard Test Conditions (STC), depending on the specific model (RSM650-132HC to RSM700-132HC).

What is the difference between STC and NOCT testing standards?

STC (Standard Test Conditions) is measured at an irradiance of 1000W/m², cell temperature of 25°C, and AM 1.5. NOCT (Nominal Operating Cell Temperature) simulates real-world conditions with an irradiance of 800W/m², 20°C ambient temperature, and 1m/s wind speed.

What are the technical features of the solar cells?

The panels are manufactured using high-efficiency Mono 5BB PV cells. They feature uniform coloring, anti-PID (Potential Induced Degradation) protection, and conform to rigorous German cell standards.

How durable is the glass and frame of the module?

The panels use high-translucency antireflective glass designed for a service life of up to 25 years. The frame is made of strong, stock-sized aluminum with thickness options of 30mm to 50mm, built to withstand strict mechanical stress tests.

What is the protection level of the junction box?

The junction box features an IP67 protection rating, ensuring reliable dust and water resistance. It is equipped with quality diodes to protect the module from hot-spot effects, allowing for efficient heat dissipation and safe long-term operation.

What are the packaging and typical delivery timelines?

The solar panels are securely packed in cartons placed on pallets or within robust wooden boxes. The standard delivery turnaround time is 5 to 7 days.
