| Specifications (STC) | ||||||
| Peak Power Watts-PMAX(Wp) | 695 | 700 | 705 | 710 | 715 | 720 |
| Maximum Power Voltage Vmp [V] | 40.3 | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 |
| Maximum Power Current Imp [A] | 17.25 | 17.29 | 17.33 | 17.36 | 17.4 | 17.44 |
| Open-circuit Voltage Voc [V] | 48.3 | 48.6 | 48.8 | 49 | 49.2 | 49.4 |
| Short-circuit Current Isc [A] | 18.28 | 18.32 | 18.36 | 18.4 | 18.44 | 18.49 |
| Module Efficiency STC [%] | 22.4 | 22.5 | 22.7 | 22.9 | 23 | 23.2 |
| Power Selection (W) | 0 ~ + 5 % | |||||
| Mechanical Characteristics | ||||||

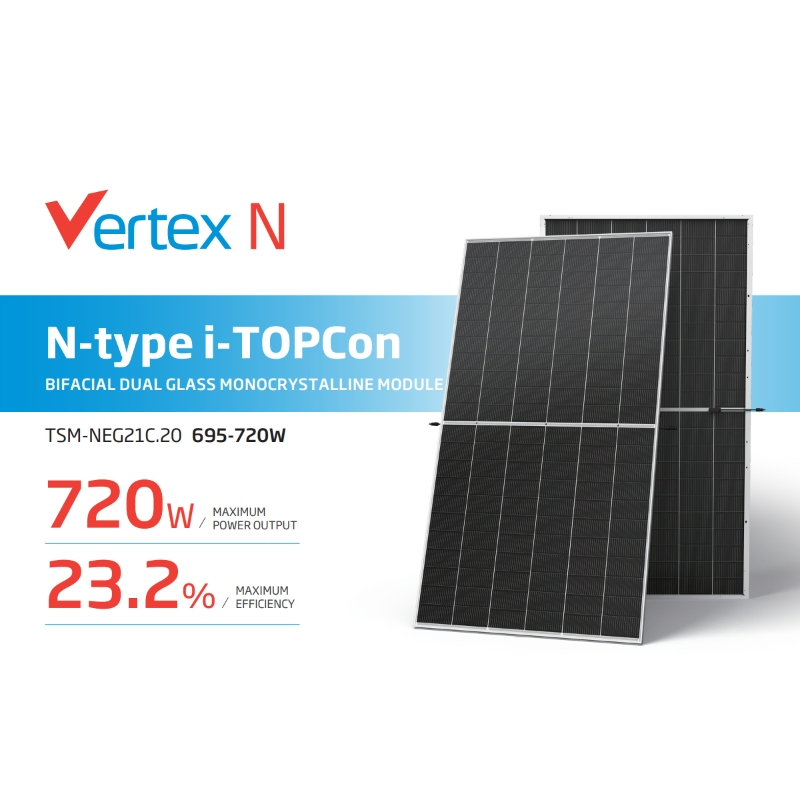

| Cell Type | N-type i-TOPCon Monocrystalline | |||||
| No. of cells | 132 | |||||

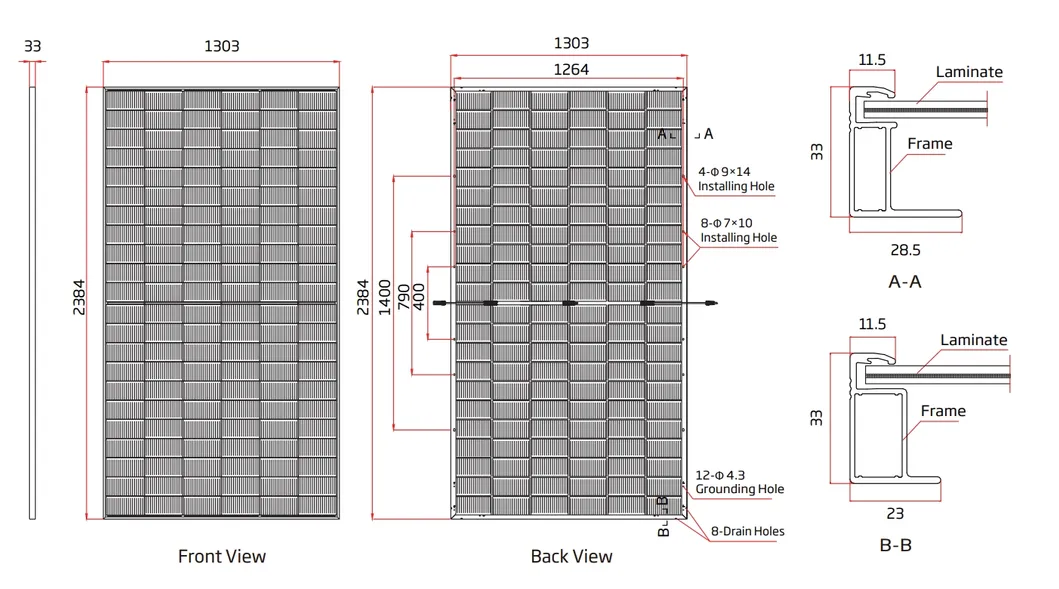

| Dimensions | 2384×1303×33 mm | |||||
| Weight | 38.3kg | |||||
| Front Glass | 2.0 mm (0.08 inches), AR Coating Heat Strengthened Glass | |||||
| Output Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2) Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized | |||||
| Application Conditions | ||||||
| Operating Temperature | -40 °C ~ +85°C | |||||
| Maximum System Voltage | 1500 VDC (IEC) | |||||
| Maximum Series Fuse Rating | 35 A | |||||

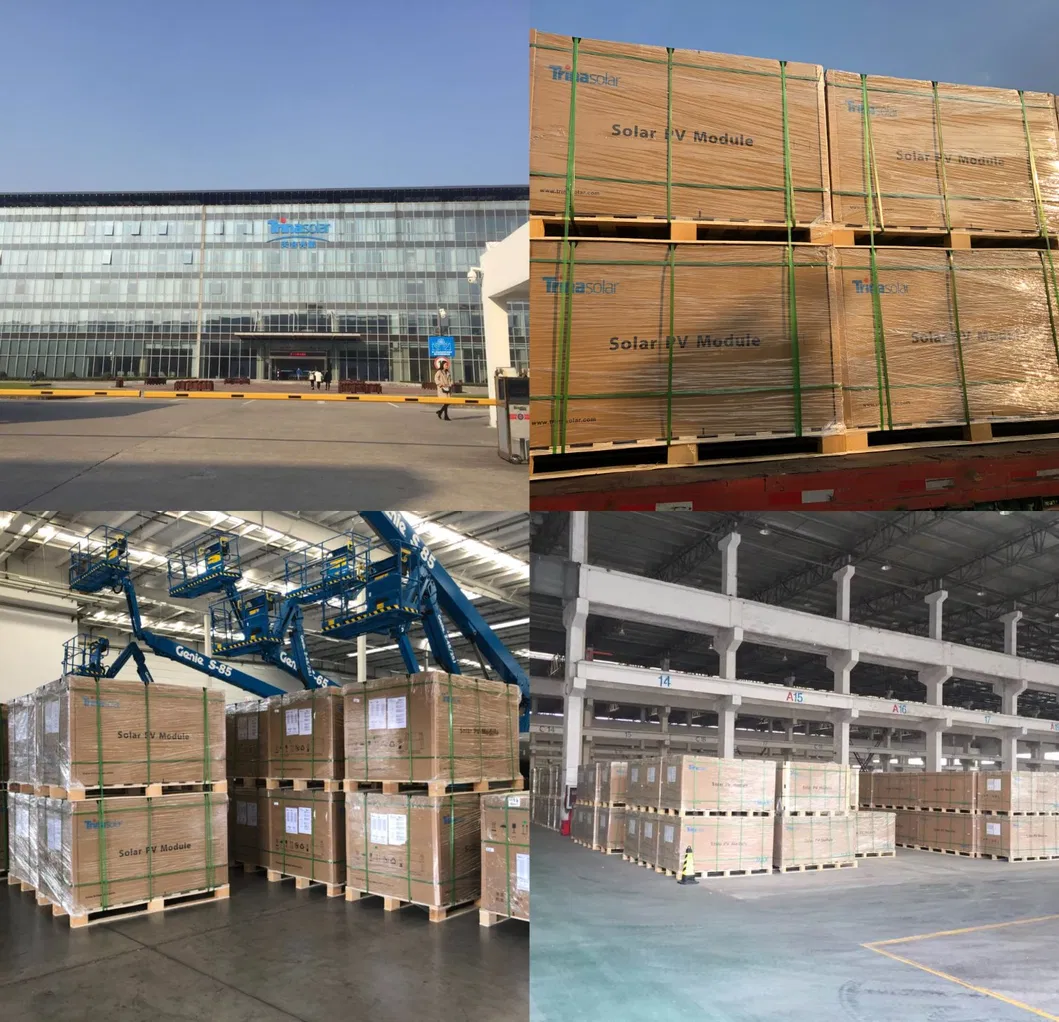

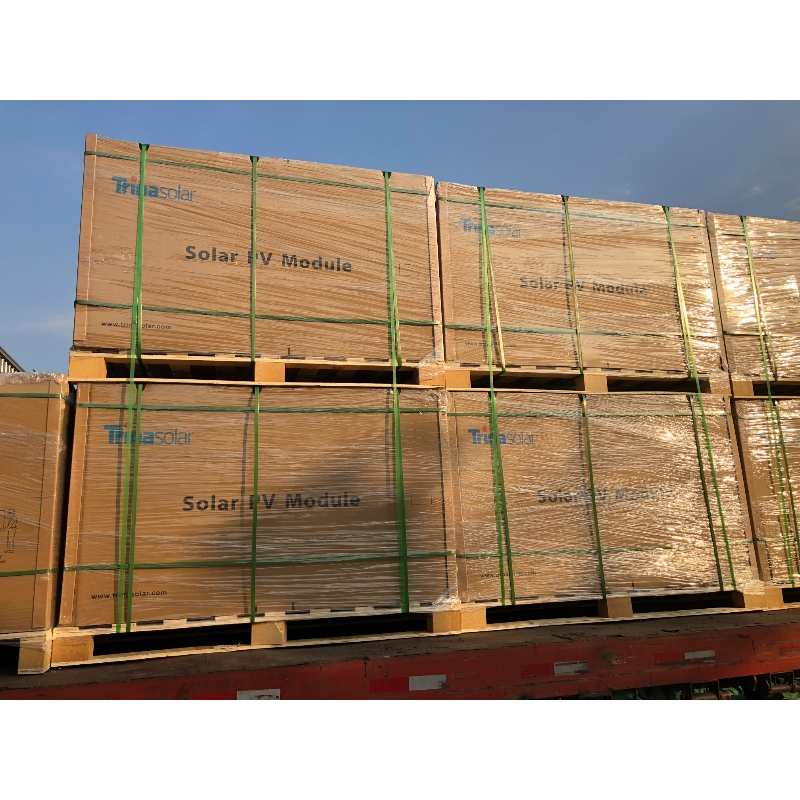

| Packaging Configuration | ||||||
| Packing detail (Two pallets=One stack) | 33 pcs/pallets, 594 pcs/ 40'HQ Container | |||||
