We are a leading supplier of solar panels, energy storage systems, and inverters, providing innovative and reliable renewable energy solutions with in-stock products and fast shipping.
| Module Type | LFP 16kWh / LV |
| Nominal Capacity (at 25℃) | 16kWh |
| Usable Capacity (90%DOD) | 14.4kWh |
| Nominal Dis-/ Charge Power | 10kW |
| Peak Power(Only Discharge) | 11.6kW for 3 seconds |
| Constant Current(Only Discharge) | 200A |
| Operating Voltage Range | 43~58V |
| Nominal Voltage | 51.2Vd.c |
| Weight | 120kg |

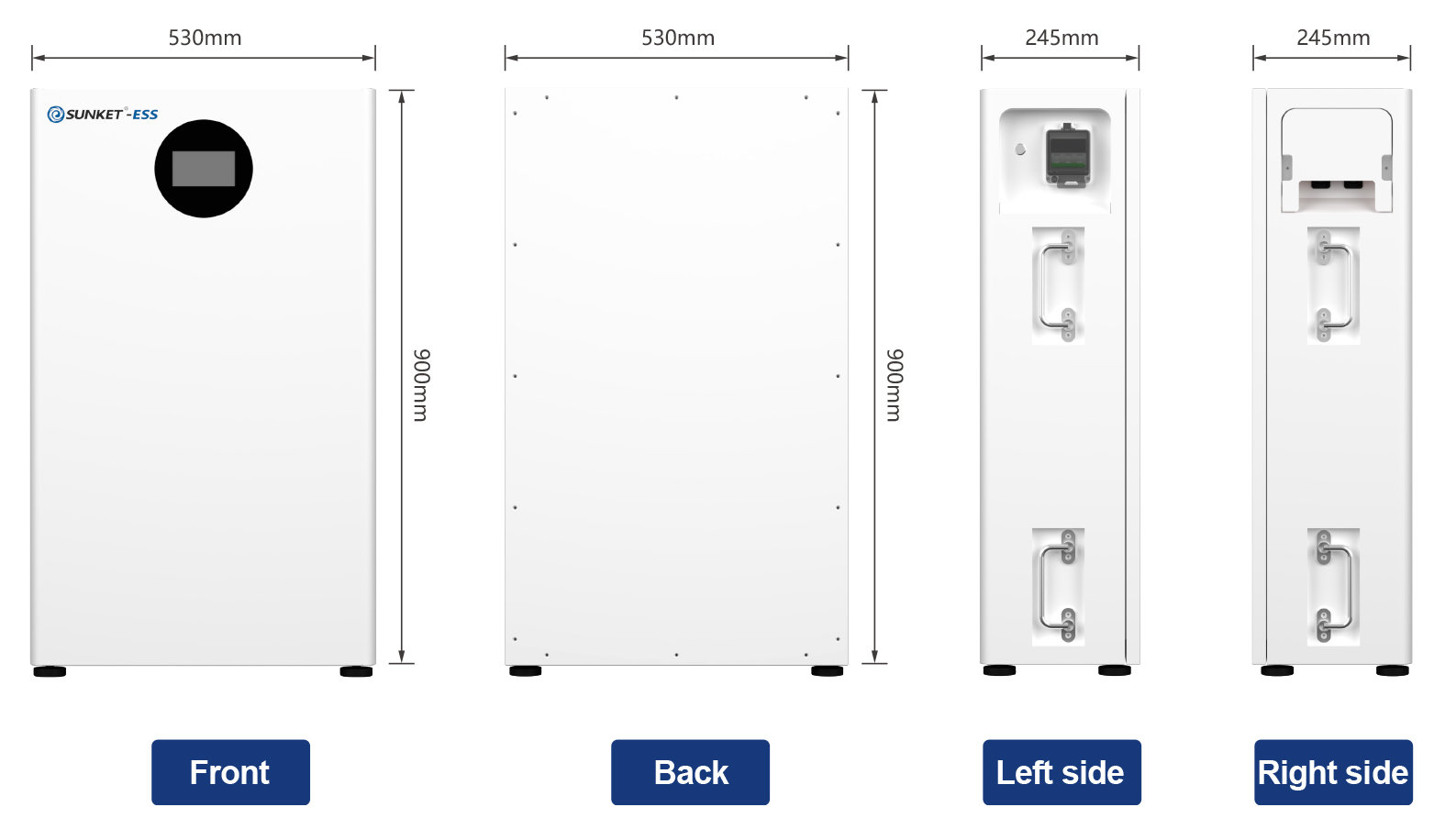

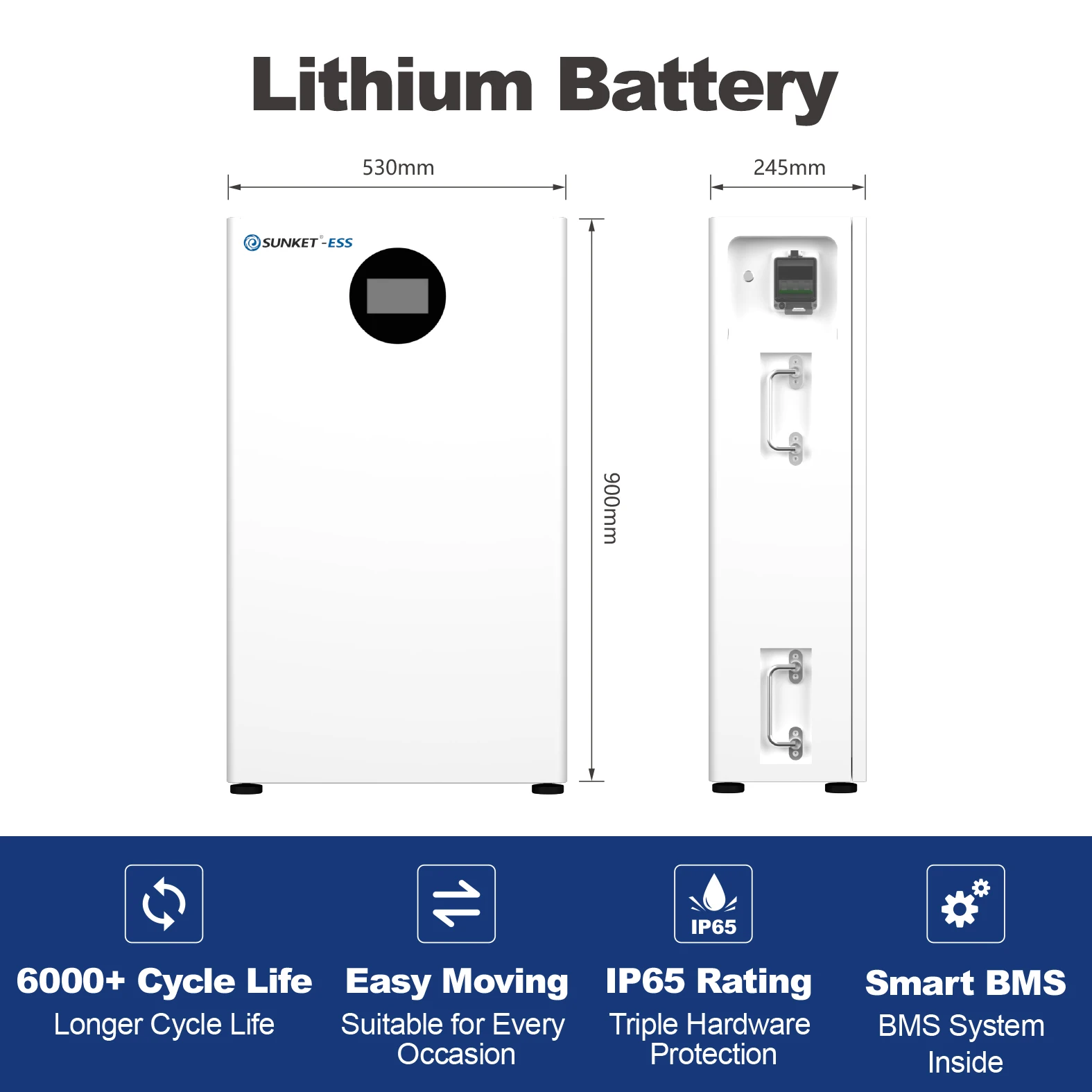

| Dimensions (mm) | 530*900*245mm |
| Certificates | UL1973, UN38.3 |
| Operating Condition | Indoor or outdoor |
| Operating Temperature Charge | From 0~60℃ |
| Operating Temperature Discharge | From -30~60℃ |
| Humidity | Up to 90% (non- condensing) |
| Pollution Degree | 3 |
| Over Voltage Category | II |
| Cooling Type | Natural cooling |
| IP Rating | IP 65 |
| Protective Class | I |

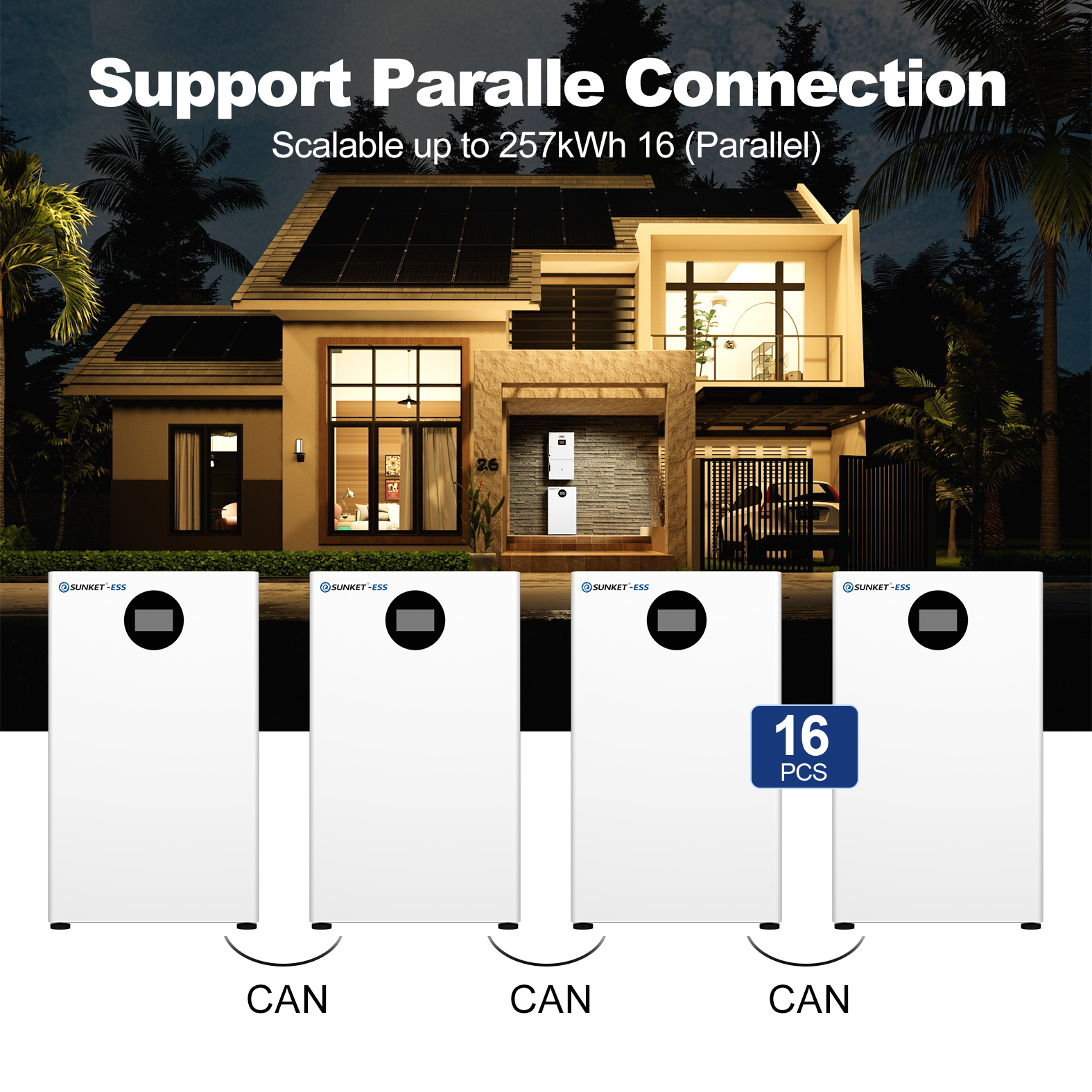

| Max. Number of Parallel | 4 |
| Warranty | 10 years |
| Life Span | >15 years |

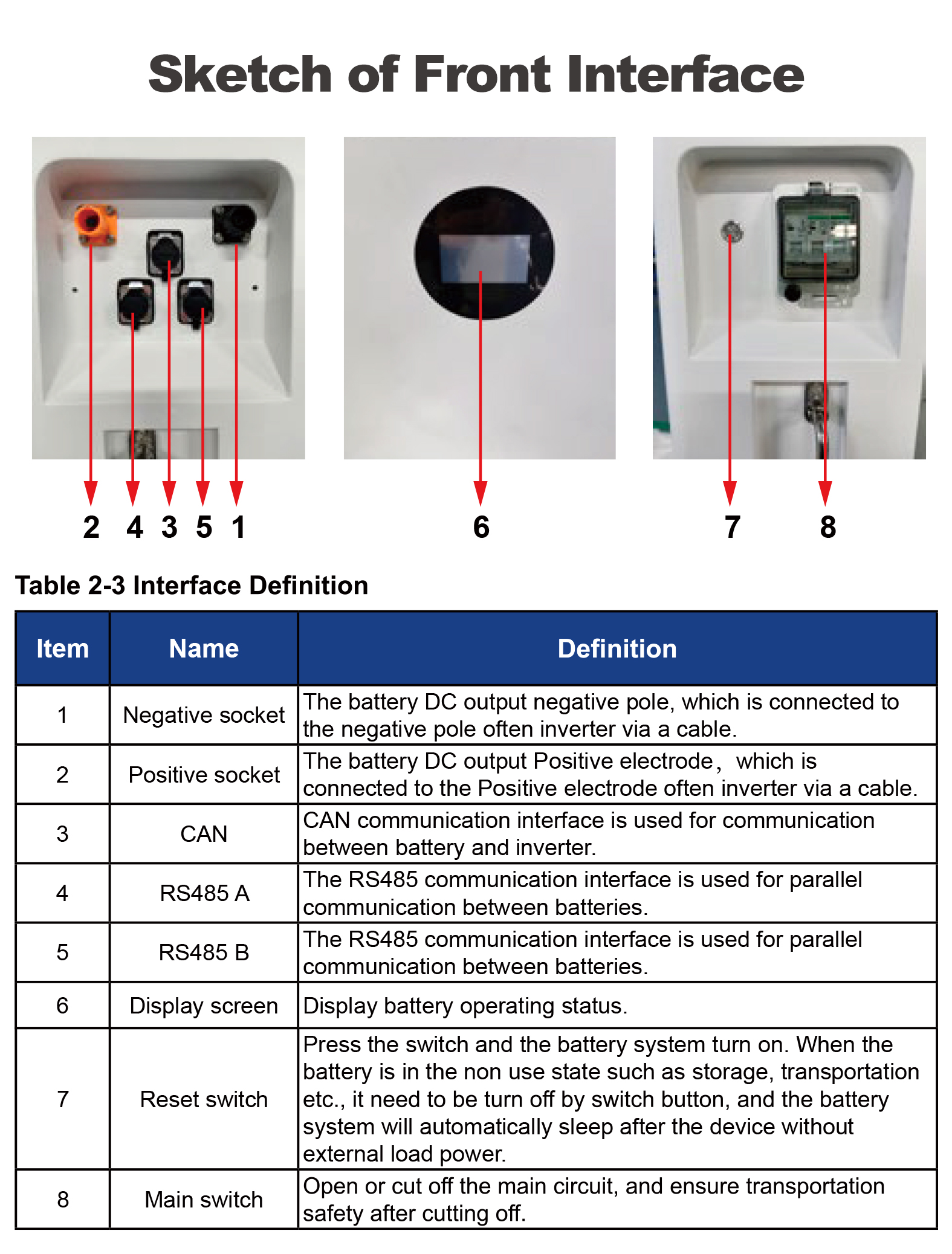

| Communication Interface | CAN/RS485 |
| Protection Mode | Triple hardware protection |
| Battery Protection | Over-current/Over-voltage/Short circuit/Under-voltage |
