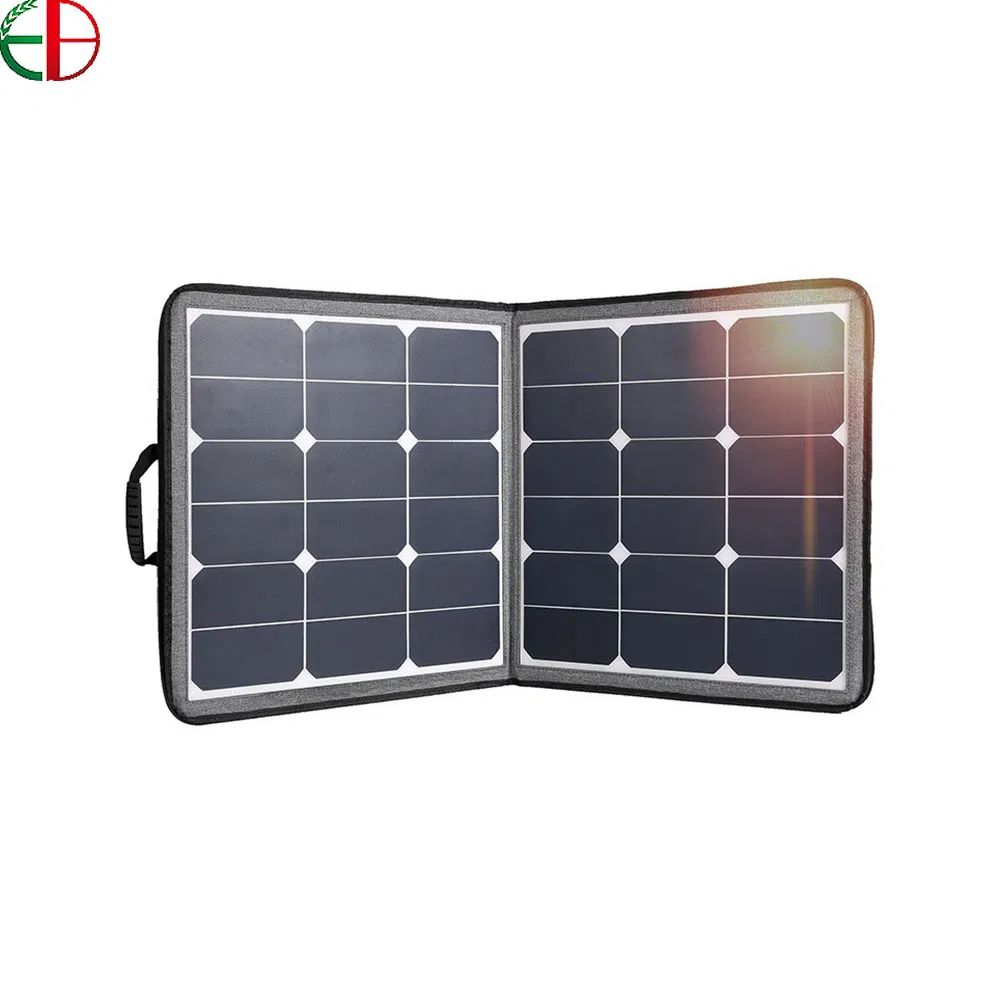

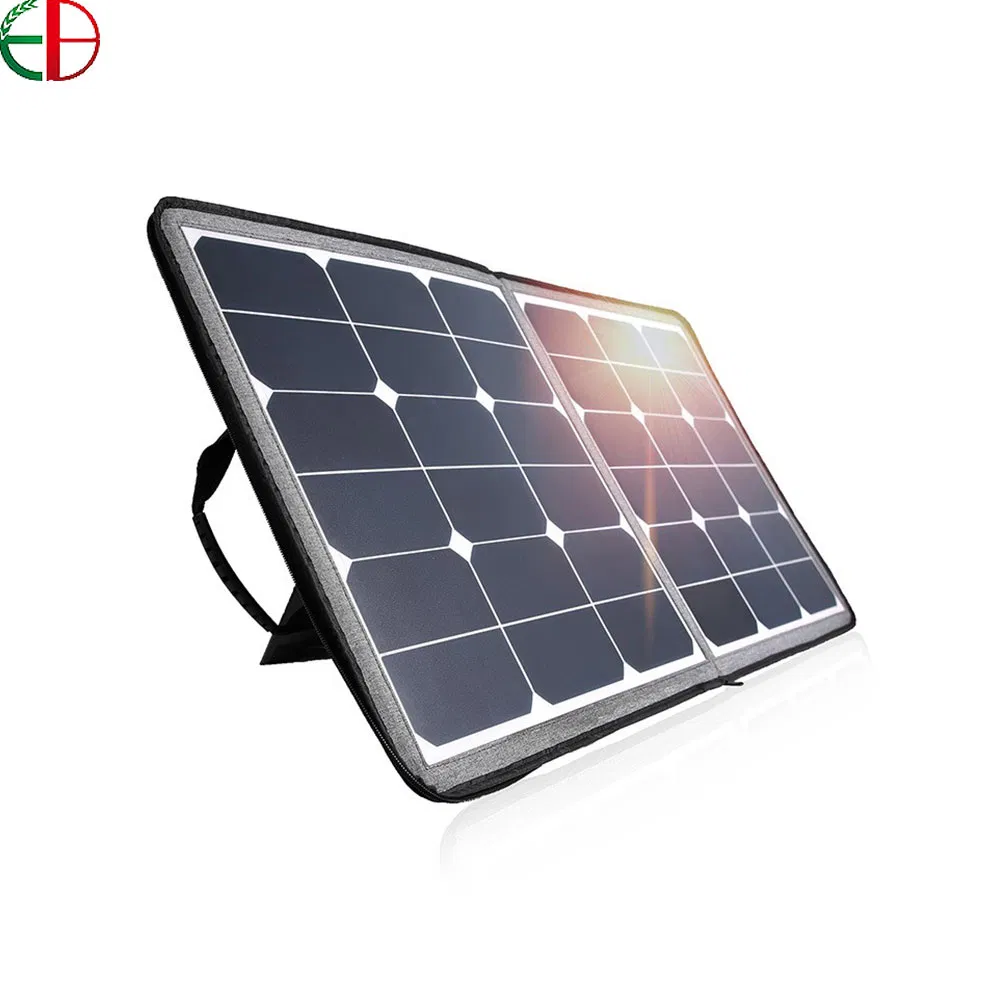

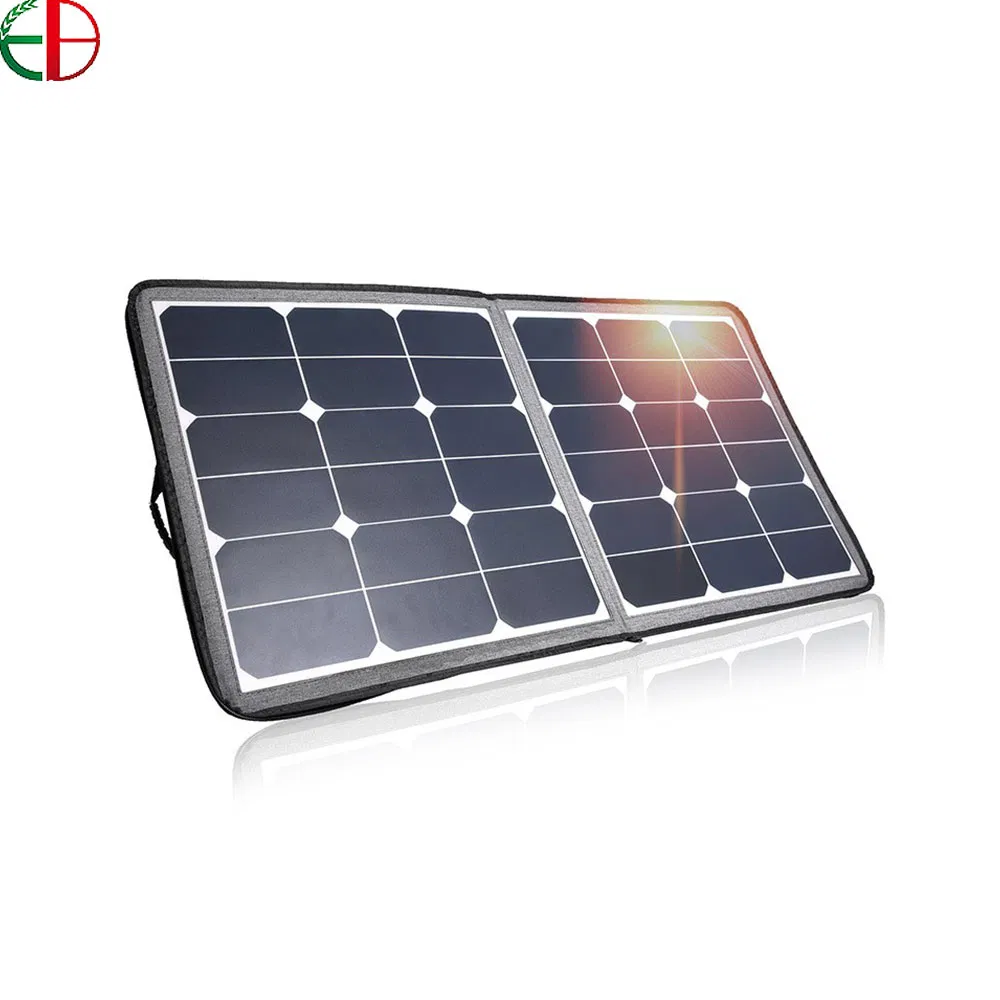

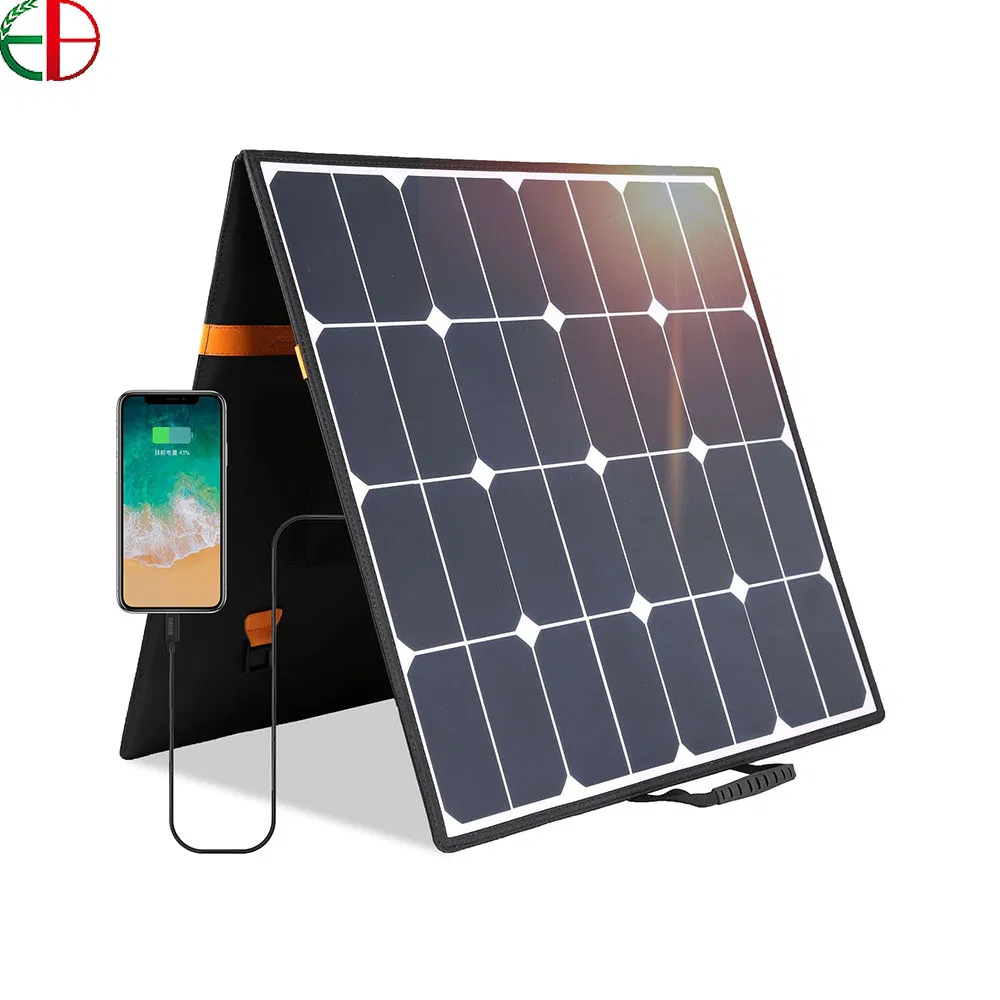

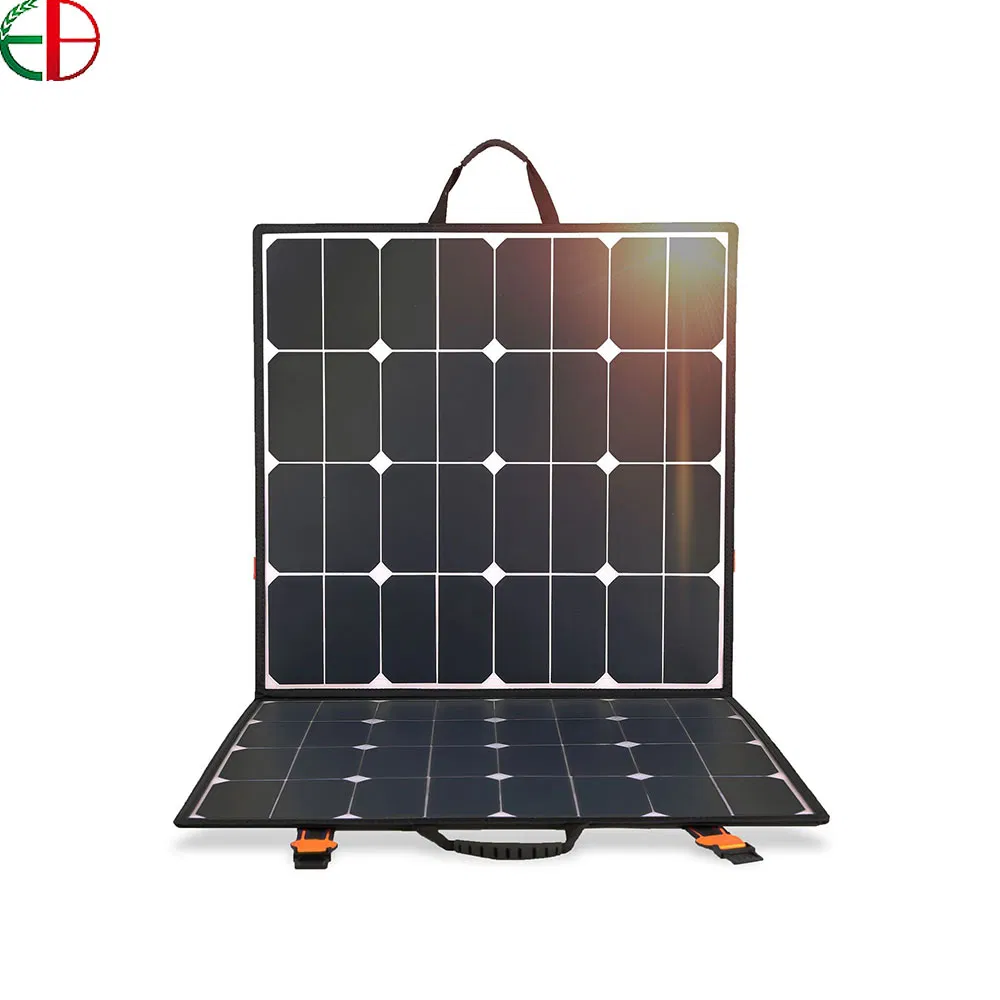

TUV, CE, SGS Half Cell Poly PV Fold Flexible Black Monocrystalline Polycrystalline Module Mono Industry Use Solar Energy Power Panel with 15 Years Warranty

Basic Info

Number of Cells 36-72 PCS

Application Light Industry, Household, Industrial, Agriculture

Condition New

Certification ISO, CE, SGS

Material Monocrystalline Silicon

Package 2PCS/Carton

Frame Anodized Aluminium Alloy

Connector/Cross-Section Junction Box, Top

Front Cover Glass 3.5mm Safety Glass

Solar Cell High Efficient PV Cell

Backing Color White/Black/Transparent

Front Cover 3.2mm Tempered Glass

Output Cable 400mm or Customized Length

Transport Package Carton & Pallet

Origin China Jiangsu

HS Code 8541402000

Production Capacity 300MW/Year

Product Description

Flexible Black Monocrystalline Solar Energy Power Panel

Product Parameters

Module Dimensions	1776105235mm / 2094103835mm
Weight	18.9kg / 23.5kg
Junction-Box	IP 67 or IP 68 rated
Cables	4.0mm²
Cell Orientation	120 cells(6*20)
Temperature Coefficients	Power temperature coefficient (%/ºC): - 0.45 %/ºC Current temperature coefficient(%/ºC): 0.065±0.015 %/ºC Voltage temperature coefficient(%/ºC): - 0.35 %/ºC NOCT-Normal Operating Cell Temperature: 45±2ºC
Module Warranty	25 - year limited warranty of 80% power output; 10 - year limited warranty of 90% power output; 5 - year limited warranty of materials and workmanship
Test	Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
Nearest shipment port	Ningbo or Shanghai

Electrical Characteristics of Solar Panels

Model Number	FSM425M-144C	FSM430M-144C	FSM435M-144C	FSM440M-144C	FSM445M-144C	FSM450M-144C	FSM455M-144C
Testing Condition	STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ºC, Spectra at AM1.5
Maximum Power (Pmax/W)	425	430	435	440	445	450	455
Open Circuit Voltage (Voc/V)	48.3	48.5	48.7	48.9	49.1	49.3	49.5
Short Circuit Current (Isc/A)	11.23	11.31	11.39	11.46	11.53	11.6	11.66
Voltage at Maximum Power (Vmp/V)	40.5	40.7	40.9	41.1	41.3	41.5	41.7
Current at Maximum Power (Imp/A)	10.5	10.57	10.64	10.71	10.78	10.85	10.92
Module Efficiency(%)	19.6	19.8	20.0	20.2	20.5	20.7	20.9

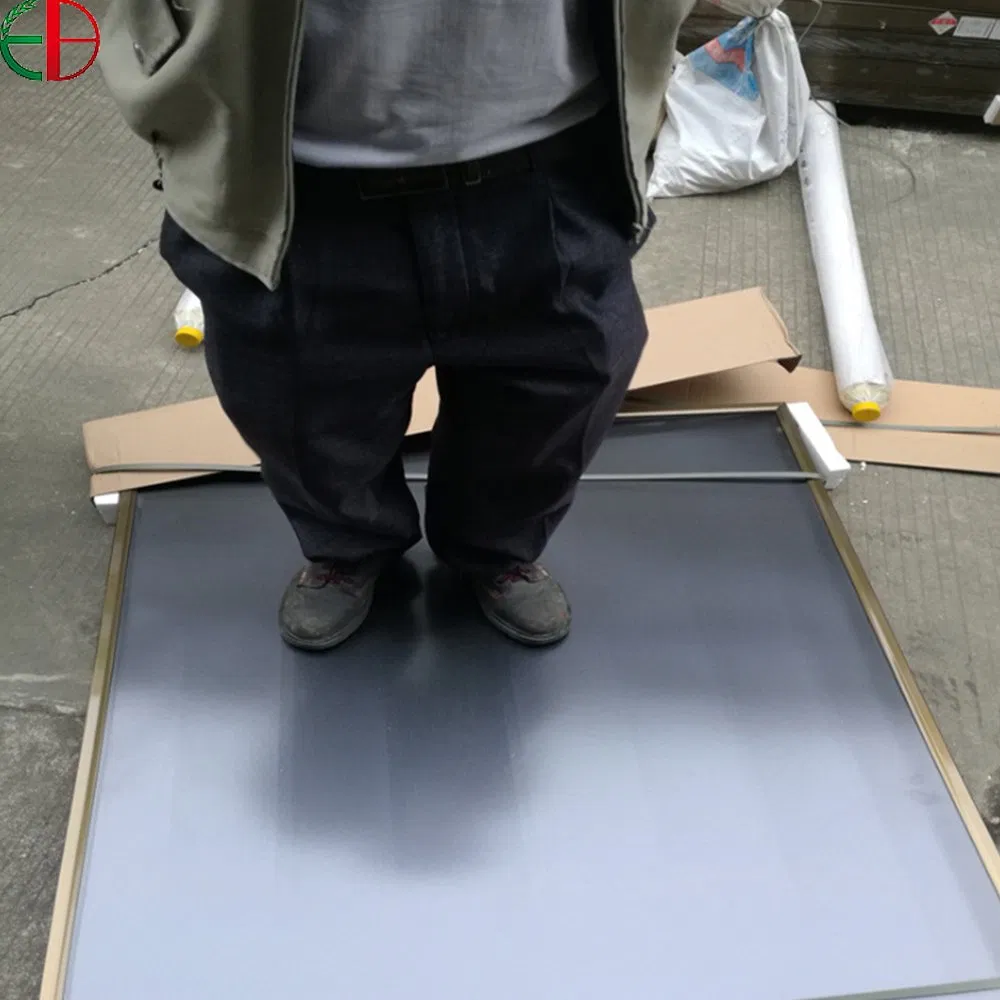

Detailed Photos

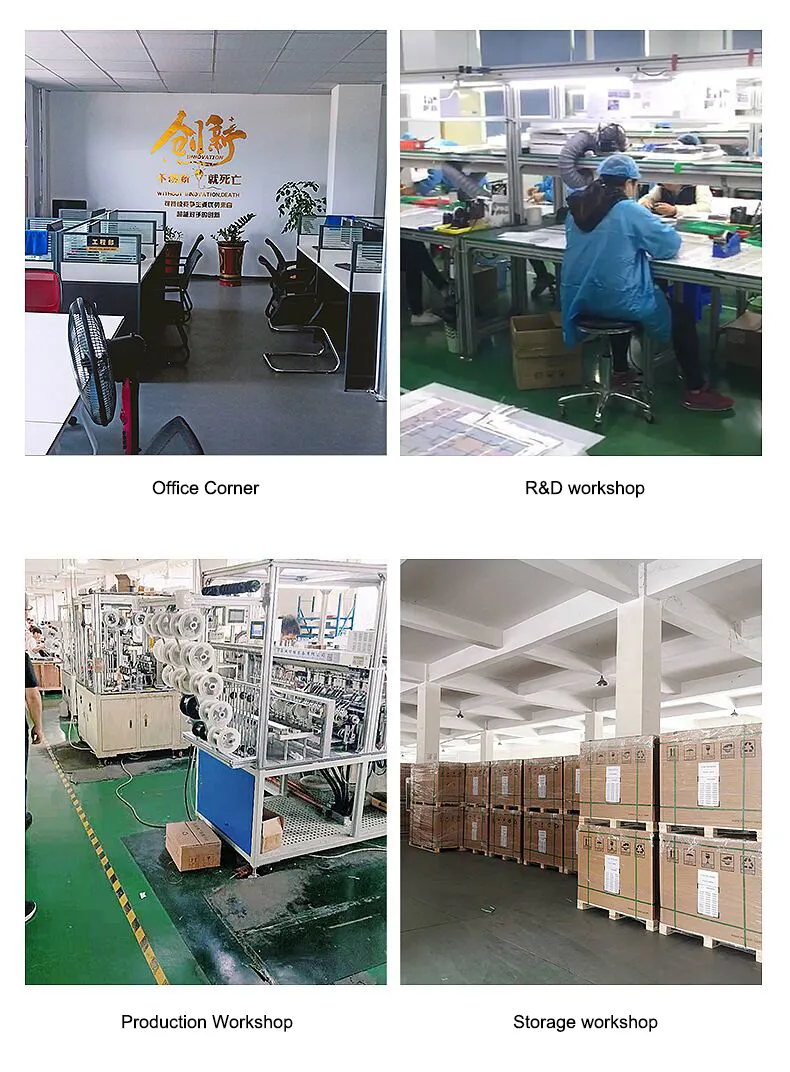

Workshop Environment

Our Advantages

⭐

GRADE A SOLAR CELLS

Ensuring all cells used in production are high-efficiency Grade A solar cells.

⚙️

HIGH QUALITY

Fully automated production processes, with each solar panel strictly tested to meet rigorous standards.

💰

PRICE ADVANTAGES

Highly competitive pricing achieved through industrial chain integration and scale effects.

🛠️

AFTER-SALES ADVANTAGES

24-hour online service support to solve technical and logistics problems quickly and effectively.

🏭

FACTORY ADVANTAGES

Over 10 years of experience in the PV industry, supported by a 25,000 square meter production base.

Certifications

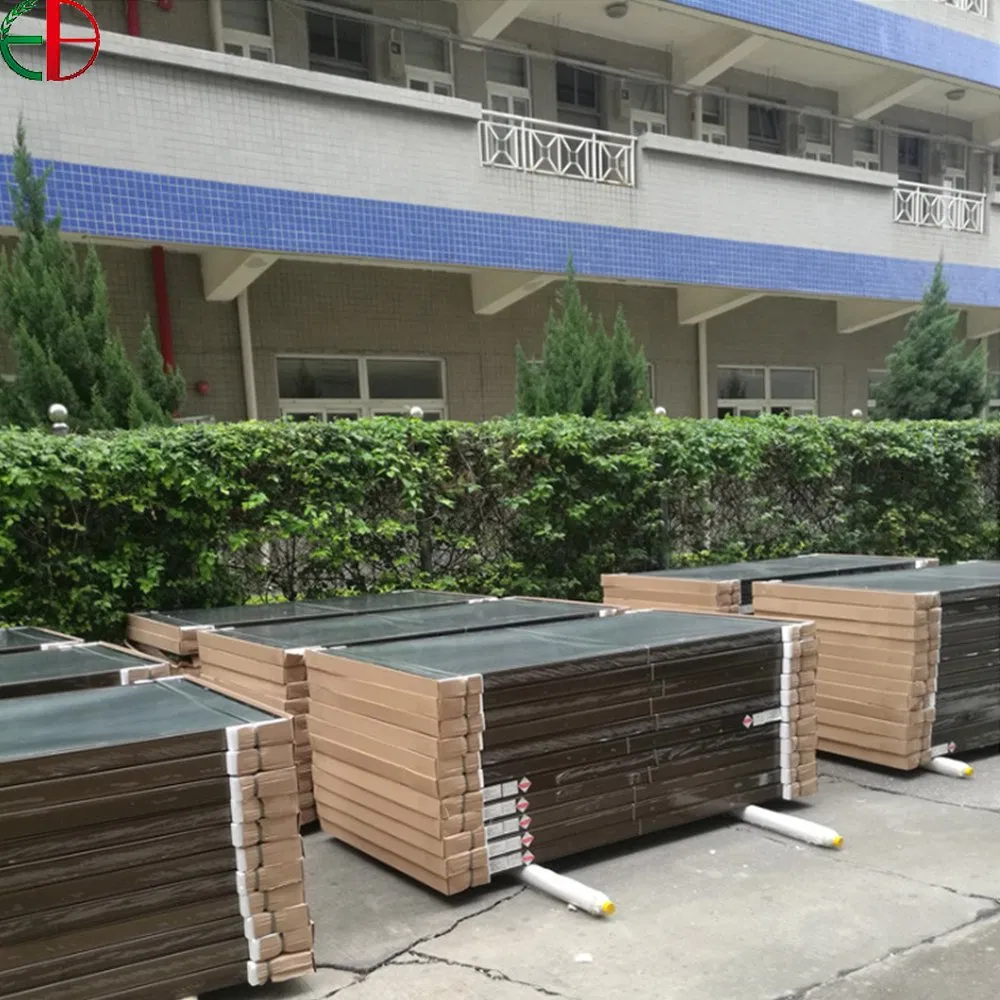

Packaging & Shipping

Solar panel packaging and shipping details

Frequently Asked Questions (FAQ)

How is the quality of the solar panels guaranteed?

Quality is controlled through a strict process. We always conduct a pre-production sample test before beginning mass production, followed by a final inspection of all goods before shipment.

What services, delivery terms, and payment options do you support?

We accept FOB, CFR, CIF, and EXW delivery terms. We support USD, EUR, and CNY currencies, with payments accepted via T/T, L/C, and Credit Card.

What guarantees are provided under the solar module warranty?

We provide a 25-year limited warranty for 80% power output, a 10-year limited warranty for 90% power output, and a 5-year limited warranty for materials and workmanship.

What certifications and environmental tests have these panels passed?

These solar panels hold ISO, CE, and SGS certifications. They have successfully passed Fire tests, Ammonia corrosion tests, and Salt mist corrosion resistance testing.

Where is the nearest shipment port for delivery?

The nearest shipping ports are located in Ningbo or Shanghai, China.

What materials and technologies are used to ensure panel efficiency?

We utilize high-efficiency Grade A Monocrystalline Silicon cells, coupled with a 3.2mm high-transmission, low-iron tempered glass front cover, and durable anodized aluminum alloy frames.
