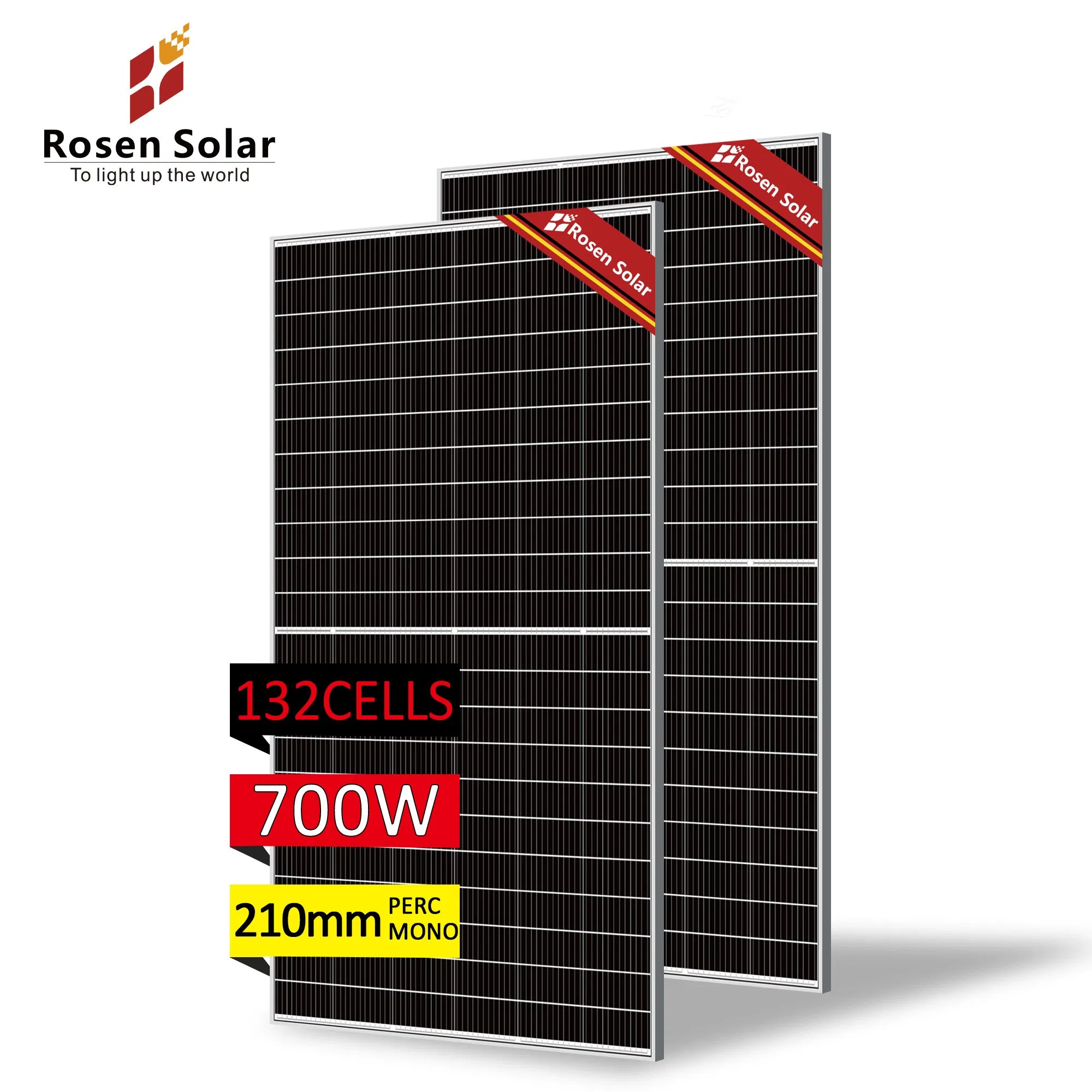

Home Solar Panel Kit 700W Mono Solar Panels Kit for Commercial Solar System Set

1 / 5

Home Solar Panel Kit 700W Mono Solar Panels Kit for Commercial Solar System Set

Customization:	Available
After-sales Service:	Y
Warranty:	25 Years

Send Inquiry

Product Description

Basic Info.

Condition

New

Certification

EST, ISO, CB, CE

Material

Monocrystalline Silicon

Weight

34.4kg

Solar Cell

5bb 6bb 9bb 10bb 12bb Mono

Glass

3.2mm, High Transmission, Ar Coated Heat Strengthe

Junction Box

IP68 Rated

Cable

4mm2; Portrait/Landscape Length

Cell Orientation

132cells(6*22)

Connector

Compatible Mc-4/Male/Female/Fuse

Frame

Silver / Black Anodized Aluminium Alloy

Tpt Backsheet

White/Black Backsheet

OEM

Acceptable

Transport Package

31PCS/Pallet, Wooden Box

Specification

2385*1303*35 mm opt

Trademark

OEM/ODM

Origin

China

HS Code

854140

Production Capacity

10000000watt/Week

Product Description

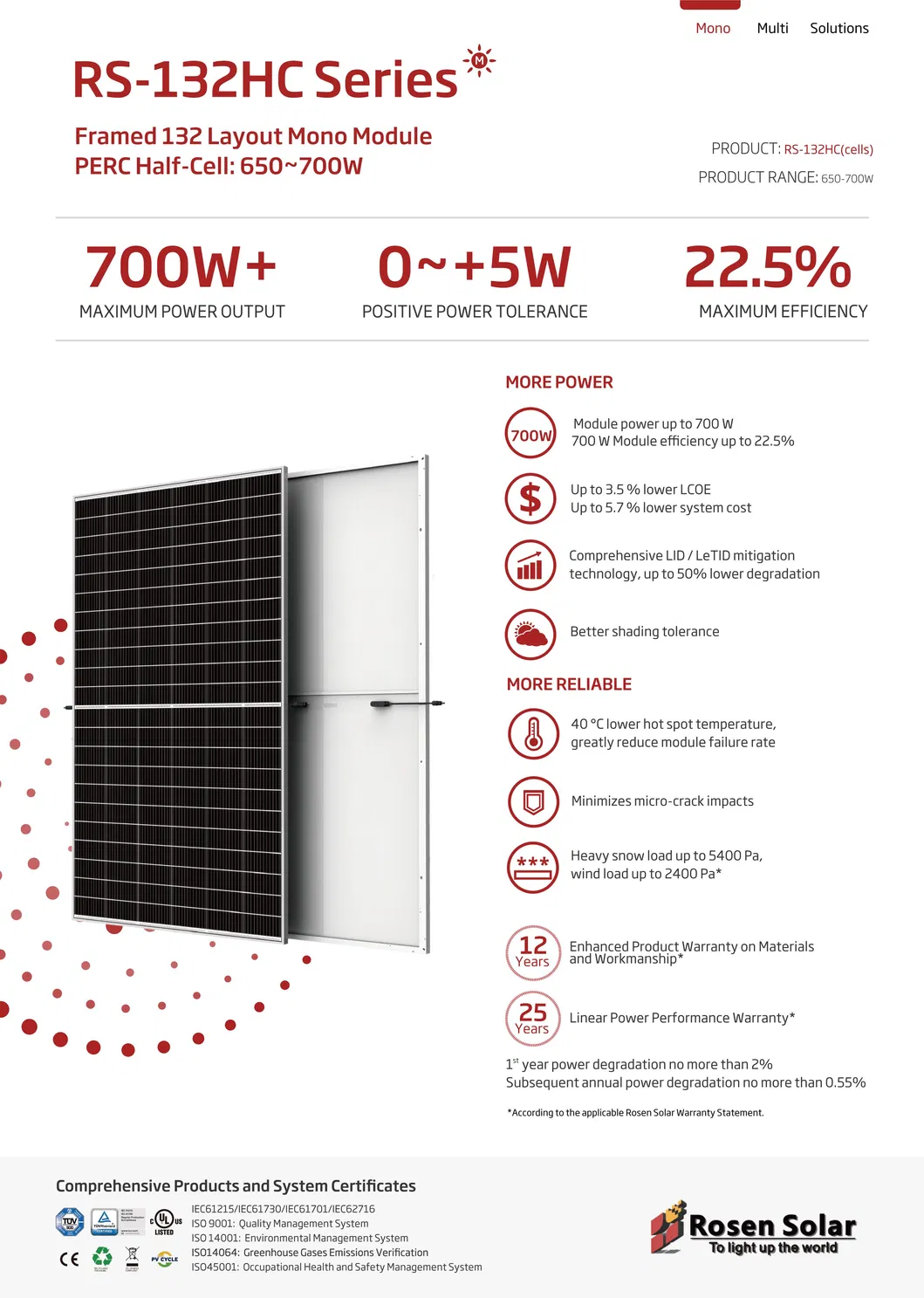

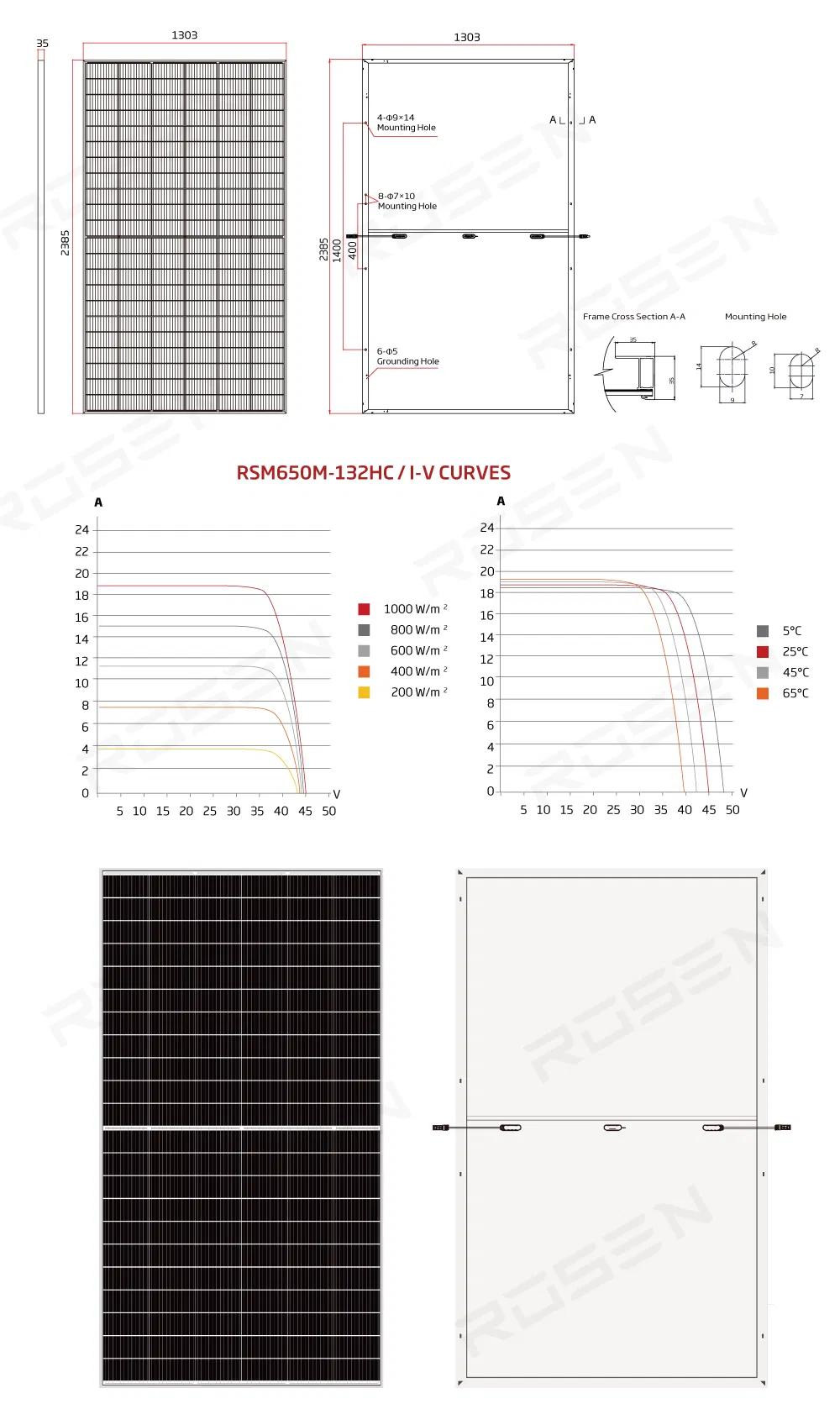

Technical Specification Data (STC) of Solar Panel

Model of Solar Panel	RS650M-132HC	RS660M-132HC	RS680M-132HC	RS690M-132HC	RS700M-132HC
Peak Power Watts-Pmax(Wp)*	650	660	680	690	700
Maximum Power Voltage-Vmpp(V)	37.9	38.3	39.1	39.5	39.9
Maximum Power Current-Impp(A)	17.16	17.24	17.40	17.48	17.55
Open Circuit Voltage-Voc(V)	45.0	45.4	46.2	46.8	47.2
Short Circuit Current-Isc(A)	18.39	18.47	18.63	18.71	18.79
Module Efficiency (%)	20.9	21.2	21.9	22.2	22.5
Power Output Tolerance-Pmax(W)	0~+5
Temperature Coefficient of Pmax	-0.34%/ºC
Temperature Coefficient of Voc	-0.26%/ºC
Temperature Coefficient of Isc	0.05%/ºC
STC	Irradiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%.

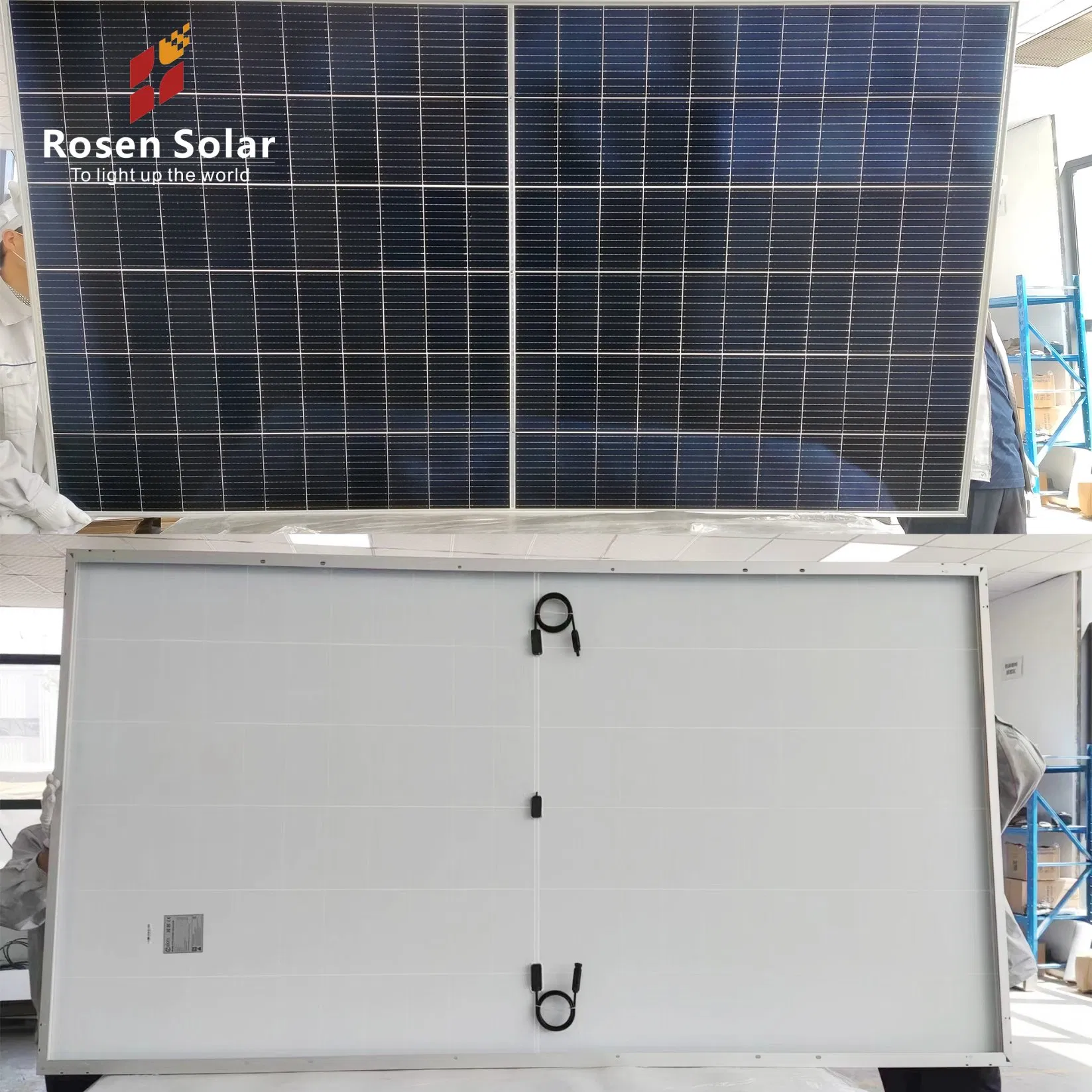

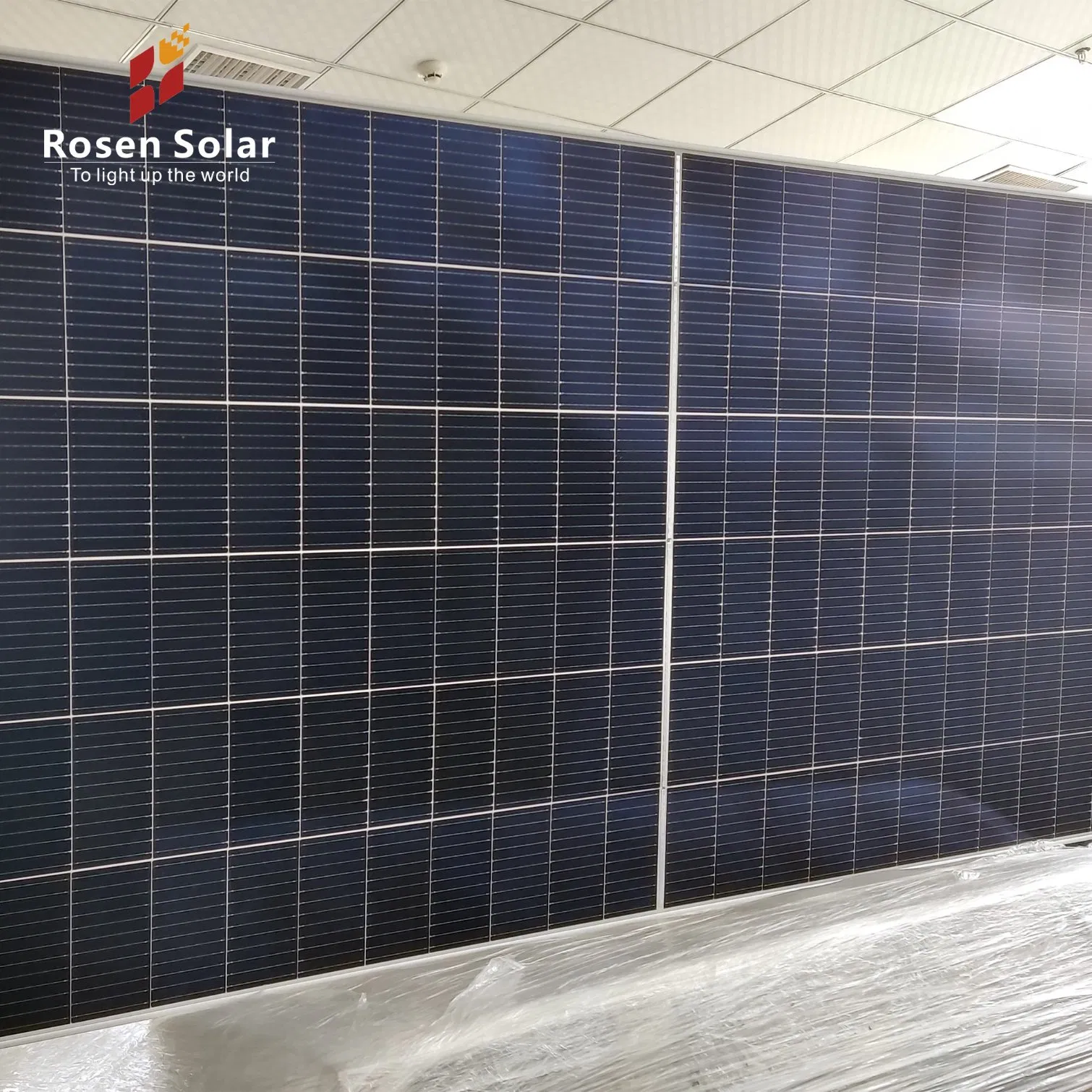

Detailed Images of Solar Panel

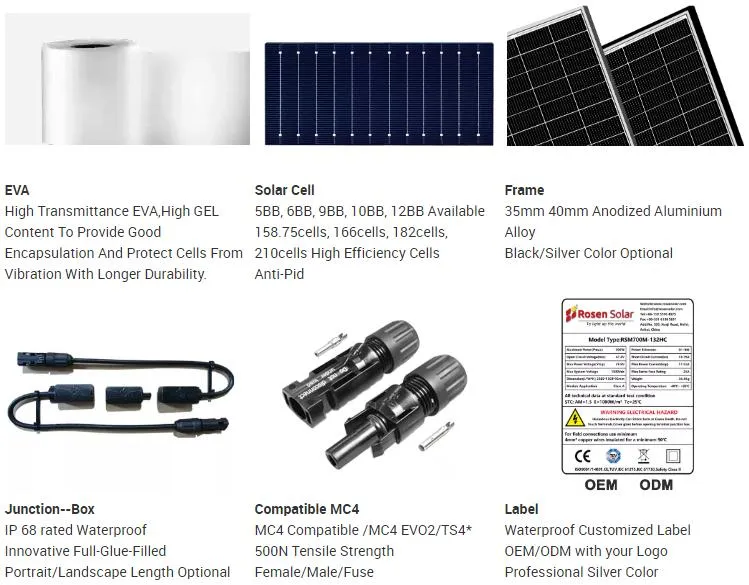

Detailed Images of Component Construction

Packing & Delivery

Solar Panel Packing Details: 31pcs per pallet or in wooden box
Delivery Details: 5-7 days

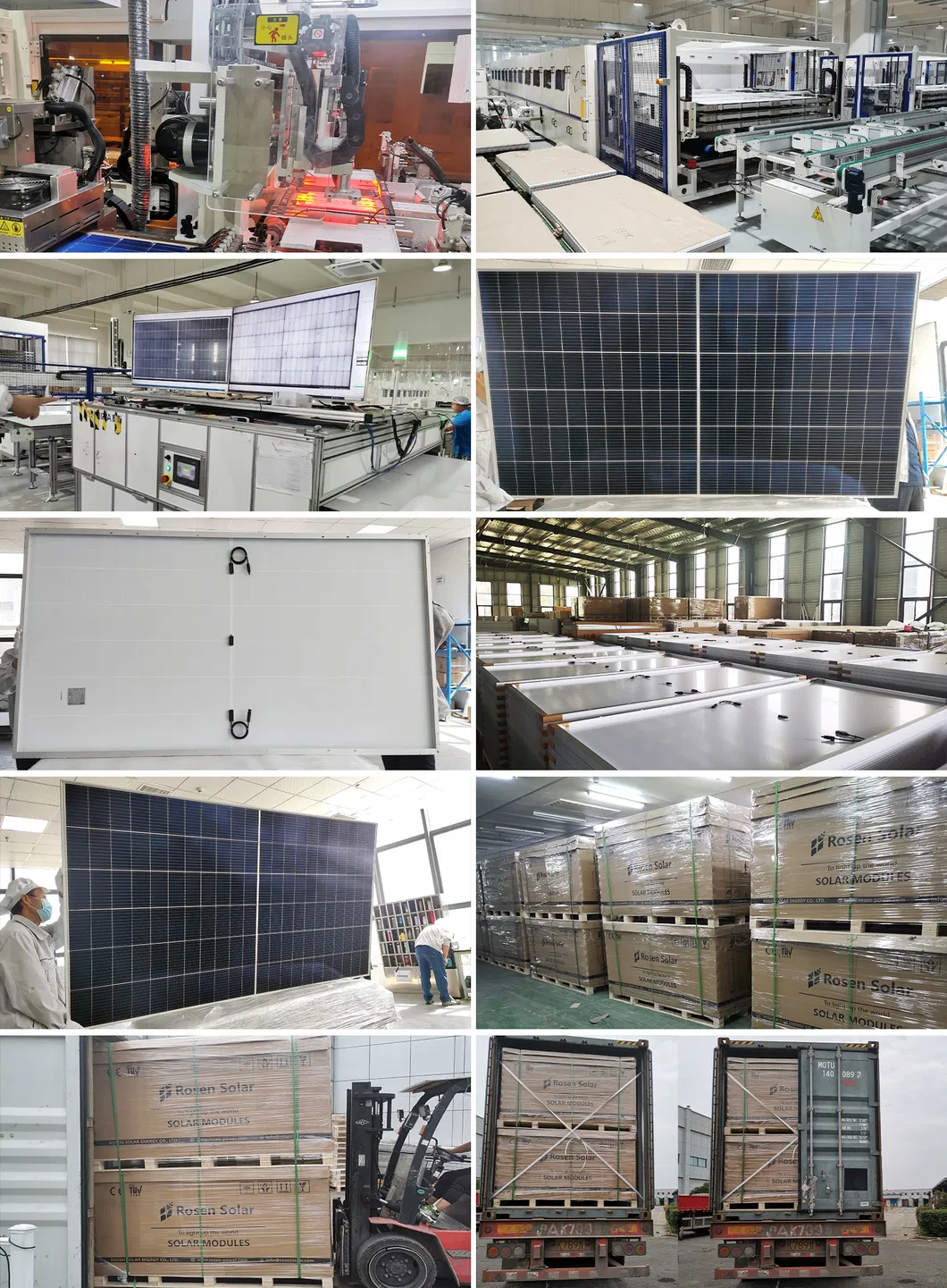

Solar Panel Packing Details for Delivery

Factory & Project Showcase

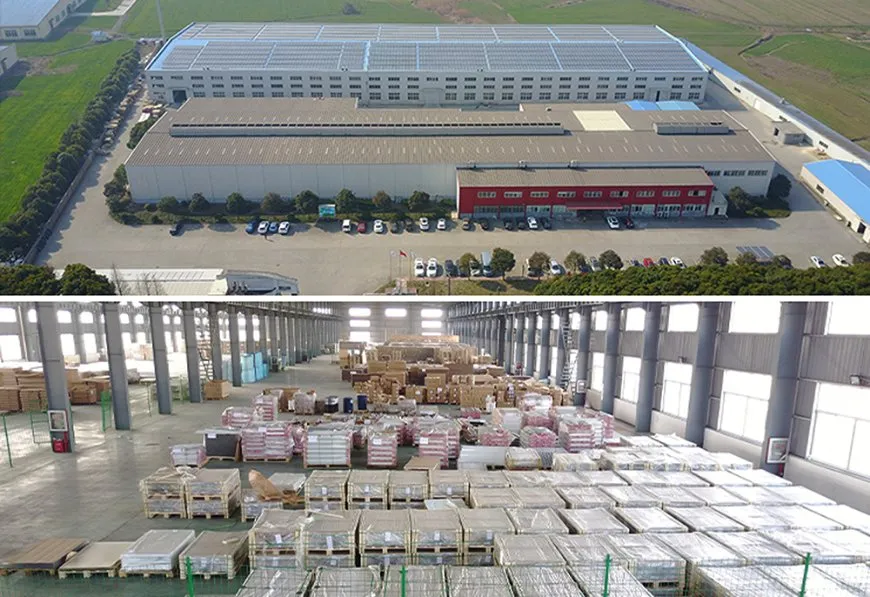

Factory Facility

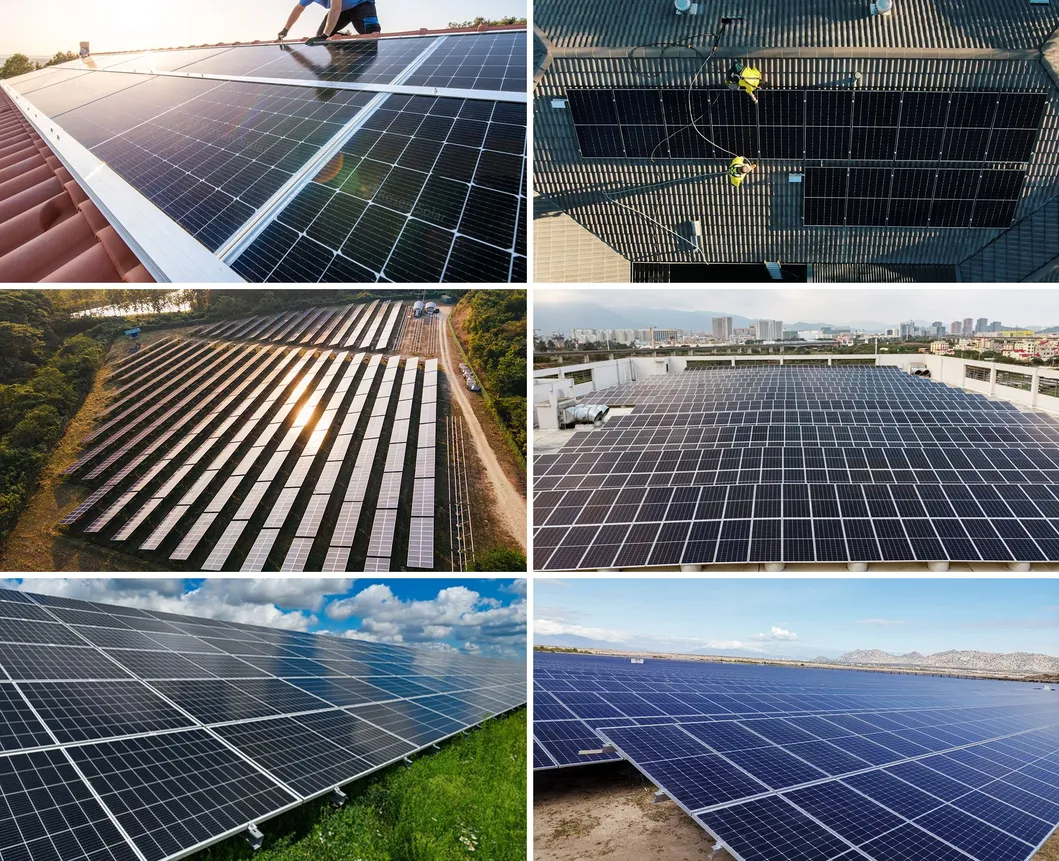

Project Cases

Frequently Asked Questions

1. What power capacities are available for these monocrystalline solar panels?

Our solar panels range in peak power from 650W up to 700W (specifically 650W, 660W, 680W, 690W, and 700W models), allowing you to choose the exact output matching your commercial or residential project needs.

2. What are the key materials and build quality components used?

These panels are built using high-transmission, AR-coated, heat-strengthened 3.2mm glass, housed in a durable silver or black anodized aluminum alloy frame, and incorporate highly reliable Monocrystalline Silicon cells (132 cells in a 6*22 orientation).

3. What is the environmental protection rating of the junction box?

The panels come with an IP68-rated junction box. This ensures full dust protection and high waterproof performance, making the system reliable even under severe outdoor weather conditions.

4. How are the solar panels packaged and shipped safely?

To guarantee safe transport, panels are packaged securely with 31 pieces per pallet, or packed in robust wooden boxes. The typical delivery timeline is 5 to 7 days.

5. Do you accept customization and OEM/ODM projects?

Yes, OEM and ODM orders are fully accepted. We can customize specifications, trademarks, and configurations according to your specific marketing and technical requirements.

6. What certifications do these solar panels comply with?

Our solar panels have successfully achieved EST, ISO, CB, and CE certifications, validating that the products comply with global safety, environment, and performance standards.
