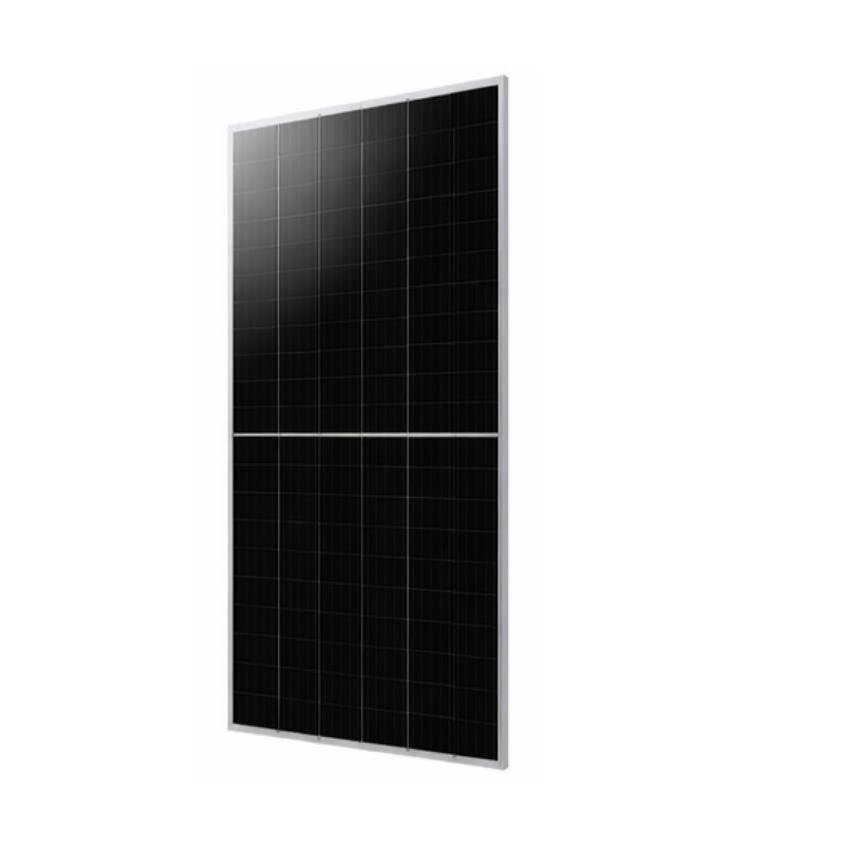

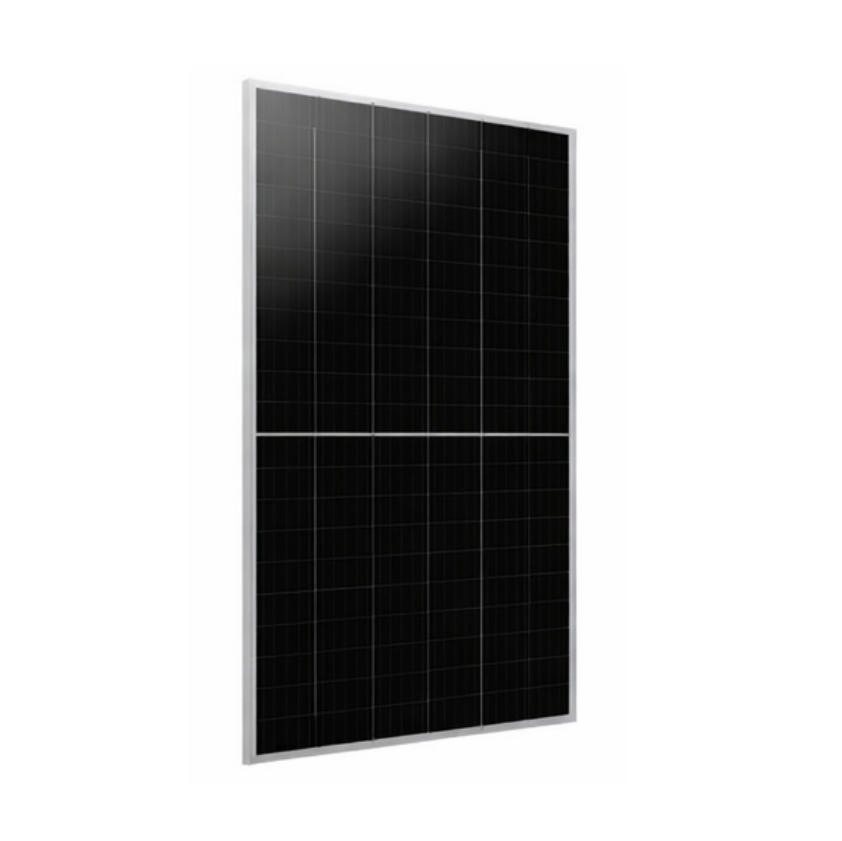

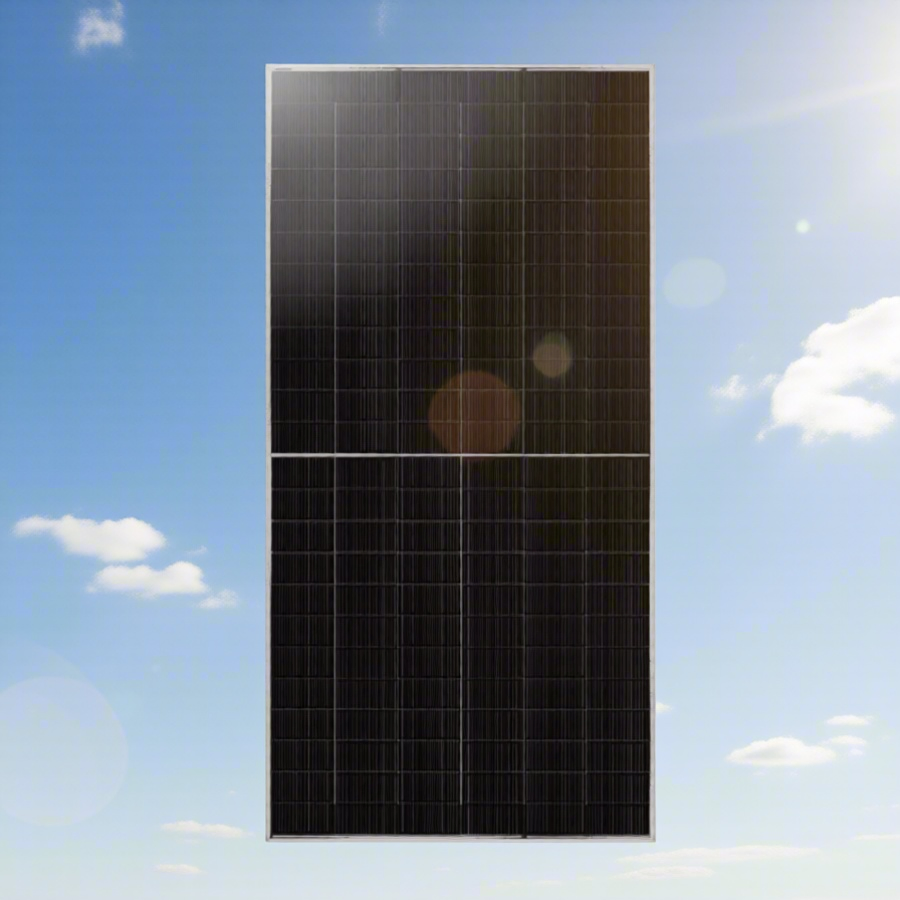

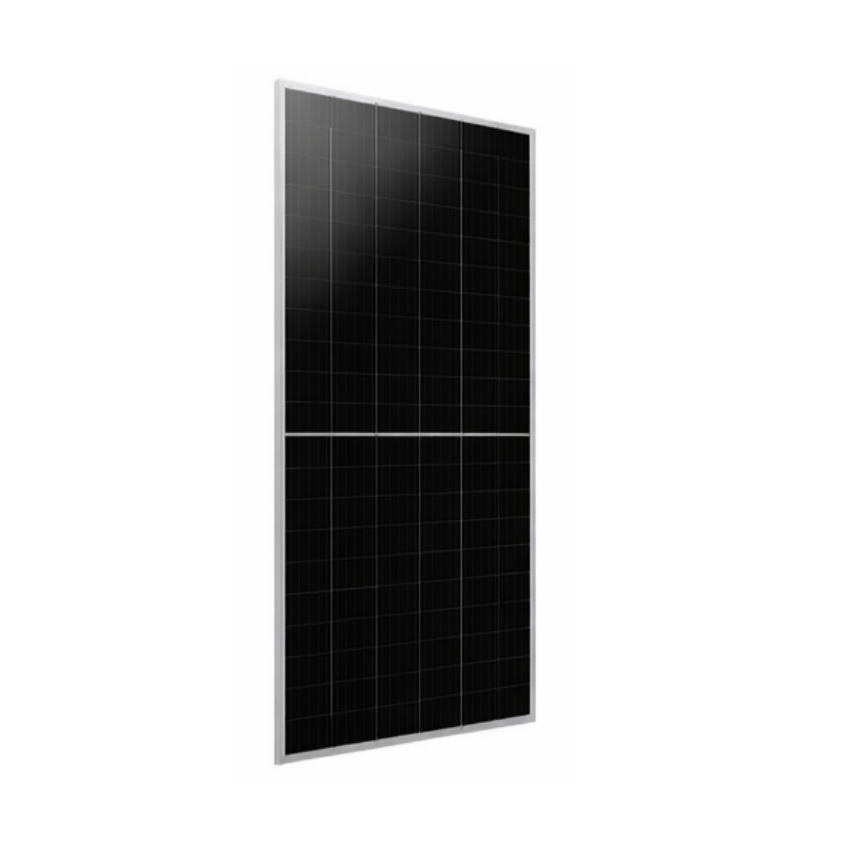

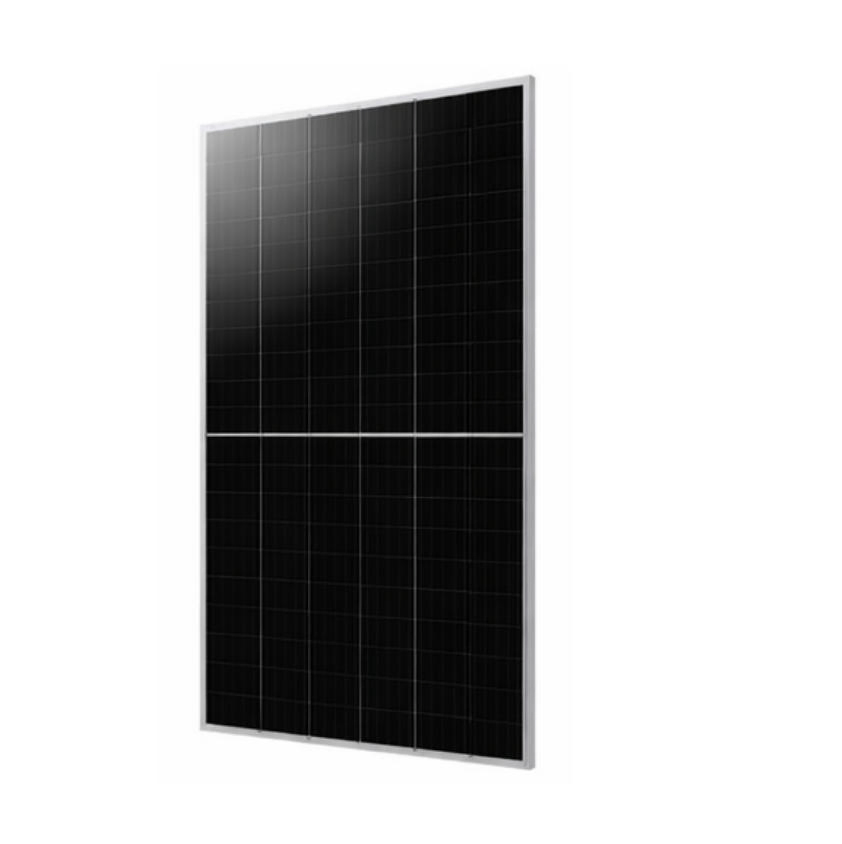

Developed for high performance, these monocrystalline solar panels are designed, developed, and manufactured by professional PV modules manufacturer with extensive industry experience. They deliver reliable and stable power for residential, commercial, off-grid applications, and utility-scale solar power plants. Backed by in-house production lines and rigorous quality control systems, each module is built to ensure long-term durability and consistent electrical performance.
Features & Advantages
Bifacial Power Generation: Back-side power generation efficiency reaches 80±5% of the front side.
Longer Term Reliability: Passed the IEC63209-1:2021 standard test (with testing standards 2 to 3 times stricter than regular IEC requirements).
Outstanding Mechanical Load Resistance: Certified to withstand 2400 Pa wind load and 5400 Pa snow load.
Anti-PID (Potential Induced Degradation): Passed anti-PID test under 85°C damp heat (85% relative humidity) for 192 hours.
Lower LCOE: Lower shading and resistive loss, with a better temperature coefficient.

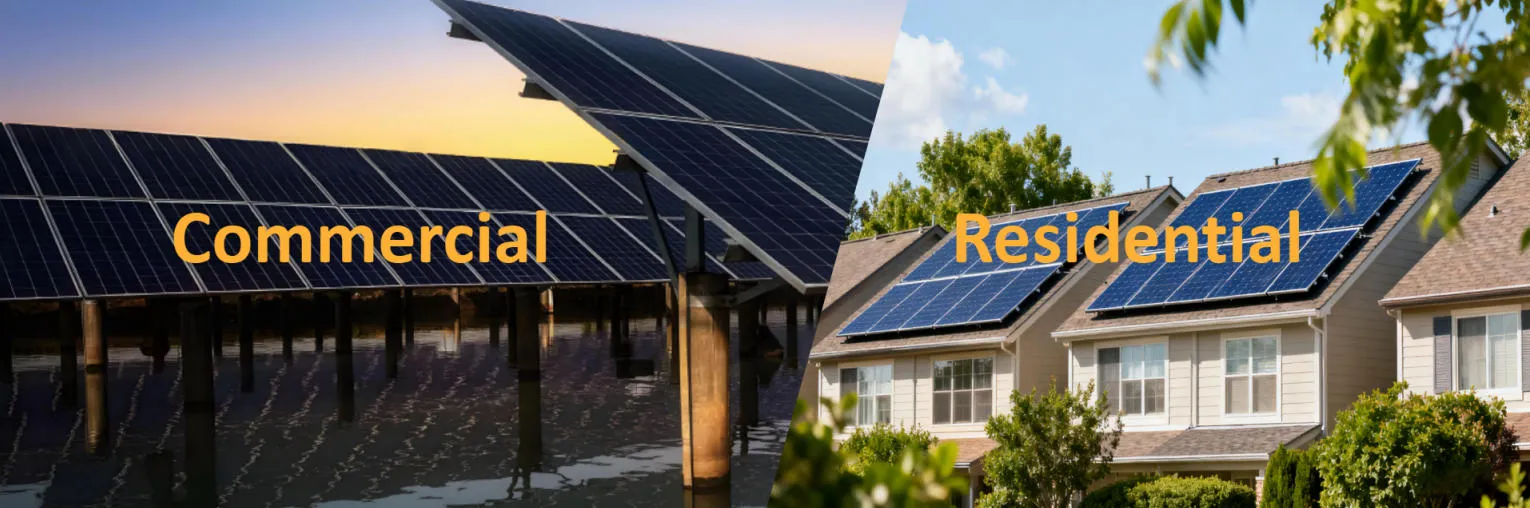

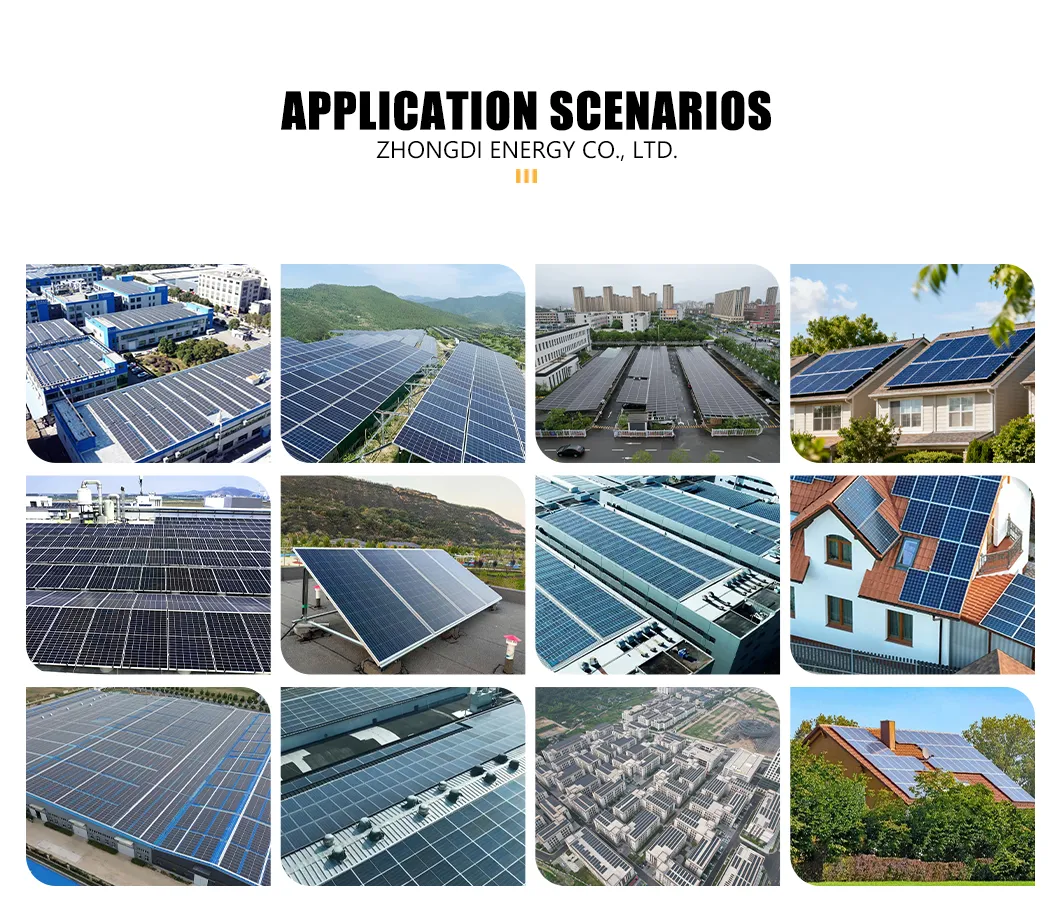

Wide Applicability: Flexibly applied to roofs, ground surfaces, water surfaces, mountainous areas, and other diverse environments.

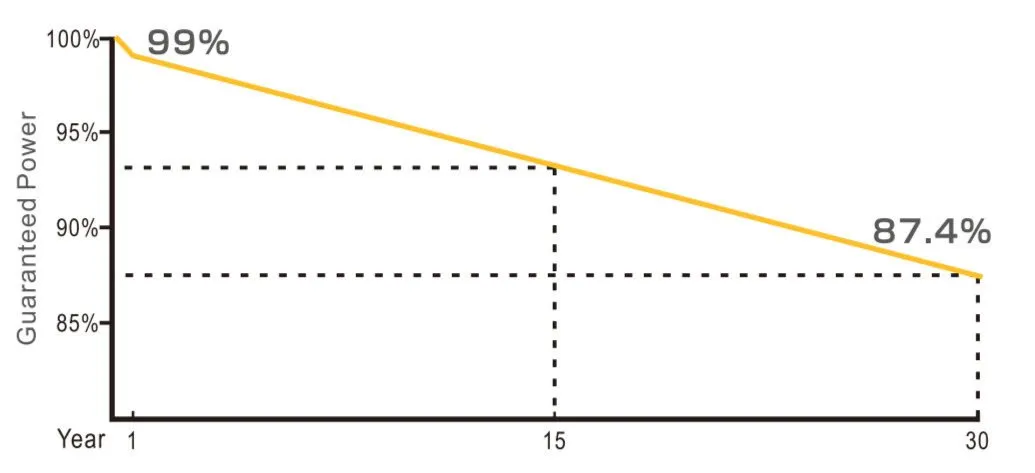

Warranty & Lifecycle Performance
15 Years
Product Warranty
30 Years
Linear Power Warranty
1.0%
First Year Degradation
0.4%
Annual Linear Degradation
Technical Specifications
Module Type
Unit
ZD-570M-144A
ZD-575M-144A
ZD-580M-144A
ZD-585M-144A
ZD-590M-144A
ZD-595M-144A
Test Conditions
-
STC
NOCT
STC
NOCT
STC
STC
STC
STC
Max. Power (Pmax)
W
570
432
575
436
580
585
590
595
Max. Power Voltage (Vmp)
V
43.70
40.20
43.85
40.34
44.02
44.17
44.35
44.55
Max. Power Current (Imp)
A
13.04
10.74
13.11
10.80
13.18
13.24
13.30
13.36
Open-circuit Voltage (Voc)
V
52.12
47.43
52.32
47.61
52.52
52.72
52.82
52.92
Short-circuit Current (Isc)
A
13.83
11.16
13.89
11.20
13.95
14.01
14.02
14.06
Module Efficiency
%
22.07
22.26
22.45
22.65
22.84
23.03
Operating Parameters
Temperature Parameters
Operating Temperature
-40°C ~ +85°C
Temperature Coefficient of Pmax
-0.29%/°C
Max. System Voltage
DC 1500V (IEC)
Temperature Coefficient of Voc
-0.25%/°C
Max. Series Fuse Rating
30A
Temperature Coefficient of Isc
+0.046%/°C
Nominal Operating Cell Temp. (NOCT)
43±2°C
Power Tolerance
0 ~ +3%
General Mechanical Data
Cell Type
N-type TOPCon Mono Half Cell (144 Cells: 6×12×2)

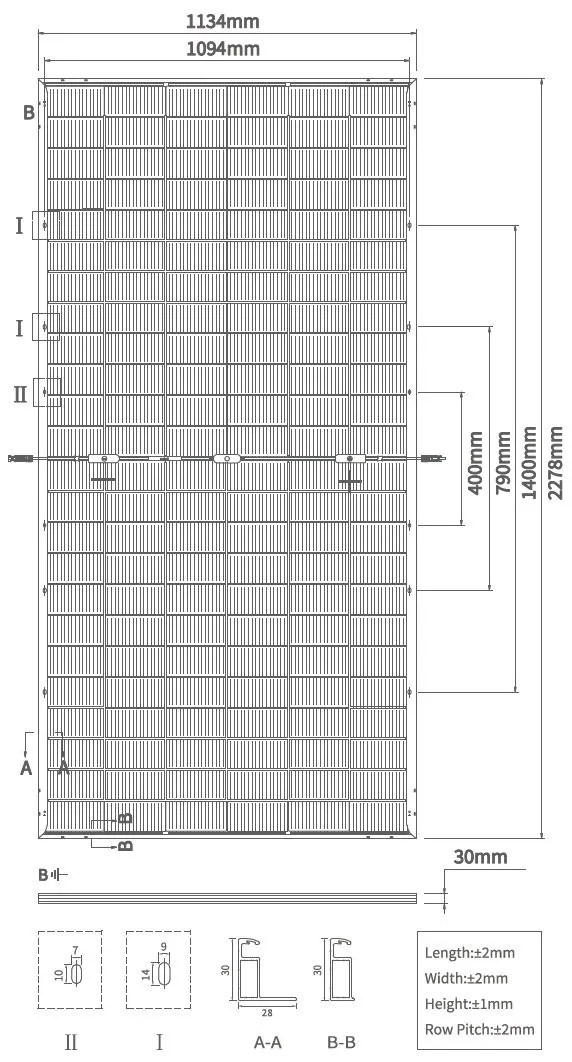

Dimensions
2278 * 1134 * 30 mm
Weight
30.3 kg
Front Glass
2.0mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Back Glass
2.0mm, High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68, 3 diodes
Connector Type
MC4 Compatible (PV-UL608 or MC4-EVO2)
Cable Length
4mm², Short Cable: (+)400/(-)200mm | Long Cable: (+)1400/(-)1400mm

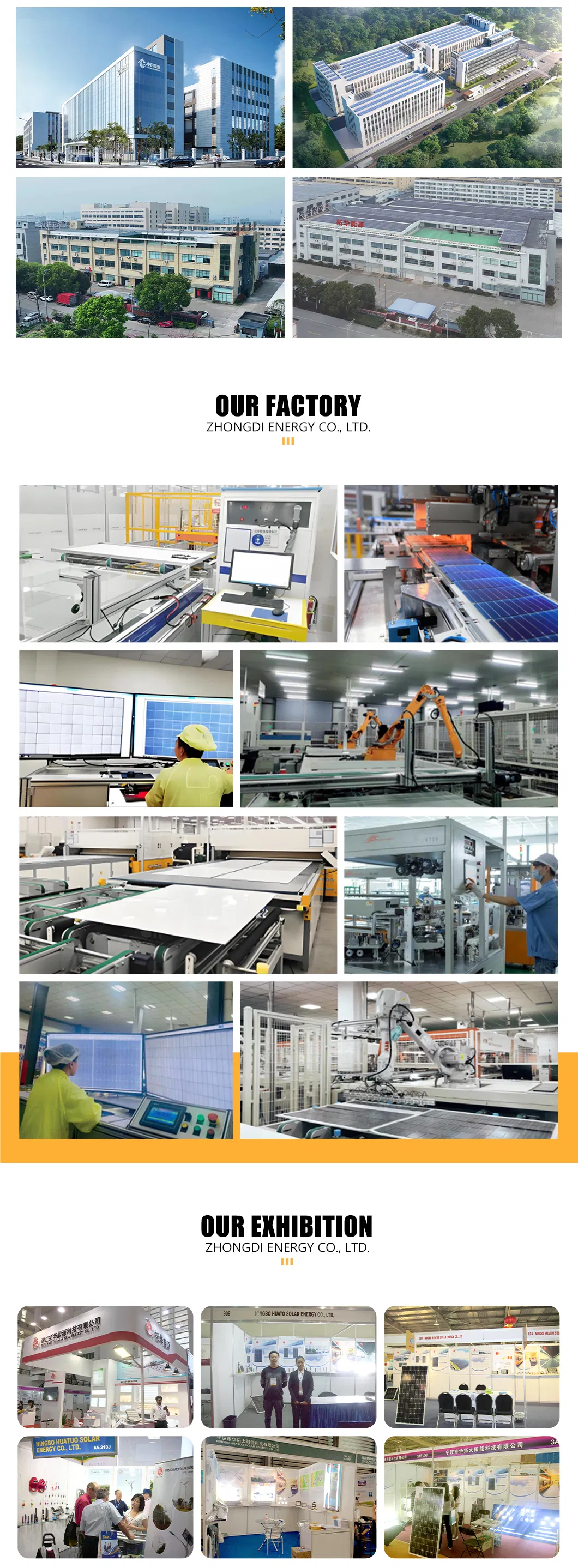

Manufacturing & Quality Control
Frequently Asked Questions
Q1: What types of solar panels do you supply?
A: We supply high-efficiency monocrystalline solar panels, including standard PV modules as well as customized sizes and power ratings.
Q2: What power ranges are available?
A: Our power output options range from 100W to 720W, making them highly suitable for residential, commercial, off-grid, and utility-scale application requirements.
Q3: What is the efficiency of your solar panels?
A: Our monocrystalline solar panels achieve up to 23.03% module efficiency (and up to 23.34% depending on exact cell technology configuration).
Q4: What materials are used in the panels?
A: The panels are manufactured with high-efficiency solar cells, tempered glass (low iron, anti-reflection coating), EVA encapsulation, and sturdy anodized aluminum alloy frames.
Q5: What is the warranty period?
A: We offer a 15-year product warranty along with a 30-year linear power output performance warranty.
Q6: Can these solar panels work in low-light conditions?
A: Yes. Thanks to advanced TOPCon monocrystalline technology, our panels are engineered to perform reliably even under low-light and cloudy environments.
