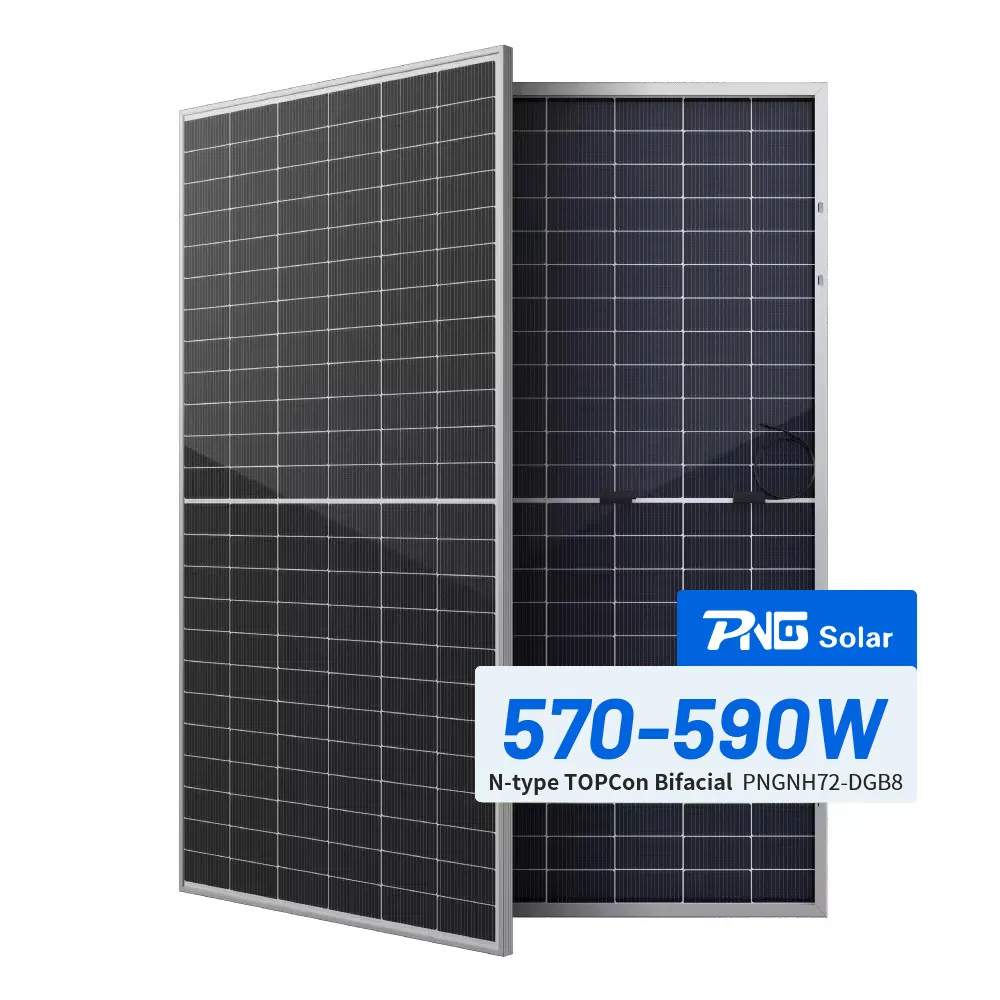

Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
1 / 5
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel
Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel

Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview Product Description Product Process Strictly QC System Project Cases Certifications

Basic Info.

Model NO.
PNGNH72-B8 580
Number of Cells
144PCS
Application
Residential, Industrial, Commercial
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Junction Box
IP68 Rated
Glass
3.2mm Coated Glass Tempered Glass
Type
Half Cut Cell
Weight
32kg
Panel Efficiency
22.4%
Backsheet
Tpt Material
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm High Transmission Tempered Glass
Transport Package
31PCS One Pallet
Specification
2278*1134*35mm
Origin
China
HS Code
854143000
Production Capacity
800mwatt/Years

Product Description

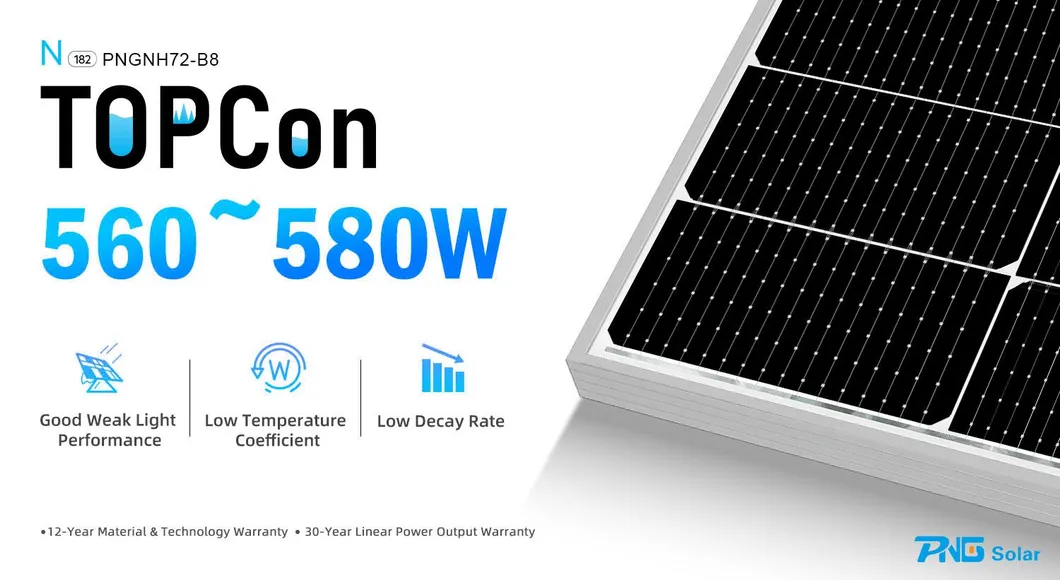

Residential, Industrial, Commercial Monocrystalline Silicon 580W Solar Panel

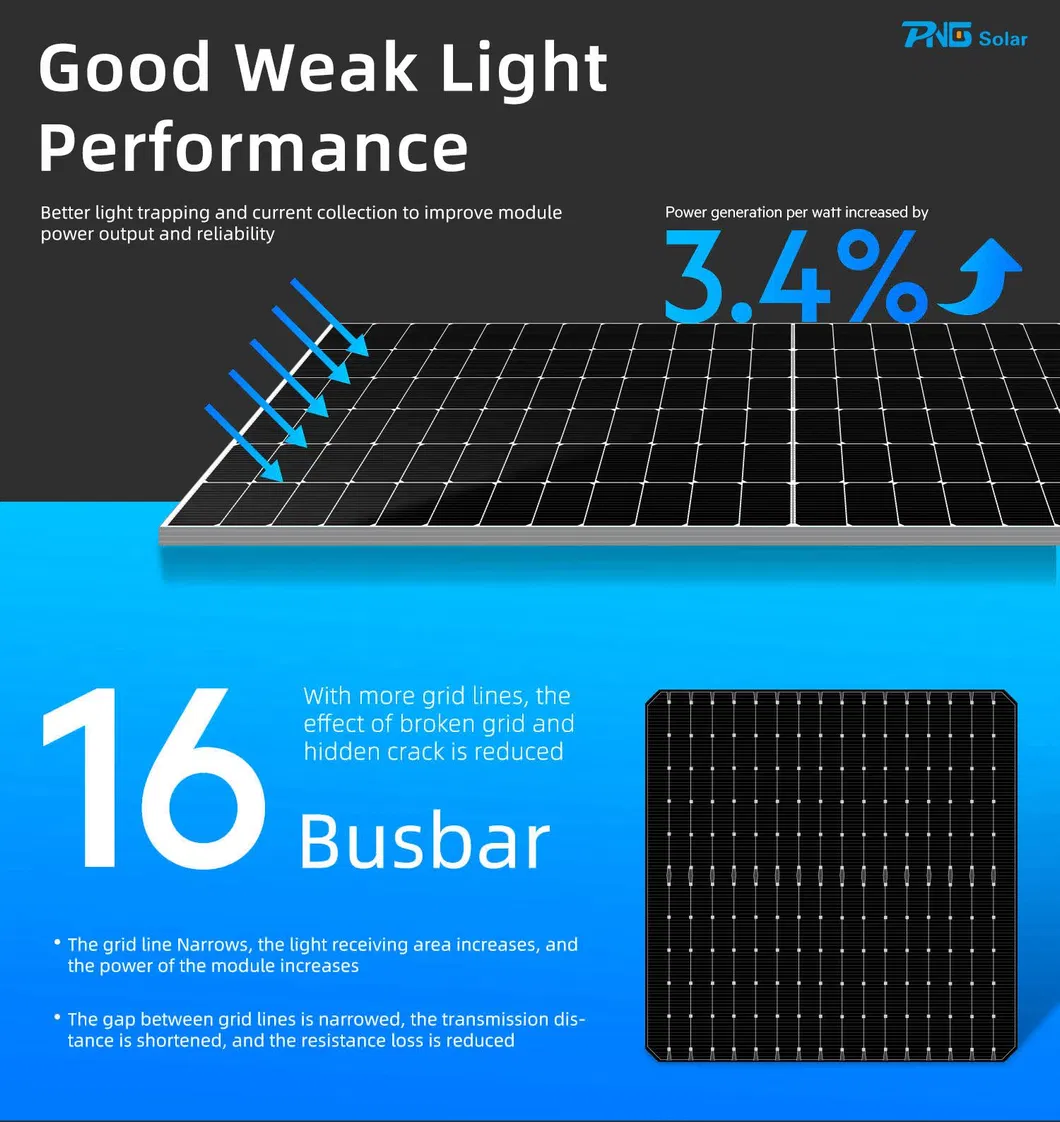

Residential, Industrial, Commercial Monocrystalline Silicon 580W Solar Panel Detail

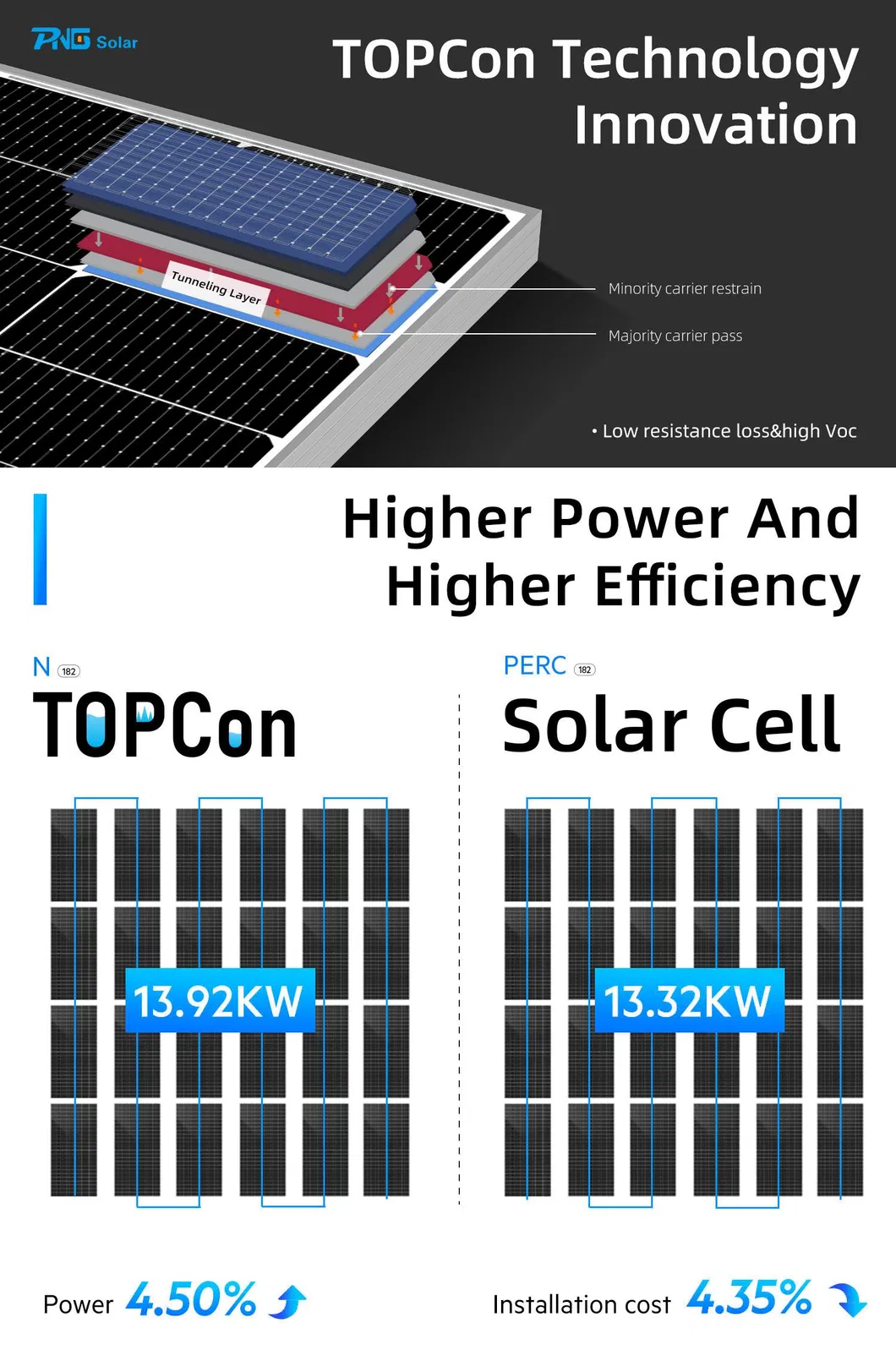

Residential, Industrial, Commercial Monocrystalline Silicon 580W Solar Panel Dimensions

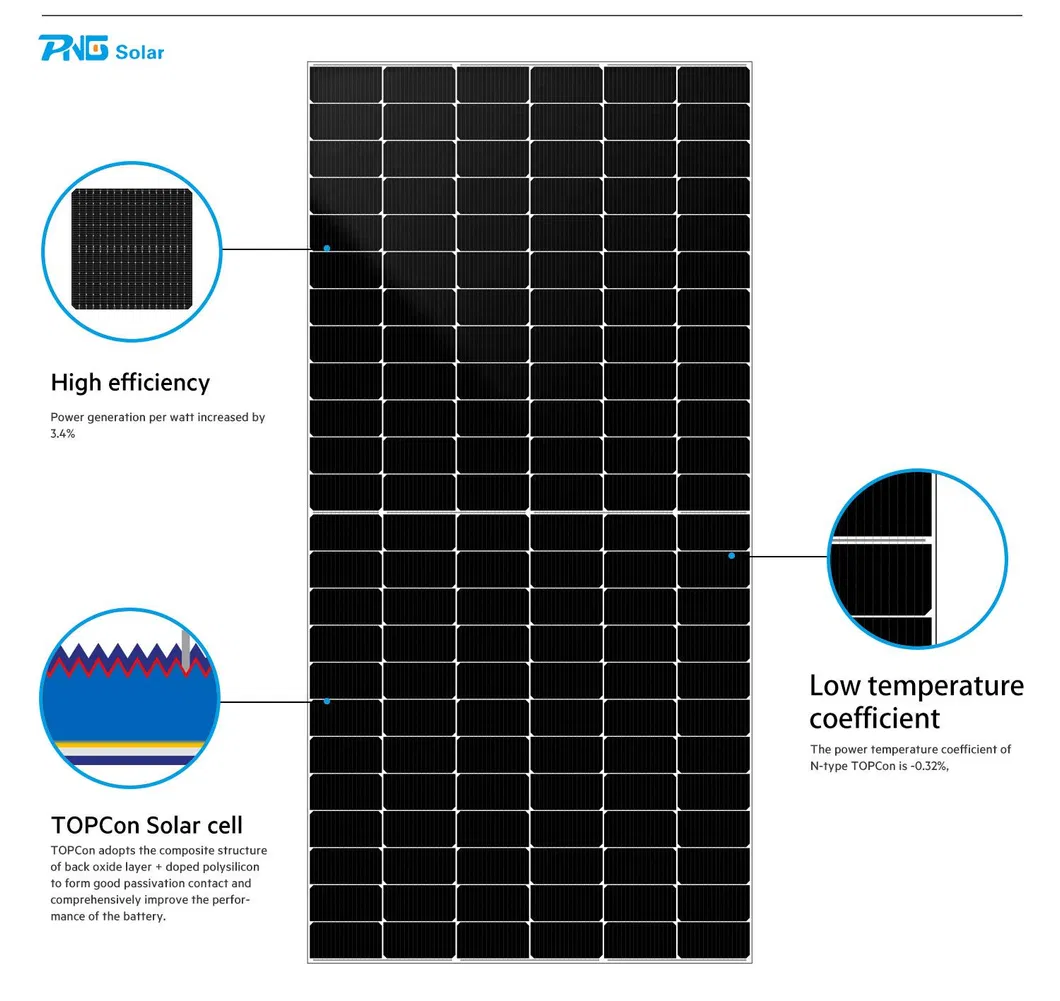

Residential, Industrial, Commercial Monocrystalline Silicon 580W Solar Panel Specs Graphic
ELECTRICAL DATA (STC)
Module Type PNGNH72-B8 560 PNGNH72-B8 565 PNGNH72-B8 570 PNGNH72-B8 575 PNGNH72-B8 580
Rated output (Pmp/Wp) 560W 565W 570W 575W 580W
Short Circuit Current (Isc) 13.9 13.96 14.02 14.08 14.14
Open Circuit Voltage (Voc) 50.6 50.8 51.0 51.2 51.4
Maximum Power Current (Impp) 13.8 13.14 13.19 13.25 13.3
Maximum Power Voltage (Vmpp) 42.8 43.0 43.2 43.4 43.6
Module efficiency (%) 21.67% 21.86% 22.06% 22.25% 22.44%
Standard Test Condition (STC) Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5

Product Process

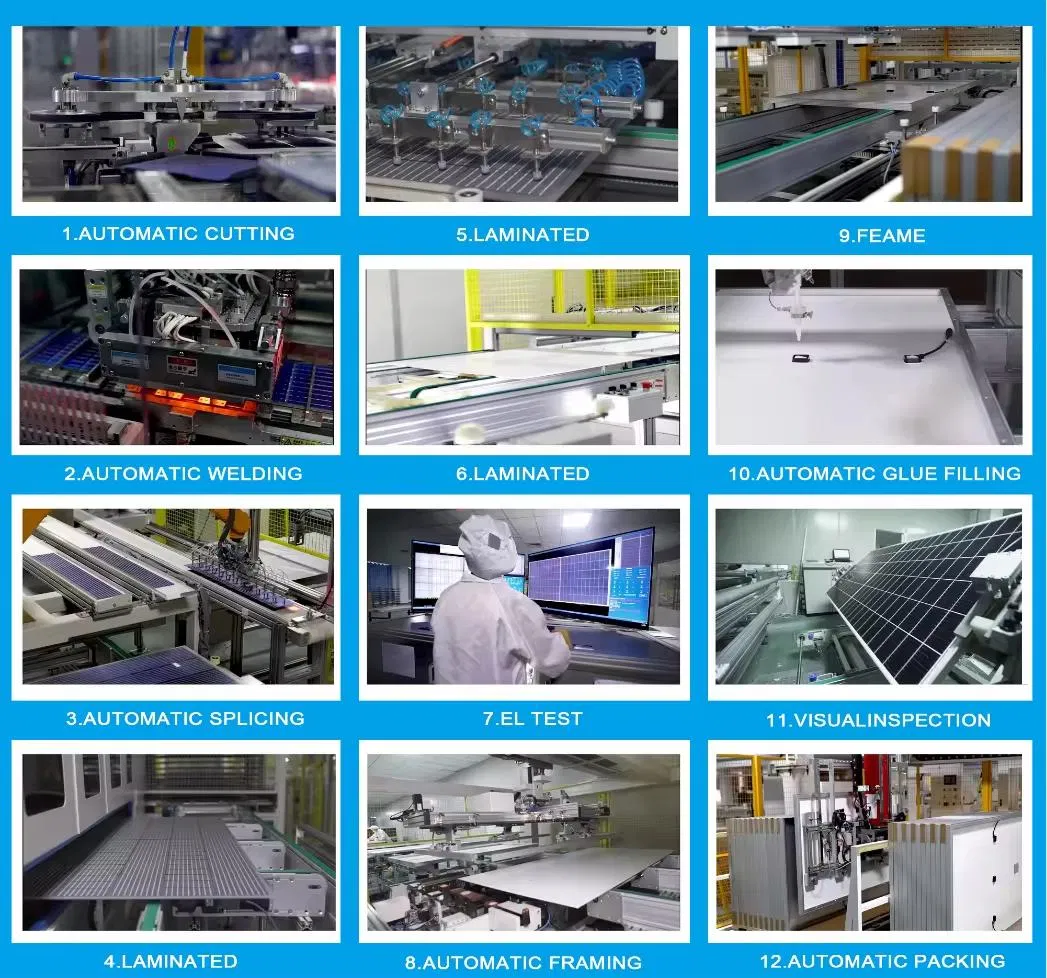

Solar Panel Manufacturing Process Flow

Strictly QC System

We are a professional and fast growing company. The business covers the R&D, production and sales of PV modules, power station and PV system products, power generation and operation and maintenance services, etc. The facilities are located in one of the main production bases of the photovoltaic industry in the world.
As a manufacturer and supplier of solar cells, solar PV modules and solar systems, covering an area of 46,000 square meters with a strong team, our annual production capacity has reached 800MW, with 90% of products exported globally. The advanced production system and excellent quality control processes ensure the reliability that wins customers' trust. All processes conform to international standards with TUV, CE, and other major certifications. Our global sales network serves customers across 70 countries/regions, primarily spanning Europe, Asia, and South America.

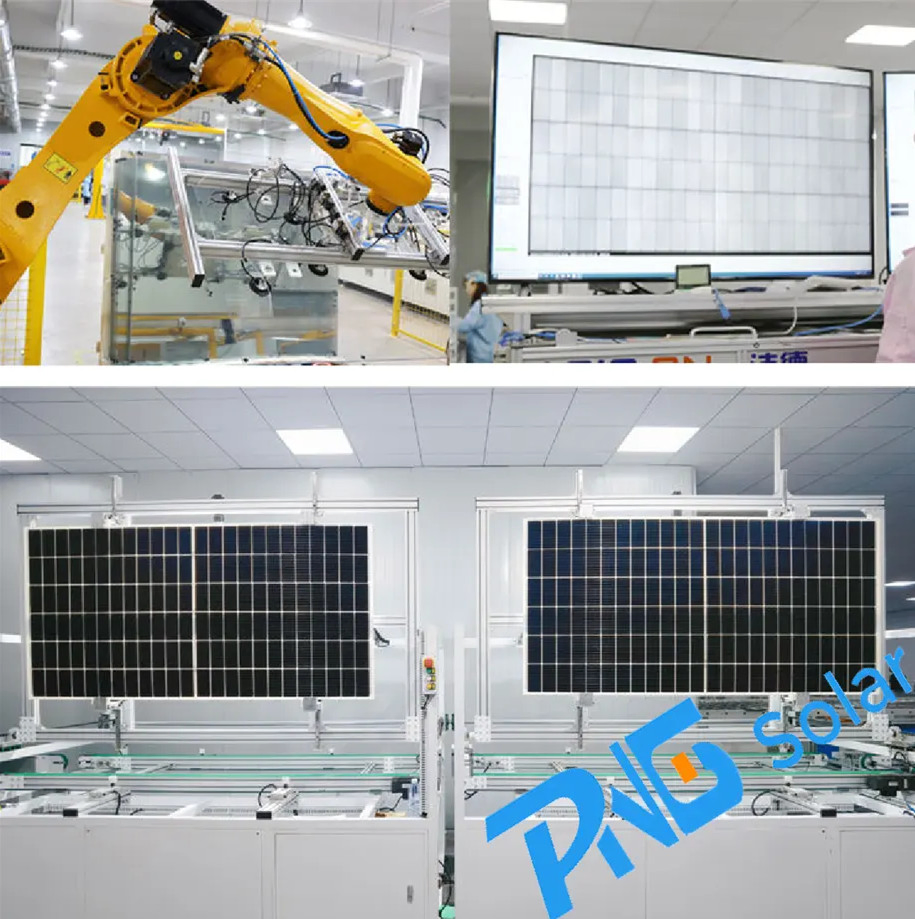

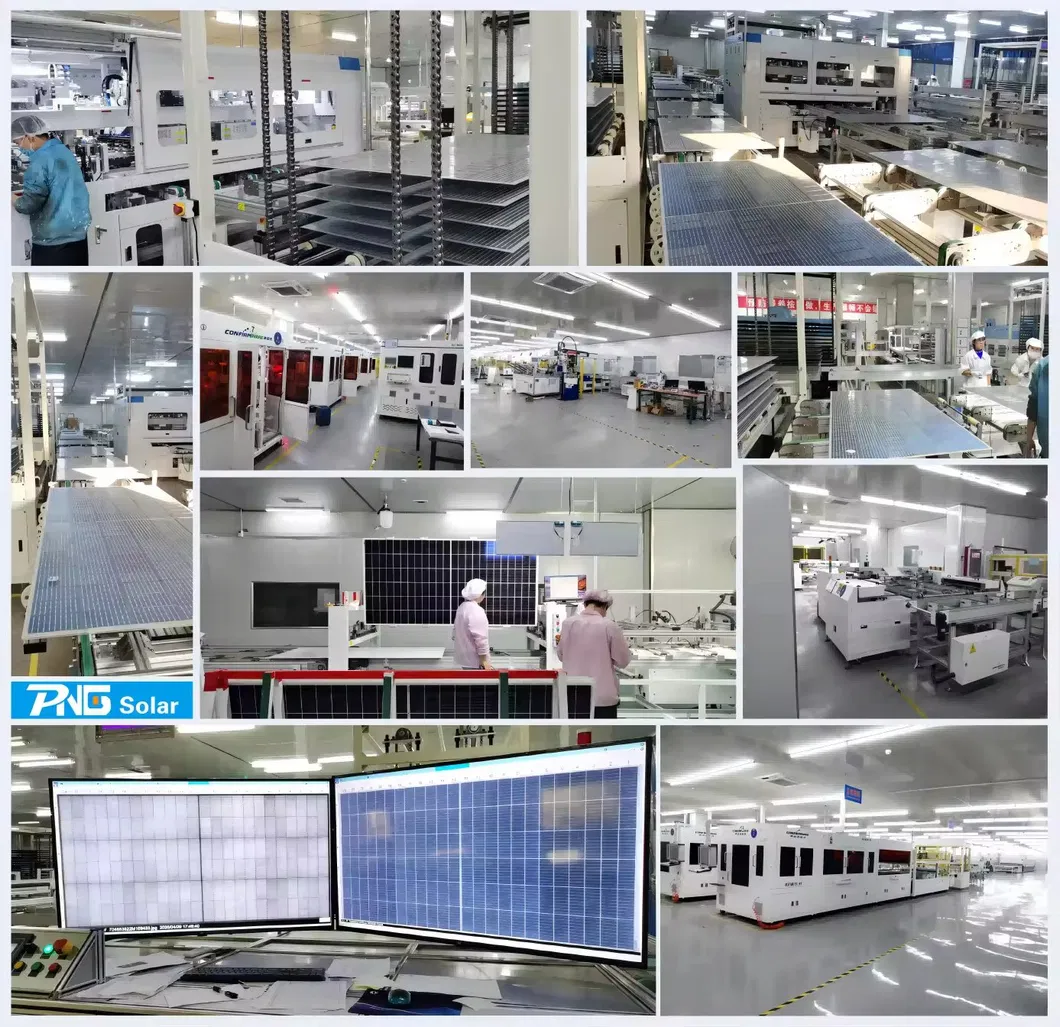

Strict Quality Control Testing and Inspection

Project Cases

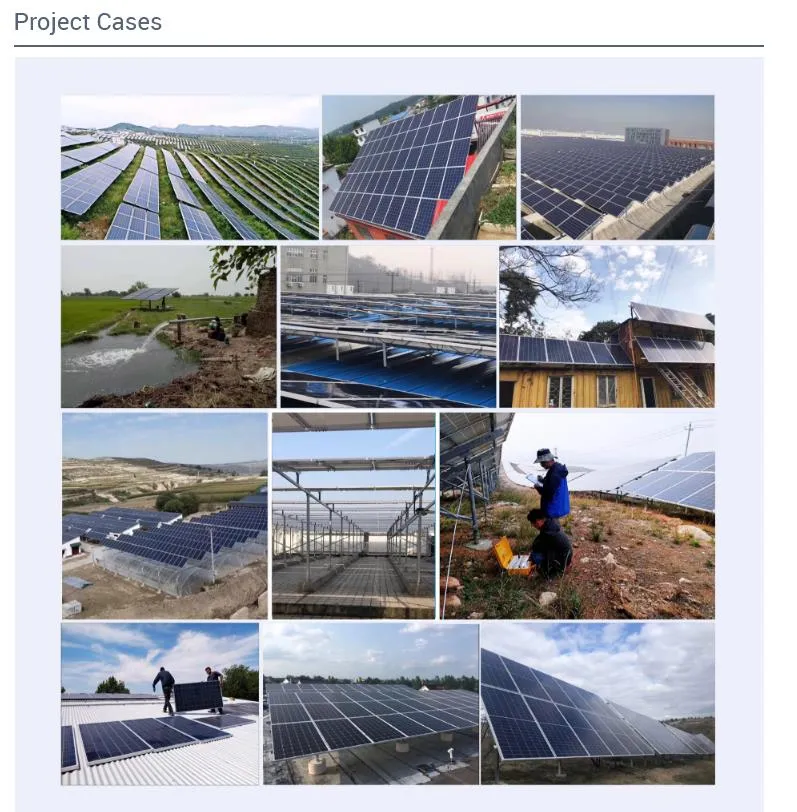

Global Solar Panel Project Installation Cases

Certifications

International Quality Certifications

Frequently Asked Questions

What are the primary applications for these monocrystalline solar modules?
These solar modules are highly versatile and engineered for residential, industrial, and commercial installations.
What cell technology is utilized in the 580W panels?
They utilize high-efficiency Monocrystalline Silicon designed with a Half-Cut Cell layout for optimized performance and shadow tolerance.
What certifications do these modules hold?
Our modules are manufactured in compliance with international quality standards and have achieved ISO, CE, and TUV certifications.
What is the standard packaging format for global shipment?
The panels are packed with 31 pieces per pallet to optimize container space and ensure safe, secure transit.
What are the exact dimensions and weight of a single panel?
Each panel measures 2278*1134*35mm and weighs approximately 32kg, offering a robust profile with a standard anodized aluminium alloy frame.
How does the half-cut cell design benefit solar panel efficiency?
The half-cut cell technology reduces internal power loss and temperature coefficient, pushing the module efficiency to a high rating of up to 22.44%.
