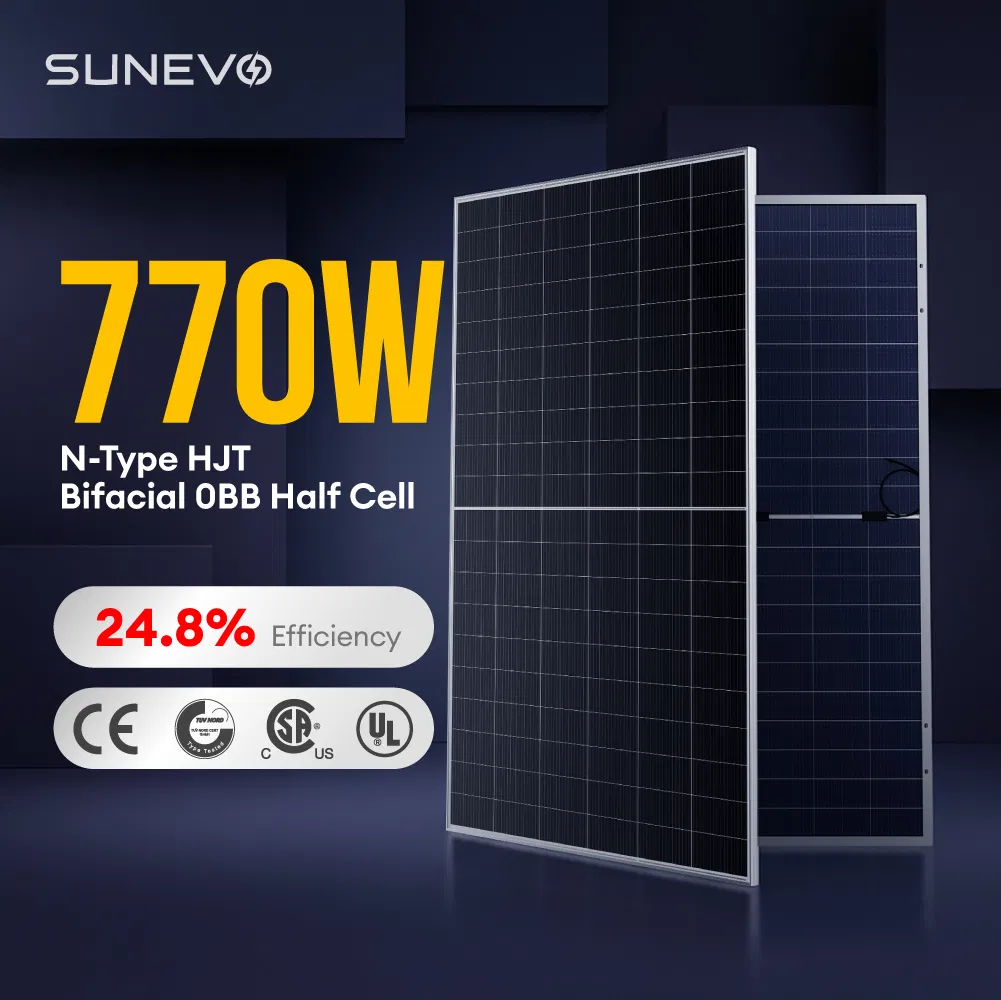

High Efficiency 770W Photovoltaic Panel with 30 Year Linear Power Warranty for Reliable Residential and Commercial Solar Systems

Customization: Available
After-sales Service: Yes
Warranty: 15-30 Years

Product Description

  • Overview
  • Product Description
  • Certifications
  • Production Process
  • Packaging & Shipping
  • Global Project Case
  • Company Profile
  • Customized Services
Basic Info.
Model NO. SE6-66HBD
Number of Cells 132 (6*22)
Application Home Commercial Industrial
Condition New
Certification ISO, CE, TUV, IEC, Inmetro, UL, etc.
Material Monocrystalline Silicon
Solar Cells 210mm*210mm
Type Bifacial, Double-Glass, Hjt, N-Type, Obb
Panel Efficiency 24.8%
Place of Origin China
Model Number Evo 6n 132 Half Cells 770W
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated, 3 Diodes
Connector Mc4 Compatible
Cable (+): 400mm, (-): 200mm or Customized Length
Packaging 33PCS/Pallets, 62PCS/Stack, 594PCS/ 40'hq Containe
Wind/Snow Load 2400PA/5400PA
Transport Package Carton with Pallet
Specification 2384*1303*33 mm
Production Capacity 5,000,000,000 Watts/Year
Product Description

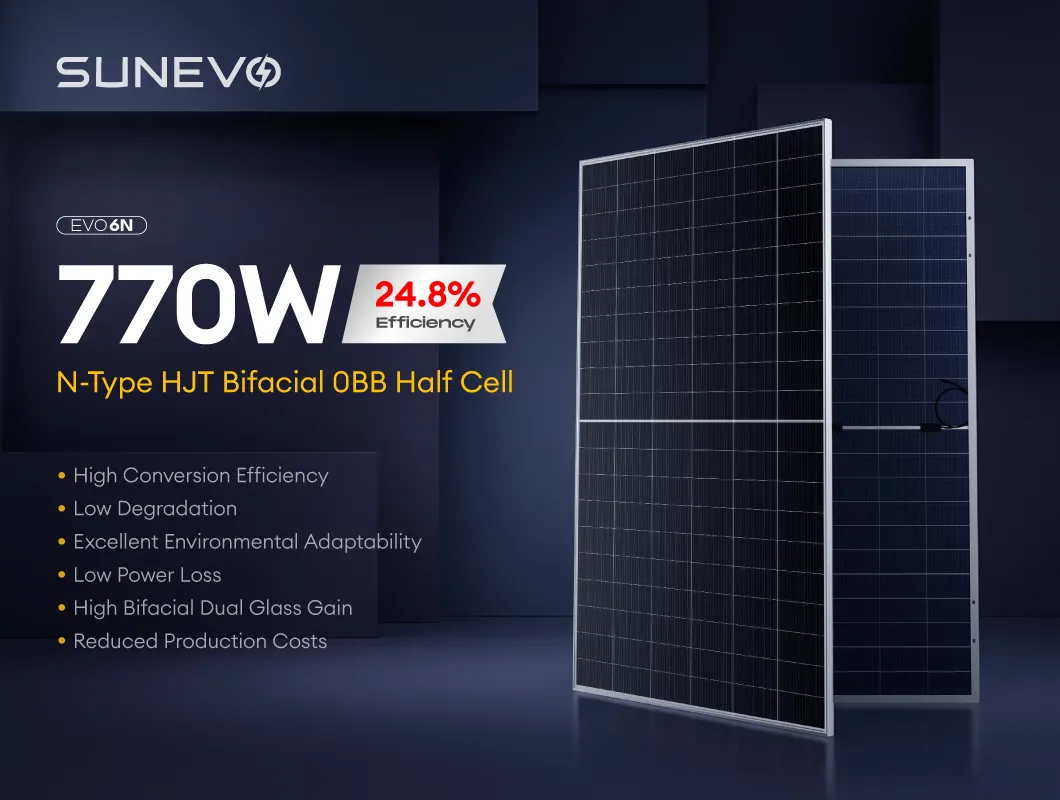

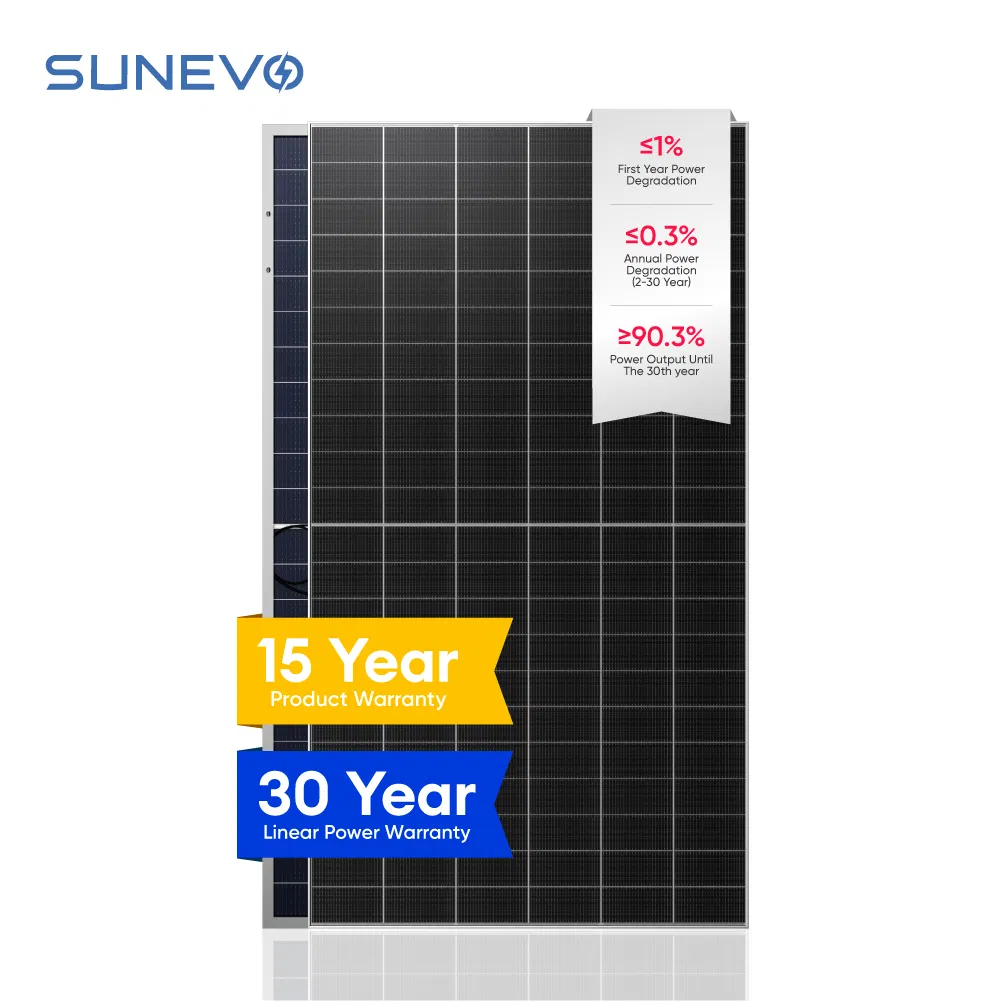

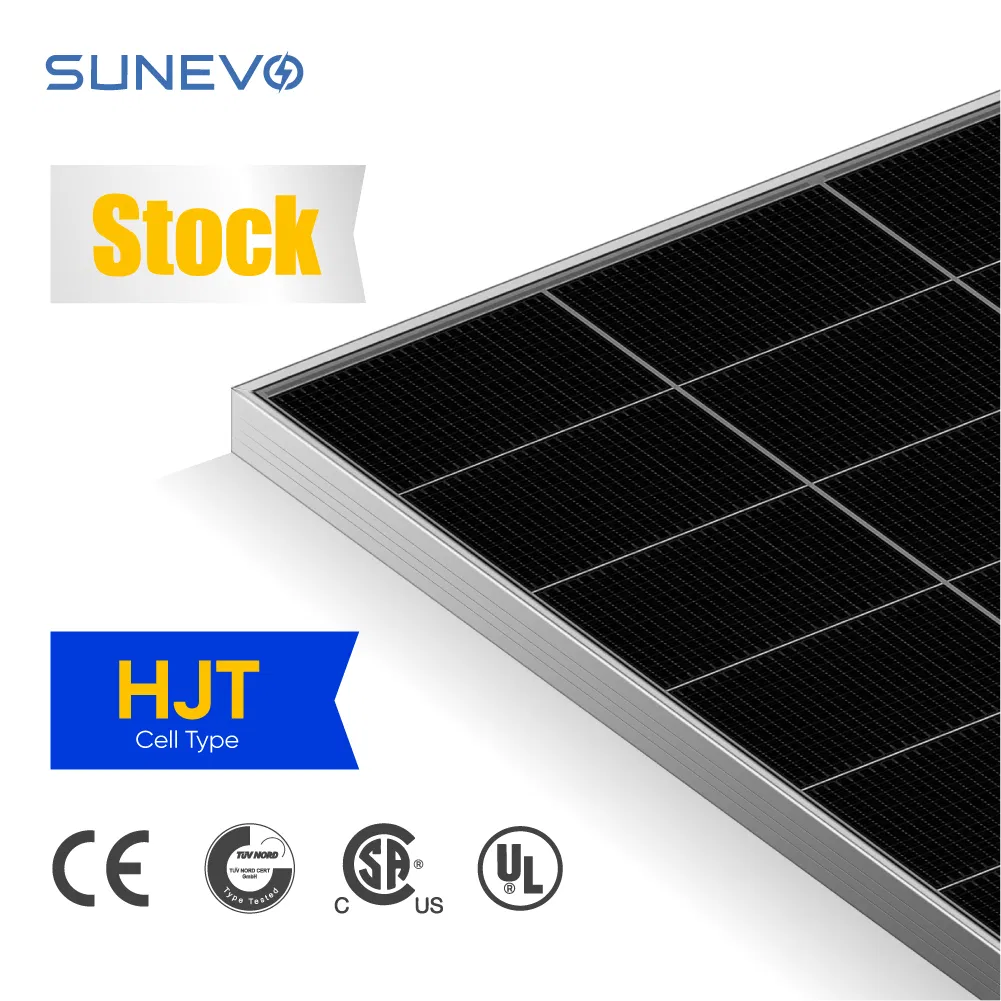

High Efficiency 770W Photovoltaic Panel with 30 Year Linear Power Warranty for Reliable Residential and Commercial Solar Systems
SE6-66HBD 745 750 755
Test Condition STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 745 568 750 572 755 576
Maximum Power Voltage (Vmp/V) 42.59 40.67 42.68 40.76 42.13 40.25
Maximum Power Current (Imp/A) 17.50 13.99 17.58 14.05 17.92 14.32
Open Circuit Voltage (Voc/V) 50.67 48.36 50.77 48.46 50.16 47.87
Short Circuit Current (Isc/A) 18.62 14.88 18.71 14.95 47.87 15.24
Module Efficiency (%) 24.00 24.10 24.30
SE6-66HBD 760 765 770
Test Condition STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 760 580 765 584 770 587
Maximum Power Voltage (Vmp/V) 42.22 40.33 42.30 40.41 42.39 40.49
Maximum Power Current (Imp/A) 18.00 14.39 18.09 14.46 18.17 14.52
Open Circuit Voltage (Voc/V) 50.26 47.97 50.36 48.07 50.46 48.16
Short Circuit Current (Isc/A) 19.15 15.31 19.24 15.38 19.33 15.45
Module Efficiency (%) 24.50 24.60 24.80
Maximum Power (Pmax/W) 835 841 846 852 857 863
Voltage at Pmax (Vmp/V) 42.75 42.83 42.28 42.36 42.45 42.53
Current at Pmax (Imp/A) 19.55 19.64 20.03 20.12 20.21 20.30
Open Circuit Voltage (Voc/V) 50.85 50.95 50.33 50.43 50.53 50.64
Short Circuit Current (Isc/A) 20.88 20.98 21.38 21.48 21.58 21.68
Our Advantages

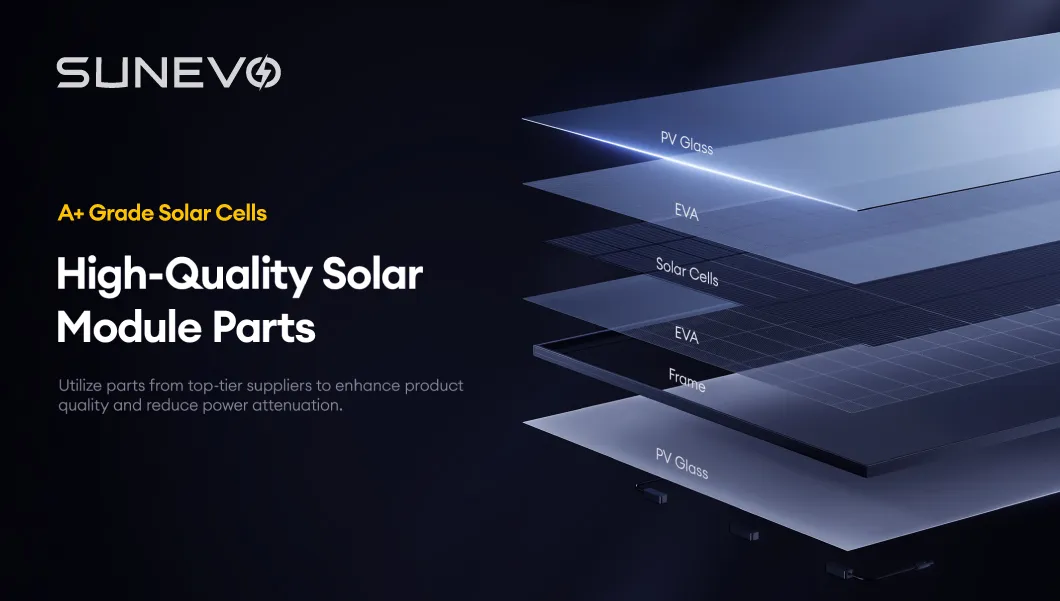

Advantage Graph 1 Advantage Graph 2
Certifications
Quality and Performance Certifications
Production Process

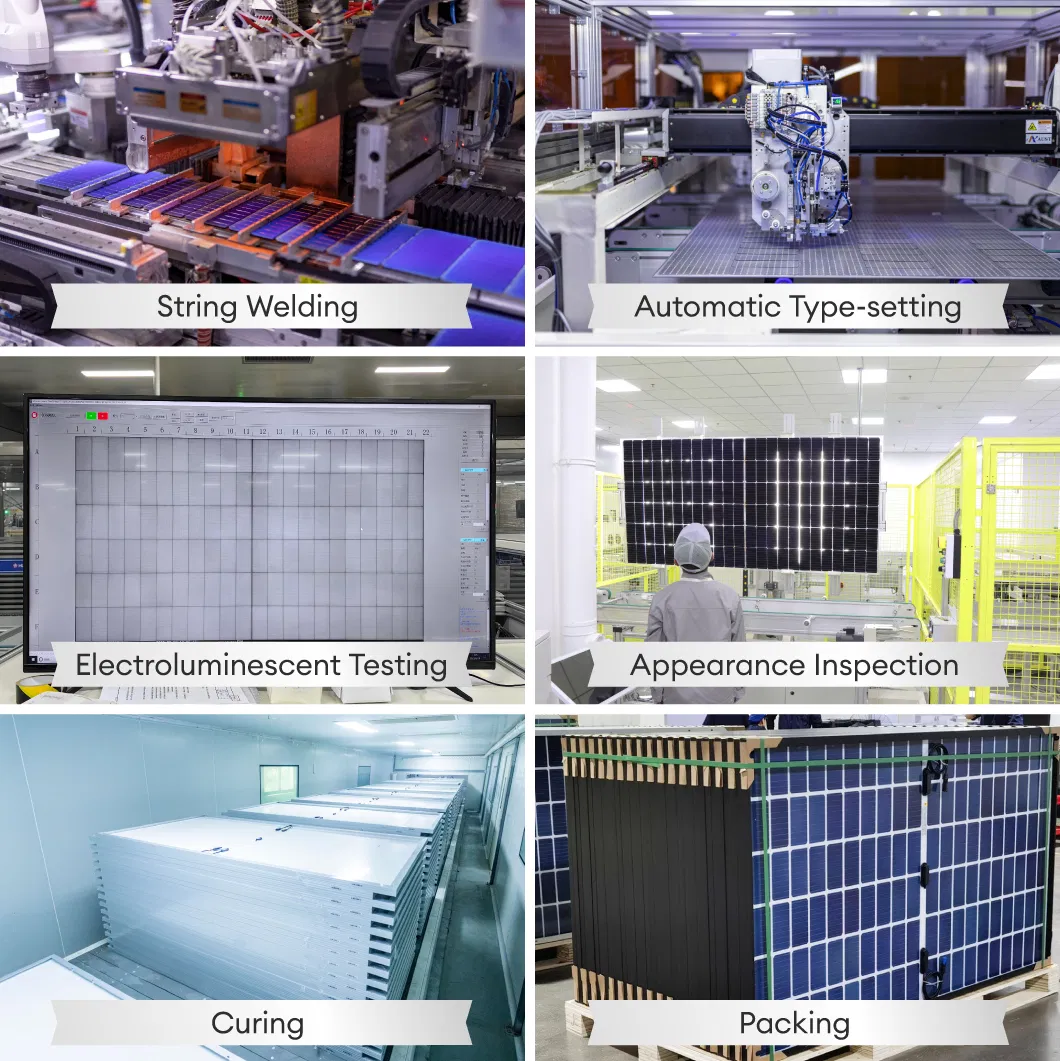

Production Process of Photovoltaic Modules
Packaging & Shipping

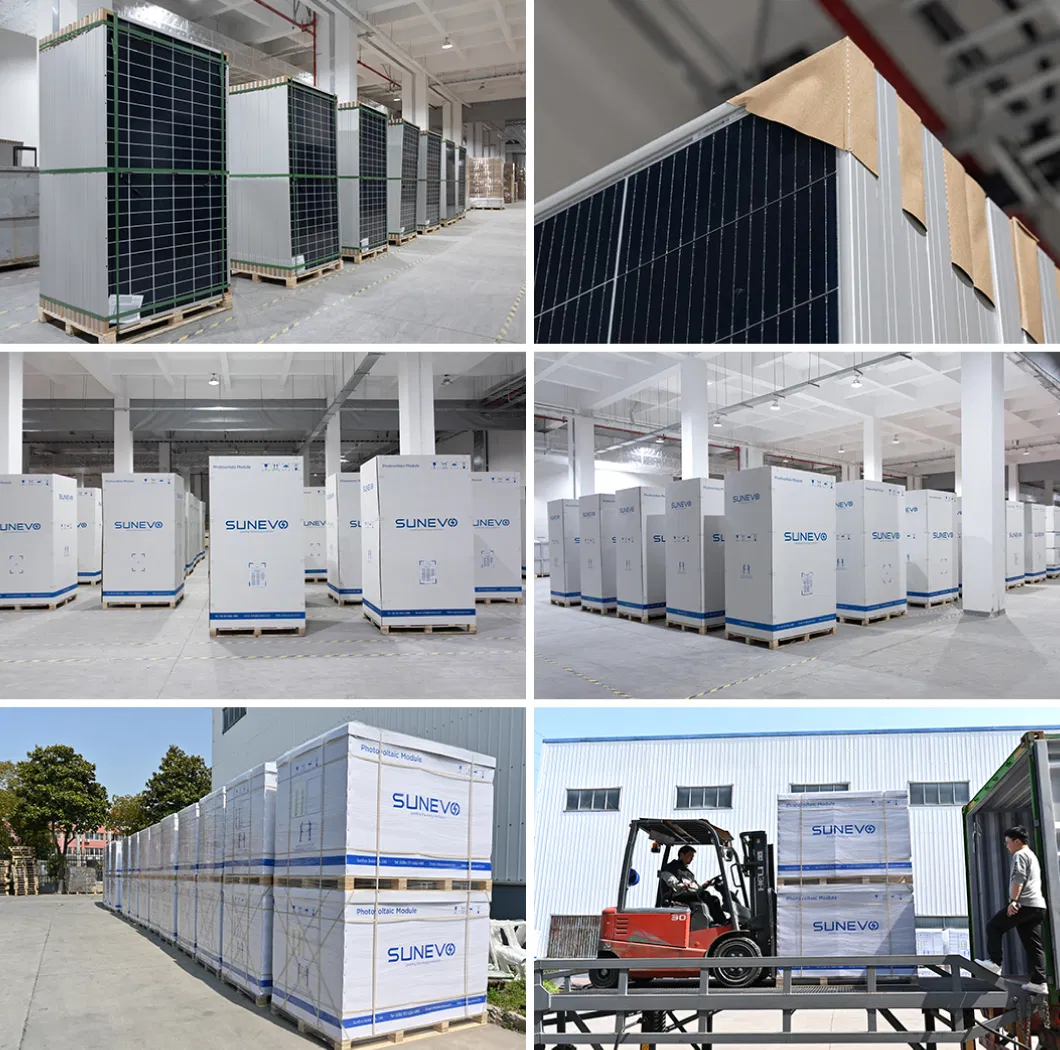

Packaging and Logistic Methods
Global Project Cases

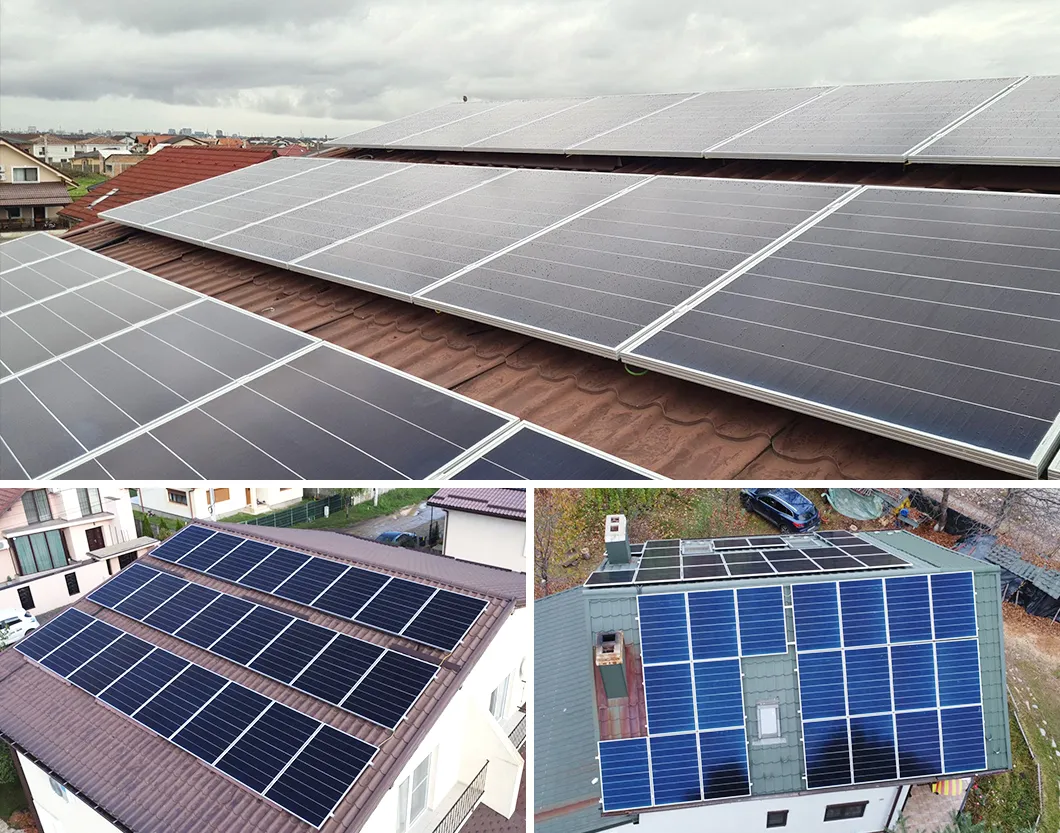

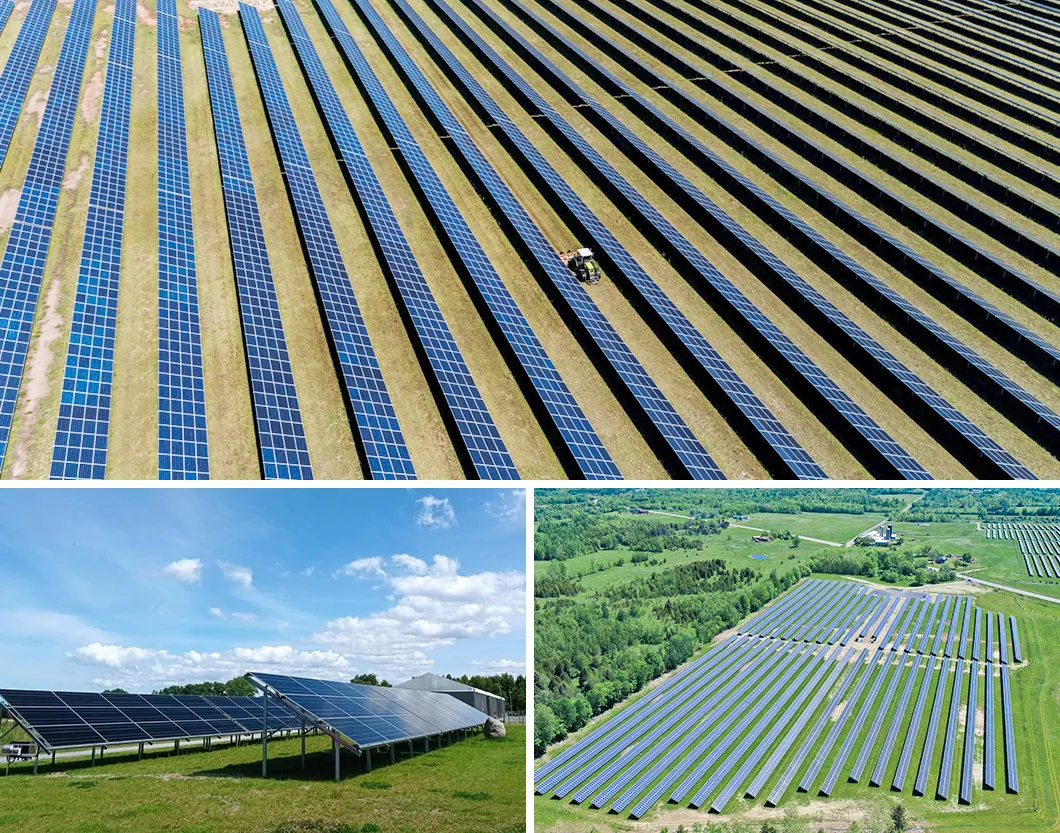

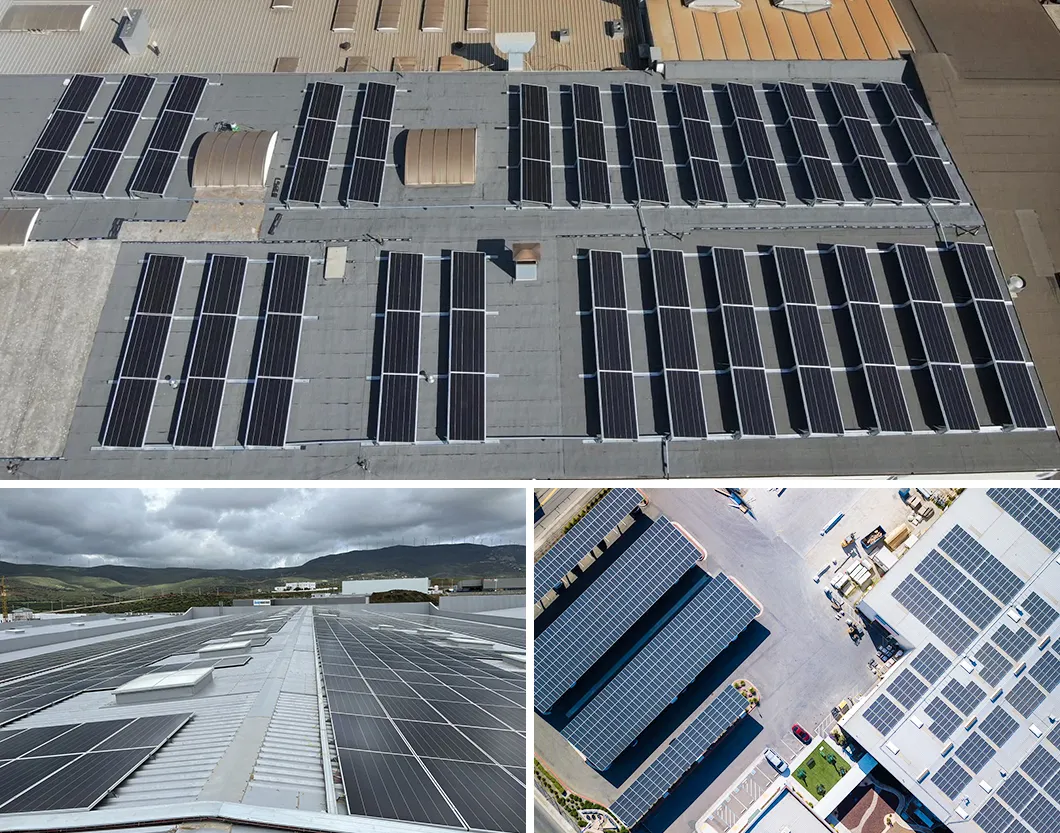

Global Solar Installation 1 Global Solar Installation 2 Global Solar Installation 3
Company Profile

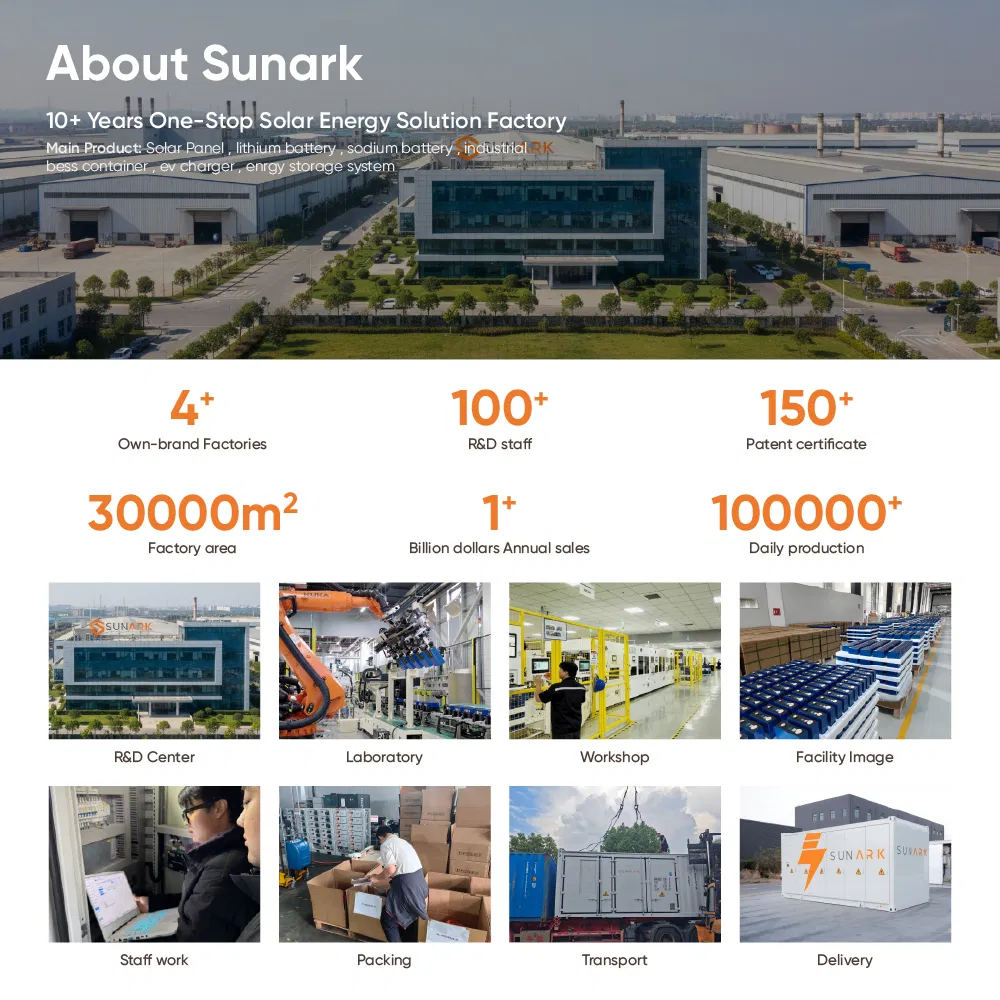

Industrial Facility Layout
We are a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. We have 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, our FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. We are a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. We hold core technology patents in new materials, new technologies and new structures of battery power supply, and have led and participated in the formulation of a number of international, national and industrial standards.
Customized Services

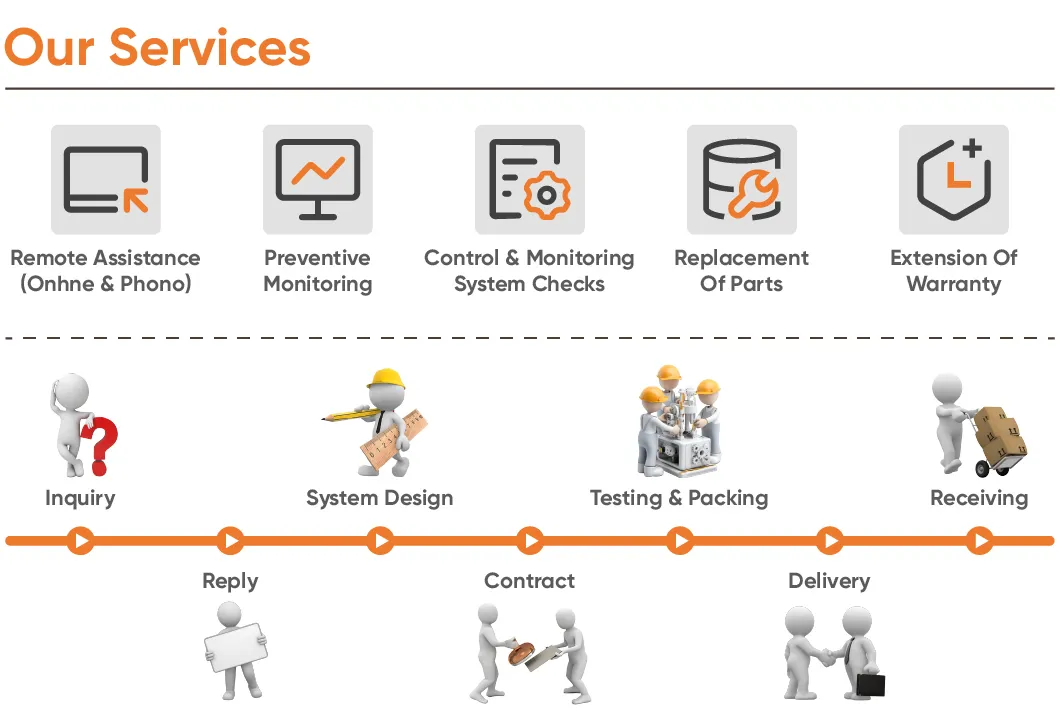

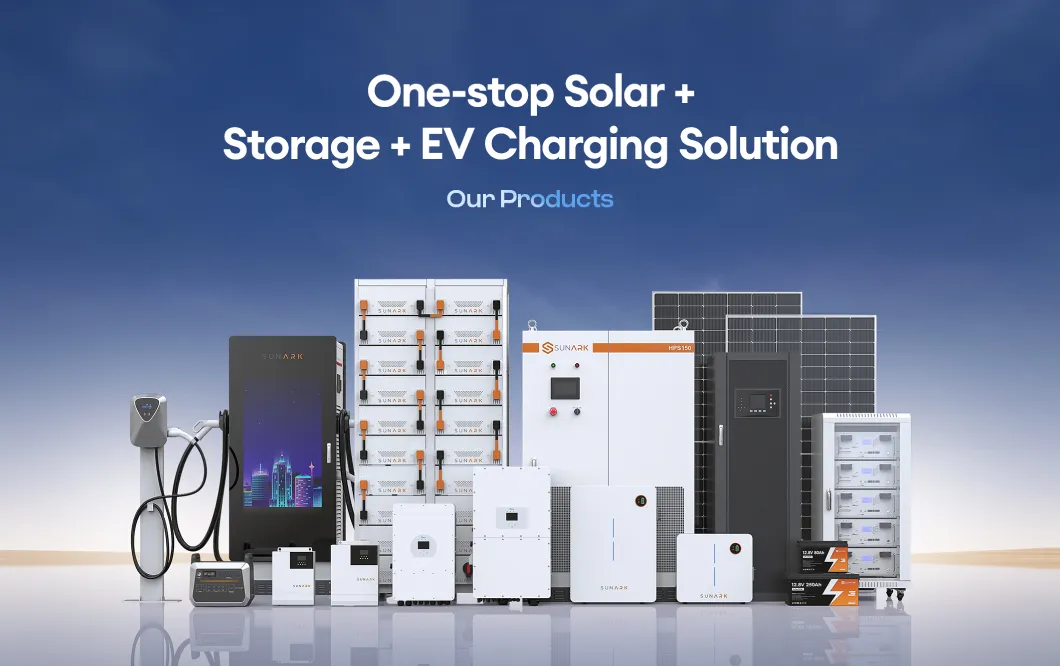

Customized Solutions Diagram Client Customized Service Model
Frequently Asked Questions
What is the efficiency rating of the 770W solar panel module?
This high-efficiency photovoltaic module features a peak panel efficiency of up to 24.8%, utilizing N-type HJT monocrystalline silicon cells to maximize energy conversion and footprint utilization.
How does the bifacial double-glass design improve performance?
The bifacial design allows the solar panel to capture sunlight from both the front and rear sides, significantly increasing overall power generation, especially in environments with high albedo surfaces like sand, snow, or commercial roofs.

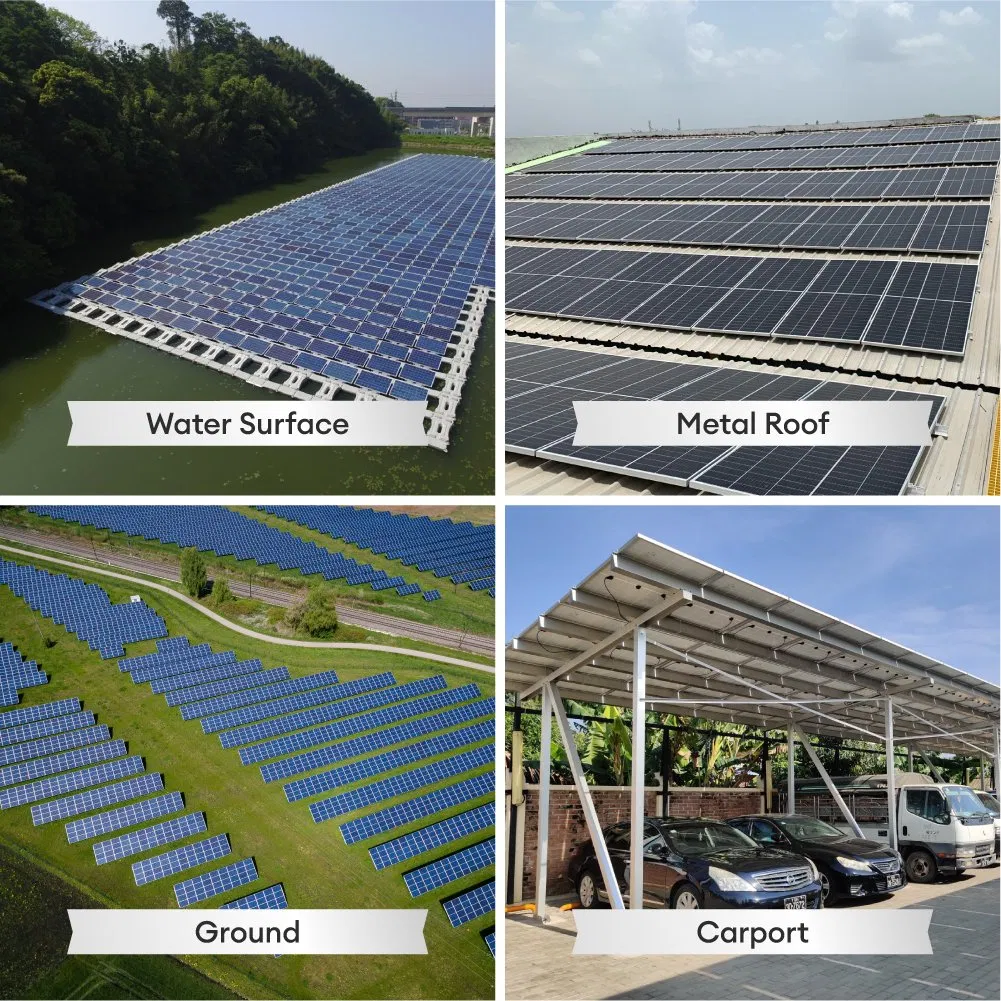

What are the main applications for these HJT solar panels?
These modules are highly versatile and ideal for utility-scale plants, commercial installations, and industrial solar projects that demand reliable power output, space efficiency, and long lifespan.
What is the wind and snow load capacity of this photovoltaic panel?
The module is engineered to withstand heavy environmental stresses, with a certified wind load capacity of up to 2400 Pa and a snow load capacity of up to 5400 Pa.
What certifications do these monocrystalline solar modules hold?
Our modules are certified under major international standards including ISO, CE, TUV, IEC, Inmetro, and UL, ensuring compliance with global safety and performance benchmarks.

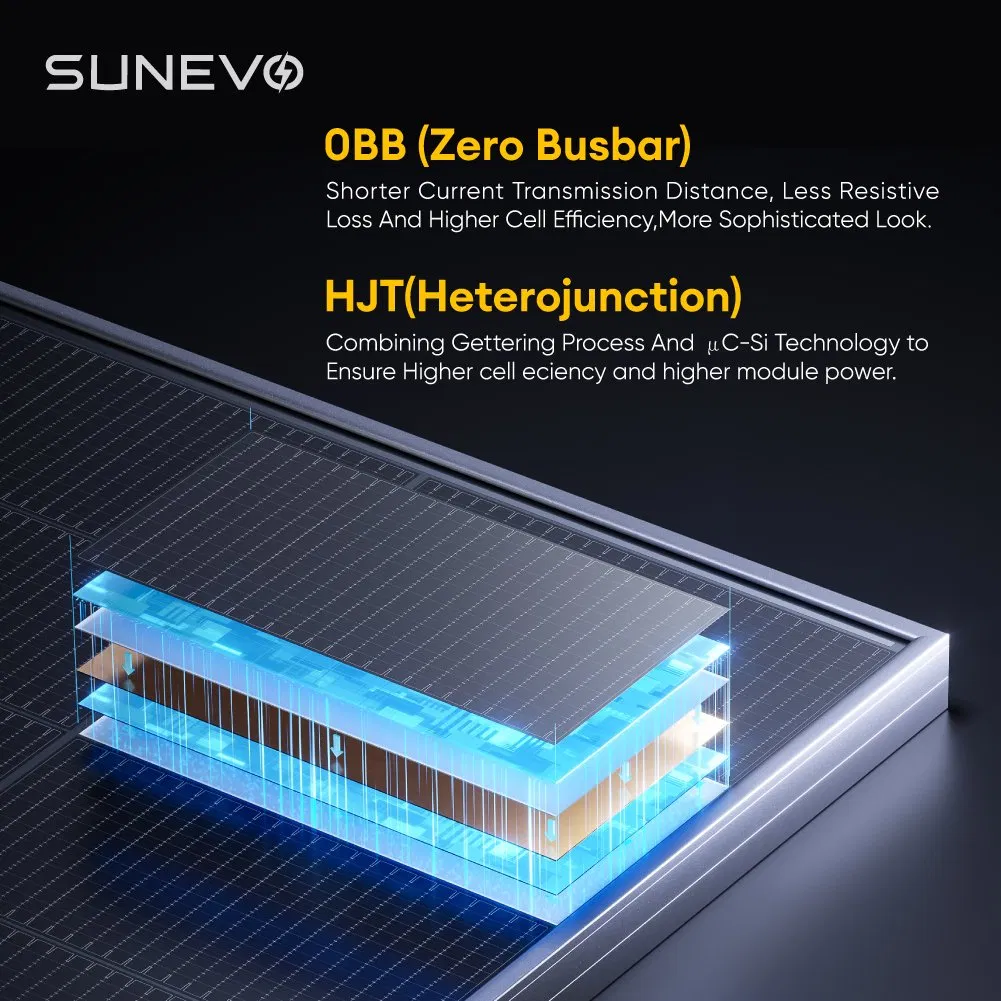

What is the benefit of the N-type HJT cell technology?
N-type Heterojunction (HJT) technology offers a lower temperature coefficient, minimal light-induced degradation (LID), and superior low-light performance, leading to a higher lifetime energy yield and a reliable 30-year linear power warranty performance.
