Sunevo N Type Bc Bifacial 700W 720W 750W 770W 800W 805W Solar Panels with 30 Years Warranty for Industrial Commercial Use

Customization: Available
After-sales Service: Yes
Warranty: 30 Years

Product Description

Basic Info.

Model NO.
Evo B 156cells 770-805W
Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Cell Orientation
156 (6*26)
Junction Box
IP68, 3 Bypass Diodes
Output Cable
4mm2, ±1200mm Length Can Be Customized
Glass
Dual Glass, 2.0 + 2.0mm Coated Semi Tempered Glass
Frame
Anodized Aluminum
Weight
39.8kg±3%
Dimension
2465 * 1303 * 33mm
Packaging
33PCS Per Pallet / 132PCS Per 20'gp / 594PCS Per 40'HQ
Front Side Max Static Loading
5400PA
Hailstone Test
25mm Hailstone at The Speed of 23m/S
Transport Package
Box with Pallets
Specification
2465 * 1303 * 33mm
Origin
China
Production Capacity
5000000000 Watts/Year

Product Description

Bifacial Solar Panels with 30 Years Warranty for Industrial Commercial Use

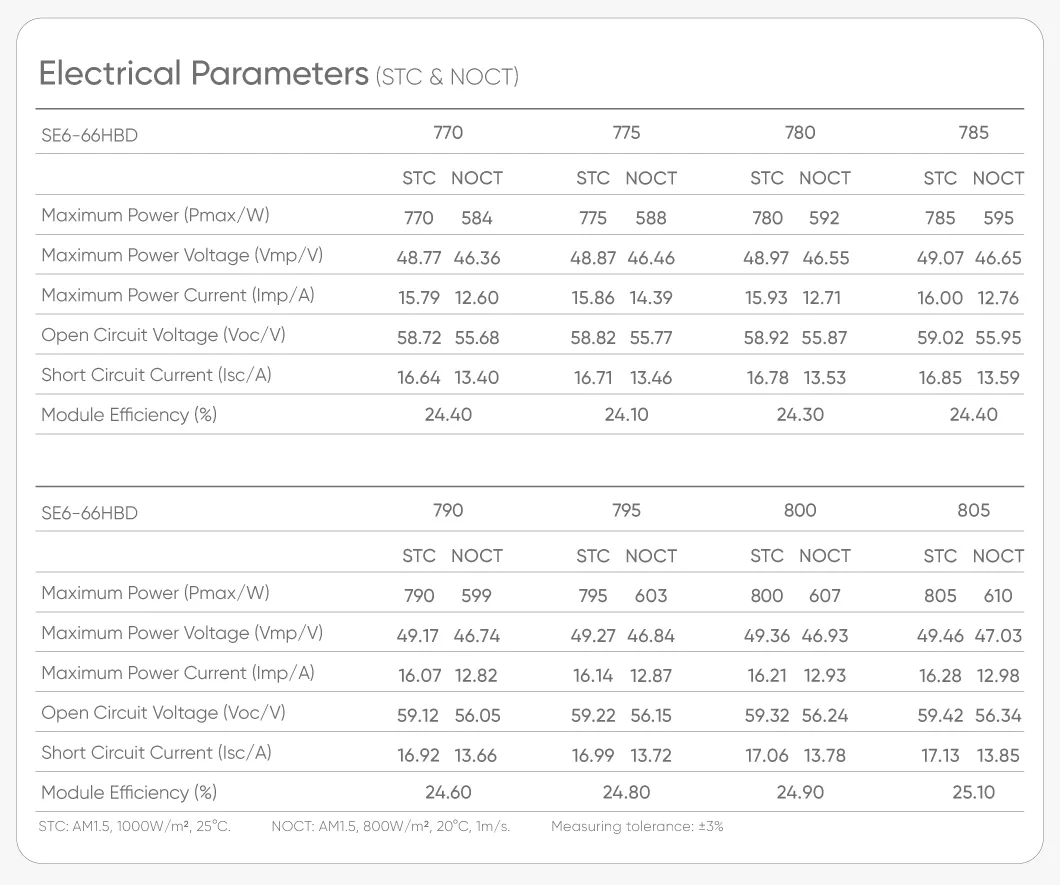

Bifacial Solar Panels details
Bifacial Solar Panels specifications

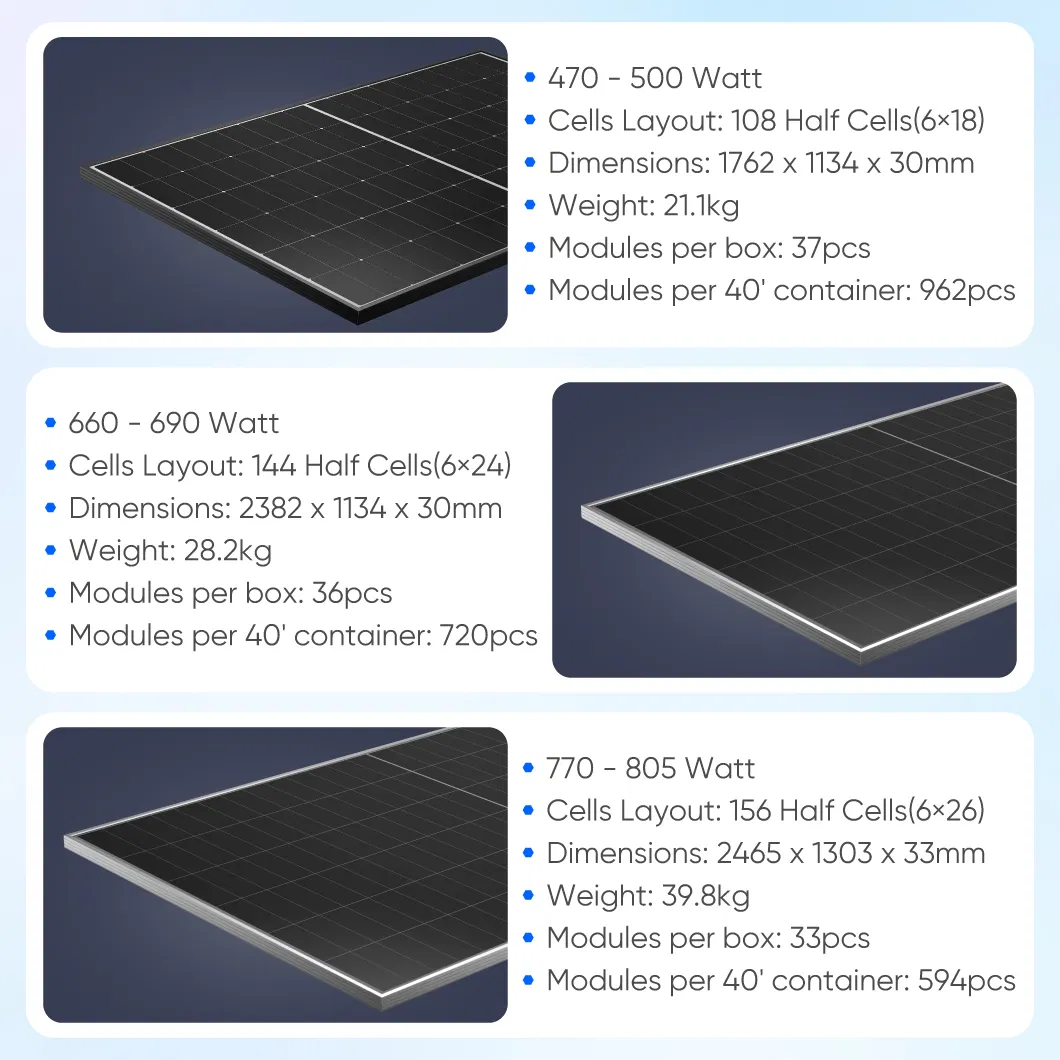

Bifacial Solar Panels metrics

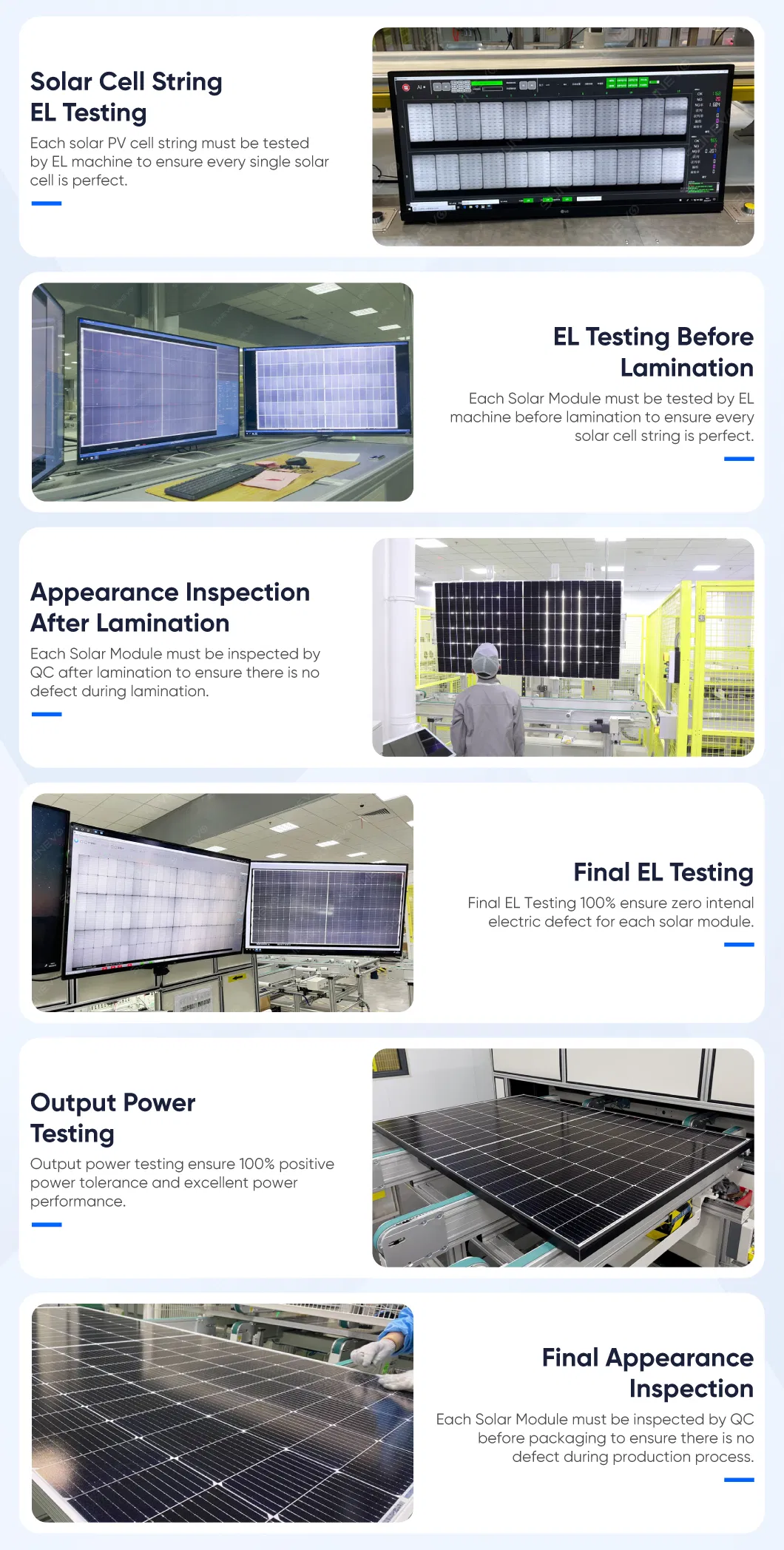

Bifacial Solar Panels engineering drawing

Packaging & Delivery

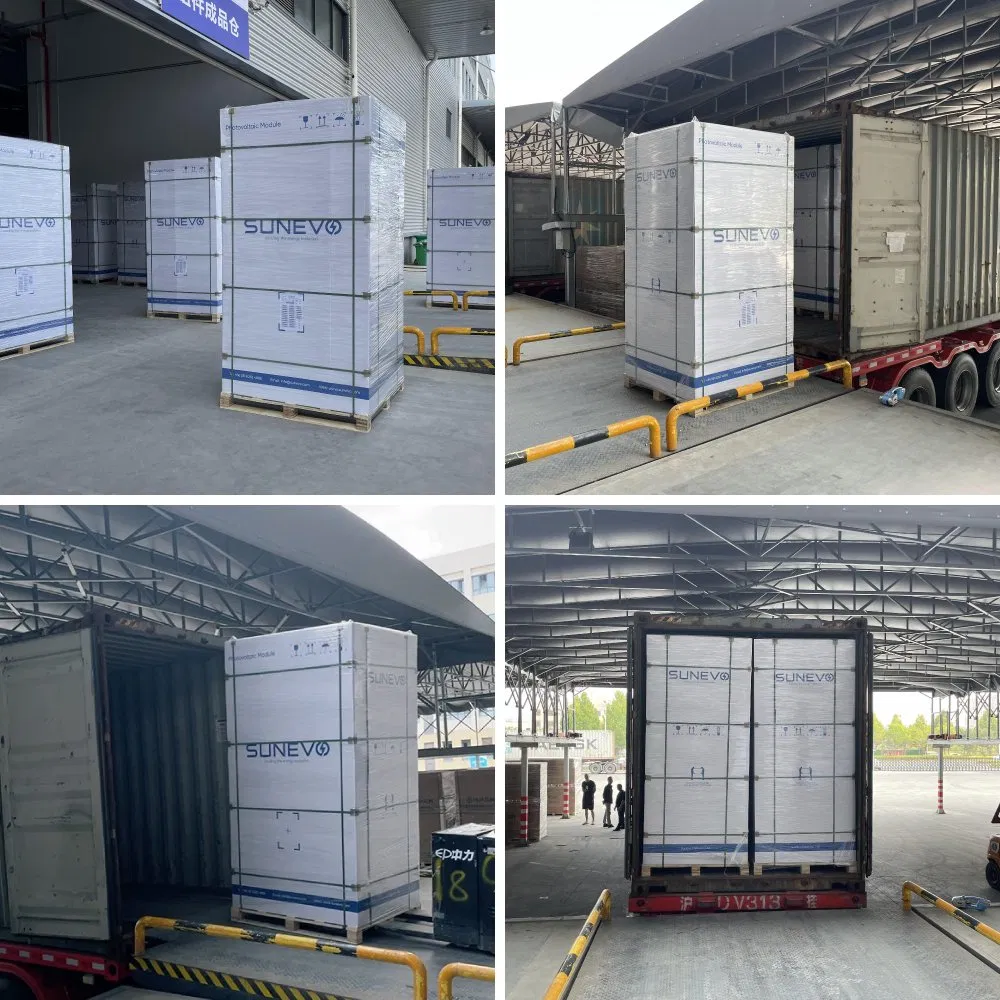

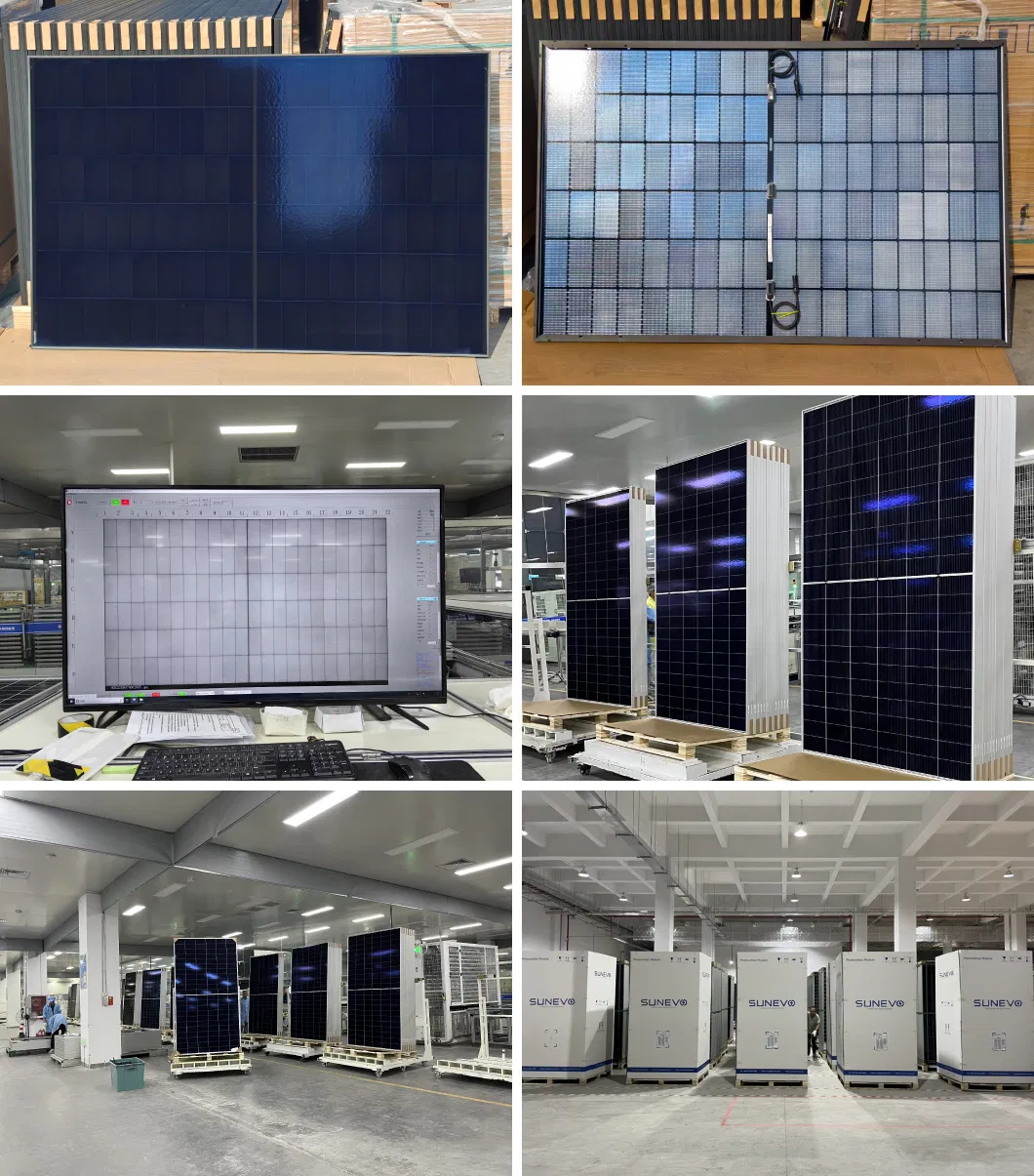

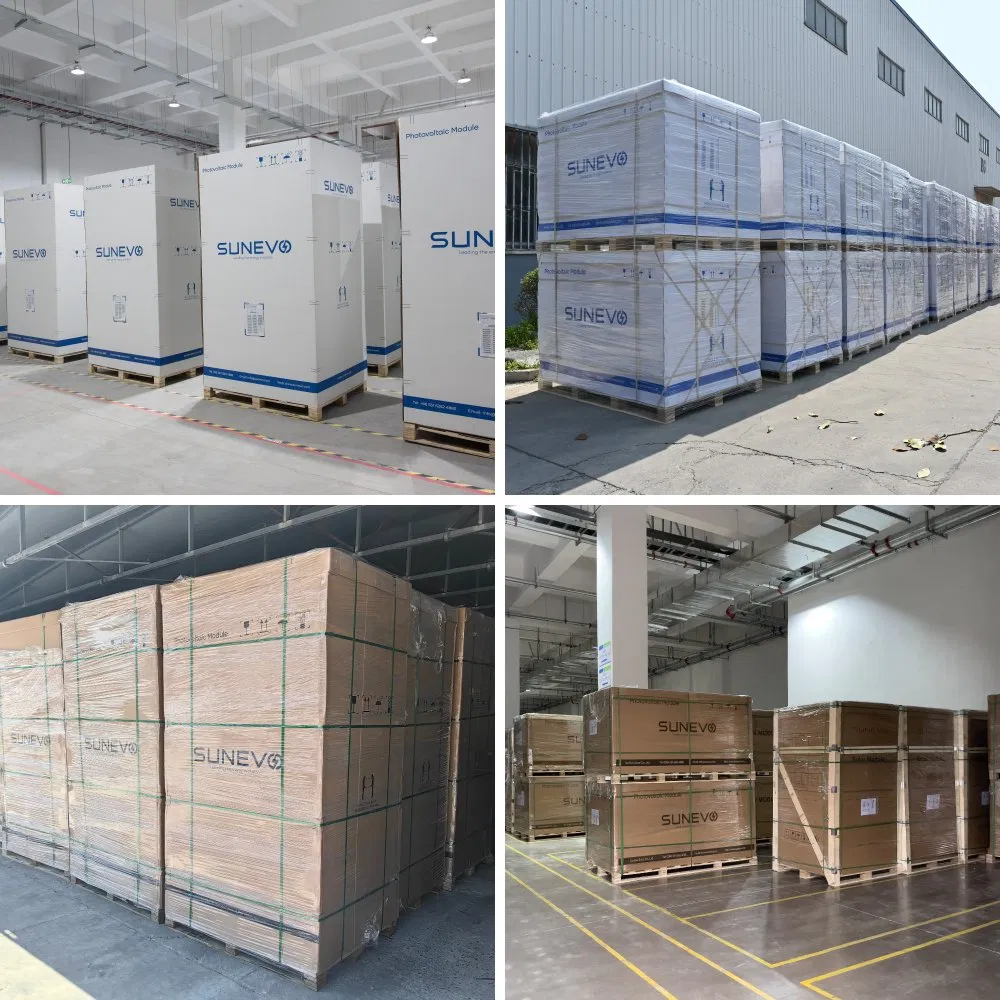

Packaging and Delivery Details

Our Factory

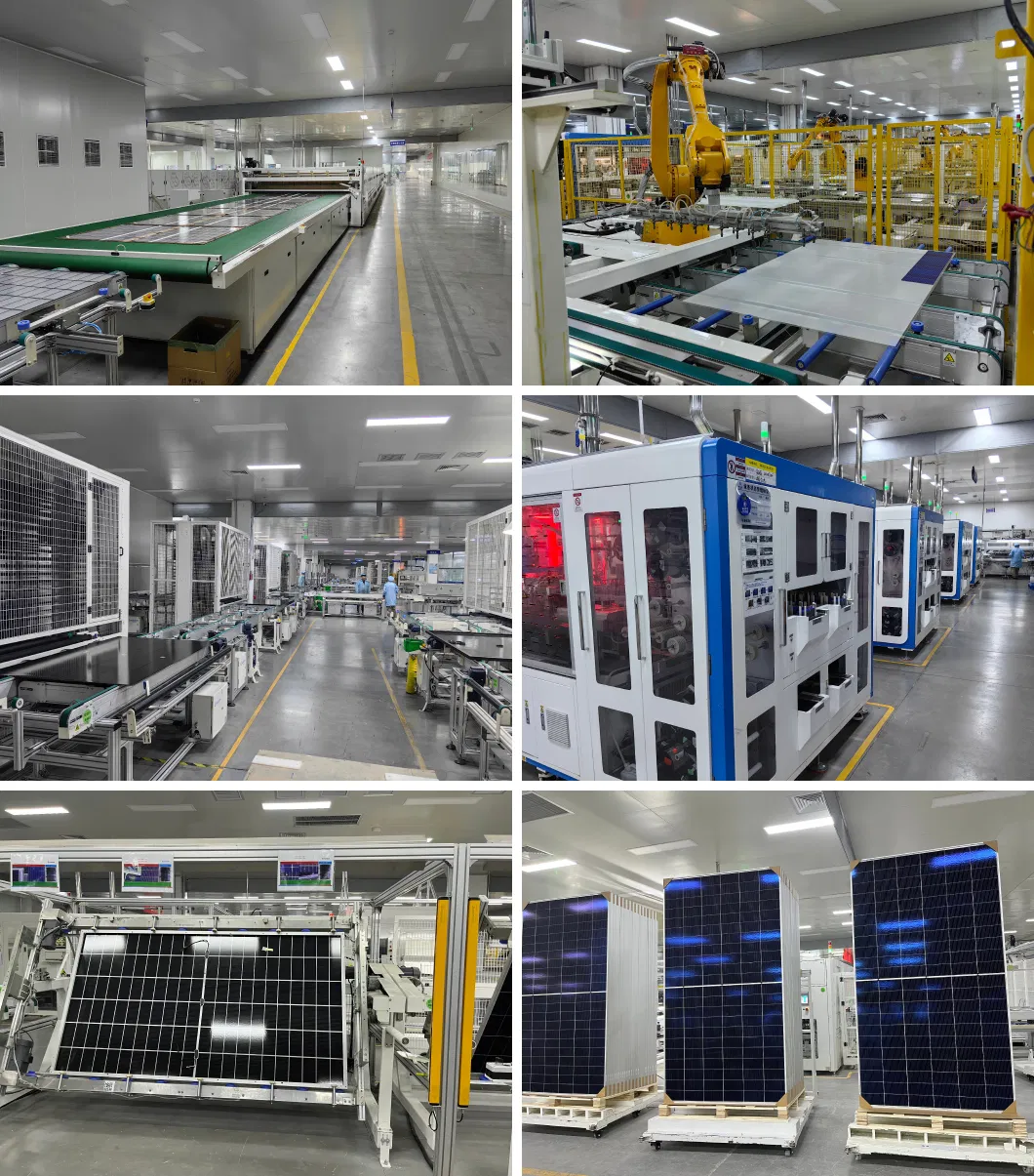

Factory Warehouse

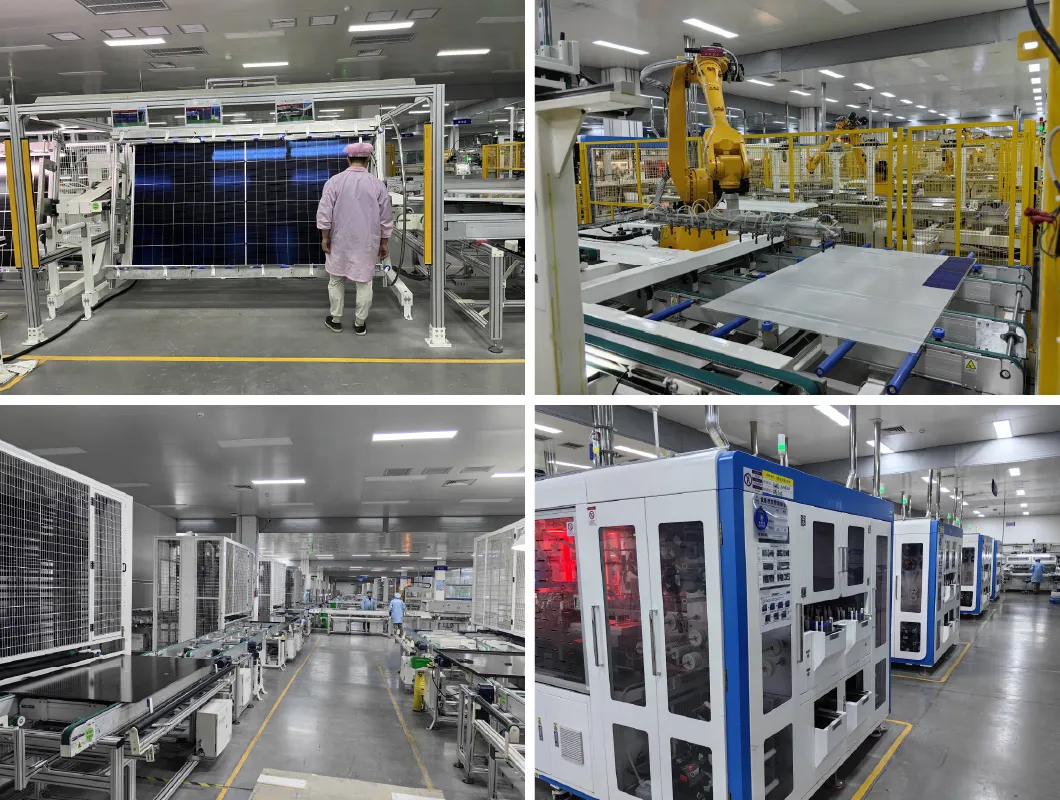

Factory Production Line

Certifications

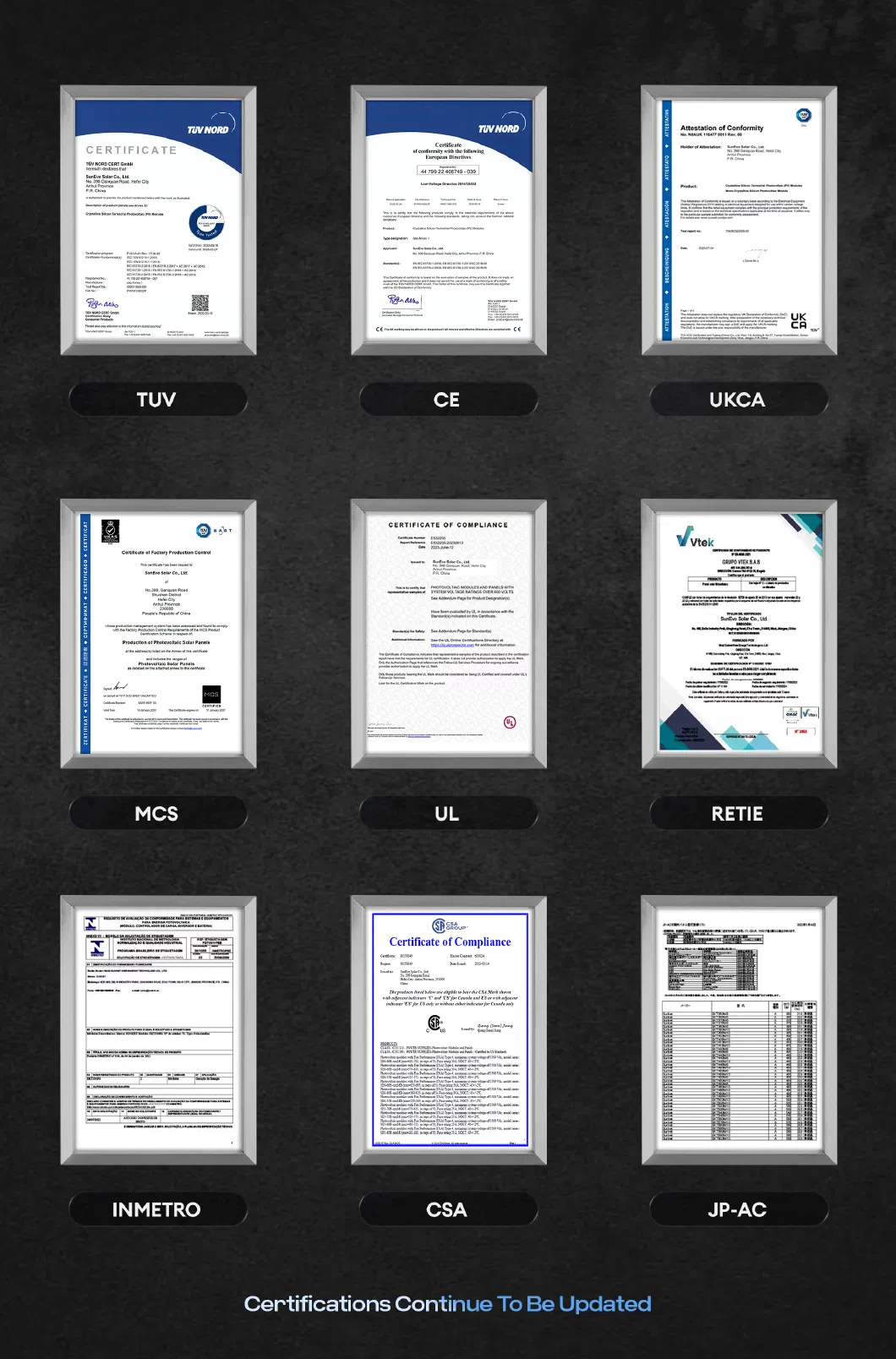

Certifications ISO TUV CE CB

Customized Services

Customized Solar Panel Services

Project Case

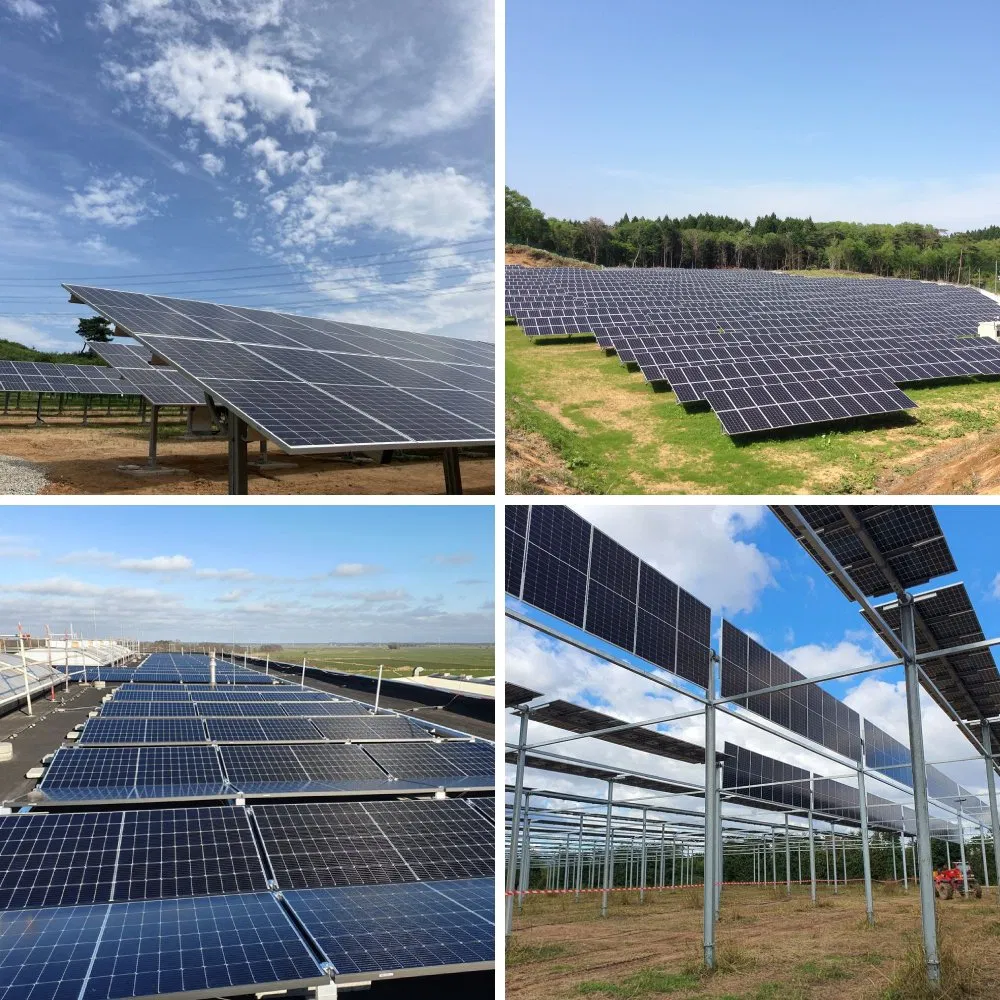

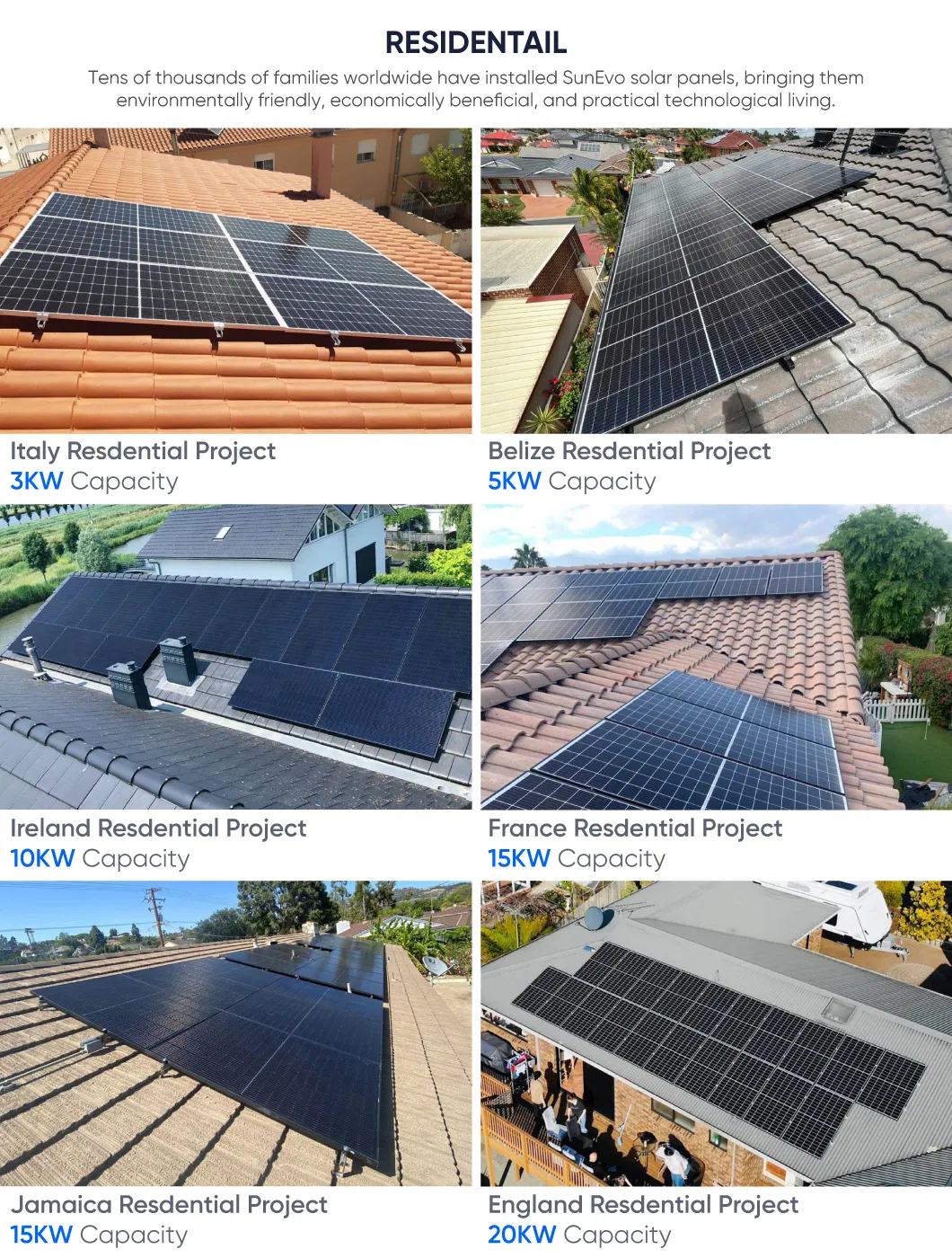

Solar Project Installation Case 1

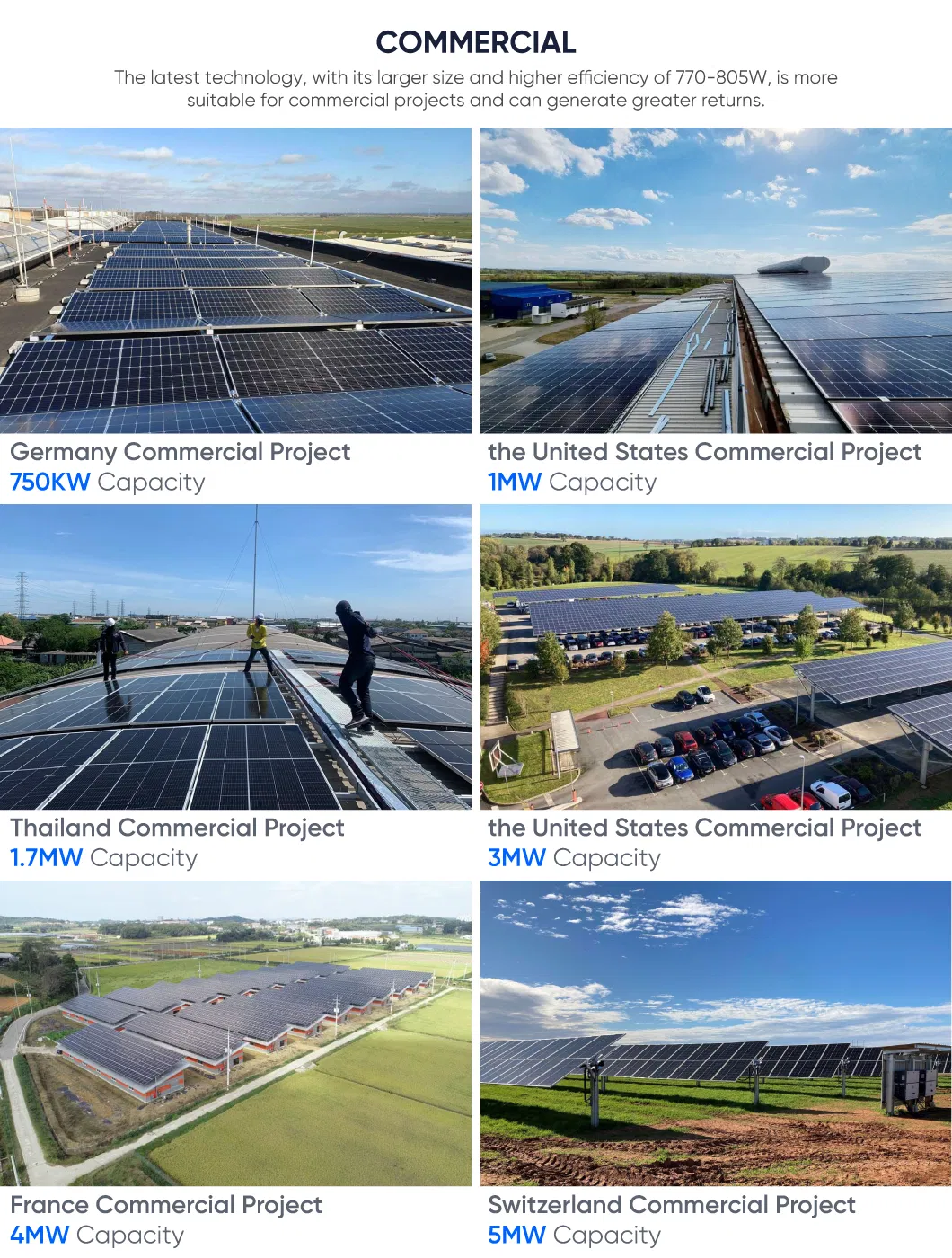

Solar Project Installation Case 2

Frequently Asked Questions

What are the power outputs available for this solar panel?
This solar panel series offers high power output ratings ranging from 770W up to 805W, using 156 cells to deliver maximum efficiency.
What type of solar cell technology is used?
The panels are manufactured using advanced Monocrystalline Silicon and feature an N-type BC bifacial cell design to enhance sunlight conversion rates.
Are these solar panels suitable for industrial applications?
Yes, these panels are specifically designed and structured for industrial-scale utility projects, offering high load capability and robust power outputs.
What are the physical dimensions and structural details?
Each panel measures 2465 * 1303 * 33mm and weighs 39.8kg. It features a 2.0+2.0mm dual-glass structure with a durable anodized aluminum frame.
How durable are the panels against harsh weather conditions?
They feature a maximum front-side static load capacity of 5400PA and have successfully passed hail tests resisting 25mm hail at speeds of 23m/s.
What certifications do these panels hold?
The solar modules are fully certified with international standards including EST, ISO, CB, CE, and TUV to ensure safe and reliable global operation.
