Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel

Customization: Available
Application: Car Mounted Series
Condition: New

Product Description

📋 Overview

Basic Specifications

Model NO. EFV-L182-280B
Certification EST, ISO, CB, CE
Power Pm 280
Working Current Imp 11.83
Working Voltage Vmp 23.64
Short Circuit Current Isc 12.49
Open Circuit Voltage Voc 28
Working Temperature -40°C - +80°C
Maximum System Voltage 600VDC
Power Tolerance 0/+5 W
Weight 5.07kg
Color White / Black
Front and Back Panel Material Composite Materials / PV Backsheet
J-Box IP68 & 2 Bypass Diodes
Cable 4.0 mm² & 700mm(+/-)
Connector MC4 Compatible
Installation Methods Direct Adhesive / Eyelet Button
Specification 1995*795mm
Trademark E-FREE
Origin China

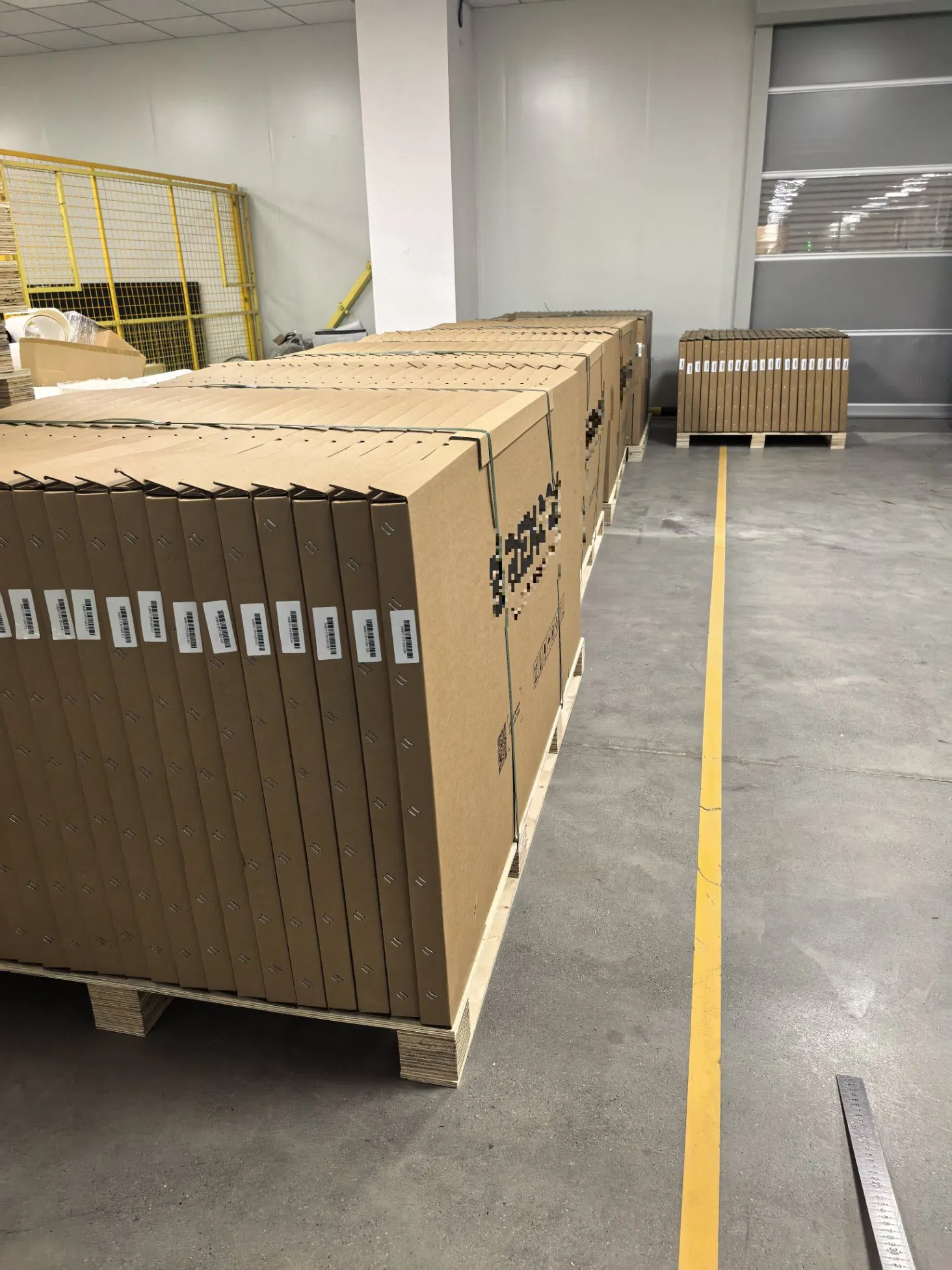

Packaging & Delivery

Package Size 71.20cm * 46.00cm * 0.30cm
Package Gross Weight 1.400kg
Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel
💡 Product Description

Focusing on innovative applications of portable PV & ESS, continuous investments are made in the design of new energy products, technological R&D, and global services. By combining the characteristics and needs of different scenarios, these products and solutions constantly innovate to reshape the relationship between humans and energy. Safe, efficient, intelligent, and stable energy freedom is provided for individuals and commercial users in scenarios such as mobile spaces, sudden power outages, remote areas without electricity, and low-carbon green economy businesses.

Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel

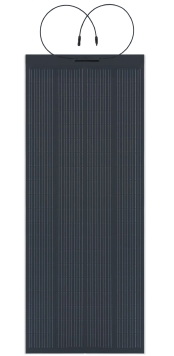

Technical Parameters
Model EFV-L182-280B
Max Power (Pm) 280
Operating Current (Imp) 11.83
Operating Voltage (Vmp) 23.64
Short-circuit Current (Isc) 12.49
Open-circuit Voltage (Voc) 28
Dimensions 1995*795mm
Weight 5.07Kg
Operating Temperature -40℃ - +80℃
Maximum System Voltage 600VDC
Power Tolerance 0/+5 W
Color black
Front/Back Material High-transmittance composite material / PV backsheet
Junction Box IP68 waterproof rating, 2 bypass diodes
Cable 4.0 mm², Length 700mm (+/-)
Connector MC4 compatible

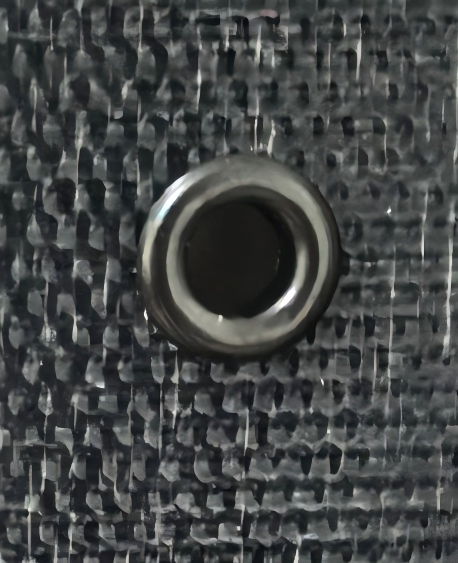

Installation Method Direct adhesive / 6 eyelets
Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel
Efv-L182-280b Anti Scratch Foldable Mobile Energy Generation Component Flexible Solar Panel
FAQ
1. What are the main focus areas of E-FREE?
E-FREE focuses on innovative applications of portable PV and ESS. We provide safe, efficient, intelligent, and stable energy solutions for scenarios such as mobile spaces, sudden power outages, remote areas without electricity, and low-carbon green business.
2. What product series do you offer?
We offer several scenario-based product series:
  • Lightweight & Flexible Module: 2mm thickness, bendable up to 240°, suitable for RVs and balconies.
  • High-efficiency Glass Silicon Module: Compatible with N-type/BC high-efficiency cell technologies, for off-grid power supply and IoT.

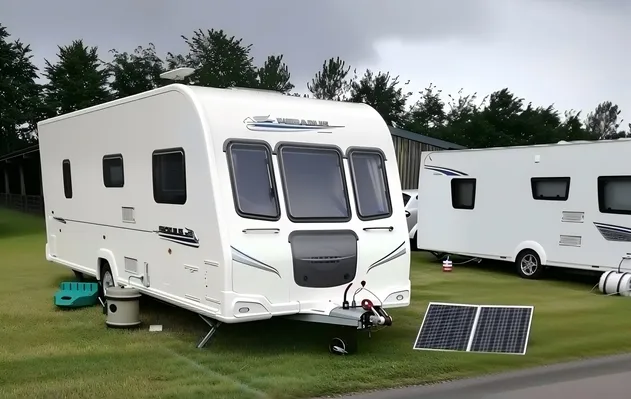

  • Folding Module: Lightweight design, easy to unfold, ideal for outdoor camping and emergency power.

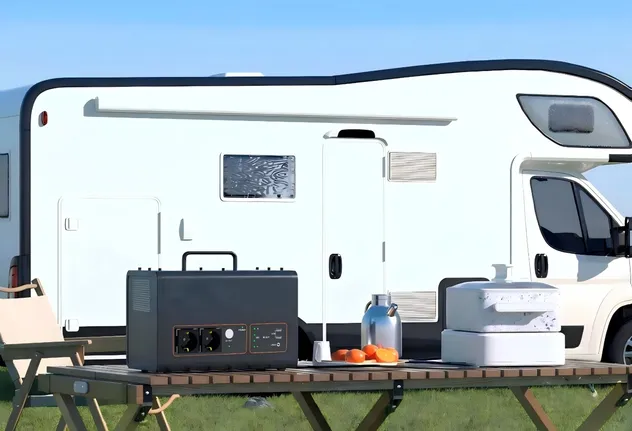

  • Portable Solar Power System: All-in-one portable power station.
  • Solar Home System: Compact solar kit for basic household needs.

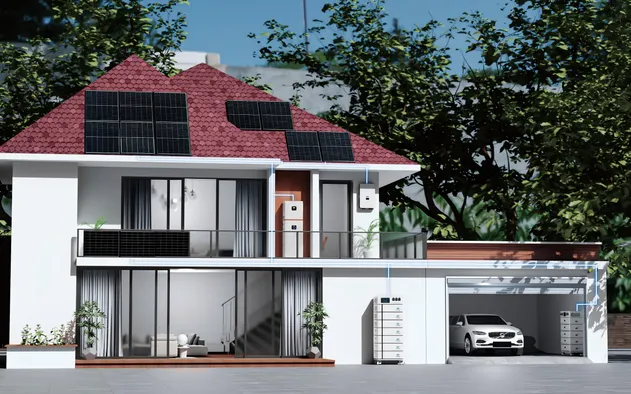

  • PV&ESS Integrated System: For residential and commercial hybrid energy systems.
3. What are the key advantages of the Lightweight & Flexible Module?
  • Ultra-thin (2mm) and lightweight (<3kg/m²)
  • Flexible: bendable up to 240° for curved surfaces
  • Quick adhesive installation: no drilling, no leakage risk
  • High weather resistance: IP65 waterproof, dual anti-impact design
  • Glass-free and highly customizable in size
4. Which cell technologies do your high-efficiency silicon modules support?
Our high-efficiency silicon modules support N-type high-efficiency cells, Topcon, and BC (back contact) technologies, offering high light transmission and high backside reflectance for high performance power generation.
5. What is your PV&ESS Integrated System?
This is a hybrid PV & ESS integrated system that combines high-efficiency photovoltaic modules, high-efficiency inverters, and stackable LiFePO4 batteries. It is designed for residential and light commercial use, offering seamless solar-grid-battery integration, backup power during outages, and smart energy management.
6. Do you support product customisation?
Yes. We support ODM services for sizing, color configurations, output power adjustments, operating voltage settings, connector types, and more to suit specific application demands.
