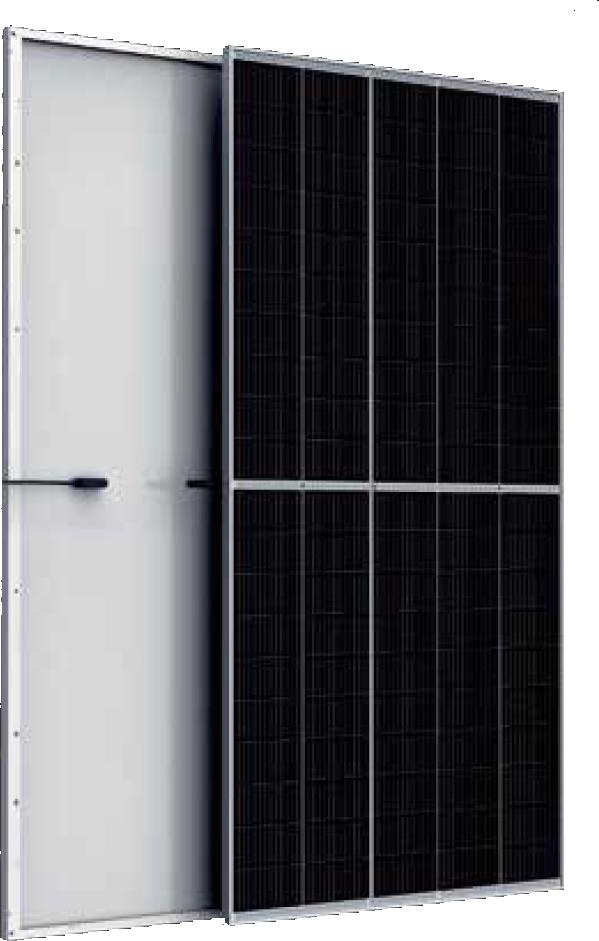

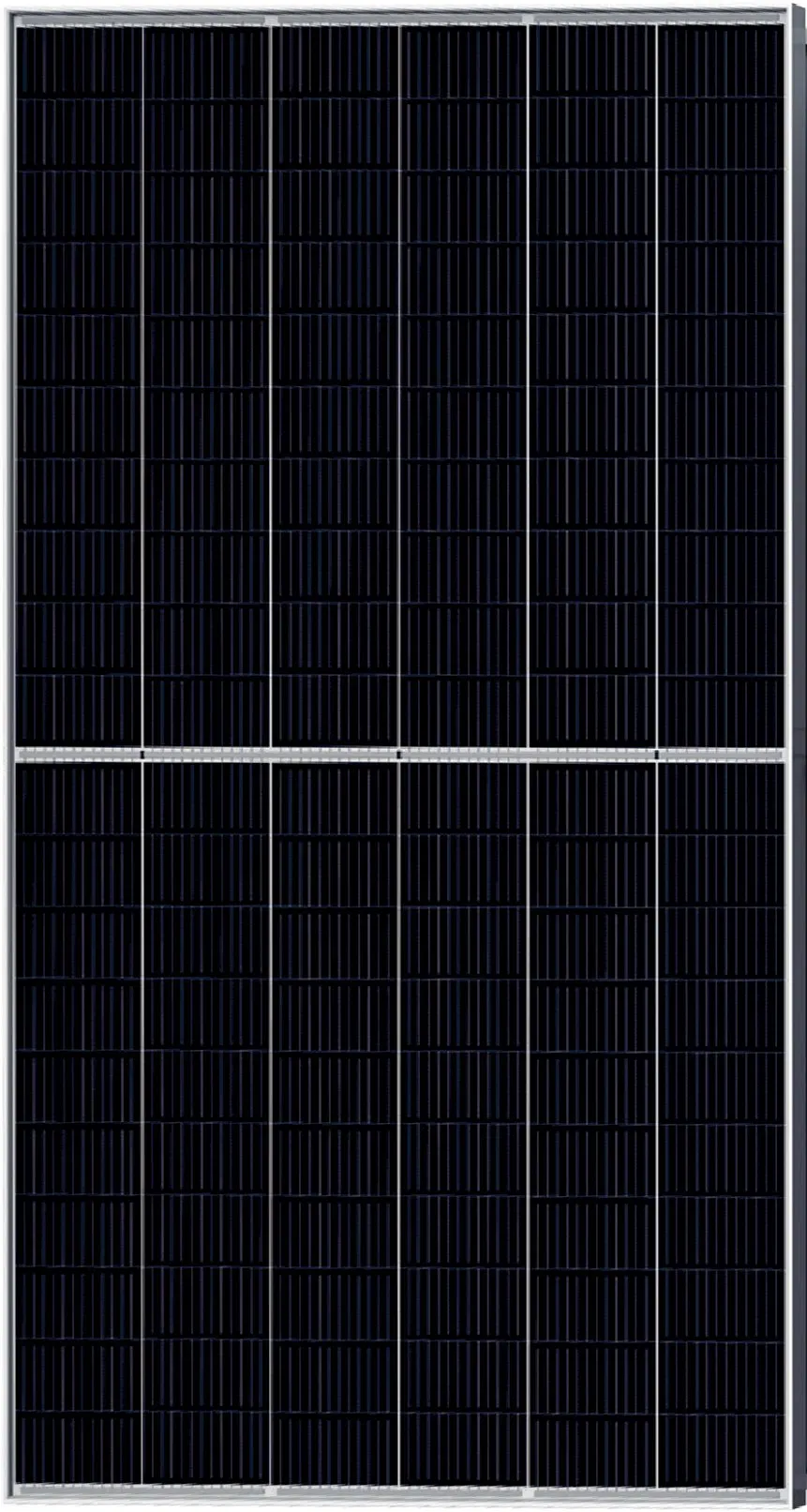

670W 210mm Bifacial Series 132 Cell Half Cut Technology Solar Panel

1 / 5

670W 210mm Bifacial Series 132 Cell Half Cut Technology Solar Panel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. 640-670W

Application Industrial

Condition New

Certification ISO, CE

Material Monocrystalline Silicon

Solar Cells Monocrystalline

Cell Orientation 210X105 mm 132PCS

Module Dimensions 2384X1303X35 mm

Weight 38.7 Kg

Front Glass Ar Coated Heat Strengthened Glass

Encapsulant Material Poe/EVA

Back Glass Heat Strengthened Glass (White Grid Glass)

Frame 35 mm Anodized Aluminium Alloy

Junction Box IP 68 Rated

Cables Cable Length 350 mm or Customized Length

Transport Package Container

Specification 2384*1303*35mm

Origin China

HS Code 85414300

Production Capacity 5gw/Years

Product Description

High Customer Value

Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance Of System) cost, shorter payback time
Designed for compatibility with existing mainstream system components
Lower guaranteed first year and annual degradation
Higher return on Investment

High Power Up to 670W

Large area cells based on 210 mm silicon wafers and half-cut cell technology
Up to 21.6% module efficiency with high density interconnect technology
Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection

High Reliability

Minimized micro-cracks with innovative non-destructive cutting technology
Ensured PID resistance through cell process and module material control
Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

High Energy Yield

Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications
The unique design provides optimized energy production under inter-row shading conditions

Packaging Specifications

Modules per box	31pcs
Modules per 40' container	558pcs
Weight	38.7kg

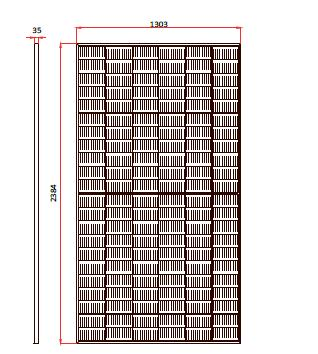

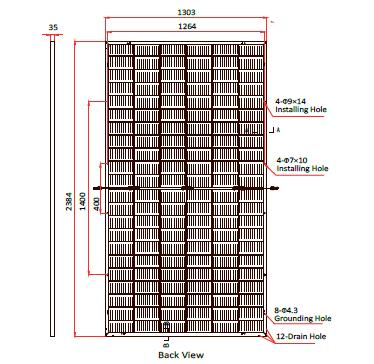

Technical Specifications & Layout

Frequently Asked Questions

1. What is the power range and efficiency of these solar modules?

These monocrystalline silicon solar modules offer a high power output ranging from 640W to 670W, achieving a maximum module efficiency of up to 21.6% due to high-density interconnect technology.

2. What cell technology is utilized in these panels?

The panels use large-area cells based on 210 mm monocrystalline silicon wafers paired with advanced half-cut cell and multi-busbar technology for superior light absorption and reduced series resistance.

3. How reliable are these solar panels under extreme weather conditions?

They are designed for high reliability, resisting harsh environments like salt, ammonia, sand, high temperatures, and humidity. They also support a mechanical performance of up to 5400 Pa positive load (snow/wind) and 2400 Pa negative load.

4. How are the modules packaged and shipped?

Each box contains 31 modules, and a standard 40' container holds a total of 558 modules. The weight per module is 38.7 kg, and they are shipped securely in container packaging.

5. What are the key build specifications and materials?

The modules feature AR-coated heat-strengthened front glass, white grid heat-strengthened back glass, a 35 mm anodized aluminum alloy frame, and a highly durable IP 68 rated junction box.

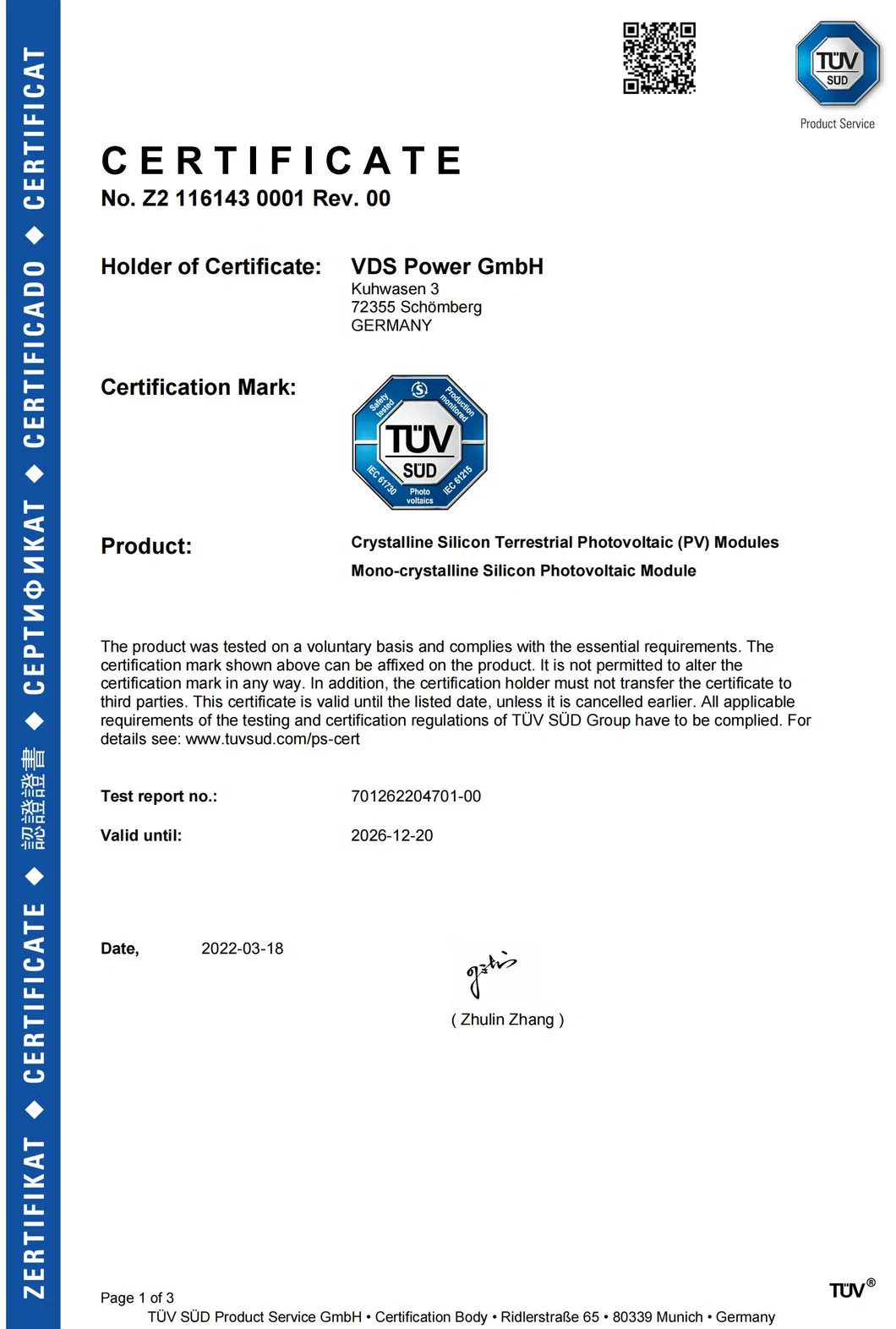

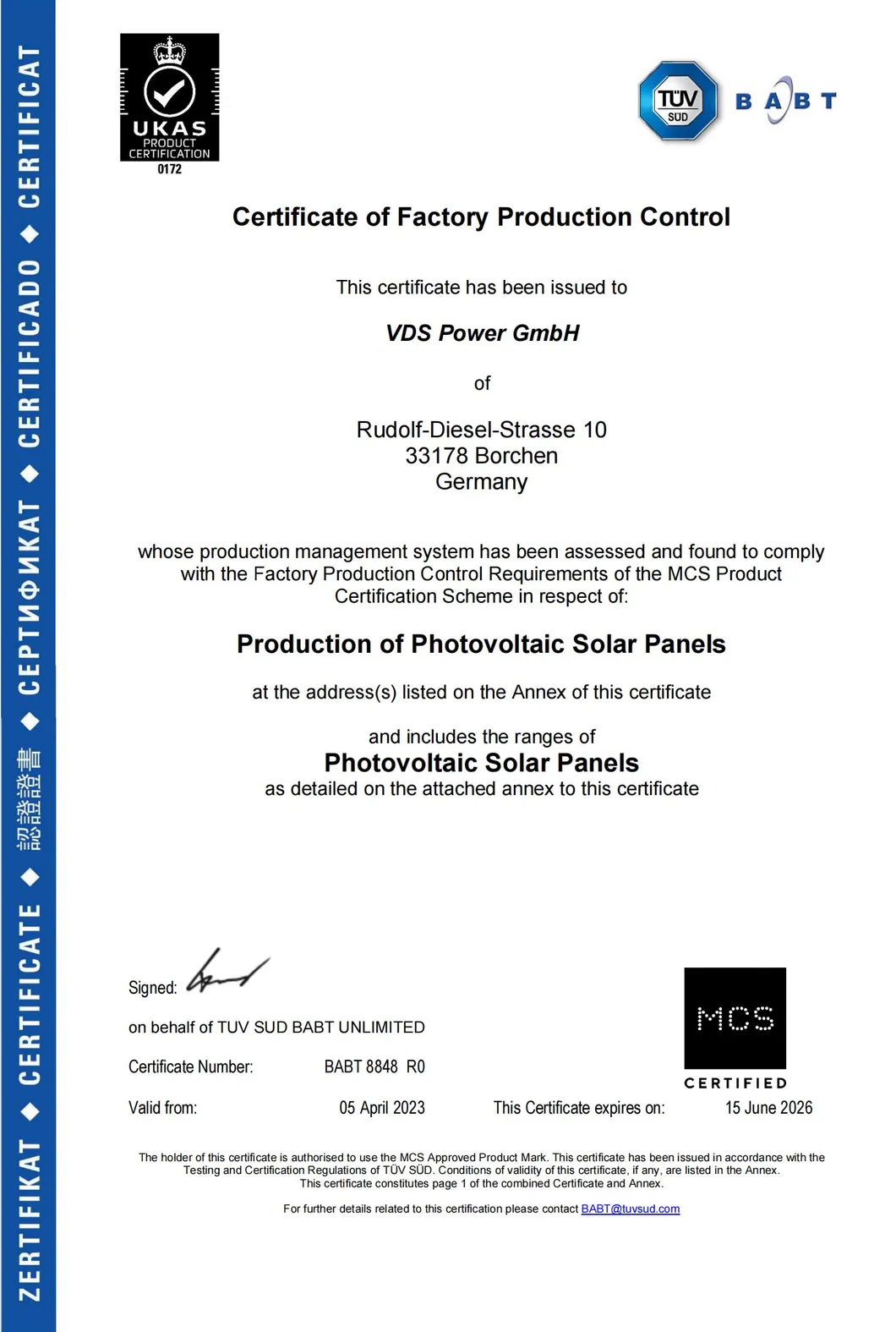

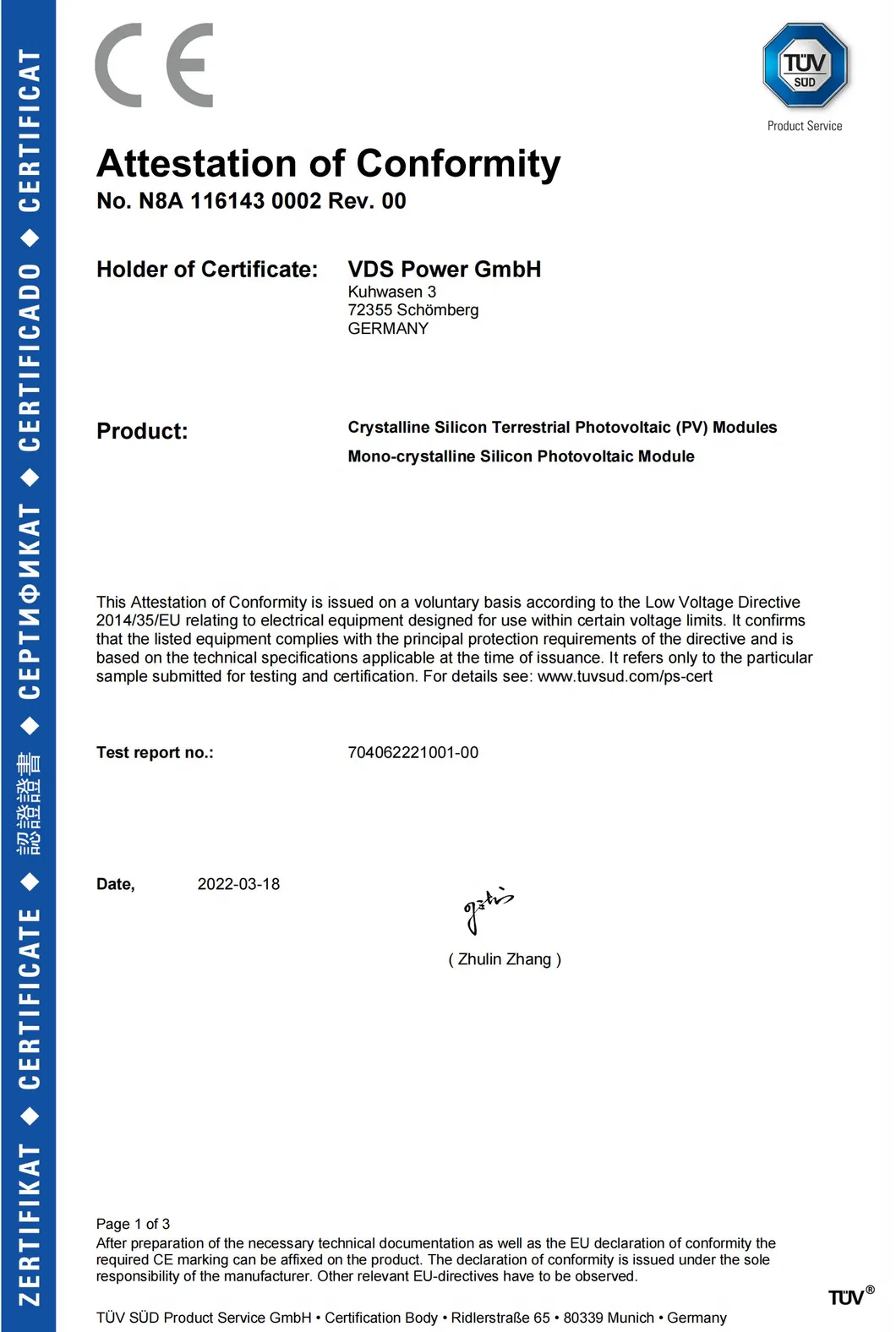

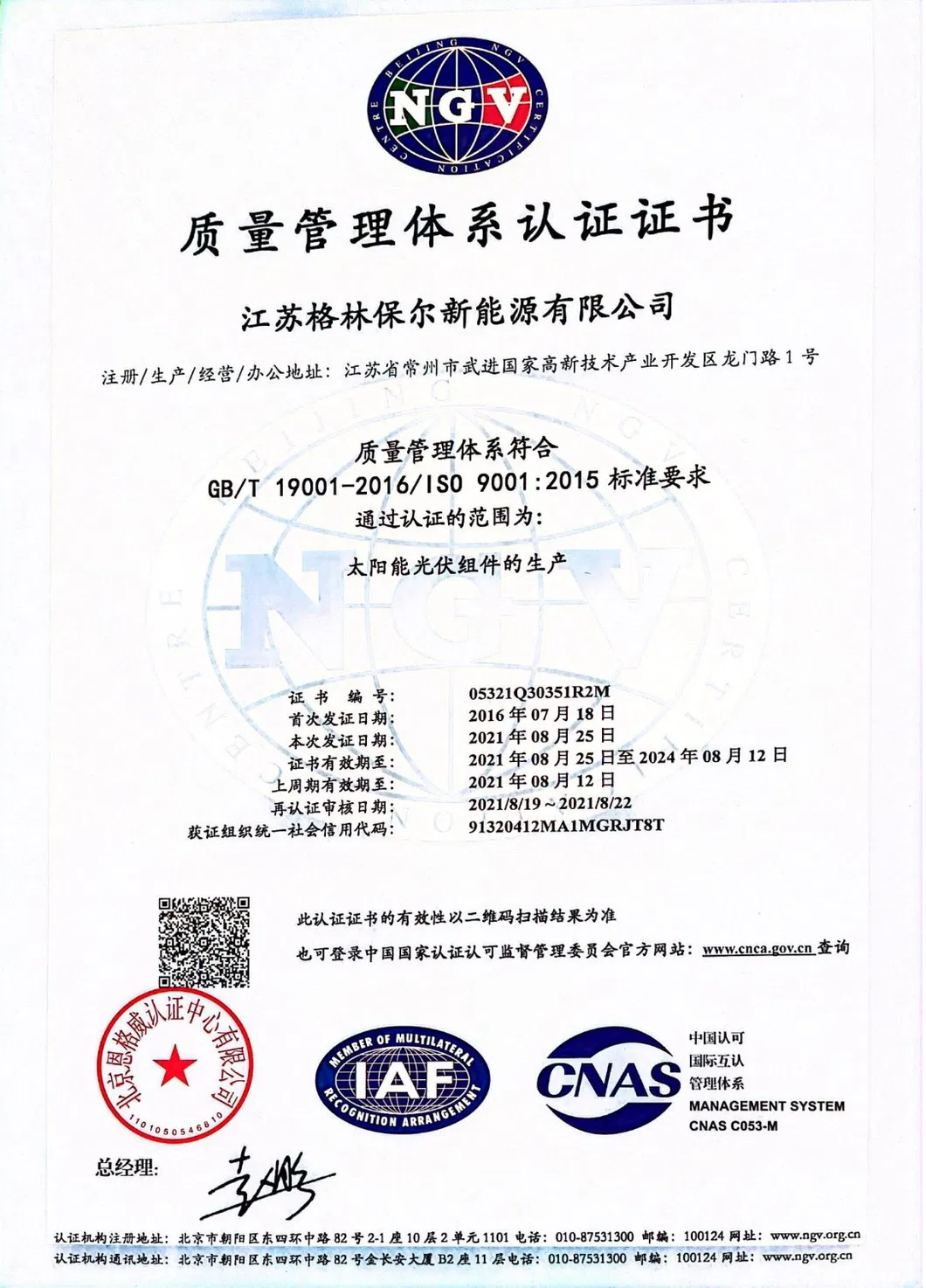

6. What certifications do these solar panels hold?

These solar modules are fully certified under ISO and CE international standards, ensuring safety, environmental compliance, and high manufacturing quality.
